Kogan SMARTERHOME KARMDF200BA User manual

KOGAN SMARTERHOME™ 200ML
SMART AROMA DIFFUSER
(KARMDF200BA & KARMDF200WA)

Only use this appliance as directed within this guide. Failure to follow these instructions may
result in damage to the product or personal injury
•Do not attempt to modify, disassemble or repair the product. If the product needs to be
repaired, contact Kogan.com
•Do not twist, stretch or place heavy pressure on the power cable. Keep the power cable
clear of hot surfaces and heat sources. If the power cable is damaged or the socket is
loose, stop using the device. Do not attempt to repair the power cable or adaptor,
contact Kogan.com.
•If there is an abnormal odour, noise or mist generation, the product or the adaptor may
have a fault. Remove the adaptor from the power socket, discontinue use of the device
and contact Kogan.com for further assistance.
•Do not use the appliance in damp or wet areas such as a bathroom, dressing room,
greenhouse, etc.
•To ensure clean and healthy operation, drain the water out of the tank and wipe it dry
with a clean cloth after every use.
•Essential oils may cause staining; use a dishcloth to wipe up spills immediately.
•Do not fill the unit with water directly from a tap. Always use a measuring cup to add
water into the water tank. Only use tap water; purified water is not suitable for use.
•Do not allow the spray nozzle spray directly on furniture, clothes or walls.
•Avoid exposing the appliance to direct sunlight, air conditioners, fans or high
temperatures.
•Ensure the unit is always placed on a stable, level surface. Do not place the diffuser on
other appliances, such as TVs or audio equipment.
•Do not block the mist outlet. This may cause damage to the electronics of the
appliance from internal water build-up.
•To avoid damaging the ultrasonic plate, the product should be switched off for 60
minutes after operating for an extended period.
•Do not move the appliance whilst it is operating.
•Do not touch the appliance with wet hands to reduce the risk of electric shock.
•Children aged less than 3 years to be kept away from the device unless continuously
supervised.
•Not for use or operation by children aged less than 8 years.
•Children shall not play with the appliance. This is not a toy.
•Cleaning and user maintenance not to be performed by children.
SAFETY & WARNINGS

A
Mist outlet
D
Water tank
G
Water outlet
B
Upper cover
E
Air outlet
H
DC socket
C
Operation button
F
Base
I
Air intake
OVERVIEW

1. Place the product on a flat, stable surface, and remove the upper cover.
2. Connect the AC adaptor to the DC jack on the base.
ASSEMBLY

3. Using a measuring cup, fill the water tank with tap water up to the max water level
line. Do not overfill or use hot water. Never fill the water tank during operation.
Drop essential oil into the water tank vertically (around 0.1ml-0.15ml per 100ml of
water).
4. Replace the upper cover onto the base.
5. Connect the AC adaptor to a household power socket. The device is now ready for
use.
Note:
The upper cover must be in place before the appliance can be operated.

Using the Aroma Diffuser
•To u c h the button once, and the diffuser will commence operation with mist and warm
light until the water tank is empty.
•Touch the button a second time, and the diffuser will enter Intermittent Mode. In this
mode, the diffuser will operate at 30 second intervals until the water tank is empty.
•Touch the button a third time and the appliance will power off.
•At any time, press and hold the button for 2 seconds to turn off the mist and light
functions.
OPERATION

Install App
Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS).
Register
If you do not have a Kogan SmarterHome™ account, register or sign in with a verification
code sent by SMS.
To register:
1. Tap to enter registration page.
2. The system automatically recognises your country/area. You can also select your
country code manually. Enter your email address and tap ‘Next.’
3. Alternatively, you can select ‘Register by mobile number’ and enter the verification
code sent to you by SMS.
4. Create a profile on the next page to define your location and room.
CONNECT TO SMARTERHOME™ APP

Set device in pairing mode
When the device is first turned on, it may automatically enter pairing mode (the warm light
will be quickly flashing).
If not automatically in pairing mode when powered on, you can manually set the device in
pairing mode by holding the button for 3 seconds until the warm light flashes quickly.
Add device through network (standard pairing)

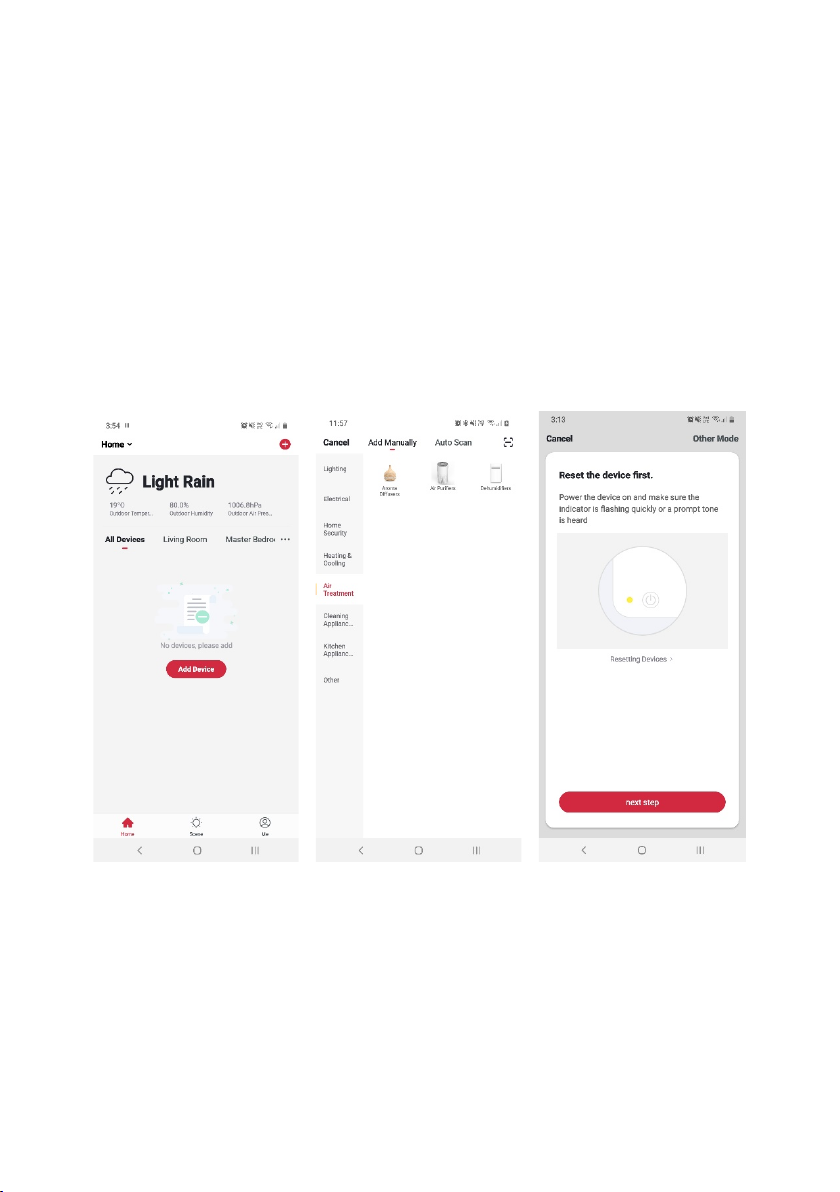

5. Once registered, tap “+” in the upper right corner of the app’s home page to add a
new device through the network.
6. Select the product type from the list of options in the app (Air Treatment > Aroma
Diffusers).
7. Ensure that the device is in pairing mode, with the warm light flashing, and tap
“Confirm light is rapidly flashing”.

8. Upon successfully confirming pairing mode, enter your Wi-Fi details. It is important
that your SmarterHome™ device and the app are connected to the same Wi-Fi
network during setup.
9. The device will commence the pairing process and connect to the app. Ensure your
Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until
connection is complete.
10. After successfully being added, you will have the option to rename the device and
assign it to a location. It will now be listed on the app’s home page. Tap the device
listing to enter its control page.
Notes:
•The device and the app have to use the same Wi-Fi network.
•The device is only compatible with 2.4Ghz networks.

If the device is not pairing after following the previous steps, try connecting via AP Mode:
Set device in pairing mode (AP Mode)
Set the device in pairing mode by holding the button for 3 seconds until the warm light
flashes quickly, then hold the button for another 3 seconds. The light will now flash slowly.
Using AP Mode to add device (AP Mode)

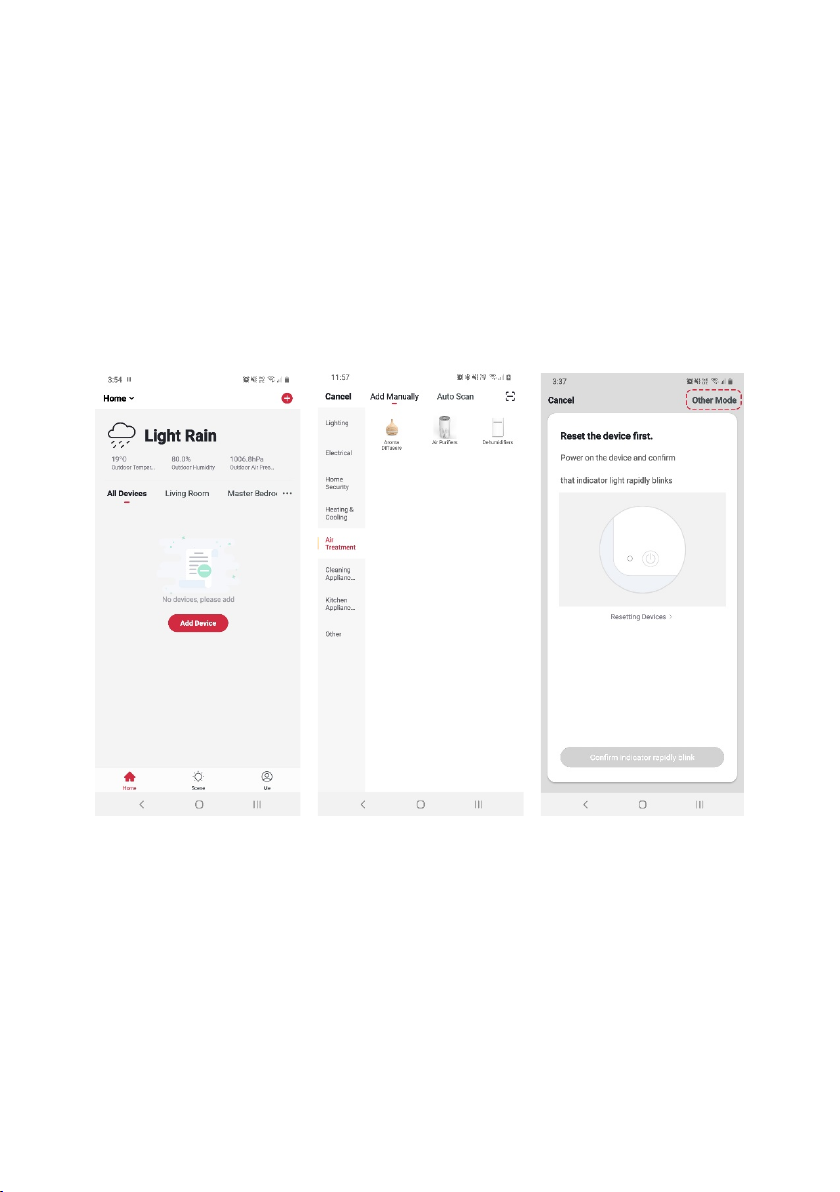

1. Once registered, tap “+” in the upper right corner of the app’s home page to add a
new device through the network.
2. Select the product type from the list of options in the app (Air Treatment > Aroma
Diffusers), and then select “Other Mode”from the top-right corner when asked to
reset the device.

3. Select “AP Mode”for the set-up type.
4. Ensure that the device is in pairing mode, with the indicator light flashing slowly,
and tap “Confirm light is slowly flashing”.
5. Enter your Wi-Fi details. It is important that your SmarterHome™ device and the
app are connected to the same Wi-Fi network during setup.

6. Follow the in-app prompts to continue AP Mode connection, which will pair your
mobile phone to the device’s Wi-Fi hotspot to ensure a connection.
7. The device will commence the pairing process and connect to the app. Ensure your
Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until
connection is complete.
8. After successfully being added, you will have the option to rename the device and
assign it to a location. It will now be listed on the app’s home page. Tap the device
listing to enter its control page.
Notes:
•The device and the app have to use the same Wi-Fi network.
•
The device is only compatible with 2.4Ghz networks.
Note:
If the Wi-Fi hotspot does not appear on your phone in the list of available
networks, your device may not be set in AP Pairing Mode correctly. Try repeating
the steps outlined above to ensure your device is ready for connection.

Adding “SmarterHome” to the Google Home app
1. From the home page of the Google Home app, select the “+” icon to access the
‘Add and manage’ page.
2. Select ‘Set up device’, then under the Works with Google banner, select ‘Have
something already set up?’

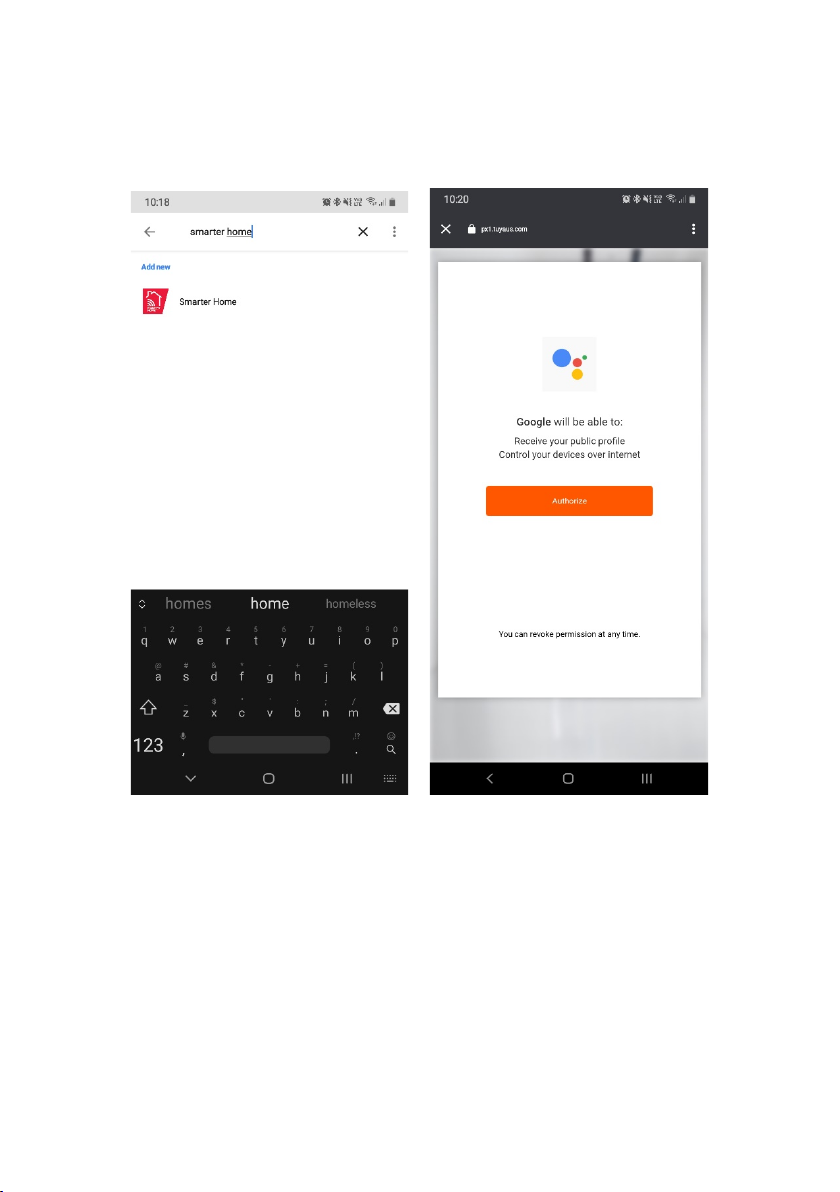

3. Select the search bar and type ‘Smarter Home’ to locate the Kogan
SmarterHome™ service.
GOOGLE HOME CONTROL
Note:
You will need to have set up a Google Home account prior to linking your
Kogan SmarterHome™ device.

4. Tap ‘Authorise’ to grant Google permission to access the SmarterHome™ app and
your devices.
5. From here, you will be prompted to sign into your SmarterHome™ account using
either your email or mobile phone number, depending on which method you used
to register your account.

6. Once connected, the app will display any compatible devices linked to your
SmarterHome™ account. From here you can assign them to rooms and set up any
routines.
7. Tap on any of the devices to view a list of available commands.
Note:
Please note that Google Home can only control the base/core functions of any
compatible SmarterHome™ devices. To make full use of this product’s smart
functionality, please use the Kogan SmarterHome™ app.

Adding “SmarterHome” to the Alexa app
8. From the home page of the Alexa app, select the “” icon in the top-right and
select Skills & Games from the sidebar.
9. Select the search bar and type ‘Smarter Home’ to locate the Kogan
SmarterHome™ skill.
AMAZON ALEXA CONTROL
Note:
You will need to have set up an Alexa account prior to linking your Kogan
SmarterHome™ device.

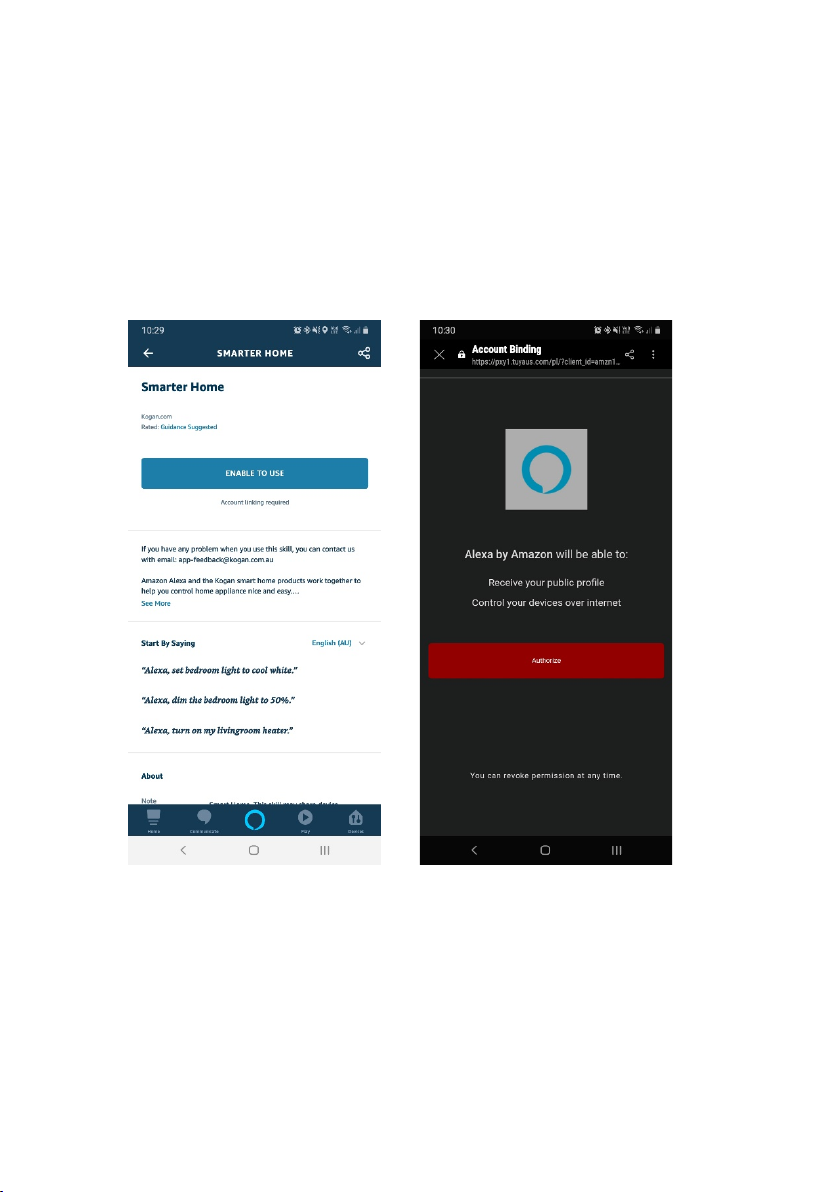

10. Tap ‘Enable to Use’ to add the Kogan SmarterHome™ skill to Alexa.
11. From here, you will be prompted to sign into your SmarterHome™ account using
either your email or mobile phone number, depending on which method you used
to register your account.
12. Tap ‘Authorise’ to grant Alexa permission to access the SmarterHome™ app and
your devices.

13. Once connected, the app will perform a search and display the devices linked to
your SmarterHome™ account.
14. When your devices have successfully connected to the Alexa app, you will be able
to control your Kogan SmarterHome™ devices via Alexa’s voice commands.
Note:
Please note that Alexa can only control the base/core functions of any compatible
SmarterHome™ devices. To make full use of this product’s smart functionality,
please use the Kogan SmarterHome™ app.

After using 5-6 times or for 3-5 days, clean the product as outlined below:
1. Unplug the unit from the power supply and remove the cover.
2. Pour out any remaining water out from the "DRAIN SIDE” of the water tank.
3. Add some warm water into the tank and mix with a neutral detergent, then wash
with a cleaning cloth.
4. If dirt is noted in the air outlet, remove the container cover and clean it.
5. Never use acids, enzymes or harsh detergents, as this may present the risk of
poisonous gas being emitted or damage to the product.
Accidental leakage
In the event of the unit being knocked over or tipped during usage, follow the instructions as
below:
1. Unplug the unit and remove the cover.
2. Pour out any remaining water from the water tank.
3. Shake the unit gently to drain any water inside the mechanism and allow it to dry
for at least 24 hours.
Tips:
•If the appliance is not to be used for an extended period, drain the water from the
tank and dry the unit before storing it.
•The diffuser will automatically shut off when the unit is out of water. The diffuser
will not work without enough water in the tank.
•The amount and intensity of mist produced will vary, but this is not unusual and
should not be considered as a fault. Factors that affect this include the water type,
humidity, temperature, air currents.
•It is recommended that the unit is cleaned every time the diffusing oils are
changed. Oils are corrosive and will build upon the atomising plate over time.
CLEANING & CARE
