Kogan KAMN15TFULA User manual

15.6" TOUCHSCREEN FULL HD IPS
LED PORTABLE USB-C MONITOR
(1920 x 1080)
KAMN15TFULA

2
Safety instructions 3
Components 4
Product overview 5
Base adjustment 6
Connection options 7
Guide to connections 10
External Controls 11
Operation 12
Power Saving Mode 15
Display Data Channel 15
Specifications 16
Troubleshooting 17
Cleaning & maintenance 19
CONTENTS

3
•Read all instructions before using the monitor and retain this user guide for future
reference.
•Unplug the monitor before cleaning it.
•Use a clean, slightly dampened cloth to wipe the main monitor body.
•To clean the screen: Turn it off, unplug it and wait for it to cool completely, then
wipe it with a dry micro-fibre cloth.
•Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
•This monitor is designed with ventilation holes on the back of the casing. Do not
cover or block them.
•Do not insert any object or spray any liquid into the vents.
•Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat,
as well as in rooms lacking adequate ventilation.
•Do not position the monitor in unsafe locations. If the monitor falls, it may be
damaged and may injure nearby people.
•Unplug the monitor if it is not going to be used for an extended period.
•Do not place heavy objects on the monitor, its power cord or any connected cable.
•Do not open the back panel of the monitor, as it contains a high-voltage current
even when not plugged in.
WARNING: To reduce the risk of fire or electric shock, do not expose this device to rain or
moisture. The device must not be exposed to dripping or splashing, and objects filled
with liquids, such as vases, must not be placed on the device.
The terms HDMI and HDMI High-Definition Multimedia
Interface and the HDMI Logos are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc. in the
United States and other countries.
SAFETY & WARNINGS

4
15.6” Touchscreen LED
Portable Monitor
USB-C
Power Adapter
Power Plug
Mini HDMI Cable
USB-C Cable
User Guide
COMPONENTS

5
A
15.6” Touchscreen LED
Portable Monitor
F
Mini HDMI port
B
Up button
G
Primary USB-C port
(full function)
C
Down button
H
Secondary USB-C port
(charging only)
D
Power button
I
3.5mm headphone jack
E
LED indicator
J
Left and Right speakers
PRODUCT OVERVIEW

6
The portable monitor comes equipped with an adjustable base featuring a full 180° range,
allowing it to be completely flat (180°), upright (90°), and any other configuration between
0-180°.
BASE ADJUSTMENT

7
Computer (via USB-C)
The portable monitor can be connected to a compatible computer using the supplied
USB-C to USB-C cable. This must be connected to the monitor’s primary USB-C port. The
computer will provide power and signal to the monitor and can be used for extended display
or duplicated display use.
Computer (via HDMI with external power)
The second option for HDMI connection is to connect the supplied HDMI-to-Mini HDMI
cable between the computer and the portable monitor, while also connecting the monitor
directly to an external power adapter (supplied) via USB. For this, you can use either the
primary or secondary USB-C ports.
CONNECTION OPTIONS
Note:
When connecting the monitor and laptop through full-function USB-C port (one cable
solution), the brightness of the monitor will be automatically set low to ensure it can be
sufficiently powered by one cable. You can adjust the brightness higher, but the
maximum brightness may be limited to a certain amount.
Ensure the laptop’s USB-C port provides over 5V 1A power.

8
Mobile phone (via USB-C)
If there is no external power supply connected to the secondary USB-C port, the mobile
phone battery will supply power to the display. The mobile phone’s USB-C output must be
larger than 5V 1A to provide power without external power. To reduce power usage, the
energy-saving mode will be activated and the display brightness will be automatically set
low. Yo u can adjust the brightness and volume of the monitor according to the output power
of the mobile phone.
When connected to an external power supply through the secondary USB-C port, the
display will provide power to the mobile phone through the external power supply. The
brightness of the monitor will automatically adjusted when connecting with external power.
Note:
If using a power bank (not supplied) as an external power source, it must be larger than
18W. Power banks can be used as external power for every connection shown here, not
just mobile phones.

9
Other devices (via HDMI & USB or power adapter)
If connecting to a device without a USB-C port, you can utilise HDMI as long as you also
provide a power supply. Connect the supplied HDMI-to-Mini HDMI cable between the
device and the portable monitor, while also connecting the monitor directly to an external
power adapter (supplied) via USB. For this, you can use either the primary or secondary USB-
C ports.
Note:
When connecting a device using HDMI, to ensure the smooth transmission of the signal
be sure to connect the power cable first, then connect the HDMI.
Notes:
•The touchscreen can only be achieved through USB-C port. The HDMI port cannot
support touchscreen.
•The touchscreen function may vary across different devices dependant on their
compatibility and operation systems.
•Touchscreen function on MacBook may be limited.

10
External
device
External
device port Monitor port Power supply
Touchscreen
function
Laptop USB-C Primary USB-C Laptop Yes
Laptop
USB-C Primary USB-C
Yes
Charging USB-C port
to adapter Adapter
Laptop
HDMI Mini HDMI
No
Charging USB-C port
to adapter Adapter
Smartphone
USB-C
Primary USB-C
Yes
Charging USB-C port
to adapter Adapter
USB-C
compatible
gaming
console
USB-C Primary USB-C
No
Charging USB-C port
to adapter Adapter
Other
gaming
consoles
HDMI
Mini HDMI
No
Charging USB-C port
to adapter Adapter
GUIDE TO CONNECTIONS

11
1 Up button
Press to open Quick Menu.
Press to open Brightness menu from Quick Menu.
Press this button to navigate OSD menu.
When in an adjustment screen, use both up and down
buttons to adjust the amounts.
Long-press this button to enter the volume adjustment
screen.
2 Down button
Press to open Quick Menu.
Press to open OSD menu from Quick Menu.
Press this button to navigate OSD menu.
When in an adjustment screen, use both up and down
buttons to adjust the amounts.
3 Power button
Long-press to turn on / off.
Press to open Quick Menu.
Press to open Input Source list from Quick Menu.
Press to Confirm when in an OSD menu.
4 LED Indicator
Solid blue indicates power on.
Flashing blue indicates standby mode.
Solid red indicates Power Saving mode.
EXTERNAL CONTROLS

12
Powering On / Off
Press and hold the power button for 3 seconds to turn the monitor ON and OFF. The monitor
will enter power saving mode when turned on unless there is a suitable device connected.
Volume Up / Down
Press and hold the Up button to enter Volume Adjustment. Then adjust the volume with
the Up button (volume increase) and Down button (volume decrease).
Quick Menu
Brightness
1. Press any key to enter the quick menu.
2. Using the Up button, select Brightness from the menu.
3. Use the Up and Down buttons to adjust the brightness between 0-100.
4. Press Power button to confirm and exit the menu, or wait 3 seconds without
pressing any button.
Input source
1. Press any key to enter the quick menu.
2. Using the power button open Input Source from quick menu, to select a USB-C or
Mini-HDMI input source.
3. When you are done, use the Power button to confirm and exit.
OPERATION

13
OSD
The following content is for general reference only. The actual product specifications may
vary. The on-screen display (OSD) can be used for adjusting the settings of your monitor.
Press any button to open the Navigation OSD. You can use the OSD to adjust the picture
quality, OSD setting and general settings.
Press Up and Down buttons to navigate the OSD menus, and Power button to confirm
selection.
Scene Setting
Select the appropriate preset scene for your usage, and use power button to confirm.
Picture Setting
The Picture setting menu includes many options to adjust the colour and picture quality.

14

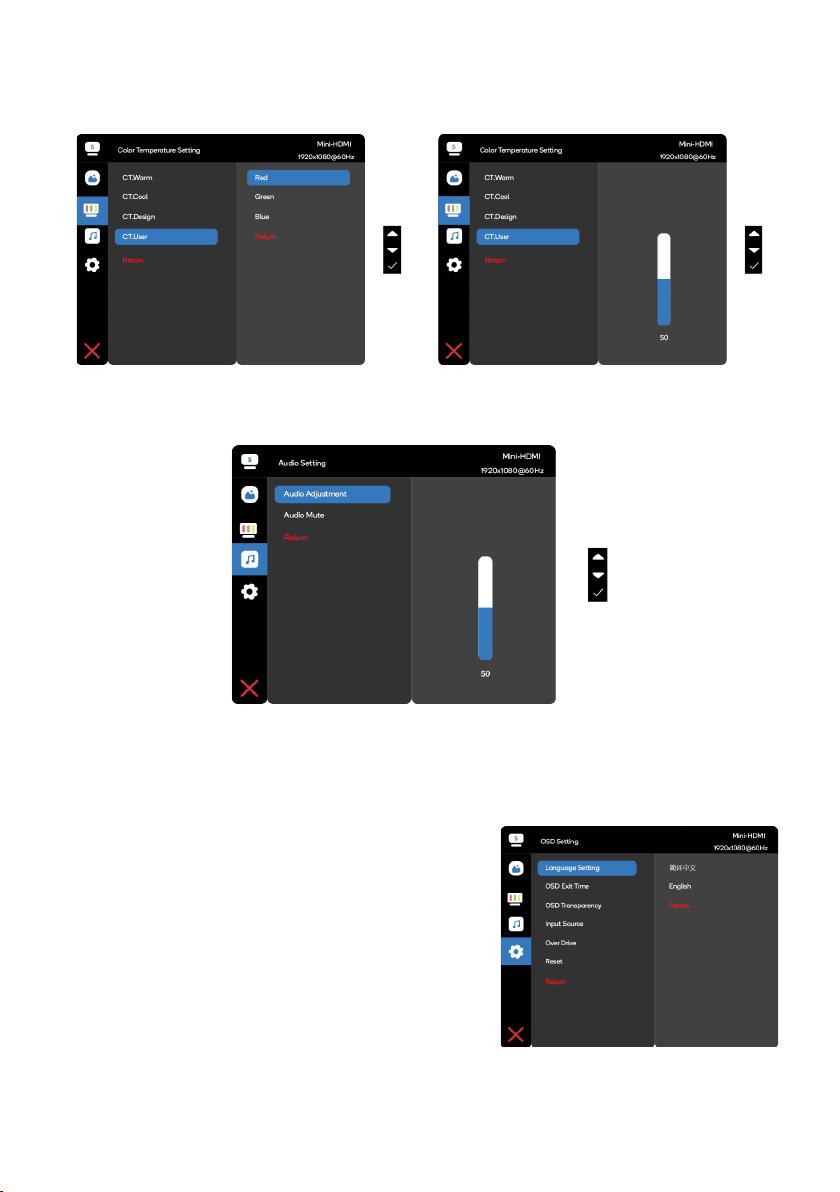

Colour Temperature Setting
The colour temperature adjustment Warm-Normal-Cool corresponds to the colour
temperature of 6500K, 7500K, 9300K and the User mode has a three-level menu.
Audio Setting
Adjust the volume manually, or select Audio Mute to disable the audio.
OSD Setting
•Language Setting: Set the OSD menu
language.
•OSD Exit Time: Adjust the delay before
turning the off the OSD menu.
•OSD Transparency: Select the transparency
when using gaming mode. The transparency
can be 20%, 40%, 60%, 80% or Off
•Input source: select USB-C or Mini-HDMI
input source.
•Reset: Reset all settings to the factory
defaults.

15
The monitor will be switched to Power Saving mode by the control signal from the display
controller, as indicated by the red-coloured LED indicator.
The power-saving mode will be kept until a control signal has been detected or the keyboard
or mouse is activated (if connected to a computer). The recovery time from Power Saving
mode back to standard Power On is around 3 seconds.
To make installation easier, if your system supports the DDC protocol the monitor is able to
plug & play.
The DDC is a communication protocol through which the monitor automatically informs the
host system about its capabilities; for example, supported resolutions and corresponding
timing. The monitor supports the DDC2B standard.
POWER SAVING
DISPLAY DATA CHANNEL (DDC)

16
Audio
Speaker 1W (x2)
Dimensions
Size 362 (W) x 240 (H) x 15.6 (D) mm
Net Weight 1.34 kg
Display
Brightness 250 cd/m2
Colours 16.7M
Contrast Ratio 800:1
Native Aspect Ratio 16:9
Panel Manufacturer BOE
Panel Type IPS
Refresh Rate 60Hz
Resolution 1920 x 1080
Size 15.6”
Viewing Angle 178°(H) x 178° (V)
Features
Low Blue Light Yes
Inputs
HDMI (1.4) 1
U S B Ty p e -C 2
Outputs
Headphone Jack Yes
Power
Power Consumption Typical 8W
Standby Consumption <0.5W
SPECIFICATIONS

17
Problem Troubleshooting advice
No video /
Blue LED
Using the OSD, adjust brightness and contrast to
maximum or reset to their default.
Make sure the correct input source is selected through the
input source menu.
When connected via USB-C to USB-C cable, the blue light
flashing indicates the output power of the external device
is too low to power the monitor. Please connect the
external power to the monitor.
No LED
Make sure the video cable between the monitor and
computer is connected properly and securely.
Use other electrical equipment to confirm that the power
outlet is working properly.
Make sure the correct input source is selected through the
input source menu.
Check the power switch. Long press 5 seconds to start the
monitor.
Check if the power cord is properly connected to the
monitor.
Red LED
Check if the video signal cable is properly connected at the
back of the monitor.
Check if the video cable connector pins are bent or broken.
Check if the computer system is switched on.
Missing pixels/ spots and
light leaks on the screen
Turn off and on again.
Restore the monitor to factory settings.
Use OSD to adjust brightness and contrast.
Pixels that are permanently off are an inherent defect in
LED technology.
Contact help.kogan.com about monitor quality and pixel
issues.
Display fails when
switching
Make sure that the video cables of the monitor and HDMI
output device are properly connected.
Reset the monitor to factory settings.
TROUBLESHOOTING

18
Problem Troubleshooting advice
Picture is missing colours
Make sure the video cable connecting the monitor and the
computer is properly connected.
Adjust custom R/G/B values. Colour in the colour menu of
OSD.
Screen image is too small Restore the monitor to factory settings.
OSD does not appear on
the screen
Turn off the monitor, disconnect and reconnect the power
cord, and turn on the monitor.
No picture, indicator light
is blue
Check the signal source. Make sure the computer or phone
is not in sleep mode.
Check that the signal cable is properly inserted. Reconnect
the signal cable if necessary.
Restart your computer or phone.
The picture does not fill
the entire screen.
Since the resolution of the same screen of the mobile
phone can be re-scaled (aspect ratio), the display can be
displayed in full screen.
Computer equipment can be set to 16:9 resolution, the
display can be full screen display
Play a video source with a 16:9 video sources, and the
monitor can display full screen.
Still need help? Head online to help.kogan.com

19
•Before cleaning the monitor, unplug the monitor power cord from
the electrical outlet.
•When cleaning the antistatic screen, slightly dampen a clean, soft
cloth with water. If possible, use a dedicated screen-cleaning tissue
or solvent for electrostatic coating. Do not use benzene, thinner,
ammonia, abrasives, or compressed air.
•If you find white powder when you unpack your monitor, wipe it off
with a cloth.
•Be careful when operating the monitor, as dark monitors are easier
to scratch and leave visible scratches than light monitors.
CLEANING & MAINTENANCE

20
Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
