Kogan KAMN32RT1SA User manual

32 QHD IPS 165HZ FREESYNC
HDR GAMING MONITOR
(2560 x 1440)
KAMN32RT1SA

•Read all instructions before using this monitor, and retain this user guide for future
reference.
•Unplug the monitor before cleaning it.
•Use a clean, slightly dampened cloth to wipe the main monitor body.
•To clean the screen, turn it off unplug it and wait for it to cool completely, then wipe
it with a dry micro-fibre cloth.
•Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
•This monitor is designed with ventilation holes on the back of the casing. Do not
cover or block them.
•Do not insert any object or spray any liquid into the vents.
•Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat,
as well as in rooms lacking adequate ventilation.
•Do not position the monitor in unsafe locations. If the monitor falls, it may be
damaged and may injure nearby people.
•Unplug the monitor if it is not going to be used for an extended period.
•Do not place heavy objects on the monitor, its power cord or any connected cable.
•Do not open the back panel of the monitor, as it contains a high-voltage current
even when not plugged in.
The terms HDMI and HDMI High-Definition Multimedia Interface and
the HDMI Logos are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United States and other countries.
SAFETY & WARNINGS

Monitor
Stand connector Stand base
Stand base screw
(M6 x 16mm) (x1) VESA screws (x4)
DisplayPort cable Power cable User guide
COMPONENTS

1
Power/OK button
5
DP port 1
2
Direction keys
6
DP port 2
3
USB
7
Audio out
4
HDMI port
8
Power connector
OVERVIEW

1. Carefully remove the monitor, stand
connector and stand base from the box.
2. Attach the stand base to the stand
connector using the M6 screw provided.
3. Insert the connection block into the back
cabinet and push down until firmly
connected.
4. Lift monitor up straight and remove the
bottom foam. Stand the monitor up on the
installed base.
STAND ASSEMBLY
WARNING: The panel of the monitor is fragile. Keep the foam
underneath the monitor screen while assembling the stand.

1. Open the box, remove the monitor with the protection foam attached and gently place
it on a desktop or table.
2. Remove the foam covering the back of the monitor and all additional components from
the packaging. Press the release button to remove the stand plate. If the monitor was
already attached to the stand, remove the stand.
3. Follow the Mount Assembly Instructions as provided with the mount.
VESA mounting pattern is 100 x 100mm, screw size M4.
Note: VESA mount or mounting accessories are NOT included.
Stand base Monitor
Stand connector
Stand plate
Button
Mount
(not included)
Foam
VESA MOUNT

Power cable
Connect the included power cable to the monitor power port, then connect the other end to
a power outlet.
Earphones (Audio Out)
Connect an audio cable to the 3.5mm audio port on the monitor (Audio In) and the 3.5mm
audio port on your computer.
Note: The monitor may need to be set as the PC’s default sound output device.
CONNECTIVITY

DisplayPort
In order for the monitor to receive DisplayPort signals from the computer, use the DisplayPort
cable to connect the monitor to the computer.
HDMI
In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to
connect the monitor to the computer.

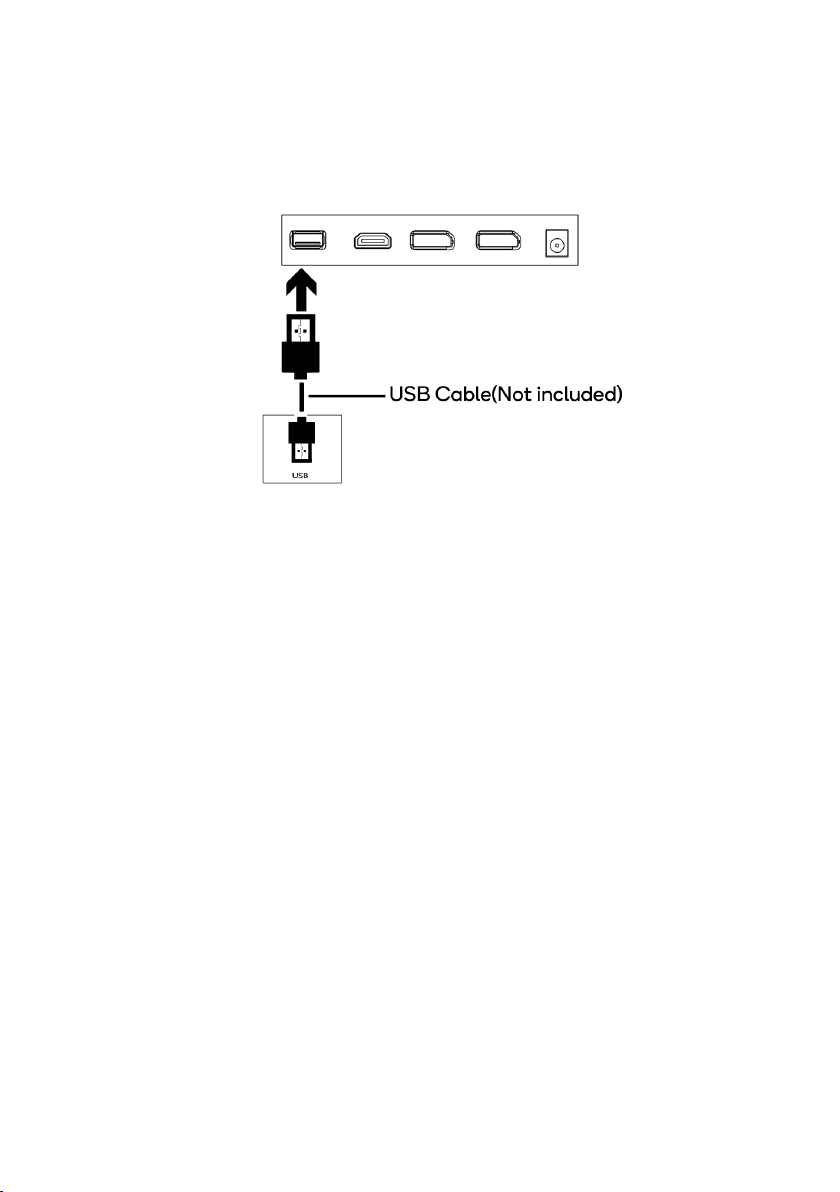

USB
In order to update the software, use a USB cable to connect the monitor to the computer.

Monitor Control
You can easily control the functions of the monitor by pressing the Power button or moving
it left/right ( / ) with your finger.
Button
Action
Description
Press in
•Press and hold for 6 seconds to turn the monitor on/off.
•When the display is turned on, press to wake up the
main menu for one second.
•Press to confirm menu selections.
Push left •Enable the main menu or select the menu item.
Push right •Exit from the main menu or return to the upper menu.
Push up •Select menu items or increase the setting values of the
selected menu item.
Push down •Select menu items or decrease the setting values of the
selected menu item.
Shortcuts:
•Source menu: Press RIGHT twice to access the signal source selection menu, use
the directional buttons to select the desired source and press Power to confirm.
•Display mode menu: Press LEFT twice to access the display mode menu, use the
directional buttons to select the desired display mode and press Power to confirm.
•Gameplus timer menu: Press the UP twice to access the Gameplus timer menu.
Select the desired timing length and press Power to confirm.
•Gameplus sight menu: Press DOWN twice to access the Gameplus sight menu.
Select the desired sight and press Power to confirm.
FreeSync
•In order to use this feature, ensure your hardware has FreeSync capability and the
graphics drivers are fully up to date.
OPERATION

•After connecting, you may receive a prompt to enable the feature on your
computer. If you do not receive the prompt, you may need to enable the function in
your graphics card menu.
•See your graphics card manufacturer’s documentation for instructions on how to
turn on and/or enable FreeSync.
Display settings
When first using this monitor it will automatically configure the optimal display settings.
The On-Screen Display (OSD) Menu can be used to adjust your monitor’s display settings to
your liking. To access the OSD:
1. Press the direction button Right to activate the navigation window.
2. Press Power button to enter the OSD menu.

3. Press the direction buttons Up and Down to navigate functions.
4. With the desired function highlighted, press direction button Right to enter the sub-
menu.
5. After making your desired adjustments press the Power button to confirm the
settings and exit the current screen.
6. Press the direction button Left to exit the current screen.
7. Refer to the following pages for a detailed list of the OSD menu functions.
Refer to the following pages for a detailed list of the OSD menu functions.

Menu
Sub-Menu
Options
Description
Brightness
~0-100
Adjust display brightness
Contrast
~0-100
Adjust display contrast
DCR
On / Off
Turns dynamic contrast ratio on/off
ECO
Standard, Photo,
Game, Movie, FPS,
RTS
Preset colour modes
Colour Temperature
Normal
Select colour temperature mode or
allow manual colour configuration in
User mode
Warm
Cool
User
Red
~0-100
Adjust red value (User mode only)
Green
~0-100
Adjust green value (User mode only)
Blue
~0-100
Adjust blue value (User mode only)
Language
English, 简体中文,
한국어, Русский,
Español, Français,
日本语
Set OSD language
OSD H-Position
0-100
Adjust OSD horizontal position
OSD V-Position
0-100
Adjust OSD vertical position
OSD Transparency 0-100 Set OSD overall transparency
OSD Time Out 0-100 Set how long the OSD remains open
after last input
Input Source
Auto Source / DP1 /
DP2 / HDMI
Select input source or allow manual
selection
Mute On / Off
Enable/disable monitor speaker
output
Volume 0-100 Adjust monitor speaker volume
Audio Source DP1 / DP2 / HDMI
When Open Multi-Window, this
option allows you to choose audio
source from different sources.
Reset
/
Restore factory defaults
Firmware Update /
When Open Multi-Window, this
option allows you to choose audio
source from different sources.

Aspect Ratio
Wide Screen
Select the display's aspect ratio
4:3
1:1
Auto
Low blue Light
Off
Blue light reduction adjustment
Low
Medium
High
Max High
Response Time On / Off Enable or disable overdrive
for faster response time
FreeSync On / Off Enable or disable AMD FreeSync
HDR On / Off / Auto
This option turns on or off the HDR of
the monitor.
LED Mode On / Off
Press to turn the display backlight
on/off.
Multi-
Window
Multi-
Window
Off
Select multi-window mode
PiP Mode
PBP 2Win
PBP 3Win
Sub Win2
Input DP1 / DP2 / HDMI Select source to be displayed in the
second window
Sub Win3
Input DP1 / DP2 / HDMI
Select source to be displayed in the
second window
PiP Size Small / Medium /
Large Change the size of the sub window
in PIP mode
PiP
Position
Top Right
Change the position of the
subwindow in PIP mode
Top Left
Bottom Right
Bottom Left
Swap Main Window Swap between the main and sub
window
Sub Window

Display modes
Press the Power button to the left to switch between the preset display modes. These
modes include: Standard, Text, Movie, Game, FPS and RTS. These modes are designed to
optimise settings according to your activity. Standard mode is suitable for most activities.
Gameplus
Press the Power button downwards to switch Gameplus modes. These overlay icons are
primarily designed to assist aim during first person shooter games.
DISPLAY MODES & GAMEPLUS

Screen size
32
Aspect ratio
16:9
Brightness
300cd/m2(typical)
Panel
IPS
Resolution
2560 x 1440
Refresh rate
165Hz
Response time
5ms with Overdrive enabled (8ms typical)
Viewing angle
≥178°(H) / 178°(V)
Contrast ratio
1200:1
VESA mounting
100 x 100mm
Colours
16.7M
Signal input
HDMI 2.0 x 1, DP 1.4 x 2
Power
AC 100-240V ~50/60Hz 1.1A
Audio
Speakers
YES
Audio out
YES
Accessories
Power cable
YES
DisplayPort Cable
YES
Additional functions
Low Blue Light
YES
Flicker Free
YES
Physical dimensions
Dimensions (w. Stand)
717.36 x 504.89 x 249.47 mm
Dimensions (w/o Stand)
717.36 x 421.46 x 71 mm
Net weight
7.2KG
Gross weight
9.6KG
SPECIFICATIONS

NOTES

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
