K-45205, K-45206, K-45207, K-45208
1176876-2-C

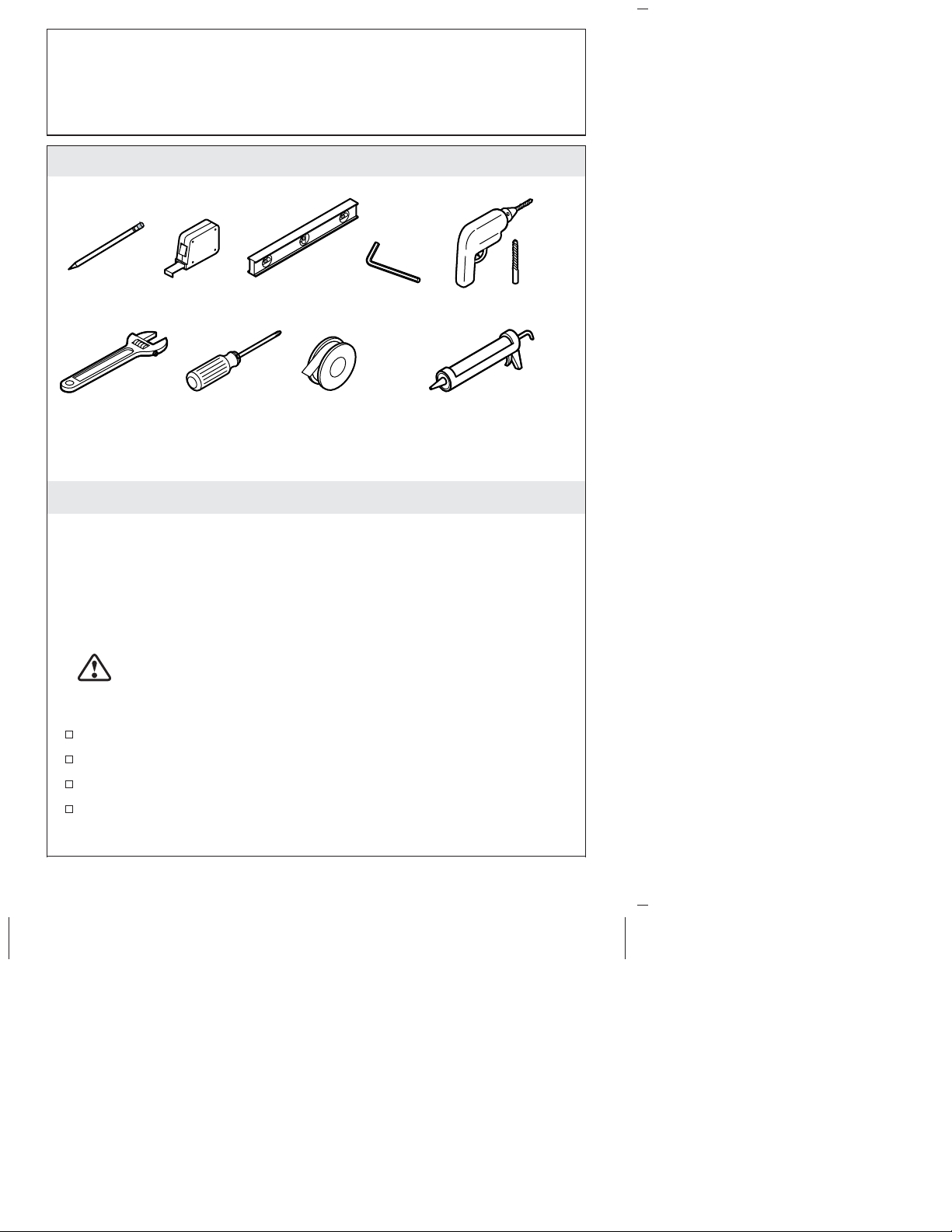

Tools and Materials
Before You Begin
NOTE: This guide includes the installation sequence for the shower
column only. Install the mixing valve, mixing valve trim, and spout
according to the manufacturer’s instructions.
NOTICE: Risk of product damage. Do not apply excessive weight
or downward force to the shower column.
CAUTION: Risk of property damage. Water leakage may
occur if supply piping allows movement. Ensure the supply
piping and 1/2″-14 NPT elbow fitting are securely fastened to
braces in the stud framing.
Please read all instructions before you begin.
Observe all local plumbing and building codes.
Shut off the water supply.
Inspect the existing supply piping and wall materials. Replace if
necessary.
The shower column is supplied with toggle anchor fasteners for
installation onto a finished wall surface. The finished wall
thickness must be a minimum of 5/8″(16 mm) and must be
adequate in strength. Two toggle anchor fasteners are required
per mounting collar.
IMPORTANT! If the supplied toggle anchor fasteners are not used
to install the shower column:
Sealant Tape
3/8"
100% Silicone Sealant
1/2"
Phillips
Screwdriver
1176876-2-C 2 Kohler Co.

Before You Begin (cont.)
Ensure that adequate strength wall backing materials and stud
bracing are properly positioned behind the finished wall.
Obtain proper fasteners (not provided) taking into account the
type of stud bracing material and thickness of the mounting
collar, finished wall, wall backing, and stud bracing.
Fasteners must be corrosion-resistant and capable of 300 lbs (136
kg) load bearing per fastener.
A minimum of two fasteners are required per mounting collar.
Fasteners must be securely anchored into the stud bracing to
adequately support the product.
IMPORTANT! For retrofit/remodel installations: Check the existing
shower enclosure for adequate clearances before proceeding with the
shower column installation. Refer to the Roughing-in for the shower
column and Rain showerhead.
Verify the distances between:
•The ceiling and the center of the existing shower arm at the
finished wall surface.
•The shower floor and the center of the existing shower arm at the
finished wall surface. Ensure sufficient clearance under the Rain
showerhead.
•The center of the existing shower arm and the center of the
mixing valve trim.
Kohler Co. 3 1176876-2-C

Roughing-In - Upper Supply Connection
Measure the distance between the 1/2″-14 NPT elbow and the
finished wall surface. The distance must be between 1-3/8″(35
mm) and 2-7/8″(73 mm).
IMPORTANT! The shower column connection will not seal
properly if the distance exceeds 2-7/8″(73 mm); see below for the
required deep roughing-in kit.
If the distance is between 2-7/8″(73 mm) and 4″(102 mm):
Order the 1194630 Deep Roughing-in Kit.
If the distance is less than 1-3/8″(35 mm): Order the 1187917
Shallow Roughing-in Kit.
Finished Wall Surface
1-3/4" (44 mm)
Minimum
Escutcheon
Clearance
1-3/8" (35 mm) –
2-7/8" (73 mm)
1/2"-14 NPT Elbow
1" (25 mm) Maximum
Wall Surface Offset
1176876-2-C 4 Kohler Co.

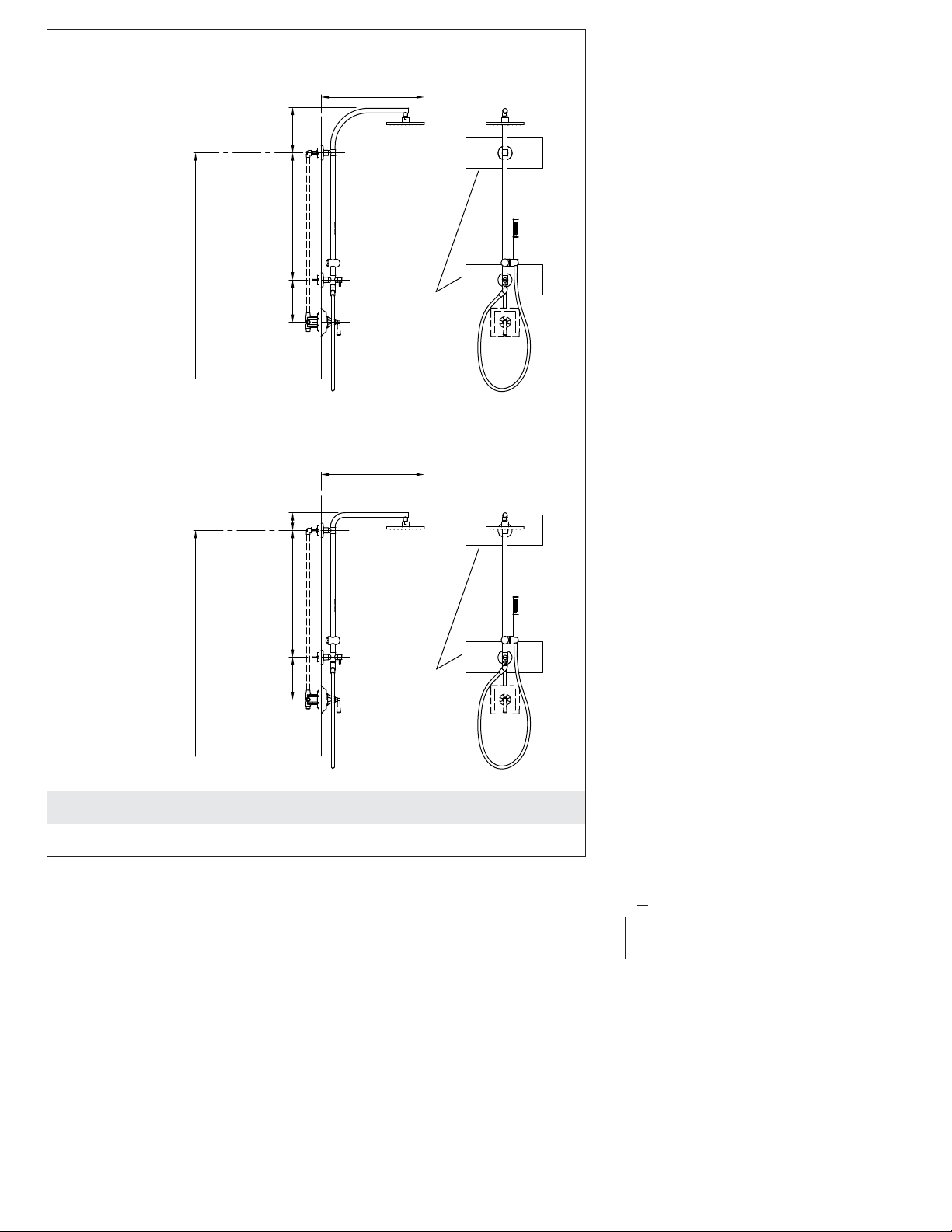

K-45205/K-45206 Roughing-In
Backing
Material
3-3/4"
(95 mm)
27"
(686 mm)
21-15/16" (557 mm)
K-45206
21-15/16" (557 mm)
9-1/2"
(241 mm)
K-45205
75" (1905 mm)
Recommended
72" (1829 mm)
Minimum
80" (2032 mm)
Recommended
75" (1905 mm)
Minimum Backing
Material
6" (152 mm)
Minimum
27"
(686 mm)
6" (152 mm)
Minimum
Kohler Co. 5 1176876-2-C

K-45207/K-45208 Roughing-In
18"
(457 mm)
21-15/16" (557 mm)
Backing
Material
Backing
Material
18"
(457 mm)
9-1/2"
(241 mm)
21-15/16" (557 mm)
75" (1905 mm)
Recommended
72" (1829 mm)
Minimum
3-3/4"
(95 mm)
K-45207
K-45208
78" (1981 mm)
Recommended
75" (1905 mm)
Minimum
6" (152 mm)
Minimum
6" (152 mm)
Minimum
1176876-2-C 6 Kohler Co.

1. Retrofit/Remodel Installation
CAUTION: Risk of property damage. Water leakage may
occur if supply piping allows movement. Ensure the supply
piping and 1/2″-14 NPT elbow fitting are securely fastened to
braces in the stud framing.
IMPORTANT! Check the existing shower enclosure for adequate
clearances as described in section ″Before You Begin.″
Remove the existing showerhead and shower arm escutcheon.
Carefully push the existing shower arm toward the finished wall
surface.
Check for inward movement of the supply piping.
If inward movement is possible, securely fasten the supply piping
to braces in the stud framing before beginning the shower column
installation.
Remove the existing shower arm.
Measure the existing shower arm hole. Ensure that the finished
wall material has an upper supply connection hole diameter
between 1″(25 mm) minimum and 1-1/4″(32 mm) maximum,
and the hole is centered on the outlet of the 1/2″-14 NPT elbow
fitting. Repair the wall surfaces if the existing shower arm hole is
not centered or exceeds the recommended dimensions.
Supply Piping
1/2"-14 NPT Elbow
Kohler Co. 7 1176876-2-C

2. Install the Supply Adapter
For New Construction Installations
CAUTION: Risk of property damage. Water leakage may
occur if supply piping allows movement. Ensure the supply
piping and 1/2″-14 NPT elbow fitting are securely fastened to
braces in the stud framing.
IMPORTANT! This guide includes the installation sequence for the
shower column only. Refer to the manufacturer’s instructions for
installation of the mixing valve, mixing valve trim, and spout.
Rough-in the mixing valve, supply piping, and bath spout
connection appropriate for your installation.
Refer to the ″Roughing-in″section in this guide for proper
location of the 1/2″-14 NPT elbow fitting inside the wall.
Ensure that the supply piping and 1/2″-14 NPT elbow fitting are
securely fastened to the stud framing.
3/8" Hex
Wrench
Supply
Adapter
1" (25 mm)
Minimum –
1-1/4" (32 mm)
Maximum
1/2"-14 NPT Elbow
1/2"-14 NPT Elbow
Supply Piping
1176876-2-C 8 Kohler Co.

Install the Supply Adapter (cont.)
Ensure that the finished wall material has an upper supply
connection hole diameter between 1″(25 mm) minimum and
1-1/4″(32 mm) maximum, and the hole is centered on the outlet
of the 1/2″-14 NPT elbow fitting.
If your supply connection hole diameter is between 1-1/4″(32
mm) and 2-1/4″(57 mm): Order the 1194302 Large
Escutcheon/Mounting Collar Kit.
Install the finished wall material.
Install the mixing valve trim and bath spout according to the
manufacturer’s instructions.
For New Construction and Retrofit Installations
Apply sealant tape to the supply adapter thread.
The supply adapter has an internal 3/8″hex socket. Thread the
supply adapter into the 1/2″-14 NPT elbow using a 3/8″hex
wrench.
Kohler Co. 9 1176876-2-C

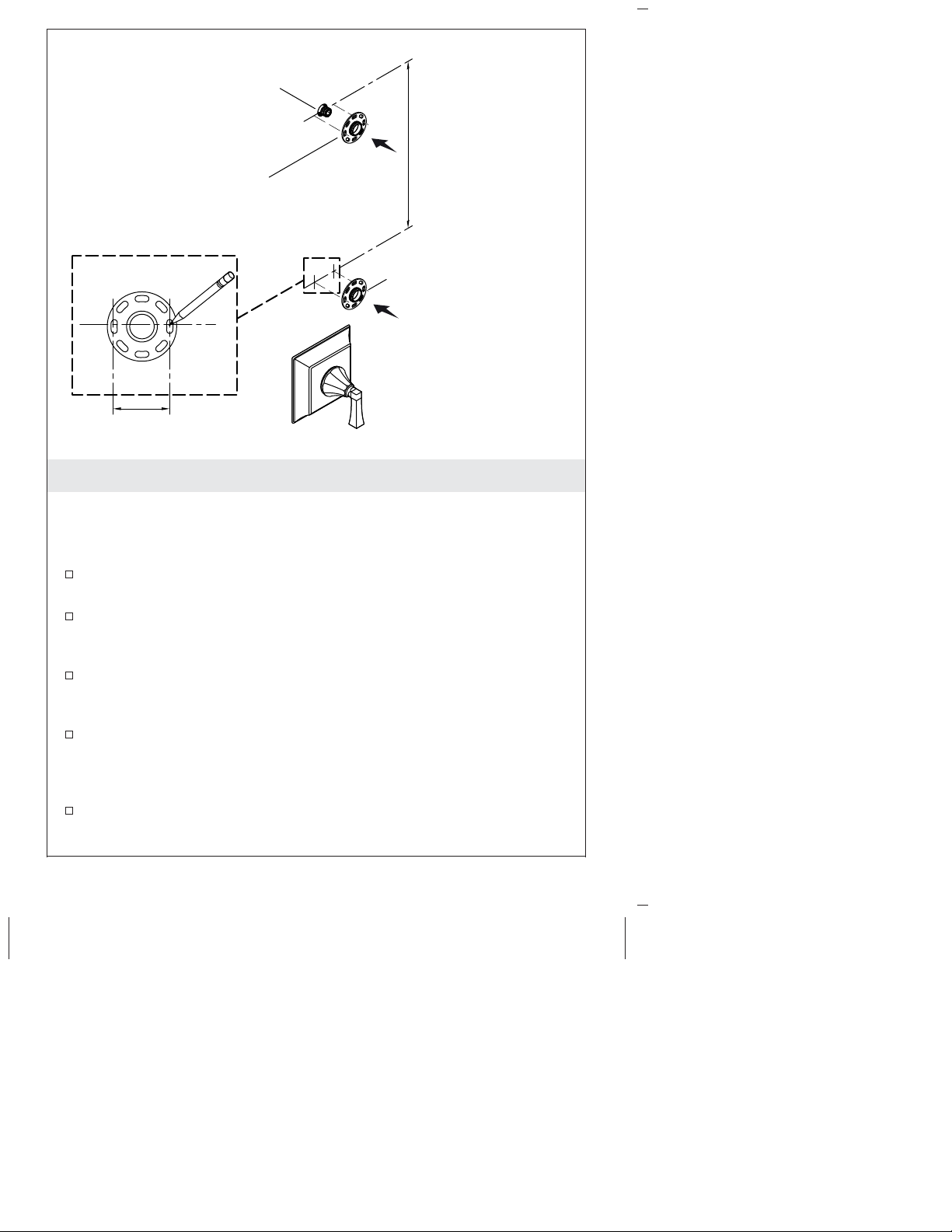

3. Mark the Mounting Hole Locations
NOTE: The upper mounting collar must be centered on the supply
adapter. The distance between the upper and lower mounting collar
centers should be 18″(457 mm) or 27″(686 mm) depending on the
length of your shower column.
Center the mounting collar on the supply adapter. Mark the left
and right mounting holes.
For K-45205/K-45206 only: From the center of the supply adapter,
measure down 27″(686 mm) and mark the horizontal
measurement with a pencil.
For K-45207/K-45208 only: From the center of the supply adapter,
measure down 18″(457 mm) and mark the horizontal
measurement with a pencil.
Center the mounting collar on the horizontal line. Measure and
mark the left and right mounting holes. Ensure the upper and
lower mounting hole locations are level and plumb to one
another.
Do not drill the mounting holes until instructed to do so.
2" (51 mm)
Supply Adapter
K-45205/K-45206
27" (686 mm)
K-45207/K-45208
18" (457 mm)
Mounting Collar
Mounting Collar
1176876-2-C 10 Kohler Co.

4. Dry Fit the Shower Column
Snap a trim sleeve onto each mounting collar.
Verify that an O-ring is installed in each escutcheon.
Carefully slide an escutcheon onto the upper connection
assembly.
Thread a mounting collar onto the upper connection assembly.
Repeat steps for the lower mounting collar and escutcheon.
Carefully slide the shower column onto the supply adapter.
Ensure the lower mounting collar is tight against the finished
wall.
Proceed to the ″Plumb the Shower Column″section.
Escutcheon
Supply
Adapter
Trim
Sleeve
Mounting
Collar
Shower
Column
Kohler Co. 11 1176876-2-C

5. Plumb the Shower Column
Using a level, check the position of the shower column to ensure
it is plumb.
The upper mounting collar is adjustable to account for plumb and
wall surface offset. Turn the mounting collar until the shower
column is plumb.
Verify that the mounting collar slots align with the pencil
markings on the finished wall. Make any adjustments as needed.
Remove the shower column from the supply adapter.
Verify mounting
holes align with
marked locations.
Adjust for
level.
1176876-2-C 12 Kohler Co.

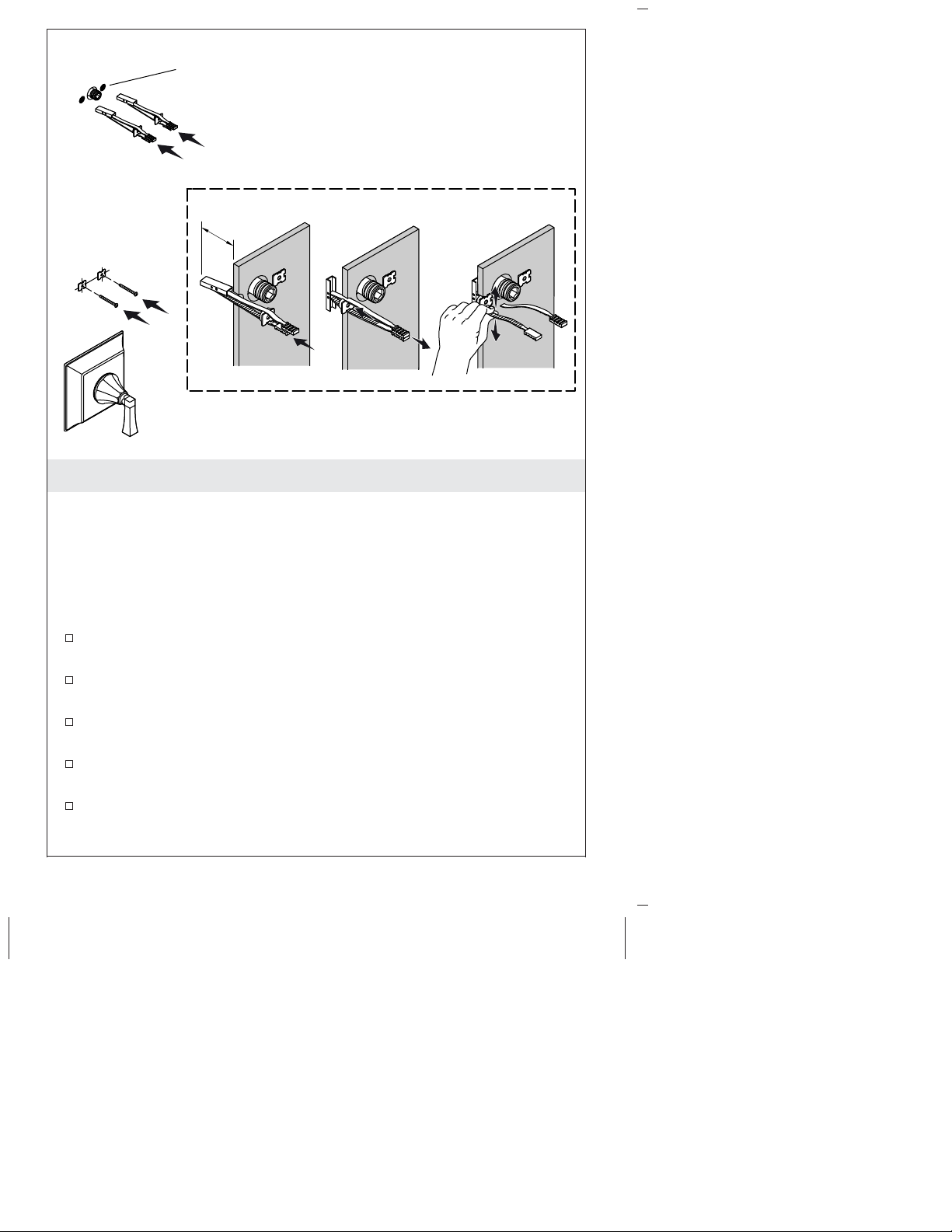

6. Install with Anchors
IMPORTANT! If the supplied toggle anchor fasteners are not used,
refer to ″Before You Begin″for fastener requirements.
NOTE: Anchor installation requires 1-7/8″(48 mm) minimum
clearance behind the wall. The finished wall thickness must be a
minimum of 5/8″(16 mm) and must be adequate in strength.
Install the Anchors
Drill two 1/2″(13 mm) diameter holes for each mounting collar
at the pencil markings on the finished wall.
Hold the metal channel of the anchor flat alongside the plastic
straps and slide the channel through the drilled holes.
Realign the handles of the straps to straighten the channel behind
the wall.
With one hand, pull the finger grips straight out (do not pull at
an angle) so that the metal channel rests flush behind the wall.
Slide the clip along the straps with your other hand until the
flange of the clip is flush with the wall.
Drill 1/2" (13 mm) holes.
1-7/8
(48 mm)
Kohler Co. 13 1176876-2-C

Install with Anchors (cont.)
Place your thumb between the plastic straps. Wiggle the straps up
and down until they snap off at the wall.
Align the mounting collar with the anchor clips.
Insert the bolt through the mounting collar and tighten until it is
flush with the wall.
1176876-2-C 14 Kohler Co.

7. Secure the Shower Column
Reinstall the shower column to the supply adapters.
Secure the shower column with the four fasteners.
Apply a bead of silicone sealant to the back edge of each
escutcheon.
Slide the escutcheons over the mounting collars and press the
escutcheons tight against the finished wall.
Wipe away any excess silicone sealant from the escutcheons and
finished wall.
Apply
silicone
sealant.
Kohler Co. 15 1176876-2-C

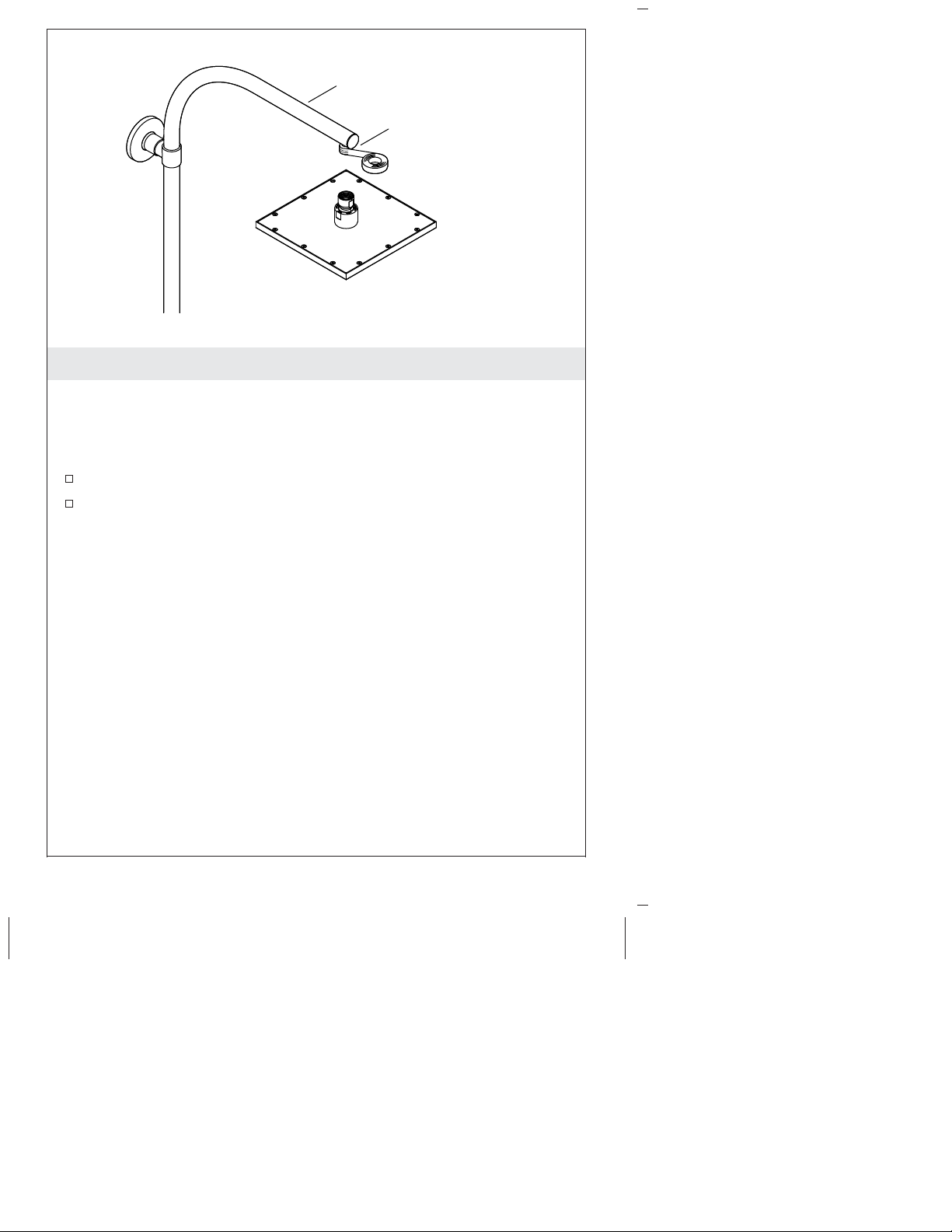

8. Install the Showerhead
CAUTION: Risk of product damage. Product damage could occur
if the shower column overhang is not carefully supported during the
showerhead installation. Do not apply excessive weight or force to
the shower column overhang.
Apply sealant tape to the shower column overhang outlet.
Carefully thread the showerhead onto the shower column
overhang outlet.
Apply sealant tape.
Shower Column Overhang
1176876-2-C 16 Kohler Co.

9. Install the Handshower
NOTE: Elbow installation is optional and allows the hose to drape
around the mixing valve trim. The shower hose can also be installed
directly onto the shower column if desired.
With the gasket installed, thread the elbow onto the bottom of the
shower column.
With the gasket installed, thread the check valve end of the
shower hose to the elbow.
Position the handshower holder and the elbow opposite each
other. This allows the hose to drape around the mixing valve
trim.
Thread the hose through the holder.
With the screen washer installed, thread the hose to the
handshower.
Place the handshower into the holder.
Hose
Hose Guide
Holder
Handshower
Elbow (Optional)
Mixing
Valve Trim
Kohler Co. 17 1176876-2-C

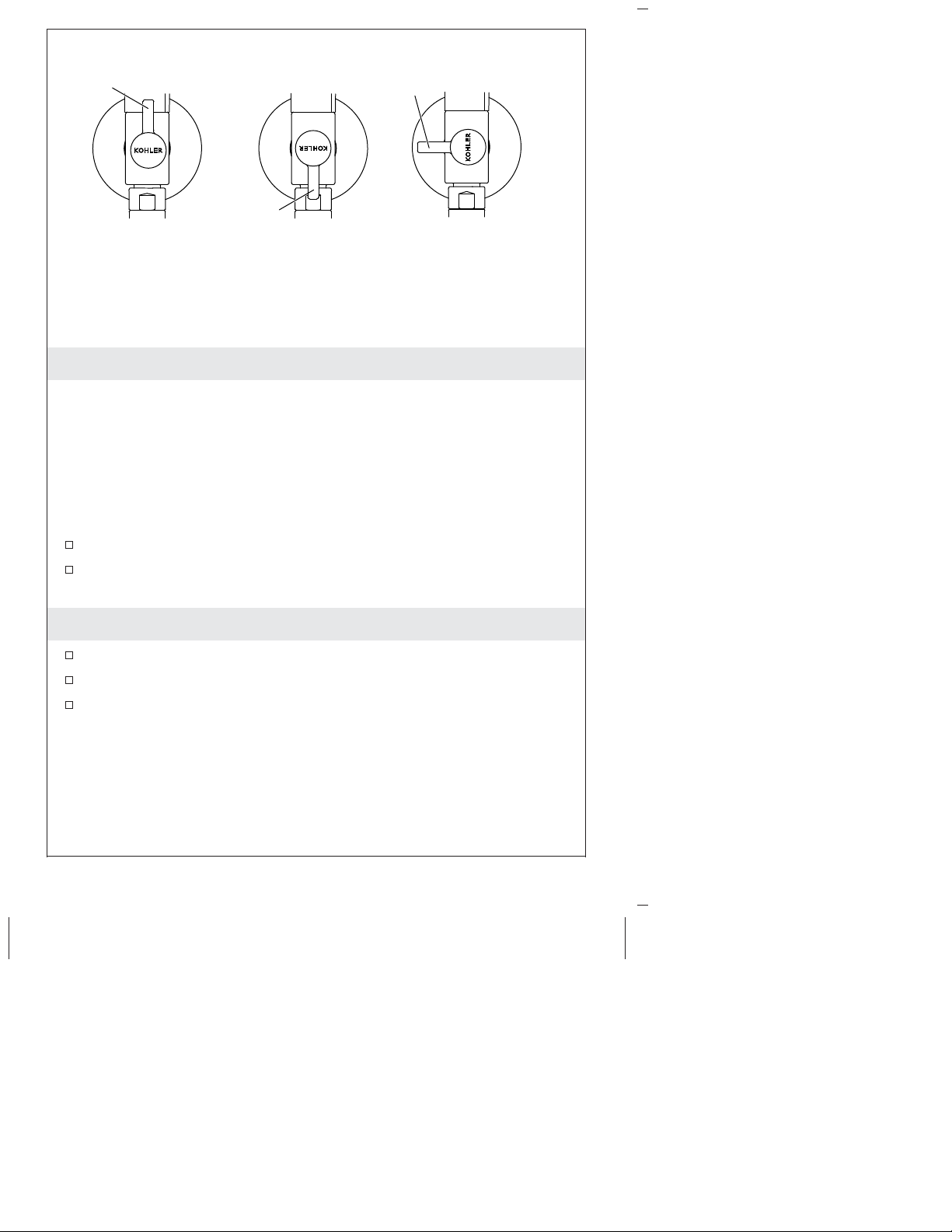

10. Using Your Shower Column
NOTE: If water does not flow through the handshower or shower
hose, the shower hose was incorrectly installed. To correct, reinstall
the shower hose ensuring the end of the hose containing the check
valve is attached to the elbow or shower column.
NOTE: This product is not designed to stop water flow. Positioning
the handle to the left will result in partial flow from both the
showerhead and handshower.
To use the showerhead, turn the handle to the upward position.
To use the handshower, turn the handle to the downward
position.
11. Check for Leaks
Turn on the water.
Turn the handle upward and check connections for leaks.
Turn the handle downward and check connections for leaks.
Handle
Handle
Handle
Flow to
Showerhead Flow to
Handshower
Partial Flow
to Both
1176876-2-C 18 Kohler Co.

Guide d’installation
Colonne de douche
Outils et matériel
Avant de commencer
REMARQUE: Ce guide inclut la séquence d’installation pour la
colonne de douche seulement. Installer le robinet mélangeur, la
garniture du robinet mélangeur et le bec conformément aux
instructions du fabricant.
AVIS: Risque d’endommagement du produit. Ne pas appliquer de
poids excessif ou de force vers le bas sur la colonne de la douche.
ATTENTION: Risque de dommages matériels. Une fuite
d’eau peut se produire si la tuyauterie d’arrivée peut bouger.
S’assurer que la tuyauterie d’arrivée et le raccord coudé NPT
1/2″-14 sont solidement fixés aux renforts dans l’ossature.
Lire toutes les instructions avant de commencer.
Respecter tous les codes de plomberie et de bâtiment locaux.
Fermer l’arrivée d’eau.
Inspecter la tuyauterie d’arrivée existante ainsi que les matériaux
des murs. Remplacer si nécessaire.
Ruban
d'étanchéité
3/8"
Mastic à la
silicone à 100%
1/2"
Tournevis à
pointe
cruciforme
Kohler Co. Français-1 1176876-2-C

Avant de commencer (cont.)
La colonne de la douche est fournie avec des chevilles d’ancrage
à bascule pour une installation sur une surface de mur fini. La
finition murale doit un minimum de 5/8″(16 mm) d’épaisseur et
être de résistance suffisante. Deux chevilles d’ancrage à bascule
sont requises par collier de fixation.
IMPORTANT! Si les chevilles d’ancrage à bascule fournies ne sont
pas utilisées pour installer la colonne de la douche:
S’assurer que les matériaux de renfort de mur sont d’une
résistance suffisante et que le renfort des montants sont bien
positionnés derrière la finition murale.
Obtenir de la visserie adaptée (non fournie) en tenant compte du
type de matériau de renfort de montants et de l’épaisseur du
collier de fixation, de la finition murale, du renfort de mur et du
support de montants.
Les dispositifs d’attache doivent résister à la corrosion et doivent
être capables de supporter une charge de 300 lb (136 kg) par
dispositif d’attache.
Deux dispositifs d’attache au minimum sont requis par collier de
fixation.
Les dispositifs d’attache doivent être bien ancrés dans le renfort
des montants pour supporter le produit de manière adéquate.
IMPORTANT! Pour les installations rétroactives/de remodelage:
Inspecter l’encadrement de la douche pour vérifier que les
dégagements sont adéquats avant de continuer l’installation de la
colonne de douche. Se reporter à la section sur le raccordement pour
la colonne de douche et la pomme de douche Pluie.
Vérifier les distances entre:
•le plafond et le centre du bras de douche existant au niveau de la
surface de mur fini.
•Le plancher de la douche et le centre du bras de douche existant
au niveau de la surface de mur fini. S’assurer que le dégagement
est suffisant sous la pomme de douche Pluie.
•Le centre du bras de douche existant et le centre de la garniture
du robinet mélangeur.
1176876-2-C Français-2 Kohler Co.
