Kohler K-12345M Assembly instructions

Homeowners Guide
Vibracoustic Bath with Heated Surface
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page ″Français-1″
Español, página ″Español-1″
1212240-5-B

IMPORTANT INSTRUCTIONS
WARNING: When using electrical products, basic precautions should always be followed,
including the following:
WARNING: Risk of electric shock. Connect only to a circuit protected by a Ground-Fault
Circuit-Interrupter (GFCI)*. Grounding is required. The unit should be installed and grounded by a
qualified service representative.
WARNING: Risk of electric shock. A qualified electrician should route all electrical wiring.
WARNING: Risk of electric shock. Disconnect power before servicing.
WARNING: Risk of electric shock. Do not operate electrical powered auxiliary devices near water.
WARNING: Risk of property damage. Building materials and wiring should be routed away from
the heat-producing components of the bath.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation.
NOTICE: Follow all plumbing, electrical, and building codes.
*Outside North America, this device may be known as a Residual Current Device (RCD).
Table of Contents
IMPORTANT INSTRUCTIONS ....................................................... 2
Product Identification .............................................................. 2
Specifications ................................................................... 2
Your Vibracoustic Bath ............................................................. 5
User Interface Icons ............................................................... 5
Operating Your Bath ............................................................... 6
Setting Menu .................................................................... 7
Experiences ..................................................................... 8
Chromatherapy (If Equipped) ........................................................ 9
Heated Surface ................................................................. 10
Auxiliary Sound ................................................................. 11
Adjusting Resonance ............................................................. 12

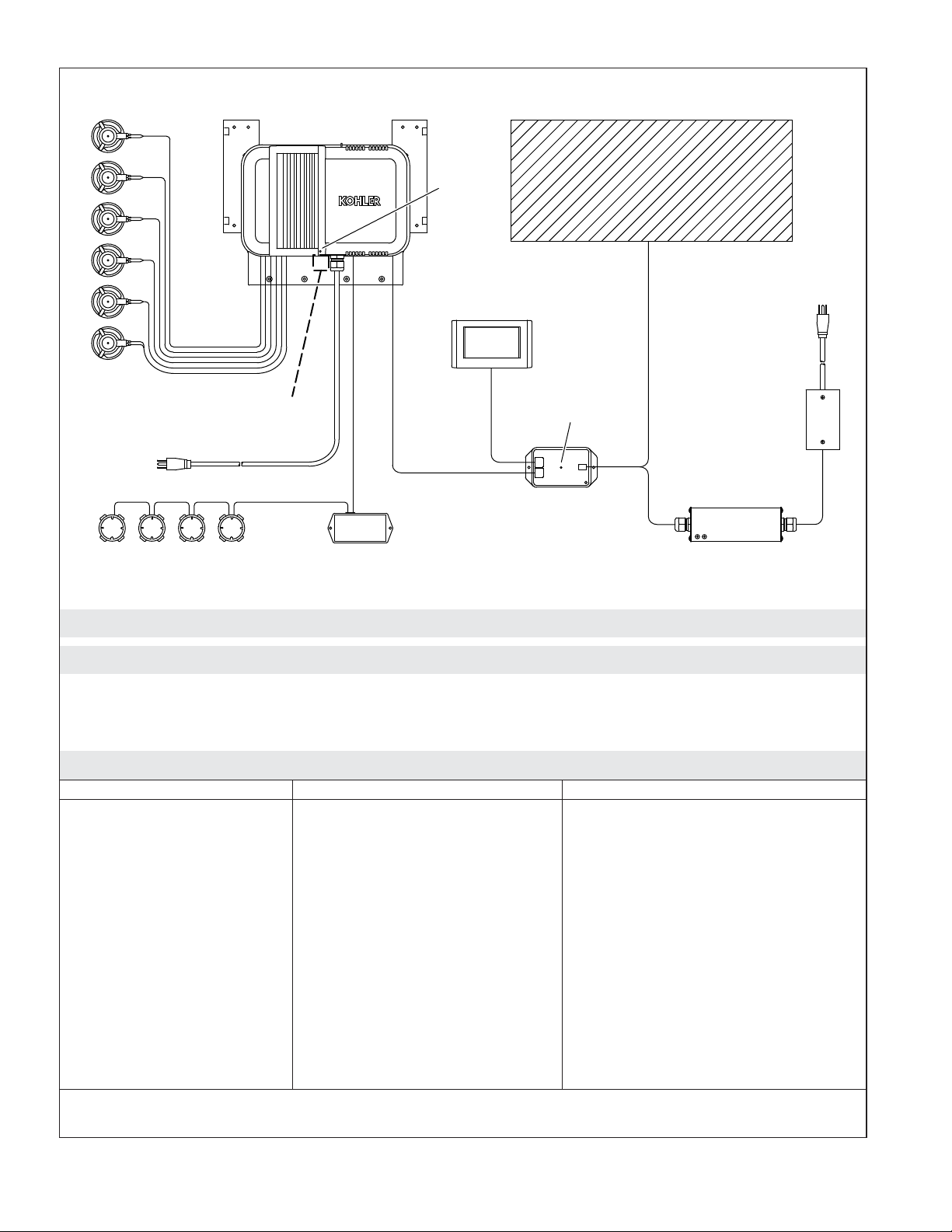

Components ................................................................... 13
Troubleshooting ................................................................. 13
Care and Cleaning ............................................................... 17
Warranty ...................................................................... 17
Warranty ...................................................................... 17
Product Identification
Model # K-_______________________
Please record the model number, copied from the label on the box.
Specifications
User Interface
Ambient Temperature Max 125°F (51.5°C)
Maximum Relative Humidity 100% condensing (External surface only)
Interface Cable Length 25’ (7.6 m)
Control Amplifier
Ambient Temperature Greater than 34°F (1°C), Max 104°F (40°C)
1212240-5-B 2 Kohler Co.

Specifications (cont.)
Maximum Relative Humidity 95% non-condensing
Transducer Cable Length 25’ (7.6 m)
Chromatherapy Cable Length 25’ (7.6 m)
Heated Surface Control Cable Length 25’ (7.6 m)
Electrical Service 120 V, 15 A, 60 Hz
Kohler Co. 3 1212240-5-B

Your Vibracoustic Bath
Your vibracoustic bath is designed to provide a relaxing resonating surround sound experience. The bath is
equipped with the following components:
Bath – Allows the bather to relax in comfort while enjoying the vibracoustic experience.
User Interface – Provides convenient control of the unit features, allowing you to select experiences,
regulate resonance intensity, adjust heated surface temperature, and turn the unit ON or OFF. The
interface also allows you to adjust chromatherapy lighting (if equipped) and select an auxiliary
music source (if connected).
Chromatherapy Lights (if equipped) – Add ambience to your bath with a continuous cycle through
eight colors, or you can set the lighting to a specific color.
Heated Surface – Provides soothing warmth to your back, shoulders, and neck with three
temperature settings.
Transducers – Components through which the vibracoustic pulses are transferred to the bath. When
the bath is filled with water, two transducers are positioned above the waterline, and four are
located below the waterline.
Control Amplifier – Provides power to the transducers and chromatherapy lighting (if equipped) to
create soothing or exhilarating vibracoustic experiences. The control also contains a port to connect
an optional auxiliary music source.
Your bath offers several distinct vibracoustic experiences:
″Awakening,″″Solitude,″″Transcendence,″″Letting Go,″″Toms,″and ″Up Down″– six custom
experiences combining sound and vibrations designed to relax or invigorate your mind and body.
The sound resonance, lighting color, and lumbar heat can be adjusted for each experience as desired.
Refer to the ″Adjusting Resonance,″″Chromatherapy,″and ″Heated Surface″sections.
Transducer
User Interface
Control
Amplifier
Chromatherapy Light
(If Equipped)
Heated Surface
1212240-5-B 4 Kohler Co.

User Interface Icons
[Home] Icon – The main menu that displays when the user interface is powered ON.
[Setting] Icon – Allows access to menus for brightness, language and reset.
[Experience] Icon – Combination of sound vibrations and original compositions designed to relax
your mind and body.
[Chromatherapy] Icon (equipped models only) – Turns chromatherapy lights in the bath ON or
OFF, and allows adjustment of color.
[Heated Surface] Icon – Turns heated lumbar support ON or OFF, and controls temperature settings
(low, medium, and high).

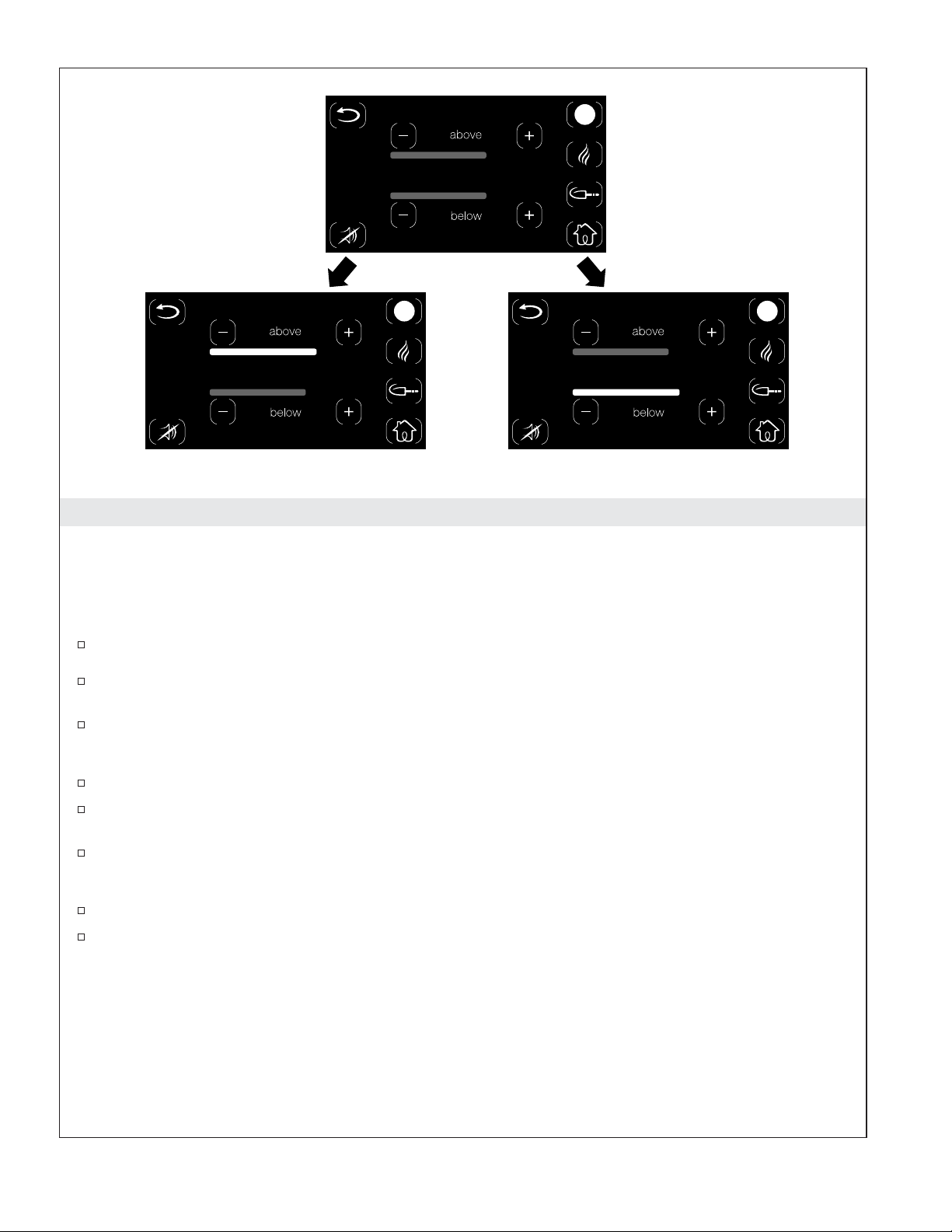

[Intensity] Icon – Enables adjustment of above water and below water sound resonance for all
experiences.
[Aux] Icon – Allows for the selection of music from an external audio device connected via the
“Line In” jack on the control amplifier.
[Back Arrow] Icon – Allows navigation back to the previous screen.
Minus [-] Icon – Decreases resonance intensity, heated surface temperature, or interface screen
brightness.
Plus [+] Icon – Increases resonance intensity, heated surface temperature, or interface screen
brightness.
[Mute] Icon – Turns sound resonance OFF or ON.
[Music] Icon – Turns auxiliary sound ON or OFF.
[Power OFF] Icon – Turns the user interface OFF.
Music
Mute
PlusMinus
Home Setting Experience Chromatherapy Intensity Aux
Power OFF
Back Arrow
Heated
Surface
Kohler Co. 5 1212240-5-B

Operating Your Bath
Fill the Bath
To begin using your bath, close the drain, then fill the bath with water.
Using your hand, test the water temperature for comfort and safety. Carefully enter the bath.
Turn On the Interface
NOTE: User Interface “Sleep” Mode – To enhance your bathing experience, the interface is programmed
to darken after two minutes of inactivity. When in sleep mode, the screen will be blank. To resume normal
operation, touch the interface screen.
NOTE: If the interface is not functioning properly, consult the ″Troubleshooting″section of this guide
before calling a qualified service representative.

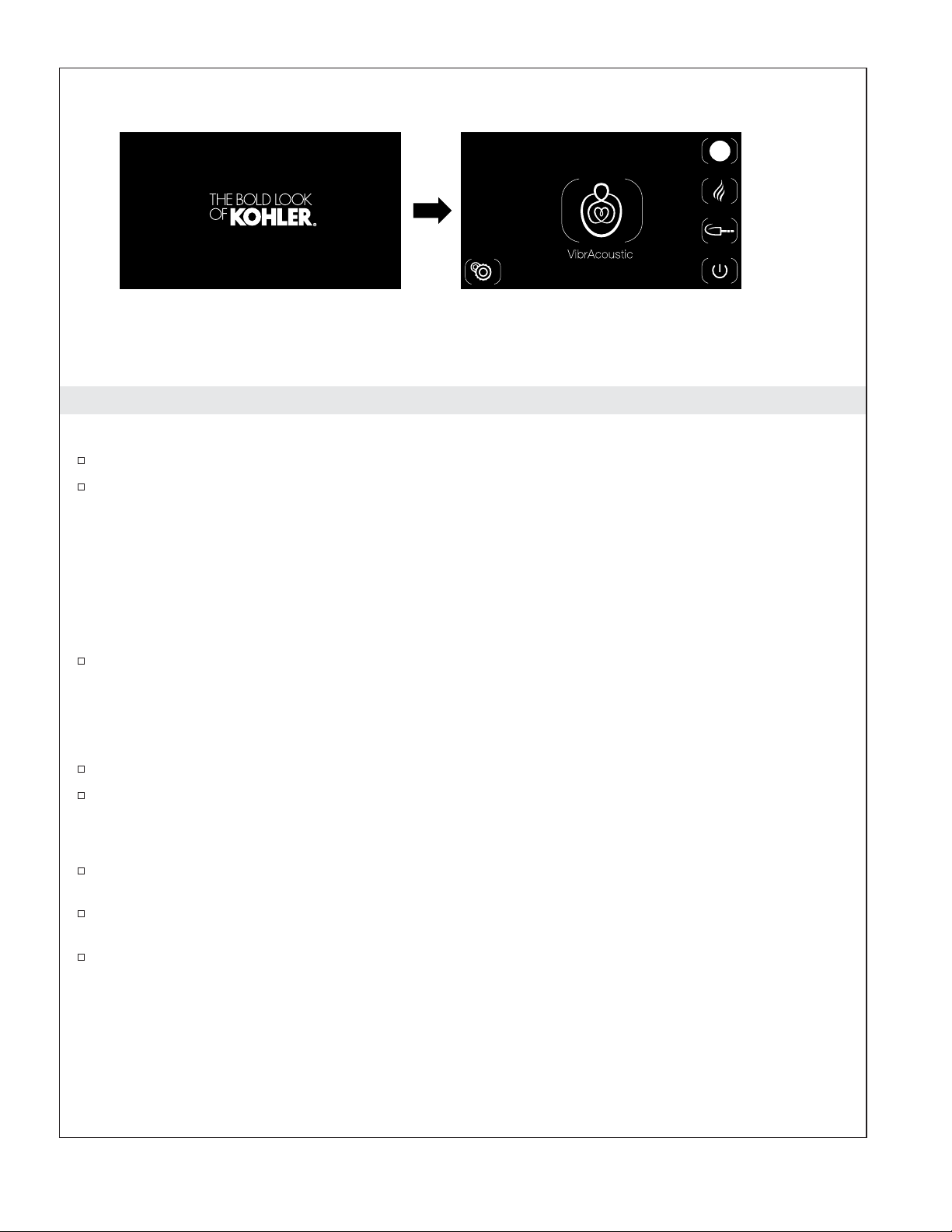

Touch the screen to turn on the interface. The KOHLER logo will briefly fade in and out, then the
home page will appear.
Navigating the Touch Screen
NOTE: All menu icons displayed on the interface touch screen are enclosed in brackets.
To select a menu option, touch the desired icon.
The brackets of the selected icon will illuminate when the icon is touched, then the screen will
change to the selected menu option.
Home Page
The home page displays the [VibrAcoustic] icon. The left side of the screen displays the [Setting]
icon.
Baths with chromatherapy (shown): Provide options on the right side of the screen for:
[Chromatherapy], [Heated Surface], [Aux], and [Power OFF].
Baths without chromatherapy: Provide options on the right side of the screen for: [Heated Surface],
[Aux] and [Power OFF].
Home Page
Aux
Power OFF
Chromatherapy
(If Equipped)
Heated Surface
1212240-5-B 6 Kohler Co.

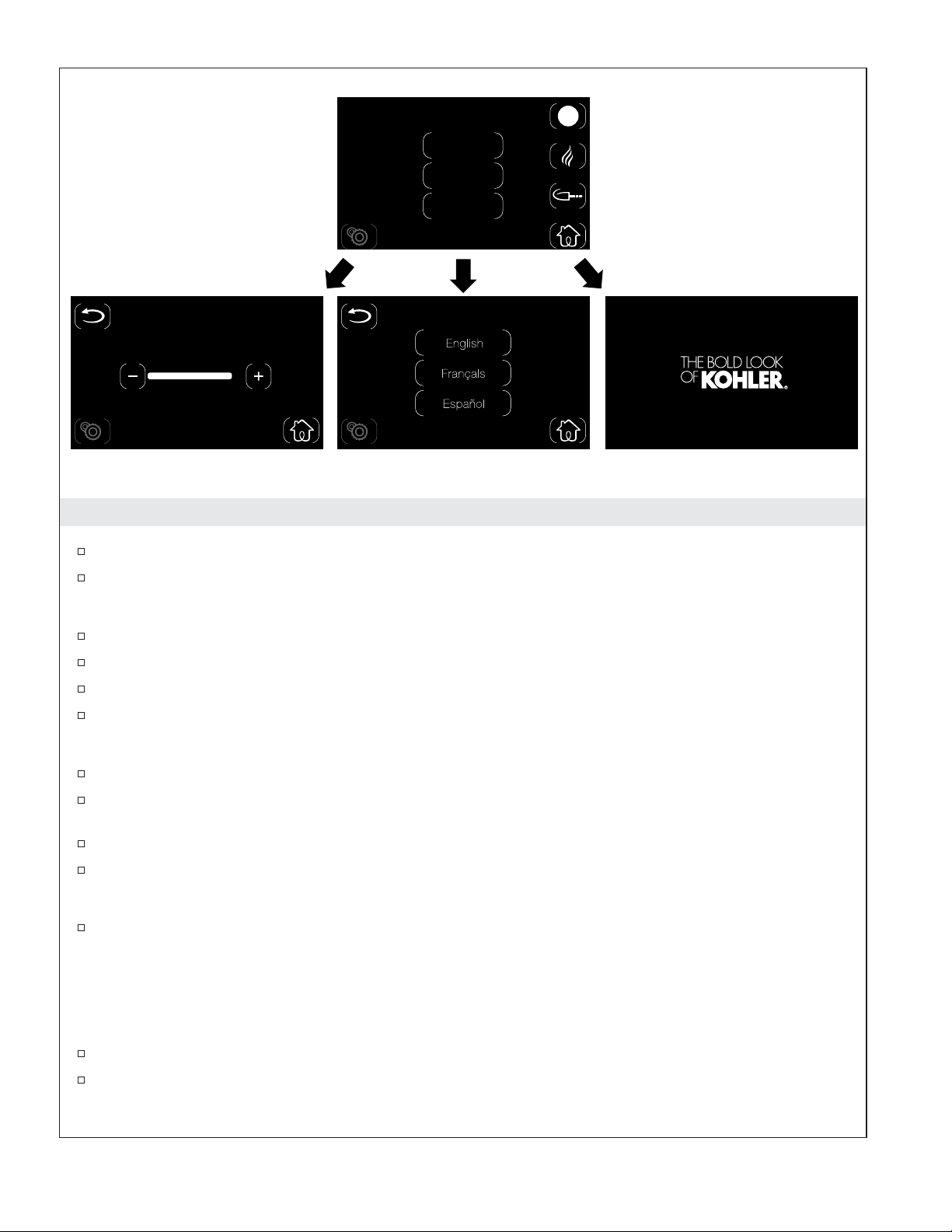

Setting Menu
From the home page, touch the [Setting] icon to access the setting screen.
The [Setting] menu contains three options: [Brightness], [Language], and [Reset].
Screen Brightness
The [Brightness] option controls the intensity of the interface screen.
Touch the minus [-] icon to decrease brightness, or the plus [+] icon to increase brightness.
To return to the [Setting] menu, touch the [Back Arrow] icon on the left side of the screen.
To return to the home page, touch the [Home] icon.
Language
The [Language] menu provides three options: [English], [Francais], or [Espanõl].
Touch the desired language. The chosen language will illuminate, and any screens accessed from
that point forward will display the chosen language.
To return to the [Setting] menu, touch the [Back Arrow] icon on the left side of the screen.
To return to the home page, touch the [Home] icon.
Reset
The [Reset] option is available to reset the system to factory settings if the user interface is not
functioning properly.
NOTE: To reset the control amplifier and maintain user interface custom settings, unplug the amplifier
power supply, wait 30 seconds, then plug back in.
NOTE: Resetting the system will return your interface to the original factory default settings.
The reset option resets the user interface as well as the control amplifier.
To reset the system, touch the [Reset] option. After several seconds, the system will reboot and the
user interface will return to the home page.
Reset
Home
reset
language
brightness
brightness language
setting Chromatherapy
(If Equipped)
Aux
Heated Surface
Kohler Co. 7 1212240-5-B

Experiences
NOTE: Experience Duration – The unit is designed to run continuously for 2 hours and then shuts down
whether it is playing an experience or auxiliary sound. Within this 2 hours, if the user touches the
interface screen, the 2-hour timer resets and starts again.
Turn an Experience ON
From the home page, touch the large [VibrAcoustic] icon to access the various experience options.
The screen will display an experience icon enclosed in brackets.
Touch the icon to begin the experience. The brackets will illuminate while the experience is playing.
The experience will play for 2 hours unless the user touches the screen to extend the timer or turns
the power OFF.
Select an Experience
The experiences can be changed by touching the arrows to the right or left of the icon. A different
experience can be selected while an experience is currently playing.
The sound resonance and heated surface temperature can be adjusted for each experience as
desired. Refer to the ″Adjusting Resonance″and ″Heated Surface″sections.
If equipped, the light color can also be adjusted for each experience. Refer to the ″Chromatherapy″
section.
Turn the Experience OFF
Touch the icon to turn OFF the experience.
NOTE: Turning on auxiliary sound will stop any experience that is currently playing. Refer to the
″Auxiliary Sound″section.
Chromatherapy
(If Equipped)
Home
Home Page
Aux
experiences
Heated Surface
1212240-5-B 8 Kohler Co.

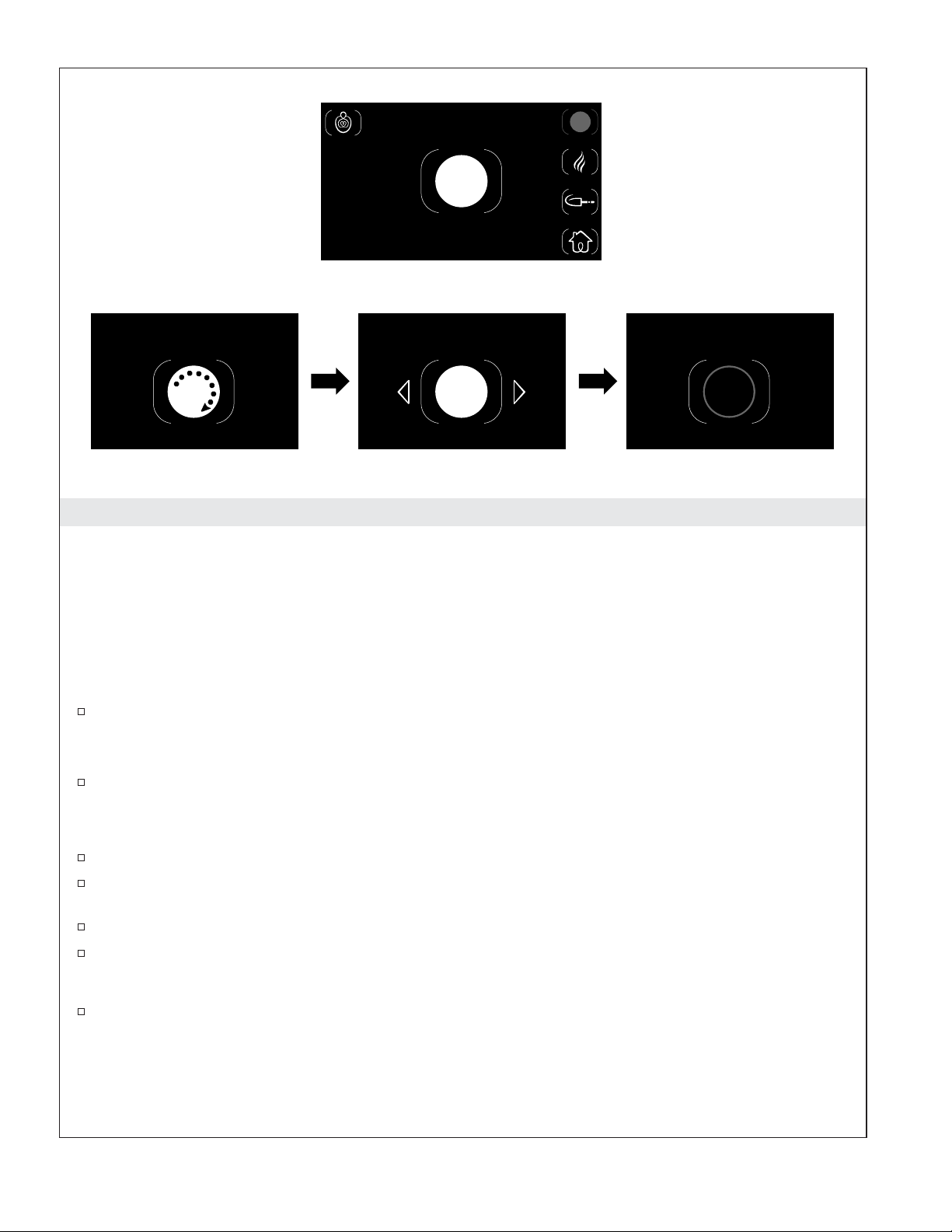

Chromatherapy (If Equipped)
If your vibracoustic bath is equipped with chromatherapy lights, the user interface home page will display a
[Chromatherapy] icon in the top right corner of the screen.
Three chromatherapy options are available: continuous cycle through eight light colors, pause on a selected
light color, and turn OFF chromatherapy lights. To access these options, touch the [Chromatherapy] icon until
the desired setting is reached.
Turn Chromatherapy ON
NOTE: The default chromatherapy setting is a continuous cycle through eight colors of light.
Touch the [Chromatherapy] icon located at the top right of the interface screen to turn the
chromatherapy lights ON. The brackets will illuminate, and a dotted arrow will appear inside the
icon to indicate that the lights are cycling through all colors.
The chromatherapy lights will continuously cycle through eight colors. One full cycle takes
approximately 1 minute.
Pause Chromatherapy Color Cycling
The chromatherapy lights can be set to a specific color.
Touch the [Chromatherapy] icon to pause the chromatherapy cycle. The dotted arrow will disappear
to indicate that the lights are paused on the selected color.
During the PAUSE mode, the screen will display right and left arrows.
Touch the right or left arrow to toggle through the desired chromatherapy light color.
Turn Chromatherapy OFF
Touch the illuminated [Chromatherapy] icon to turn the chromatherapy lights OFF. The icon and
brackets will no longer be illuminated and all arrows will disappear.
Aux
Home
Color Cycling ON Pause Color Chromatherapy OFF
chromatherapy
chromatherapy chromatherapy chromatherapy
ChromatherapyExperience
Heated Surface
Kohler Co. 9 1212240-5-B

Heated Surface
NOTICE: The heated surface will remain on until it is manually turned OFF by touching the illuminated
[Heated Surface] icon.
Turn Heated Surface ON
NOTE: The heater will turn on at low heat or the last selected temperature setting.
To turn lumbar heat ON, touch the [Heated Surface] icon located on the right side of the interface
screen. The icon and brackets will illuminate in the center of the screen.
Adjust Temperature Setting
NOTE: After 60 minutes of inactivity, the heater will automatically reset to low heat if the temperature
was set to medium or high.
The [Heated Surface] icon consists of three individual flames. Illumination of one or more flames
indicates which temperature setting is activated.
Touch the minus [-] icon to decrease temperature, or the plus [+] icon to increase temperature. The
individual flames will illuminate or darken to signify the selected temperature setting.
Low heat: bottom flame is illuminated.
Medium heat: bottom and middle flame are illuminated.
High heat: all three flames are illuminated.
Turn Heated Surface OFF
Touch the illuminated [Heated Surface] icon to turn the lumbar heat OFF. The icon and brackets will
no longer be illuminated and the minus [-] and plus [+] icons will disappear.
Aux
Home
Medium Heat High Heat Heat OFF
heated surface
heated surface heated surface heated surface
Experience
Low Heat
Chromatherapy
(If Equipped)
Heated Surface
1212240-5-B 10 Kohler Co.

Auxiliary Sound
NOTE: The auxiliary sound option is functional only if a cable connection exists between the control
amplifier and an auxiliary sound device.
NOTE: Turning on auxiliary sound will stop any experience that is currently playing.
The auxiliary connection can be used for pairing Bluetooth devices and other audio devices so users
can play their own music with the vibracoustic bath.
To access auxiliary sound, touch the [Aux] icon located on the right side of the screen.
If an auxiliary sound source is connected, touch the [Music] icon to turn the sound ON. The
brackets surrounding the icon will illuminate when the sound is ON.
NOTE: If sound does not resonate through the transducers when the [Music] icon brackets are
illuminated, ensure that the auxiliary device is properly connected and turned ON, and the auxiliary
MUTE function is turned OFF.
The resonance intensity of the auxiliary sound can be controlled from the user interface or from the
auxiliary sound device. Refer to the ″Adjusting Resonance″section to adjust auxiliary sound from
the user interface.
To turn the auxiliary sound OFF, touch the [Music] icon. The brackets will no longer be brightly
illuminated.
Aux
Auxiliary Sound ONAuxiliary Sound OFF
Home
Chromatherapy
(If Equipped)
auxaux
Experience
Intensity
Heated Surface
Kohler Co. 11 1212240-5-B

Adjusting Resonance
Your bath is equipped with six transducers. When the bath is filled with water, two transducers are
positioned above the waterline, and four are located below the waterline.
Follow the steps below to adjust transducer intensity.
Resonance Above Water
This function enables the adjustment of the above water sound resonance for all experiences.
While an experience is running, touch the minus [-] or the plus [+] icon above the indicator bars to
adjust resonance intensity coming from the transducers located near the top of the bath.
Touch the minus [-] icon to decrease intensity, or the plus [+] icon to increase intensity.
Resonance Below Water
This function enables the adjustment of the below water sound resonance for all experiences.
While an experience is running, touch the minus [-] or the plus [+] icon below the indicator bars to
adjust resonance intensity coming from the transducers located near the bottom of the bath.
Touch the minus [-] icon to decrease intensity, or the plus [+] icon to increase intensity.
Mute
This function mutes the combination of sound and vibrations coming from the transducers.
Touch the [Mute] icon to turn sound resonance ON or OFF. The icon and brackets will illuminate
when MUTE is ON.
Aux
Home
intensity
Heated Surface
(If Equipped)
ChromatherapyBack
Mute
Adjust Resonance Above Water Adjust Resonance Below Water
intensity intensity
1212240-5-B 12 Kohler Co.

Components
Troubleshooting
NOTE: For service parts information, visit your product page at www.kohler.com/serviceparts.
This troubleshooting guide is for general aid only. For service and installation issues or concerns, call
1-800-4KOHLER.
Troubleshooting Table
Symptom Probable Cause Recommended Action
1. No sound; no experiences
are functioning. A. Power to the control amplifier is off. A. Reset the circuit breaker to the control amplifier, then check the
electrical power supply and
connections.
B. Control amplifier must be reset. B. If the red LED on the control
amplifier is not blinking, unplug the
control amplifier for 30 seconds,
then plug in and restart.
C. Experiences data module
connection is loose or damaged. C. Inspect the data module for loose connection or damage. Secure the
connection or replace the module as
needed.
D. An experience has not been
selected on the user interface. D. Select an experience.
E. Vibracoustic intensity is muted
on the user interface. E. Touch the [Mute] icon on the user interface to turn off the mute
setting.
Heated SurfaceControl AmplifierTransducers
Chromatherapy
Lights
Chromatherapy
Control
AC Power
AC Power
User Interface
Heated Surface
Control
Heated Surface
Power Supply
Junction
Box
Experience Data
Module Location
Red
LED
Red
LED
Kohler Co. 13 1212240-5-B

Troubleshooting (cont.)
Troubleshooting Table
Symptom Probable Cause Recommended Action
F. User interface cable connections
are loose or damaged. F. Inspect the cables between the user interface, heated surface control,
and control amplifier. Secure
connections or replace cables as
needed.
G. Control amplifier or heated
surface control does not work. G. If the red LED on the control amplifier does not blink following
restart, check the control amplifier
and/or heated surface control and
replace as needed.
H. User interface does not work. H. Check the user interface. Replace as
needed.
2. Music is distorted
(undesirable resonance)
when vibracoustic
functions are on.
A. Intensity setting is too high on
the user interface. A. Turn down the intensity setting on the user interface.
B. Transducers on the back surface
of the bath are in direct contact
with framing, joists, or other
materials.
B. Remove or reposition any materials
that are making direct contact with
the transducers.
C. One or more transducers on the
back surface of the bath are
loose.
C. Rotate the loose transducer(s)
clockwise with your fingers until
tight. Do not overtighten.
D. The bath is making direct
contact with framing, joists, or
other materials.
D. Identify the point of contact and
correct it. The bath must not make
contact with any framing or support
materials.
3. User interface does not
light up. A. Power to the control amplifier is not on. A. Reset the circuit breaker to the control amplifier, then check the
electrical power supply and
connections.
B. Control amplifier must be reset. B. If the red LED on the control
amplifier is not blinking, unplug the
control amplifier for 30 seconds,
then plug in and restart.
C. User interface cable connections
are loose or damaged. C. Inspect the cables between the user interface, heated surface control,
and control amplifier. Secure
connections or replace cables as
needed.
D. Control amplifier or heated
surface control does not work. D. If the red LED on the control amplifier does not blink following
restart, check the control amplifier
and/or heated surface control and
replace as needed.
E. User interface does not work. E. Check the user interface. Replace as
needed.
4. User interface lights up
but does not work. A. Control amplifier must be reset. A. If the red LED on the control amplifier is not blinking, unplug the
control amplifier for 30 seconds,
then plug in and restart.
B. User interface cable connections
are loose or damaged. B. Inspect the cables between the user interface, heated surface control,
and control amplifier. Secure
connections or replace cables as
needed.
1212240-5-B 14 Kohler Co.

Troubleshooting (cont.)
Troubleshooting Table
Symptom Probable Cause Recommended Action
C. Control amplifier or heated
surface control does not work. C. If the red LED on the control amplifier does not blink following
restart, check the control amplifier
and/or heated surface control and
replace as needed.
D. User interface does not work. D. Check the user interface. Replace as
needed.
5. Auxiliary music does not
work. A. Power to the control amplifier is not on. A. Reset the circuit breaker to the control amplifier, then check the
electrical power supply and
connections.
B. Control amplifier must be reset. B. If the red LED on the control
amplifier is not blinking, unplug the
control amplifier for 30 seconds,
then plug in and restart.
C. Auxiliary-in or user interface
cable connections are loose or
damaged.
C. Inspect the cables between the user
interface, heated surface control,
and control amplifier. Secure
connections or replace cables as
needed.
D. Auxiliary music source option is
not selected on the user
interface.
D. Select the auxiliary music option on
the user interface.
E. Vibracoustic sound is muted on
the user interface. E. Touch the [Mute] icon on the user interface to turn off the mute
setting.
F. Vibracoustic intensity is turned
down on the user interface. F. Turn up the vibracoustic intensity on the user interface.
G. Control amplifier or heated
surface control does not work. G. If the red LED on the control amplifier does not blink following
restart, check the control amplifier
and/or heated surface control and
replace as needed.
H. User interface does not work. H. Check the user interface. Replace as
needed.
(Optional) Chromatherapy Troubleshooting Table
Symptom Probable Cause Recommended Action
1. Chromatherapy lights do
not work. A. Power to the control amplifier is off. A. Reset the circuit breaker to the control amplifier, then check the
electrical power supply and
connections.
B. Control amplifier must be reset. B. If the red LED on the control
amplifier is not blinking, unplug
the control amplifier for 30
seconds, then plug in and restart.
C. Chromatherapy feature has not
been selected on the user
interface.
C. Select the Chromatherapy feature
on the user interface.
D. Chromatherapy or user interface
cable connections are loose or
damaged.
D. Inspect the cables for loose
connections or damage. Secure or
replace cables as needed.
E. Control amplifier does not
work. E. If the red LED on the control amplifier does not blink following
restart, check the control amplifier
and replace as needed.
Kohler Co. 15 1212240-5-B

Troubleshooting (cont.)
(Optional) Chromatherapy Troubleshooting Table
Symptom Probable Cause Recommended Action
F. User interface does not work. F. Verify that the user interface cable
is securely connected to the user
interface and the control amplifier
terminal. If the connections are
good, replace the user interface.
G. Chromatherapy control does not
work. G. Replace the Chromatherapy control.
2. Chromatherapy lights do
not cycle through all
colors.
A. Control amplifier must be reset. A. If the red LED on the control
amplifier is not blinking, unplug
the control amplifier for 30
seconds, then plug in and restart.
B. Chromatherapy or user interface
cable connections are loose or
damaged.
B. Inspect the cables for loose
connections or damage. Secure or
replace cables as needed.
C. Control amplifier does not
work. C. If the red LED on the control amplifier does not blink following
restart, check the control amplifier
and replace as needed.
D. User interface does not work. D. Cycle through the Chromatherapy
light functions. If the lights do not
cycle through all colors and the
blue icon on the user interface is
not lit, replace the user interface.
E. If none of the recommended
actions correct the problem,
contact Kohler Co.
E. Contact the Customer Care Center
using the contact information on
the back cover.
Heated Surface Troubleshooting Table
Symptoms Probable Cause Recommended Action
1. Heated surface does not
turn on. A. No power to the power supply. A. Set/reset GFCI or RCD breaker; check wiring and power supply
connections.
B. Heated surface control must be
reset. B. If the red LED on the heated surface control is not blinking,
unplug the control for 30 seconds,
then plug in and restart.
C. User interface cable connections
are loose or damaged. C. Inspect the cables between the user interface, heated surface control,
and control amplifier. Secure
connections or replace cables as
needed.
D. Heated surface control does not
work. D. Check the heated surface control. Replace as needed.
E. Power supply does not work. E. Check the power supply. Replace
as needed.
F. User interface does not work. F. Check the user interface. Replace as
needed.
2. Bath is on, but there is
little or no heat. A. Heater cable loose or damaged. A. Inspect the cables between the user interface, heated surface control,
and control amplifier. Secure
connections or replace cables as
needed.
B. Bath heater/insulation loose. B. Secure heater/insulation to bath.
C. Heat indicator is set to low heat. C. Press the plus [+] icon to increase
temperature.
D. Heater does not work. D. Replace the heater.
1212240-5-B 16 Kohler Co.

Troubleshooting (cont.)
Heated Surface Troubleshooting Table
Symptoms Probable Cause Recommended Action
E. Temperature sensor does not
work. E. Replace the heater.
Care and Cleaning
For best results, keep the following in mind when caring for your KOHLER product:
•Always test your cleaning solution on an inconspicuous area before applying to the entire surface.
•Wipe surfaces clean and rinse completely with water immediately after applying cleaner. Rinse and
dry any overspray that lands on nearby surfaces.
•Do not allow cleaners to soak on surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive material such as a brush or scouring
pad to clean surfaces.
For detailed cleaning information and products to consider, visit www.kohler.com/clean. To order Care &
Cleaning information, call 1-800-456-4537.
Warranty
ONE-YEAR LIMITED WARRANTY
KOHLER plumbing products are warranted to be free of defects in material and workmanship for one year
from date of installation.
Kohler Co. will, at its election, repair, replace or make appropriate adjustment where Kohler Co. inspection
discloses any such defects occurring in normal usage within one (1) year after installation. Kohler Co. is not
responsible for removal or installation costs. Use of in-tank toilet cleaners will void the warranty.
To obtain warranty service contact Kohler Co. either through your Dealer, Plumbing Contractor, Home
Center or E-tailer, or by writing Kohler Co., Attn.: Customer Care Center, 444 Highland Drive, Kohler, WI
53044, USA, or by calling 1-800-4-KOHLER (1-800-456-4537) from within the USA and Canada, and
001-800-456-4537 from within Mexico, or visit www.kohler.com within the USA, www.ca.kohler.com from
within Canada, or www.mx.kohler.com in Mexico.
IMPLIED WARRANTIES INCLUDING THAT OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE EXPRESSLY LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY. KOHLER CO. AND/OR SELLER DISCLAIM ANY LIABILITY FOR SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states/provinces do not allow limitations on how
long an implied warranty lasts, or the exclusion or limitation of special, incidental or consequential damages,
so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights. You
may also have other rights which vary from state/province to state/province.
This is Kohler Co.’s exclusive written warranty.
Warranty
KOHLER
®
Electronic Faucets, Valves and Controls
FIVE-YEAR LIMITED WARRANTY
Kohler Co. warrants that its electronic faucets, valves and controls will be free of defects in material and
workmanship during normal residential use for five years from the date the product is installed. This
warranty applies only to electronic faucets, valves and controls installed in the United States of America,
Canada and Mexico (″North America″).
If a defect is found in normal residential use, Kohler Co. will, at its election, repair, provide a replacement
part or product, or make appropriate adjustment where Kohler Co.’s inspection discloses any such defect.
Damage caused by accident, misuse, or abuse is not covered by this warranty. Improper care and cleaning
Kohler Co. 17 1212240-5-B

Warranty (cont.)
will void the warranty*. Proof of purchase (original sales receipt) must be provided to Kohler Co. with all
warranty claims. Kohler Co. is not responsible for labor charges, installation, or other incidental or
consequential costs other than those noted above. In no event shall the liability of Kohler Co. exceed the
purchase price of the faucet, valve or control.
If the electronic faucets, valves or controls are used commercially or are installed outside of North America,
Kohler Co. warrants that the faucet, valve or control will be free from defects in material and workmanship
for one (1) year from the date the product is installed, with all other terms of this warranty applying except
duration.
If you believe that you have a warranty claim, contact your Home Center, Dealer, Plumbing Contractor or
E-tailer. Please be sure to provide all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, the date the product was purchased, from whom the
product was purchased and the installation date. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility nearest you, write Kohler Co., Attn:
Customer Care Center, Kohler, Wisconsin 53044 USA, or by calling 1-800-4-KOHLER (1-800-456-4537) from
within the USA and Canada, and 001-800-456-4537 from within Mexico, or visit www.kohler.com within the
USA, www.ca.kohler.com from within Canada, or www.mx.kohler.com in Mexico.
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
KOHLER CO. AND/OR SELLER DISCLAIM ANY LIABILITY FOR SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states/provinces do not allow limitations on how long an implied
warranty lasts or the exclusion or limitation of such damages, so these limitations and exclusions may not
apply to you. This warranty gives the consumer specific legal rights. You may also have other rights that
vary from state/province to state/province. This warranty is to the original consumer purchaser only, and
excludes product damage due to installation error, product abuse, or product misuse, whether performed
by a contractor, service company, or the consumer.
This is Kohler Co.’s exclusive written warranty.
*Never use cleaners containing abrasive cleansers, ammonia, bleach, acids, waxes, alcohol, solvents or
other products not recommended for chrome. This will void the warranty.
1212240-5-B 18 Kohler Co.

Guide du propriétaire
Baignoire vibracoustique avec surface chauffée
INSTRUCTIONS IMPORTANTES
AVERTISSEMENT: Lors de l’utilisation de produits électriques, toujours observer les
précautions de base, notamment:
AVERTISSEMENT: Risque de choc électrique. Raccorder uniquement à un circuit protégé par un
disjoncteur de fuite de terre (GFCI)*. Une mise à la terre est requise. L’appareil doit être installé et
mis à la terre par un représentant technique qualifié.
AVERTISSEMENT: Risque de choc électrique. Tout le câblage électrique doit être réalisé par un
électricien qualifié.
AVERTISSEMENT: Risque de choc électrique. Déconnecter l’alimentation électrique avant
d’effectuer un entretien.
AVERTISSEMENT: Risque de choc électrique. Ne pas faire fonctionner les appareils auxiliaires
sous tension électrique à proximité de l’eau.
AVERTISSEMENT: Risque de dommages matériels. Les matériaux de construction et le câblage
doivent être acheminés loin des composants qui dégagent de la chaleur et qui font partie de la
baignoire.
AVERTISSEMENT: Risque de blessures ou d’endommagement du matériel. Lire toutes les
instructions avec attention avant de commencer l’installation.
AVIS: Respecter tous les codes de plomberie, d’électricité et de construction.
*Hors de l’Amérique du Nord, ce dispositif peut être connu sous le nom de dispositif à courant résiduel
(RCD).
Sommaire
INSTRUCTIONS IMPORTANTES ..................................................... 1
Identification du produit ............................................................ 2
Caractéristiques .................................................................. 2
Baignoire vibracoustique ........................................................... 4
Icônes d’interface utilisateur ......................................................... 4
Fonctionnement de la baignoire ...................................................... 5
Menu de configuration ............................................................. 6
Effets ......................................................................... 8
Chromathérapie (si présente) ........................................................ 9
Surface chauffée ................................................................ 10
Son auxiliaire ................................................................... 11
Réglage de la résonance .......................................................... 12
Composants ................................................................... 13
Dépannage .................................................................... 13
Entretien et nettoyage ............................................................ 18
Garantie ...................................................................... 18
Garantie ...................................................................... 18
Kohler Co. Français-1 1212240-5-B

Identification du produit
N° de modèle K-_______________________
Noter le numéro d’identification exact, copié de l’étiquette sur l’emballage.
Caractéristiques
Interface utilisateur
Température ambiante Max 125°F (51,5°C)
Humidité relative maximale 100% avec condensation (surface externe seulement)
Longueur de câble d’interface 25’ (7,6 m)
Amplificateur de commande
Température ambiante Plus de 34°F (1°C), Max 104°F (40°C)
Humidité relative maximale 95% sans condensation
Longueur de câble de transducteur 25’ (7,6 m)
Longueur de câble de chromathérapie 25’ (7,6 m)
Longueur de câble de commande de surface
chauffée 25’ (7,6 m)
Service électrique 120 V, 15 A, 60 Hz
1212240-5-B Français-2 Kohler Co.
