Kohler LOURE K-98452T-NW-CP User manual

2014
2014
安装说明书 Wall-mount Sensor Faucet
1495655-T2-A
K-98452T-XNW-CP
科勒（中国）投资有限公司
中国上海市静安区江场三路158号 邮编：200436
制造商：上海科勒电子科技有限公司
中国上海市宝山区丰翔路1955号 邮编：200444
萝瑞墙出水感应龙头-单冷，1.9L
LOURE WM SENSOR FCT COLD 0.5GPM
萝瑞墙出水感应龙头-单冷，1.9L,罗曼银
LOURE WM SENSOR FCT COLD 0.5GPM - BN
萝瑞墙出水感应龙头-单冷，1.9L,原色黑
LOURE WM SENSOR FCT COLD 0.5GPM - BL
萝瑞墙出水感应龙头-单冷，1.9L,法兰金
LOURE WM SENSOR FCT COLD 0.5GPM - AF
萝瑞墙出水感应龙头-单冷，1.9L,摩登金
LOURE WM SENSOR FCT COLD 0.5GPM - 2MB
萝瑞墙出水感应龙头-单冷，1.9L，云境版
LOURE WM SENSOR FCT COLD 0.5GPM, IOT
萝瑞
LOURE
K-98452T-NW-CP
K-98452T-NW-2MB
K-98452T-NW-AF
K-98452T-NW-BL
K-98452T-NW-BN

如果使用非推荐的脸盆，可能会产
生溅水在脸盆外面等情况。
使用说明 OPERATION INSTRUCTIONS
NOTE: Water spraying out of countertop might happen when
countertop out of the recommended list.
21495655-T2-A
8. Cover the sensingwindow with black tapewhen repairing
lavatories.
8. 修理面盆时，用黑色电工胶布粘住感应窗口。
9. 维修交流龙头时，必须断开交流电源并关闭
水源。
9. Turn off the electrical source and shut down water supply
before the faucets repaired.
6. As for AC type faucets, strictly follow indicated instructions
to perform electric connection. Only provide electric supply
to power box after the installation is completed.
7. One AC/DC transformer for max.one faucets.
6. 对于交流龙头，安装时务必按照说明书的要
求正确连接导线，龙头安装完毕后才可向电源盒
供电。
7. 一个交流电源盒最多可供一个感应龙头。
注意事项
1Flush the water supply pipes thoroughly to remove debris.
,
1.
Faucet is designed for tap water or potable water.
2Do not strike the faucet with rough strength to avoid being
3
4
5.
3. Do not damage the surface of sensing window when
installing or cleaning the faucet.
4. For new installations, install the faucet and drain to
the lavatory before installing the lavatory.
5. As for DC type faucets, please pay special attention to
the
battery poles direction. Tighten the battery cover completel
y to
prevent its exposure to moisture.
2.
damaged and failure.
Notes:

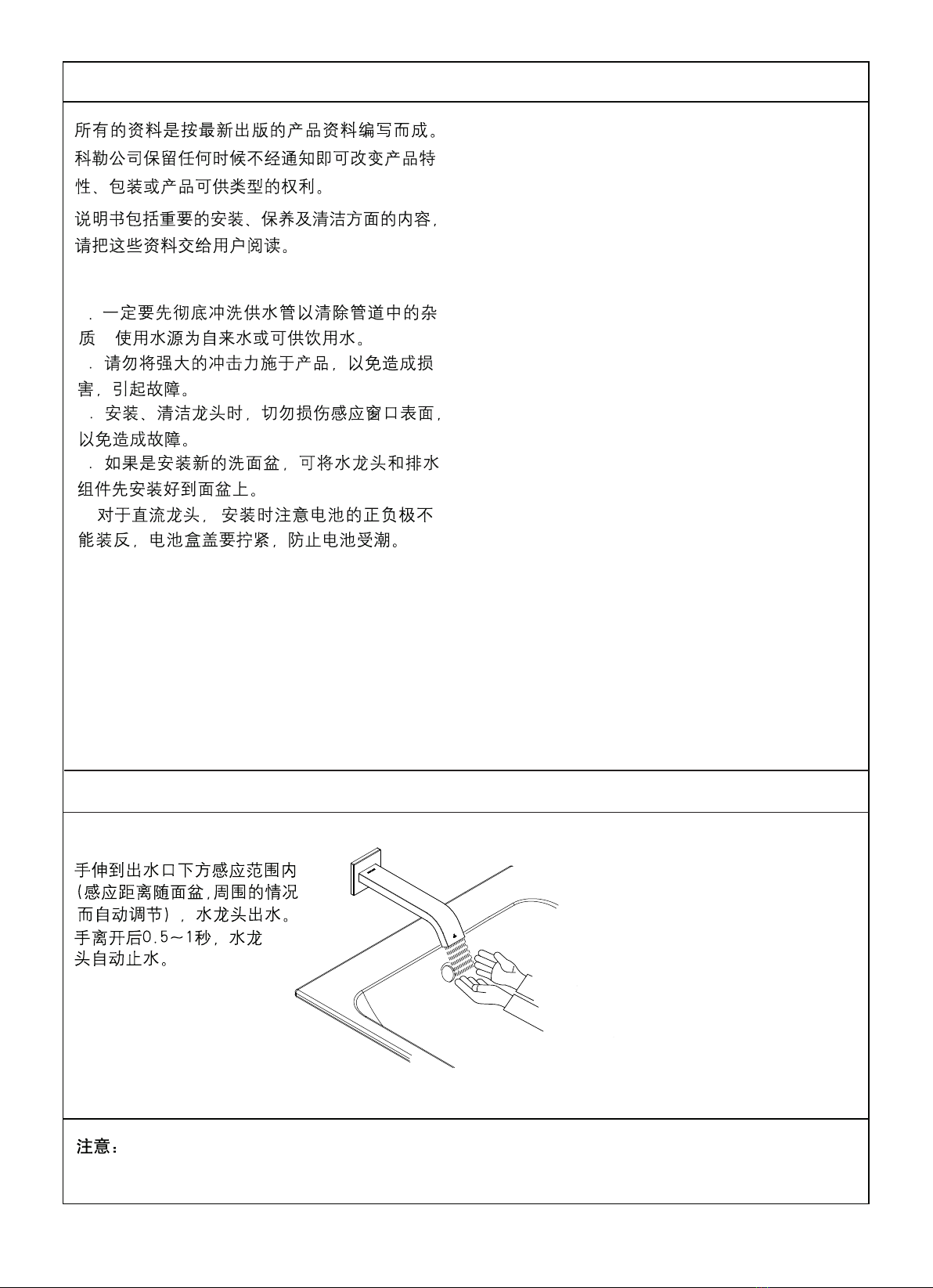

Place your hands under the faucet
within the sensor range ( the sensor
range will auto-adjust to its
surroundings , the faucet should be
on.) The faucet will automatically turn
off after 0.5~1 second after moving
your hands away from the sensor. The
sensing distance will be adjusted
automatically according to the
condition of the lavatory and
surrounding environment.
All information is based on the latest product information
available at the time of publication. Kohler Co. reserves the
right to make changes in product characteristics, packaging,
or availability at any time without notice. Please leave these
instructions for the consumer. They contain important
installation, maintenance and cleaning information.
安装之前 BEFORE YOU BEGIN

6
～1
1
1～
～
～

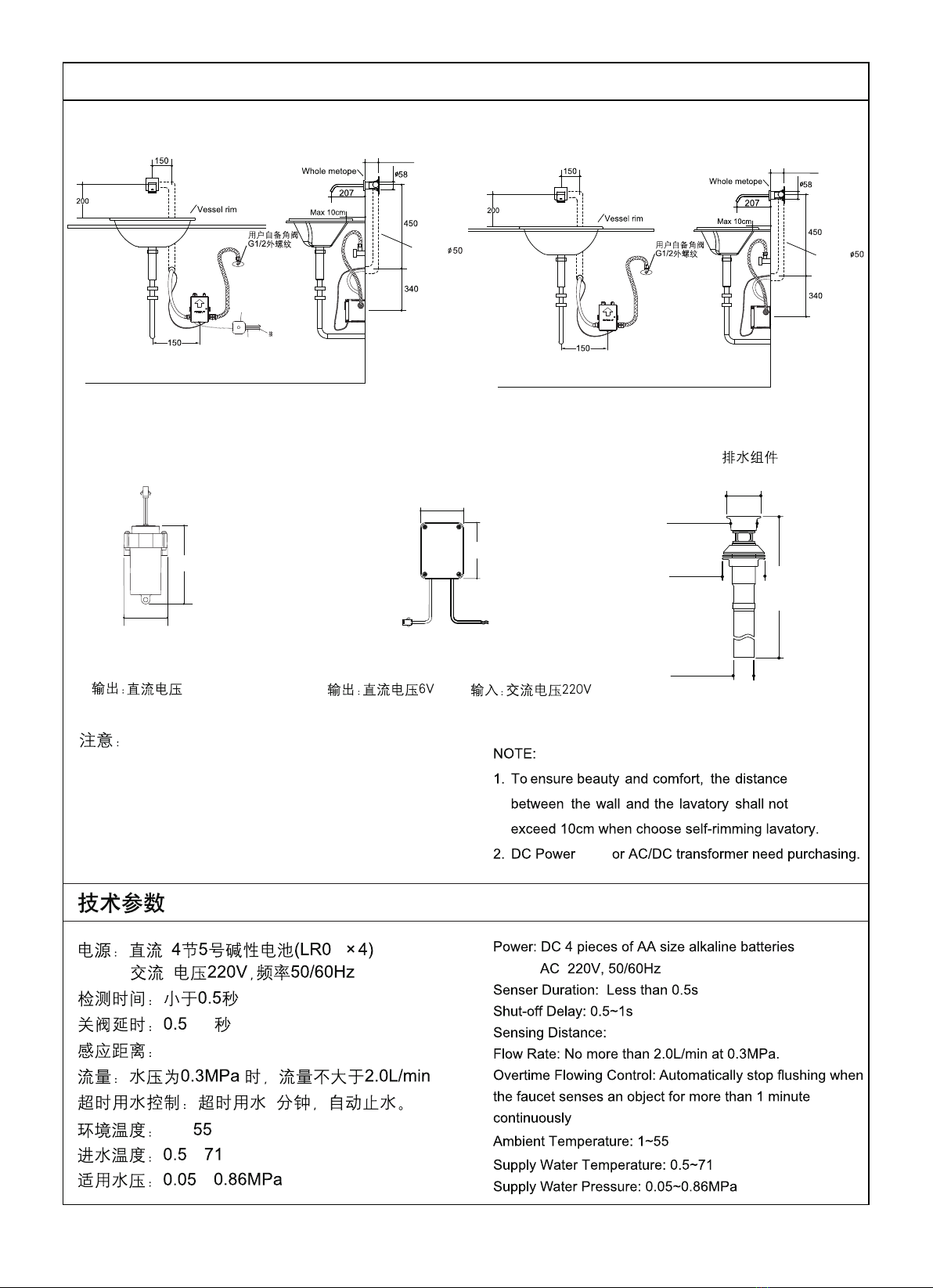

PARAMETERS
℃
℃
萝瑞入墙式单冷交流感应龙头
台盆顶面
ROUGH-IN
安装尺寸
Unit
台盆顶面
完整墙面
完整墙面
用户自备
穿线管
萝瑞入墙式单冷直流感应龙头
Please prepare
external thread angle
valve G1/2
用户自备
穿线管 Please prepare
external thread angle
valve G1/2
Automatic adjustment
℃
℃
Drain
φ41.2
φ54
φ31.75
226
φ66.5
72
54
26845T-NA
AC/DC Transformer
交流电源盒
Output: DC6V Input: AC220V
47
84
26844T-NA
DC Power Unit
直流电源盒
6V
Output: DC6V
1. 台盆里侧边缘与产品安装墙面的距
离不超过10cm，否则可能影响美观
以及手在使用时的舒适度。
2. 直流或交流电源盒需另购。
自动调节
70~105
70~105
31495655-T2-A
220V交流电Connect
AC 220V
穿线管
Wire Tube
开关
Switch

将安装组件放入槽内，并用自攻
螺钉固定。
保证安装组件的底部与完工墙面的距
离在70～之间，如图（Ⅰ）。
保证暗装架组件的底部与墙面平行，
不能歪斜，如图（Ⅱ）。
一 安装暗装架组件
根据台盆大小确定安装方式，确保
龙头出水中心正对台盆中心位置。
凿挖安装槽坑
根据安装尺寸图确定安装位置，凿
出槽坑，埋设供水管，暂不供水。
槽深70～，尺寸如图。安
装位置应避免光源直射或反射进入
感应窗口，不能靠近强烈紫外线或
电磁场。
在安装尺寸位置钻孔，打入膨胀管。
固定安装组件
1. Install Mounting Bracket Assy.
INSTALLATION
150
70
90
完工墙面
41495655-T2-A

二 安装龙头
装饰盖(3)
2. Install Faucet
2. Move a distance of the escutcheon
forward
1
3. Secure
51495655-T2-A
3
4

3.Fasten control valve assembly
Unscrew valve cover screws (4) by
screwdriver, open valve cover (5).
Determine control box assembly (6)
installation location per rough-in; then
drill holes, and punch plastic expansion
tube (10) in. Place valve box against
the wall and then mount control valve
assembly on the wall by expansion
screws (11). Keep control box assembly
parallel to the wall.
6
4
5
11
10
三 控制阀组件的安装固定
拧松 4
5
6
10
11
滤网组件
Filter Assy
12
13
1. Customer shall prepare check valve.
2. Do not mix water inlet with water outlet.
Connect check valve (12) to outlet, then
connect the hose (13) to check valve
(12). Put a bucket in the front of hose
(13). Keep check valve (12) fully open,
turn on the water supply for about 1 min,
make sure no leakage on pipeline, and
then turn off the water supply.
Then connect check valve (13) to valve
outlet to faucet assembly water outlet
hose (
Note:
12
13 12
13 12
(13)
(14)。
1.
2.
14).
61495655-T2-A
四安装电源盒组件
1.安装交流电源盒组件
Install AC power unit assembly
Install power unit assembly
220V交流电Connect
AC 220V
感应龙头
Faucet
G1/2
Please prepare external
thread angle valve G1/2
穿线管
Wire Tube
开关
Switch
12
1314

71495655-T2-A
Connect to
electrical Source
接交流电源
Connect to
electrical Source
接交流电源
AC220V接入直流DC接线端。
Connect to
Faucet
Connect to
Faucet
Note: Not allowed connect AC 220V electrical source to DC wire connector of AC/DC transformer
注：交流电源盒需另购。 Note: AC/DC transformer need to buy separately.
1.Suggested wire: AC connection wire should with insulated
protecting layer or sleeve and the section should be bigger
than 0.5mm2. The section of DC connection wire should be
bigger than 0.3mm2. The connection pattern must according
to illustrations above.
2. After wire layout finished, check and repair if needed.
Then connect AC connector of AC/DC transformer to
electrical source from the control box, and DC connector
of AC/DC transformer to control assembly. Turn on AC
electrical power, faucet will be in the period of automatic
adjusting sensing distance (about 30 seconds). The faucet
will not work during this period.
1. 建议交流电源线采用带绝缘和护套层的电线，导
体标称截面积 0.5mm2；直流连接线采用导体标
称截面积 0.3mm2的电线。请严格按照上图进行
连接。
排线完毕后，应检查并确保所有排、接线无误，
再分别连接电源盒AC接线端与排线管内交流接线
端，以及电源盒DC接线端(黑橙线接头)与控制组
件的电源线接插件（从阀盒内引出的电线).最后
打开AC电源，龙头进入30秒自动调距阶段，此过
程龙头不会出水。

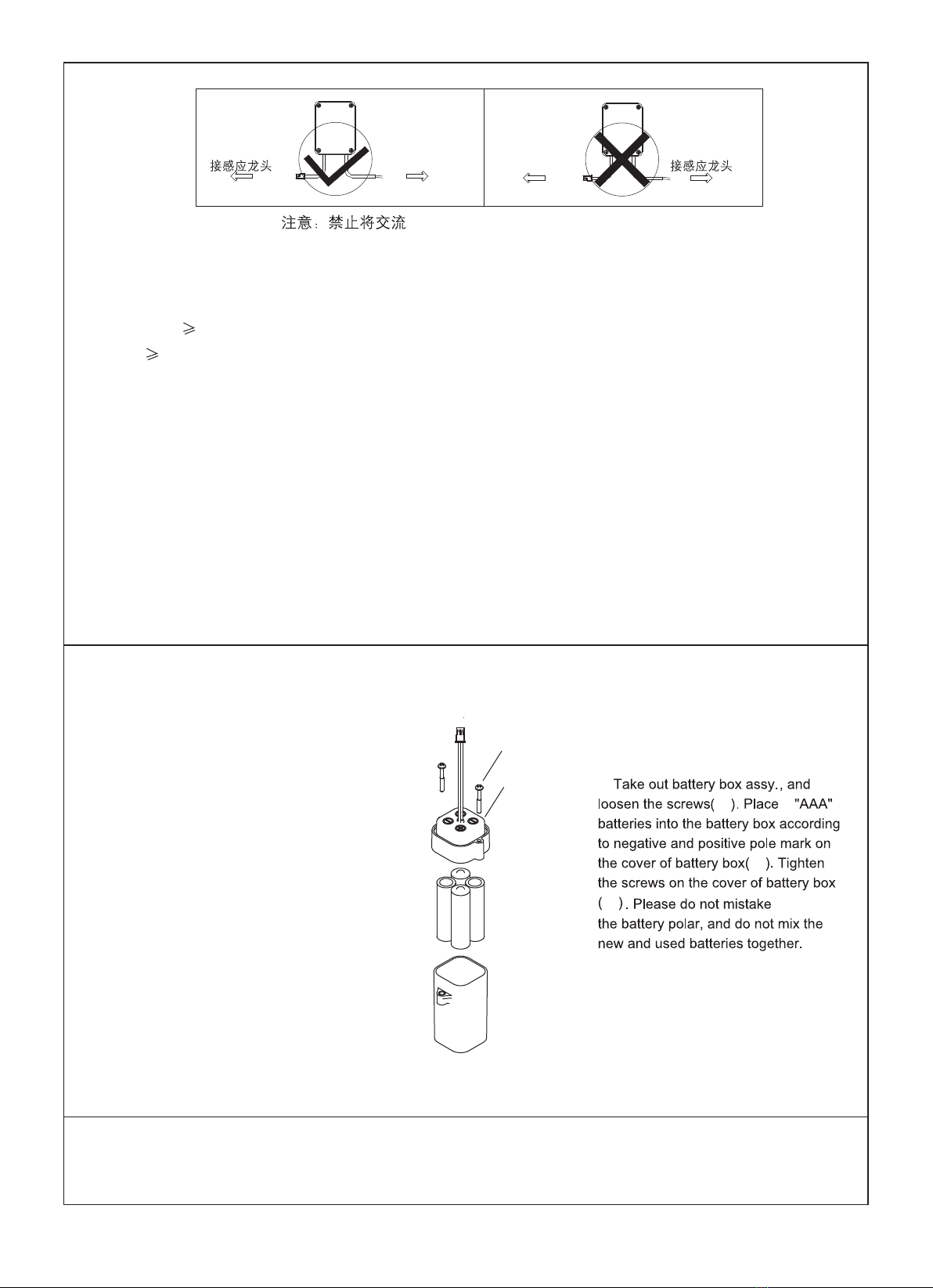

2.安装直流电池盒组件
Install DC power unit assembly
1. 取出电池盒组件， 旋松螺钉(15),
按电池盒盖(16)上的正负极标示装
入4节5号电池，紧锁电池盒盖(16)
注意：电池极性不能装反，新旧电
池不能混用。
1.
16
16
15 4
15
16
的螺钉(15)后。
2.

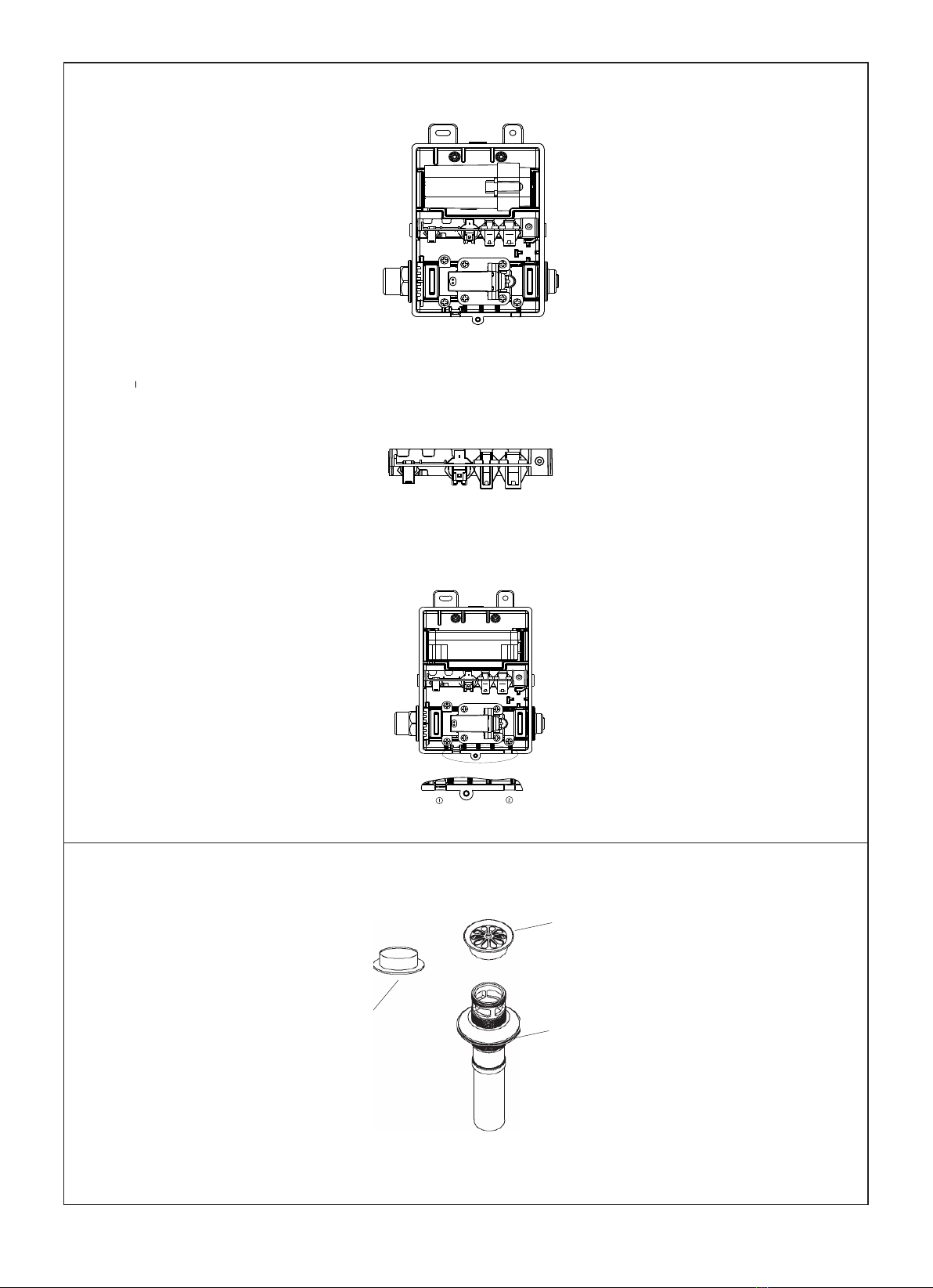

3.接线并固定控制盒组件
Cabling and fix the control box

81495655-T2-A
电源盒组件
Power unit assebly
1. Assemble AC or DC power unit
assembly into control box.
注：①为交流电源出线口，使用时，
将①的卡扣（薄片状）去除，保证
出线口光滑。
②为龙头感应器出线口。
Note: ① is the outlet of AC power supply.
Remove the clip (lamellar) during the
process of use to ensure the smoothing
of outlet.
②is the outlet of faucet sensor.
2.Cabing and tidying wires such as
power wire assembly,senor wires
assembly and solenoid wire assembly
to right position. Then lock the control
box.
2.如图所示,将电源线,龙头感应器线
及电磁阀线与相应的接线端相连
接。然后整理好线束并锁紧控制盒
盖。
Power wire connector
电磁阀接线端
Solenoid wire connector 电源线接线端 龙头感应线接线端
Sensor wire connector
1. 将交流或直流电源盒组件放入
控制盒内。
五如何安装排水组件 How to Install the Drain
17
18
旋下排水器盘片(17)，在其底面沿
周围涂上一圈密封油灰。把排水本
体(18)由底下插入面盆。
Screw off the drain flange (17) from drain.
Apply a ring of plumbers putty around
underside of the drain flange (17). Insert
the drain body (18) into the lavatory from
the underside.
Apply plumbers putty
涂油灰

如何转换成混水感应龙头
若用户另购三通软管组件
HOW TO CHANGE TO MIXING SENSOR
FAUCE (If users buy the tee hose assy
1298745-SP)
外螺纹
三通软管组件
用户自备角阀
Please prepare external
thread angle valve G1/2
1298745-SP)
注：软管、三通请用户自备。 Note: Please let users prepare the hose and tee by themselves.
建议使用科勒推荐的三通进水软管
组件，否则有冷热水互窜的风险。
It is recommended to use Kohler TEE inlet hose assembly,
otherwise there is a risk of cold and hot water mixing problem.
91495655-T2-A
17
18
19
20 Connect the tailpiece (20) to the trap (21).
The tailpiece should extend 25mm to
55mm into the trap.
21
把尾管(20)接上存水弯(21)，尾管
需插入存水弯25mm到55mm之间。
会破坏油灰密封。
Thread the drain flange (17) onto the drain
Body (18). Tighten the locknut (19) by hand
from the underside of the fixture. Remove
any excess putty.
Note: Do not try to change the position of
the drain after the locknut (19) is tightened,
or you may break the putty seal.
把排水器盘片(17)旋入排水本体
(
18) 。从下方用手拧紧锁紧螺母
(19)，去除多余的油灰。
注意：在锁紧螺母(19)拧紧后，不
可再调整排水本体的位置，否则将

如何转换成恒温阀感应龙头
(若用户另购 恒温阀16294T-3-CP,
具体安装详见其说明书 )

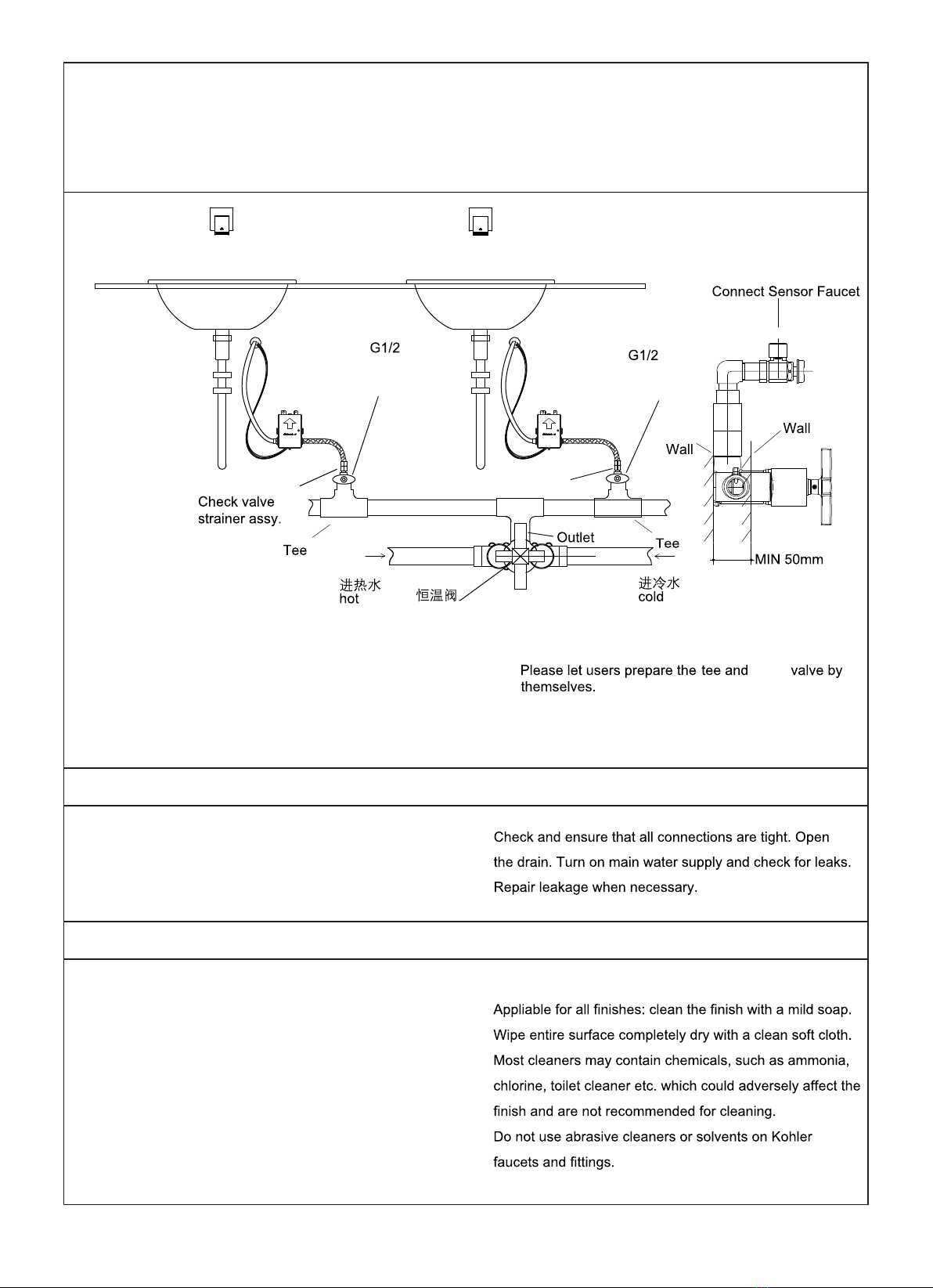

HOW TO CHANGE TO THERMOSTATIC
SENSOR FAUCET (If usersbuy the
thermostatic valve 16294T-3-CP, the
installation refer to the manual of 16294T-3-CP)
接感应龙头
外螺纹 外螺纹
墙面
墙面
单向阀滤网组件
Check valve strainer assy.
单向阀滤网组件
出水口
三通
三通
thermostatic valve
注：三通、角阀请用户自备。 angle
用户自备角阀
用户自备角阀
Please prepare external
thread angle valve G1/2 Please prepare external
thread angle valve G1/2
CLEANING INSTRUCTIONS
有腐蚀性的清洁剂或溶剂不可使用于科勒的水龙
头及其配件上。
适用于所有加工处理过的表面，以中性肥皂水清
洗镀层表面，再以干净的软布彻底擦干整个表面。
许多清洁剂，比如氨水，去污粉及洁厕灵等，会
对电镀表面造成伤害，切忌使用。
安装结果检查
检查并确保所有衔接处都已拧紧，打开排水系统
和主要供水源，检查并修理有漏水的接口。
INSTALLATION CHECKOUT
清理说明
Note:
10 1495655-T2-A

用户须知

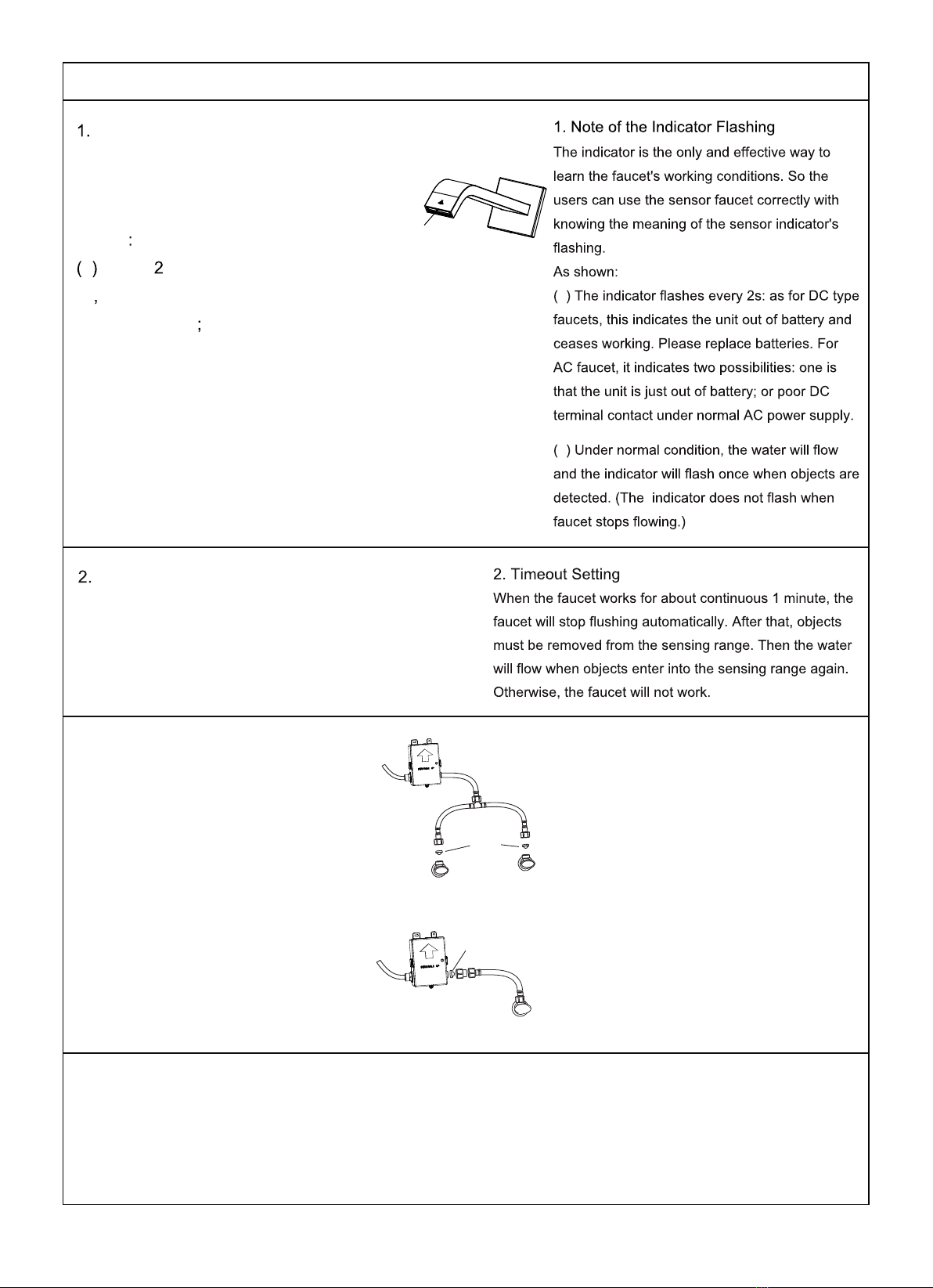

感应指示灯的各种闪烁情况
感应指示灯是使用者了解感应龙头有效、
唯一的途径。所以明白了感应指示灯闪烁
所代表的含义，可以正确使用感应龙头，
如图示
1 间隔约秒钟连续闪烁：若直流感应龙
头代表龙头电池耗尽，已停止工作，等待
使用者更换电池 若交流感应龙头，表示为
两种情况：一种为刚刚停电；另一种为在
交流供电正常的情况下，则电源盒直流接
线端接触不良。
(2) 在正常工作情况下，当有物体被感应
时，龙头出水，感应指示灯闪烁一次。
(龙头关闭，感应指示灯不闪烁。)
IMPORTANT CONSUMER INFORMATION
1
2
超时出水控制
连续在感应状态下使用约一分钟，龙头自动止水。
自动止水后，手或物体离开感应范围后，再次进
入感应范围内，龙头正常工作，否则无反应。
3. 清洗过滤系统 Clean the Filtration System
该感应龙头的控制组件内已包含了过
滤装置。如管内杂质过多或水质较
差，长期使用会引起出水情况不良。
请按以下步骤清洗过滤装置：
2. 将控制组件进水口处软管拧下，取
出滤网组件，用水冲洗完毕后，重新
装入。
1. 关闭角阀。
The touchless faucet control assembly include
filtration device. Poor water outflow shall be
caused by excessive impurities inside the hose
or poor water quality after long time use. Please
clean filtration device per following steps:
2. Pull hose from control assembly water inlet,
take filter screen assembly out. Reinstall screen
after clean by water.
3.
1. Turn off stop valve.
混水(Mixer)
单冷(Cold)
4. 自动清洗存水功能
When the faucet is no used for a long period of
time, it will automatically flush to discharge the
stagnant water inside the faucet every 24hrs.
感应龙头长期处于不使用状态时，
每间隔24小时自动冲水一段时间排
出龙头内的存水。
4. Self-Cleaning the stagnant water
滤网组件
Filter Assy
滤网组件
Filter Assy
111495655-T2-A
指示灯
Indicator light

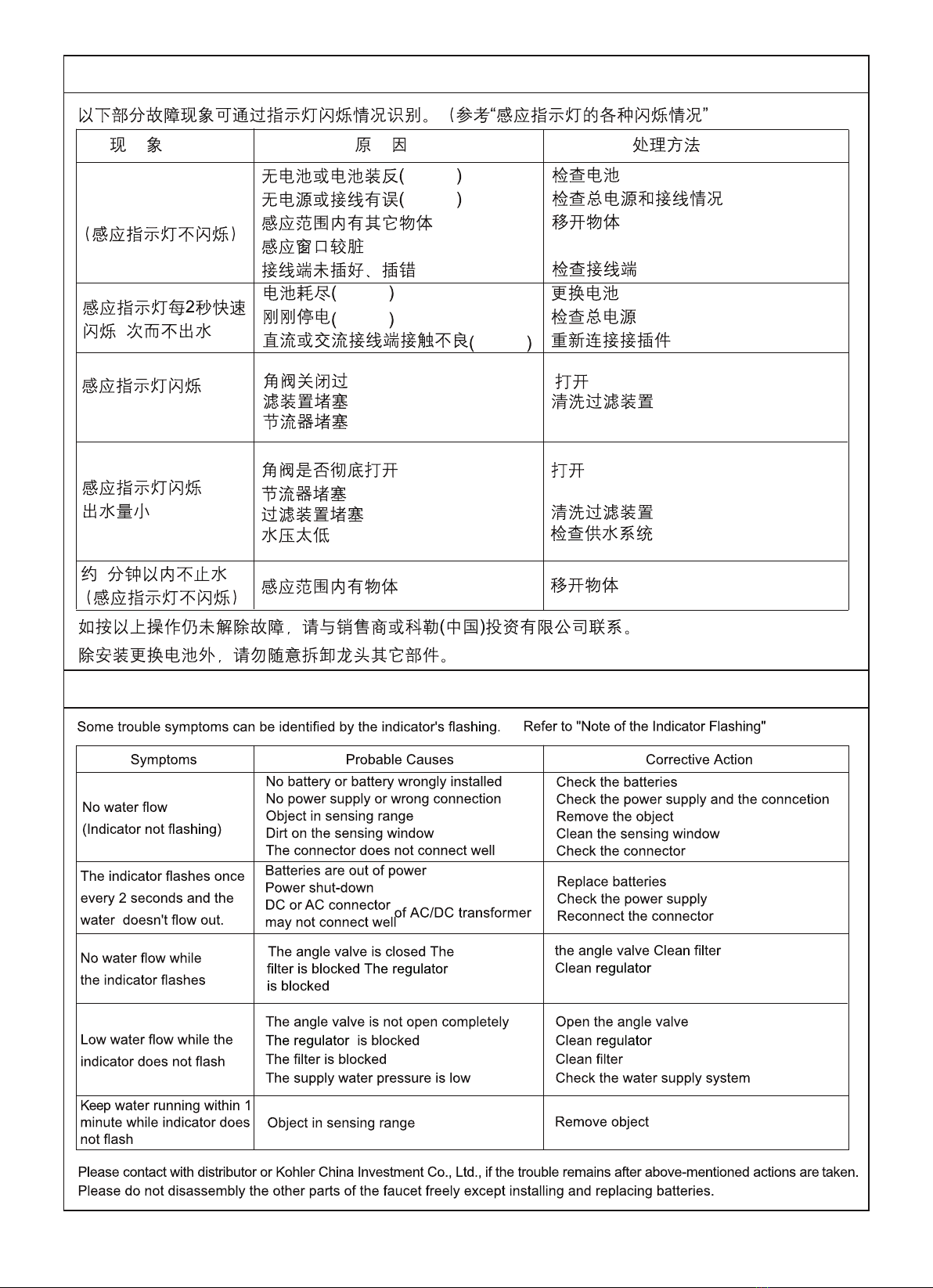

常见故障排除
）
直流电
交流电
不出水
不出水
1
角阀
清洗节流器
角阀
清洗节流器
清洁窗口
TROUBLE SHOOTING
1
直流电
交流电
交流电
（ ）
12 1495655-T2-A

回收提示
本产品超过使用期限或经过维修无法正常使用后，不应随意丢弃，请交由有废弃电器电子产品处理资质的
企业处理，正确的处理方法请查阅国家或当地有关废旧电器电子产品处理的规定。
产品中有害物质含量的说明
有害物质统计表
有害物质名称
部件名称 铅(Pb） 汞（Hg）
外壳组件 ×○○○○○
阀体组件 ×○○○○○
控制盒组件 ×○○○○○
*电池盒组件 ○○○○○○
*电池 ○○○○○○
*交流电源盒 ○○○○○○
*进水组件 ×○○○○○
附件类 ○○○○ ○ ○
多溴联苯
（PBB）
多溴二苯醚
（PBDE）
镉（Cd） (Cr(VI)）
六价铬
131495655-T2-A
本产品的“环保使用期限”为10年，科勒公司根据产品设计特性指定该期限。只有在本产品
使用说明书所述的正常情况下使用本产品时，“环保使用期限”才有效。
本表格依据SJ/T 11364-2014的规定编制。
○：表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572现行有效版本规定的限量要求以下。
×：表示有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572现行有效版本规定的限量要求。
*：表示部分机型含有该部件。
注：本表格提供的信息是基于供应商提供的数据及科勒公司的检测结果。本产品应用环保设计理念，在当
前技术水平下，所有有害物质或元素的使用已经控制到了最低程度，科勒公司会继续努力通过改善现有技
术来减少这些物质的使用。
10

Description of Content of Hazardous Substances in Product
Reclaim Indication
When the product exceeds service life or is unable to use after repair, do not throw the product away in the normal trash.
Please dispose the waste electronic parts through a qualified reclamation enterprise. Make sure the product is handled
properly. Disposing of product must be done in accordance with the local or national government law.
Statistics of Contents of Toxic or Hazardous Substances or Elements
Toxic or Hazardous Substance or Elements
Part name Lead
(Pb)
Mercury
(Hg)
Cover Assy.
Valve Assy. ×○ ○ ○ ○ ○
Control Box Assy. ×○ ○ ○ ○ ○
* Battery Box Assy. ○○ ○ ○ ○ ○
* Battery ○○ ○ ○ ○ ○
* AC Power Box ○○ ○ ○ ○ ○
* Water Inlet Assy. ×○ ○ ○ ○ ○
Accessories ○ ○ ○ ○ ○ ○
Polybrominated
biphenyls
（PBB）
Polybrominated
Diphenyl Ethers
（PBDE）
Cadmium
(Cd)
Hexavalent
Chromium
(Cr(VI)）
×○ ○ ○ ○ ○
14 1495655-T2-A
10
*
:Indicate only partial product series contains this substance.
Note: the information provided is based on the supplier data and Kohler inspection results. The product is designed not to hurt
the environment. Under current technology, all hazardous materials have been used in the smallest amounts possible. Kohler
will strive to reduce the use of these hazardous materials used in this product.
The product “service life for environment protection” is 10 years; Kohler Company will specify product service
life based on product characteristics. The product “service life for environment protection” is only effective when
the product is used as described in the product specification.
○:Indicates that the substance in the material composition is below the high limits of the current requirements in GB/T26572.
:Indicates that at least one of the homogeneous substance in the material composition is below the high limits of the current
requirements in GB/T 26572.
×
This form is prepared in accordance with SJ / T 11364 .
