Kohler K-3466 Assembly instructions

Homeowners Guide
One-Piece Toilets
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-3466 K-3467
1013211-5-B

Thank You For Choosing Kohler Company
Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship
offers you a rare combination of proven performance and graceful
sophistication that will satisfy you for years to come. The
dependability and beauty of your Kohler toilet will surpass your
highest expectations. We’re very proud of our products here at Kohler
and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay
special attention to the Care and Cleaning instructions.
All information in this manual is based upon the latest product
information available at the time of publication. At Kohler, we
constantly strive to improve the quality of our products. We reserve
the right to make changes in product characteristics, packaging or
availability at any time without notice.
Your Kohler Toilet
Your Kohler toilet combines outstanding function, comfort, and
performance with remarkable style and class.
This Kohler toilet was designed with our IngeniumTM Flushing System,
and uses only 1.6 gallons (6 L) of water for each flush. This ensures
that your toilet will provide exceptional performance that is
comparable to our previous 3.5 gallon (13.2 L) models. Your toilet
exceeds ASME performance standards for low-consumption toilets. It
was designed with a large, glazed trapway to keep waste moving
without blockage.
Crafted from a clay mixture that is fired at an intense heat to vitrify
the clay and fuse the glaze, your Kohler toilet is scratch- and
abrasion-resistant. Its surface won’t stain, discolor, rust, or fade. Every
component in your Kohler toilet is specifically designed to increase the
toilet’s useful life.
How to Use This Manual
This manual is designed to help you troubleshoot and repair any
problems that may develop with the operation of the toilet. If a
problem occurs:
Refer to the Troubleshooting section to determine a probable
cause.
Follow the maintenance and repair instructions in this manual to
correct the problem.
1013211-5-B 2 Kohler Co.

How to Use This Manual (cont.)
Check the Service Parts section to determine the part numbers for
any replacement parts necessary.
Use the information on the back cover of this manual to contact
Kohler Company to order parts, or for help if you cannot correct
the problem.
Care and Cleaning
NOTE: See the special instructions before you clean Artist Edition
products.
Clean the outside surface of your vitreous china toilet with mild soap
and warm water. Wipe the entire surface completely dry with a clean,
soft cloth. You may use soft abrasive cleaners when necessary to clean
your toilet. Do not use strong abrasive cleaners, as they will scratch
and dull the surface. Wipe any splashes of cleaner solutions from
plastic or plated surfaces immediately. Use toilet bowl cleaners on the
inside of the bowl only.
If the surface becomes excessively dirty, use a general purpose cleaner
such as: Fantastik
®
All Purpose, Lysol
®
Basin, Tub and Tile Cleaner,
Soft Scrub
®
Multi Purpose, Scrub Free
®
Disinfectant Bathroom Cleaner,
Clorox Clean-Up
®
, Spic and Span Liquid, Comet
®
Liquid Bathroom
Cleaner, Scrubbing Bubbles
®
Bathroom Cleaner, Bar Keeper’s Friend
®
,
or Bon Ami
®
.
Over time, hard water deposits may clog toilet rim holes and
trapways. To clean, use a commercial cleaner that is recommended for
removing hard water deposits. Follow the cleaner manufacturer’s
instructions.
WARNING: Risk of property or product damage. Do not use
in-tank cleaners in your toilet. Products containing chlorine
(calcium hypochlorite) can seriously damage fittings in the tank.
This damage can cause leakage and property damage.
Kohler Company shall not be responsible or liable for any tank fitting
damage caused by the use of cleaners containing chlorine (calcium
hypochlorite).
For Artist Edition toilets: Do not use bristle brushes or abrasive
sponges to clean the surface of your Artist Edition toilet. They will
scratch the decorated surface. Gold and Platinum used on decorative
products are like fine jewelry. Use only warm water to clean, and dry
with a soft cloth. Do not let cleaners sit or soak on Artist Edition
surfaces. Rinse and wipe the toilet surface to prevent soap buildup. If
Kohler Co. 3 1013211-5-B

Care and Cleaning (cont.)
the surface of your Artist Edition toilet becomes excessively dirty, use
Glass Plus
®
or a liquid dish soap with water.
Toilet Seats: Avoid using abrasive cleaners, detergents, disinfectants or
cleaning products in aerosol cans.
Do not allow abrasive chemicals or cosmetics (such as fingernail polish
or aftershave) to come in contact with the toilet seat, as they can
damage the finish.
Use a soft sponge or cloth to clean the toilet seat. Rinse the seat clean
and dry with a soft towel. Let the seat air dry and ensure that the
hinge area dries completely.
Clean the seat with dishwashing liquid and water or with any of the
following products: Gel Gloss
®
, Scrub Free
®
Mildew Stain Remover,
Formula 409
®
All Purpose Cleaner, Mr. Clean
®
Lemon Fresh, Cinch
®
,
Glass Plus
®
, or Fantastik
®
All Purpose.
Painted wood seats require special care and cleaning. Use only mild a
detergent such as dishwashing soap.
1013211-5-B 4 Kohler Co.

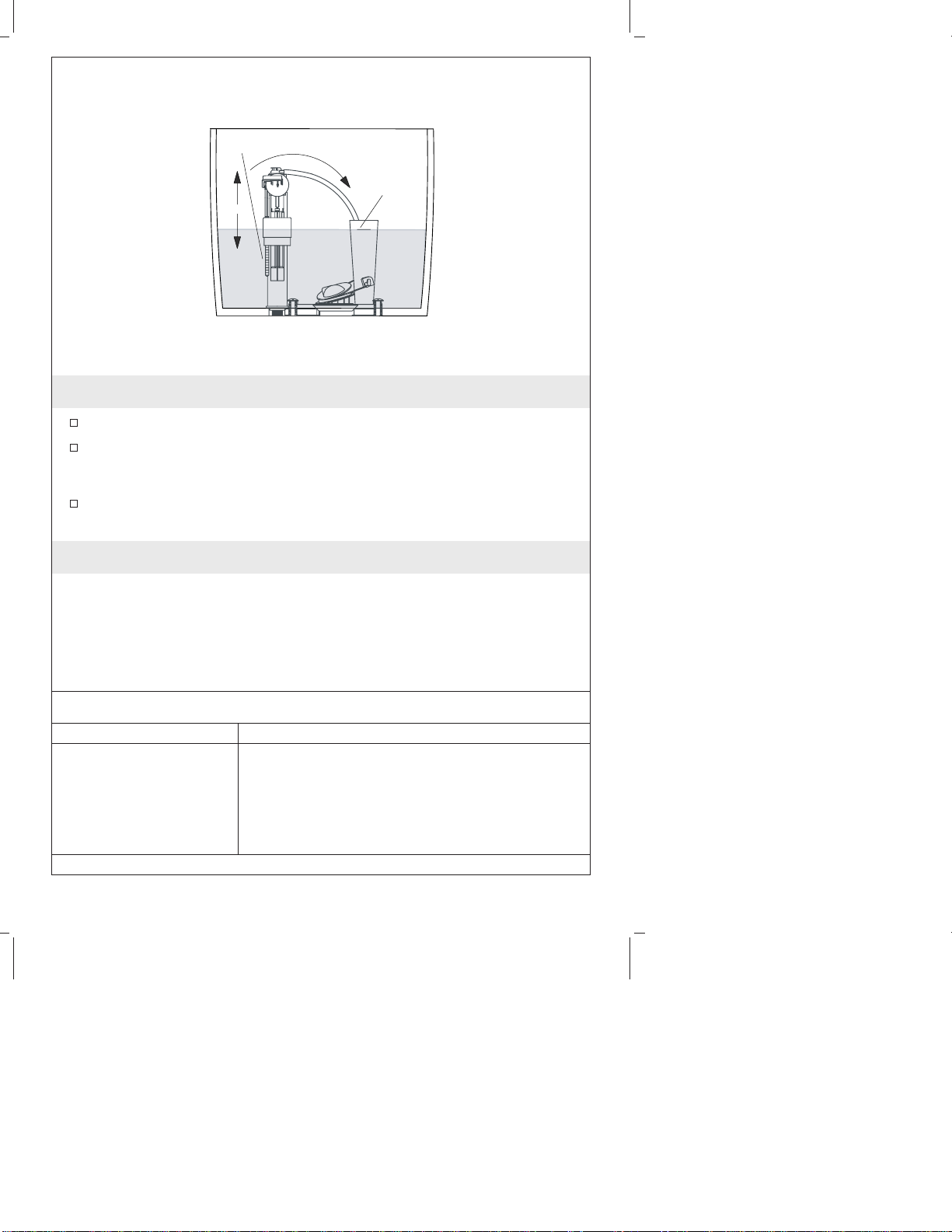

Adjust the Water Level
Adjust the tank water level to the marked waterline.
Rotate the threaded rod clockwise to raise the water level or
counterclockwise to lower the water level as needed.
Periodically check for leaks for several days following the
installation.
Troubleshooting Guide
Troubleshooting Tips
NOTE: This troubleshooting guide is for general aid only. For
warranty service, contact your dealer or wholesale distributor.
Troubleshooting Table
Symptoms Recommended Action
1. Poor flush. A. Adjust the tank water level to match the
waterline.
B. Fully open the water supply shut-off
valve.
C. Clear obstructions from the trapway, jet, or
bowl rim holes.
D. Clear obstructions in the soil pipe or vent
pipe.
Threaded Rod Water
Line
Kohler Co. 5 1013211-5-B

Troubleshooting Guide (cont.)
Symptoms Recommended Action
2. No flush. A. Reconnect the flapper chain to the trip
lever or flush valve.
B. Adjust the flapper chain assembly to
remove excessive slack.
3. The fill valve turns
on/off by itself
without the toilet
being flushed, or it
runs, allowing
water to enter the
tank.
A. Adjust the flapper chain for proper slack
so the flapper is not held off the flush
valve seat.
B. Clean or replace the flapper if it is worn,
dirty, or misaligned with the flush valve
seat, or if the flush valve seat is damaged.
Replace the flush valve seal or flush valve.
C. Clean the fill valve seat/seat washer of
debris, or replace the piston/seat washer
assembly.
D. Replace the fill valve if the valve float
sinks.
E. Adjust the tank water level if it is too
high.
4. Long tank fill
cycle. A. Fully open the water supply shut-off valve.
B. Clean the valve inlet, valve head, or
supply line. Flush the lines.
5. Noisy tank fill
cycle. A. Partially close the water supply shut-off valve if the water pressure to the toilet is
too high. Check the toilet performance
following any such adjustment.
B. Remove dirt or obstructions from the
valve head. Flush the lines.
One-Year Limited Warranty
For the U.S.A. and Canada Only
KOHLER
®
plumbing fixtures, faucets and fittings are warranted to be
free of defects in material and workmanship for one year from date of
installation.
Kohler Co. will, at its election, repair, replace or make appropriate
adjustment where Kohler Co. inspection discloses any such defects
occurring in normal usage within one year after installation. Kohler
Co. is not responsible for removal or installation costs.
1013211-5-B 6 Kohler Co.

One-Year Limited Warranty (cont.)
To obtain warranty service, contact Kohler Co. either through your
Dealer, Plumbing Contractor, Home Center or E-tailer, or by writing
Kohler Co., Attn.: Customer Service Department, 444 Highland Drive,
Kohler, WI 53044, USA, or by calling 1-800-4-KOHLER from within the
USA, 1-800-964-5590 from within Canada and 001-877-680-1310 from
within Mexico.
Implied warranties including that of merchantability and fitness for
a particular purpose are expressly limited in duration to the duration
of this warranty, Kohler Co. disclaims any liability for special,
incidental or consequential damages. Some states/provinces do not
allow limitations on how long an implied warranty lasts, or the
exclusion or limitation of special, incidental or consequential damages
so these limitations and exclusions may not apply to you. This
warranty gives you specific legal rights. You may also have other
rights which vary from state/province to state/province.
This is our exclusive written warranty.
Notes:
1. There may be variation in color fidelity between catalog images and
actual plumbing fixtures.
2. Kohler Co. reserves the right to make changes in product
characteristics, packaging or availability at any time with out notice.
COPYRIGHT © 1999, 2000, 2001, 2002 BY KOHLER CO.
Kohler Co. 7 1013211-5-B

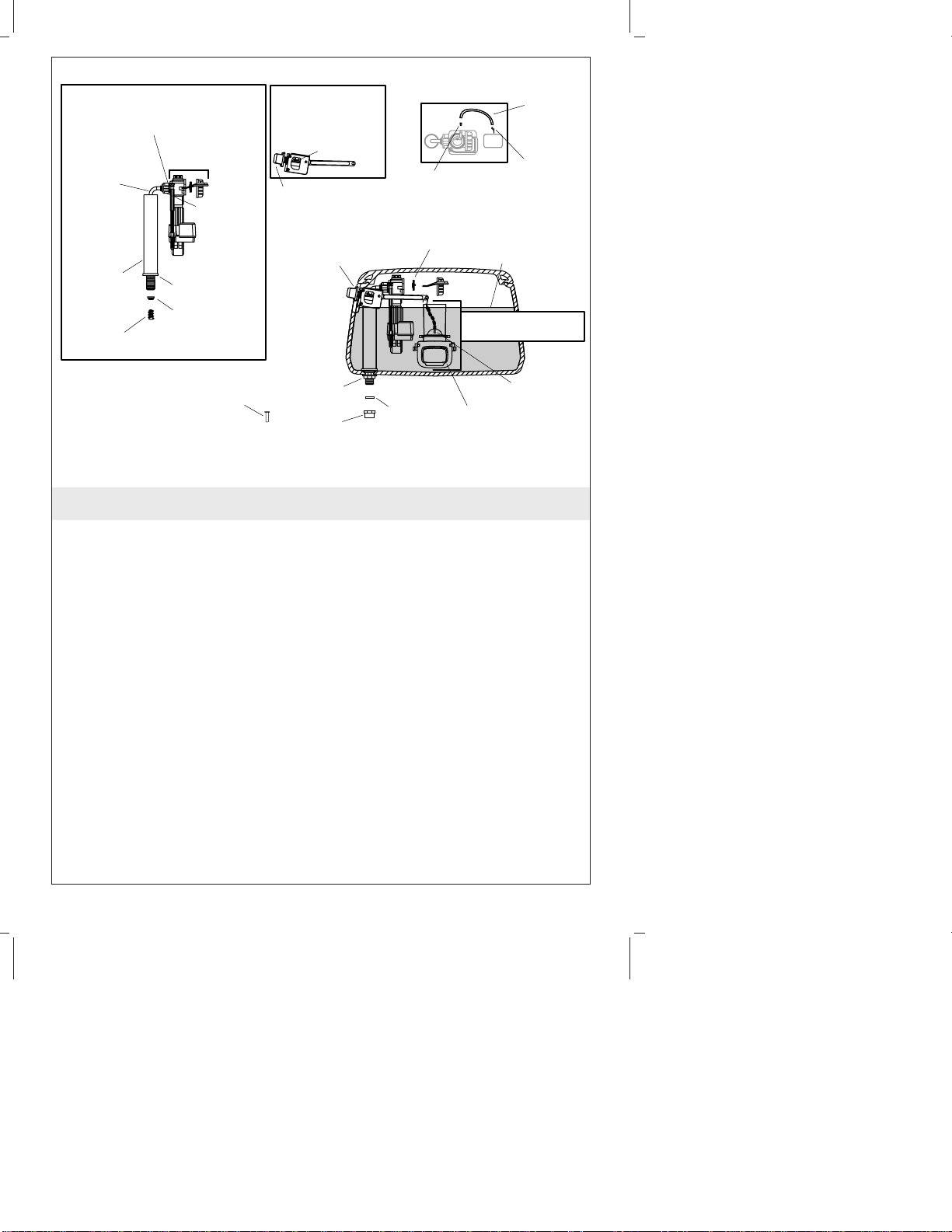

Service Parts
**Finish/color code required.
1013961**
Trip Handle
1013521**
Trip Lever
1013282
Fill Valve
1007523
Valve
38820
O-Ring
1013283
Riser
84683
Sheath
1006734
Nut (Must Order 2)
84678
Nut
85544
Insert
1013337
Tube
77778**
Flange
83141
Regulator
83140
Support
85307
Washer
78132
Nut 1012508
Clip
50881
Washer 84676
Gasket
84995
Flapper
1013944
1001958
Seal
84999
Anchor
Waterline
(2 ea.)
50832
Nut
Flush Valve
1013211-5-B 8 Kohler Co.

Guide du propriétaire
W.C. monoblocs
Merci d’avoir choisi la compagnie Kohler
Merci d’avoir choisi la ligne The Bold Look of Kohler. Le travail soigné
des artisans de Kohler vous fera apprécier une rare combinaison de
performances prouvées et une sophistication gracieuse, qui vous
satisferont pour les années à venir. La fiabilité et la beauté de votre
nouveau W.C. Kohler surpasseront vos plus grandes attentes. Chez
Kohler, nous sommes fiers du rendement de nos produits et nous
savons que vous le serez aussi.
Veuillez prendre s’il vous plait quelques minutes pour consulter ce
guide du propriétaire. Prêter une attention toute particulière aux
instructions d’entretien et de nettoyage.
Tous les renseignements contenus dans ce manuel ont été revus et
corrigés avant sa publication. Chez Kohler, nous veillons constamment
à améliorer la qualité de nos produits. Nous nous réservons le droit
d’apporter des modifications aux caractéristiques, conditionnements et
disponibilités des produits à tout moment, et sans préavis.
Votre W.C. Kohler
Votre W.C. Kohler combine un confort, une performance, un style et
une classe remarquables.
Ce W.C. a été conçu avec notre Système de Chasse IngeniumTM,et
n’utilise seulement que 1,6 gallons (6 L) d’eau à chaque fois que la
chasse est tirée. Ceci assure que votre W.C. sera d’une performance
exceptionnelle comparable à celle de nos modèles antérieurs de 3,5
gallons (13,2 L). Votre W.C. surpasse les exigences de la norme ASME
pour les W.C. à faible consommation d’eau. Il a été conçu avec un
large siphon émaillé, pour permettre aux déchets de circuler sans
problème.
Confectionné à partir d’une mixture d’argile chauffée à très haute
température pour vitrifier celle-ci et en fusionner le glacage, votre W.C.
Kohler est résistant aux rayures et aux abrasions. Sa surface ne se
tachera pas, ni se décolorera , rouillera ou ternira. Chaque élément de
votre W.C. Kohler est spécialement conçu pour en accroître la durée de
vie.
Kohler Co. Français-1 1013211-5-B

Comment utiliser ce manuel
Ce manuel est conçu pour vous aider à dépanner et réparer tous les
problèmes qui pourraient survenir lors du fonctionnement du W.C. Si
un problème se pose:
Se reporter à la section Dépannage pour déterminer la cause
probable.
Suivre les instructions de maintenance et de réparation dans ce
manuel pour corriger le problème.
Vérifier la section Pièces de rechange pour déterminer le numéro
de la pièce pour tout remplacement nécessaire.
Utiliser les informations au verso de ce manuel pour contacter la
compagnie Kohler pour commander des pièces de rechange, ou
demander de l’assistance si le problème ne peut pas être corrigé.
Entretien et nettoyage
REMARQUE : Voir les instructions spéciales ci-dessous avant de
nettoyer les produits Artist Editions.
Nettoyer la surface extérieure du produit en porcelaine vitrifiée avec
un savon doux et de l’eau chaude. Essuyer complètement toute la
surface avec un chiffon doux et propre. Vous pouvez utiliser des
nettoyants abrasifs si nécessaire pour nettoyer votre W.C. Ne pas
utiliser de nettoyant abrasif trop fort car il pourrait rayer et abîmer la
surface. Essuyer immédiatement toutes éclaboussures du nettoyant des
surfaces en plastique ou plaquées. N’utiliser des nettoyants pour
cuvette que sur la surface intérieure de celle-ci.
Si la surface devient excessivement sale, utiliser un nettoyant à usage
général, tel que: Fantastik
®
Tout Usage, Lysol
®
Nettoyant pour Lavabo,
Baignoire et Carreaux, Soft Scrub
®
Tout Usage, Scrub Free
®
Désinfectant pour Salle de Bains, Clorox Clean-Up
®
, Spic and Span
Liquide, Comet
®
Nettoyant Liquide pour Salle de Bains, Scrubbing
Bubbles
®
Nettoyant pour Salle de Bains, Bar Keeper’s Friend
®
,ouBon
Ami
®
.
Avec le temps, un dépôt calcaire peut se former et boucher les trous du
rebord du W.C. et du siphon. Pour nettoyer, acheter un détergent
professionnel recommandé pour les dépots de calcaire. Suivre les
instructions de nettoyage du fabricant.
AVERTISSEMENT : Risque d’endommagent du produit. Ne pas
utiliser des détergents conçus pour le réservoir dans le W.C. Les
produits qui contiennent du chlore (hypochlorite de calcium)
peuvent causer des dommages graves aux composants internes
1013211-5-B Français-2 Kohler Co.
