MODERN LIFE
INSTALLATION INSTRUCTIONS
SKIRTED TOUCHLESS CLASS FIVE ONE-PIECE TOILET
S-TRAP 305mm K-77739T-TFSL
S-TRAP 400mm K-77740T-TFSL
·
·
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
These instructions contain important care, cleaning, and
warranty information -
.
please leave instructions for the
consumer
·
·
·-
·
ORDERING INFORMATION
MODERN LIFE Skirted Touchless Class Five
One-piece Toilet 305mm.................................K-77739T-TFSL
Includes MODERN LIFE Slim Quiet-close
Toilet Seat............................................K-77380T
MODERN LIFE Skirted Touchless Class Five
One-piece Toilet 400mm.................................K-77740T-TFSL
Includes MODERN LIFE Slim Quiet-close
Toilet Seat............................................K-77380T
305mm ..........................................K-77739T-TFSL
......................................................K-77380T
400mm ..........................................K-77740T-TFSL
......................................................K-77380T
NOTES
·
·
·
·
·
·
·
Observe all local plumbing and building codes.
Shut off the water supply.
Seat post holes are on 140mm centers.
Ensure that the new drain has the correct roughing-in
dimension. This toilet has a 305/400mm roughing-in
dimension. .
Closet flange must be 305/400mm on-center from wall.
Carefully inspect the new fixture for any sign of damage.
For new construction, refer to the dimensions in
for locating the shut-off valve.
See Roughing-in
·
·
Fixture dimensions are nominal and conform to tolerances
established by ASME Standards (A112.19.2-2013).
This product complies with GB 25502-2017. Water
Efficiency Grade 1.
installation step
·
·
·
·
·
·
·
140mm
305/400mm( )
305/400mm
·
·
ASME (A112.19.2-
2013)
GB 25502-2017 1
-1-
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
2 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA POST CODE: 256410
8 256410
©
©
Copyright Kohler China Investment Co., Ltd. 2018
2018
1322811-T01-C

-2-

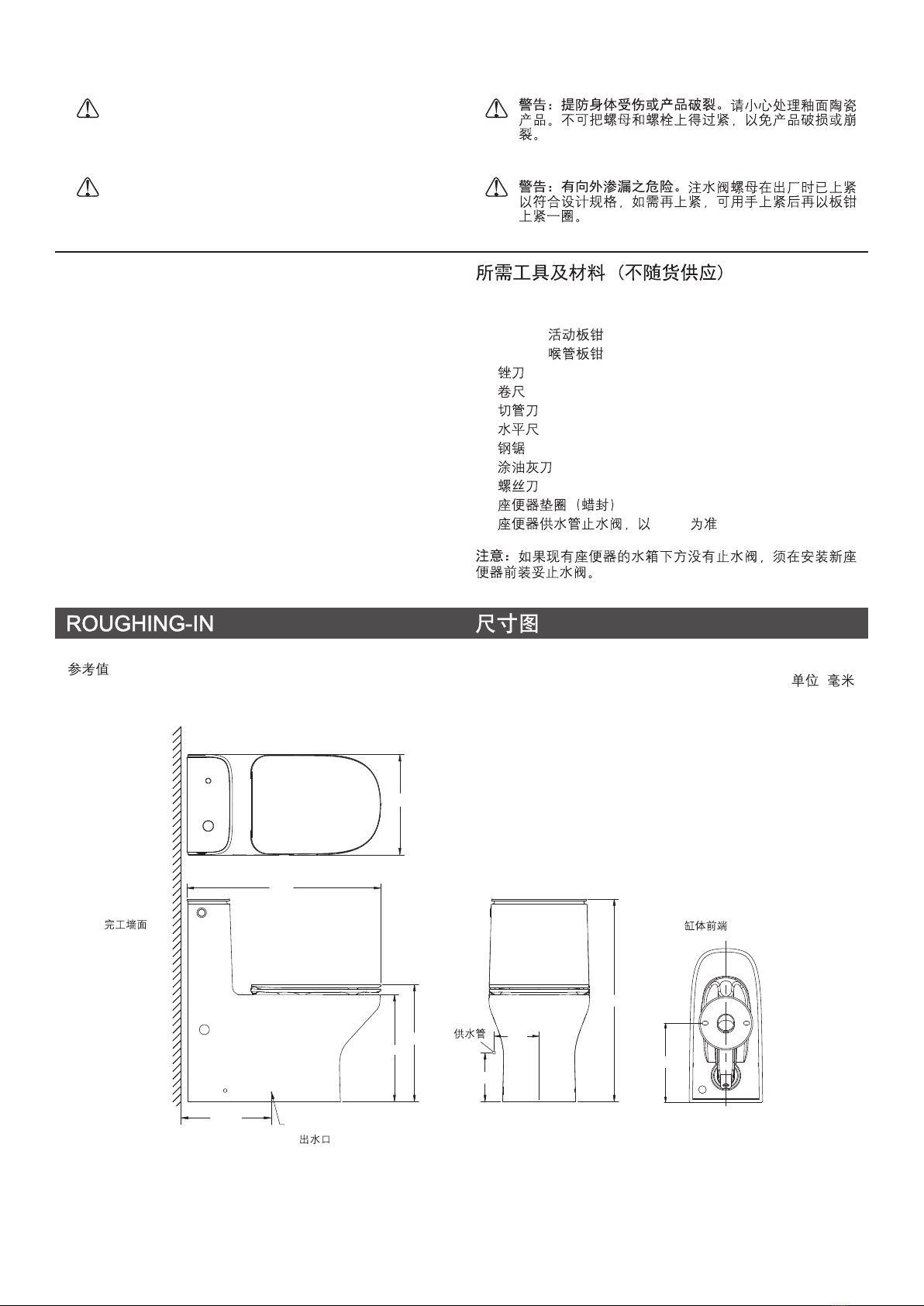

TOOLS AND MATERIALS REQUIRED (Not
supplied)
·
·
·
·
·
·
·
·
·
·
·
254mm (10") adjustable wrench
305mm (12") pipe wrench
Metal file (file cut)
Tape measure
Tubing cutter
Level
Hacksaw
Putty knife
Screwdriver
Toilet gasket (wax seal)
Toilet supply shut-off valve, 10mm(3/8 ) recommended
If the existing toilet does not have a supply shut-off
valve below the tank, install one before installing the new
toilet.
"
NOTICE:
·
·
·
·
·
·
·
·
·
·
·
254mm
305mm
10mm
Unit: mm
:
Reference Value
K-77739T-TFSL
FRONT OF BOWL
OF OUTLET
C
L
305
Finished Wall
Supply
200
WARNING: Risk of personal injury or product
damage
WARNING: Risk of external leakage
: Handle vitreous china products very carefully.
Vitreous china can break and chip if you overtighten
bolts and nuts.
. The fill valve
nut has been factory-tightened to design specifications.
If re-tightening is required, wrench tighten one turn
past finger tight .
365
700
390
422
737
285
210
1322811-T01-C

-3-

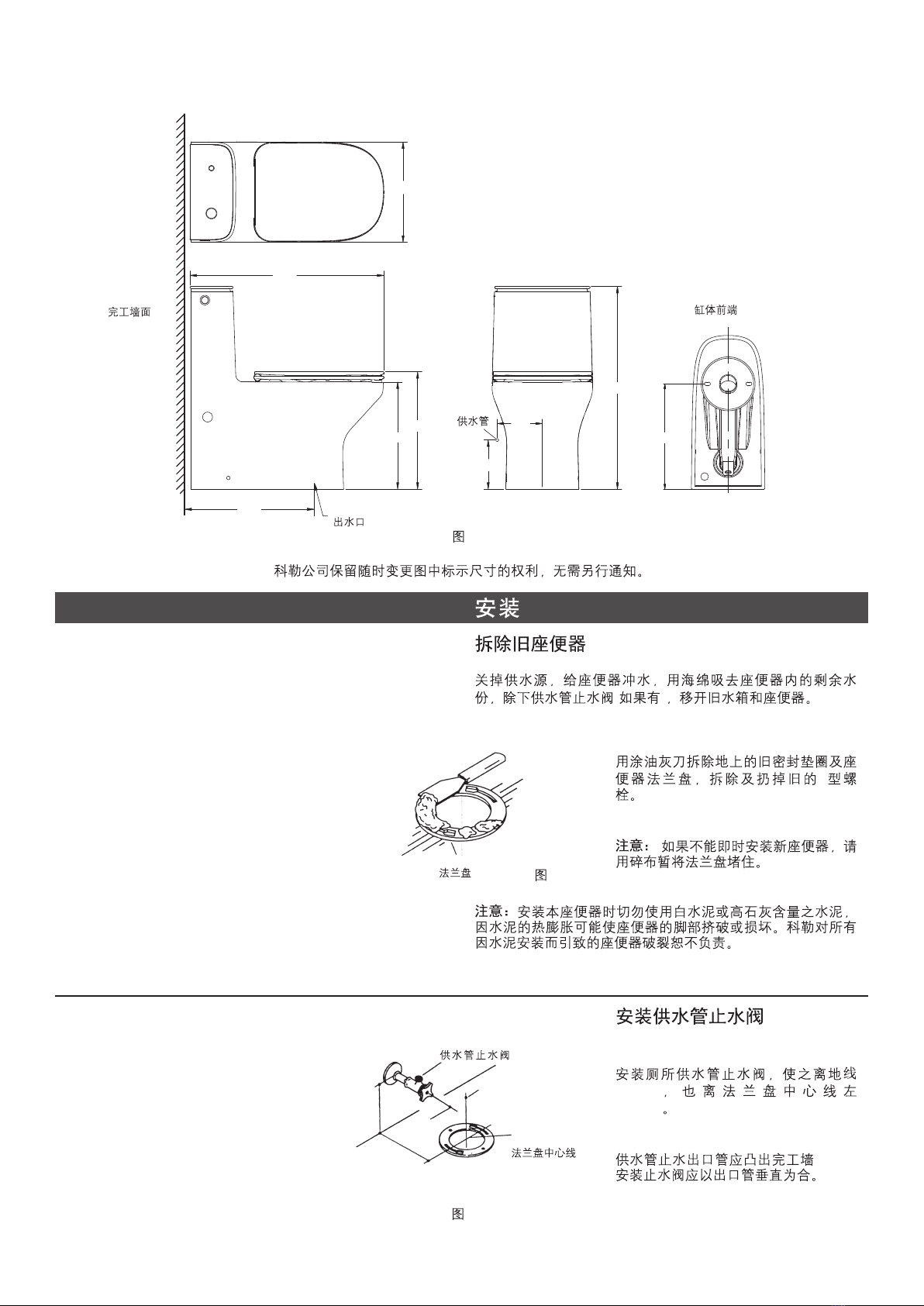

TO REMOVE EXISTING TOILET
Turn off the water supply. Flush the toilet, and use a sponge
to remove the remaining water from the tank and bowl.
Disconnect the supply shut-off valve (if present), and remove
the old tank and bowl.
()
Fig.#1
1
INSTALLATION
K-77740T-TFSL
Kohler reserves the right to change marked dimensions without prior notice.
Fig.#2
2
Remove the old gasket from the floor
and the closet flange with a putty knife.
Remove the old T-bolts and discard
them.
if the new toilet is not
installed immediately, temporarily stuff
a rag into the closet flange.
NOTICE:
T
NOTICE: Do not use white cement or high lime content
cements to install this toilet. The expansion of cement due to
a rise in temperature may make the toilet crack or cause
damage. Kohler is not responsible for any damage caused by
installation with the use of cement.
Closet Flange
mm
67mm;
200mm
210
Fig.#3
3
TO INSTALL SUPPLY
SHUT-OFF VALVE
Install the supply shut-off valve so it is
200mm above the finished floor line,
and 160mm to the left of the closet
flange centerline.
The centerline of the supply shut-off
valve outlet should extend 67mm from
the finished wall. Install the supply
shut-off valve with the outlet vertical.
Supply Shut-Off Valve
Closet Flange
Centerline
210
305/400
200
OF OUTLET
C
L
400
FRONT OF BOWL
Finished Wall
380
Supply
200
365
700
390
422
737
210
1322811-T01-C

-4-
10mm
5

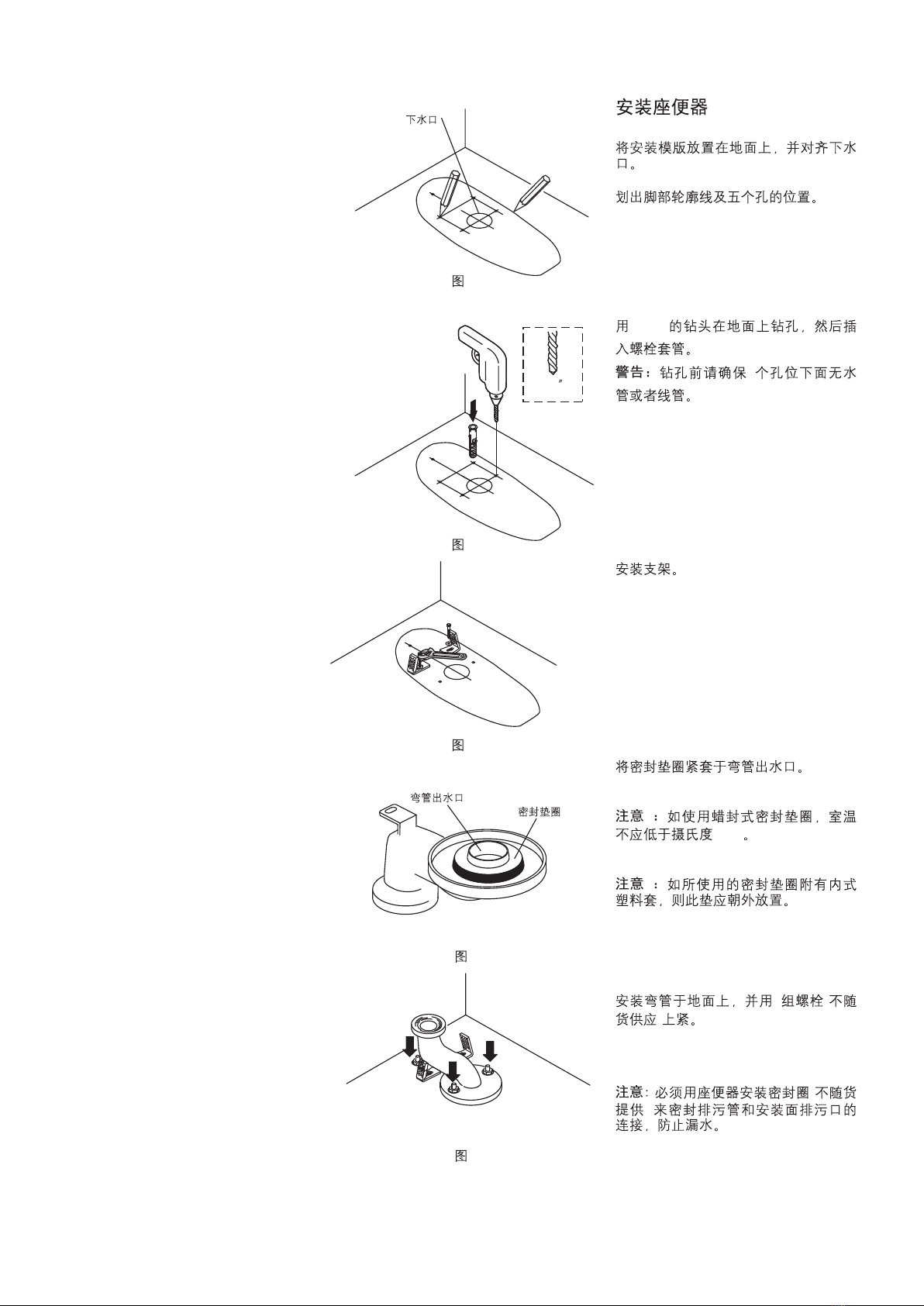

TO INSTALL BOWL
Position the template and align with
drain hole.
Mark down the position of foot and 5
holes.
Drill holes on ground with the drill of
10mm (3/8"), then insert anchor to
holes.
CAUTION: Please make sure there is
no water pipe or spool under the 5
holes to be drilled.
Fig.#7
7
Firmly press the toilet gasket onto the
toilet outlet of plastic trap.
Wax ring type toilet gasket
should not be installed at temperatures
less than 21 C.
If you are using a toilet
gasket with an integral plastic sleeve,
make sure the gasket is positioned
with the sleeve facing away from the
toilet.
NOTE 1:
NOTE 2:
o
1
21
2
oC
Install brackets.
Plastic Trap Outlet
Toilet Gasket
Fig.#8
8
Install plastic to ground and mounted
with 3 set of bolts firmly.(not supplied)
3(
)
NOTE: Must use the toilet installation
gasket ring (not supplied) to seal the
area where the waste pipe contacts
the construction section to avoid
leakage.
(
)
Fig.#4
4
Fig.#5
5
Drain Hole
3/8
10mm
Fig.#6
6
1322811-T01-C

-5-
Fig.#10
10
Fig.#11
11
Carefully align and lower the bowl.
Apply weight to the bowl rim to let the
outlet insert into plastic trap.
Carefully thread the screws into the
brackets, until toilet is secure.
Alternately tighten left and right sides
to prevent pulling the toilet off center.
Install cap to cover screw.
Do not overtighten.
Outlet
Plastic Trap
Cap Screw
Bushing
Fig.#12
12
Apply caulk around base.
Fig.#9
9
Slide the hose guide onto the hose,
with the flared end last. Slide the two
inserts into the flared end of the hose
guide.
Hose
Guide
1322811-T01-C

-6-
Install the tank lid and the seat. Use
the supplied hardware pack for seat.
Periodically check for leaks for several
days following the installation.
Connect the push button and flush
valve.
Fig.#14
14
TO CONNECT WATER
SUPPLY
* Flexible hose (not provided) are
recommended to connect the supply
line to the fill valve. If you use a rigid
connection(not provided), take care
not to apply side forces to the bottom
of the fill valve. Be sure the rigid
connection must be fit with supply line
completely to prevent damage shank
by forced connection.
()
()
Supply Shank*
Supply Shut-Off Valve
Fig.#13
13
IMPORTANT:
Make certain the top is turned to the locked
position. Valve may not turn on if top is not fully in the
locked position.
Before turning on the supply valve for the first
time, follow the steps below to clear sand, debris and rust
from the system:
Make sure water sure water supply is off. Remove valve END
by rotating it 1/8 turn counterclockwise.
While holding a container over the uncapped VALVE to
prevent splashing, turn water supply on and off a few times.
Leave water supply off.
Replace END by engaging lugs and rotating 1/8 turn
clockwise.
Turn on water supply. Check that water level is at the marked
water line.
1/8
1/8
INSTALL THE BATTERIES
CAUTION: Risk of property
damage:
NOTICE:
Do not use lithium ion
batteries with this product.
Exposing lithium ion batteries to
water can result in a fire.
When the batteries are low,
the unit will beep 3 times when
activated. Replace the batteries when
this happens. The malfunction caused
by low battery is not due to quality
problems. Replace the battery and
ensure that the battery is fully charged
before proceeding.
3
Detail
Fig.#15
15
1322811-T01-C

·
·
·
·
·
·
·
·
·
·

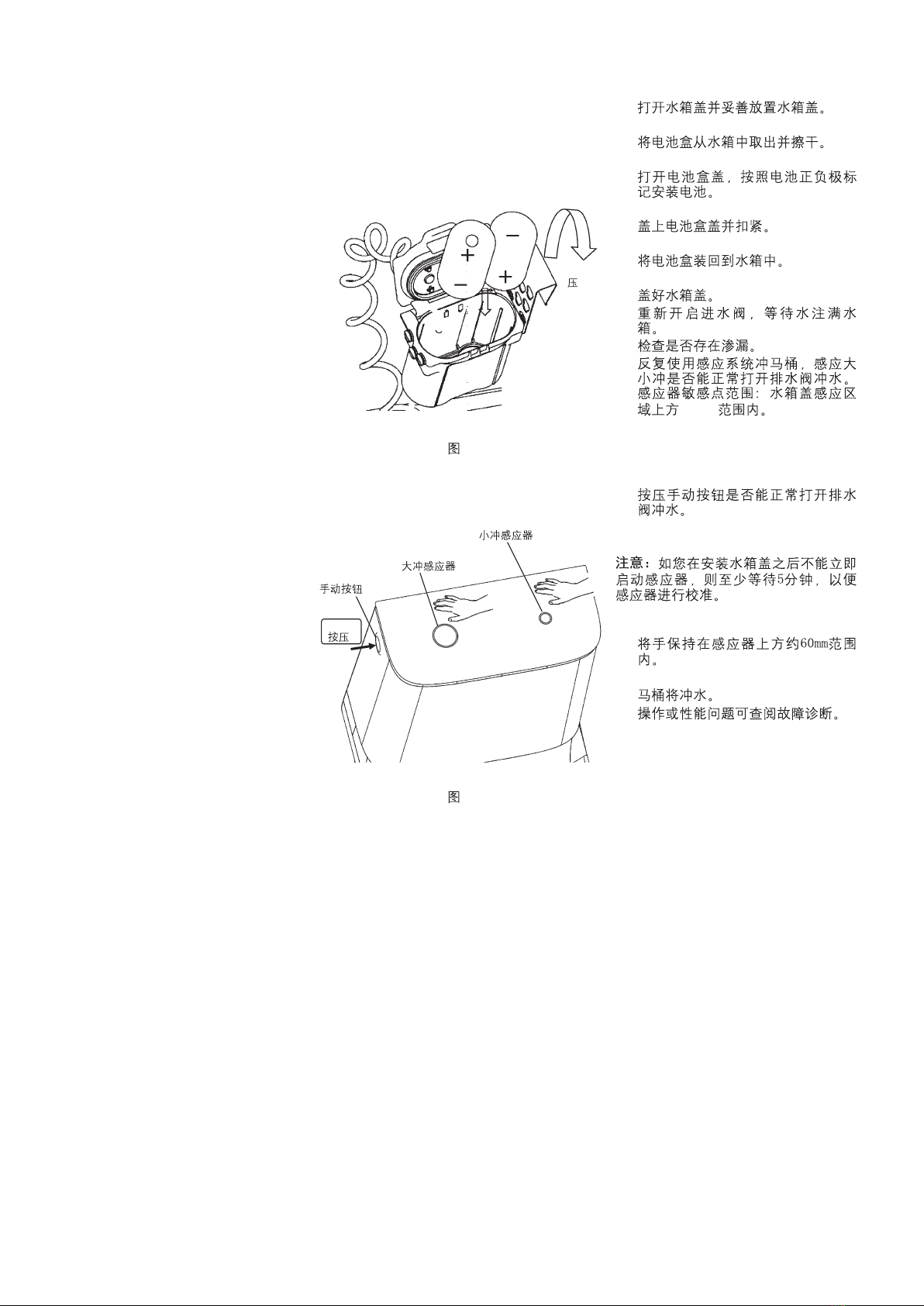

Open the tank lid and place it
properly.
Take the battery box out of the tank
and dry it.
Open the battery box lid, and install
the batteries according to the
positive and negative markings.
Install the battery box lid and
buckle it tightly.
Install the battery box back into the
tank.
Install the tank lid.
Open the fill valve again, waiting
for water to fill the tank.
Check for leaks.
Flush the toilet repeatedly using
the sensing system. Check
whether the touchless full- and
partial-flush sensor can open the
drain valve for flushing normally.
Sensitive range of the sensors:
within 60mm above the sensing
area of the tank.
Press the manual button to check
whether it can open the drain valve
for flushing normally.
·
·
·
·
·
·
·
·
·
·
60mm
Press
NOTICE: If you are unable to activate
the sensor immediately after installing
the tank lid, wait a minimum of 5
minutes for the sensor to be calibrated.
Hold your hand within
approximately 60mm above the
sensor.
The toilet will flush.
Consult the troubleshooting chart
for operation or performance
issues.
·
·
·
·
·
·
Press
Manual Button
Full-flush Sensor
Partial-flush Sensor
Fig.#16
16
Fig.#17
17
-7-
1322811-T01-C

-8-
SYMPTOMS CORRECTIVE ACTION
1. Poor Flush A. Adjust the tank water level to match the waterline.
B. Fully open the water supply shut-off valve.
C. Clear obstructions from the trapway, jet, or bowl rim holes.
D. Clear obstructions from the waste line.
E. Check whether the batteries are low.
A. Adjust the chain for proper slack so the seal is not held off the flush valve seat.
B. Clean or replace the seal if it is worn, dirty, or misaligned with the flush valve seat, or
if the flush valve seat is damaged. Replace the flush valve seal or flush valve.
C. Clean the fill valve seat/seat washer of debris, or replace the piston/seat washer
assembly.
D. Remove the tank and tighten the flush valve nut if flush valve gasket is leaking. Do
not overtighten. If leakage continues, replace the gasket.
E. Adjust the tank water level if it is too high.
2. No Flush
4. Tank takes excessive time to fill.
5. There is excessive noise when the
tank is filling.
6. Nothing happens when I try to
activate the sensor.
7. After the sensor is activated, I hear a
beep, but the toilet does not flush.
8. The sensor is not sensitive enough.
9. The toilet flushes when I am sitting
on it.
10. The toilet flushes when opening the
seat cover.
11. After the manual button is pressed,
the flush is weak or does not flush.
3. The fill valve turns on/off by itself
without the toilet being flushed, or it
runs allowing water to enter the tank.
A. Reconnect the chain to the trip lever or flush valve.
B. Adjust the chain assembly to remove excessive slack.
A. Fully open the water supply shut-off valve.
B. Clean the valve inlet, valve head, or supply line. Flush the lines.
A. Partially close the water supply shut-off valve if the water pressure to the toilet is too
high. Check the toilet performance following any such adjustment.
B. Remove dirt or obstructions from the valve head. Flush the lines.
A. Confirm the batteries are correctly installed.
B. Confirm the batteries have a charge.
C. Check whether the signal cables of the sensor and the air pump box have come
loose.
A. Does the battery box hanging on the rear of the tank press on the wire rope of the
drain valve? If so, relocate the box.
B. Check whether the air tube connecting the airbags box and the air bump box has
come loose.
A. Confirm that your hand is within 60mm above the sensor.
A. Are you leaning back and bumping the tank lid? Moving the tank lid may cause the
toilet to flush.
A. Does the seat or lid strike the tank lid when they are opened? Moving the tank lid
may cause the toilet to flush.
B. Is your hand within 60mm above the sensor when the toilet cover is open? When
your hand is within 60mm above the sensor, the flush will be activated.
A. Is the button pressed quickly and until fully depressed?
IMPORTANT: Use only genuine Kohler parts as shown to avoid property damage.
1322811-T01-C

1. A.
B.
C.
D.
E.
A.
B.
C. /
D.
E.
2.
4.
5.
6.
7.
8.
9.
10.
11.
3. /
A.
B.
A.
B.
A.
B.
A.
B.
C.
A.
B.
A. 60mm
A.
A.
B. 60mm 60mm
A.
-9-
1322811-T01-C

-10-
()
0C
o

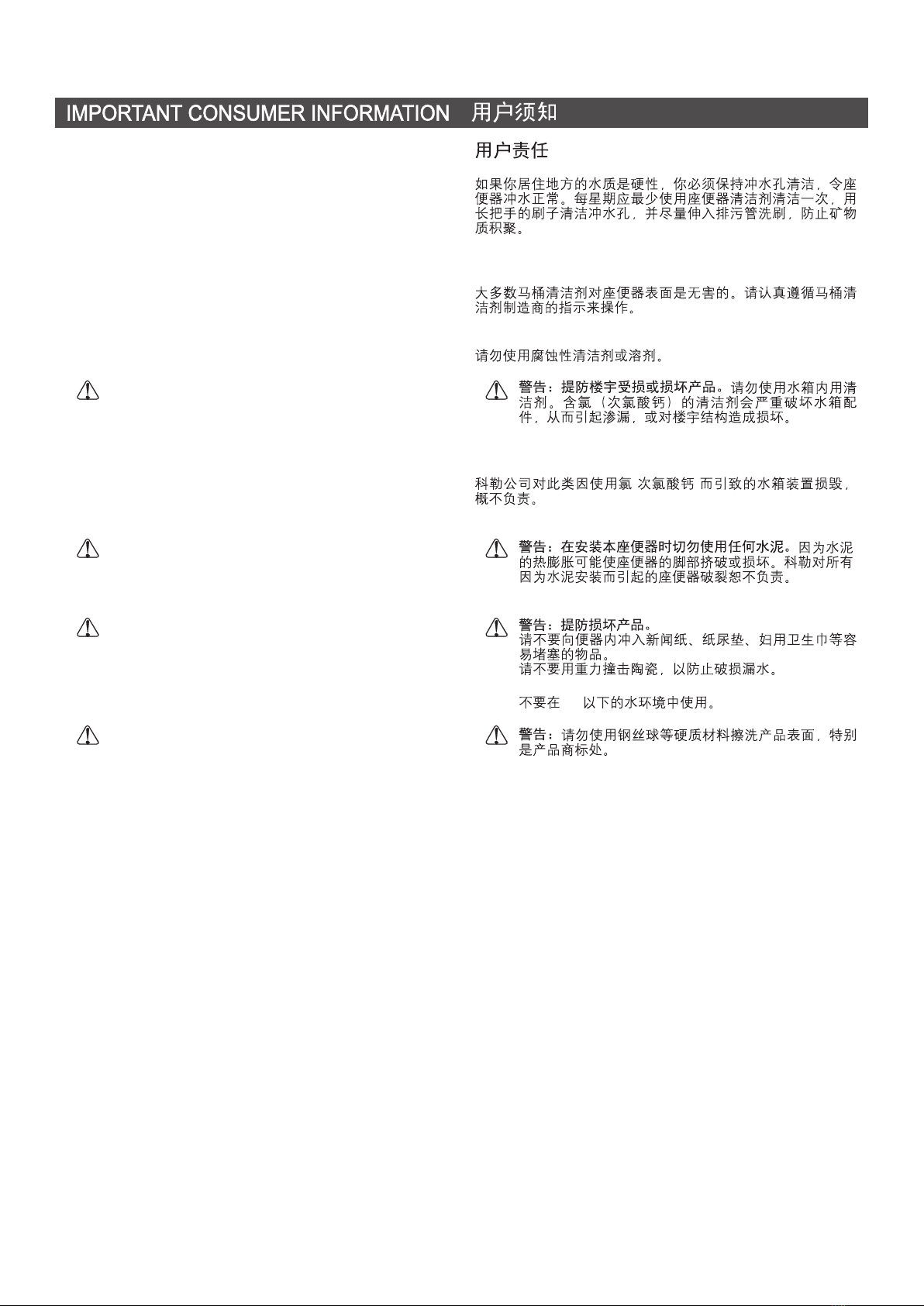

CONSUMER RESPONSIBILITIES
If you live in a hard water area, make certain that the holes in
the toilet rim are kept clean to ensure proper bowl flushing.
Toilet bowl cleaners should be used at least once a week.
Use a long-handled brush to clean the rim holes, and to clean
as far into the trap as possible to prevent mineral deposits
from forming.
Most toilet bowl cleaners are not harmful to the vitreous china
surface of the toilet bowl. Please follow the bowl cleaner
manufacturer's instructions carefully.
Do not use abrasive cleaners or solvents.
Do not use in-tank cleaners. Products containing
chlorine (calcium hypochlorite) can seriously damage
fittings in the tank. This damage can cause leakage
and property damage.
Kohler Company shall not be responsible or liable for any
damage to these tank fittings caused by the use of cleaners
containing chlorine (calcium hypochlorite).
WARNING: Risk of property or product damage.
'
Please do not use hard materials (like
scouring pad) to clean product surface, especially the
product logo.
CAUTION:
CAUTION: Don t use any cement while installing
the toilet.
WARNING: Risk of product damage.
Heat expansion of the toilet may damage
the feet of the toilet. Kohler will not be responsible for
any damage because of using cement.
Do not throw into the toilet what is easy to block it,
such as newspaper, paper pilch, sanitary towel.
Do not bump the vitreous china with great force to
prevent it from damaging and leaking.
Do not use the product in the water below 0 C.
o
1322811-T01-C
