Kohler K-3466X Assembly instructions

1070416-X2-C ©2016 Kohler Co.
Installation and Care Guide
One-Piece Toilet


K-3466X, K-3466VN, K-3466VN-C,
K-3466MY, K-3466K

1070416-X2-C 2 Kohler Co.

Thank You For Choosing Kohler Company
Thank you for choosing Kohler. Kohler craftsmanship oers you a rare
combination of proven performance and graceful sophistication that will
satisfy you for years to come. The dependability and beauty of your Kohler
product will surpass your highest expectations. We’re very proud of our
products here at Kohler and we know you will be too.
Please take a few minutes to review this manual before you start installation. If
you encounter any installation or performance problems, please don’t hesitate
to contact us. Our phone numbers and website are listed on back cover.
All information in this manual is based upon the latest product information
available at the time of publication. At Kohler, we constantly strive to improve
the quality of our products. We reserve the right to make changes in product
characteristics, packaging or availability at any time without notice.
Thank you for choosing Kohler Company.
  
 
 
 
 

  

 


 

Kohler Co. 3 1070416-X2-C

Important Information
IMPORTANT NOTICE TO INSTALLERS!:Please leave these instructions for
the consumer. They contain important information.
In addition to installation procedures, this manual contains important care and
cleaning. Please retain for future reference.
NOTE: Some installation parts might not be provided.
NOTE: The toilet pictured in the installation steps may dier from the model
being installed.
 
 

 
 

Before You Begin
CAUTION: Risk of personal injury or product damage. Handle with
care. Product can break, chip, or cause injury if handled carelessly.
¨Observe all local plumbing and building codes.
¨Prior to installation, unpack the new product and inspect it for damage.
Return the product to its protective carton until you are ready to install it.
¨Use the template supplied with the product.
¨Failure to follow these precautions may result in a poor installation.
¨ If the existing toilet does not have a supply shut-o valve below the tank,
install one before installing the new toilet.
¨Fixture dimensions are nominal and conform to tolerances established by
Standards TIS.
CAUTION: Risk of property or product damage. Turn on the water
and allow water to ow through the supply pipe to ush the system of
any debris before connecting ll valve.
CAUTION: Risk of hazardous gases. If the new toilet is not installed
immediately, temporarily place a rag in the closet ange.

1070416-X2-C 4 Kohler Co.

Tools/
5/16" Tee Bolts and Rubber Gasket
1/2"


 
¨ 
¨ 

¨ 
¨ 
¨  

¨ 




 

Standards ASME A112.19.2, EN 997, GB 6952, TIS 792-2544, SS 379-1996
and SS 378-1996.

Kohler Co. 5 1070416-X2-C

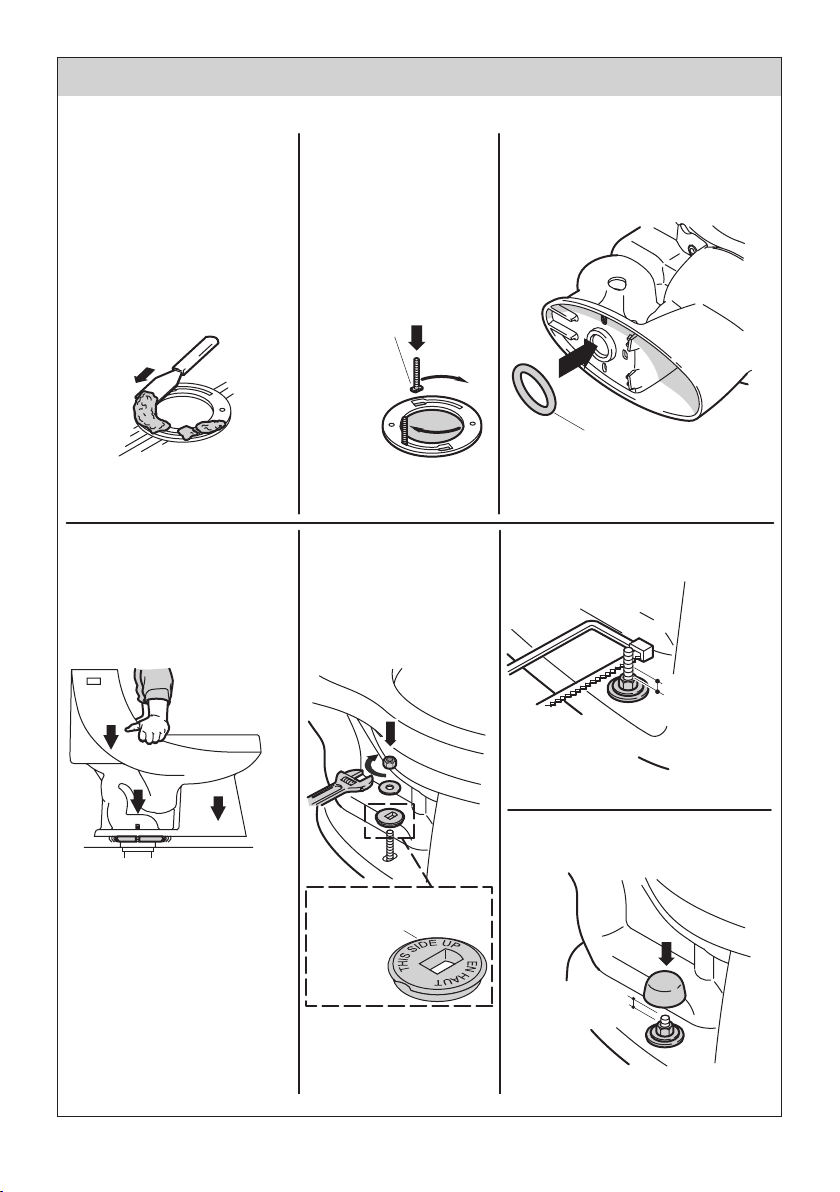

Installation/
7
1 2 3
64 5


ทีโบลท์ 5/6"
If replacing a toilet,
remove the old
component.
5/16" Tee Bolts
ประเก็นยาง
Rubber Gasket

Apply weight evenly.

This side up.



Do not move after
replacement! Watertight
seal may be broken!
Do not overtighten!


Cut excess. 
Max 6 mm

Max 6 mm

1070416-X2-C 6 Kohler Co.
Installation/
9
11
8
10
1/2" Supply



Adapter
15/16"
to 1/2"
(Optional
Part)

อย่าขันแน่นจนเกินไป!
Flush several times and check for leaks.
Do not overtighten!

Connect supply and turn on
the water

Turn here to Adjust the water
level.


Install the tank lid
and the seat.

Kohler Co. 7 1070416-X2-C
Care and Cleaning
For best results, keep the following in mind when caring for your product:
• Carefully read the cleaner product label to ensure the cleaner is safe for use
on the material.
• Always test your cleaning solution on an inconspicuous area before applying
to the entire surface.
• Wipe surfaces clean and rinse completely with water immediately after
cleaner application. Rinse and dry any overspray that lands on nearby
surfaces.
• Do not allow cleaners to sit or soak on the surface.
• Use a soft, dampened sponge or cloth. Never use an abrasive material such as
a brush or scouring pad to clean surfaces.
• Be careful not to leave staining materials in contact with the surface for
extended periods of time.
• The ideal cleaning technique is to rinse thoroughly and blot dry any water
from the surface after each use.
WARNING: Risk of property or product damage. Do not use in-tank
cleaners in your toilet. Products containing chlorine (calcium hypochlorite)
can seriously damage ings in the tank. This damage can cause leakage
and property damage.

1070416-X2-C 8 Kohler Co.





 

•   

• 

• 

• 
• 

• 
• 
 

Kohler Co. 9 1070416-X2-C
Troubleshooting
Symptoms Recommended Action
1. Poor ush. A. Adjust the tank water level to match the waterline.
B. Fully open the water supply shut-o valve.
C. Clear obstructions from the trapway, jet, or bowl rim holes.
D. Clear obstructions from the waste line.
2. No ush. A. Reconnect the apper chain to the trip lever or ush
valve.
B. Adjust the apper chain assembly to remove
excessive slack.
3. The ll valve
turns on/o by
itself without
the toilet being
ushed, or it
runs, allowing
water to enter
the tank.
A. Adjust the chain for proper slack so ush ball isn’t
held o ush valve seat.
B. Clean or replace the seal if it is worn, dirty, or
misaligned with the ush valve seat or ush valve
seat is damage. Repalce ush valve seal or ush valve.
C. Remove the tank lid and tighten ush valve nut if
ush valve gasket is leaking. Do not overtighten. If
leakage continues, replace gasket.
D. Clean ll valve seat / seat washer of debris, or replace
piston/ seat washer assembly.
E. Replace the ll valve if the valve oat sinks.
F. Adjust the tank water level if it is too high.
4. Long tank ll
cycle.
A. Fully open the water supply shut-o valve.
B. Clean the valve inlet, valve head, or supply line.
Flush the lines.
5. Noisy tank ll
cycle.
A. Partially close water supply shut-o valve if water
pressure to toilet is too high. Check toilet performance
following any such adjustment.
B. Remove dirt or obstruction from the valve head.
Flush the lines.
6. Trip arm strikes
tank lid underside.
A. Adjust ush ball chain assembly to remove excessive
slack.
B. Adjust trip arm bracket and ange so they are parallel
with tank top.

1070416-X2-C 10 Kohler Co.

 
 






 
 
 

 








 




   
 





 





 
 


Kohler Co. 11 1070416-X2-C

1070416-X2-C

 

E-mail: [email protected]
KOHLER (THAILAND) PUBLIC COMPANY LIMITED
16th FL. Jasmine City Bldg., 2 Soi Sukhumvit 23, Sukhumvit Road, Wattana, Bangkok 10110 Thailand
Call Center Tel. +(66) 2204 6222 Fax. +(66) 2204 6224
ASIA COUSTOMER SERVICE CENTRE
Asia Customer Service Centre, Kohler Asia Pacic Limited
No.158, Jiang Chang San Road, Zhabei District, Shanghai, PRC. 200436.
Tel: +(86) 21 2606 2572 Fax: +(86) 21 6107 8900
