Komatsu HD605-7R User manual

STANDARD EQUIPMENT FOR BASE MACHINE
OPTIONAL EQUIPMENT
CAB:
●Air conditioner
●Heater and defroster
●Operator seat, air suspension type
●Radio, AM/FM with cassette
●Sunvisor, additional
●Power window (RH)
BODY:
●Body liners
●Platform guard, right hand side
●Without body heating (with muffler)
LIGHTING SYSTEM:
●Back work lights, left and right sides
●Fog lights
●Yellow beacon
SAFETY:
●Antilock Brake System (ABS)
●Automatic Spin Regulator (ASR)
●Automatic supplementary steering
●Rear view camera and monitor
ARRANGEMENT:
●Batteries for cold area arrangement
●Cold area arrangement
●Sandy and dusty area arrangement
OTHER:
●Auto-greasing system
●Engine coolant heater
●Engine oil pan heater
●Engine side cover
●Engine underguard
●Fire extinguisher
●Fuel quick charge
●Payload meter II
●Muffler (no body heating type)
●Radiator shutter, canvas type
●Spare parts for first service
●Three-mode hydropneumatic suspension
●Tool kit
●Transmission underguard
●Vandalism protection
●Vehicle Health Monitoring System
(VHMS)
●VHMS with satellite communication kit
ENGINE:
●Automatic Idling Setting System (AISS)
●Alternator, 90A/24V
●Batteries, 2 x 12V/200Ah
●Engine, Komatsu SAA6D170E-5
●Mode selection system
●Starting motor, 2 x 7.5 kW
CAB:
●Ashtray
●Cigarette lighter
●Cup holder
●Electronic dump control system
●Electronic maintenance
display/monitoring system
● Operator seat, reclining, suspension type
with retractable 78 mm 3" width seat belt
●Passenger seat with retractable seat belt
●Power window (LH)
●ROPS cab with FOPS, sound
suppression type
●Space for lunch box
●Steering wheel, tilt and telescopic
●Sunvisor
●Laminated glass, front
●Two doors, left and right
●Windshield washer and wiper
(with intermittent feature)
LIGHTING SYSTEM:
●Back-up light
●Hazard lights
●Headlights with dimmer switch
●Indicator, stop and tail lights
GUARD AND COVERS:
●Exhaust thermal guard
●Fire protective covers
●Drive shaft guard (front and rear)
SAFETY EQUIPMENT:
●Alarm, backup
●Automatic Retard Speed Control (ARSC)
●Coolant temperature alarm and light
●Front brake cut-off system
●Hand rails for platform
●Horn, electric
●Ladders, left and right hand sides
●Overrun warning system
●Rearview mirrors and under view mirrors
●Supplementary steering
OTHER:
●Centralized greasing
●Electric circuit breaker, 24V
●Mud guards
BODY:
●Body exhaust heating
●Cab guard, left side
●Spill guard, 150mm 6"
TIRES:
●24.00 R35
www.Komatsu.com Printed in Japan 200801 IP.P. AD (05)
CEN00179-01 Materials and specifications are subject to change without notice
is a trademark of Komatsu Ltd. Japan
Standard equipment may vary for each country, and this specification sheet may contain attachments and optional equipment
that are not available in your area. Please consult your Komatsu distributor for detailed information.
HD605-7R
OFF-HIGHWAY TRUCK
HD
605
GROSS HORSEPOWER
551 kW 739 HP
NET HORSEPOWER
533 kW 715 HP
MAXIMUM GVW
110180 kg 242,900 lb
Machine shown may include optional equipment.

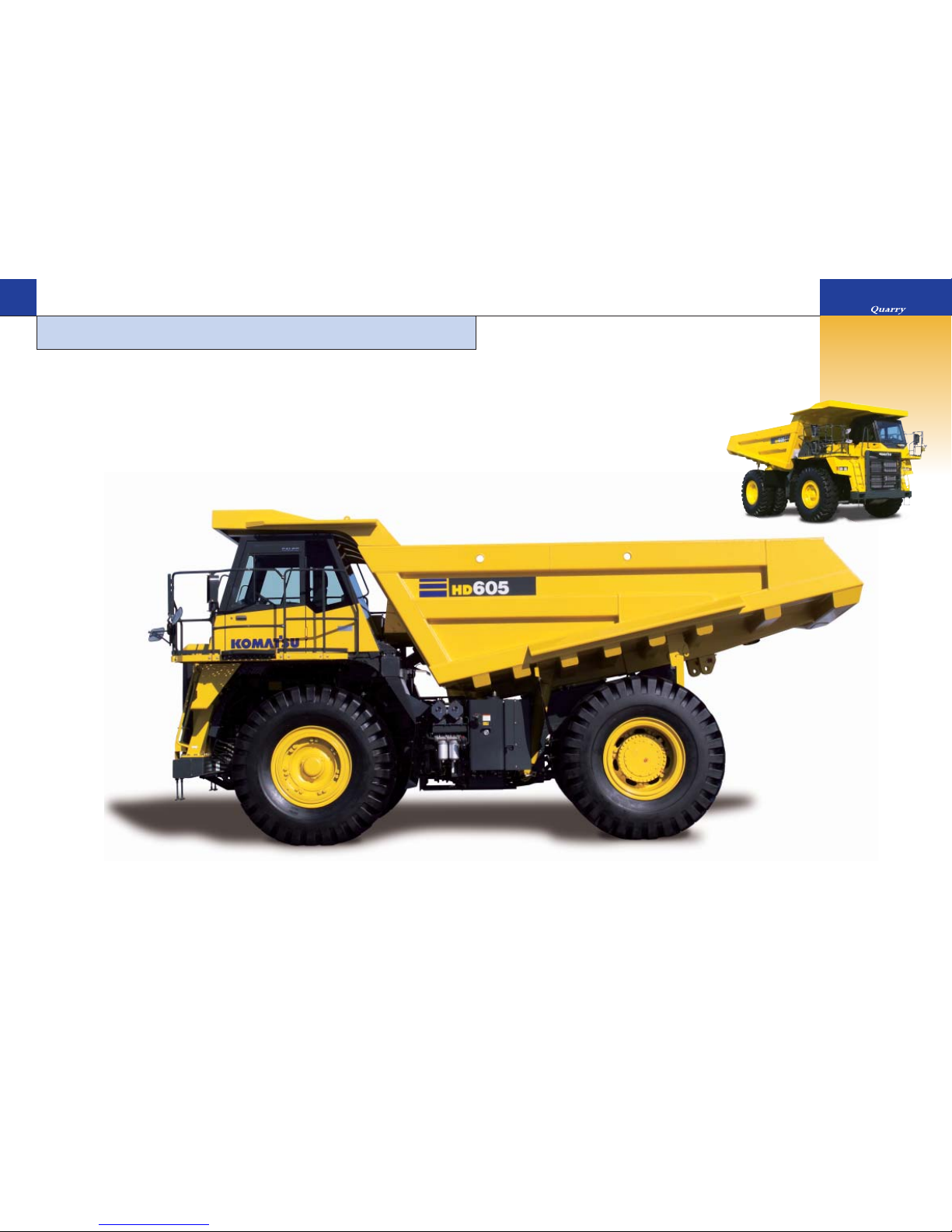

WALK-AROUND
HD605-7R
OFF-HIGHWAY TRUCK
HD605-7R OFF-HIGHWAY TRUCK
32
GROSS HORSEPOWER
551 kW 739 HP @ 2000 rpm
NET HORSEPOWER
533 kW 715 HP @ 2000 rpm
MAXIMUM GVW
110180 kg 242,900 lb
Machine shown may include optional equipment.
Productivity Features
● High performance Komatsu SAA6D170E-5 engine
Net horsepower 533kW 715HP
● Mode selection system
(Variable horsepower control in Economy mode)
● Automatic idling setting system (AISS)
● Automatic retard speed control (ARSC)
● 7-speed, fully automatic K-ATOMiCS transmission
● Fully hydraulic controlled wet multiple-disc brakes
and retarder
Retarder absorbing capacity (Continuous descent)
785kW 1,052HP
● Long wheelbase and wide tread
● Large body
Heaped capacity 40.0m352.3yd3
● Small turning radius 8.5m 27’11”
● Paylord meter II (PLM II ) (Option)
Harmony with Environment
●Low operation noise
●Lead-free radiator
●Brake cooling oil recovery tank
Operator Environment
●Wide, spacious cab with excellent visibility
●Ergonomically designed cab
●Easy-to-see instrument panel
●Ideal driving position settings
●K-ATOMiCS with “Skip-shift” function
●Hydropneumatic suspension
●Built-in ROPS/FOPS cab
●Viscous cab mounts
●Electric body dump control
●Supplementary steering and secondary brake
●Three-mode hydropneumatic suspension
(Automatic suspension) (Option)

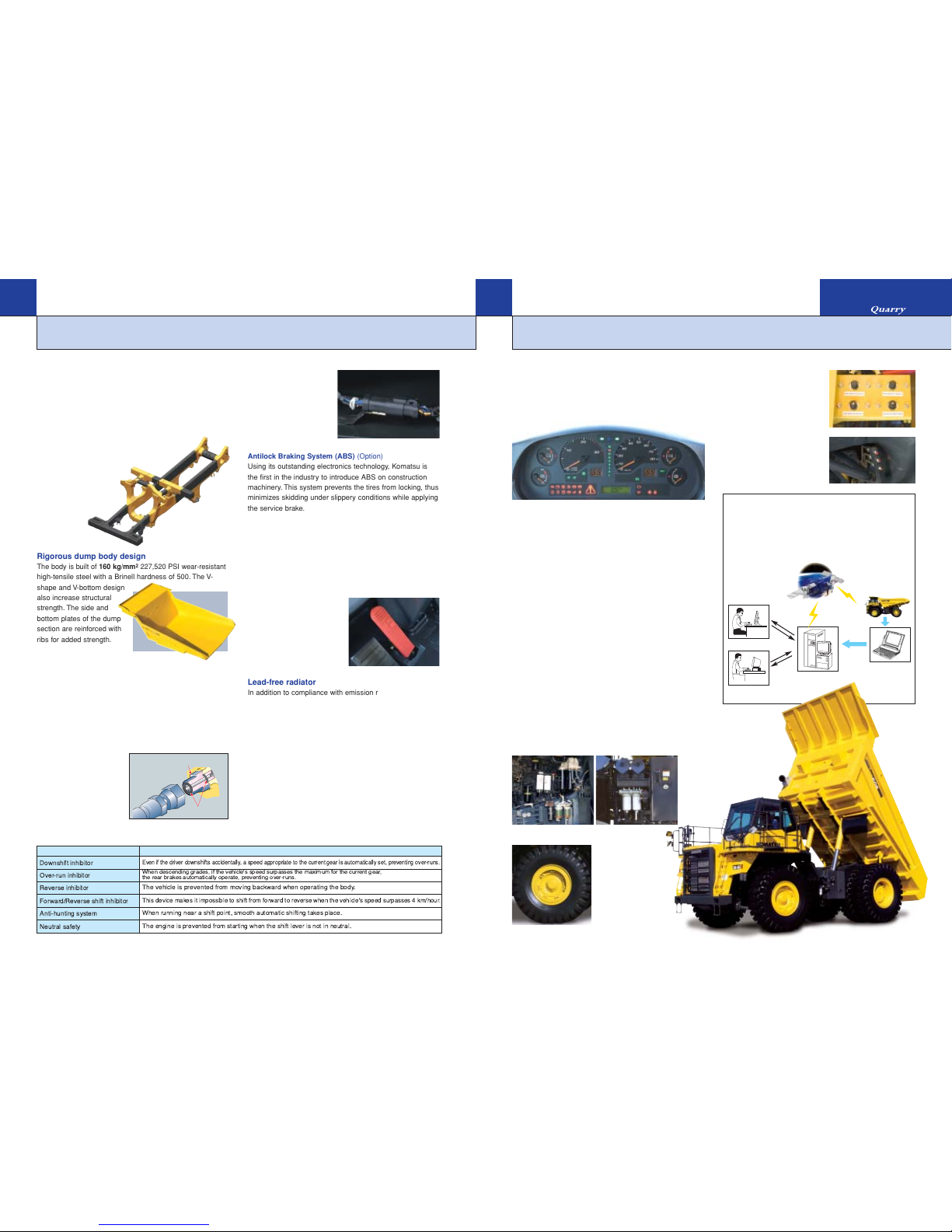

Reliability Features
●Komatsu components
●High-rigidity frame
●Rigorous dump body design
●Reliable hydraulic system
●Flat face-to-face O-ring seals
●Sealed DT connectors
●Antilock Brake System (ABS) (Option)
●Automatic Spin Regulator (ASR) (Option)
●Pedal-operated secondary brake
Easy Maintenance
●Advanced monitoring system
●Wet multiple-disc brakes and fully
hydraulic controlled braking system
●Extended oil change interval
●Centralized arrangement of filters
●Disc wheels (Flange type rims)
●Electric circuit breaker
●Centralized greasing points
●Vehicle health monitoring
system (VHMS) (Option)

5
HM350-1
ARTICULATED DUMP TRUCK
4

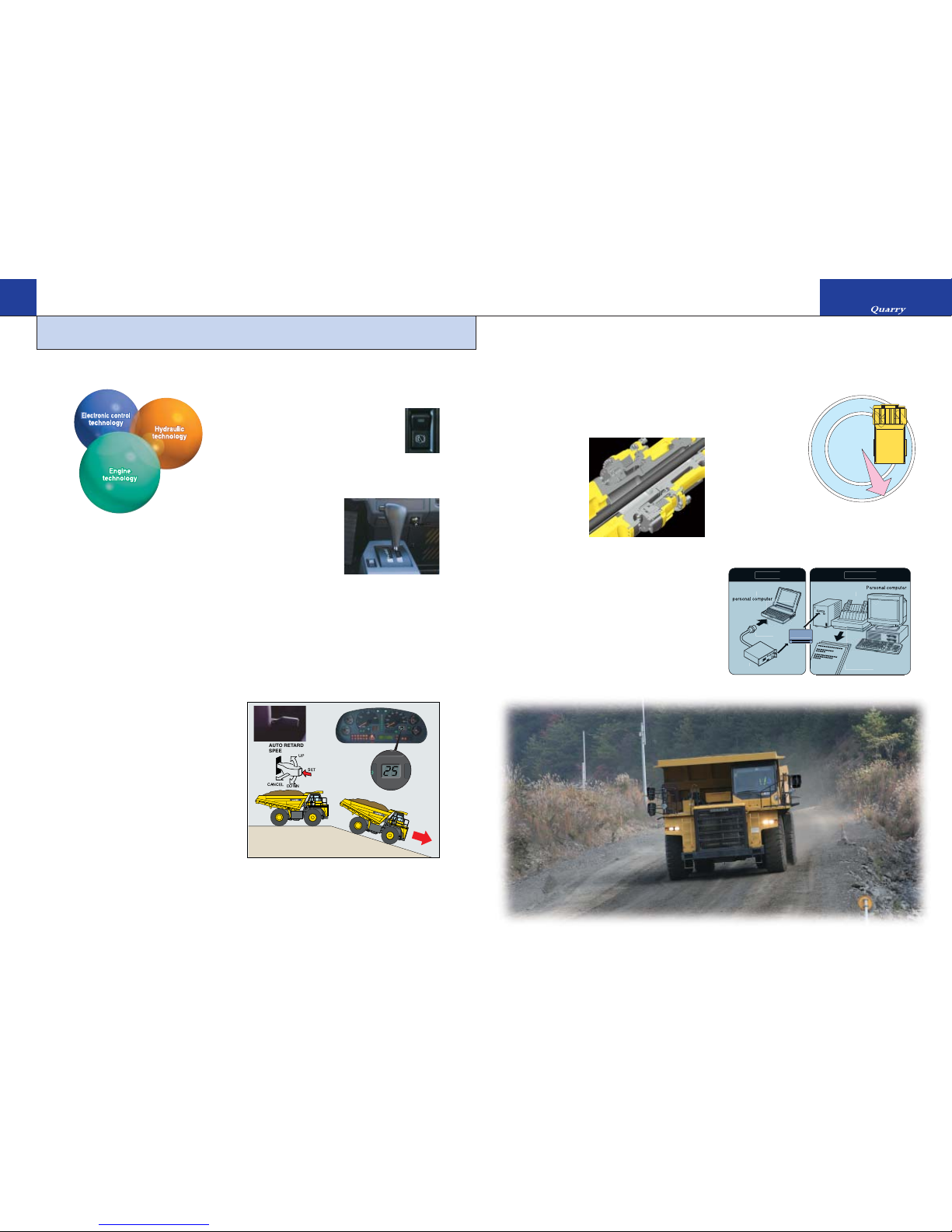

PRODUCTIVITY FEATURES
HD605-7R
OFF-HIGHWAY TRUCK
HD605-7R OFF-HIGHWAY TRUCK
Automatic Idling Setting System (AISS)
This system facilitates quick engine warm-up and cab cool-
ing/warming. When setting the system ON, engine idle
speed is kept at 945 rpm when coolant temper-
ature is 50°C 122°F or lower. Speed automati-
cally returns to 750 rpm when coolant tempera-
ture reaches 50°C 122°F.
Hydraulically controlled wet multiple-disc brakes
and retarder
Wet multiple-disc brakes ensures highly reliable and stable
brake performance. The large-capacity, continuously
cooled, wet multiple-disc brakes also function as a highly
responsive retarder which gives the operator greater
confidence at higher
speeds when travel-
ling downhill.
Auto Retard Speed Control (ARSC)
ARSC allows the operator to simply set the downhill travel
speed and go down slopes at a constant speed. As a
result, the operator can concentrate on steering. The speed
can be set at increments of 1 km/h 0.6 MPH per click (±5
km/h 3.1 MPH of setting speed adjustment) to match the
optimum speed for the slope. Also, since the retarder
cooling oil temperature is always monitored, the speed is
automatically lowered.
Komatsu technology
Go down
slope
at
constant
speed
UP
SET
DOWN
CANCEL
AUTO RETARD
SPEED CONTROL
• Retarder Absorbing
Capacity (continuous
descent): 785 kW
1,052 HP
• Brake Surface Area
(rear): 64,230 cm2
9,956 in2
Payload Meter II (PLM II ) (Option)
PLM II allows the production volume and the working
conditions on the dump truck to be analyzed and controlled
directly via a personal computer. The system can store up
to 2900 working cycles.
Small turning radius
The MacPherson strut type front suspension has a special
A-frame between each wheel and
the main frame. The wider
space created between the
front wheels and the main
frame increases the turn-
ing angle of the wheels.
The larger this turning
angle, the smaller the
turning radius of the truck.
8.5m 27'11"
A-frame
In
C
a
b
La
p
to
p
R
S
2
3
2
C
PLM
I
I
Memor
y
card reade
r
Dail
y
repor
t
Note) The memory card, card reader and software for data processin
g
are available as options
.
Memor
y
car
d
In
O
ffic
e
7-speed, fully automatic K-ATOMiCS transmission
The K-ATOMiCS (Komatsu Advanced Transmission with
Optimum Modulation Control System) automatically selects
the optimum gear according
to vehicle speed, engine
speed and the shift position
you’ve chosen. The result:
the best gear for any driving
situation.
K-ATOMiCS
(Komatsu Advanced Transmission with
Optimum Modulation Control System)
High performance Komatsu SAA6D170E-5 engine
Powerful turbocharged and air-to-air aftercooled Komatsu
SAA6D170E-5 engine provides 533 kW 715 HP (Net). This
engine realizes high power in low fuel consumption with
Common Rail Injection system (CRI), and thus it delivers
higher travel speeds with high horsepower. Also high torque
at low speed, impressive acceleration, and low fuel con-
sumption ensure maximum productivity.
Komatsu develops and produces all major components,
such as engines, electronics and hydraulic components,
in house.
With this “Komatsu Technology,” and adding customer
feedback, Komatsu is achieving great advancements
in technology.
To achieve both high levels of productivity and economical
performance, Komatsu has developed the main compo-
nents with a total control system.
The result is a new generation of high performance and
environment friendly machines.
Mode selection system
The system allows selection of the appropriate mode
between two modes <Power mode > or <Economy mode>
according to each working condition. The mode is easily
selected with a switch in the operator’s cab.
Power mode
Great productivity can be attained by taking full advantage
of high output power. It is appropriate for job sites where
larger production uphill-hauling is required.
Economy mode (Variable horsepower control)
The engine power automatically changes depending on
loaded or unloaded conditions always to use an optimum
speed gear. It is appropriate for light work on flat ground.
Long wheelbase and wide tread
With an extra-long wheelbase, a wide tread and an excep-
tionally low center of gravity, the HD605-7R hauls the load
at higher speed for greater productivity, and delivers superi-
or driving comfort over rough terrain.
Large body
A wide target area makes for easy loading with minimal soil
spillage and more efficient hauling. The V-shape design
also increases structural strength, and provides excellent
load stability.

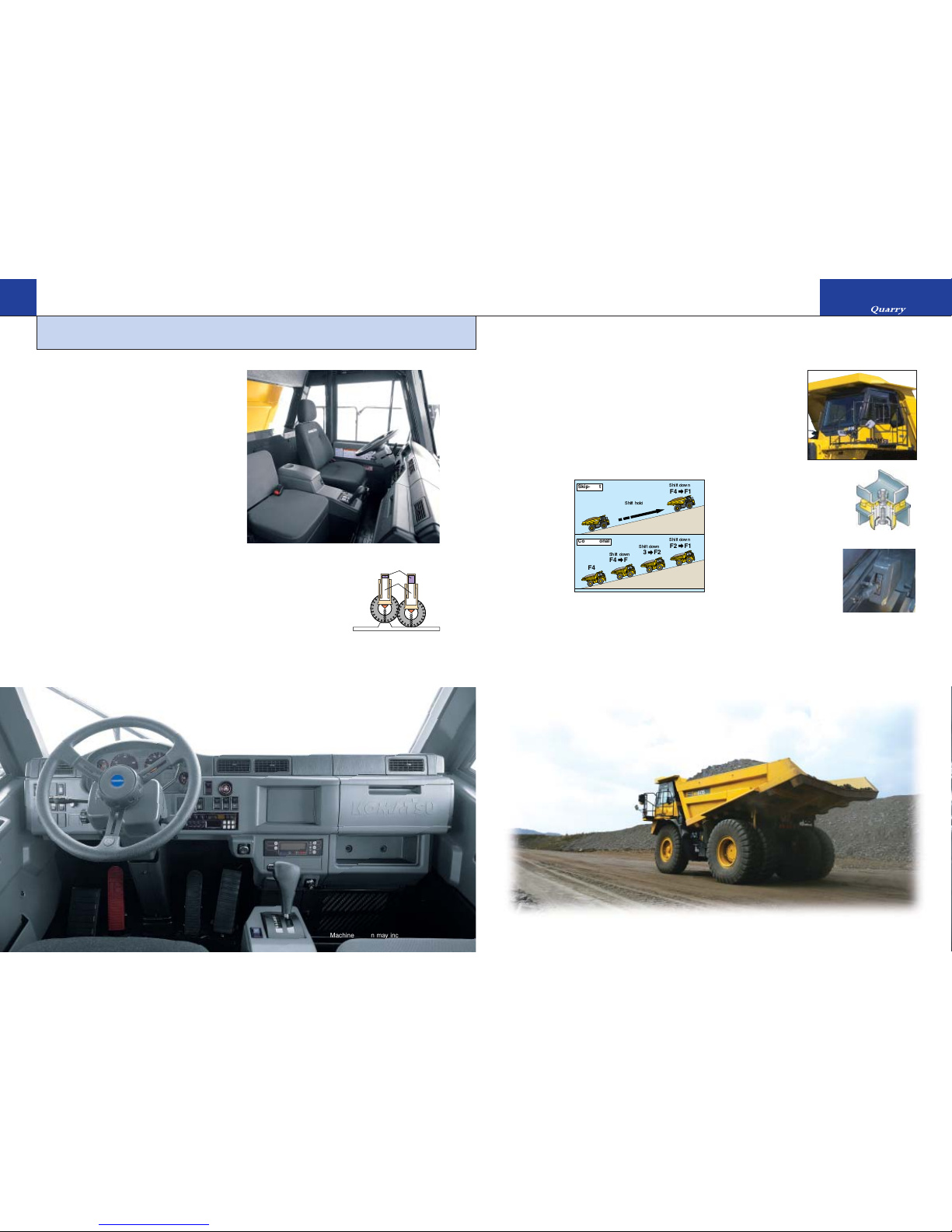

OPERATOR ENVIRONMENT
HD605-7R
OFF-HIGHWAY TRUCK
HD605-7R OFF-HIGHWAY TRUCK
67
Wide, spacious cab with excellent visibility
Wide windows in the front, side and back, plus plenty of
space in the richly upholstered interior, provide quiet, com-
fortable environment from which to see and control every
aspect of operation. Front under view mirrors and side
under view mirrors have been added to improve safety.
Ergonomically designed cab
The ergonomically designed operator's compartment makes
it very easy and comfortable for the operator to use all the
controls. The result is more confident operation and greater
productivity.
Easy-to-See instrument panel
The instrument panel makes it easy to monitor critical
machine functions. In addition, a caution light warns the
operator of any problems that may occur. Problems are
recorded in the monitor and indicated as service codes.
This makes the machine user friendly and easy to service.
Ideal driving position settings
The 5-way adjustable operator seat and the tilt-telescopic
steering column provide an optimum driving posture, for
increased driving comfort and more control over machine
operation. The suspension seat dampens vibrations transmit-
ted from the machine and reduces operator fatigue as well
as holding the operator securely to assure confident opera-
tion. 78mm 3" width seat belt is provided as standard equip-
ment.
Electric body dump control
The low effort lever makes dumping
easier than ever.
A positioning sensor is installed for
dump body control which significant-
ly reduces the shock made by the
lowering of the dump body.
K-ATOMiCS with "Skip-Shift" function
An electronically controlled valve is provided for each clutch
pack in the transmission for independent clutch engage-
ment/disengagement. It enables an ideal change in clutch
modulation pressure and torque cut-off timing in response to
travel conditions. This system and newly added “skip-shift”
function ensure smooth shifting and responsive acceleration.
Hydropneumatic suspension for
all terrains
The hydropneumatic suspension
assures a comfortable ride even over
rough terrain and ensures maximum
productivity and operator
confidence.
Viscous cab mounts
Viscous mounts reduce the noise
transmitted to the cab and achieve a
quiet 77 dB(A) noise level.
Built-in
ROPS/FOPS cab
These structures con-
form to ISO3471 ROPS
standard, and ISO 3449
FOPS standard.
Supplementary steering and secondary brake
Supplementary steering and secondary brakes are standard
features.
Steering: ISO 5010, SAE J1511
Brakes: ISO 3450
Three-mode hydropneumatic suspension
(Auto-suspension) (Option)
Suspension mode is automatically switched to one of three
stages (soft, medium and hard) according to load and
operating conditions, for a more comfortable and stable ride.
"Skip-shift" function
Optimum travel speed automatically selected in response to
angle of ascent.
Reduced frequen-
cy of downshift
and smoother
operation are pro-
vided.
F4 F4
 
F4
 
F1
F4
F4
 
F3
F3
 
F2
F2
 
F1
Conventional
Skip-shift
Machine shown may include optional equipment.
Nitrogen gas
Oil

RELIABILITY FEATURES EASY MAINTENANCE
HD605-7R
OFF-HIGHWAY TRUCK
HD605-7R OFF-HIGHWAY TRUCK
8
Wet multiple-disc brakes and fully hydraulic brak-
ing controlled systems realize lower maintenance costs
and higher reliability. Wet disc brakes are fully sealed to
keep contaminants out, reducing wear and maintenance.
Brakes require no adjustments for wear, meaning even
lower maintenance. The parking brake is also an adjust-
ment-free, wet multiple-disc system for high reliability and
long life. Added reliability is designed into the braking sys-
tem by the use of three independent hydraulic circuits pro-
viding hydraulic backup should one of the circuits fail. Fully
hydraulic braking systems eliminate the air system so air
bleeding is not required, and water condensation that can
lead to contamination, corrosion and freezing is eliminated.
High-rigidity frames
Cast-steel components are used in the
main frame for highstress
areas where loads and
shocks are
most concentrated.
Komatsu components
Komatsu manufactures the engine, torque converter,
transmission, hydraulic units, and electrical parts on this
dump truck. Komatsu dump trucks are manufactured with an
integrated production system under strict quality control sys-
tem guidelines.
Sealed DT connectors
Main harnesses and
controller connectors are
equipped with sealed DT
connectors providing high
reliability, water resistance
and dust resistance.
Reliable hydraulic system
The oil cooler is installed underneath of the radiator, improv-
ing the reliability of the hydraulic system during sudden tem-
perature rises. Further, in addition to the main filter, a 25-
micron line filter is at the entrance to the transmission con-
trol valve. This system helps to prevent secondary faults.
Extended oil change intervals
In order to minimize operating costs, oil change intervals
have been extended:
●Engine oil 500 hours
●Hydraulic oil 4000 hours
Disc wheels (Flange type rims)
Disc wheels (Flange
type rims) provide
easy removal/instal-
lation for the tires.
Vehicle Health Monitoring System (VHMS) (Option)
VHMS controller monitors the health conditions of major
components, enables remote analysis of the machine and
its operation. This process is supported by the Komatsu
distributors, factory and design team. This contributes to
reduced repair costs and to maintaining maximum avail-
ability.
Centralized greasing
points
Greasing points are centralized
at three locations, it enables to
approach from ground level.
Centralized arrangement of filters
The filters are centralized so that they can be
serviced easily.
KOMATSU
WebCARE Server
Personal
computer
terminal
(for downloading
data)
Internet
Komatsu
distributors
Customer
job site
Satellite
communication
Protection functions supported by electronic control
Item Function
 
 
 
  
 
 
                 
!     "    #    
  $    
%      $    
%  $           "   & $
!         $ 
%             
Rigorous dump body design
The body is built of 160 kg/mm
2
227,520 PSI wear-resistant
high-tensile steel with a Brinell hardness of 500. The V-
shape and V-bottom design
also increase structural
strength. The side and
bottom plates of the dump
section are reinforced with
ribs for added strength.
Antilock Braking System (ABS) (Option)
Using its outstanding electronics technology, Komatsu is
the first in the industry to introduce ABS on construction
machinery. This system prevents the tires from locking, thus
minimizes skidding under slippery conditions while applying
the service brake.
Lead-free radiator
In addition to compliance with emission regulations, a lead-
free aluminum core is used for the radiator to meet global
environmental requirements.
Automatic Spin Regulator (ASR) (Option)
ASR automatically prevents the rear tires on either side
from slipping on soft ground for optimal traction.
Pedal-operated secondary brake
If there should be a failure in the foot brake, the parking
brake and front disc brakes are
activated as a pedal operated
secondary brake. In addition,
when hydraulic pressure drops
below the rated level, the park-
ing brake is automatically actu-
ated.
Brake cooling oil recovery tank
To protect the environment, a tank is installed to recover
brake cooling oil in the event of brake floating seal leakage.
Electric circuit breaker
A circuit breaker is adopted in
important electric circuits that
should be restored in a short
time when a problem occurs in
the electrical system.
Advanced monitoring system
The Komatsu advanced monitoring system identifies main-
tenance items, reduces diagnostic times, indicates oil and
filter replacement hours and displays abnormality codes.
This monitor system helps to maximize machine production
time.
Flat face-to-face O-ring seals
Flat face-to-face O-ring
seals are used to securely
seal all hydraulic hose
connections and to prevent
oil leakage.
O-ring
Nipple
Hose
Parts colored with yellow
show cast-steel components
9

1110
HD605-7R
OFF-HIGHWAY TRUCK
HD605-7R OFF-HIGHWAY TRUCK

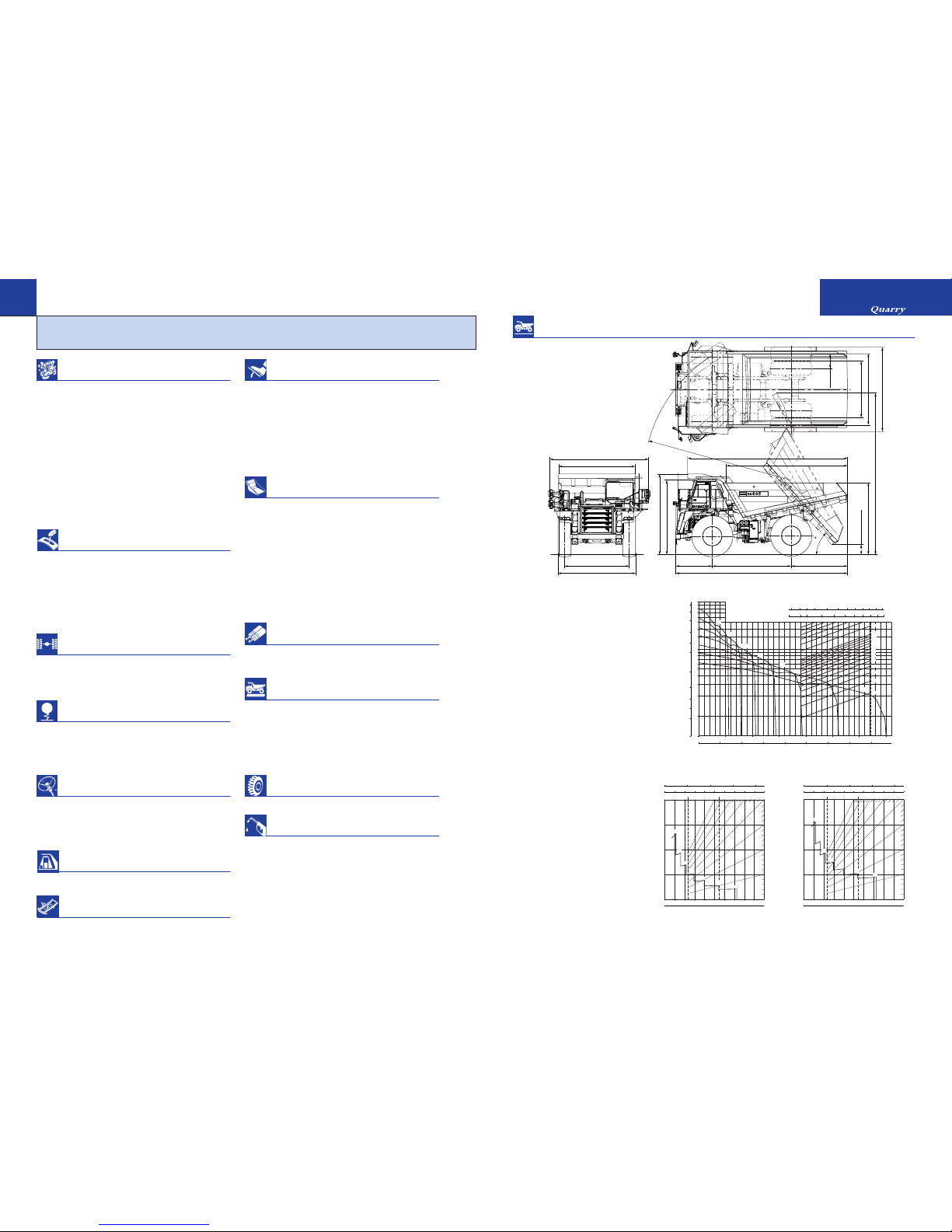

SPECIFICATIONS
AXLES
Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Full-floating
Final drive type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Planetary gear
Ratios:
Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.538
Planetary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.737
TRANSMISSION
Torque converter . . . . . . . . . . . . . . . . 3-elements, 1-stage, 2-phase
Transmission . . . . . . . . . . . . . . . . Full-automatic, counter-shaft type
Speed range. . . . . . . . . . . . . . . . . . 7 speeds forward and 1 reverse
Lockup clutch. . . . . . . . . . . . . . . . . . . . . . . Wet, multiple-disc clutch
Forward . . . . . . . . . . . . . . . . . . . Torque converter drive in 1st gear,
direct drive in 1st lockup and all higher gears
Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . Torque converter drive
Shift control . . . . . . . . . . . . . . Electronic shift control with automatic
clutch modulation in all gear
Maximum travel speed . . . . . . . . . . . . . . . . . 70.0 km/h 43.5 mph
ENGINE
Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Komatsu SAA6D170E-5
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Water-cooled, 4-cycle
Aspiration . . . . . . . . . . . . . . . . . Turbo-charged, air-to-air after-cooled
Number of cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Bore x stroke . . . . . . . . . . . . . . . . . 170 mm x 170 mm 6.69" x 6.69"
Piston displacement. . . . . . . . . . . . . . . . . . . . . . . 23.15 ltr 1,413 in3
Horsepower
SAE J1995 . . . . . . . . . . . . . . . . . . . . . . . . Gross 551 kW 739 HP
ISO 9249 / SAE J1349 . . . . . . . . . . . . . . . . . Net 533 kW 715 HP
Rated rpm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2000 rpm
Fan drive type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mechanical
Maximum torque . . . . . . . . . . . . . . . . . . . . . . . 339 kg•m 2,452 lb. ft
Fuel system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Direct injection
Governor . . . . . . . . . . . . . . . . . . . . . . . . . . . Electronically controlled
Lubrication system
Method . . . . . . . . . . . . . . . . . . . . . . . Gear pump, force-lubrication
Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Full-flow type
Air cleaner. . . . . . . . . . . . . . . . . . Dry type with double elements and
precleaner(cyclonpack type), plus dust indicator
SUSPENSION SYSTEM
Independent, hydropneumatic suspension cylinder with fixed throttle
to dampen vibration.
Effective cylinder stroke (front suspension) . . . . . . . . . 303 mm 11.9"
Rear axle oscillation:
Oil stopper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8°
Mechanical stopper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.7°
MAIN FRAME
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Box-sectioned structure
STEERING SYSTEM
Type . . . . . . . . . . . . . . . . . . . . . . . . . . Fully hydraulic power steering
with two double-acting cylinders
Supplementary steering . . . . . . . . . . . . . . . . . . . . . . . Manual control
(meets ISO 5010 and SAE J1511)
Minimum turning radius . . . . . . . . . . . . . . . . . . . . . . . . . 8.5 m 27'11"
Maximum steering angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39°
BRAKES
Brakes meet ISO 3450 standard.
Service brakes:
Front . . . . . . . . . . . . . . . . . Fully hydraulic control, caliper disc type
Rear . . . . . . . . Fully hydraulic control, oil-cooled multiple-disc type
Parking brake . . . . . . . . . . . . . . . . Spring applied, multiple-disc type
Retarder . . . . . . Oil-cooled, multiple-disc rear brakes act as retarder.
Secondary brake . . . . . . . . . . . . . . . . . . . . . Manual pedal operation.
When hydraulic pressure drops below the rated level,
parking brake is automatically actuated.
Brake surface
Front. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1936 cm2300 in2
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64230 cm29,956 in2
WEIGHT (APPROXIMATE)
Empty weight . . . . . . . . . . . . . . . . . . . . . . . . . . 46200 kg 101,850 lb
Max. gross vehicle weight . . . . . . . . . . . . . . . 110180 kg 242,900 lb
Not to exceed max. gross vehicle weight, including options, fuel
and payload.
Weight distribution:
Empty: Front axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47%
Rear axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53%
Loaded: Front axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32%
Rear axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68%
BODY
Capacity:
Struck. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29.0 m337.9 yd3
Heaped (2:1, SAE) . . . . . . . . . . . . . . . . . . . . . . . 40.0 m352.3 yd3
Payload . . . . . . . . . . . . . . . . . . . . . . 63.0 metric tons 69.4 U.S. tons
Material . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 kg/mm2227,520 psi
high tensile strength steel
Structure . . . . . . . . . . . . . . . . . . . . . . . . V-shape body with V-bottom
Material thickness:
Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 mm 0.98"
Front. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 mm 0.63"
Sides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 mm 0.55"
Target area
(inside length x width) . . . . . . . 6600 mm x 3870 mm 21'8" x 12'8"
Dumping angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48°
Height at full dump . . . . . . . . . . . . . . . . . . . . . . . . . 8800 mm 28'10"
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Exhaust heating
HYDRAULIC SYSTEM
Hoist cylinder . . . . . . . . . . . . . . . . . . . . Twin, 2-stage telescopic type
Relief pressure . . . . . . . . . . . . . . . . 20.6 MPa 210 kg/cm22,990 psi
Hoist time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.5 sec
CAB
Dimensions comply with ISO 3471 ROPS (Roll-Over Protective
Structure) standard, and ISO3449 FOPS standard.
TIRES
Standard tire. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24.00 R35
SERVICE REFILL CAPACITIES
Fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . 780 ltr. 206.1 U.S. Gal
Engine oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 ltr. 21.1 U.S. Gal
Torque converter, transmission and
retarder cooling . . . . . . . . . . . . . . . . . . . . . . 215 ltr. 56.8 U.S. Gal
Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 ltr. 25.1 U.S. Gal
Final drives (total) . . . . . . . . . . . . . . . . . . . . . . . 42 ltr. 11.1 U.S. Gal
Hydraulic system . . . . . . . . . . . . . . . . . . . . . . . 122 ltr. 32.2 U.S. Gal
Suspension (total) . . . . . . . . . . . . . . . . . . . . . . 55.6 ltr. 14.7 U.S. Gal
DIMENSIONS
4235mm 13'11"
3515mm 11'6"
4170mm 13'8"
5395mm 17'8"
4400mm 14'5"
4065mm 13'4"
1985mm 6'6" 4300mm 14'1"
9355mm 30'8"
3070mm 10'1"
48
560mm 1'10"
3860mm 12'8"
8800mm 28'10"
6600mm 21'8"
8710mm 28'7"
8500mm 27'11"
796mm
2'7"
3080 mm 10'1" 3870 mm 12'8"
4595mm 15'1"
2
4
.
0
0
R
3
5
2
4
.
0
0
R
3
5
F1
F2
F3
F4
F5
F6
F7
706050403020100
0.5
3
5
6
7
8
9
10
20
30
40
50
2
1
4
20.0
15.0
14.0
13.0
12.0
11.0
10.0
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
100
60
80
40
30
20
10
5
4
3
2
1
RIMPULL
010152025303540
TRAVEL SPEED
MPH
km/h
LOADED
EMPTY
GROSS WEIGHT
x103lb
x103kg
x103lb x103kg
5
TOTAL RESISTANCE (GRADE + ROLLING) (%)
40 50 60 70 80 90 100 110 120 130
90 100 110 120 140 160 180 200 240 260 280220
TRAVEL PERFORMANCE
010
0102030405060
20 30 40 50 60 70 80 90 100 km/h
MPH
TRAVEL SPEED
-10
-15
-20-25-30
-5
-35-40
TOTAL RESISTANCE (GRADE + ROLLING) (%)
0
0100 200 300 400
20 40 60 80 100 120 140 160 180 200
GROSS WEIGHT
x103lb
x103kg
LOADEDEMPTY
F1
F2
F3
F4
F5
F6
F7
010
0102030405060
20 30 40 50 60 70 80 90 100 km/h
MPH
TRAVEL SPEED
-10
-15
-20-25-30
-5
-35-40
TOTAL RESISTANCE (GRADE + ROLLING) (%)
0
0100
20 40 60 80 100 120 140 160 180 200
GROSS WEIGHT
x103lb
x103kg
F1
F2
F3
F4
F5
F6 F7
200 300 400
LOADEDEMPTY
Grade distance: Continuous Descent Grade distance: 450 m (1,480 ft)
To determine travel performance: Read from
gross weight down to the percent of total
resistance. From this weight-resistance point,
read horizontally to the curve with the
highest obtainable speed range, then down
to maximum speed. Usable rimpull depends
upon traction available and weight on drive
wheels.
To determine brake performance: These
curves are provided to establish the
maximum speed and gearshift position
for safer descents on roads with a given
distance. Read from gross weight down
to the percent of total resistance. From
this weight resistance point, read
horizontally to the curve with the highest
obtainable speed range, then down to
maximum descent speed the brakes can
safely handle without exceeding cooling
capacity.
BRAKE PERFORMANCE
