Konica Minolta CR-400 User manual

CHROMA METER
CR-400/410
En Instruction Manual
Please read before
using the instrument.

Safety Symbols
The following symbols are used in this manual to prevent accidents which may occur as a result of
incorrect use of the instrument.
Denotes a sentence regarding a safety warning or note.
Read the sentence carefully to ensure safe and correct use.
Denotes a prohibited operation.
The operation must never been performed.
Denotes an instruction.
The instruction must be strictly adhered to.
Denotes an instruction.
Disconnect the AC adapter from the AC outlet.
Denotes a prohibited operation.
Never disassemble the instrument.
This symbol indicates alternating current (AC).
This symbol indicates direct current (DC).
This symbol indicates class II protection against electric shock.
Notes on This Manual
•Copying or reproduction of all or any part of the contents of this manual without KONICA
MINOLTA’s permission is strictly prohibited.
•The contents of this manual are subject to change without prior notice.
•Every effort has been made in the preparation of this manual to ensure the accuracy of its contents.
However, should you have any questions or find any errors, please contact a Konica Minolta autho-
rized service facility.
•KONICA MINOLTA will not accept any responsibility for consequences arising from the use of the
instrument.

1
Safety Precautions
To ensure correct use of this instrument, read the following points carefully and adhere to them. After
you have read this manual, keep it in a safe place where it can be referred to anytime a question arises.
WARNING (Failure to adhere to the following points may result in death or
serious injury.)
Do not use the instrument in places where
flammable or combustible gases (gasoline
etc.) are present. Doing so may cause fire.
Do not disassemble or modify the in-
strument or the AC adapter. Doing so
may cause a fire or electric shock.
Always use the AC adapter supplied as
a standard accessory or the optional AC
adapter, and connect it to an AC outlet
of the rated voltage and frequency. If the
AC adapters other than those specified
by KONICA MINOLTA are used, this
may result in damage to the unit, fire or
electric shock.
The instrument should not be operated if it is
damaged or AC adapter is damaged, or if
smoke or odd smells occur. Doing so may re-
sult in a fire. In such situations, turn the power
OFF immediately, disconnect the AC adapter
from the AC outlet (or remove the batteries if
they are used) and contact the nearest Konica
Minolta authorized service facility.
If the instrument will not be used for a long
time, disconnect the AC adapter from the
AC outlet. Accumulated dirt or water on
the prongs of the AC adapter’s plug may
cause a fire and should be removed.
Do not connect or disconnect the AC
adapter with wet hands. Doing so may
cause electric shock.
Be careful not to spill liquids or drop metal-
lic objects into the instrument or AC adapter.
Doing so may cause a fire or electric shock.
Should liquid or metal objects enter the
instrument, turn the power OFF immedi-
ately, disconnect the AC adapter from the
AC outlet, and contact the nearest Konica
Minolta authorized service facility.
Do not dispose of batteries in fire, short
their terminals, apply heat to them, or
disassemble them. Also, do not recharge
them. Doing so may cause explosion or
heat generation, resulting in fire or in-
jury.
Insert the plugs of the AC adapter se-
curely and fully into the connections so
that blades and pins are not exposed.
Incomplete connections may cause fire
or electric shock.
Do not unreasonably bend, twist or pull
cables.
Also, do not place heavy objects on
cables or otherwise damage or modify
cables.
Abusive handling may damage cables,
resulting in fire or electric shock.
Should liquid leak from batteries and con-
tact to eye, wash liquid off with clean wa-
ter without rubbing eyes and immediately
seek for medical professional’s advice.
In case liquid contacts with hand or clothes,
wipe it off with plenty of water. Avoid fur-
ther use of such unit.
Insulate battery contact with such ob-
ject as tape in disposing of batteries.
Contact to other metal object may cause
explosion or fire. Follow local regula-
tion for proper disposal or recycling of
batteries.

2
CAUTION (Failing to adhere to the following points may result in injury
or damage to the instrument or other property.)
Do not perform measurement which the
measurement aperture directed towards
your face. Doing so may damage them.
Do not place the instrument on an un-
stable or sloping surface. Doing so may
result in its dropping or overturning,
causing injury. Take care not to drop the
instrument when carrying it.
Do not use batteries other than those speci-
fied by KONICA MINOLTA. When in-
stalling batteries in the instrument, make
sure that they are correctly oriented accord-
ing to the (+) and (-) marks. Failure to ad-
here to these instructions may cause bat-
teries to explode or leakage of electrolytes,
resulting in fire, injury or air pollution.
When using an AC adapter, make sure
that the AC outlet is located near the in-
strument and that the AC adapter can be
connected to and disconnected from the
AC outlet easily.
Before cleaning the instrument, discon-
nect the AC adaptor plug from the elec-
trical outlet.
Cleaning the instrument with the AC
adaptor plugged in may result in elec-
tric shock.
Chapter 1 Measuring Head 1 (P.21- )
Chapter 2 Measuring Head 2 (P.53- )
Chapter 3 Data Processor (P.57- )
When using the measuring head alone.
When using the measuring head separately from the data processor after setting.
• The measuring head cannot be set by itself, but functions which run by setting the head using the
optional CR-400 utility software CR-S4w or the Color Management Software SpectraMagic™ NX
CM-S100w are described.
When using the measuring head and the data processor together.
Introduction
This instrument is a high-precision, light-weight Chroma Meter developed for Absolute Measurement
and Difference Measurement in a wide range of fields. Measurement can be made in conjunction with
a multi-functional data processor or with the Measuring Head alone.
Layout of This Manual
•This manual describes the CR-400 and CR-410. The CR-400 is used for illustrations, and any
differences have been pointed out clearly so the manual may be used equally for both models.
•The manual is divided into two sections covering the Measuring Head and one section on the data
processor. See following chapters for your use.

3
Conventions
<Illustrations for Operating Procedures>
Key panel used for operation and po-
sition of instrument.
Numbered order for operating pro-
cedure.
The Measuring Head has the key
and the data processor has the
key. Their functions are followings:
(Data Processor)
key: moves cursor or scrolls screen left and right.
key: moves cursor or scrolls screen up and down.
Screen display.
Differs according to user settings.
<Example>
The section within this manual.
*The numbers and screen displays appearing in this manual may differ from actual use, but should
have no adverse impact on instrument operation.

4
Notes on Use
<Operating Environment>
• This instrument and the AC adapter supplied as a standard accessory have been designed exclu-
sively for indoor use.
• Do not leave the CR-400/410 in direct sunlight or near sources of heat, such as stoves etc.
The internal temperature of the instrument may become much higher than the ambient temperature
in such cases.
• Do not use the CR-400/410 in areas where dust, cigarette smoke, or chemical gases are present.
Doing so may cause deterioration in performance or breakdown.
• Do not use the CR-400/410 near equipment which produces a strong magnetic field (such as speak-
ers, etc.)
• The CR-400/410 is classified as an Installation Category II (equipment which is powered by an AC
adapter connected to a commercially available power source).
• The CR-400/410 is classified as a Pollution Degree 2 (equipment which may cause temporary
electrical hazards due to contamination or condensation, or products which are used in such an
environment).
• Do not use the CR-400/410 at altitudes of higher than 2000m.
• Use this instrument at ambient temperature between 0 and 40ºC and relative humidity 85% or less
(at 35ºC) with no condensation (*1). The instrument may not satisfy design performance, if used
outside the working temperature and humidity ranges. Operating this instrument outside specified
temperature and humidity range may unsatisfy its original performance.
*1 Operating temperature/humidity range of products for North America: between 5 and 40ºC and relative humid-
ity 80% or less (at 31ºC) with no condensation
<The Instrument>
• Do not subject the CR-400/410 to strong impact or vibration.
Doing so may cause deterioration in performance or breakdown.
• The measurement aperture should be protected from dirt and strong impacts. Always attach the
protective cap when not in use.
• The CR-400/410 may cause interference if used near a television, radio, etc.
• Due to the effect of electrostatic discharge on or in the vicinity of CR-400, erroneous can occur. In
this cace please repeat the last mesurement. If strong static electricity is received at the moment
measurement is made, the measurement values may be adversely affected, but the following mea-
surement will be ok.
<Measurement>
• When using the Measuring Head upside-down, make sure no dirt or dust get into the aperture.
• When using the instrument for long periods of time, the measurement value may change depending
on changes in the environment. Therefore, in order to achieve accurate measurements, we recom-
mend that white calibration be done regularly using the white calibration plate. Doing this will
automatically correct other calibration channels, so there is no need to calibrate them.
• Changes in the temperature will cause the color of the specimen to change, resulting in changes in
the measurement data even if white calibration has been done. Therefore, calibration, setting of
color difference target colors, and measurement should all be done at the same temperature.
• When performing continuous measurements, remove the batteries and use the AC adapter.
<Displayed Data>
• Although this instrument is designed for increased accuracy in operations by internally calculating
more digits than are actually displayed, some operation errors may occur in the minimum number of
digits during rounding off, color space conversion, and in other situations.
<White Calibration Plate>
• The white calibration plate is placed near the middle. When doing a calibration, use the area near the
middle.
• Do not allow the white calibration plate to get scratched or stained.

5
• If you are not going to use the white calibration plate, close the cover to the white calibration plate
to prevent entry of ambient light, as any areas exposed to such light will discolor.
<Roll Paper>
• This roll paper is special paper (thermal paper) which displays color as the result of a heat-induced
chemical reaction.
• Do not store in hot and/or humid places.
• Do not expose to direct sunlight, fluorescent light, or other outside light for long periods of time.
• Using roll paper which has become discolored because of the way it was stored will result in print-
ing which is difficult to read. Use new roll paper whenever possible.
• Printed data may become illegible because of storage conditions, therefore it is recommended to
copy data intended for long-term storage immediately after it has been printed.
<Printing>
• Since the printer uses a thermal mechanism, the ambient temperature may affect the speed and/or
consistency of print.
<Power Source>
• Do not short-circuit the output plug of the AC adapter. Doing so may cause fire or electric shock.
• The AC adapter is an EMC Class B device. If used in a home environment, it may cause electrical
interference. This may require the user to take suitable countermeasures.
• Make sure that the power switch is set to OFF when the CR-400/410 is not in use.
• Use only the AC adapter (AC-A305) included with the product and connect it to a 100V AC (50/60
Hz) electrical outlet. Do not use other AC adapters for any reason whatsoever.
• Use an AC power source which is within 10% of the rated voltage.
• Do not connect the AC adapter to electrical strips or other connection devices that share the power
supply. Also, do not cover or wrap the AC adapter with cloth and the like during use. Doing so may
cause fire or electric shock.
• In the event of trouble, disconnect the power cable from the AC adapter terminal on the instrument.
Do not install the instrument anywhere that makes it difficult to disconnect the power cable from the
AC adapter terminal on the instrument, in an emergency.
• Do not use the instrument anywhere it can get wet. Contact with water may cause fire or electric
shock.
• When disconnecting the AC adapter from the instrument, first disconnect the power cable from the
electrical outlet and then disconnect the power cable from the AC adapter terminal on the instru-
ment.
<Recommended Batteries>
• A low ambient temperature will cause a drop in battery performance, with similar results for perfor-
mance in terms of number of measurements and printing speed and consistency. We therefore rec-
ommend you use lithium or nickel metal-hydride batteries which can withstand changes in tem-
perature.
<Backup Batteries>
•Measurement data and settings are stored in memory which is backed up by the internal backup
batteries. The backup batteries are automatically charged during operation of the instrument, and
can retain the contents of memory for 10 months if they have been fully charged. At time of pur-
chase, the batteries may have already been partially discharged, so turn the power on to charge
them. Charging of the backup batteries is performed continuously while the instrument is switched
on, even while the instrument is being used. The batteries can be fully charged about 20 hours, and
there is no danger of overcharging.
• Do not replace the internal backup batteries (type: ML2020 3V) yourself. Contact the nearest Konica
Minolta authorized service facility to replace the backup batteries.
• We recommend that you backup all important data and store it separately.

6
Notes on Storage
• The CR-400/410 should be stored at temperatures between -20 and 40 ˚C and a maximum relative
humidity of 85%. Do not store it in areas subject to high temperatures, high humidity, or rapid
changes of temperature, or where condensation may occur. For added safety, we recommend that it
is stored with a drying agent at room temperature.
• Do not leave the CR-400/410 inside a car or in the trunk of a car. Under direct sunlight in summer,
the increase in temperature can be extreme and may result in malfunction.
• Do not store the CR-400/410 in areas where dust, cigarette smoke, or chemical gases are present.
Doing so may cause deterioration in performance or breakdown.
• When not using the white calibration plate, close the cover and store it.
• Do not throw away the packing materials (cardboard box, cushioning material, plastic bags, etc.).
They can be used to protect the instrument during transportation to a service facility for mainte-
nance (re-calibration etc.).
• If you are not going to be using the CR-400/410 for more than two weeks, the batteries must be
removed. If the batteries are left in the instrument, leakage may occur resulting in damage to the
instrument.
Notes on Cleaning
• If the CR-400/410 becomes dirty, wipe it with a soft, clean dry cloth. Never use solvents such as
thinner and benzene.
• If the white calibration plate becomes dirty, wipe it gently with a soft, clean dry cloth. If dirt is
difficult to remove, wipe it with lens cleaner and cloth, then dry.
• If the CR-400/410 break down, do not try to disassemble and repair it by yourself. Contact a Konica
Minolta authorized service facility.
Notes on Disposal
• Dispose of this instrument, accessories and packaging materials in line with local waste codes.

7
Contents
Safety Precautions .................................................................................................................. 1
Introduction ............................................................................................................................. 2
Layout of This Manual............................................................................................................ 2
Conventions.............................................................................................................................. 3
<Illustrations for Operating Procedures> ............................................................................. 3
Notes on Use ............................................................................................................................. 4
<Operating Environment> .................................................................................................... 4
<The Instrument> ................................................................................................................. 4
<Measurement> .................................................................................................................... 4
<White Calibration Plate> .................................................................................................... 4
<Roll Paper> ......................................................................................................................... 5
<Printing> ............................................................................................................................. 5
<Power Source>.................................................................................................................... 5
<Recommended Batteries> ................................................................................................... 5
<Backup Batteries> ..............................................................................................................5
Notes on Storage ...................................................................................................................... 6
Notes on Cleaning .................................................................................................................... 6
Notes on Disposal ..................................................................................................................... 6
Contents.................................................................................................................................... 7
Before Use ................................................................................................................................ 11
Standard Accessories............................................................................................................... 11
Optional Accessories................................................................................................................ 12
System Configuration.............................................................................................................. 14
Names and Functions of Parts................................................................................................ 15
<Measuring Head> ............................................................................................................... 15
<Measuring Head Key Panel> .............................................................................................. 16
<Data Processor> .................................................................................................................. 17
<Data Processor Key Panel> ................................................................................................ 18
Chapter 1 -- Measuring Head 1 --
This section describes use of the measuring head by itself.
Function guide ......................................................................................................................... 22
Preparation .............................................................................................................................. 23
Inserting the Batteries ............................................................................................................. 23
Connecting the AC Adapter.................................................................................................... 25
<Power Supply> ................................................................................................................... 26
Turning the Power ON ( | ) and OFF (Ο)............................................................................... 27
<Turning the Power ON> ..................................................................................................... 27
<Turning the Power OFF> .................................................................................................... 27
<Auto Power Save Function> ............................................................................................... 27
<Data Memory and Memory Backup> ................................................................................. 27
Setting Language mode ...........................................................................................................28
LCD Display, Communication, and Other Settings ............................................................. 28
1) Contrast 2) Back light 3) Baud rate 4) PC mode 5) Option
Displaying Measurement Results ........................................................................................... 30
<Screen Display>.................................................................................................................. 30
<Selecting the Color Space> ................................................................................................ 31
<Color Space and Changing the Display>............................................................................ 32
<Color Space and Color Difference Setting> ....................................................................... 33
Attaching the Wrist Strap.......................................................................................................34

8
Measurement ........................................................................................................................... 35
Basic Operating Procedure Flow ........................................................................................... 35
White Calibration .................................................................................................................... 36
Absolute Measurement ........................................................................................................... 38
Color Difference Measurement .............................................................................................. 40
<Setting the Color Difference Target Color> ....................................................................... 40
<Measuring the Color Difference> ....................................................................................... 42
1) Setting a new color difference target color before every measurement...................... 42
2) Selecting a pre-existing color difference target color before measurement................ 46
Functions .................................................................................................................................. 48
Displaying the Stored Data ..................................................................................................... 48
Deleting/Undoing the Latest Data .......................................................................................... 48
User Index ................................................................................................................................ 48
Connecting to External Devices ............................................................................................. 49
<Connecting the PC> ............................................................................................................ 49
SIP/SOP Connections .............................................................................................................. 50
<Changing to PC Mode> ...................................................................................................... 50
Chapter 2 -- Measuring Head 2 --
Using the measuring head by setting it using the data processor and then disconnecting it.
This section describes functions which run by setting the measuring head using the optional CR-400
utility software CR-S4w or the Color Management Software SpectraMagic™ NX CM-S100w, al-
though the head cannot be set by itself.
Additional Functions ............................................................................................................... 54
1. Measurement ....................................................................................................................... 54
<Setting the Number of Measurements for Automatic Average>......................................... 54
2. Display .................................................................................................................................. 54
<Changing the Display> ....................................................................................................... 54
3. User Calibration .................................................................................................................. 54
<Multi-Calibration> .............................................................................................................. 54
<Manual Select Calibration> ................................................................................................ 54
4. Color Difference Target Color............................................................................................ 55
<Setting color difference target color using value entry> .................................................... 55
<Changing the Color Difference Target Color Name>......................................................... 55
<Judgment (PASS/WARN/FAIL)> ....................................................................................... 55
<Deleting the Color Difference Target Color> ..................................................................... 55
5. Processing Stored Data .......................................................................................................56
<Freeing Memory Space by Import> ................................................................................... 56
<Delete all data> ................................................................................................................... 56
6. Setting ................................................................................................................................... 56
<Initial setting> ..................................................................................................................... 56
<6 Language Display> .......................................................................................................... 56
<Date & Time> ..................................................................................................................... 56
<Illuminant> ......................................................................................................................... 56
<Data Protection> ................................................................................................................. 56
<Displayed Color Limit> ...................................................................................................... 56
<CMC parameter setting> .................................................................................................... 56

9
Chapter 3 -- Data Processor --
This section describes use of the measuring head connected with the data processor.
Function guide ......................................................................................................................... 58
Preparation .............................................................................................................................. 59
Inserting the Batteries ............................................................................................................. 59
<Power Supply> ................................................................................................................... 60
Connecting the AC Adapter.................................................................................................... 61
<Power Supply> ................................................................................................................... 62
Connecting the Measuring Head and Data Processor ......................................................... 63
Setting Status of Connected Measuring Head and Data Processor .................................... 64
Turning the Power ON ( | ) and OFF (Ο)............................................................................... 65
<Turning the Power ON> ..................................................................................................... 65
<Turning the Power OFF> .................................................................................................... 65
<Recognizing Connection of Measuring Head and Data Processor>................................... 66
<Auto Power Save Function> ............................................................................................... 66
<Data Memory and Memory Backup> ................................................................................. 66
Inserting the Roll Paper .......................................................................................................... 67
Adjusting the Contrast of the LCD........................................................................................ 69
Attaching the shoulder strap .................................................................................................. 69
Setting Language Mode .......................................................................................................... 70
Setting Date & Time ................................................................................................................ 71
Basic Setting ............................................................................................................................. 72
1) Printer 2) Printing color spaces 3) Data protection
4) Number of measurements for automatic average 5) Illuminant 6) Back light
7) Buzzer 8) Displayed color limit 9) Remote mode
<Setting the Displayed Color Limit> ................................................................................... 74
<CMC Parameter Setting> ................................................................................................... 75
Initial Setting............................................................................................................................ 76
Displaying Measurement Results ........................................................................................... 78
<Selecting the Color Space> ................................................................................................ 78
<Color Space and Changing the Display>............................................................................ 79
<Color Space and Color Difference Setting> ....................................................................... 80
<Screen Display and Changing the Display> ....................................................................... 81
Measurement ........................................................................................................................... 85
Basic Operating Procedure Flow ........................................................................................... 85
White Calibration .................................................................................................................... 86
Absolute Measurement ........................................................................................................... 88
Color Difference Measurement .............................................................................................. 90
<Setting the Color Difference Target Color> ....................................................................... 90
1) Measuring a specimen and setting the data as the color difference target color......... 90
2) Using the keys to set the color difference target color................................................ 93
<Deleting the Color Difference Target Color> ..................................................................... 96
<Measuring the Color Difference> ....................................................................................... 98
1) Setting a new color difference target color before every measurement...................... 98
2) Selecting a pre-existing color difference target color before measurement................ 102
Functions .................................................................................................................................. 105
Updating the Page ................................................................................................................... 105
Selecting the Page .................................................................................................................... 106

10
Displaying the Stored Data ..................................................................................................... 107
<One Displaying Individual Data Sets> ............................................................................... 107
<Displaying Individual Data Sets> ....................................................................................... 108
Statistical Operations on Stored Data ................................................................................... 110
Deleting the Stored Data ......................................................................................................... 112
<Deleting/Undoing the Latest Data> .................................................................................... 112
<Deleting/Undoing the Selected Data> ................................................................................ 112
<Deleting by Page/All Page> ............................................................................................... 114
Optional Setting ....................................................................................................................... 115
<Setting the Color Difference Tolerance> ............................................................................ 116
- Elliptical tolerance ........................................................................................................ 117
- Box tolerance ................................................................................................................ 119
- ∆E.................................................................................................................................. 121
- Box tolerance and ∆E ................................................................................................... 123
<Setting the Automatic Measurement> ................................................................................ 125
<Transfer Stored Data>......................................................................................................... 126
<Setting the Multi-calibration> ............................................................................................ 127
User Index ................................................................................................................................ 127
Connecting to External Devices ............................................................................................. 128
<Connecting the PC> ............................................................................................................ 128
SIP/SOP Connections .............................................................................................................. 129
<Changing to Remote Mode> .............................................................................................. 129
Applications ............................................................................................................................. 131
User Calibration Procedure Flow .......................................................................................... 131
User Calibration ...................................................................................................................... 132
<What is User Calibration?> ................................................................................................ 132
<Setting the User Calibration Data>..................................................................................... 132
<Setting the Multi-calibration> ............................................................................................ 135
<Setting the Manual Select Calibration> .............................................................................. 137
<Deleting the User Calibration Channels> ........................................................................... 138
Chapter 4 -- Description --
Principles of Measuring .......................................................................................................... 142
Illumination Optics ................................................................................................................. 143
User Calibration ...................................................................................................................... 144
<Multi-Calibration Function> .............................................................................................. 145
<Manual Select Calibration Function> ................................................................................. 145
<Using Multiple Instruments> .............................................................................................. 145
Error Messages ........................................................................................................................ 146
Troubleshooting ....................................................................................................................... 148
Specifications ........................................................................................................................... 150
<Measuring Head> ............................................................................................................... 150
<Data Processor> .................................................................................................................. 152
Dimensions ............................................................................................................................... 154
<Measuring Head> ............................................................................................................... 154
<Data Processor> .................................................................................................................. 156

11

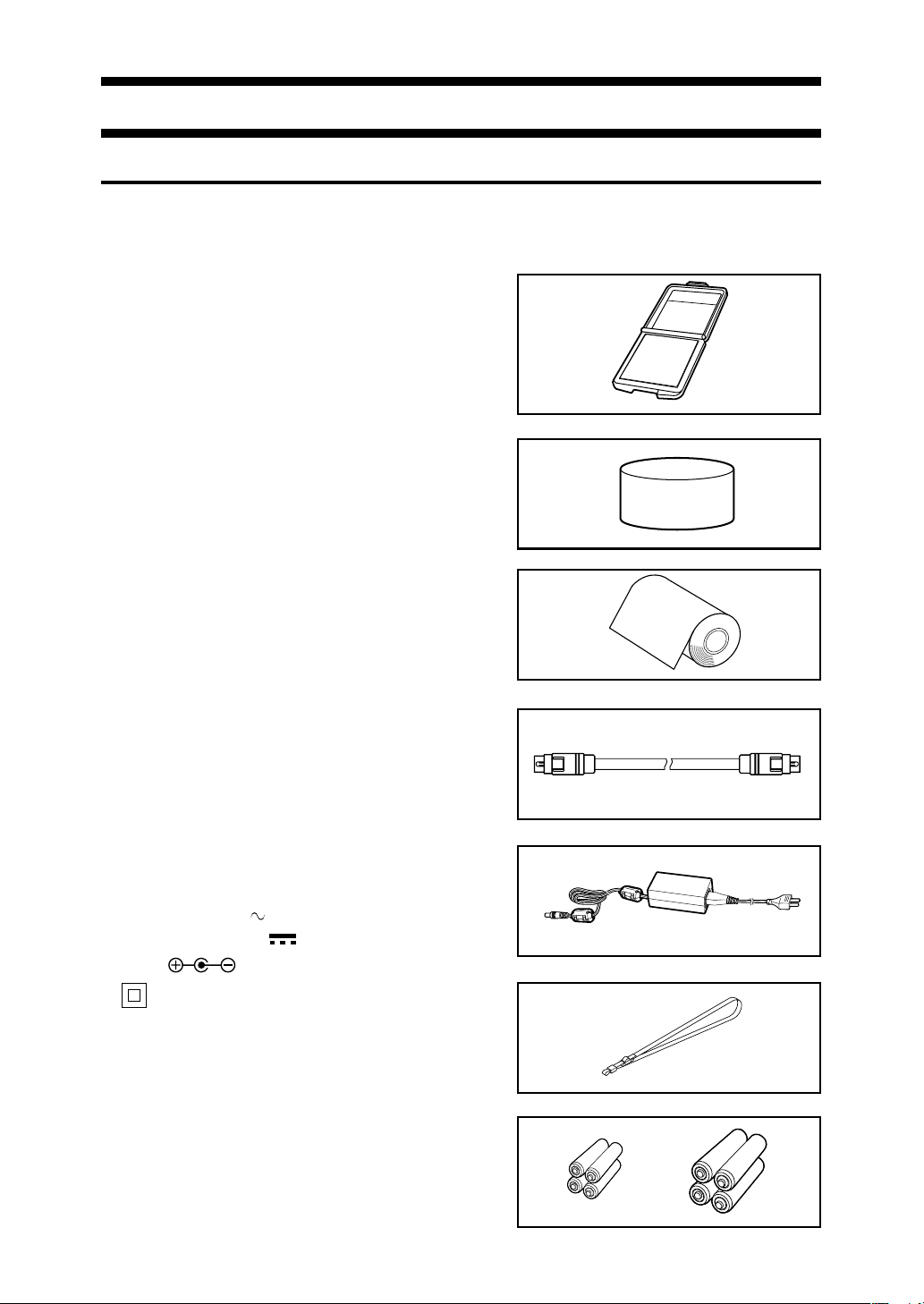

White Calibration Plate
CR-A43 (for CR-400 Head)
CR-A44 (for CR-410 Head)
Used during white calibration.
Back side of the cover lists calibration data.
Protective Cap
CR-A72 (for CR-400 Head)
CR-A104 (for CR-410 Head)
Attaches to the tip of the light projection tube of the
measuring head to protect the optics.
Roll Paper - 1 roll
(for data processor)
Thermal paper for the printer.
RS-232C Cable (for connecting the Head to the DP)
CR-A101 (for data processor)
Used to connect the measuring head to the data pro-
cessor. (for this instrument only 13-pin specification,
1.3m long)
AC Adapter
AC-A305
Supplies power from an AC outlet to the instrument.
Input: 100-240 V 50/60 Hz 24-38 VA
Output: Voltage 5 V 2.0 A
Plug: Center negative
Wrist Strap
CR-A73 (for measuring head)
Attaches to the measuring head.
AAA Size Battery (x4)
(for measuring head)
AA Size Battery (x4)
(for data processor)
Before Use
Standard accessories are available with this instrument.
In the text, “Head” indicates the Measuring Head and “DP” indicates the Data Processor.
Note: The instrument and accessories may differ from how they appear in illustrations.
Standard Accessories

12
Optional Accessories
The following optional accessories should be purchased as needed.
Roll Paper-5 rolls
DP-A22 (for data processor)
Thermal paper for the printer.
Shoulder Strap
SS-01 (for data processor)
This shoulder strap is attaches to the data processor.
Hard Case
CR-A103
Used for storing measuring head, data processor and
accessories. Do not use for transportation.
Glass Light Projection Tube
CR-A33a, A33f (for CR-400 Head)
CR-A33e (for CR-410 Head)
The glass on the tip can be used when measuring wet
objects or when flattening woven cloth, etc., for mea-
surement.
Light Projection Tube
CR-A33c, A33d (for CR-400 Head)
CR-A33c (no disc) CR-A33d (with ø22mm disc)
CR-A33a
Convex glass
CR-A33f
Concave glass
CR-A33e

13
Pivoting Base
CR-A12 (for CR-400 Head)
Switching the light projection tube for
the CR-400 measuring head to the CR-
A33c and attaching it to the pivoting
base CR-A12 allows more stable mea-
surement as well as more accurate de-
termining of the measuring point.
Granular Attachment
CR-A50
This allows easy, reliable, and accurate measurement of pow-
der, grain, or paste objects.
CR-400 Utility Software CR-S4w
(CD-ROM)
This software uploads measurement data, uploads and down-
loads of user index, converts to Excel format, and helps tweak
and re-use measurement data.
Ver 1.0 or later is required for connection to this instrument.
Excel®is a trademark of Microsoft Corporation (USA) registered in US and
other countries.
Color Management Software
SpectraMagic™ NX CM-S100w
(CD-ROM)
This software allows for interactive communication between the
Chromameter and a PC and facilitates remote control of this instru-
ment as well as data input/output. Data processing and file manage-
ment can be completed using a PC with this software installed.
USB-Serial Converter Cable
CR-A105
Used to connect the instrument to a PC over USB.
* Included amongst the standard accessories when the measur-
ing head and data processor are purchased as a set.
RS-232C Cable (for PC)
CR-A102
Used to connect the measuring head or data processor to a
PC.(PC connector D-sub 9 pins, 2m long)
Color Plates (White, black, and 12 other colors)
Used for simple diagnosis of instrument measurement perfor-
mance (instrumental errors and repeatability).
CR-A33c accessory

14
System Configuration
＊ Includedamongstthestandard
accessorieswhenthemeasuringhead
anddataprocessorarepurchasedasaset.

15
Names and Functions of Parts
<Measuring Head>
1. Power switch : Turns ON and OFF the power.
2. RS-232C terminal : Connect the optional USB-Serial Converter Cable * or the optional RS-
232C cable here to transmit data back and forth between the measuring
head and the data processor or a PC. (* Included amongst the standard
accessories when the measuring head and data processor are purchased
as a set.)
3. AC adapter terminal : Connect the connector plug for the AC Adapter (AC-A305) here when
using the adapter.
4. Measurement button : Press this to measure.
5. Battery chamber cover : Open and close when replacing batteries. When inserting the 4 AAA
size batteries, make sure their polarity orientation is as shown.
6. Light projection tube : The CR-400 light projection tube can be replaced with the optional CR-
A33a, c, d, and f light projection tubes. The CR-410 light projection
tube can be replaced with the optional CR-A33e light projection tube.
7. LCD : Displays measurement data and setting items.
8. Ready lamp : Ready to measure (and fully charged) when green. Always check the
lamp before measuring.
9. Tripod socket : For attaching a tripod to fix the measuring head.
10. Wrist strap attachment : The wrist strap is attached.
*WARNING : Do not remove covers.
WARNUNG : Niemals das gehäuse öffnen.
(Do not disassemble or modify the instrument.)

16
Names and Functions of Parts
<Measuring Head Key Panel>
1. Calibration key •Used when doing a white calibration.
2. Delete/Undo key •Pressing this key while in the measurement screen deletes the latest
data. Pressing again, deleted data comes back. Deleted data is main-
tained until next measurement.
•Moves the cursor forward while pressed in the white calibration screen.
3. key •Moves the cursor in the menu screen.
•Goes back through and displays data in the measurement or color dif-
ference target color screens.
•Adds +1 to the value at the cursor position while in the white calibra-
tion screen.
4. Escape key •Used to return to the measurement screen while in the menu screen.
•Used to cancel operations while in the white calibration or color differ-
ence target color screens.
•Returns to normal mode in the PC mode.
•Displays the latest data in the measurement screen.
•Returns to display of selected color difference target color data while in
the color difference target color screen.
5. Color Space key •Changes color space in the measurement screen.
6. Enter key •Pressing this key displays the menu screen while in the start-up screen.
•Changes settings for each item in the menu screen.
•Confirms the selected color difference target color in the color differ-
ence target color screen.
7. Target Color key •Displays the color different target color screen.
•Displays the new color different target color in the color difference
target color screen.

17
<Data Processor>
1. Power switch : Turns ON and OFF the power .
2. RS-232C terminal : Connect the RS-232C cable when transmitting data back and forth to
the data processor or a computer.
3. AC adapter terminal : Connect the connector plug for the AC Adapter (AC-A305) here when
using the adapter.
4. Roll paper storage chamber : This is where the roll paper (thermal paper) is stored.
5. Printer : Prints data on the roller paper (thermal paper).
6. LCD : Displays measurement data and setting items.
7. Display contrast : Turning the dial adjusts the contrast of the display to the most appro-
priate level.
8. Battery chamber cover : Open and close when replacing batteries. When inserting the 4 AA size
batteries, make sure their polarity orientation is as shown.
9. Shoulder strap attachment : The optional shoulder strap is attached.
10. Buzzer : Buzzer sounds.

18
Names and Functions of Parts
<Data Processor Key Panel>
Each key sometimes works to activate a function and sometimes simply to input a number or a letter.
[As function keys]
1. Calibration key •Used when doing a white calibration. (only when connected to the
measuring head)
2. Delete/Undo key •Pressing this key while in the measurement screen deletes the latest
data. Pressing again, deleted data comes back. Deleted data is main-
tained until next measurement.
•Deletes or undo a data displayed in the data list.
•Deletes a page while data list is displayed in the page data list.
•Deletes a color difference target color while a color difference target
color list is displayed in the color difference target color.
•Deletes user calibration channels while the calibration channel list is
displayed.
3. Print/Paper Feed key • Prints currently displayed measurement results, color difference target
value, statistical operation results, stored data in a data list, or all data
in a page.
• Feeds the roll paper when pressed for a long time.
4. Option key • Displays the option screen (tolerance, automatic measurement, date &
time, import, multi-calibration). (only when connected to the measur-
ing head)
