The new standard instrument for Automotive Interior
materials
Spectrophotometer
CM-25cG
A 2 - in - 1 instrument for measuring
Colour & Gloss simultaneously
Ready for Digital Colour Data Management
Enhanced form and functions to
measure interior trims and materials

The CM-25cG is a portable spectrophotometer with
45°c:0° geometry and a true high-performance 60°
gloss-sensor. With no compromises in performance,
the CM-25cG has been designed to match or exceed
standards for colour and gloss measurement in a
number of industries, including automotive interior
materials and high visibility textiles (EN471) or coatings.
The perfect circular optical system (45°c:0°) achieves
high accuracy and repeatability, especially on textured
or structured surfaces, regardless of measurement
direction.
CM-25cG
Maximum versatility and industry best
accuracy levels for Automotive Interiors
A 2 - in - 1 spectrophotometer for
simultaneous colour & gloss measurements
A compact handheld spectrophotometer with 45°c:0° geometry and high performance 60° gloss sensor for
simultaneous colour and gloss measurements of automotive interior trims and materials with a number of
“world rst” features.
Unprecedented Inter - Instrument -
and Inter - Model - Agreement
The CM-25cG was developed in close cooperation
with major car makers with the aim, to reduce the
exchange of physical samples with suppliers while at
the same time keeping historical data, to allow the
user to communicate measurement data based on
absolute values enabling true “Digital Colour Data
Management” throughout the value chain.
Consequently, all CM-25cG are true Close Tolerance
(CT) grade instruments, and thus Konica Minolta once
again proves its unsurpassed ability and expertise
in optical precision technology. Highest Inter-Instru-
ment- Agreement (IIA) levels of just ∆E*ab 0.15 and
the same for Inter-Model-Agreement (IMA) with the
previous model dene an unprecedented level of per-
formance.

Spectrophotometer
With its lightweight, sleek and ergonomic design,
extremely fast measurement speed of just 1 second
and optional Bluetooth®wireless data communication,
the CM-25cG is perfectly suited for use in a production
environment. Sample viewing port and measurement
buttons on both sides of the body enhance usability
under all conditions.
Changeable apertures for medium and small size
allow colour and gloss measurement of small and
even curved samples – another world rst!
Colour: ø 8mm / ø 3mm
Gloss: ø 10mm / ø 3mm
Enhanced form and functions for
Automotive Interior Materials
The CM-25cG has a built-in 2.7” color LCD allowing
measurement values to be evaluated numerically and
graphically or just as a PASS/FAIL message against a
dened standard.
Colour Display

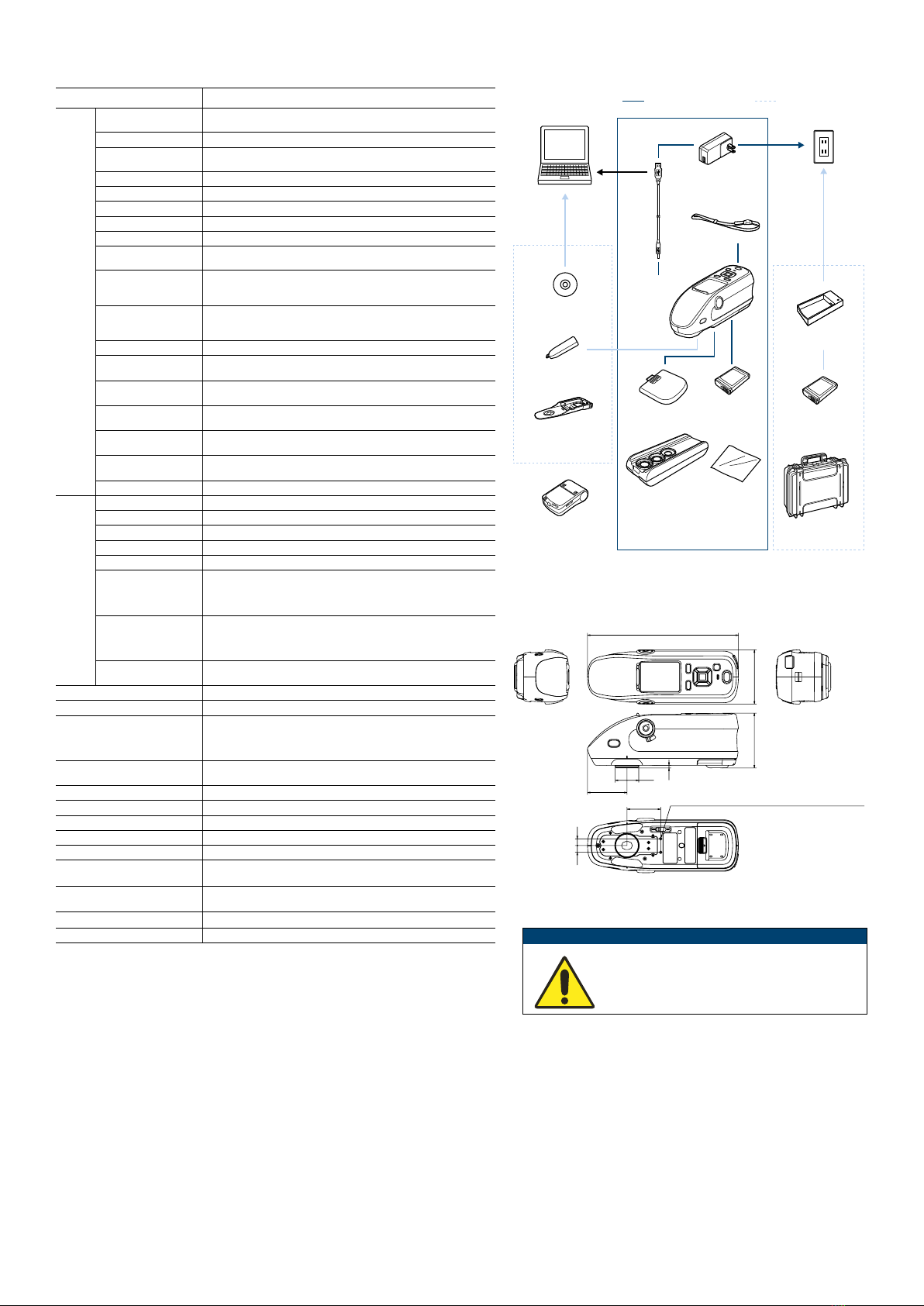

Main specifications System diagram
Dimensions (Unit: mm)
AC Adapter*
PC
(commercially available)
USB Cable (2 m)
IF-A26
Wrist Strap
CR-A73
Flat Type
Battery Cover
CM-A218
Lithium-Ion
Battery
CM-A235*
Lithium-Ion Battery
(spare)
CM-A235*
Battery Charger
CM-A237*
Hard Case
CM-A236
Standard Accessories
Stapler Type
Target Mask
CM-A216
Optional Accessories
Colour Data Software
Spectrophotometer
CM-25cG
Bluetooth®Module
CM-A219*
Bluetooth®Printer
(commercially available)
Cleaning cloth
Calibration Stage
CM-A217
• Zero Calibration Box
• White Calibration Plate
• Gloss Calibration Pate
*Not available in all areas.
58.5
φ35
50
10
4(Mounting screw height)
10
2-M3 mounting screw, depth 3.5
(Height from measuring port to screw: 4 mm)
224
80.581.3
Model Spectrophotometer CM-25cG
COLOUR
Illumination/
viewing system
45°c:0°
Detector Dual 40
- element silicon photodiode arrays
Spectral separation
device Planar diffraction grating
Wavelength range 360 - 740 nm
Wavelength pitch 10 nm
Half bandwidth Approx. 10 nm
Measurement range 0 - 175 %; Output/display resolution: 0.01 %
Light source Pulsed xenon lamp
Measurement/
illumination area MAV: Ø8 mm/12×16 mm, SAV: Ø3 mm /12×16 mm
Repeatability Chromaticity value: Standard deviation within ΔE*ab 0.04 (When a white calibration plate is measured 30 times at
10-second intervals after white calibration)
Inter
- instrument
agreement
Within ΔE*ab 0.15 (Typical)(MAV)
(Based on 12 BCRA Series II color tiles compared to values measured with
a master body under Konica Minolta standard measurement conditions)
Observer 2 ° or 10 ° Standard Observer
Illuminant A,C,D50,D65,F2,F6,F7,F8,F10,F11,F12,ID50,ID65,User illuminant
(simultaneous evaluation with two illuminants possible)
Displayed data Spectral values/graph, colourimetric values/graph, colour
- difference
values/graph, pass/fail judgement, pseudocolour
Colourimetric data L*a*b*, L*C*h, Hunter Lab, Yxy, XYZ, and colour differences in
these spaces; Munsell
Indexes MI, WI (ASTM E313), YI (ASTM E313, ASTM D1925),
ISO Brightness (ISO2470), WI/Tint (CIE)
Colour
- difference
formula
ΔE*ab (CIE 1976), ΔE*94 (CIE 1994), ΔE00 (CIE DE2000), CMC (l:c),
ΔE (Hunter)
Standard compliance CIE No.15, ISO 7724/1, ASTM E179, DIN 5033 part7, JIS Z8722
GLOSS
Measurement geometry 60 °
Light source LED
Detector Silicon photo diode
Measurement range 0-200 GU; Output/display resolution: 0.01 GU
Measurement area MAV: Ø10 mm, SAV: Ø3 mm
Repeatability
0
- 10 GU : 0.1 GU
10
- 100 GU : 0.2 GU
>100 GU : 0.2 % of displayed value
(Under Konica Minolta standard measurement conditions)
Inter
- instrument
agreement
0
- 10 GU : ±0.2 GU
10
- 100 GU : ±0.5 GU
(MAV. Compared to values measured with a master body under Konica
Minolta standard measurement conditions)
Standard compliance JIS Z8741, JIS K5600, ISO 2813, ISO 7668, ASTM D523
- 08,
ASTM D2457
- 13, DIN 67530
Measurement time Approx. 1 seconds (to data display/output)
Minimum measurement interval Approx. 2 seconds
Battery performance
Approx. 3,000 measurements/charge
(Stand-alone measurement at 10-second intervals at 23 °C)
Approx. 1,000 measurements/charge
(When using Bluetooth®communication)
Displayed languages Japanese, English, German, French, Italian, Spanish, Chinese (Simplified),
Portuguese, Russian, Turkish, Polish
Display 2.7
- inch TFT colour LCD
Interfaces USB2.0, Bluetooth®(Option)
Data memory Target data: 2,500 measurements; Sample data: 7,500 measurements
Power Rechargeable lithium
- ion battery, USB bus power
Charging time Approx. 6 hours when no charge remains
Operation temperature/
humidity range 5
- 40 °C, relative humidity 80% or less (at 35°C) with no condensation
Storage temperature/
humidity range 0
- 45 °C, relative humidity 80% or less (at 35°C) with no condensation
Size (L×W×H) 224 x 81 x 81 mm
Weight Approx. 600 g (including battery) SAFETY PRECAUTIONS
For correct use and for your safety, be sure to read the instruction manual before
using the instrument.
• Always connect the instrument to the specified power supply voltage.
Improper connection may cause a fire or electric shock.
• Be sure to use the specified batteries. Using incorrect batteries may
cause a fire or electric shock.
• KONICA MINOLTA, the Konica Minolta logo and symbol mark, “Giving Shape to Ideas” and SpectraMagic
are registered trademarks or trademarks of Konica Minolta, Inc.
• Bluetooth®is a registered trademark of Bluetooth SIG, Inc. and is used under licence agreement.
• Displays shown are for illustration purpose only.
• The specifications and appearance shown herein are subject to change without notice.
