Konica Minolta AccurioPress C3080 User manual

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L Contents-1
Contents
1 Introduction
1.1 Introduction ..................................................................................................................................... 1-2
1.2 Safety Precautions.......................................................................................................................... 1-3
1.2.1 Notices for Safety .............................................................................................................................. 1-3
1.2.2 Precautions When Replacing Units ................................................................................................... 1-4
1.2.3 Warning and Caution Labels.............................................................................................................. 1-6
2 Installing Fusing Unit EF-103
2.1 Replacement Parts ......................................................................................................................... 2-2
2.2 Installation Procedures .................................................................................................................. 2-4
2.2.1 Installing Fusing Unit EF-103 on the Main Body................................................................................ 2-4
2.2.2 Installing Parts in the Tray (when Paper Feeder Unit PF-707m is installed) ...................................... 2-7
2.2.3 Installing Parts in the Tray (when Large Capacity Unit LU-202m/LU-202XL/LU-202XLm is installed) 2-
10
3 Removing Fusing Unit EF-103
3.1 Removal Procedures ...................................................................................................................... 3-2
3.1.1 Removing Fusing Unit EF-103 from the Main Body .......................................................................... 3-2
3.1.2 Removing Parts from the Tray (when Paper Feeder Unit PF-707m is installed)................................ 3-2
3.1.3 Removing Parts from the Tray (when Large Capacity Unit LU-202m/LU-202XL/LU-202XLm is installed)
3-2
4 Copy/Print Operation
4.1 Loading Envelopes in the Tray....................................................................................................... 4-2
4.1.1 Loading Envelopes in the Tray 5 of Paper Feeder Unit PF-707m ..................................................... 4-3
4.1.2 Loading Envelopes in Large Capacity Unit LU-202m/LU-202XL/LU-202XLm .................................. 4-3
4.2 Copy Operation ............................................................................................................................... 4-8
4.3 Print Operation .............................................................................................................................. 4-13
5 Specifications
5.1 Specifications of Fusing Unit EF-103 ............................................................................................................... 5-2

1Introduction

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 1-2
1.1 Introduction 1
1 Introduction
1.1 Introduction
Notice to Users of Fusing Unit EF-103
When replacing the machine units, please follow the instructions described in the User's Guide.
To perform replacement tasks safely and reliably, keep this User's Guide and do not lose them. If you lose
the document, please contact your service representative.
Registered Trademarks
KONICA MINOLTA, the KONICA MINOLTA logo, and the symbol are registered trademarks or trademarks of
KONICA MINOLTA, INC.
AccurioPress/AccurioPrint are registered trademarks or trademarks of KONICA MINOLTA, INC.
Copyright © 2018 KONICA MINOLTA, INC.

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 1-3
1.2 Safety Precautions 1
1.2 Safety Precautions
1.2.1 Notices for Safety
The followings are what you need to follow to safely replace the units. Please be sure to read the precautions
before replacing the units.
-Keep the User's Guide at hand for your future reference and be careful not to lose it.
-Make sure you follow the safety precautions listed in the User's Guide.

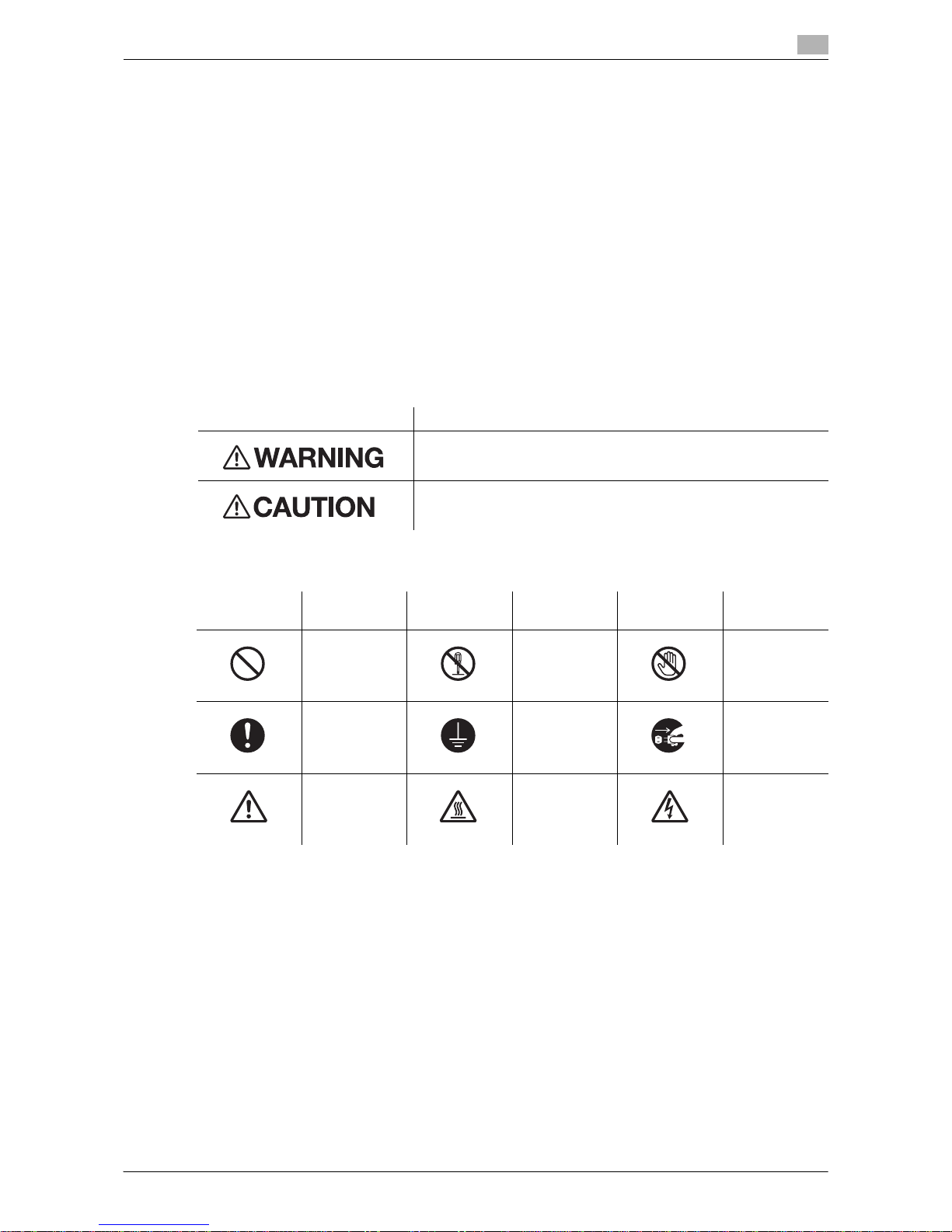

Warning and precaution symbols
Be sure to observe the safety precautions.
-This manual contains the instructions that should be strictly observed at all times to prevent injury to
yourself and other persons as well as damage to property.
Injuries and damage that might be caused by using the product improperly are classified according to the
following symbols.
These are some of major exemplary graphical symbols.
Pictorial indication Description
Improper handling can cause serious injury or death.
Improper handling can cause minor injury or damage to houses and
property.
Graphic
symbols
Description Graphic
symbols
Description Graphic
symbols
Description
General
Prohibited
Do not 
disassemble Do not touch
Instructions Ground/Earth Unplug from
outlet
General
precaution
High 
temperature
Electrical
shock hazard

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 1-4
1.2 Safety Precautions 1
1.2.2 Precautions When Replacing Units
Preparation Tasks Before Replacing Units
Unit Replacement Tasks
When replacing the units, be sure to receive instructions from our
customer engineer, read the User' Guide in entirety and perform
tasks in the specified order with appropriate tools. Do not perform
any tasks that are not described in the User's Guide. Failure to fol-
low specified order or use appropriate tools could result in injury
or physical damage to the product.
Please be careful when handling the fusing unit since it can be
very hot. It could cause a burn.
Keep this bag away from babies and children. Do not use in cribs,
beds, carriages, or playpens. The thin film may cling to nose and
mouth and prevent breathing. This bag is not a toy.
Do not drop metal pieces such as clips, staples and screws inside
the product or into crevices in it.
They could cause a short-circuit in the product, resulting in an
electric shock or a fire.
Ensure cables are not pinched or damaged.
It could cause an electric shock or a fire due to electric leakage.
Do not place the unit removed in the replacement tasks on an un-
stable table or sloped surface, or in a location subject to excessive
shocks or vibrations. It could drop or fall and may cause personal
injury.
Please pay careful attention to the surroundings when placing the
unit removed in the replacement tasks.
Protruding portions, cords or wires of the unit may cause falling or
personal injury.

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 1-5
1.2 Safety Precautions 1
Power Plug
Actions in Response to Troubles
Do not unplug or plug in the power cord with a wet hand, as you
could receive an electrical shock.
Plug the power cord all the way into the power outlet. Failure to do
this could result in a fire or an electrical shock.
Do not tug the power cord when unplugging. Tugging the cord to
do this could damage it, resulting in a fire, electrical shock, or
breakdown.
Do not place any objects around the power plug, as the power
plug may be difficult to pull out when an emergency occurs.
Remove the power plug from the outlet more than one time a year
and clean the area between the plug terminals. Dust that accumu-
lates between the plug terminals may cause a fire.
Do not keep using this product, if this product becomes inordi-
nately hot or emits smoke, or unusual odor or noise. Immediately
turn OFF the power switch, unplug the power cord from the power
outlet, and then call your Technical Representative or your autho-
rized service representative. If you keep on using it as is, a fire or
electrical shock could result.
Do not keep using this product, if this product has been dropped
or its cover damaged. Immediately turn OFF the power switch, un-
plug the power cord from the power outlet, and then call your
Technical Representative or your authorized service representa-
tive. If you keep on using it as is, a fire or electrical shock could
result.
The inside of this product has areas subject to high temperature,
which may cause burns. When checking the inside of the unit for
a unit replacement and others, do not touch the locations (around
the fusing unit, etc.) which are indicated by a "Caution HOT" cau-
tion label. A burn could result.

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 1-6
1.2 Safety Precautions 1

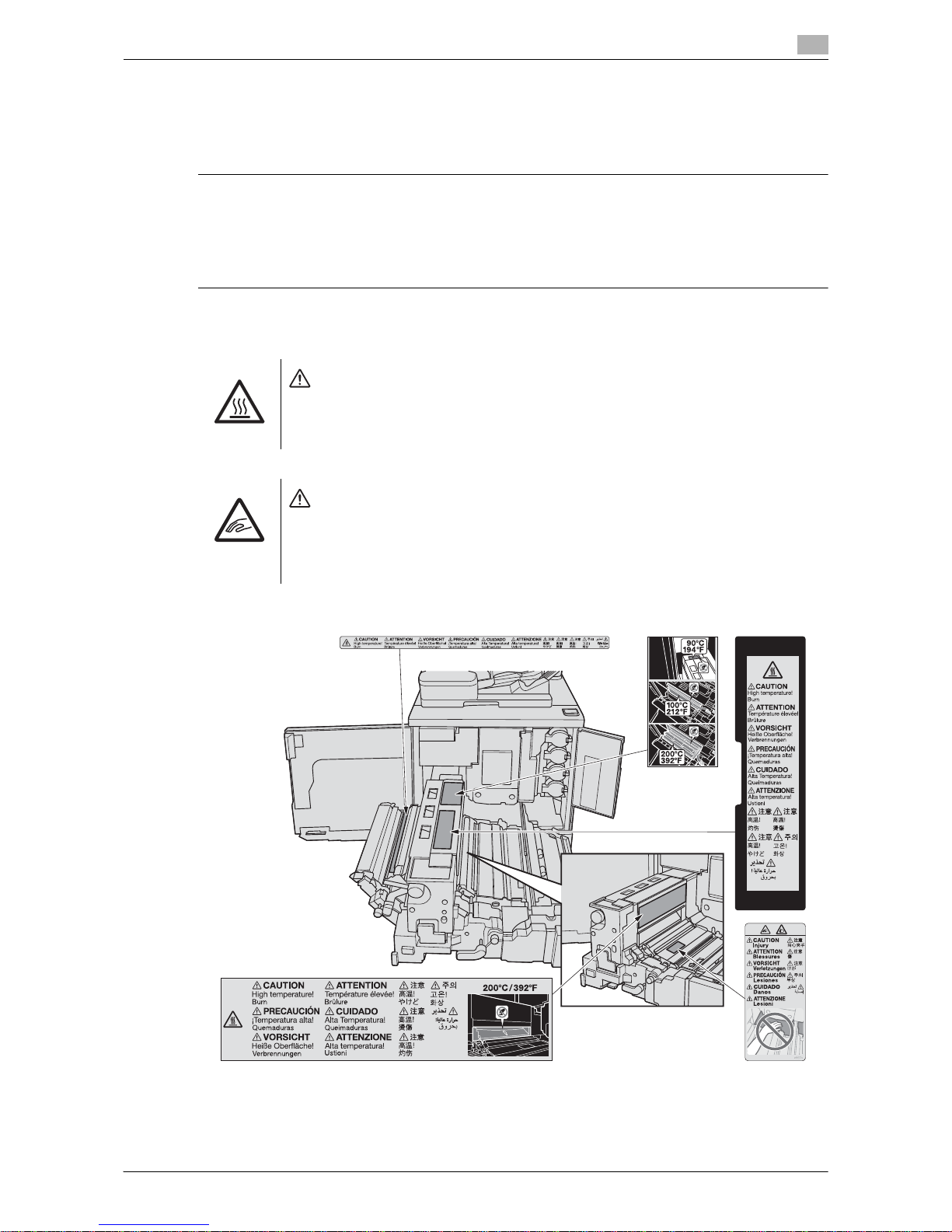

1.2.3 Warning and Caution Labels
This machine has warning label, caution labels and indicators for safety precaution in the following location.
These labels and indicators advise you to pay special attention to avoid any dangerous situations or serious
injury when you replace the units.
7CAUTION
DO NOT remove warning or caution labels.
-Should any warning or caution label be removed, you may fail to check a specific part to be alert for
unexpected trouble or injury. If you find any warning or caution label removed or illegible due to soilage,
please contact your service representative.
Caution Labels on Fusing Part of Conveyance Fixing Unit
CAUTION: High temperature! Burn
You may get burned.
DO NOT touch the fusing part of the conveyance fixing unit.
Be especially careful when withdrawing the conveyance fixing unit or opening the fusing
part.
CAUTION: Injury
You may get injured.
DO NOT put your hands or arms in between the main body and the conveyance fixing unit.
Touching connecting terminals of electric parts may damage the machine or cause unex-
pected trouble.
Please do not try to work yourself, but contact your service representative.

2Installing Fusing Unit EF-103

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 2-2
2.1 Replacement Parts 2
2 Installing Fusing Unit EF-103
When replacing the fusing unit, follow the precautions below to perform the task.
NOTICE
When replacing the fusing unit, be sure to receive instructions from our customer engineer.
NOTICE
Please do not dispose of the packaging box of Fusing Unit EF-103. Keep the packaging box and reuse it to
store the replaced fusing unit.
NOTICE
Multi Bypass Tray MB-506, Paper Feeder Unit PF-707m, and Large Capacity Unit LU-202m/LU-202XL/LU-
202XLm are used as a paper feed tray only when they are installed directly on the main body.
With Paper Feeder Unit PF-707m installed, only tray 5 (the lower tray) can be used as a paper source. All the
other trays are unavailable.
7WARNING
-Keep this bag away from babies and children. Do not use in cribs, beds, carriages, or playpens. The
thin film may cling to nose and mouth and prevent breathing. This bag is not a toy.

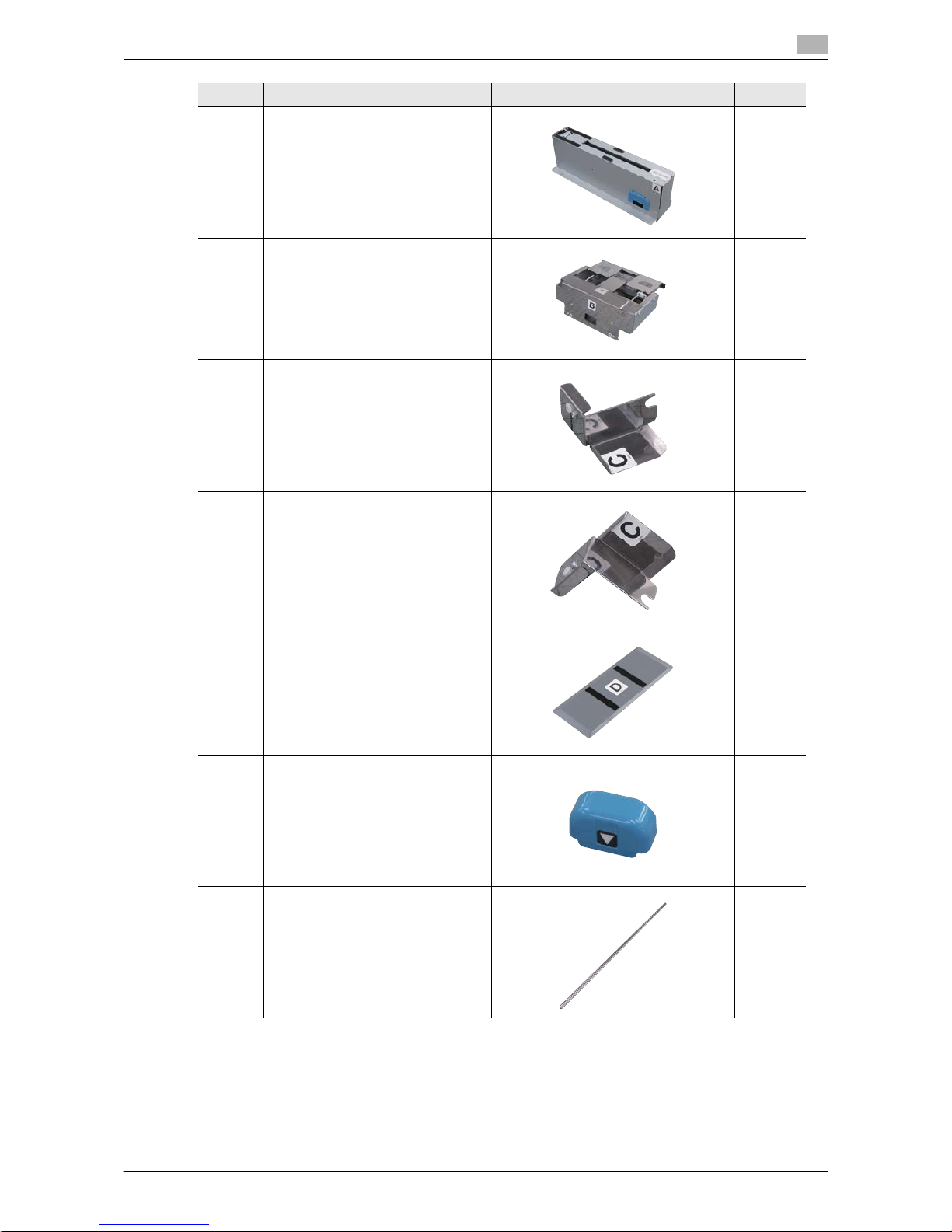

2.1 Replacement Parts
PN Name Shape Q’ty
1 Fusing Unit EF-103 1
2 Side auxiliary guide *12
3 Rear assist guide/Lw*21
4 Rear assist guide/Up*21

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 2-3
2.1 Replacement Parts 2
*1: Packaged together with the Fusing Unit EF-103. Use this part when Paper Feeder Unit PF-707m is in-
stalled on the main body.
*2: Packaged together with the Fusing Unit EF-103. Use this part when Paper Feeder Unit PF-707m is in-
stalled on the main body and when the width of the envelope you use is from 100 to 140 mm.
*3: Packaged together with the Mount Kit MK-746. Use this part when Large Capacity Unit LU-202m/LU-
202XL/LU-202XLm is installed on the main body.
5 Bottom auxiliary guide assy[A] *31
6 Side auxiliary guide assy[B] *32
7 Tip auxiliary guide/rear assy[C] *31
8 Tip auxiliary guide/front assy[C] *31
9 Bottom auxiliary plate assy[D] *31
10 Adjusting block assy *32
11 Guide shaft *31
PN Name Shape Q’ty

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 2-4
2.2 Installation Procedures 2
2.2 Installation Procedures
2.2.1 Installing Fusing Unit EF-103 on the Main Body
1Turn off the machine's sub and main power switches, and then unplug the power cord from the outlet.
%Be sure to turn off the sub power switch first.
2Open the front door [1].
3To pull out the conveyance fixing unit [3], push the lock [2]
of the lever M1 [1] to the left, then turn the lever M1 [1]
counterclockwise.
NOTICE
Please confirm that process unit has not been pulled out
when pulling out the conveyance fixing unit.
4 Open the paper exit guide [2] while releasing the lever M6 [1]
at the bottom.
Loosen the screw [3] (1 piece).

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 2-5
2.2 Installation Procedures 2

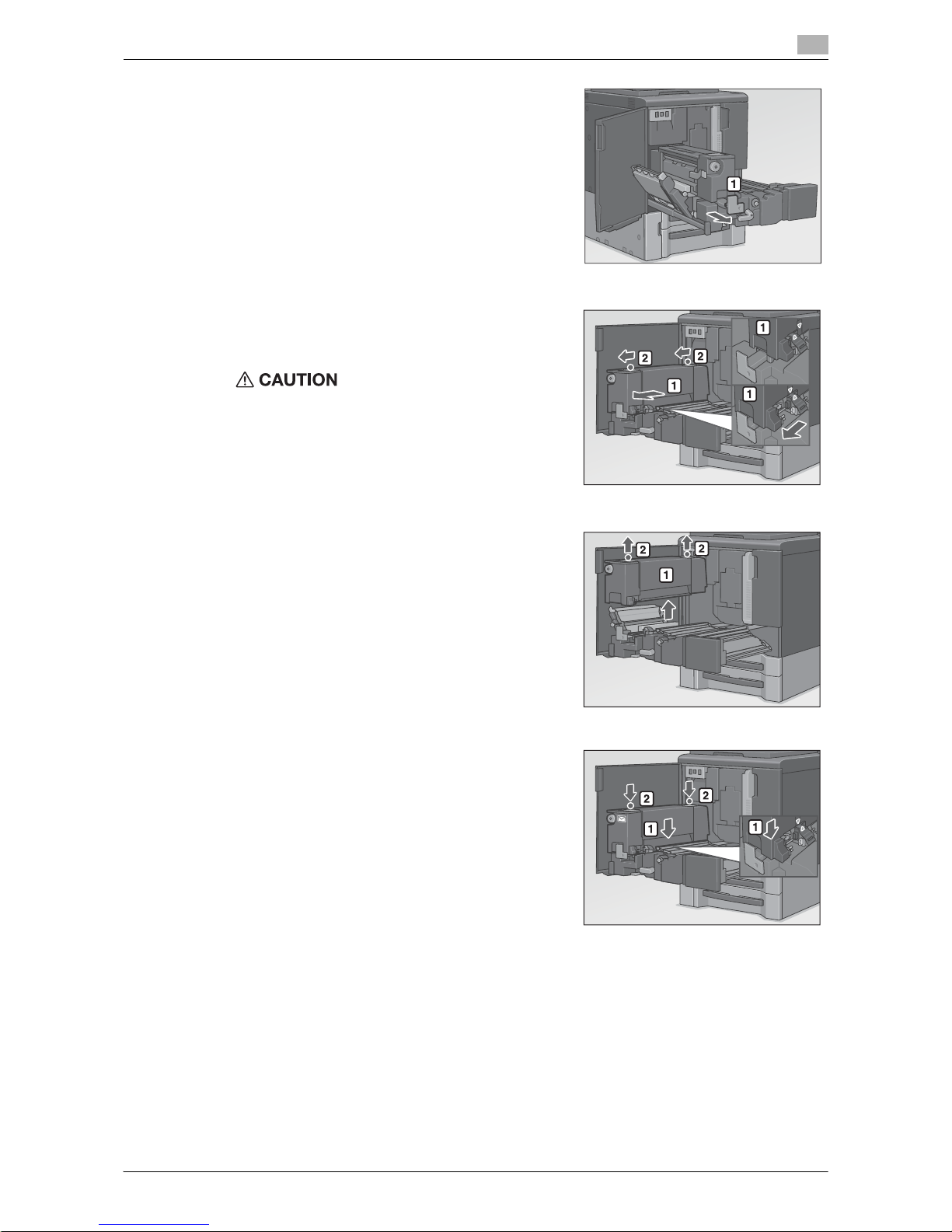

5Pull out the fixing plate [1] forward.
6Holding the handles on the rear and front sides [2] of the
fusing unit [1] by both hands, slide the fusing unit [1] for-
ward to the position of arrow mark.
Please be careful when working on the fusing unit; the unit
is extremely hot.
7Holding the handles on the rear and front sides [2] of the
fusing unit [1] by both hands, remove the fusing unit [1].
Place the removed fusing unit on the flat surface.
8Holding the handles on the front and rear sides [2] of Fus-
ing Unit EF-103 [1] with both hands, set Fusing Unit EF-
103 [1] on the fixing position with arrow mark.
NOTICE
Make sure that the exit section is open before setting Fus-
ing Unit EF-103 to the machine. When you try to set the
fusing unit with the exit guide unit closed, the machine may
be damaged.

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 2-6
2.2 Installation Procedures 2

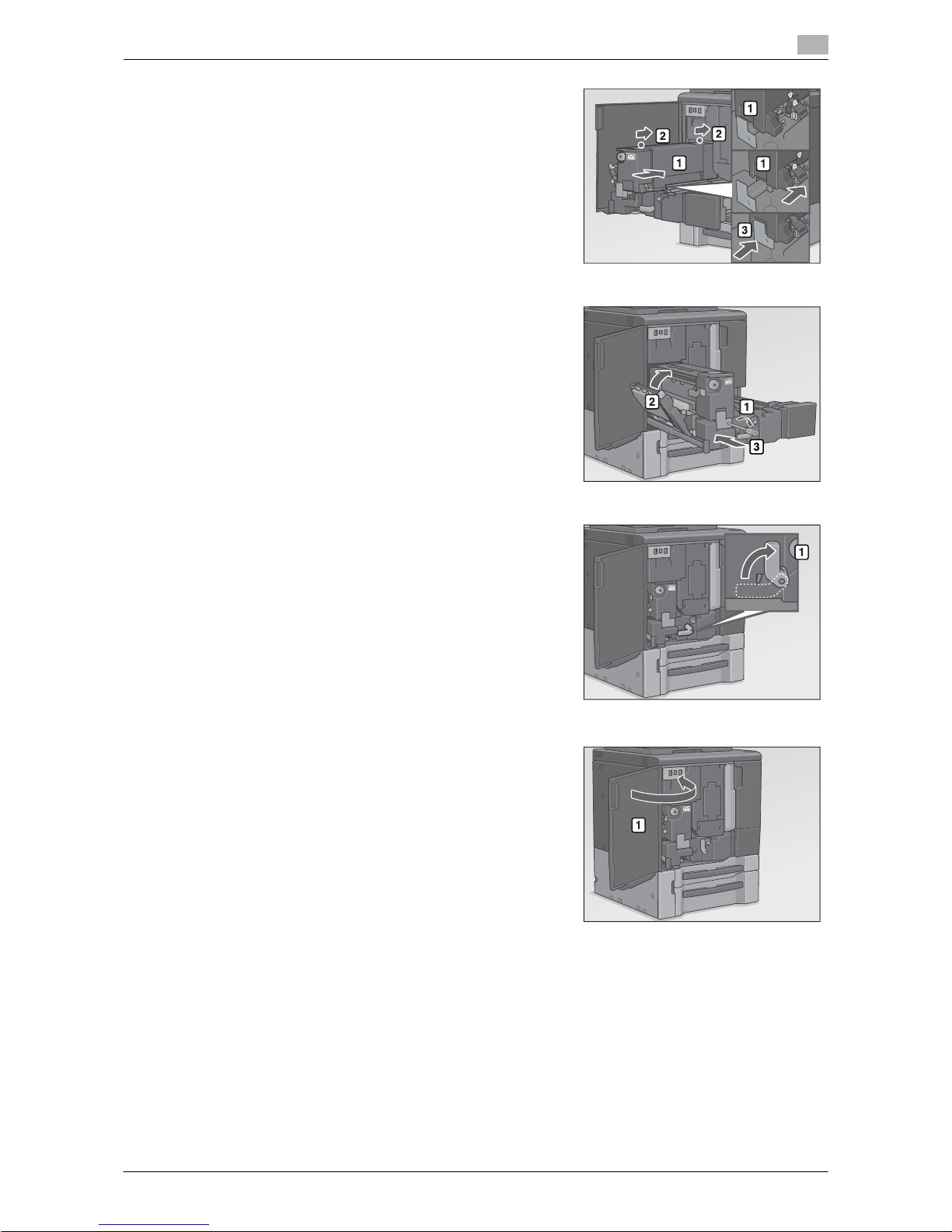

9Holding the handles on the front and rear sides [2] of Fus-
ing Unit EF-103 [1] with both hands, slide it to the direction
of arrow until it knocks in place.
Return the fixing plate [3] to its original position.
10 Tighten the screw [1] (1 piece) and close the exit section [2].
Insert the conveyance fixing unit [3].
11 Raise the lever M1 [1] by turning it clockwise.
12 Close the front door [1].
13 Store the removed fusing unit in the empty packaging of
Fusing Unit EF-103.
NOTICE
Please wait until the fusing unit gets cold before storing it
in the packaging.

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 2-7
2.2 Installation Procedures 2
2.2.2 Installing Parts in the Tray (when Paper Feeder Unit PF-707m is installed)
Depending on the size of the envelope to be used, the attached auxiliary guides need to be installed on Paper
Feeder Unit PF-707m.
For details on the envelope size, refer to page 5-2.
NOTICE
Trays cannot be withdrawn when the machine is not powered. Plug the power cord of the machine into the
outlet, turn on the main power switch, then the sub power switch before performing the installation.
Using Envelopes of 100 to 139.7 mm in Width
The following parts need to be installed when envelopes of the above size are used.
-Side auxiliary guide (2 pieces)
-Rear assist guide/Lw (1 piece)
-Rear assist guide/Up (1 piece)
To use envelopes smaller than 139.7mm, use the small size guides of Paper Feeder Unit PF-707m.

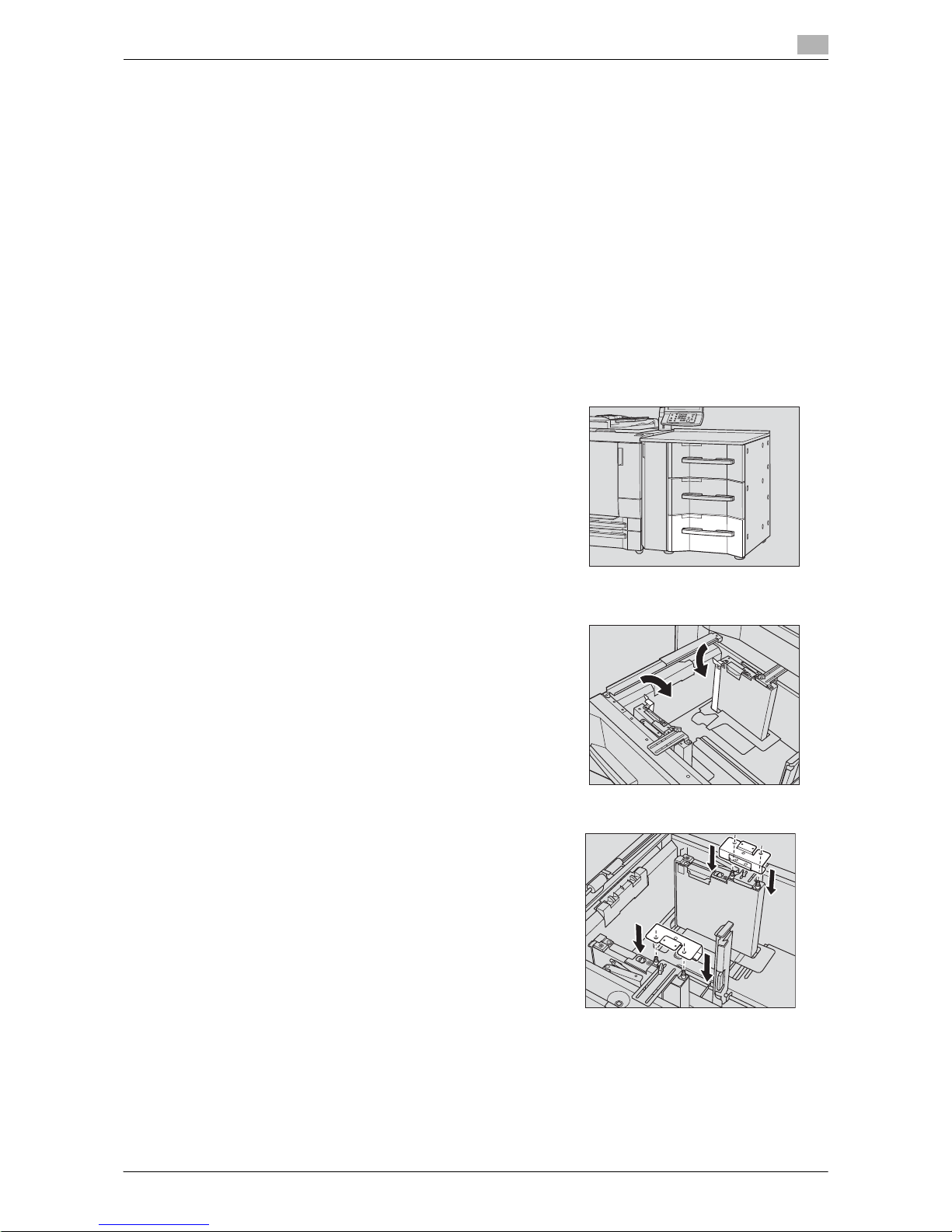

1Pull out tray 5.
2Open the small size guides (front/rear) to the direction of
arrow to set the guides to the positions illustrated below.
3Insert the side auxiliary guides (2 pieces) into the position-
ing screws on the side guides.

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 2-8
2.2 Installation Procedures 2
NOTICE
Do not move the paper control levers (2 pieces). Other-
wise, the paper feeding performance may degrade.
4Install the rear assist guide/Lw.
%Hit the rear assist guide/Lw to the gap of the rear guide
plate.
5Install the rear assist guide/Up to the rear guide.
6Push in tray 5 until it locks into place.
Using Envelopes of 139.7 to 245 mm in Width
Follow the procedure below to use envelopes of the above size. Side auxiliary guides (2 pieces) are not need-
ed.
1Pull out tray 5.
2Move each of the small size guides (front/rear) toward the
outside the side guide plates.
%If the auxiliary guides are installed on the side guides,
pull them up to remove them. The positioning screws
(4 pieces) installed on the side guides are not required

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 2-9
2.2 Installation Procedures 2
to be removed.
3Push in tray 5 until it locks into place.

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 2-10
2.2 Installation Procedures 2
2.2.3 Installing Parts in the Tray (when Large Capacity Unit LU-202m/LU-
202XL/LU-202XLm is installed)
The auxiliary parts that need to be installed to the Large Capacity Unit LU-202m/LU-202XL/LU-202XLm vary
depending on the size of the envelope to be used.
For details on the envelope size, refer to page 5-2.
Using C5, C6/C5, or 6x9 1/2 Envelopes
The following parts need to be installed when C5, C6/C5, or 6x9 1/2 envelopes are used.
-Bottom auxiliary guide assy [A] (1 piece)
-Adjusting block assy (2 pieces)
-Tip auxiliary guide/rear assy [C] (1 piece)
-Tip auxiliary guide/front assy [C] (1 piece)
-Bottom auxiliary plate assy [D] (1 piece)
-Guide shaft (1 piece)
Follow the procedure below to use envelopes of the above size. Auxiliary guides (2 pieces) are not needed.
1Open the upper door.
2Remove the holding paper.
%Hold the projection with your fingers and slide the hold-
ing paper in the arrowed direction, and remove it.
3Install the bottom auxiliary guide assy [A] in the Large Ca-
pacity Unit LU-202m/LU-202XL/LU-202XLm tray.
%Align the positioning pin of the bottom auxiliary guide
assy [A] with the installation hole of the tray.
%Align the detent of the bottom auxiliary guide assy [A]
with the groove on the back end guide.

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 2-11
2.2 Installation Procedures 2

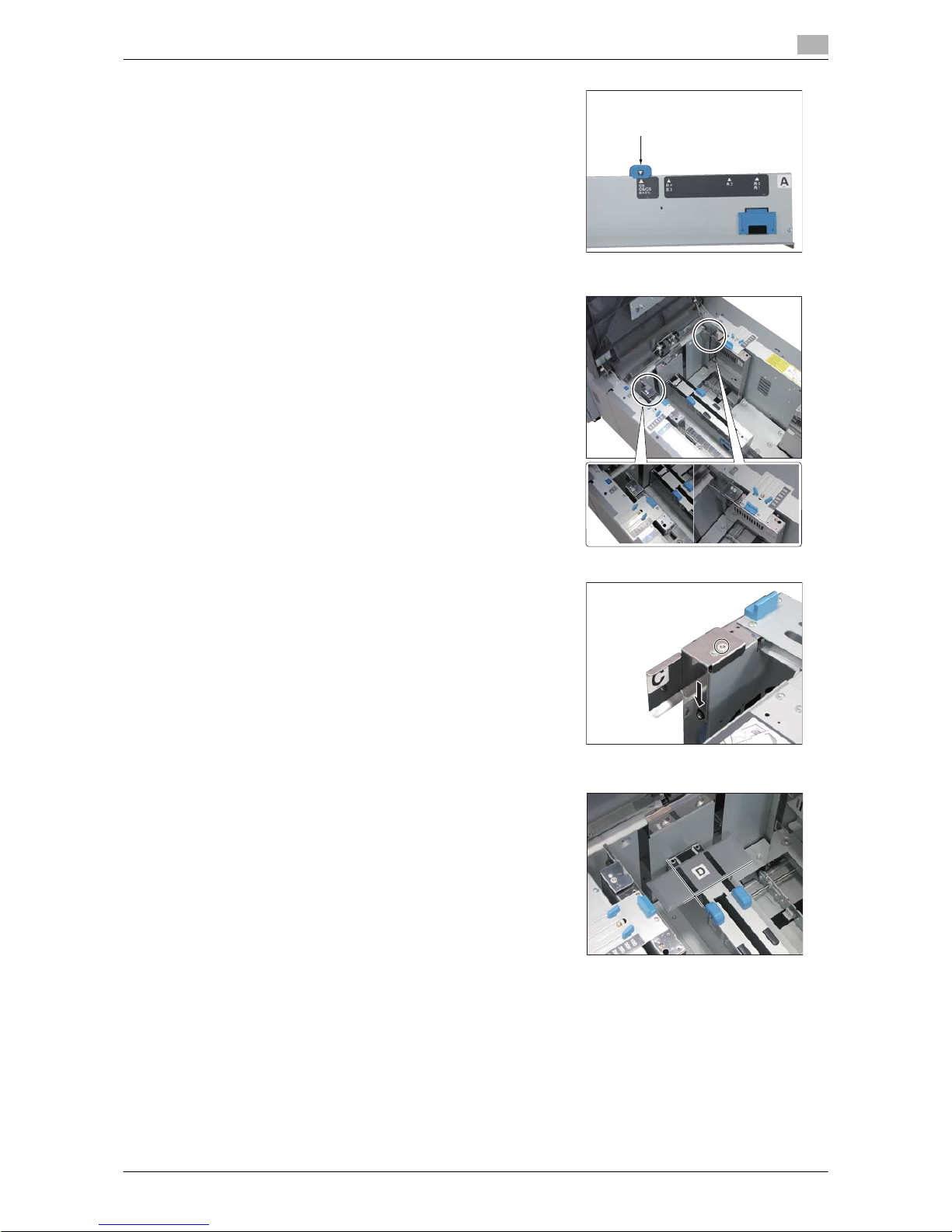

4Align the adjusting block assies (2 pieces) to C5, C6/C5,
and 6x9 1/2 on the indicating label, and install them.
%Align the mark on the adjusting block assy with the
mark on the indicating label.
5Install the tip auxiliary guide/rear assy [C] (1 piece) and the
tip auxiliary guide/front assy [C] (1 piece) to the paper
guide side plate.
%Align the installation hole in the tip auxiliary guide assy
with the positioning pin.
%Align the cutout of the tip auxiliary guide assy with the
positioning collar.
6Align the bottom auxiliary plate assy [D] with the mark line
on the bottom auxiliary guide assy [A]. Align the edge of the
PET sheet with the edge of the bottom auxiliary guide assy
[A]. Then, install them.
6x9 1/2 (152 x 241 mm)
C5 (162 x 229 mm)
C6/C5 (114 x 229 mm)

AccurioPress C3080/C3080P/C3070, AccurioPrint C3070L 2-12
2.2 Installation Procedures 2

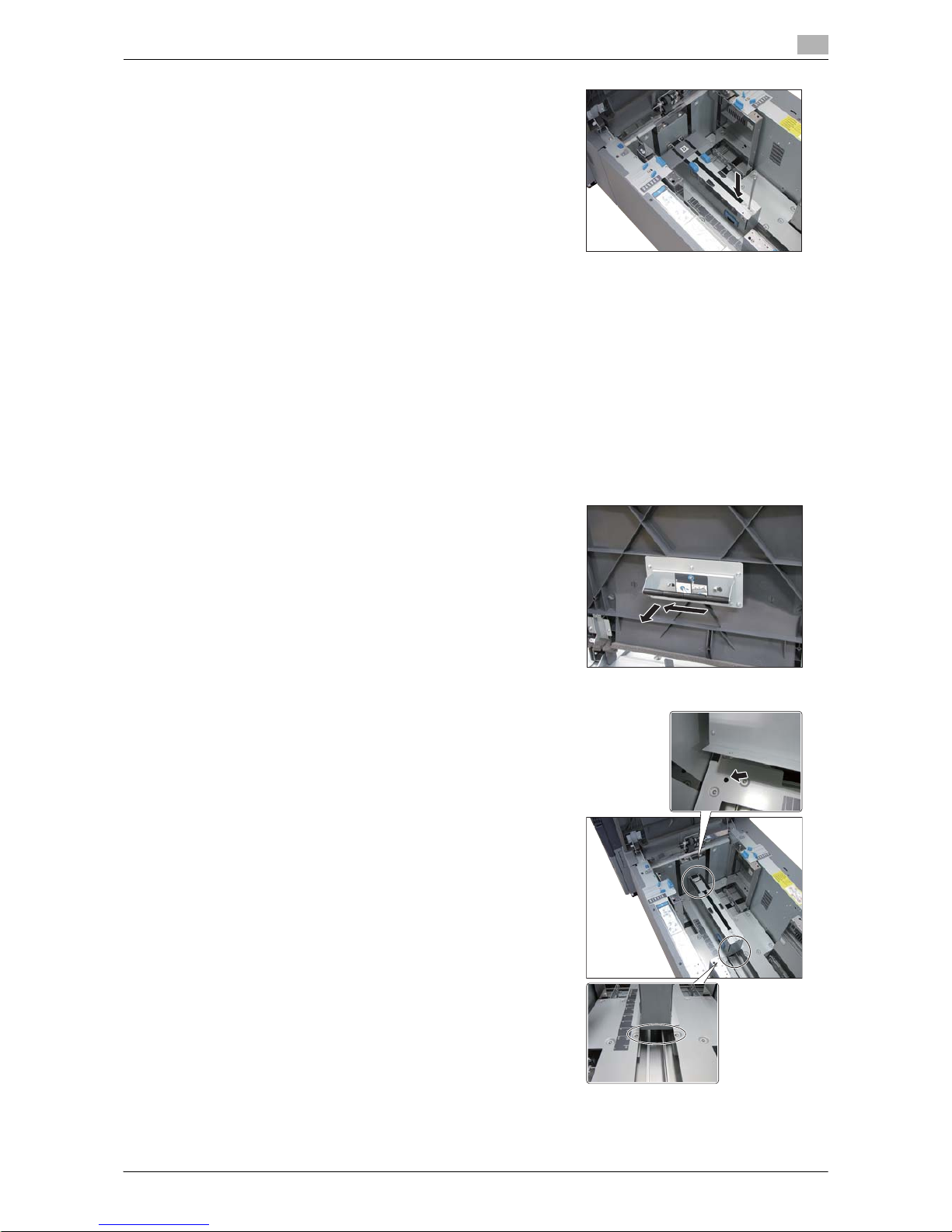

7Install the guide shaft to the back edge guide base of the
bottom auxiliary guide assy [A].
8Close the upper door.
Using K2 (240 x 332 mm) Envelopes
The following parts need to be installed when K2 envelopes are used.
-Bottom auxiliary guide assy [A] (1 piece)
-Adjusting block assy (2 pieces)
-Guide shaft (1 piece)
1Open the upper door.
2Remove the holding paper.
%Hold the projection with your fingers and slide the hold-
ing paper in the arrowed direction, and remove it.
3Install the bottom auxiliary guide assy [A] in the Large Ca-
pacity Unit LU-202m/LU-202XL/LU-202XLm tray.
%Align the positioning pin of the bottom auxiliary guide
assy [A] with the installation hole of the tray.
%Align the detent of the bottom auxiliary guide assy [A]
with the groove on the back end guide.
