bizhub PRESS C1070/C1070P/C1060 Contents-1
Contents
1 Introduction
1.1 Introduction ..................................................................................................................................... 1-2
1.2 Safety Precautions.......................................................................................................................... 1-3
1.2.1 Notices for Safety .............................................................................................................................. 1-3
1.2.2 Precautions When Replacing Units ................................................................................................... 1-4
1.2.3 Warning and Caution Labels.............................................................................................................. 1-6
2 Installing Fusing Unit EF-103
2.1 Replacement Parts ......................................................................................................................... 2-2
2.2 Installation Procedures .................................................................................................................. 2-3
2.2.1 Installing EF-103 on the Main Body................................................................................................... 2-3
2.2.2 Installing Parts in the Tray.................................................................................................................. 2-5
3 Removing Fusing Unit EF-103
3.1 Removal Procedures ...................................................................................................................... 3-2
3.1.1 Removing EF-103 from the Main Body.............................................................................................. 3-2
3.1.2 Removing Parts from the Tray ........................................................................................................... 3-5
4 Copy/Print Operation
4.1 Loading Envelopes in the Tray....................................................................................................... 4-2
4.2 Copy Operation ............................................................................................................................... 4-4
4.3 Print Operation ................................................................................................................................ 4-9
5 Specifications
5.1 Specifications of Fusing Unit EF-103 ............................................................................................ 5-2

1Introduction

bizhub PRESS C1070/C1070P/C1060 1-2
1.1 Introduction 1
1 Introduction
1.1 Introduction
Notice to Users of Fusing Unit EF-103
When replacing the machine units, please follow the instructions described in the User's Guide.
To perform replacement tasks safely and reliably, keep this User's Guide and do not lose them If you lose the
document, please contact your service representative.
Registered Trademarks
KONICA MINOLTA, the KONICA MINOLTA logo, the symbol, and Giving Shape to Ideas are registered trade-
marks or trademarks of KONICA MINOLTA, INC.
bizhub PRESS is a registered trademark or trademark of KONICA MINOLTA, INC.
Copyright © 2013 KONICA MINOLTA, INC.

bizhub PRESS C1070/C1070P/C1060 1-3
1.2 Safety Precautions 1
1.2 Safety Precautions
1.2.1 Notices for Safety
The followings are what you need to follow to safely replace the units. Please be sure to read the precautions
before replacing the units.
-Keep the User's Guide at hand for your future reference and be careful not to lose it.
-Make sure you follow the safety precautions listed in the User's Guide.
Meanings of Indicators
The various types of indicators are used as warning in the User's Guide and on the product labels to prevent
injury to you and other and damage to property.
The table below lists symbols and their meanings.
Meanings of Symbols
Failure to heed this warning could cause serious injury or even
death.
Failure to heed this caution could result in injury or damage to prop-
erty.
A triangle indicates a danger against which you should take precaution. You can find
details of the precautions depicted within into the symbol.
(Example) A symbol representing "High Temperature"
A diagonal line indicates a prohibited course of action. You can find specific forbidden
actions within or near the symbols.
(Example) A symbol representing "Prohibition of Disassembly"
This symbol indicates an imperative course of action. You can find specific instruc-
tions within the symbols.
(Example) A symbol meaning "Unplug the Power Cord"

bizhub PRESS C1070/C1070P/C1060 1-4
1.2 Safety Precautions 1
1.2.2 Precautions When Replacing Units
Preparation Tasks Before Replacing Units
Unit Replacement Tasks
When replacing the units, be sure to receive instructions from our
customer engineer, read the User' Guide in entirety and perform
tasks in the specified order with appropriate tools. Do not perform
any tasks that are not described in the User's Guide. Failure to fol-
low specified order or use appropriate tools could result in injury
or physical damage to the product.
Please be careful when handling the fusing unit since it can be
very hot. It could cause a burn.
Do not drop metal pieces such as clips, staples and screws inside
the product or into crevices in it.
They could cause a short-circuit in the product, resulting in an
electric shock or a fire.
Ensure cables are not pinched or damaged.
It could cause an electric shock or a fire due to electric leakage.
Do not place the unit removed in the replacement tasks on an un-
stable table or sloped surface, or in a location subject to excessive
shocks or vibrations. It could drop or fall and may cause personal
injury.
Please pay careful attention to the surroundings when placing the
unit removed in the replacement tasks.
Protruding portions, cords or wires of the unit may cause falling or
personal injury.

bizhub PRESS C1070/C1070P/C1060 1-5
1.2 Safety Precautions 1
Power Plug
Actions in Response to Troubles
Do not unplug or plug in the power cord with a wet hand,
as you could receive an electrical shock.
Plug the power cord all the way into the power outlet.
Failure to do this could result in a fire or an electrical shock.
Do not tug the power cord when unplugging. Tugging the cord to
do this could damage it, resulting in a fire, electrical shock, or
breakdown.
Do not place any objects around the power plug, as the power
plug may be difficult to pull out when an emergency occurs.
Remove the power plug from the outlet more than one time a year
and clean the area between the plug terminals. Dust that accumu-
lates between the plug terminals may cause a fire.
If it becomes inordinately hot or emits smoke, or an unusual odor
or noise, immediately turn off the power switch of the product, and
then unplug the power cord from the outlet and contact your au-
thorized customer engineer.
If this produt has been dropped or the covers damaged, immedi-
ately turn off the power switch of the product, and then unplug the
power cord from the outlet and contact your authorized customer
engineer. If you continue using it in this condition, a fire or electri-
cal shock could result.
The inside of this product has areas subject to high temperature,
which may cause burns. When inspecting the inside of the product
such as when replacing the units, do not touch the locations
(around the fusing unit, etc.) which are indicated by a "High Tem-
perature" caution label.

bizhub PRESS C1070/C1070P/C1060 1-6
1.2 Safety Precautions 1

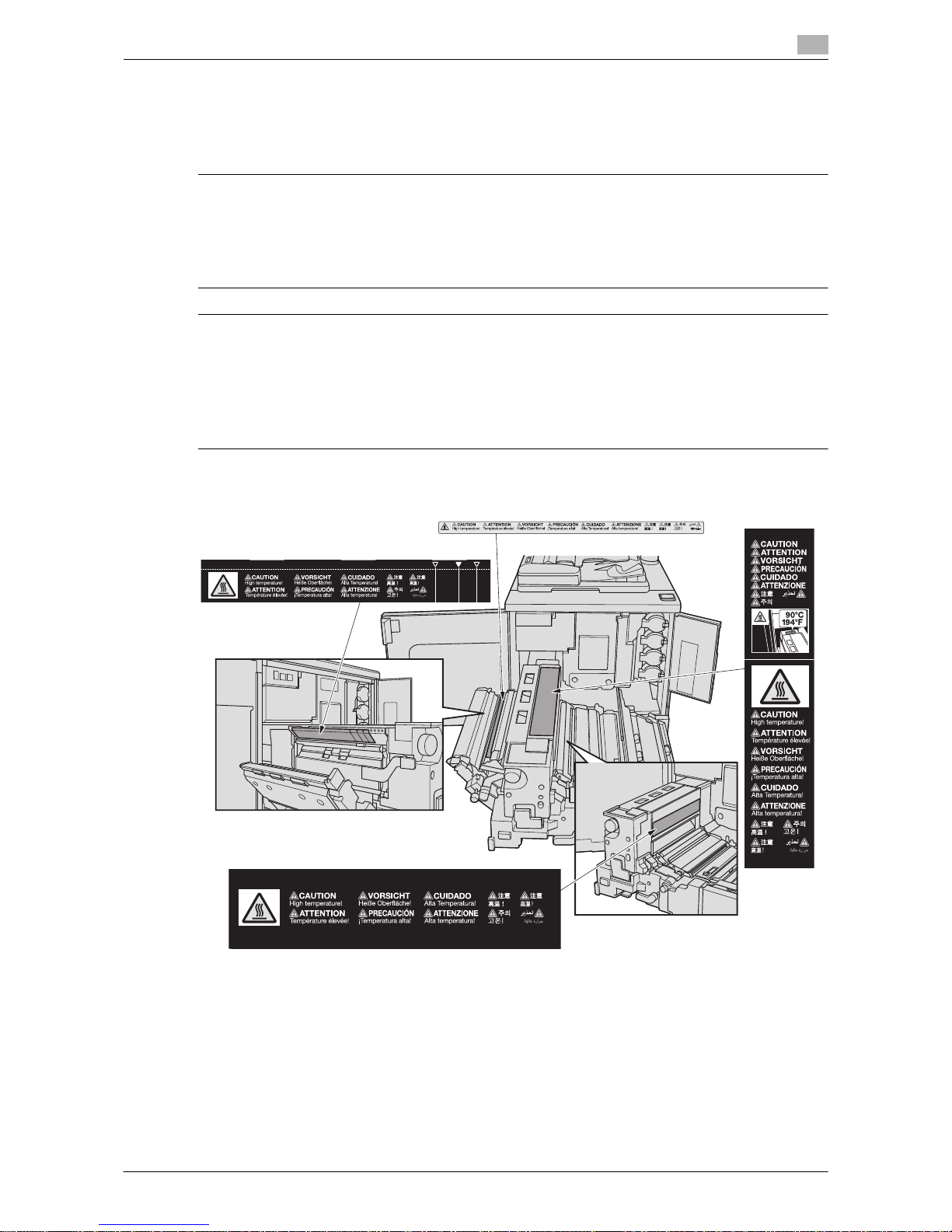

1.2.3 Warning and Caution Labels
This machine has warning label, caution labels and indicators for safety precaution in the following location.
These labels and indicators advise you to pay special attention to avoid any dangerous situations or serious
injury when you replace the units.
7CAUTION
DO NOT remove warning or caution labels.
-Should any warning or caution label be removed, you may fail to check a specific part to be alert for
unexpected trouble or injury. If you find any warning or caution label removed or illegible due to soilage,
please contact your service representative.
7CAUTION
DO NOT touch the fusing part of the fixing conveyance unit.
-Otherwise, you may get burned. Please be especially careful in withdrawing the fixing conveyance unit
or opening the fusing part.
-Since the rear handle of the fusing unit is subject to very high temperature, be sure to wait 50 minutes
or longer after pulling out the ADU drawer to continue the replacement of fusing units.

2Installing Fusing Unit EF-103

bizhub PRESS C1070/C1070P/C1060 2-2
2.1 Replacement Parts 2
2 Installing Fusing Unit EF-103
When replacing the fusing unit, follow the precautions below to perform the task.
NOTICE
When replacing the fusing unit, be sure to receive instructions from our customer engineer.
NOTICE
Please do not dispose of the packaging box of EF-103. Keep the packaging box and reuse it to store the
replaced fusing unit.
NOTICE
With EF-103 installed, only tray 5 (the lower tray) of Paper Feeder Unit PF-707 can be used as a paper source.
All the other trays are unavailable.
7WARNING
-To avoid danger of suffocation, keep the plastic bag away from babies and children. Please discard the
packaging material after unpacking.

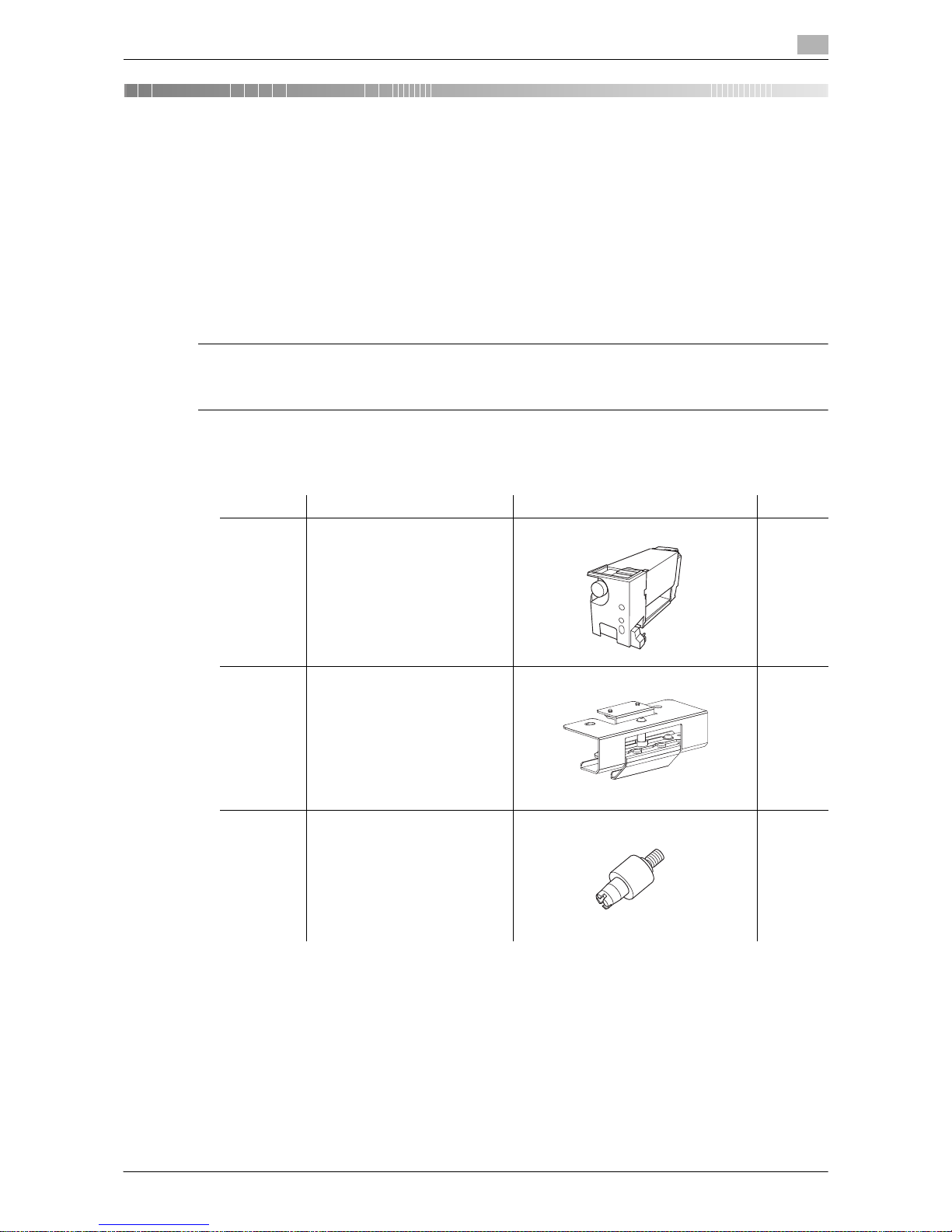

2.1 Replacement Parts
PN Name Shape Q’ty
1Fusing Unit EF-103 1
2 Auxiliary guide 2
3Positioning screw 4

bizhub PRESS C1070/C1070P/C1060 2-3
2.2 Installation Procedures 2
2.2 Installation Procedures

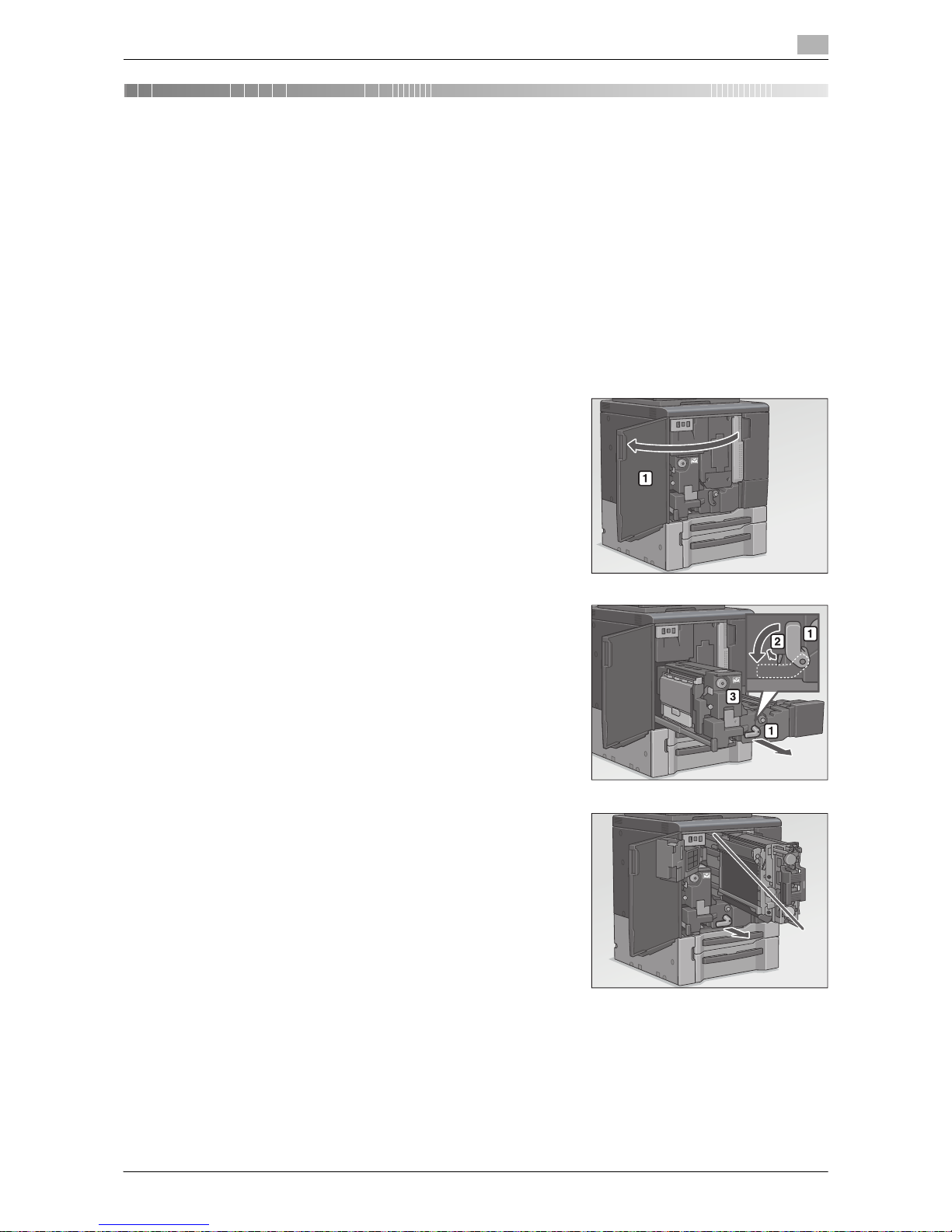

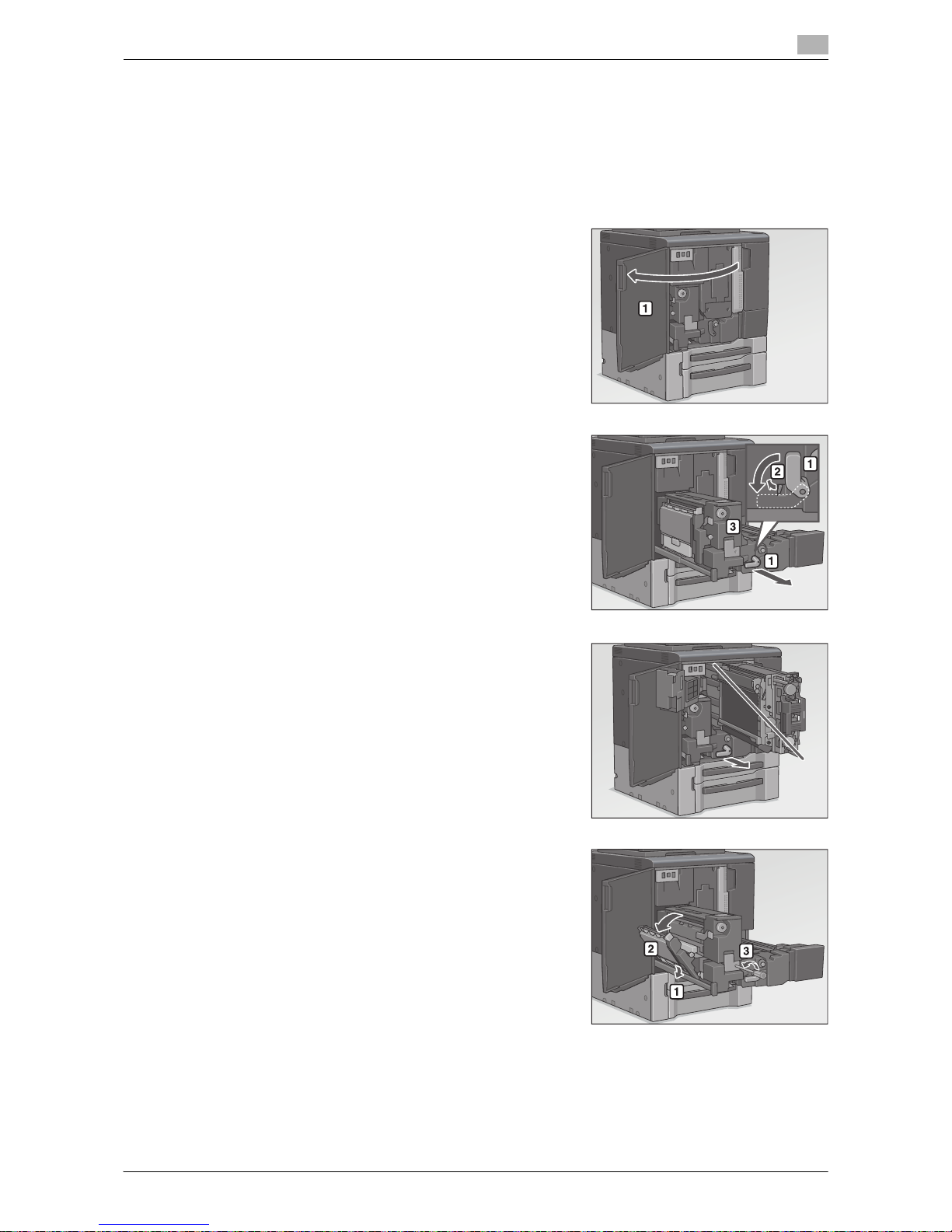

2.2.1 Installing EF-103 on the Main Body
1Turn off the machine's sub and main power switches, and then unplug the power cord from the outlet.
%Be sure to turn off the sub power switch first.
2Open the front door [1].
3To pull out the ADU [3], push the lock [2] of the ADU release
lever M1 [1] to the left, then turn the ADU release lever M1 [1]
counterclockwise.
NOTICE
Please confirm that process unit has not been pulled out
when pulling out the ADU drawer.
4Open the paper exit guide [2] while releasing the lever M6 [1]
at the bottom.
Loosen the screw [3] (1 piece).

bizhub PRESS C1070/C1070P/C1060 2-4
2.2 Installation Procedures 2

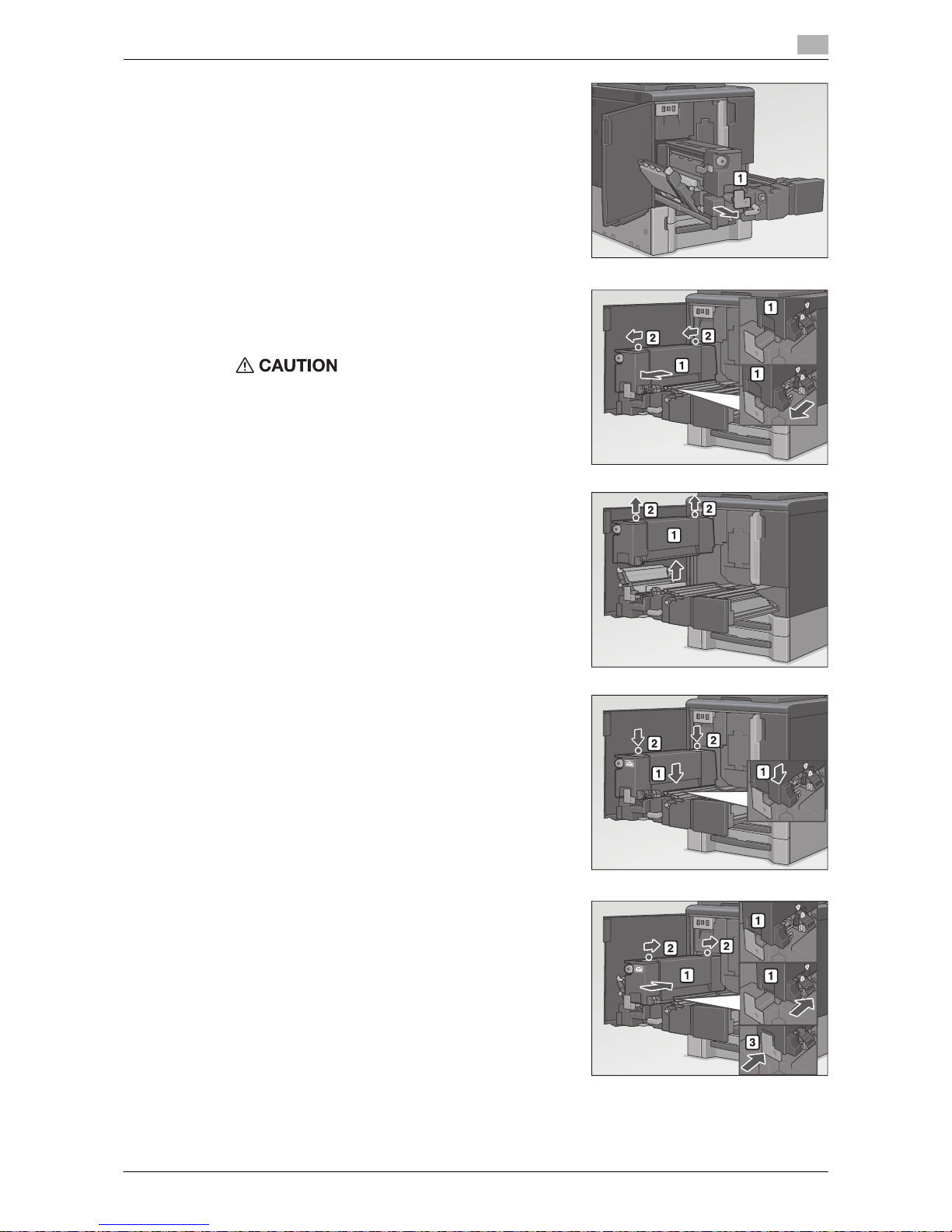

5Pull out the fixing plate [1] forward.
6Holding the handles on the rear and front sides [2] of the fus-
ing unit [1] by both hands, slide the fusing unit [1] forward to
the position of arrow mark.
Please be careful when working on the fusing unit; the unit is
extremely hot.
7Holding the handles on the rear and front sides [2] of the fus-
ing unit [1] by both hands, remove the fusing unit [1].
Place the removed fusing unit on the flat surface.
8Holding the handles on the front and rear sides [2] of EF-103
[1] with both hands, set EF-103 [1] on the fixing position with
arrow mark.
NOTICE
Make sure that the exit section is open before setting EF-103
to the machine. When you try to set the fusing unit with the
exit guide unit closed, the machine may be damaged.
9Holding the handles on the front and rear sides [2] of EF-103
[1] with both hands, slide it to the direction of arrow until it
knocks in place.
Return the fixing plate [3] to its original position.

bizhub PRESS C1070/C1070P/C1060 2-5
2.2 Installation Procedures 2

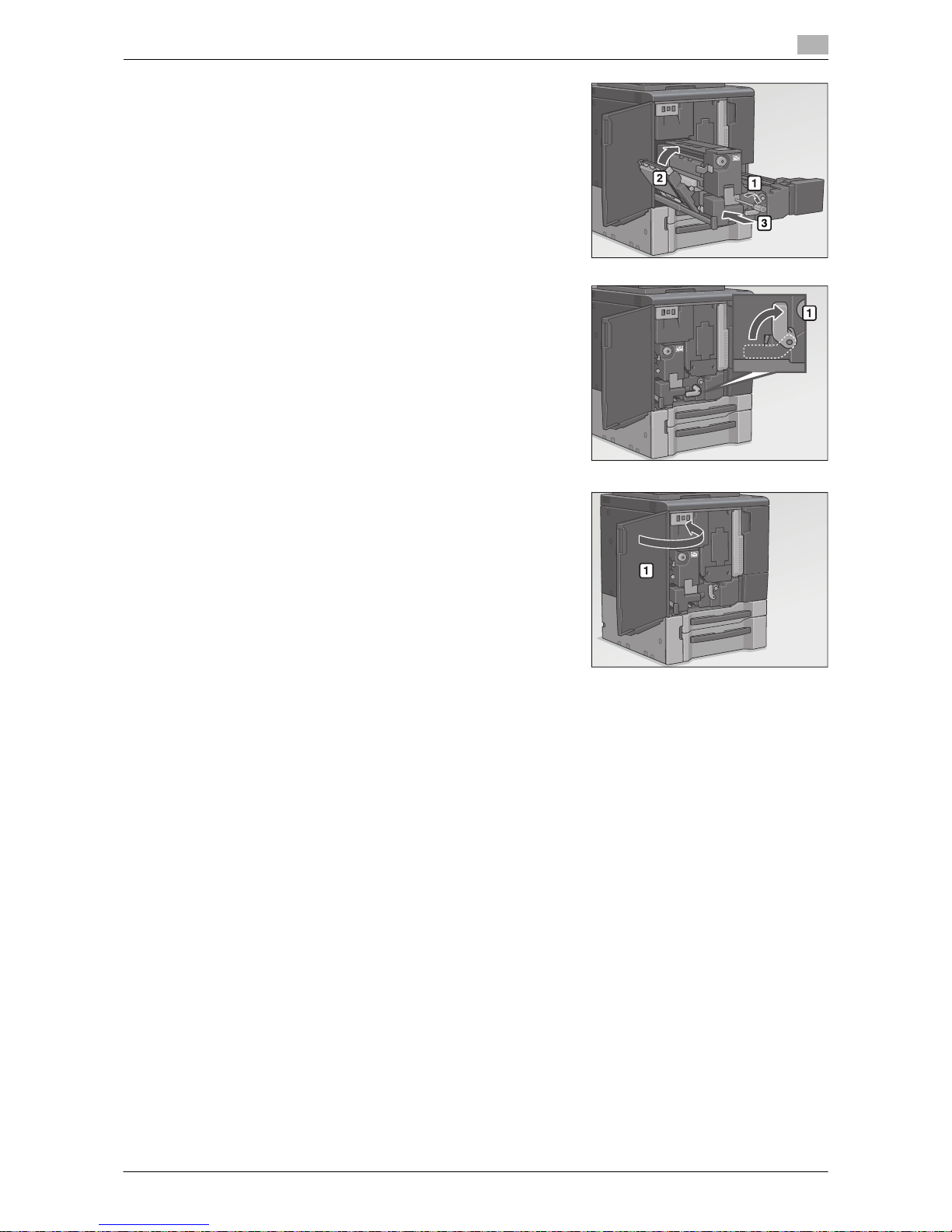

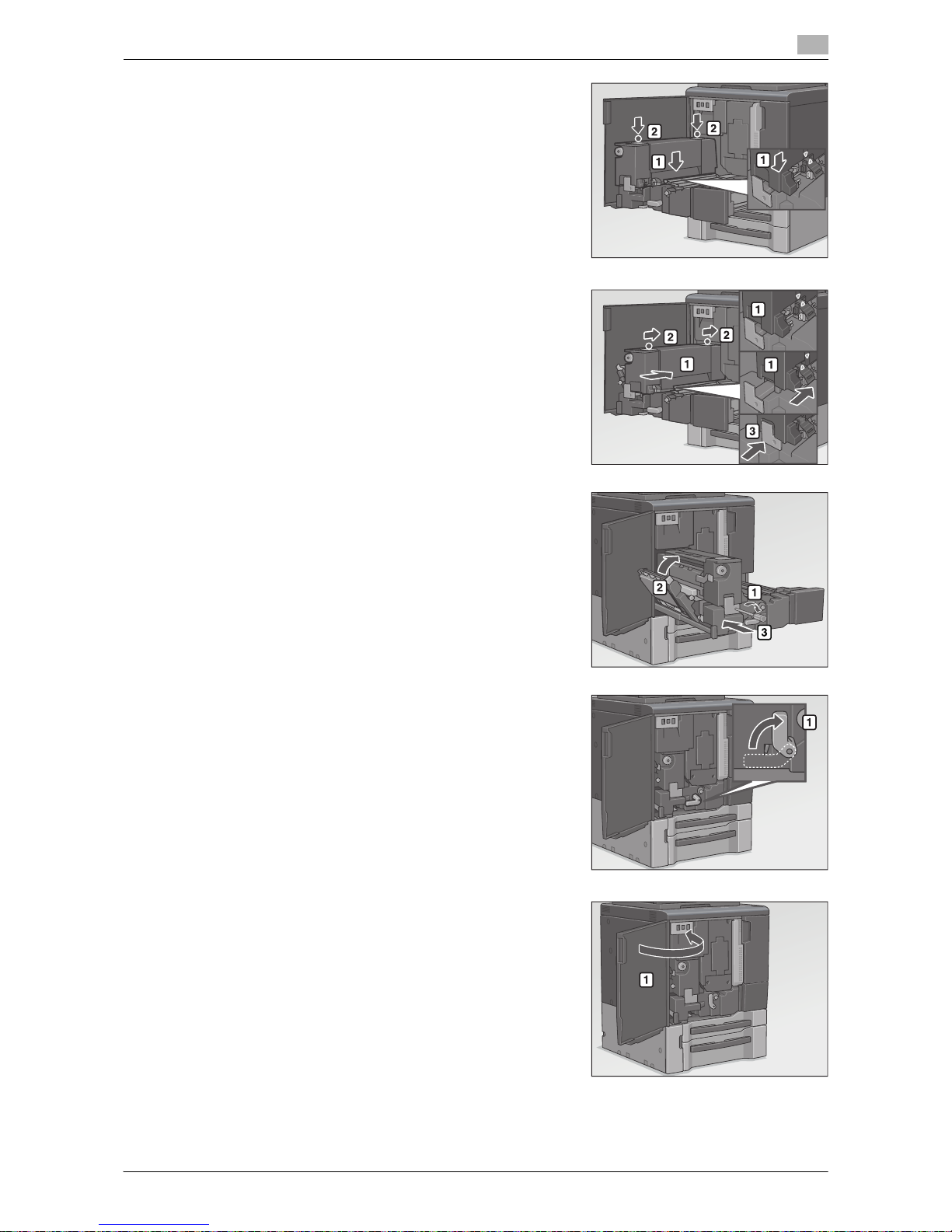

10 Tighten the screw [1] (1 piece) and close the exit section [2].
Insert the ADU drawer [3].
11 Raise the ADU release lever M1 [1] by turning it clockwise.
12 Close the front door [1].
13 Store the removed fusing unit in the empty packaging of
EF-103.
NOTICE
Please wait until the fusing unit gets cold before storing it
in the packaging.
2.2.2 Installing Parts in the Tray
Depending on the size of the envelope to be used, the attached auxiliary guides need to be installed on Paper
Feeder Unit PF-707.
For details on the envelope size, refer to page 4-2.
NOTICE
Trays cannot be withdrawn when the machine is not powered. Plug the power cord of the machine into the
outlet, turn on the main power switch, then the sub power switch before performing the installation.

bizhub PRESS C1070/C1070P/C1060 2-6
2.2 Installation Procedures 2
Using Envelopes of 100 to 139.7 mm in Width
The following parts need to be installed when envelopes of the above size are used.
-Auxiliary guide (2 pieces)
To use envelopes smaller than 139.7mm, use the small size guides of Paper Feeder Unit PF-707.

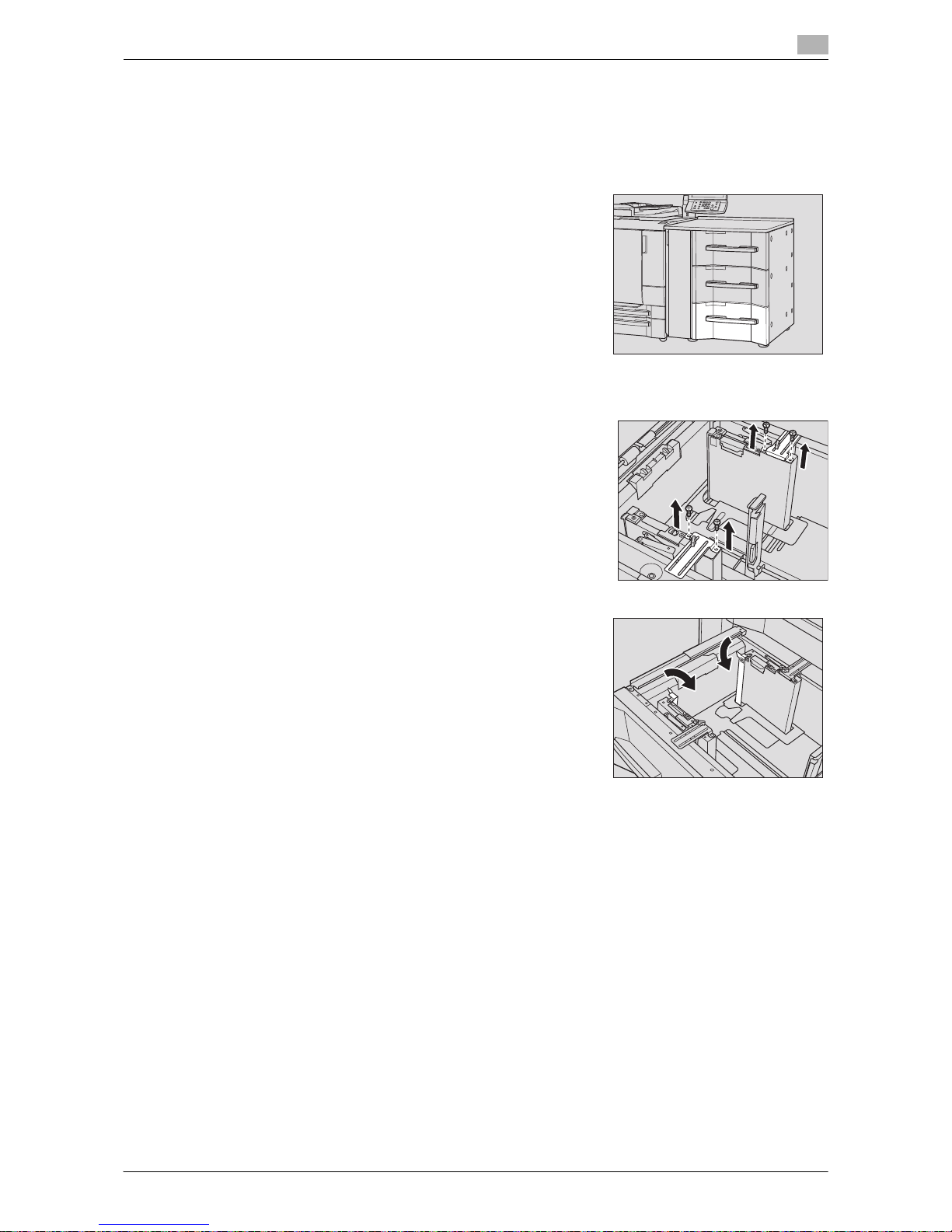

1Pull out tray 5.
2Remove the 4 screws (2 screws for each position), and then in-
stall the 4 positioning screws (2 screws for each position) instead.
3Open the small size guides (front/rear) to the direction of arrow
to set the guides to the positions illustrated below.

bizhub PRESS C1070/C1070P/C1060 2-7
2.2 Installation Procedures 2
4Insert the auxiliary guides (2 pieces) into the positioning screws
on the side guides.
NOTICE
Do not move the paper control levers (2 pieces). Otherwise, the
paper feeding performance may degrade.
5Push in tray 5 until it locks into place.
Using Envelopes of 139.7 to 245 mm in Width
Follow the procedure below to use envelopes of the above size. Auxiliary guides (2 pieces) are not needed.
1Pull out tray 5.
2Move each of the small size guides (front/rear) toward the out-
side the side guide plates.
%If the auxiliary guides are installed on the side guides, pull
them up to remove them. The positioning screws (4 pieces)
installed on the side guides are not required to be removed.
3Push in tray 5 until it locks into place.

3Removing Fusing Unit EF-103

bizhub PRESS C1070/C1070P/C1060 3-2
3.1 Removal Procedures 3
3 Removing Fusing Unit EF-103
This section describes the procedures to remove EF-103 and the feed guide parts for envelopes.
When using paper other than envelopes, follow the procedure below to replace the fusing unit and remove
the parts installed in the tray.
3.1 Removal Procedures
3.1.1 Removing EF-103 from the Main Body
1Turn off the machine's sub and main power switches, and then unplug the power cord from the outlet.
%Be sure to turn off the sub power switch first.
2Open the front door [1].
3To pull out the ADU [3], push the lock [2] of the ADU release
lever M1 [1] to the left, then turn the ADU release lever M1 [1]
counterclockwise.
NOTICE
Please confirm that process unit has not been pulled out
when pulling out the ADU drawer.

bizhub PRESS C1070/C1070P/C1060 3-3
3.1 Removal Procedures 3
4Open the paper exit section [2] while releasing the lever M6
[1] at the bottom.
Loosen the screw [3] (1 piece).
5Pull out the fixing plate [1] forward.
6Holding the handles on the front and rear sides [2] of EF-103
[1] with both hands, slide EF-103 [1] forward to the position
of the arrow mark.
Please be careful when working on the fusing unit; EF-103 is
extremely hot.
7Holding the handles on the front and rear sides [2] of EF-103
[1] with both hands, remove EF-103 [1].
Place the removed EF-103 on the flat surface.
8Take out the stored fusing unit from the package.
NOTICE
Make sure that the exit section is open before setting the
fusing unit to the machine. When you try to set the fusing
unit with the exit guide unit closed, the machine may be
damaged.

bizhub PRESS C1070/C1070P/C1060 3-4
3.1 Removal Procedures 3
9Holding the handles on the front and rear sides [2] of the fus-
ing unit [1] with both hands, set the unit [1] on the fixing po-
sition with arrow mark.
10 Holding the handles on the front and rear sides [2] of the fus-
ing unit [1] with both hands, slide it to the direction of arrow
until it knocks in place.
Return the fixing plate [3] to its original position.
11 Tighten the screw [1] (1 piece) and close the exit section [2].
Insert the ADU drawer [3].
12 Raise the ADU release lever M1 [1] by turning it clockwise.
13 Close the front door [1].
