Konica Minolta AccurioPress C14000 User manual

Table of Contents
1
2
3
4
5
6
7
Quick Guide
Confirmation of Product
Configuration
Name of Each Component
and Control Panel
Power-On/Off
Paper Feed Route and
Paper Jam Processing
Replenishment and
Replacement of Consumables
Cleaning
Usage Environment and
Machine Specifications
Basic Operations
Ver. 01.00
-QG No. 01 -

1Confirmation of Product Configuration
2
1-1. Introduction of Names and Functions of Machines and Options (Including the
Controller)
This chapter explains the configuration and simple functions of the installed
devices.
Paper output system options
□Relay Unit [RU-518m]
□Intelligent Quality Optimizer [IQ-501]
□Relay Unit [RU-702]
□Auto Inspection Unit [UK-301]
□Banner Output Tray Unit [MK-761]
□FoldingUnit [FD-503]
□Trimmer Unit [TU-510]
┗ □ Job Separator [JS-507]
┗ □ Creaser Unit [CR-102/CR-103]
┗ □ Trimmer Unit [TU-504]
┗ □ Perforation Unit [PE-101/PE-102]
┗ □ Banner Unit [MK-764]
┗ □ Dust Box [MK-765]
□Large Capacity Stacker [LS-507]
□Saddle Stitcher [SD-513]
┗ □ Folding Unit [FD-504]
┗ □ Creaser Unit [CR-101]
┗ □ Trimmer Unit [TU-503]
□SaddleStitcher [SD-506]
□Perfect Binder [PB-503]
□Output Tray [OT-512]
□Finisher [FS-541]
┗ □ Saddle Stitcher [SD-510]
┗ □ Punch Unit [PK-525]
┗ □ PostInserter [PI-502]

1Confirmation of Product Configuration
3
Machin
e
Control Panel
Machine
□
C14000
□
C12000
Paper feed system options
□
Paper Feeder Unit [PF-713]
□
Paper Feeder Unit [PF-712]
□
Paper Feeder Unit [PF-812]
□
Banner Paper Tray Unit [MK-760]
□
Multi Bypass Tray [MB-511]
□
Dehumidifier Heater [HT-506]
□
Feed Adjuster [FA-505]
Controller system options
□Image Controller [IC-610]
□Image Controller [IC-318]
Other options
□
Intelligent Media Sensor [IM-101]
* The photo below shows an example of the product configuration
(combination of options).
* Some options are not listed.

2Name of Each Component and Control Panel
4

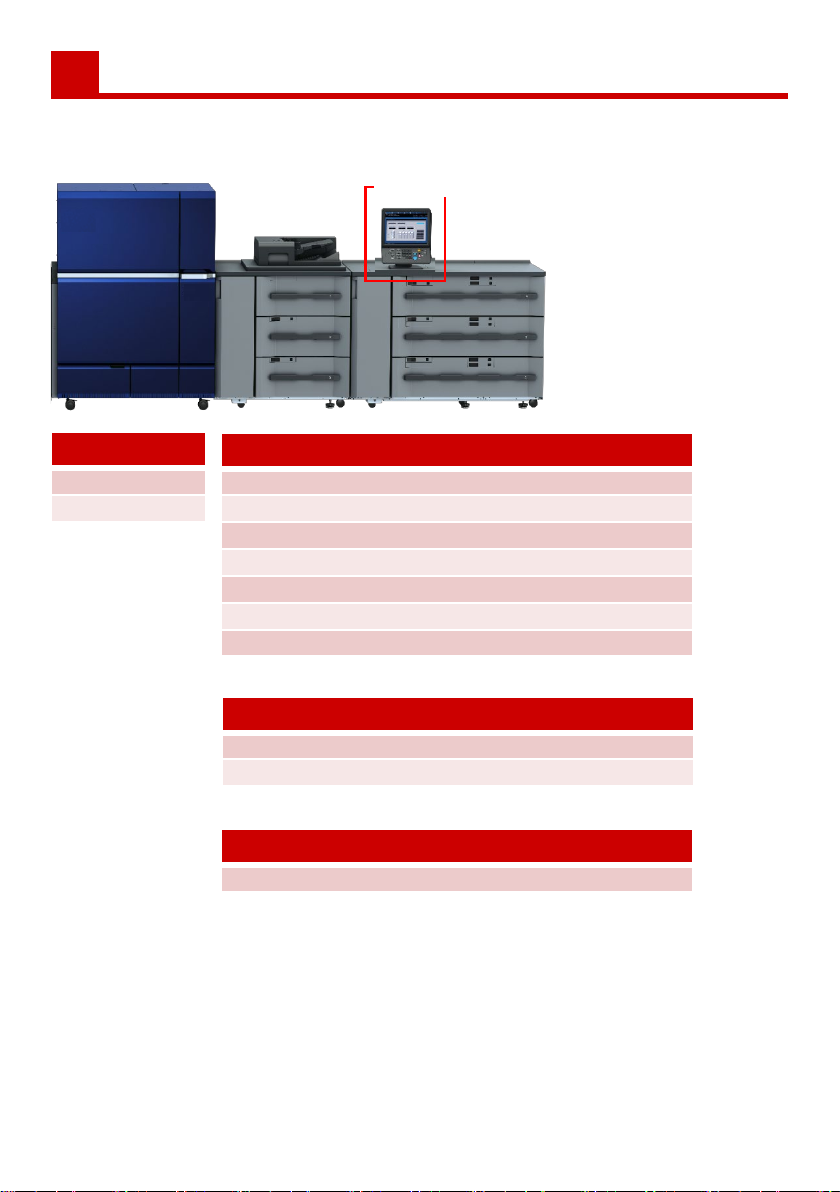

2-2. Control Panel of Machine
●Power Save
Press this button to
manually set or reset Power
Save mode.
●Brightness adjustment
dial
Turn this dial to adjust the
brightness of the touch
panel.
●Utility/Counter
Press this button to display
the Utility screen and
counters. ●Start
Lights up blue when operation is possible, and
orange when operation cannot be started.
●Reset
Press this button to
return the setting
value to the default.
●Power LED
Lights up orange when
the main power switch
is turned on, then turns
blue when the sub
power switch is turned
on.
●Data LED
Flashes while the
system is receiving
print data.
●Stop
Press this button to pause
output or interrupt any
machine operation.
2-1. Name of Each Machine Component
Sub power switch
Main power switch
Front door
Toner bottle
Fusing Conveyance
Unit

2Name of Each Component and Control Panel
5
2-3. Control Panel of Option
For details about how to use the control panel of each option, view the video.
[LS-507]
[PI-502]
[FD-503]
●Start/Stop button
●Start/Stop button
●Finishing Options button
●Finishing Options button
01-030
FD-503 operation button
01-010
LS-507 operation button
01-020
PI-502 operation button
●Storage button (Output Tray)
●Eject button (Paper in stacker tray)

3Power-On/Off
6
3-1. Machine
This system has 2 power switches, main power switch and sub power switch.
Be careful of the order of turning these 2 power switches on and off.
Power-On
Main power ON
Power LED: Turned off =>
Orange
Sub Power ON
Power LED: Orange =>
Blue
Sub Power OFF
Power LED: Blue => Orange
"Please wait"*
* If the following messages are displayed, do not turn the main power off.
“Cooling in progress Power is turned off automatically"
“Power off in progress Please do not turn the main power off"
Power LED: Orange =>
Turned off.
The control panel becomes
dark.
Main power OFF
Approx. 8minutes
"Please wait for"
"Confirming scanner
connection" *1
Po
wer
-
off
Power-Off

3Power-On/Off
7
"Please wait"
" Now adjusting"
"Machine is warming up"
"Please wait for a while"
"Ready to print"
*1: The displayed message varies depending on the option you are using.
•It is recommended to leave the main power ON except when the machine will not be used
for a long period of time due to the length of time from power on to print.
•If you want to turn the power on immediately after turning the main power off, be sure to
wait at least 10 seconds before turning the power on.
•If you set the Power Save function and weekly timer, you can automatically manage the sub
power ON/OFF operation and reduce power consumption. For details, refer to the HTML
User's Guide.
•Power ON/OFF setting image of this system in line with business hours
•Job output during power save
If you input a job from the printer driver while the Power Save function is set and the
power consumption is suppressed, this system recognizes the job, cancels Power Save
mode, and begins output.
Tips
A: Monday to Friday:
ON at 9 am, OFF for lunch break
/ ON at 1 pm, OFF at 6 pm
B: Saturday:
ON at 9 am, OFF at 3 pm
C: Sunday: All day OFF

3Power-On/Off
8
3-2. KM Controller Power-ON/OFF (IC-610)
Turn the power on/off in the following order.
The controller is
mounted on the back of
the machine.
3-3. Fiery Controller Power-ON (IC-318/319)
1. Turn on the main power (rear: enclosed by a red frame).
2. Turn on the Power button (side of the LCD panel: marked by a
red circle).
•The main power can normally be left "ON".
•If you do not use the product for a long period of
time (for example, 1 or more weeks), turn off the
main power.
No.
Button name Overview
1Shutdown system Turns the controller off. (Both the Fiery system and the Windows
server (OS) are turned off.)
2Reboot system Reboots only the Fiery system. The Windows server (OS) does not
reboot.
3Restart server Reboots both the Fiery system and Windows server.
4Brightness Allows you to change the screen brightness.
5Restart display Reboots only the display.
5 buttons are displayed. For an explanation of
each button, refer to the table below.
* The displayed contents vary depending on
the version.
3-4. Fiery Controller Power-OFF (Shutdown system) (IC-318/319)
Turn the power on in the following order.
•For information about how to turn the machine on, refer to
"3-1. Machine".
•When the message "Ready to print" is displayed on the
control panel, turn the power on.
•After the machine has completely turned off, turn the
controller off.
1. Turn the machine on or off.
2. Turn the controller on or off.
1. Touch the upper right corner of the
LCD panel. The power-related window
is displayed.
2. Press [Shutdown system].

3Power-On/Off
9

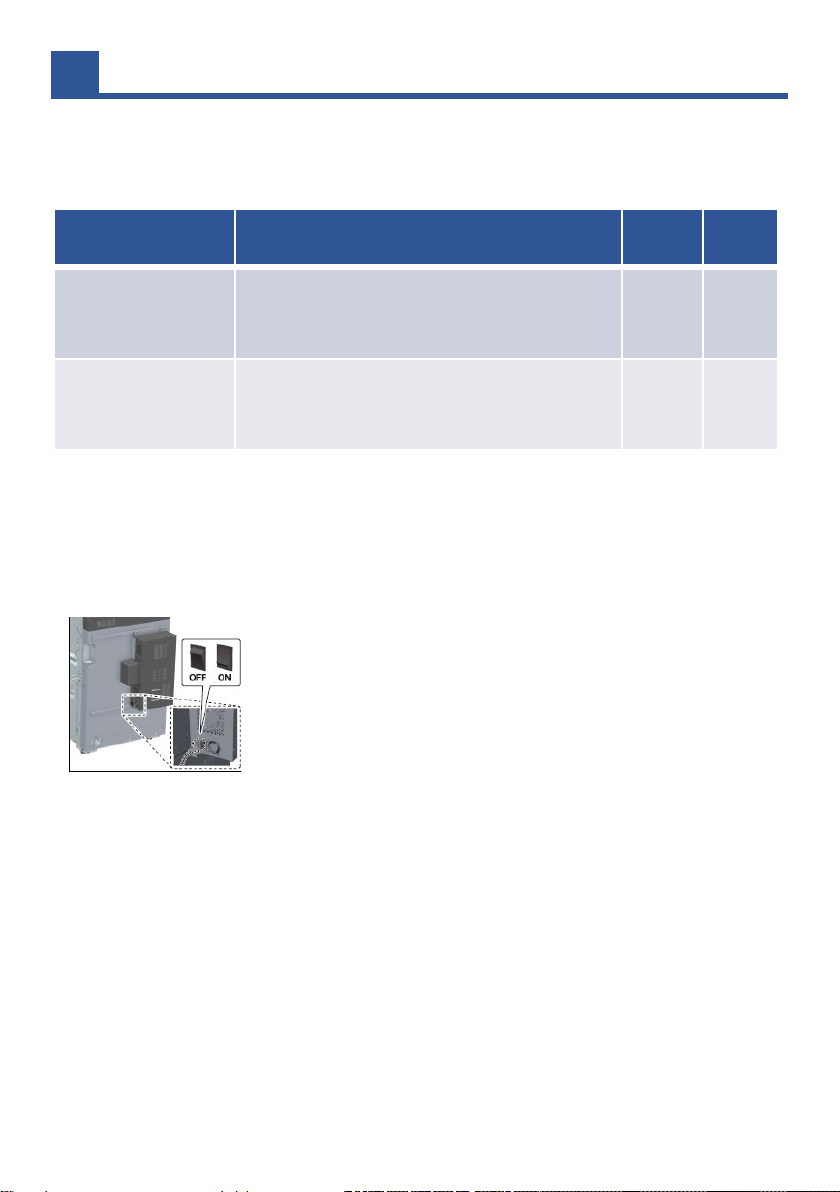

3-5. Recommended Useful Functions
This system provides useful functions related to the power supply and job output of
the KM and Fiery controllers.
Name Description KM Fiery
Machine/controller
power
synchronization
setting
Set whether to synchronize the power supply
of the machine with that of the image
controller.
*1 *2
Next day
continuation
setting
When the sub power of this system is turned
off, a job in progress or a job reserved for
output is held, and executed continuously at
the next startup.
*1 -
*1: Can be set from Administrator Setting. For details, refer to the HTML User's Guide.
*2: Can be set from Command WorkStation -Configure.
•For information about how to turn the machine on,
refer to "3-1. Machine".
•The UK-301 power supply is mounted on the back
of the IQ-501.
1. Turn the main power switch and sub power switch on.
2. Turn the UK-301 on.
3-6. Option
In addition to the controller, the UK-301 is an option that requires power-on/off.
Turn the UK-301 on in the following order.
* This option is synchronized with the sub power switch of the machine, so normally,
you do not need to turn it off.
: Functions are provided.

4Paper Feed Route and Paper Jam Processing
10

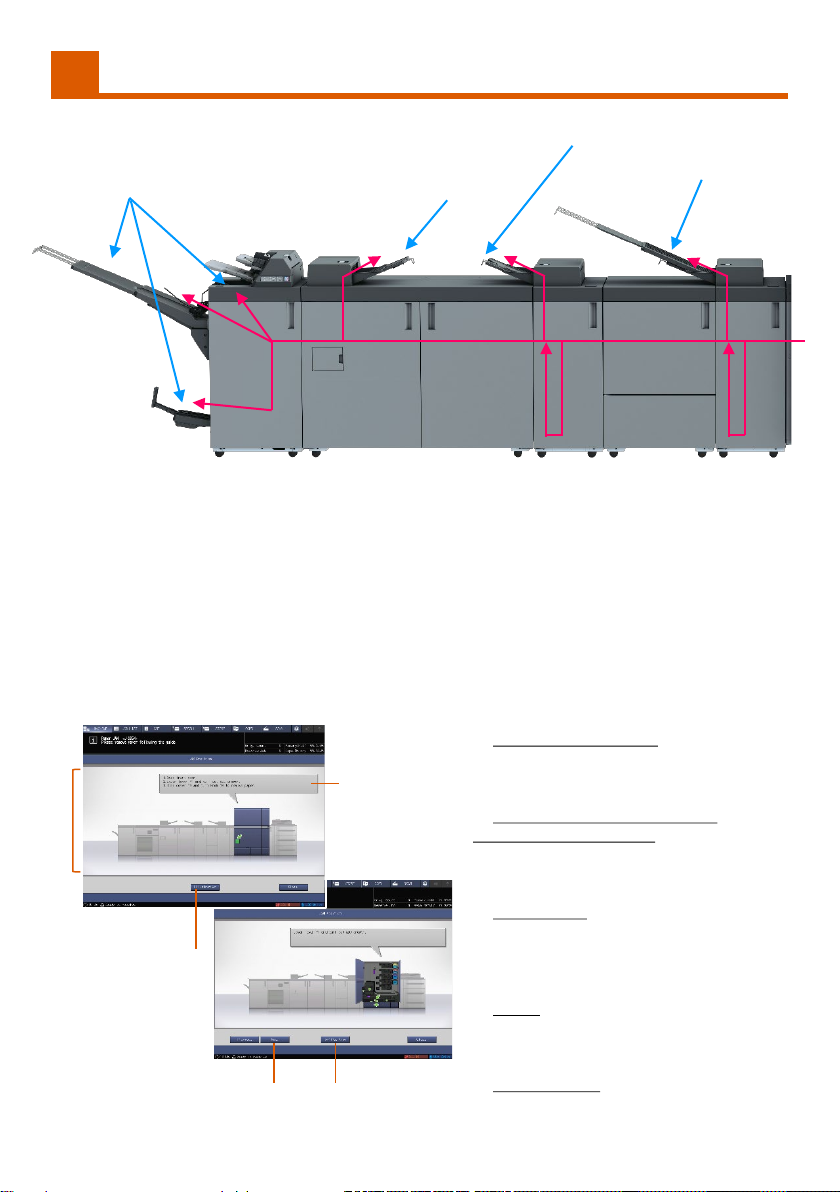

4-1. Paper Feed Route in the Machine
4-2. How to See the Paper Jam Display
•If a paper jam occurs while printing or copying, the message [Paper JAM] and the
paper jam location are displayed on the control panel (screen).
•Follow the on-screen instructions to clear the paper jam.
[JAM Position] screen: Example
Output Tray
Output Tray
Output Tray
* The product configuration (combination of options) is an example.
1.
3.
2.
4. 5.
[Illustration] screen:
Example
1. Message display area
Displays the concrete method to clear
paper jams.
2. Jam number/work procedure
illustration display area
Displays the paper jam location, the
work procedure, and others.
3. [Illustration]
Press this key to display the screen that
illustrates how to process with the
highest priority.
4. [Next]
Press this key to see the next page of
the paper jam clearing procedure.
5. [JAM Position]
Press this key to return to the [JAM
Position] screen.
Purge Tray

4Paper Feed Route and Paper Jam Processing
11

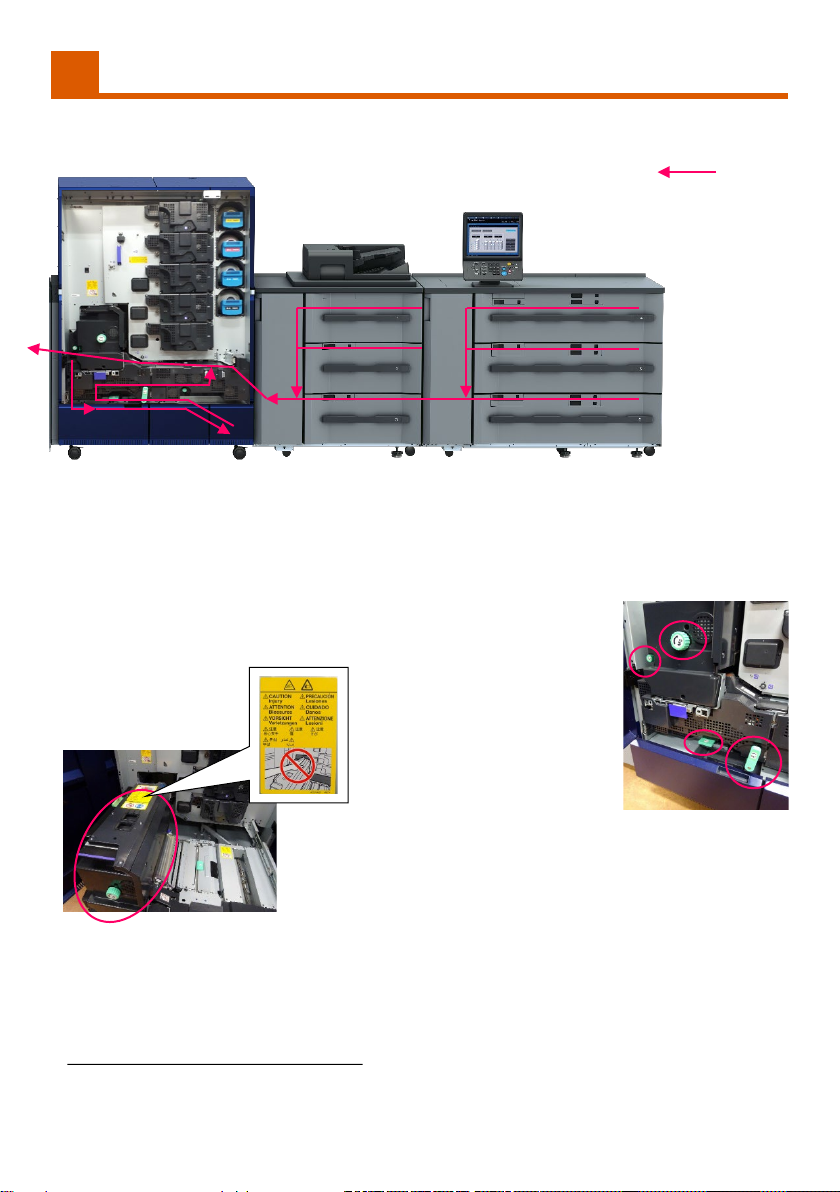

4-3. Precautions for Clearing Paper Jams
Temporary
Paper feed flow
•When clearing paper jams, leave the main power switch or sub power
switch on. When the power is turned off, you cannot pull out the tray or
the conveyance fixing unit.
•When clearing paper jams, operate the green part (lever,
knob, etc.) and follow the procedure displayed on the
control panel to clear the paper jams.
•The fusing unit is at high temperature. Follow the
instructions on the control panel and caution label to
clear the paper jams.
•When clearing paper jams, operate the green part (lever, knob, etc.) and follow
the procedure displayed on the control panel to clear the paper jams.
•This system has an "automatic purge function". Do not open the door of the
machine or option during the purge operation.
What is the automatic purge function?
This function forces the print paper to be ejected to the nearest subtray, etc. so that the
print paper behind the place where the paper jam occurred does not become jammed
further. Keep the power to the machine turned on during the purge operation.

5Replenishment and Replacement of Consumables
12
5-1. What Are Consumables?
Consumables are parts that require processing such as replenishment, disposal, and
replacement of this system. The main processing of consumables is as follows:
Toner bottle replacement, Waste toner box replacement, *Cyclone box replacement, Staple
needle replenishment/disposal, *Glue pellet replenishment, Humidification tank water
supply, Trimming scrap disposal
* Cyclone Box: Used to suck and store toner to prevent the toner from scattering inside the
machine.
* Staple needle disposal: Dispose of needle scraps generated when staple needles are cut
to suit the thickness of the booklet.
* Glue pellets: Granular glue for perfect binder.
Humidification tank
water supply
Cyclone box
replacement
Waste toner box
replacement
Staple needle
replenishment
Trim scrap
disposal
Staple needle
disposal Glue pellet
replenishment
Toner bottle
replacement
5-2. Consumables Replacement Procedure (Video)
This section explains the following typical 3 replacement procedures with a video.
01-070
Replacing staple needles
01-060
Replacing a waste toner box
* For information about how to handle a waste
toner box, contact your service representative.
PB-503
TU-510
RU-518
Machine
PFU
FS
* Each consumables replacement procedure can be viewed in "5-3. Consumables
Replenishment/Replacement Procedure" in the following page.
01-050
Replacing a toner bottle

5Replenishment and Replacement of Consumables
13
5-3. Consumables Replenishment/Replacement Procedure
A replacement message is displayed on
the upper left of the touch panel, and
the name of the corresponding
consumable item in [Consumable and
Scrap Indicators] on the lower left is
displayed in yellow.
[Example]
Message: [Ready to print Please replace
waste toner box]
Consumable and Scrap Indicators:
[waste toner bottles]
1. Check the consumables replacement message.
2. Display the Help screen
If you press any of the following 3
locations, the same help screen is
displayed.
Target consumables display area
of Consumable and Scrap
Indicators (displayed in yellow)
"?" button on the upper right of
the touch panel
Help button on the control panel
(hard key)
5-4. Checking with Print Manager
On the Print Manager screen, you can check
the consumables information by pressing the
[Expand] button twice. You can check the
status by hovering the mouse over the
consumables icon.
Press this button twice.

6Cleaning
14
6-1. Cleaning Each Component
To achieve the stable output, check the following points every day before turning
on the machine, and clean them if necessary.
IQ-501 cleaning (video)
Cleaning timing: When a cleaning message is displayed on the
control panel
Cleaning tool: Built-in cleaning jig
MB-511 cleaning (Creation of new video)
Cleaning timing: When paper jams frequently occur or
the print paper is dirty
Cleaning tool: Dry cloth
Duplex part cleaning (Video)
Cleaning timing: When paper jams frequently occur or the
print paper is dirty
Cleaning tool: Dry cloth
Machine
PF-712/PF-713/PF-812 cleaning (Video)
Cleaning timing: When paper jams frequently occur or
the print paper is dirty
Cleaning tool: Dry cloth
01-080
Cleaning IQ-501
01-110
Cleaning PF-712, PF-713 and PF-812
01-090
Cleaning MB-511
01-100
Cleaning the Duplex part

7Usage Environment and Machine Specifications
15
[Handling of paper and consumables]
•Store paper and consumables in the following
locations:
■A place away from direct sunlight
■A place far from this system and air conditioners
■A place with low humidity
■A stable place where paper can be placed
horizontally
■A place with little or no dust/power paper dust

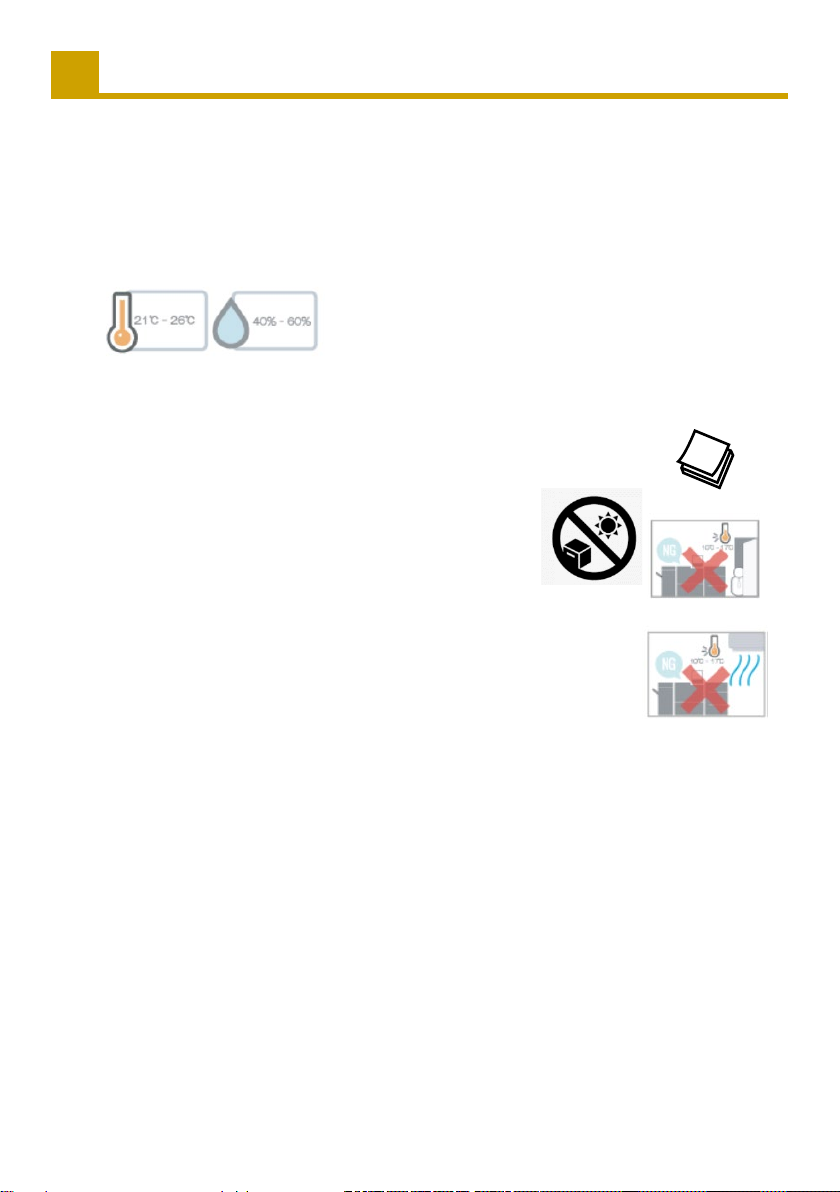

•Check the temperature and humidity of the
installation location of this system.
■Recommended environment
Room temperature: 21°C to 26°C
Humidity: 40% RH to 60% RH
[Temperature and humidity]
[Installation surface]
•Keep the floor surface this system is installed on level.
•If you change the installation location, be sure to contact the service
representative.
7-1. Usage Environment
In order to maintain the performance of this system and use it comfortably, please
protect the usage environment of this system and the storage environment of paper
and consumables.
•Keep the paper in the paper it is wrapped in as much as
possible.
Even if you open the paper package once, we recommend that
you wrap the rest of the paper in wrapping paper and store it.
•Manage consumables according to the storage conditions
stated on the packaging box.
•We recommend that you always have spare paper and
consumables on hand according to the usage conditions.

7Usage Environment and Machine Specifications
16
7-2. Machine Specifications
* For details, refer to the HTML User's Guide.
Name C14000 / C12000
Type Console type
Color compatibility Full color
Print method 4 drum tandem laser electrostatic copying system
Photoconductor OPC
Development method Dry 2-component
Transfer type Belt-system intermediate transfer / Belt-system secondary transfer
Fusing method Upper belt / lower roller system
Gradation/Expression
color 256 gradation (8-bit) / 16.7 million color
Warm-up time 8 minutes or less (20°C, 50%RH, rated voltage when electric current
is running through)
Continuation print
speed
C14000 (color / black & white),
140 sides/min. (A4), 138 sides/min. (8.5 x 11)
C12000 (color / black & white),
120 sides/min. (A4), 118 sides/min. (8.5 x 11)
Number of
continuously printed
sheets
1 to 9,999 sheets
Power Metric area: AC 220 V to 240 V / 48 A, 50/60 Hz
Inch Area: AC 208 V to 240 V / 48 A, 60 Hz
Maximum power
consumption
Metric area: 10,232 W
Inch Area: 10,903 W
*Device system values besides the options that use dedicated power
cords
Weight 560 kg / 1234.6 lb (machine only)
Dimensions
1,151 mm (W) *1 x 932 mm (D) *2 x 1,620 mm (H) / 45.31" (W) *1 x
36.69" (D) *2 x 63.78" (H)
*1: Excluding the charge control unit and Cyclone Box.
*2: Excluding the controller when this unit is mounted on the rear
side.
Machine occupied
dimensions
4,789 mm (W) *1 x2,112 mm (D) *1*2 / 188.54” (W) *1 x83.15 " (D)
*1*2
(Machine + Paper Feeder Unit PF-712 + Relay Unit RU-518m +
Intelligent Quality Optimizer IQ-501 + Large Capacity Stacker LS-
507 + Finisher FS-541)
*1: Secure a space of 500 mm / 19.69" or more on the rear of the
machine and that of 100 mm / 3.94" or more in both sides of the
machine.
*2: When the Fusing Conveyance Unit is pulled out.
