Konica Minolta bizhub pro 1100 User manual

Specification & Installation Guide
bizhub PRO 1100

1
Specification & Installation Guide
bizhub PRO 1100
Engine Specifcations
Type Console Type
Color Monochrome
Method LED electrostatic copying system
Print speed
Per Minute
8.5" x 11" bw single side 100ppm
11" x 17" bw single side 56ppm
12" x 18" bw single side 52ppm
8.5" x 11" bw duplex 100ppm (50 sheets per minute)
11" x 17" bw duplex 55ppm (27.5 sheets per minute)
Per Hour
8.5" x 11" bw single side 6,000 pph
11" x 17" bw single side 3,300 pph
Duty Cycle
2,250,000 Maximum monthly copy/print volume supported under standard vendor
supplied service.
Defines the upper end of the expected customer volume for the device. Customers
should consider multiple machines if average monthly volume approaches duty cycle
oncontinual basis.
Resolution
Print 1,200 x 1,200
Scan 600 x 600
Media handling
Paper Size
Min. 182 x 139 mm (95 x 132 mm with PF-709)
Max. Standard: 324 x 463 mm
Optional: 324 x 483 mm (only with LU-411)
Paper Weight 40 – 300 gsm (up to 350 gsm with PF-709 , middle tray only)
Image Loss Leading/trailing edge: 3/2 mm or less,
Right/left edge: 2 mm or less
Max. Printable area Standard: 314 x 463 mm
(Optional: 314 x 483 mm with LU-412)
Memory
Engine Memory 8 GB (shared with the controller)
Hard Disk 1 TB (shared with the controller)
continued

2
Specification & Installation Guide
bizhub PRO 1100

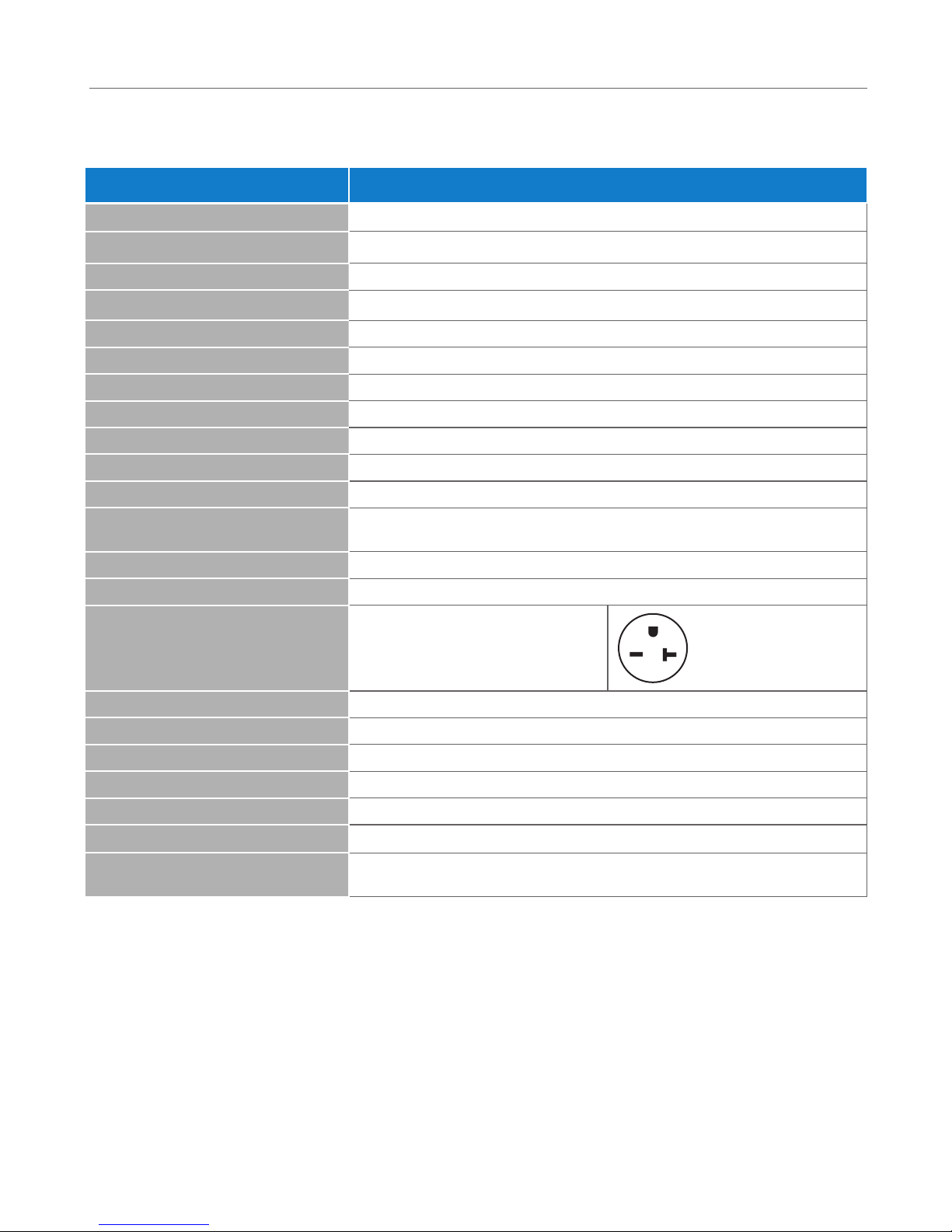

Engine Specifcations
Gradation 256 grayscale
Warm-Up Time 390 sec. or less
First-Page Output Time 3.4 sec (8.5" x 11")
Noise
Under Operation 79 dB (Lwa)
Stand-by 59 dB (Lwa)
Operation Area (Panel) LCD Touch panel (diagonal 15inch) + Hard Key
Developing Type Dual-component reverse magnetic brush development method
Transfer Type Belt transfer
Separator Type Reversing roller with torque limiter
Cleaning Type Rubber cleaning plate + rotational brush
Fusing Type Roller fusing system with halogen lamp heating and NIP technology (variable pressure),
Hard roller as standard.
Dimension(W x D x H) 39" x 35.8" x 45.7"
Main Body Weight Approx. 749.5 lbs (340 kg)
Power Source Own power supply, NEMA 6-20R
Power Requirements Single-phase three-wire AC 208 V to 240V, 16 A, 60 Hz
Power Consumption
Maximum 3,840 W or less (AC208 V to 240 V, PF-709 + Main body + FS-532)
Energy Consumption Efficiency
Environment Energy Star
Security ISO 15408 EAL3
Operating Environment Temperature 50°F to 86°F
Humidity 10% to 80%RH (with no condensation)

3
Specification & Installation Guide
bizhub PRO 1100

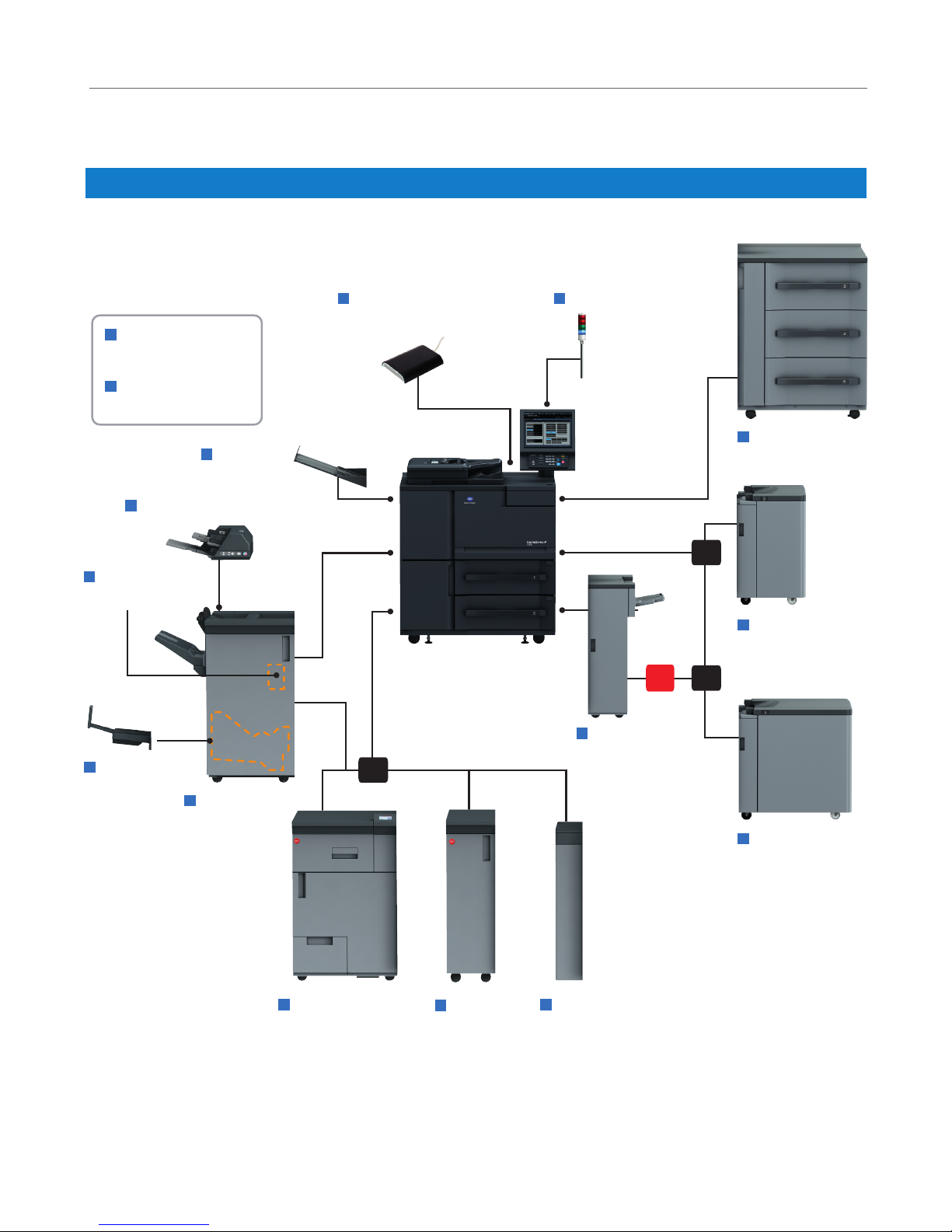

System Configurations
bizhub PRO 1100
Paper Feeder Unit
PF-709
PatliteAuthentication Unit
AU-205H
IC card type
Output Tray
OT-507
Large Capacity
Unit (up to12"x 18")
LU-412
Large Capacity
Unit (Letter)
LU-411
Multi Bypass
Tray Unit
MB-507
Removable Hard Disk
RH-101
HDD Inner-case Kit
HD-523
Must
Select Select
One
Select
One
Punch Kit
PK-522
*2
Saddle Stitcher
SD-510
*2
Finisher FS-532
All-in-one model
finisher.
*1Mount Kit MK-732 is required.
*2Cannot be used when equipped with finishers
other than Finisher FS-532.
Auto Ring Binder
GP-502
*2
Includes hole-punching
function and coil binding
function.
Multi Punch
GP-501
*2
Z Fold Unit
ZU-608
*2
Combines hole-punching
and Z folding functions.
Select
One
Post Inserter
PI-502
*1*2

4
Specification & Installation Guide
bizhub PRO 1100
MAINBODY AND PAPER INPUT
Engine PF-709 MB-507 LU-411 LU-412
X
XX
X O X
XOX
FINISHING
OT-507 GP-501 GP-502 ZU-608 FS-532 PI-502 PK-522 SD-510
X
X X O O O
X X O O O
X X O O O
X O O O
X= Must have R = Recommended O= Optional
bizhub PRO 1100 Main body
DF-702 Automatic document feeder (standard)
LU-411 Large capacity paper feed unit
LU-412 Large capacity paper feed unit
PF-709 Large capacity paper feed unit (Roller)
SD-510 Saddle stitch unit
PK-522 Punch kit
MK-732 PI-502 Relay conveyance kit
FS-532 Finisher
PI-502 Post inserter
ZU-608 Z-fold unit
HD-523 Inner HDD kit
RH-101 Removable HDD kit
AU-205H Various IC card authentication device
MB-507 Multi bypass unit
OT-507 Exit tray unit
GP-501 Multi-hole punch unit
GP-502 Ring binder
Patlite Status Light Kit For bizhub PRESS Models

5
Specification & Installation Guide
bizhub PRO 1100

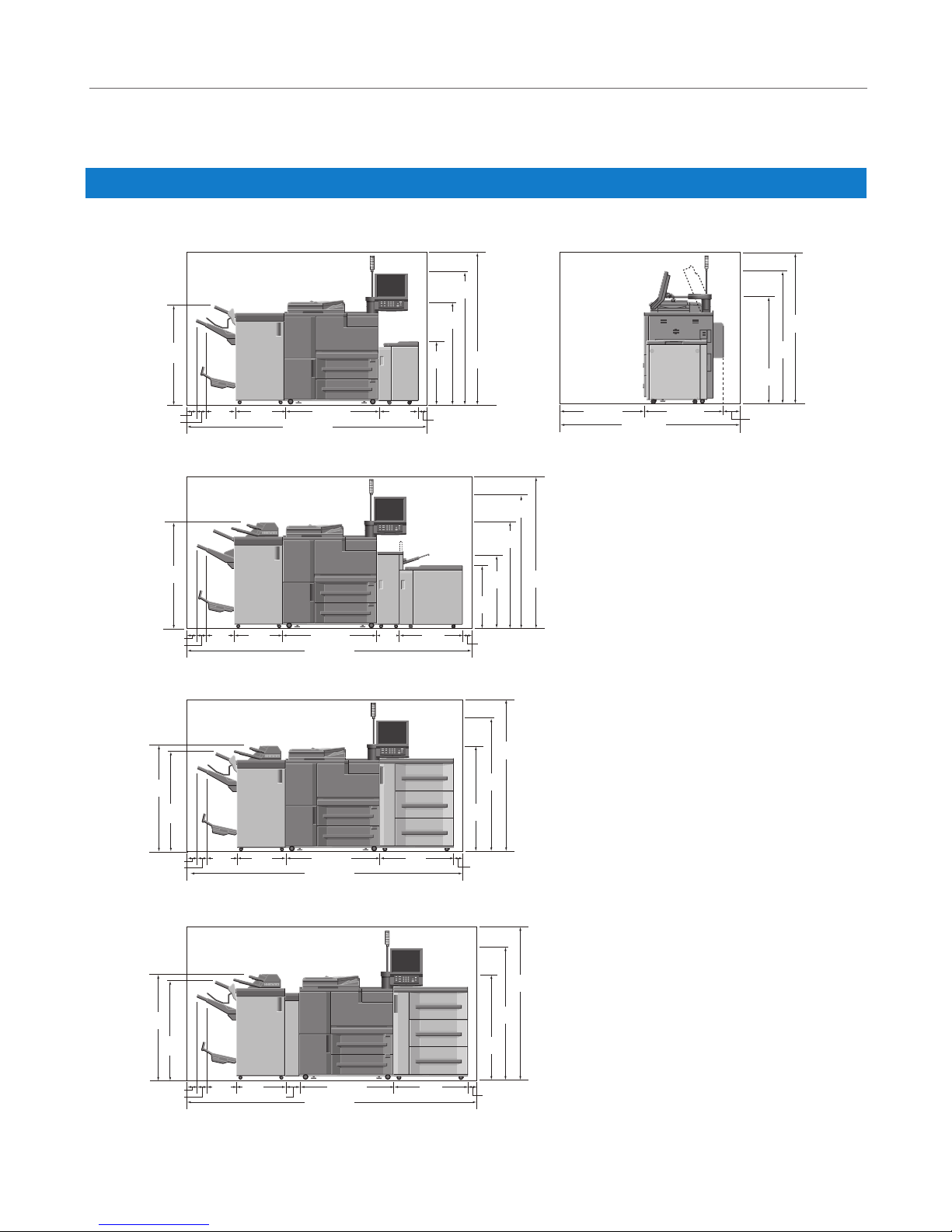

Space Requirements inches (mm)
Allow sufficient space around and behind the machine to allow for sufficient air flow, facilitating print operation, changing parts,
and periodic inspection.
Side View
bizhub PRO 1100 + Patlite + LU-412
81.10 (2,060)
35.83 (910)
7.87 (200)
45.67
(1,160)
57.24
(1,454)
57.24
(1,454)
Front View
bizhub PRO 1100 + FS-532 + SD-510 + LU-411
103.70 (2,634)
35.43 (990) 17.17
(436) 3.94 (100)
45.67
(1,160)
1,664
57.24
(1,454)
21.42
(544)
13.11
(333)
3.94 (100)
5.16 (131)
28.15
(715)
65.50
(1,664)
42.13
(1,070)
Front View
bizhub PRO 1100 + FS-532 + PI-502 + SD-510 + MB-507 + LU-412
35.43 (990)
21.42
(544)
10.32
(262)
27.56
(700)
13.11
(333)
45.67
(1,160)
1,664
57.24
(1,454)
34.65
(880)
28.15
(715)
65.50
(1,664)
3.94 (100)
3.94 (100)
5.16 (131)
124.41 (3,160)
45.67
(1,160)
Front View
bizhub PRO 1100 + FS-532 + PI-502 + SD-510 + PF-709
31.85
(809)
35.43 (990)
21.42
(544)
13.11
(333)
45.67
(1,160)
57.24
(1,454)
65.50
(1,664)
3.94 (100)
3.94 (100)
5.16 (131)
118.39 (3,007)
45.67
(1,160)
42.13
(1,070)
Front View
bizhub PRO 1100 + FS-532 + PI-502 + SD-510 + ZU-608 + PF-709
169
35.43 (990)
21.42
(544)
13.11
(333)
45.67
(1,160)
57.24
(1,454)
65.50
(1,664)
45.67
(1,160)
3.94 (100)
3.94 (100)
5.16 (131)
124.69 (3,167)
31.85
(809)
42.13
(1,070)
inch (mm)
inch (mm)
inch (mm)
inch (mm)
inch (mm)
37.40 (950)

6
Specification & Installation Guide
bizhub PRO 1100
System Specifications
Standard Paper Trays Standard
Capacity 2 x 1,500 sheets
Paper Weight 40 – 300 gsm
Paper Size
SRA3, A3, B4, ISOB4, SRA4S, A4, A4S, B5, ISOB5, B5S, A5, 12"x18", 11"x17",
9"x11", 8.5"x14", 8.5"x11", 8.5"x11"S, 5.5" x 8.5 , 8"x13", 8K, 16K, 16KS,
Custom size paper, Tab paper (A4, 8.5"x11")
Min. 182 x 139 mm
Max. 324 x 463 mm
Automatic Duplex Standard
Product Name ADU
Type Automatic duplex unit included in the main body
Media size
SRA3, A3, B4, ISOB4, SRA4S, A4, A4S, B5, ISOB5, B5S, A5, 12"x18", 11"x17",
8.5"x14", 8.5"x11", 8.5"x11"S, 5.5"x8.5", 5.5"x8.5"S) 8"x13", 8K, 16K, 16KS
Custom size paper
Min. 95 x 139 mm
Max. 324 x 483 mm
Media Type Fine, Plain, Book/News, Blank Insert
Media Weight 40 – 300 gsm
Tray Capacity Endless
continued

7
Specification & Installation Guide
bizhub PRO 1100
System Specifications
DF-702
Automatic Document Feeder Standard
Product Name DF-702
Tray Capacity 150 sheets (80 gsm)
Original Weight Simplex 35 – 210 gsm
Original Weight Duplex 50 – 210 gsm
Original Size 5.5" x 8.5" – 11" x 17"
Min. 128 x 139.7 mm
Max. 297 x 431.8 mm
Scan Speed
Full Color/600dpi Simplex: 60 ppm Duplex : 120 ppm
Black and White/600 dpi Simplex : 75 ppm Duplex : 150 ppm
Full Color/200, 300, 400 dpi Simplex : 90 ppm Duplex : 180 ppm
Black and White/200, 300, 400 dpi Simplex : 90 ppm Duplex : 180 ppm
Resolution 200 dpi, 300 dpi, 400 dpi, 600 dpi
Originals
Non-feedable originals:
OHP film, blueprint master, label paper, offset master, bonded original, fine paper of
35 – 201 gsm
Originals, feedable under certain conditions:
Recycle paper/Straw paper/Postcard/Thermal paper (Heat sensitive paper)/Multi hole
originals/Custom size originals/Coated paper/Letterhead/Folded originals (Half-folded,
Z-folded originals etc.)
Mixed Originals Yes
Dimensions (W x D x H) 24.33" x 22.63" x 5.12"
Weight Approx. 39.24 lbs (17.8 kg)
Power Source From main body
Power Consumption 78.3 W or less
RH-101 Removable HDD Kit Optional
Product Name RH-101
Type HDD housing to mount machine’s original HDDs on top of engine
Power Source From main body

8
Specification & Installation Guide
bizhub PRO 1100
System Specifications
HD-523 Inner Case kit with HDD Optional
Product Name HD-523
Type Inner HDD kit
Required For RH-101
Power Source 12 VDC, 5VDC (supplied from main body)
AU-205H IC Card Reader Optional
Product Name AU-205H
Type Various IC card certification device
Dimensions (W x H x D) 2.79" x 3.66" x 0.63"
Weight 0.25 lb.
Power Source From main body

9
Specification & Installation Guide
bizhub PRO 1100
Accessories
PF-709 Paper Feed Unit Option
Product Name PF-709
Type 3 Tray Large Capacity Paper Feeding Unit, Friction Feed
Compatibility bizhub PRO 1100
Media Size
SRA3, A3, B4, ISOB4, SRA4S, A4, A4S, B5, ISOB5, B5S, A5, 12"x18", 11"x17",
8.5"x14", 8.5"x11", 8.5"x11"S, 5.5"x8.5", 8"x13", 8K, 16K, 16KS, Custom size
paper, Tab paper (A4, 8.5"x11)
Min. 95 x 139 mm
Max. 324 x 463 mm
Media type Fine, Plain, Book/News, Blank Insert
Media Weight
40 – 300 gsm for top and bottom tray
Up to 350 gsm with center tray
Tray Capacity 2,000 sheets
Dimension (W x D x H) 31.75" x 30.75" x 41"
Weight Approx. 330.70 lbs.
Power Source From main body; DC36V, 24V, 12V, 5V
Power Consumption Less than 100 W
continued

10
Specification & Installation Guide
bizhub PRO 1100
Accessories

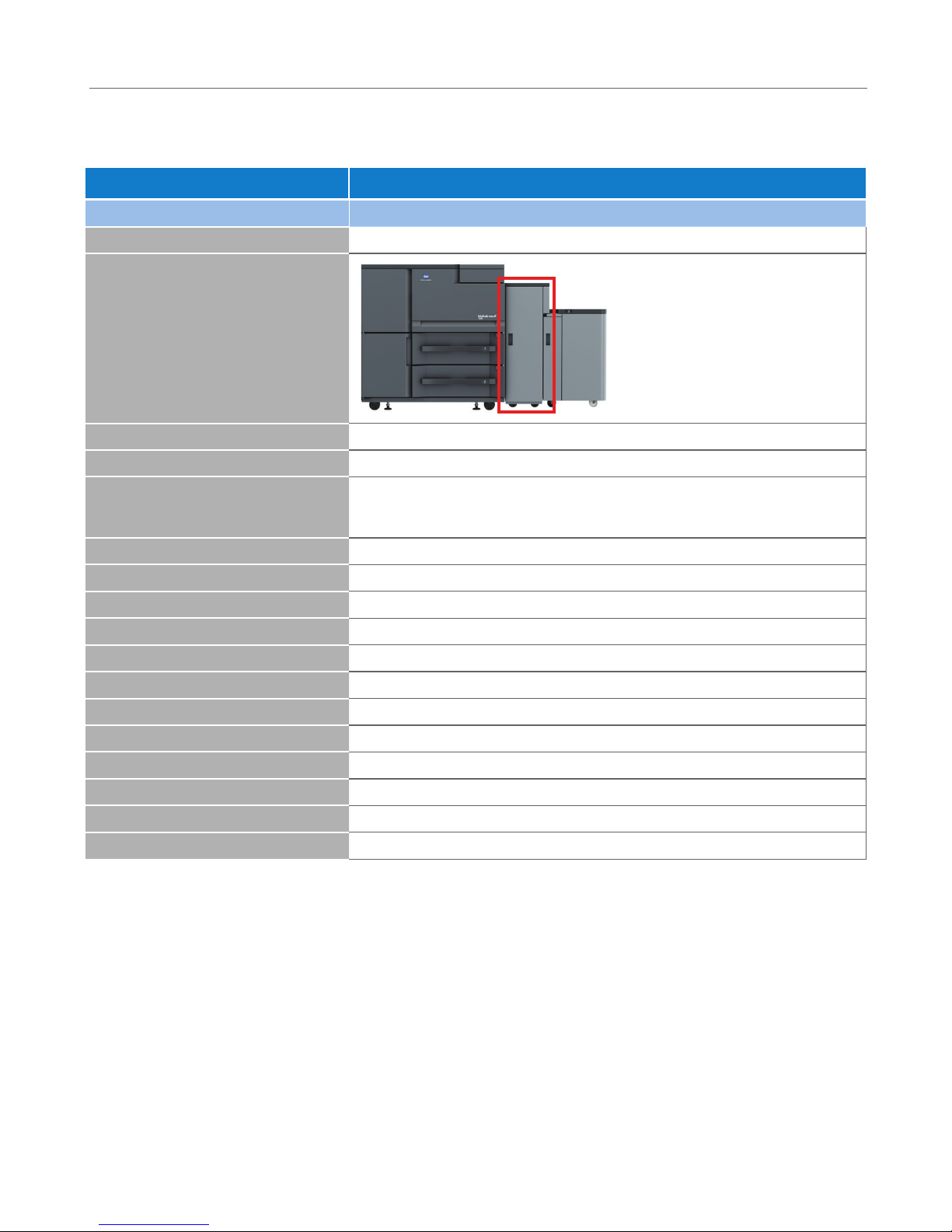

LU-411 8.5" x 11" LCT Option
Product Name LU-411
Type Large Capacity Paper Feeding Unit 8.5" x 11"
Compatibility bizhub PRO 1100
Media Size A4, B5, ISOB5, 8.5"x11", 9"x11", 16K,
Tab paper (A4, 8.5"x11"), Custom paper
Min. 250 x 176 mm
Max. 314 x 229 mm
Media Type Fine, Plain, Book/News, Blank Insert
Media Weight 40 – 300 gsm
Tray Capacity 5,000 sheets (64 gsm)
4,500 sheets (80 gsm)
Dimension (W x D x H) 17.25" x 25.25" x 28"
Weight Approx. 66.13 lbs (30 kg)
Power Source From main body
Power Consumption Less than 70W
continued

11
Specification & Installation Guide
bizhub PRO 1100
Accessories

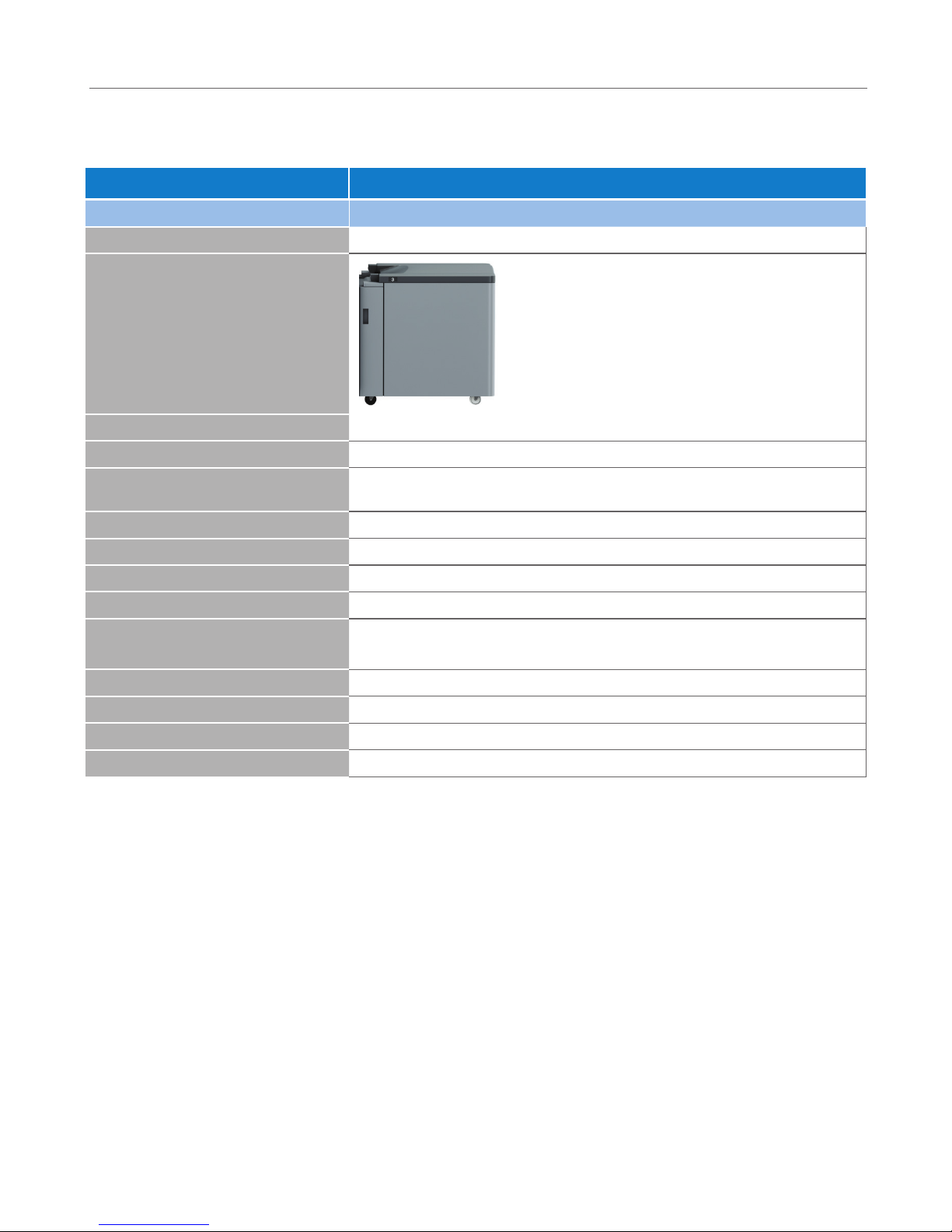

LU-412 12" x 18" LCT Option
Product Name LU-412
Type Large Capacity Paper Feeding Unit 12" x 18"
Compatibility bizhub PRO 1100
Media size SRA3, A3, B4, ISOB4, A4, A4S, SRA4S, 12"x18", 11"x17", 9"x11", 8.5"x14",
8.5" x11, 8.5"x11"S, 8"x13", 8K, Tab paper (A4, 8.5"x11") , Custom paper
Min. 195 x 203 mm
Max. 324 x 483 mm
Media Type Fine, Plain, Book/News, Blank Insert
Media Weight 40 – 300 gsm
Tray Capacity 4,500 sheets (64 gsm)
4,000 sheets (80 gsm)
Dimension (W x D x H) 28.03" x 26.16" x 27.55"
Weight Approx. 94.80 lbs (43 kg)
Power Source From main body
Power Consumption Less than 70W
continued

12
Specification & Installation Guide
bizhub PRO 1100
Accessories
MB-507 Bypass Tray Option
Product Name MB-507
Type Multi bypass unit
Compatibility bizhub PRO 1100
Media size
SRA3, A3, B4, SRA4S, A4, A4S, B5, B5S, A5, 12"x18", 11"x17", 9"x11",
8.5"x14", 8.5"x11", 8.5"x11"S, 5.5"x8.5"S) 8"x13", 8K, 16K, 16KS, Custom size
paper, Tab paper (A4, 8.5"x11")
Min. 100 x 148 mm
Max. 324 x 483 mm
Media Type Fine, Plain, Book/News, Blank Insert, Tab, Postcard
Media Weight 40 – 300 gsm
Tray Capacity 250 sheets (80 gsm)
Dimension
When the bypass is stored (W x D x H) 11.65" x 25.03" x 39.17"
When the bypass is in use (W x D x H) 23.62" x 25.09" x 34.64"
Weight Approx. 74.95 lbs. (34 kg)
Power Source From main body
Power Consumption Less than 100W
Note: For installation LU-411 or LU-412 necessary
continued

13
Specification & Installation Guide
bizhub PRO 1100
Accessories
OT-507 Output Tray Option
Product Name OT-507
Type Paper exit tray
Compatibility bizhub PRO 1100
Media Size
Min. 95 x 135 mm
Max. 324 x 463 mm
Media Type Plain, Fine
Media Weight 62 – 300 gsm
Tray Capacity 150 sheets (80 gsm)
Dimension 18.25" x 9.25" x 18"
When output tray is stored (W x D x H) 13.46" x 17.95" x 6.69"
When output tray is pulled out (W x D x H) 18.50" x 17.95" x 9.02"
Weight Approx. 4.75 lbs (tray only 1.75 lbs)
continued

14
Specification & Installation Guide
bizhub PRO 1100
Accessories
GP-501
Multi (GBC) Punching Unit Option
Product Name GP-501
Type GBC puncher
Modes By pass mode, Punch mode
Compatibility
bizhub PRO 1100
bizhub PRESS 1052, 1250P
bizhub PRESS C1060,C1070/P, C71hc, C1085, C1100
By Pass Mode
Media Size Min.: 95 – 139 mm
Max.: 324 – 483 mm
Media Weight 40 – 350 gsm
Punch Mode
Media Size 8.5" x 11"
Media Type
Media Weight Plain : 75 – 216 gsm
Other : 120 – 216 gsm
Punch Precision
Hole size: ± 2% or less
Position: ± 0.5 mm or less
Burr: ± 0.3 mm or less
Power Performance
Offset: ± 2 mm or less
Speed change: -30 ms or less
Punch trash capacity 2,500 cycle
Other Specifications
Options DS-501-DS-507
Dimension (W x D x H) 12" x 30.51" x 40.16"
Weight Approx. 176.37 lbs. (80 kg)
Power Source Own power supply 5-15R
Power Consumption Less than 500 W
continued

15
Specification & Installation Guide
bizhub PRO 1100
Accessories
DIE Set Model
DS-501 Ring Binder 3-hole,
5/16" diameter
DS-502 Plastic Bind Cerlox Standard
19-hole
DS-503 WireBind – 3:1 32-hole
DS-504 WireBind – 2:1 21-hole
DS-505 Color Coil – 4:1 44-hole
DS-506 VeloBind – 1:1 Round 11-hole
DS-507 ProClick LTR 32-Hole
continued

16
Specification & Installation Guide
bizhub PRO 1100
Accessories
GP-502 – Auto Ring Binder Option
Product Name GP-502
Type Auto Ring Binder for book creations
Modes By pass mode, Binding mode
Compatibility bizhub PRO 1100, bizhub PRESS 1052/1250/1250P
bizhub PRESS C1060,C1070/P, C71hc, C1085, C1100
By Pass Mode
Media Size Min. : 95 – 139 mm
Max.: 324 – 483 mm
Media Weight 40 – 350 gsm
Binding Mode
Media Size 8.5" x 11", 8.5" x 11" Tab
Media Type Plain, High Quality, Tab paper
Media Weight
Content pages: 75 – 120 gsm
Cover pages: 163 – 216 gsm
Inserts: 75 – 120 gsm
Numbers of Sheets Per Book From 7 to 102 sheets (75 gsm); up to 96 sheets (80 gsm)
Bound Book Capacity
Main text: 75 gsm, Cover sheet: 216 gsm
7 sheets booklet: 30 books or less
20 sheets booklet: 25 books or less
102 sheets booklet: 8 books or less
Other Specifications
Options RB-101 (GBC Ellipse binding elements)
Colors: Black, Navy Blue, White, Clear
Dimension (W x D x H) 25.70" x 37.10" x 41.30"
Weight Approx. 425 lbs (193 kg)
Power Source Own power supply, NEMA 5-15R
Power Consumption 190W or less
continued

17
Specification & Installation Guide
bizhub PRO 1100
Accessories

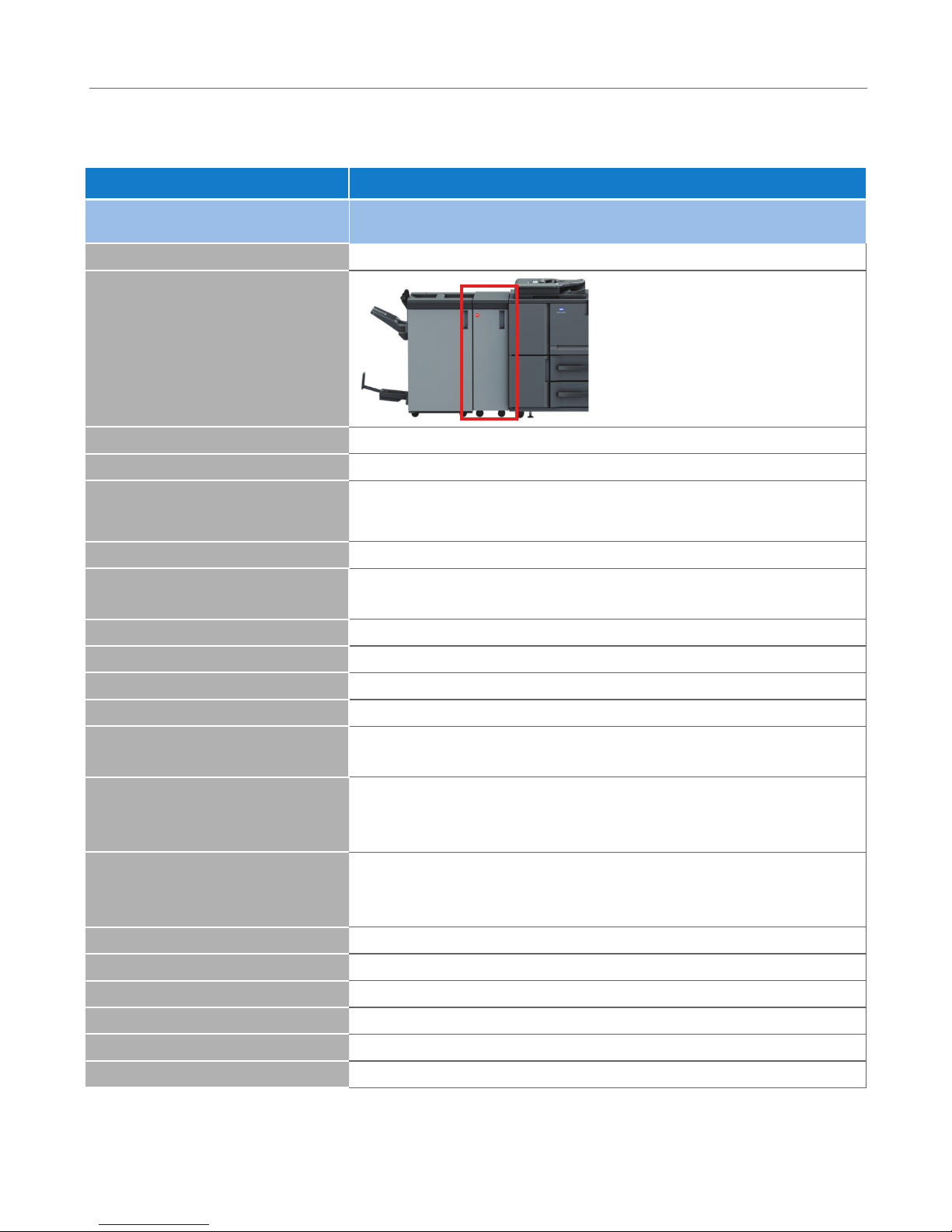

ZU-608 – Z-Fold Unit
Product Name ZU-608
Type Folding device for Z-Fold and Punching
Modes Straight Mode, Fold Mode
Compatibility bizhub PRO 1100
Straight Mode
Media Size Min. 95 x 139 mm
Media Size Max. 324 x 383 mm
Media Type Fine, Plain, Book/News, Blank Insert
Media Weight 40 – 350 gsm
Fold Mode
Function Z-Fold
Media Size A3, B4, 11"x17", 8.5"x14", 8K
Media Type Plain, Fine
Media Weight 60 – 91 gsm
Punch Mode
Function 2 and 3 hole punching
Media Size A3, B4, ISOB4, SRA4S, A4, A4S, B5, ISOB5, B5S, A5, 11"x17", 9"x11", 8.5"x14",
8.5"x11", 8.5"x11"S, 5.5"x8.5", 8.5"x8.5"S,*1, 8"x13", 8K, 16K, 16KS
Media Type Plain, Fine
Media Weight 60 – 91 gsm
Other Specification
Dimension (W x D x H) 6.65" x 25.98" x 36.61"
Weight Approx. 84 lbs (38kg)
Power Source From main body
Power Consumption Less than 120VA
continued

18
Specification & Installation Guide
bizhub PRO 1100
Accessories

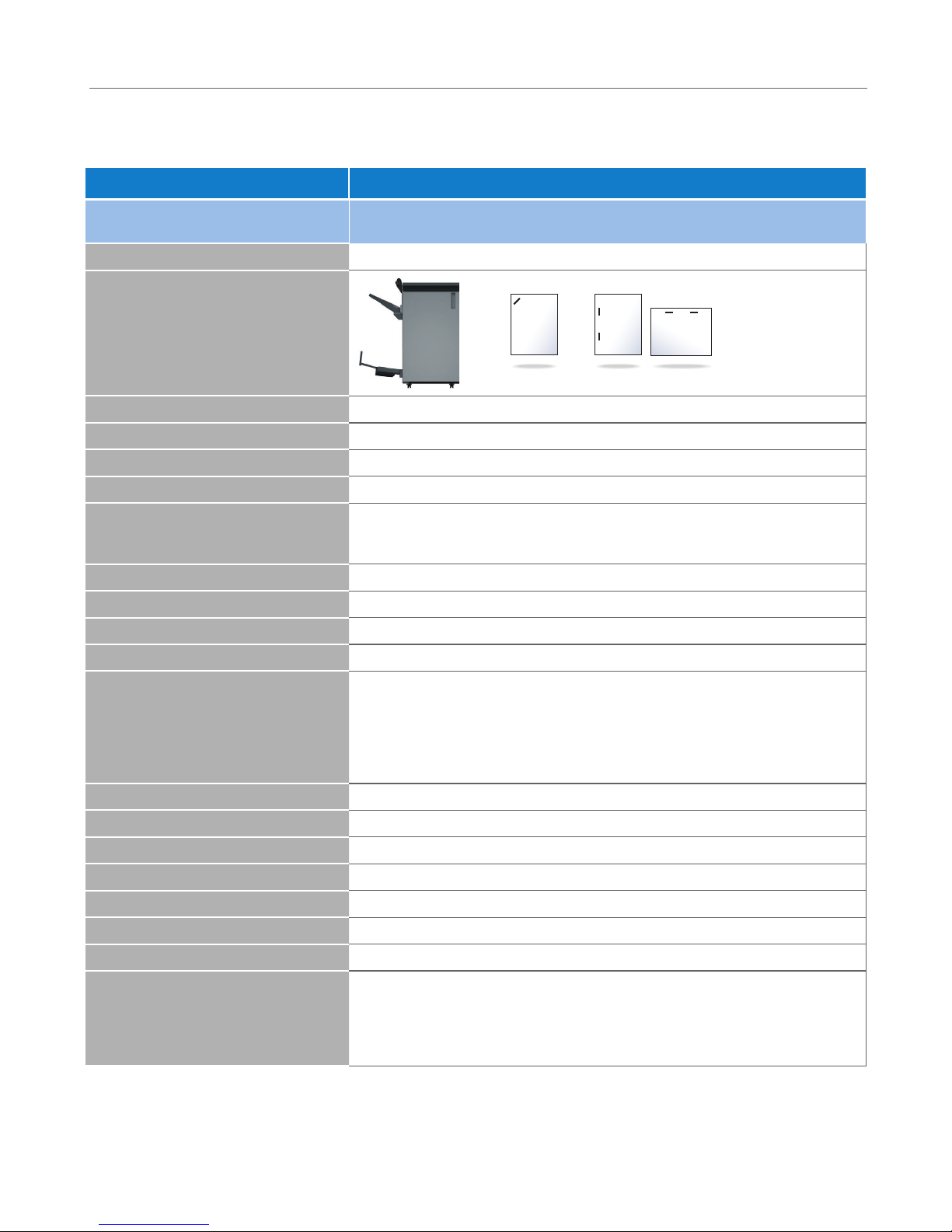

FS-532
Staple Finisher with AiO Options Option
Product Name FS-532
Corner Staple 2-point Staple (side)
Type The Finisher with Staple Function with All in One Options
Compatibility bizhub PRO 1100, bizhub PRESS 1052/1250/1250P
Straight Exit Mode
Function Exit paper without treatment on the main tray
Media Size
SRA3, A3, B4, ISOB4, SRA4S, A4, A4S, B5, ISOB5, B5S, A5, 12"x18", 11"x17",
9"x11", 8.5"x14", 8.5"x11", 8.5"x11"S, 5.5"x8.5", 8"x13", 5.5" x 8.5S, 8K,
16K, 16KS, Tab paper (A4, 8.5"x11")
Min. 95 x 139 mm
Max. 324 x 483 mm
Media Type Fine, Plain, Book/News, Blank Insert
Media Weight 40 – 350 gsm
Tray Capacity
Without SD-510
Printing direction length
320 mm or longer 2,000 sheets
250 to 319 mm 4,200 sheets
249 mm or shorter 750 sheets
(Paper weight 72 to 81 gsm)
Off Set Mode
Function Exit Paper Each set copy 15 mm shift on the main tray.
Media Size
Min. 95 x 133 mm
Max. 324 x 483 mm
Media Type Fine, Plain, Book/News, Blank Insert
Media Weight 40 – 350 gsm
Tray Capacity
Printing direction length
320 mm or longer 1,500 sheets
250 to 319 mm 1,500 sheets
249 mm or shorter 750 sheets
(Paper weight 72 to 81 gsm )
continued

19
Specification & Installation Guide
bizhub PRO 1100
Accessories
Staple Mode
Function After staple, exit the paper on the man tray
Media size
SRA3, A3, B4, ISOB4, SRA4S, A4, A4S, B5, ISOB5, A5, 12"x18", 11"x17", 9"x11",
8.5"x14", 8.5"x11", 8.5"x11"S, 5.5"x8.5", 8"x13", 8K, 16K, Tab paper*2 (A4,
8.5"x11"), Custom size
Min. 139 x 203 mm
Max. 324 x 483 mm
Media Type Fine, Plain, Book/News, Blank Insert
Media Weight 50 – 300 gsm
Staple Page
FS-532 Staple Capability
Number of staple sheets
Plain
Fine
Plain Paper/Except Fine
Media Weight
less than
400 mm
400 mm
or more
320 mm
or less
321 to
399 mm
400 mm
or more
less than
400 mm
400 mm
or more
40–49 gsm –––––––
50–61 gsm
100
50
50
20
–
35
35
62–74 gsm
100
50
50
20
–
35
35
75–80 gsm
100
50
30
30
30
35
35
81–91 gsm
60
50
30
30
30
35
35
92–135 gsm
50
50
30
30
30
30
30
136 –162 gsm
40
40
30
30
30
25
25
163–216 gsm
25
25
25
25
25
20
20
217–244 gsm
25
25
25
25
25
15
15
245–300 gsm
10
10
10
10
10
10
10
301–350 gsm
–
–
–
–
–
–
–
Staple Position
1 position of parallel staple at front corner
2 position
1 position of 45º staple at rear corner
Tray Capacity
2 – 9 stapled sheets: 150 sets (paper length max: 364 mm)
75 sets (less than 182 and more than 364mm)
10 - 20 stapled sheets: 50 sets
21 - 30 stapled sheets: 30 sets
31 - 40 stapled sheets: 25 sets
41 - 50 stapled sheets: 20 sets
51 - 60 stapled sheets: 15 sets
61 - 100 stapled sheets: 10 sets
Sub Tray Mode
Function Exit paper without treatment on the sub tray.
Media Size
Min. 95 x 139 mm
Max. 324 x 483 mm
Media Type Fine, Plain, Book/News, Blank Insert
Media Weight 40 – 350 gsm
Tray Capacity 300 sheets
continued
