Firmware Updater Guide
magicolor 1650EN
magicolor 2550/2550DN
magicolor 4650EN/4650DN
magicolor 4750EN/4750DN
magicolor 5450
magicolor 5550/5570
magicolor 5650EN/5670EN
magicolor 7440
magicolor 7450
magicolor 7450II
magicolor 4695MF

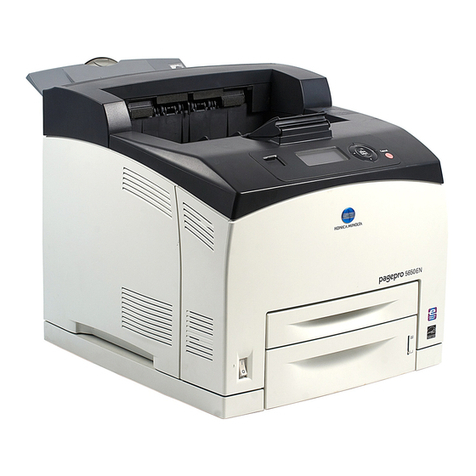

pagepro 4650EN/5650EN
bizhub C30P
4138-9560-09A

Contents i
Contents
1 Updating the Firmware (for Windows) ............................................................ 1
System Requirements 2
Starting the Firmware Updater 3
For a Network Connection 6
If Spooling of the Data Fails 8
For a Local Connection 10
If Spooling of the Data Fails 12
When Specifying the IP Address of the Printer 14
If Transferring of the Data Fails 16
2 Updating the Firmware (for Macintosh) ........................................................ 17
System Requirements 18
Starting the Firmware Updater 19
If Transferring of the Data Fails 23

Contentsii

1Updating the
Firmware
(for Windows)

System Requirements2
System Requirements
Computer:
– PC with a Pentium 2, 400 MHz or faster processor
(A Pentium 3, 500 MHz or faster processor is recommended.)
Operating system:
– Microsoft Windows XP Home Edition/Professional, Windows 2000,
Windows Vista Home Basic/Home Premium/Business/Enterprise/
Ultimate
Available hard disk space:
– Approximately 20~26 MB
Memory:
– 128 MB or more
Interface:
– 10Base-T/100Base-TX/1000Base-T Ethernet
– USB 2.0 (High Speed) compliant
– Parallel (IEEE 1284)
Compatible printer:
– magicolor 1650EN
– magicolor 2550/2550DN
– magicolor 4650EN/4650DN
– magicolor 4750EN/4750DN
– magicolor 5450
– magicolor 5550/5570
– magicolor 5650EN/5670EN
– magicolor 7440
– magicolor 7450
– magicolor 7450II
– magicolor 4695MF
– pagepro 4650EN/5650EN
– bizhub C30P

Starting the Firmware Updater 3
Starting the Firmware Updater
CAUTION
You must have administrator privileges in order to update the firmware.
CAUTION
Before starting the firmware updater, turn on the printer, and make sure
that it is correctly connected.
CAUTION
When the firmware is updated, the printer control panel settings may
return to their defaults. Before starting the firmware updater, be sure to
print the configuration page to check the settings. For details on
printing the configuration page, refer to the printer’s User’s Guide.
CAUTION
Do not perform any of the following operations while updating the
firmware.
– Turn off the printer.
– Turn off the computer running the firmware updater.
– Exit the firmware updater.
– Send a print job to the printer from any other computer on the net-
work.
" If the User Account Control window appears when installing on Win-
dows Vista, click Allow button or the Continue button.
The following procedure describes how to update the firmware for magicolor
5450. Follow the same procedure to update the firmware for magicolor
1650EN, magicolor 2550/2550DN, magicolor 4650EN/4650DN, magicolor
4750EN/4750DN, magicolor 5550/5570, magicolor 5650EN/5670EN, magi-
color 7440, magicolor 7450, magicolor 7450II, magicolor 4695MF, pagepro
4650EN/5650EN and bizhub C30P.
1Download the firmware updater from the web site.
2Double-click “5450Gxxxxxxxx.exe”.

Starting the Firmware Updater4
3The printer name and firmware version are displayed. Click the [Next] but-
ton.
4The license agreement is displayed. Select “I agree”, and then click the
[Next] button.

Starting the Firmware Updater 5
5The list of printer drivers is displayed. Select the appropriate connection
for the environment where the printer is being used.
" If you select “Network port” or “Local port”, make sure that the
printer driver has been installed.
If you select “Printer IP address”, the firmware can be updated even
if a printer driver is not already installed.
For a Network Connection Select “Network port”. →Continue
with page 6.
For a Local Connection Select “Local port”. →Continue with
page 10.
When Specifying the IP Address of
the Printer Select “Printer IP address”. →Con- tinue with page 14.

For a Network Connection6
For a Network Connection
When “Network port” is selected, a list of printer drivers for the network port
appears.
1Select the printer driver, and then click the [Next] button.
2A message appears, requesting confirmation to update the firmware.
Click the [Start] button to begin transferring the firmware.

For a Network Connection 7
3The result of the firmware transfer is displayed. Click the [Exit] button.
" If the firmware was successfully updated, the printer will automatically
restart.
Do not turn off the printer while its firmware is being updated.
4Print the configuration page from the printer’s control panel to check the
settings.
" When the firmware is updated, the printer control panel settings may
return to their defaults. Refer to the configuration page that was previ-
ously printed to reset the settings from the printer’s control panel.
" For details on printing the configuration page and using the printer’s
control panel, refer to the printer’s User’s Guide.

For a Network Connection8
If Spooling of the Data Fails
If spooling of the data fails, the following message appears.
" If spooling fails, data may remain in the printer spooler. Delete this
data, and then try again.
– (Windows Vista)
Click “Control Panel” in the Start menu, then Printers, and then
double-click the appropriate printer icon. Select “5450Gxxxxxxxx”
below “Document Name”, and then click “Cancel All Docu-
ments” in the Printer menu or “Cancel” in the Document menu.
– (Windows XP)
Click “Printers and Faxes” in the Start menu, and then dou-
ble-click the appropriate printer icon. Select “5450Gxxxxxxxx”
below “Document Name”, and then click “Cancel All Docu-
ments” in the Printer menu or “Cancel” in the Document menu.
– (Windows 2000)
Click “Printers” in the Start menu, and then double-click the
appropriate printer icon. Select “5450Gxxxxxxxx” below “Docu-
ment Name”, and then click “Cancel All Documents” in the
Printer menu or “Cancel” in the Document menu.
1Click the [OK] button.

For a Network Connection 9
2Check that the printer is ready and that it is correctly connected, and then
click the [Update again] button.

For a Local Connection10
For a Local Connection
When “Local port” is selected, a list of printer drivers for the local port
appears.
1Select the printer driver, and then click the [Next] button.
2A message appears, requesting confirmation to update the firmware.
Click the [Start] button to begin transferring the firmware.

For a Local Connection 11
3The result of the firmware transfer is displayed. Click the [Exit] button.
" If the firmware was successfully updated, the printer will automatically
restart.
Do not turn off the printer while its firmware is being updated.
4Print the configuration page from the printer’s control panel to check the
settings.
" When the firmware is updated, the printer control panel settings may
return to their defaults. Refer to the configuration page that was previ-
ously printed to reset the settings from the printer’s control panel.
" For details on printing the configuration page and using the printer’s
control panel, refer to the printer’s User’s Guide.

For a Local Connection12
If Spooling of the Data Fails
If spooling of the data fails, the following message appears.
" If spooling fails, data may remain in the printer spooler. Delete this
data, and then try again.
– (Windows Vista)
Click “Control Panel” in the Start menu, then Printers, and then
double-click the appropriate printer icon. Select “5450Gxxxxxxxx”
below “Document Name”, and then click “Cancel All Docu-
ments” in the Printer menu or “Cancel” in the Document menu.
– (Windows XP)
Click “Printers and Faxes” in the Start menu, and then dou-
ble-click the appropriate printer icon. Select “5450Gxxxxxxxx”
below “Document Name”, and then click “Cancel All Docu-
ments” in the Printer menu or “Cancel” in the Document menu.
– (Windows 2000)
Click “Printers” in the Start menu, and then double-click the
appropriate printer icon. Select “5450Gxxxxxxxx” below “Docu-
ment Name”, and then click “Cancel All Documents” in the
Printer menu or “Cancel” in the Document menu.
1Click the [OK] button.

For a Local Connection 13
2Check that the printer is ready and that it is correctly connected, and then
click the [Update again] button.

When Specifying the IP Address of the Printer14
When Specifying the IP Address of the
Printer
When “Printer IP address” is selected, the “Printer IP address” box
becomes available.
1Type in the IP address, and then click the [Next] button.
2A message appears, requesting confirmation to update the firmware.
Click the [Start] button to begin transferring the firmware.

When Specifying the IP Address of the Printer 15
3The result of the firmware transfer is displayed. Click the [Exit] button.
" If the firmware was successfully updated, the printer will automatically
restart.
Do not turn off the printer while its firmware is being updated.
4Print the configuration page from the printer’s control panel to check the
settings.
" When the firmware is updated, the printer control panel settings may
return to their defaults. Refer to the configuration page that was previ-
ously printed to reset the settings from the printer’s control panel.
" For details on printing the configuration page and using the printer’s
control panel, refer to the printer’s User’s Guide.

When Specifying the IP Address of the Printer16
If Transferring of the Data Fails
If transferring of the data fails, the following message appears.
1Click the [OK] button.
2Check that the printer is ready and that it is correctly connected, and then
click the [Update again] button.
