INSTALLATION MANUAL
A797-9601-01
Applied Machines: /
<Important>
Be sure to correctly follow the procedures in order as explained in this Installation Manual.
If you do not follow the procedure in order, the image trouble may occur.
1. Outline of installation procedures
When installing the main body and associated options as a system, follow the order shown on the upper.
Caution:
• Lifting the main body in an awkward position or transporting it in a poorly balanced position could result in
personal injury. When transporting the main body, assign an adequate number of persons to the job and
ensure that each person can take a good position of not being excessively loaded.
(mass: approx. 72 kg (158-3/4 lb))
Note:
• For the detailed installation procedures for each option, follow the instructions given in the corresponding
installation manual and perform the procedures correctly.
• When placing the main body on the floor, make sure to use the paper feed cabinet or the desk to secure
the performance and the quality of the product.
• To use this machine, install the reverse automatic document feeder or the original cover.
• Once the Power Switch is turned ON, do not turn OFF it until the installation work has been completed.
Machine
MK-734
KH-102
HD-522*
AU-102
AU-201S
PC-214 PC-414 DK-514PC-114
PK-519
FK-513
MK-748
UK-211
MK-602 FS-533
KP-101
SP-501
HT-509
DF-628 OC-514
RU-514
PK-520
FS-534JS-506 FS-534SD
MK-735
WT-506
EK-608 EK-609
UK-212
CU-101
MK-603
*: Varies depending on the
applicable marketing area

E-2
2. Installation space (unit: mm (inch))
bizhub C287 + DF-628 + PC-214 + FS-534
+ MK-748/CU-101
3. Pre-installation check items
(1) Select a level and stable place for installing the
machine.
(2) Be sure to use a power source of the voltage and
frequency indicated in the product specifications.
Ensure that the current carrying capacity of the
power outlet is at least equal to the current listed
in the product specifications.
(3) Power the machine directly from a dedicated
power outlet. (Do not use an extension cord.)
(4) Do not plug or unplug the power cord with wet or
dirty hands, otherwise you may get an electric
shock.
(5) Avoid a hot and humid environment, or a place
exposed to direct sunlight.
(6) Avoid a dusty location, or a place near volatile
and flammable substances.
(7) Avoid a poorly ventilated place.
4. Notes on using touch panel
Be sure to instruct users on the following points.
• Pressing the touch panel hard may cause dam-
age.
• Do not strongly press the panel or press it using
the sharp tip of mechanical pencils.
585
(23-1/16)
493
(19-7/16)
1724
(67-7/8)
646
(25-7/16)
1216
(47-7/8)
430
(16-15/16)
660
(26)
1561
(61-7/16)
528
(20-13/16)
779
(30-11/16)
254
(10)
126
(4-15/16)

E-3
5. Accessory parts
* Varies depending on the applicable marketing
area.
* Power supply: 120V 12A, 220-240V 8A
Note:
This manual provides the illustrations of the acces-
sory parts and machine that may be slightly differ-
ent in shape from yours. In that case, instead of
the illustrations, use the appearance of your
machine to follow the installation procedure. This
does not cause any significant change or problem
with the procedure.
6. Installing the main body and the Paper
Feed Cabinet (or the Desk)
(1) Take the main body and the Paper Feed Cabinet
(or the Desk) out from its packaging.
Caution:
Main body mass: approx. 72 kg (158-3/4 lb)
Make available collective manpower of an appro-
priate size for transporting the main body.
Note:
Remove the main body, holding it by the locations
on the left side and the handles on the right side
as shown in the illustration and keeping it level.
(2) Refer to the installation manual for the Paper
Feed Cabinet (or the Desk) and follow the
“Installation Procedures.”
Note:
If installing the Heater HT-509 and the Power Sup-
ply BOX MK-734, install them at the same time as
the installation of the Paper Feed Cabinet (or the
Desk).

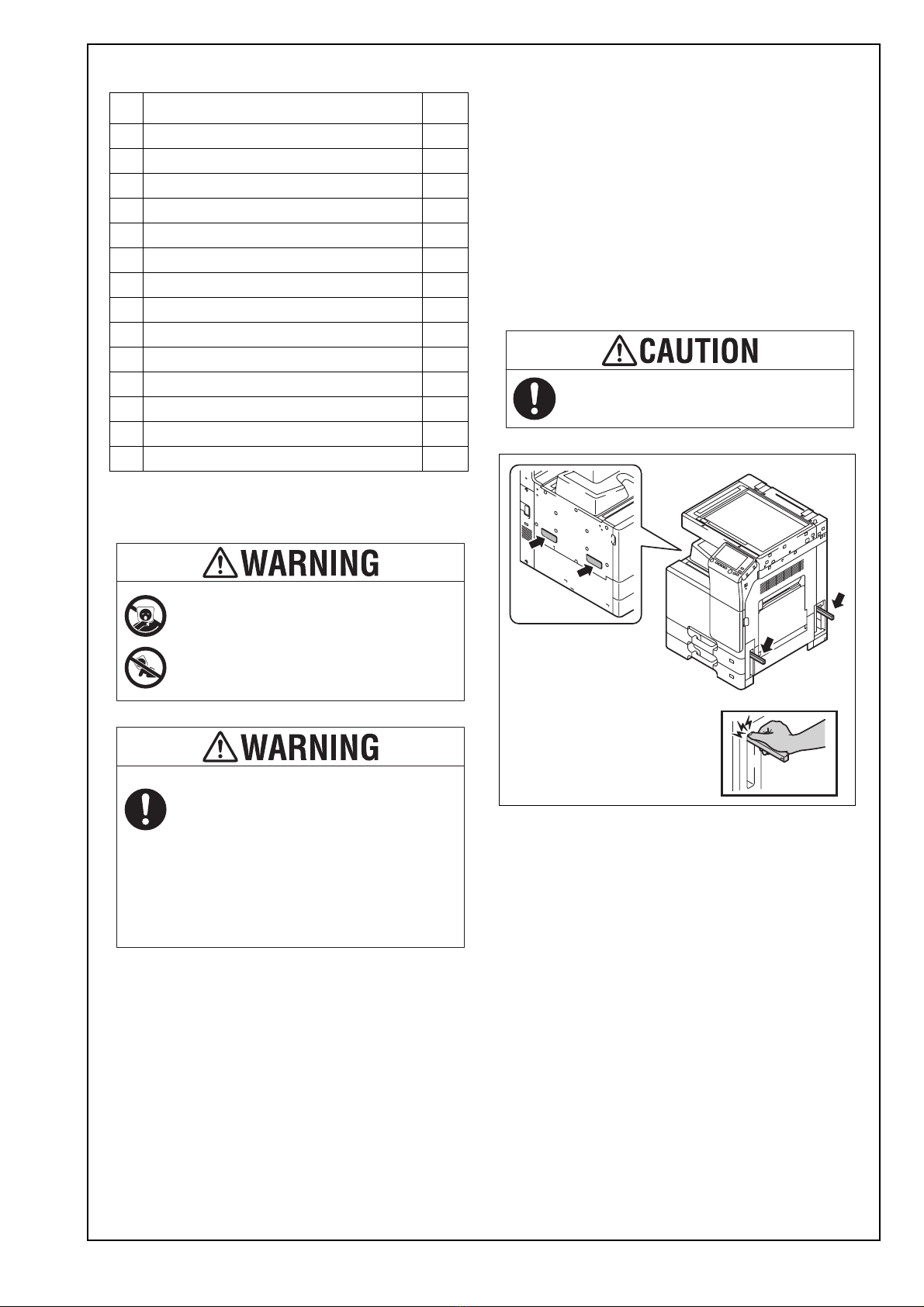

No. Name Q’ty
1. User’s guide holder 1
2. Quick start guide 1
3. Installation manual 1 set
4. User’s guide CD 1
5. CD-ROM 1 set
6. Paper size label 1
7. Panel sheet 1
8. Blank label 1
9. Power cord * 1
10. Connector cover 1
11. Duct cover 1
12. Screw 1
13. Stylus pen 1
14. Waste toner box 1
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.
If a power cord is not supplied, use only
the power cord that meets the following
conditions.
Failure to do this could result in a fire or
electrical shock.
• The power cord has voltage and current rating
appropriate for the rating plate on this machine.
• The power cord meets regulatory requirements
for the area.
• The power cord is provided with grounding
pin/terminal.
When holding the transportation handles,
be careful not to catch your fingers in the
machine.

E-4

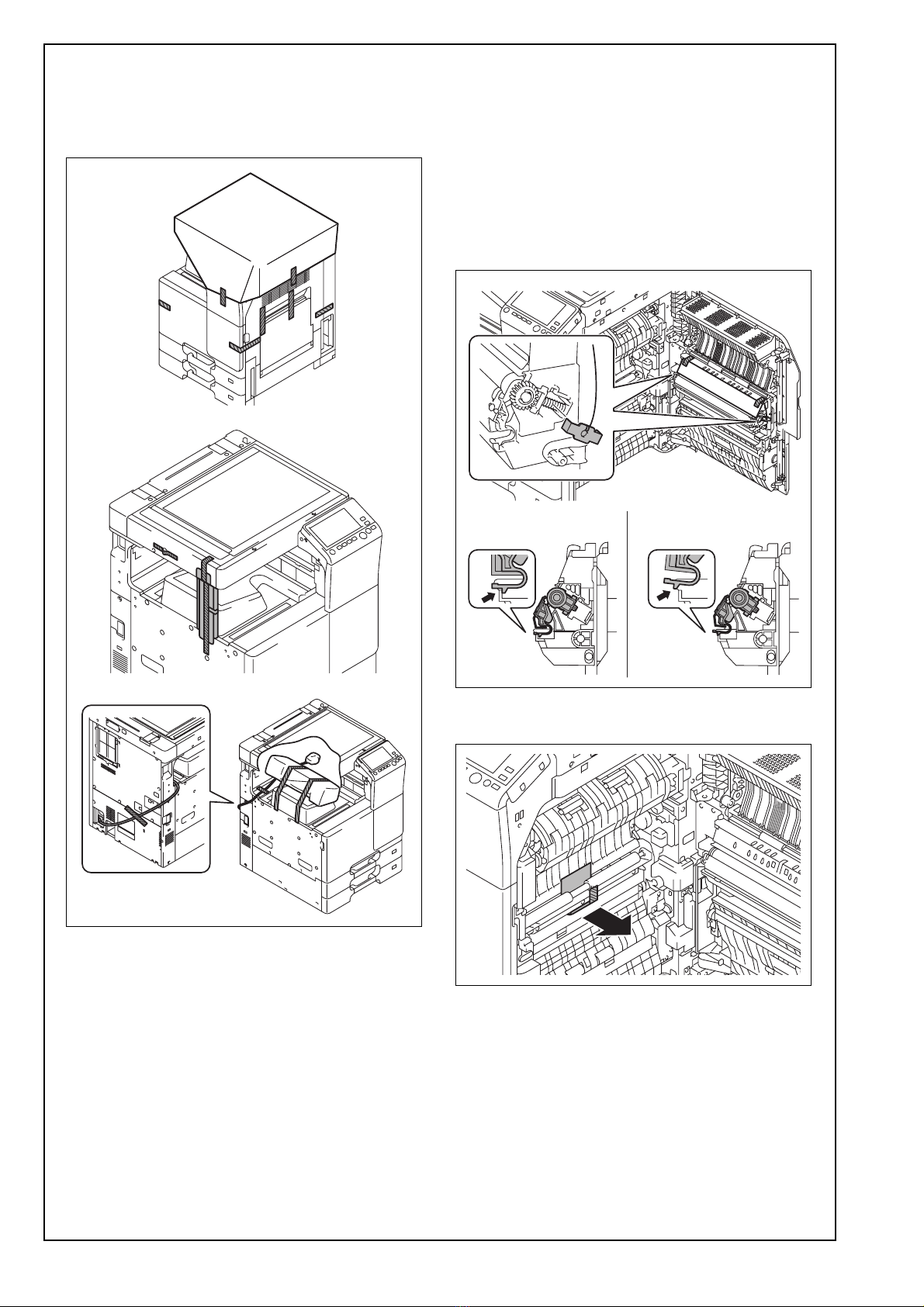

7. Removing protective tape, packing and
other shipping materials
(1) Remove the protective tape and the protective
materials.
(2) Open the right door and remove the locking
materials.
Note:
• After removing the locking materials, make sure
that the transfer roller assy is secured in place.
In the case of <NG>, press the transfer roller
assy into place so that it is secured as shown in
<OK>.
• Save the locking materials removed in this and
subsequent steps of (11) and (15) for later use
when transporting the machine.
(3) Remove the protective sheet as shown in the
illustration.
< OK > < NG >

E-5
(4) Move the fusing adjustment lever down to the
printing position (bottom).
(5) Close the right door.
(6) Remove the protective film from the control
panel.
(7) Slide out the tray 1.
(8) Remove the protective tape from the inside of
the tray 1 and remove accessory parts.
(9) Slide out the tray 2.
(10) Remove the protective tape from the inside of
the tray 2 and remove accessory parts.
(11) Remove the locking material at the left side of
the scanner unit.
(12) Affix the supplied blank label.
(13) Open the front door.

E-6
(14) Remove the protective tape.
(15) Remove the locking materials from the four
places.
(16) Release the lever of the drum unit (K).
(17) Slightly slide the drum unit (K) out and remove
the protective tape and protective material.
(18) Slide the drum unit (K) into the machine.
(19) Lock the drum unit (K) with the lever.
(20) Install the supplied waste toner box.
Note:
• Push the areas indicated by the “ ” marks to
set the waste toner box to the machine.
• Check the levers on the left and right sides that
it is securely locked.

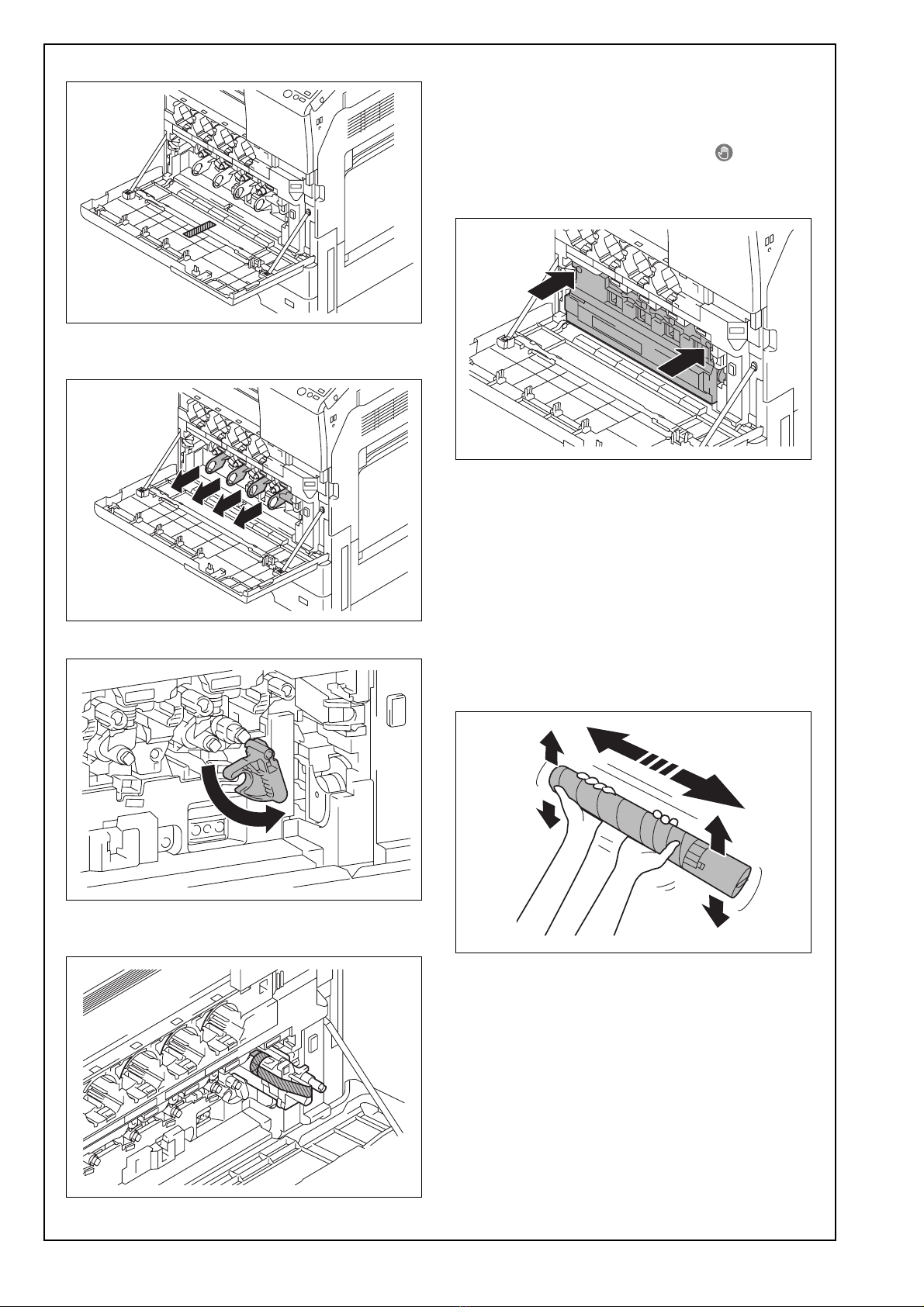

8. Installing the toner cartridge
Note:
Since a toner cartridge is not supplied with the
machine, purchase one (of different colors) sepa-
rately.
(1) Shake the toner cartridge up and down and left
to right 5 to 10 times respectively.
Note:
Shake the cartridge adequately. Otherwise, it may
cause trouble.

E-7
(2) Insert the toner cartridge into the machine.
Note:
• Make sure that the color is same between
inserting port and the toner cartridge.
• Make sure that the blue label position of the
toner cartridge is matched with the one of the
machine side.
(3) Push the toner cartridge all the way in and rotate
it clockwise to lock it.
Note:
Make sure that the toner cartridge is pushed all the
way in.
(4) Using the same procedure, install the toner car-
tridges for other colors of toner.
(5) Close the front door.
9. Installing other options
To install other options, refer to the installation man-
ual for each option and follow the “Installation Proce-
dures.”
10. Mounting the accessory parts
(1) Set the stylus pen in the place shown in the illus-
tration.
(2) Attach the supplied connector cover to the
machine. (One supplied screw)
(3) Attach the supplied duct cover.

E-8
11. Connecting the power cord
(1) Connect the power cord.
Note:
This may not be performed depending on the
applicable marketing area.
(2) Plug the power cord into the power outlet.
12. Starting the machine
Turn ON the power switch on the right side of the
main body.
13. Date & Time Setting/Time Zone Setting
(Service Mode)
(1) Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
(2) Display the Date & Time Setting/Time Zone Set-
ting screen.
(To display the Date & Time Setting/Time Zone
Setting screen, press Stop →3 on the control
panel.)
(3) Do not input date and time but touch “Entry” of
the Date & Time Setting.
(4) Input the time zone using up/down keys or direct
keys.
(5) Touch “Entry” of the Time Zone Setting.
(6) Touch “Apply.”
(7) Touch “OK.”
(8) Touch “Next.”
14. Serial number input
Note:
Serial number input is, if necessary, needed only
for the optional devices installed in “9. Installing
other options.”
(1) Touch the item you want to enter and input the
serial number.
(2) Touch “END.”
(3) For other devices, enter their serial number in
the same way.
(4) Touch “END.”
(5) Touch “Next.”
15. Unit change
Note:
This function allows the user to select the type of
message that will appear when the replacement
time arrives for each of the different units.
(1) Select the appropriate message type for each
unit.
(2) Touch “Service.”
Use the appropriate power cord.
Failure to do this could result in a fire or
electrical shock.

E-9
16. Performing Non-Image Area Erase
Check
Note:
Perform the below at the site where customer
uses the machine.
(1) Select the Non-Image Area Erase Check func-
tion as follows:
Machine →Non-Image Area Erase Check.

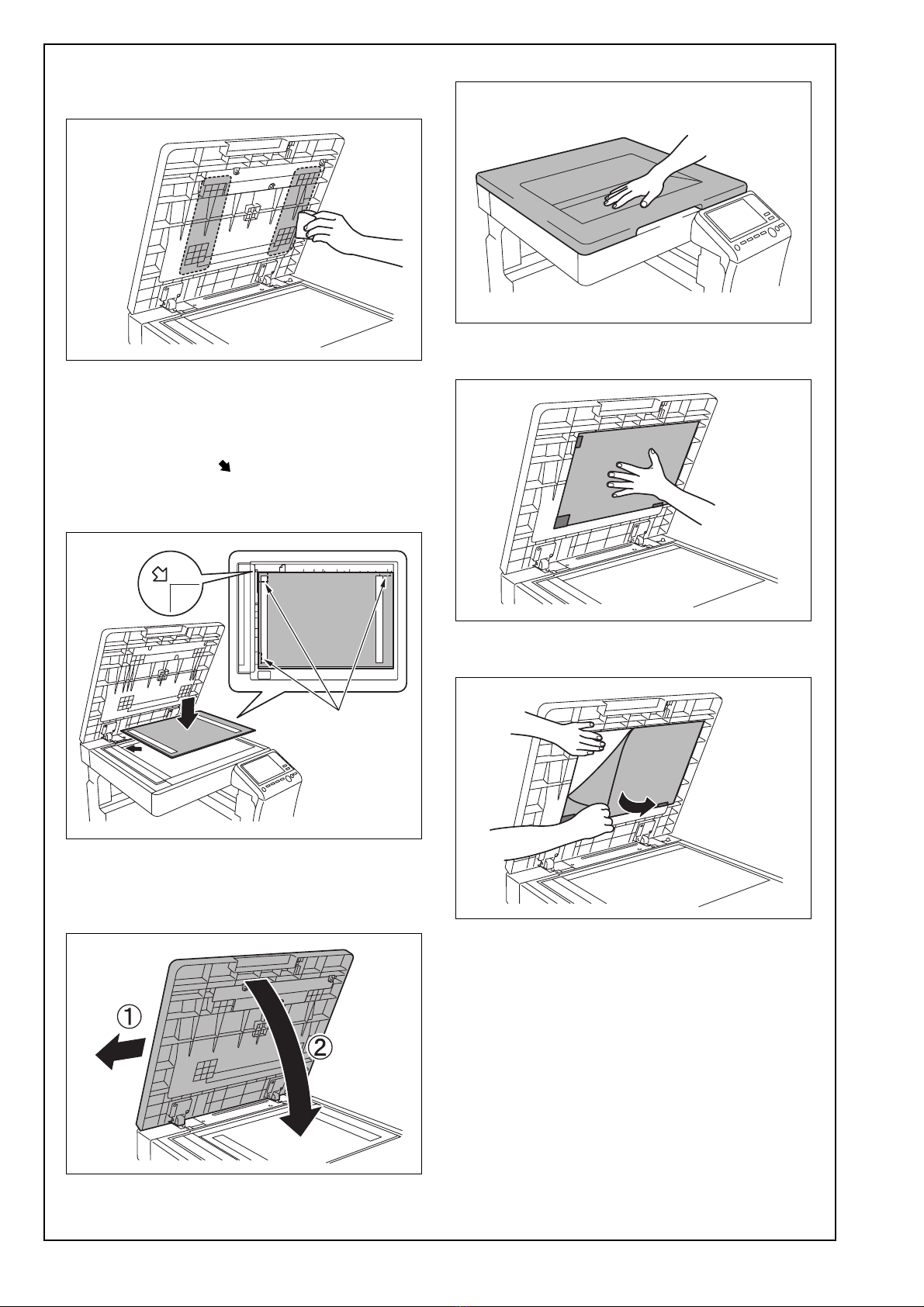

(2) Open fully the reverse automatic document
feeder or the original cover if loaded.
Note:
• Do NOT place a document on the document
glass.
• Clean the document glass if dirty.
(3) Press the Start key.
(4) Make sure that “Result” is “OK.”
Note:
If “Result” is “NG1” or “NG2”, review the place and
direction of installation, or take measures to block
the light source (by covering it, etc.), then perform
installation checking again.
(If a fluorescent light or other bright light sources
exist right above the machine, the light source can
hinder installation checking and cause operation
errors in the Non-Image Area Erase Check. For
detailed information, see the service manual.)
(5) Touch “OK.”
17. Configuring other options
(1) If any of the following options are installed, refer
to the “Configuration procedures” of the installa-
tion manual for each option and configure the
option(s).
• Reverse Automatic Document Feeder DF-628
• Stamp Unit SP-501
•FaxKitFK-513
• Punch Kit PK-520/PK-519
• Local Interface Kit EK-609
• Upgrade Kit UK-212/UK-211
• Paper Feed Cabinet PC-414
• Hard Disk HD-522
(Do not perform this procedure for options
already installed as standard equipment.)
• Authentication Unit AU-201S/AU-102
• Clean Unit CU-101
•NetworkFax
(2) Exit from the Service Mode and return to the ini-
tial screen.
18. Connecting the network cable
(1) Connect the main body and networking equip-
ment (HUB) using the network cable.
Note:
The following shows the recommended network
cables that correspond to each communication
speed.
• 10BaseT/100BaseTX: Category 5
• 1000BaseT: Category 5E, Category 6
Networkport
LED1
LED2

E-10
(2) Check LEDs for lighting conditions.
LED1:
Should light up steadily if the link network con-
nection has been made.
LED2:
Should blink according to the communications
status of the ACT network.
19. Network setting
Make the TCP/IP address setting for the network.
Note:
Consult the network administrator for the setting
value to be entered and make settings as
required.
(1) Select the function to be used as follows:
Menu →Utility →Administrator Settings →Enter
the Administrator Password →Network Settings
→TCP/IP Settings →IPv4 Settings.
(2) Touch “Manual Input” of IP Application Method
and make the following settings.
IP Address: IP address of the controller
Subnet Mask: Subnet mask of the network, to
which the machine is connected
Default Gateway: IP address of the default gate-
way
(3) Touch “OK.”
(4) Touch “OK” after the “TCP/IP Settings” screen is
displayed.
(5) Select the function to be used as follows:
Forward →Forward →Detail Settings →PING
Confirmation, and make the operation check of
TCP/IP.
20. Restarting the machine
Turn the power switch on the right side of the main
body OFF and ON again after 10 or more seconds
have passed.
21. Adjusting each option
If any of the following options are installed, adjust
each option as necessary. (Refer to the “Adjustment
procedures” of the installation manual for each
option.)
• Paper Feed Cabinet PC-414/PC-214/PC-114
• Reverse Automatic Document Feeder DF-628
• Finisher FS-534SD
• Punch Kit PK-520/PK-519
22. Affixing the paper size label
Affix the paper size labels that correspond to the
sizes of paper used in each tray.
See the User’s Guide CD for instructions on setting
paper in each tray and configuring the paper types.
23. Installing the user’s guide holder
Install the user’s guide holder.
24. Affixing the panel sheet
Affix the supplied panel sheet to the surface of the
operation panel.
Note:
• The panel sheet is affixed on customer request.
• The panel sheet must be kept by the customer.
Note:
After completing all the steps, take a sample
copy in color mode, and confirm the image. If
image troubles occur, first turn OFF and ON the
Main Power Switch, and then redo the steps
from E-8 “13. Date & Time Setting/Time Zone
Setting (Service Mode)” to E-8 “15. Unit change.”

E-11
OC-514 Original Cover
INSTALLATION MANUAL
1 Accessory parts 2. Installation procedures
(1) Remove the two knockouts using nippers or a
similar tool.
(2) Attach the supplied hinge cover (right) and hinge
cover (left).
(Two screws supplied with the original cover)
(3) Install the original cover.
No. Name Shape Q’ty
1. Original cover
1
2. Original mat
1
3. Hinge cover
(right)
1
4. Hinge cover
(left)
1
5. Screw
2
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.

E-12
(4) Using a cleaning pad dampened with alcohol,
wipe the undersurface of the original cover,
where the original mat is attached.
(5) With the double-sided tape facing up, position
the original mat on the original glass.
Note:
• Place the original mat while pressing it up
against the mark at the left back of the origi-
nal scale.
• Make sure that the three spacers are not run-
ning on the original scale.
(6) Peel the backing paper off the double-sided tape
on the original mat.
(7) Slightly press the original cover to the left and
close it.
(8) Gently press the original cover.
(9) Open the original cover and press on the original
mat firmly so that it does not peel off.
(10) Remove the protective sheet while pressing the
original mat to prevent it from peeling off.
(11) Close the original cover.
Spacer
