Thank You
Thank you for purchasing a magicolor 3300. You have made an excellent choice. Your
magicolor 3300 is specially designed for optimal performance in Windows, Macintosh,
UNIX and other environments.
Trademarks
KONICA MINOLTA and the KONICA MINOLTA logo are trademarks or registered
trademarks of KONICA MINOLTA HOLDINGS, INC.
magicolor is a trademark or registered trademark of KONICA MINOLTA PRINTING
SOLUTIONS U.S.A., INC.
Proprietary Statement
The digitally encoded software included with your printer is Copyright © 2003
KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. All Rights Reserved. This
software may not be reproduced, modified, displayed, transferred, or copied in any
form or in any manner or on any media, in whole or in part, without the express
written permission of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.
Copyright Notice
Copyright © 2003 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., Marunouchi
Center Building, 1-6-1 Marunouchi, Chiyoda-ku, Tokyo, 100-0005, Japan. All Rights
Reserved. This document may not be copied, in whole or part, nor transferred to any
other media or language, without written permission of KONICA MINOLTA BUSINESS
TECHNOLOGIES, INC.
Manual Notice
KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. reserves the right to make
changes to this manual and to the equipment described herein without notice.
Considerable effort has been made to ensure that this manual is free of inaccuracies
and omissions. However, KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.
makes no warranty of any kind including, but not limited to, any implied warranties of
merchantability and fitness for a particular purpose with regard to this manual.
KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. assumes no responsibility for,
or liability for, errors contained in this manual or for incidental, special, or
consequential damages arising out of the furnishing of this manual, or the use of this
manual in operating the equipment, or in connection with the performance of the
equipment when so operated.
Registering the Printer
Mail (Americas only)—Fill out and send in the registration card enclosed in your
shipment.
Internet—Go to printer.konicaminolta.net/register and follow the instructions given
there.
CD-ROM—Follow the instructions on the Software Utilities CD-ROM.

Contents
English
Getting Acquainted with Your Printer ...........................................1
Printer Features 1
Documentation Set 2
Space Requirements 2
Location Requirements 3
Printer Parts 4
Setting up Your Printer ...................................................................6
Shipment Contents 6
Unpacking the Printer 6
Installing the Imaging Unit 7
Preparing the Toner Cartridges 10
Loading the Upper Media Tray 11
Loading the Multipurpose Tray 13
Installing Accessories ..................................................................14
Plugging in/Turning on the Printer ..............................................15
About the Interface Panel .............................................................16
What’s Next? .................................................................................17

ii
English
Configuration Menu Overview .................................................... 18
Menu Chart Conventions 18
About the Control Panel .............................................................. 19
Selecting a Message Window Language 19
Control Panel Indicators 20
Control Panel Keys 21
Menu, Select, Previous, and Next Keys 22
Manually Selecting an Ethernet IP Address 22
Troubleshooting ........................................................................... 24
Additional Assistance 25
Color Registration 26
Accessories and Consumables .................................................. 29
Accessories 29
Consumables 30
Warranty Considerations ............................................................ 30
Safety Information ........................................................................ 32
Regulatory Compliance 32
FCC Compliance Statement 32
Canadian Users Notice 33
CE Marking (Declation of Conformity) 33
Laser Safety 34
International Notices 34

Getting Acquainted with Your Printer 1
English
Getting Acquainted with Your Printer
Printer Features
Feature Details
Print speed (color and
monochrome black)
Media
size
Print quality
(dots per inch/dpi)
Print speed
(pages per
minute/ppm)
Letter Standard—600x600 Up to 26
Quality—1200x1200
full speed
Fine—1200x1200
half speed
Up to 13
A4 Standard—600x600 Up to 24
Quality—1200x1200
full speed
Fine—1200x1200
half speed
Up to 12
SDRAM 256 MB (expandable to 512 MB)
500-sheet upper media tray Standard
100-sheet multipurpose
media tray
Standard
500-sheet (1x500) high-
capacity input feeder (HCIF)*
Optional
1,000-sheet (2x500) high-
capacity input feeder (HCIF)*
Optional
IEEE-1284 parallel Standard
Ethernet Standard
USB 1.1 Standard
Internal IDE Hard Disk Optional
Time-of-Day Clock Optional
Autoduplex Printing magicolor 3300 DN—Standard
magicolor 3300 EN—Optional
* Only one high-capacity input feeder may be installed at a time.

Getting Acquainted with Your Printer2
English
Documentation Set
If you’re using the Acrobat PDF version of this guide, click this icon to
play a QuickTime video clip of the procedure described in the text.
Acrobat Reader and a download link to QuickTime are provided on the
Documentation CD-ROM.
Space Requirements
The following illustrations show the amount of space required around the
printer for adequate ventilation and for operating the printer, replacing con-
sumables, and removing media jams.
Manual Description Location*
Quick Setup
Guide
Use this sheet when unpacking the
printer.
Hardcopy and
Documentation
CD-ROM
Installation
Guide
You’re looking at this document right now.
This guide provides information about
printer installation, the interface panel,
and the control panel.
Hardcopy and
Documentation
CD-ROM
User’s Guide This manual guides you through the
day-to-day operation of your printer,
including information on printing files,
refilling print media, and replacing toner. It
also includes information on additional
accessories, cleaning and maintaining the
printer, improving print quality, trouble-
shooting printer problems, technical spec-
ifications, and safety.
Documentation
CD-ROM
Crown Books
1 and 2
These manuals provide detailed
information about Crown architecture,
color printing, menu configuration, and
advanced computer/network connection
and configuration.
Documentation
CD-ROM
Service &
Support
Guide
This guide lists sources of service and
support for many areas of the world. The
most current information can be found at
www.konicaminolta.net/printer/.
Documentation
CD-ROM
* All manuals can also be found on the Internet at printer.konicaminolta.net/support.

Getting Acquainted with Your Printer 3
English
Location Requirements
Top View
A4"/100 mm
B24"/600 mm
C8"/200 mm
D6"/150 mm
E4"/100 mm
F6"/150 mm
G24"/600 mm
H8"/200 mm
Front View Side View
Locate your printer in a space with these characteristics...
On a hard, flat, stable, level (±5°or less slant at any point on the machine)
surface. A surface can be tested for levelness with a standard round pencil.
If the pencil rolls, the surface is not level.
Close to an easily accessible grounded power supply (on an exclusively
dedicated power outlet) that meets printer specifications.
Near your computer—at the length 6.5'/2 m or less for an IEEE 1284
bidirectional parallel connection.
With enough space to allow adequate ventilation and easy servicing.
With an ambient temperature range of 50°–90°F/10°–32°C and relative
humidity range of 15%–85% (noncondensating).
At an altitude of 0–10,170'/0–3,100 m.
But away from...
Direct sunlight, heating and cooling sources, extreme temperature and
humidity changes, wind, dust, open flames, and items that can easily burn.
A connection to the same electrical circuit as high-current machines,
noise-generating equipment (such as a copier or air conditioner), and strong
magnetic or electromagnetic fields (such as a refrigerator).
Water, water pipes, liquid (drink) containers, and corrosive chemicals or
vapors, such as ammonia.
Small, loose metal parts, such as paper clips and staples.
D
CB
A
FE
H
G

Getting Acquainted with Your Printer4
English
WARNING!
Obstructing the ventilation grilles could present a fire hazard.
Do not tilt the printer more than 10°when moving it.
Attention
Do not connect the groundwire to gas or water pipes or grounding for
telephones.
For further details, refer to the User’s Guide on the Documentation CD-ROM.

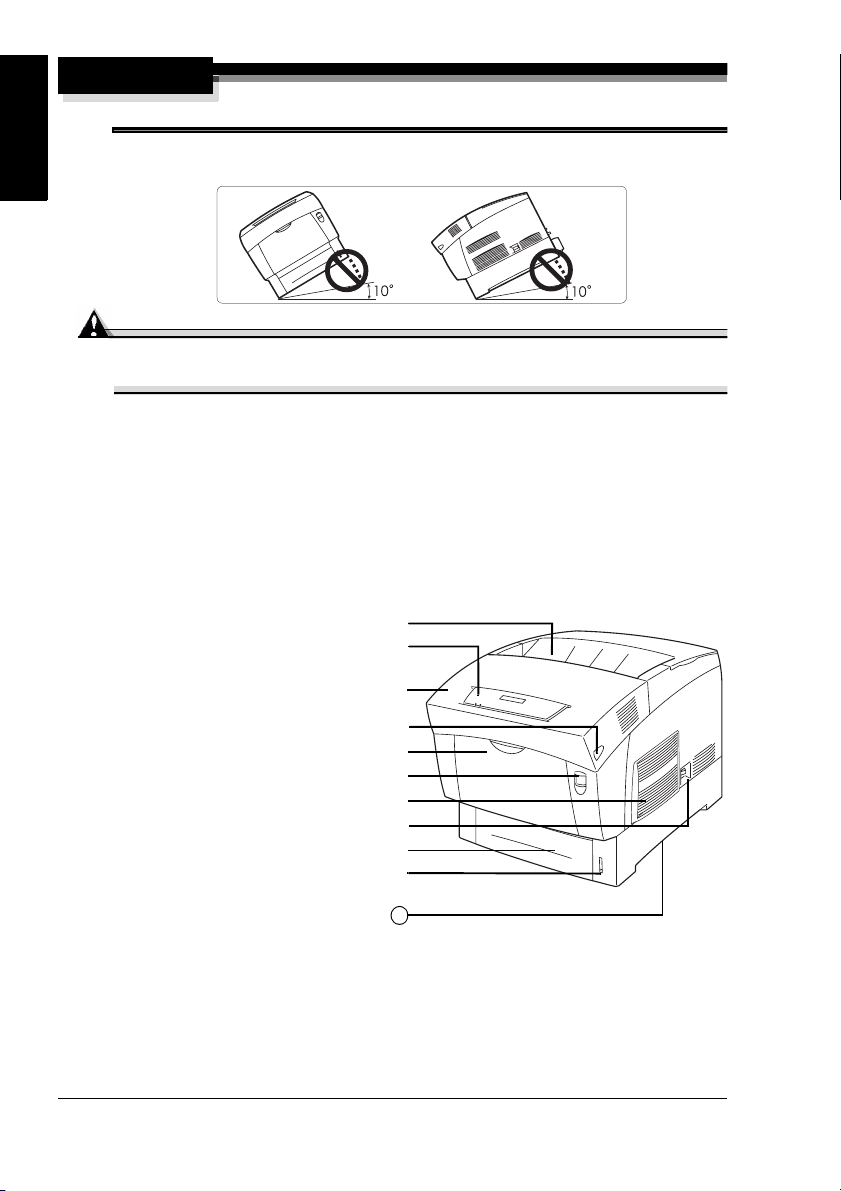

Printer Parts
The following drawings illustrate the parts of your printer referred to through-
out this guide, so please take some time to become familiar with them.
Front View
1—Top cover/face-down output
tray
2—Control panel and message
window
3—Front cover
4—Cover Button B
5—Multipurpose tray (shown
closed)
6—Cover Button A
7—Ventilation grilles
8—Power switch
9—Upper
media tray
10—Media level guide
11—Carrying grips (both sides)









11



Getting Acquainted with Your Printer 5
English
Rear View
Top Internal View
1—Top cover
2—Toner cartridges
3—Ventilation grilles
4—AC power connection
5—Interface panel
6—Media tray cover







Button A
1—Transfer unit
2—Registration rollers
3—Imaging unit
4—Imaging unit cover



Button B
5—Duplexer rotator
6—Fuser unit
7—Imaging unit cover

Setting up Your Printer6
English
Setting up Your Printer
WARNING!
Your printer weighs approximately 65 lbs (29.5 kg) without consumables
and accessories. Be sure to have help when lifting and moving it.
Shipment Contents
Printer (with 100-sheet multipurpose tray and 500-sheet upper media tray)
Consumables
aImaging unit
bFour toner cartridges (already installed)
Power cord
Software Utilities and Documentation CD-ROMs
Quick Setup Guide
Installation Guide
Registration card (Americas only)
Interface cables aren’t included in the shipment. If you need cables, contact
your local vendor or computer store.
Unpacking the Printer
 We strongly suggest that you save the packaging materials in case
you ever need to move or ship the printer.
After removing the consumables from the printer carton, use the following
instructions to unpack your printer.
1Remove the protective plastic cover.
WARNING!
Lift the printer only from the front and back. Lifting it from the sides may
cause it to tip over.
b
a

Setting up Your Printer 7
English

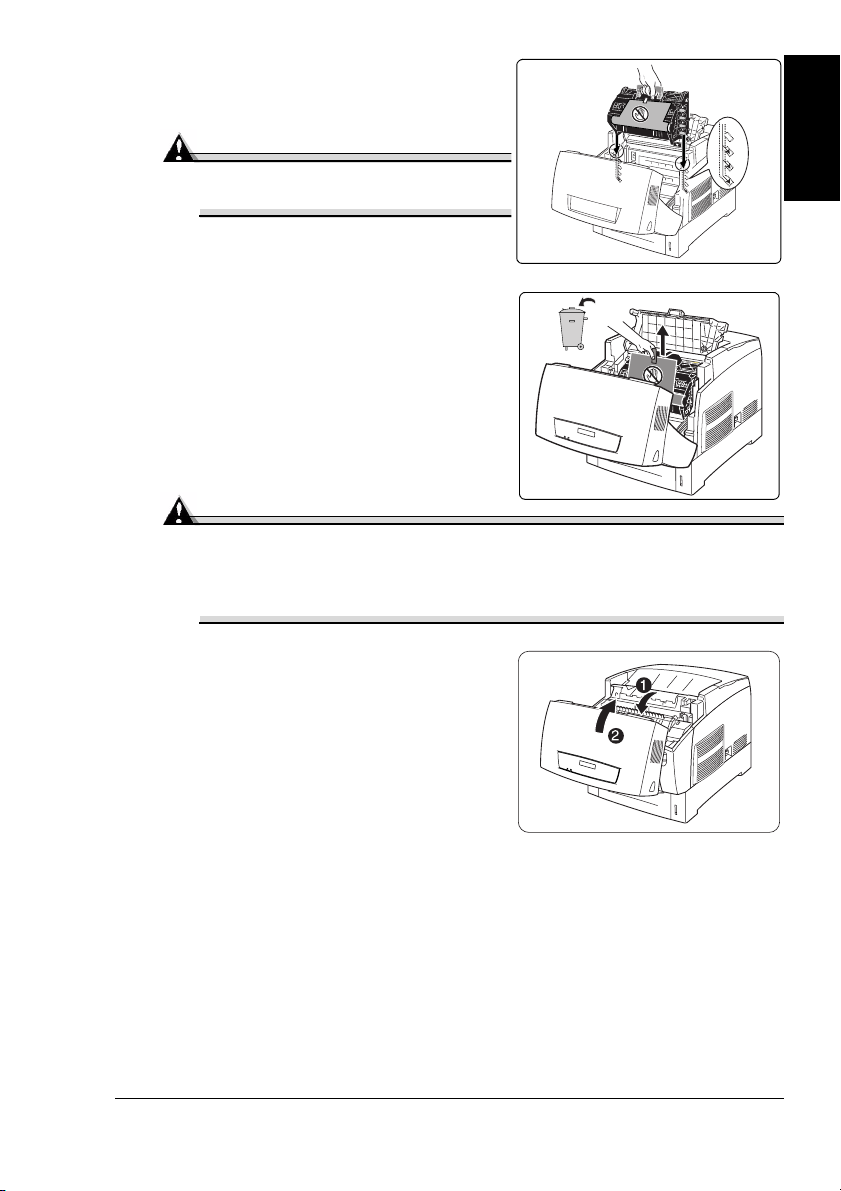

2With another person’s help, lift
the printer from the carton.
Do not tilt it more than 10° in
any direction at any time.
For best output quality and
longest consumables life, place
the printer on a hard, flat, level,
stable surface capable of
supporting about 77 lbs (35 kg).
3Remove the tape from the outside of the printer.
Attention
Do not plug in the power cord until told to do so.
Installing the Imaging Unit
Attention
The OPCs are extremely sensitive to bright light, direct sunlight, and
touch. Always leave the imaging unit in its protective bag until you’re
ready to install it. Any exposure to light should be limited to less than
two minutes, or permanent damage could result.
Front
Hand grips

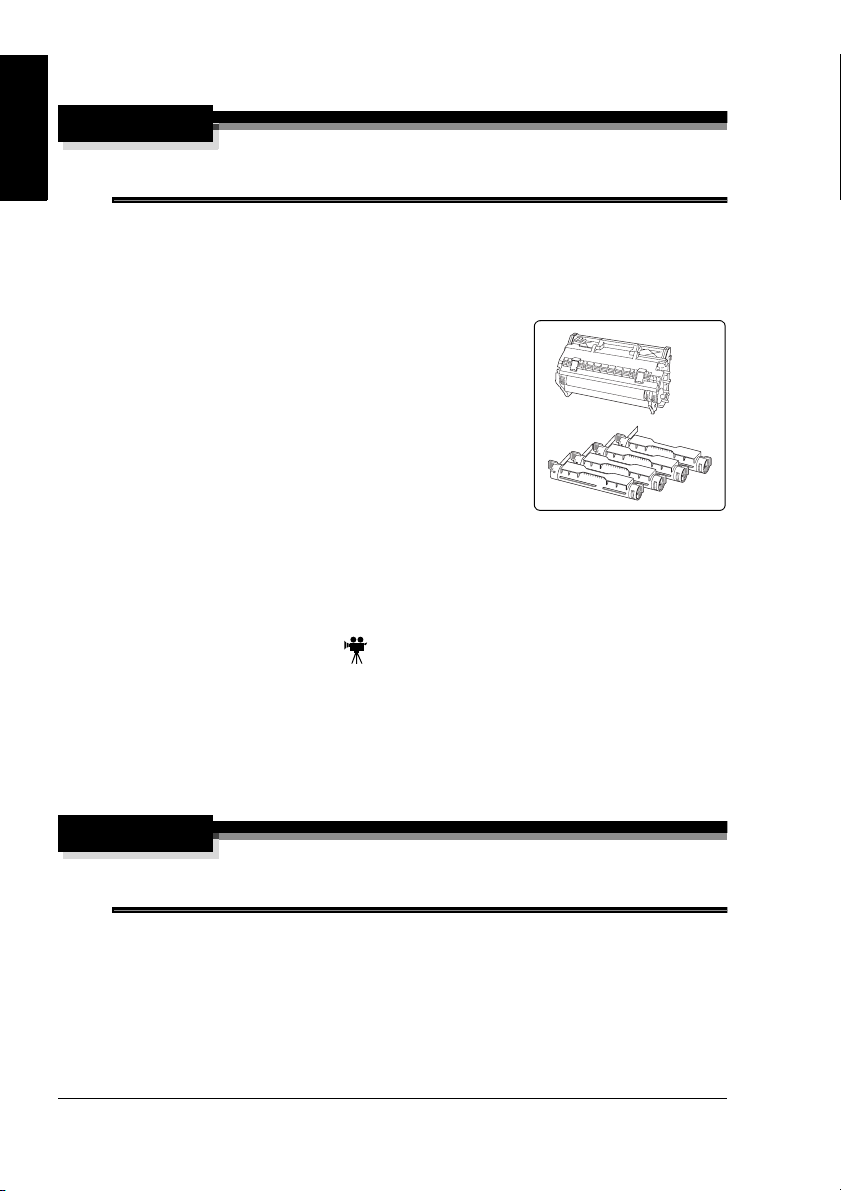

The imaging unit contains four OPCs (Optical
Photo Conductors) and developers, and an imag-
ing unit transfer roller that form the image that is
developed and transferred to the media.

Setting up Your Printer8
English

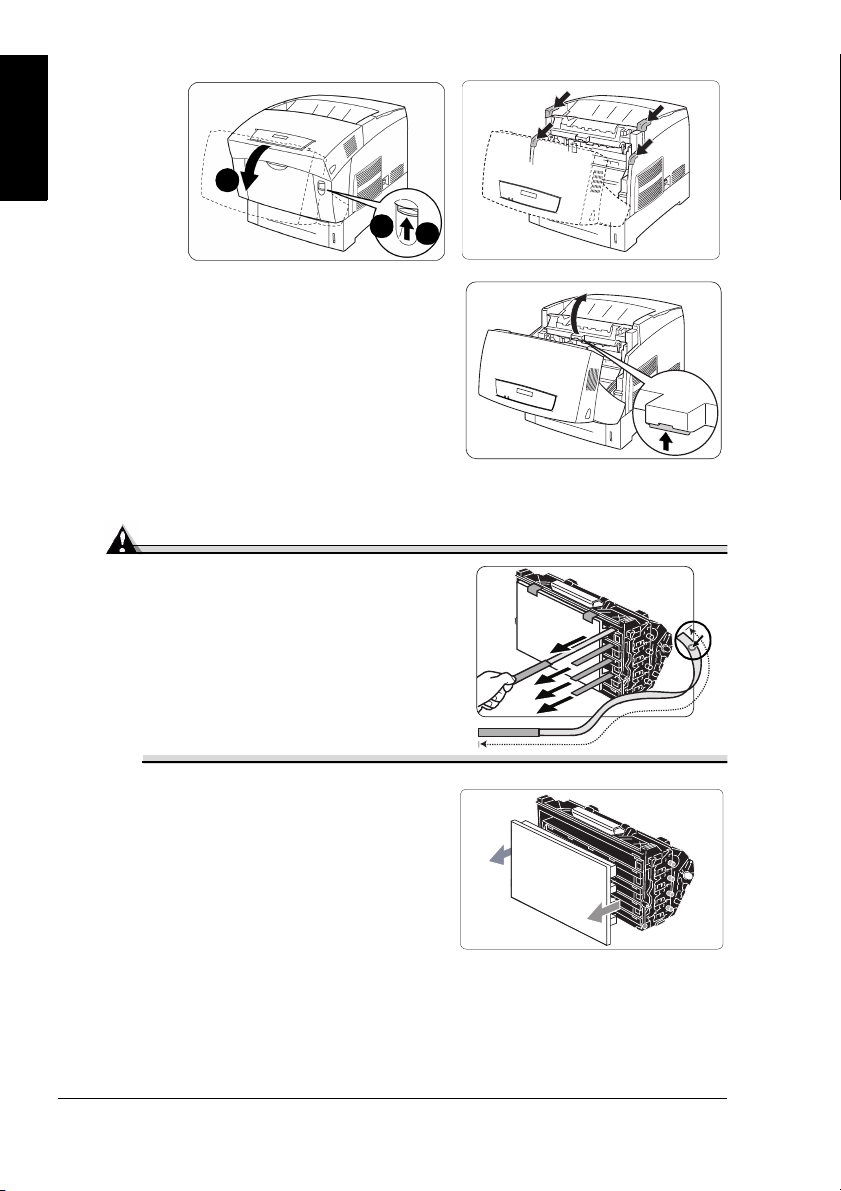

1Open the printer’s front cover (button A), and remove any tape.
2Open the imaging unit cover.
3Remove the imaging unit from its
protective bag.
4Holding the imaging unit horizontally,
carefully pull the tabs straight out and
completely away from the unit.
Attention
Do not twist the tab as you are
pulling it. If any tab doesn’t pull
completely out (you must be able to
see the circle imprinted on the end),
the imaging unit must be replaced.
5Carefully remove the protective
cover.
A
2
1
2
6
"
/
6
6
0m
m

Setting up Your Printer 9
English
6Gently guide the imaging unit straight
into the printer, following the arrows
on the printer to seat all four pins.
Attention
You can damage the imaging unit if
it is not aligned correctly.
7Remove the protective black sheet.
 Dispose of it according to your
local regulations. Do not
dispose of it by burning.
Attention
Do not touch the black transfer roller or allow anything to come in
contact with the OPC. It is extremely sensitive to hand oils and
scratches, both of which reduce print quality. This type of damage is
not covered by your warranty.
8Close the imaging unit cover .
9Close the front cover .

Setting up Your Printer10
English
Preparing the Toner Cartridges
The toner is nontoxic. If you get toner on your hands, wash them in cool water
and mild neutral detergent. If you get toner on your clothes, lightly dust them
off as much as possible. If some toner remains on your clothes, use cool, not
hot water, to rinse the toner off, provided your clothing is washable.
WARNING!
If you get toner in your eyes, wash it out immediately with cool water
and consult a doctor. Material Safety Data Sheets (MSDS) information
can be found at printer.konicaminolta.net/support (click on Answer
Base).
1Remove the printer’s top cover.
2Pull the toner seal of the black toner
cartridge straight up.
Attention
Pulling the seal to the front or side
may damage the cartridge.
If the toner seal didn’t pull completely
out because it was pulled with too
much force or it was not pulled straight up, call Technical Support. Refer
to the Service & Support Guide (on the Documentation CD-ROM) or
www.konicaminolta.net/printer/ to find the office nearest you.
3Repeat step 2 to remove the toner seals from the other three toner
cartridges.
4Replace the top cover.
Your printer uses four toner cartridges: black, yellow,
magenta, and cyan. They are already installed in the
printer, but you must prepare them for use.
For a list of toner life expectancies and toner replacement
instructions, refer to chapter 1, “Replacing Consumables,”
in the User’s Guide (on the Documentation CD-ROM).
K
C
M
Y

Setting up Your Printer 11
English
Loading the Upper Media Tray
1Slide out the media tray and remove
the shipping spacers.
 The illustration shows an
upper media tray; however,
instructions are the same for
the high-capacity input feeder
(HCIF) trays.
2Using both hands, lift the media tray
slightly to remove it from the printer,
and place it on a flat surface.
3Adjust the two side media guides.
4Gently lift the end media guide and
position it in the proper media size
hole.
 The illustration of the tray
shown here is in reverse of the
illustration in step 3.
Attention
If the guide is not in the proper hole, automatic paper size detection
will not work.
The upper media tray holds 500 sheets of 20 lb bond
(75 g/m²) paper.
For information about loading and using other types of
media, refer to chapter 2, “Using Media,”in the User’s
Guide on the Documentation CD-ROM.

Setting up Your Printer12
English
5Fan a stack of approximately 500
sheets of letter/A4 paper.
A fill limit mark is provided on the
inside right side of the tray.
Attention
Do not overfill the tray. The paper should fit easily between the
guides. Improperly adjusted guides may cause poor print quality,
media jams, or printer damage.
6Align the four edges of the media, and
then load it with the printing side up.
Often, an arrow on the media package
label indicates the printing side of the
media.
7Make sure the paper corners are not
bent and that they are under the
media-separating tabs.
8Readjust the side media guides after inserting the media.
Attention
Improperly adjusted guides may
cause poor print quality, media
jams, or printer damage.

Setting up Your Printer 13
English
9Slide the media tray back in.
For information about loading and
using A5 and other types of media,
refer to chapter 2, “Using Media,”in
the User’s Guide on the Documenta-
tion CD-ROM.
10 Check the media gauge to make sure
the tray is registering the loaded
media.
Use this gauge to determine when the
tray needs to be refilled.
Loading the Multipurpose Tray
1Open the multipurpose tray.
The multipurpose tray holds 100 sheets of 20 lb bond
(75 g/m²) paper.
For information about loading and using other types of
media, refer to chapter 2, “Using Media,”in the User’s
Guide on the Documentation CD-ROM.
Do not place heavy objects on the multipurpose tray or try to force it open.
The multipurpose tray is used for all media types, especially envelopes,
labels, Japanese-sized postcards, and Thick 3 stock.

Installing Accessories14
English
2Adjust the media guides to fit the paper
size you’re loading.
The tray extender supports long media.
3Fan a stack of approximately 100
sheets of paper.
A fill limit mark is provided on the inside
of the tray.
Attention
Do not overfill the tray. The paper should fit easily between the
guides. Improperly adjusted guides may cause poor print quality,
media jams, or printer damage.
4Align the edges of the paper, and then
load it with its printing side up and short
edge toward the printer.
Often, an arrow on the media package
label indicates the printing-side of
the media.
5Make sure the media fits properly in
the tray.
Installing Accessories
Attention
Installing accessories always requires that the printer and accessories
are turned off and unplugged during installation.
If you purchased any additional printer accessories (such as a high-capacity
input feeder or additional memory), then install them now. If installation
instructions are included with the accessory, follow them. If not, instructions
are included in the User’s Guide (on the Documentation CD-ROM).

Plugging in/Turning on the Printer 15
English
Plugging in/Turning on the Printer
1Make sure the printer is turned off.
2Plug the printer power cord into the
printer and into a dedicated, grounded,
surge-protected electrical outlet.
Attention
Do not overload the outlet.
3Turn on the printer.
 In compliance with UL guidelines,
“The appliance inlet is consid-
ered to be the main disconnect
device.”
After approximately a 6-minute
warmup (assuming normal temperature
and humidity), your printer prints a
startup page and displays “IDLE”on the message window.
 This 6-minute warmup happens only when a new imaging unit
has been installed. The normal warmup time when the printer is
turned on is approximately 1.5 minutes.
If “IDLE”is not displayed in the message window after the printer is
turned on and warmed up, recheck the setup. If the startup page doesn’t
print or the print quality is not good, skip ahead to “Troubleshooting”on
page 24.
The printer automatically switches to power-saving (energy-saving) mode
after 1 hour of inactivity. You can change the number of minutes before the
printer switches to power-saving mode in the Administration/Engine/Energy
Saver menu.
Attention
Never turn the power off while the printer is receiving data or printing.

About the Interface Panel16
English
About the Interface Panel
USB Port—Type B
Using a USB cable, connect the USB port on the printer to the USB
port on your computer.
Ethernet Port
Using a twisted-pair (RJ45) Ethernet cable, connect the Ethernet port
on the printer to a 10BaseT/100BaseTX network connection.
Parallel Port
Using a Centronics IEEE 1284 bidirectional parallel cable, connect the
parallel port on the printer to the parallel port on your computer.
The interface panel is located on the back of the printer.
 



