Kozyard Morgan User manual

Assembly Manual
Morgan 10’x12’ Aluminum Pergola
Kozyard LLC Products
www.kozyard.com
© Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved.
Version:20231006

Page 1
380cm/12.47'
12.5cm/4.9"
25x25cm/9.8"x9.8"
273cm/8.96' 24 cm/8.13'
355cm/11.65'
9
2+
• Please read and follow this assembly and operation guide to reduce the risk of personal injury
and damage to your gazebo.
• Do not discard any of the packaging until you have checked that you have all the parts in place.
• Please close the Canopy, refraining from any damage in storm, snow, or bad weather.
• Some parts may have sharp edges or corners. To ensure your safety, follow basic safety precau-
tions to reduce the risk of injury. Please note that this item contains small parts which could be
swallowed by children. Keep it out of reach of children under 3 years old and pets during installa-
tion.
Warnings and Cautions
Two or more people are required
for aseembly and disassembly.
Pre-assembly
Tools that may be required.(Not included in boxes)
Note: Tools are not shown to actual size and scale.
Do not fully tighten screw prior to
complete assembly.

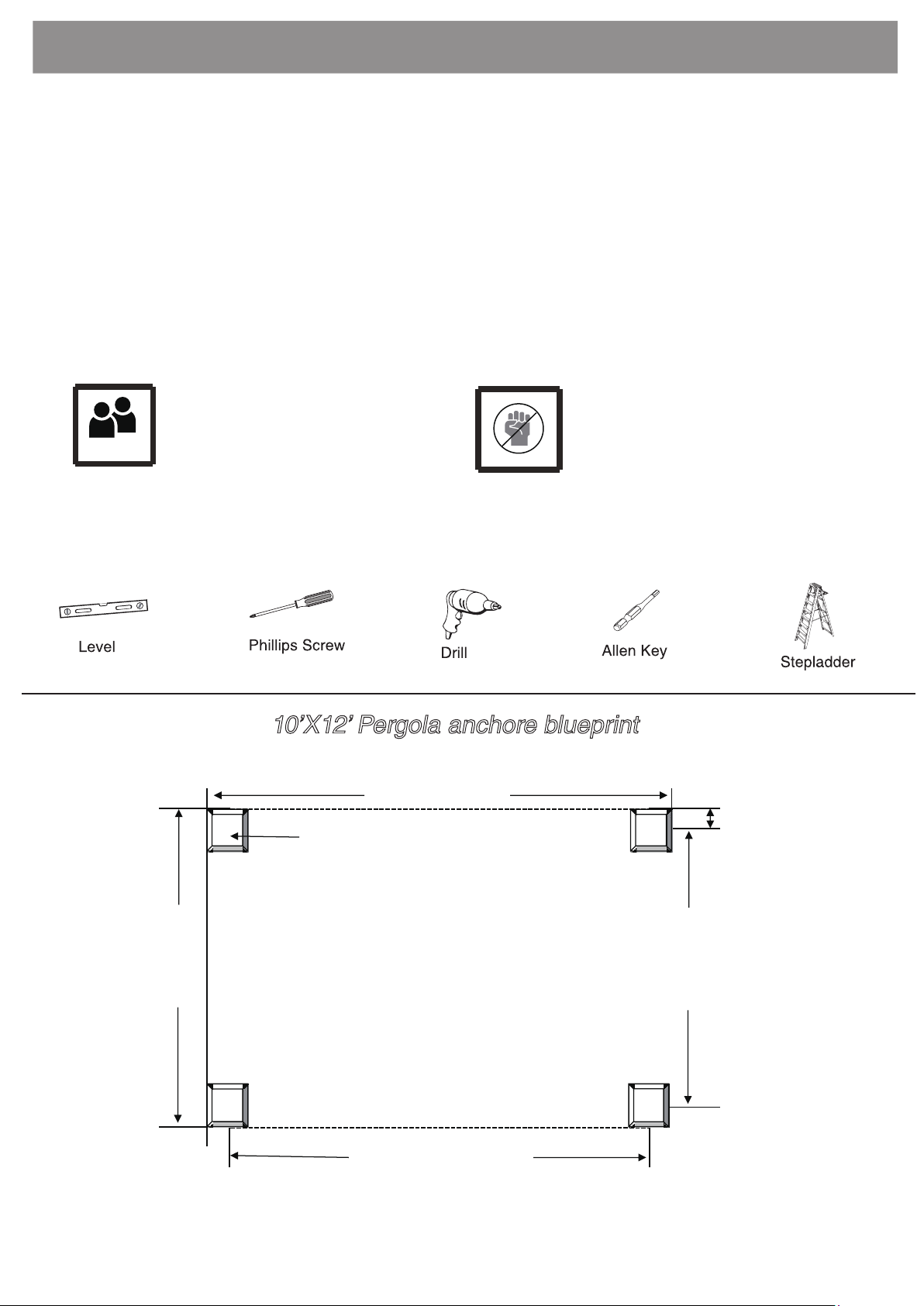

10’X12’ Pergola anchore blueprint
Anchoring poles into concrete is strongly recommended.
Ensure the gazebo is positioned on level ground

Page 2
4X 2X
1X
1X 1X
1X
2X 2X
1X 1X
2X 2X
1X 1X
5X 5X
4X
1X 1X
A
B
A1
B1
B2 C
C1
D1
E1
F1
G1
H1
C2
D
E
F
G
H
J154X+5X
2X
A2
Pole
Plate Bolt
1 or 3
Position
Short
Pole
2 or 4
Position
Short
Pole
Side Tube
Side MiddleTube
Side MiddleTube
Side Tube
Side Tube
Beam Tube Beam Tube
Side Track Tube Side Track Tube
Middle Track Tube Middle Track Tube
Side Tube
Still Round Tube
Moveable Round Tube Moveable Round Tube
Still Round Tube
Attention: Prior to assembly, verify that all parts and pieces are included to ensure
an efficient installation process.

Page 3
KL
O
QT
PR S
MN
UV
V1 X
V2
16x
8
6
32X+2X
+1x
8x
4x 4x
5x
+1x
+2x
22
H&H1
G&G1
X
X
XC&C2&C1
B&B2&B1
Bolt Bolt Bolt
Hook
Hook
Allen
Key
Ribbon
Connector
Connector
Connector
Hook Lock Canopy
Plastic
Cover
OVERALL

Page 4
A
A
A
A
A1
A2
A2
A1
J
I
A
I4X
1 Position Short Pole
3 Position Short Pole
2 Position Short Pole
4 Position Short Pole
J8X
S6
M6x 16
Q1X
A4X
A1 2X
J
S6
M6x 16
Q1X
A1
2X
A2
4X
X
A2
/
/
X4
A
A
X
X
V
V
A1 A2
J
J
J
J
64X
8X
A
/
A1 A2
Step 1:
First, remove the plastic plugs from Part A1/A2 and Part A.
Then, place Part X on the four poles (Part A) and connect A and (A1 or A2)
by using Bolt J to attach the four poles.
Do not tighten the bolts too much when inserting A into A1 and A2.
Step 2:
Connect Part I to the poles using Bolt J.

Page 5
B
1X
B1
1X
R
2X
J
32X
Q
1X
M6x 16
S6
C2
B2
1X
1X
C
1X
C1
1X
V1 4x
BB2
J
V1
J
J
B1
J
J
JJ
V1
CC2
J
V1
J
JR
C1
J
J
J
V1
J
B
B1
B2
C
C1
C2
Step 3:
Connect Part B, Part B1,Part B2 using Bolt J to assemble Main Beam 1.
Connect C, C1, C2 using Bolt J to assemble Main Beam 2.
Simultaneously, attach Part R to C2 using Bolt J.

Page 6
A
A
A2
A1
B
B1
C
C2
M
D
E
M16X
Q1X
S8
M6x 15
N
N
O
O
P
D2X
E1X
N10X
O4X
PP
1X
B2
C1
A2
X5
X4
A1
OR
B/B2/B1
C/C2/C1
X2
X4
/
Step 4:
Connect Main Beam 1 and Main Beam 2 to the Poles using Bolt M.
Repeat twice.
Step 5:
1. Insert Hook Part N into the slot of Part D.
2. Insert Hook P and Hook O into the slot of Part E.
• Please ensure that Hook P is inserted according
to the method shown in the diagram and not the
opposite way.
Note: Keep Hook P and C1/C2/C
on the same side of Part E.

2X
2X
16X
M6x16
S6
1X
16X
M6x15
1X
S8
Page 7
D
D
D
D
D1
D1
D1
A1 A2
B1
J
Q
M
M
B
Q
B/B2/B1
C/C2/C1
X2
/
/
V2 2x
X4
D
D
D1
D1
V2
J
J
J
J
d1= d2
Step 6:
Connect D and D1 to assemble the Cross Beam (D and D1) using Bolt J.
Step 7:
Connect the Cross Beam (D and D1) to the four Poles using
Bolt M.

1X
1X
2X
2X
24X
M6x16
S6
1X
6X
M6x85
S6
1X
Page 8
Step 8
or
or
E
E
E1
E1
F
F
F1
F1
J
Q
LL
L
Q
B/B2/B1
C/C2/C1
X2
D
D1
D
D1
V2 3x
E
E
E1
E1
F
F
F1
F1
V2
V2
J
J
J
J
J
J
J
J
1. Connect E and E1
using Bolt J to
assemble the Cross
Beam (E and E1).
2. Using the same
method, assemble the
Cross Beam (F & F1) with
F and F1.
Step 9:
Connect the Cross Beams (E and E1) and (F and F1) to Main
Beams 1 and 2.
Please ensure that Hook P and C/C1 remain on the same side.

G
G1
H
H1
H
G1X
G1 1X
H5X
H1 5X
S1X
S
S
K3X
M6x30
S6
Q1X
K
G1
J10X
M6x16
J
H
H1
G&
3.Connect the canopy and
the Hook using Bolt J 1.Connect H and H1 through
the hook
Page 9
2.Pull the line from the canopy
and put on hook
to tighten the canopy.
B/B2/B1
H&H1
C/C2/C1
X10 X5
Step 10:
Insert G, G1, H, and H1 into the canopy from the side.
Step 11:
Connect G and G1 to B and B1 using bolt K, and secure the canopy with
the frames.

1X
Page 10
T
T
E
P
S
R
B/B2/B1
B/B2/B1
C/C2/C1
TOP FABRIC
Step 12:
Hang Part T on Hook P
Secure Part T to beam B/B1 to attach the Top Fabric.
Step 13:

16X
Page 11
U
U
I
X4
Secure Foot I to the ground using Part U.
Step 14:
Before use, ensure that all screws are completely tightened.
Step 15:

66
© Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved.
Kozyard LLC
As expert manufacturer of outdoor furniture, Kozyard remains
committed to supporting you with parts and replacements,
even beyond your warranty period.
Don't hesitate to contact us directly if you are missing parts or
need a replacement.
