Kramer TBUS-204 User manual

P/N: 2900-300913 Rev 4 www.KramerAV.com
USER MANUAL
MODEL:
TBUS-204
Pop-up Table Connection Bus

TBUS-204 - Introduction
i
Contents
Introduction 1
Getting Started 1
Overview 2
Typical Applications 2
Defining the TBUS-204 Pop-up Table Connection Bus 3
Installing the TBUS-204 5
Cutting an Opening in the Table 5
Inserting the TBUS-204 through the Cut-Out Opening 6
Connecting the Cables 7
Technical Specifications 8

Kramer Electronics Ltd.
TBUS-204 - Introduction
1
Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of
unique, creative, and affordable solutions to the vast range of problems that confront the video,
audio, presentation, and broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better!
Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging materials for
possible future shipment.
•Review the contents of this user manual.
Go to www.kramerav.com/downloads/TBUS-204 to check for up-to-date user manuals,
application programs, and to check if firmware upgrades are available (where appropriate).
Achieving the Best Performance
•Use only good quality connection cables (we recommend Kramer high-performance,
high-resolution cables) to avoid interference, deterioration in signal quality due to poor
matching, and elevated noise levels (often associated with low quality cables).
•Do not secure the cables in tight bundles or roll the slack into tight coils.
•Avoid interference from neighbouring electrical appliances that may adversely influence
signal quality.
•Position your Kramer TBUS-204 away from moisture, excessive sunlight and dust.
This equipment is to be used only inside a building. It may only be connected to other
equipment that is installed inside a building.
Safety Instructions
Caution:
There are no operator serviceable parts inside the unit.
Warning:
Use only the power cord that is supplied with the unit.
Warning:
Do not open the unit. High voltages can cause electrical shock! Servicing by
qualified personnel only.
Warning:
Disconnect the power and unplug the unit from the wall before installing.

Kramer Electronics Ltd.
TBUS-204 - Introduction
2
Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce
the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected
and recycled. To comply with the WEEE Directive, Kramer Electronics has made
arrangements with the European Advanced Recycling Network (EARN) and will cover any
costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on
arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular
country go to our recycling pages at www.kramerav.com/support/recycling.
Overview
The TBUS-204 is a furniture-mounted pop-up connection bus that is easily installed into a
table or podium top. The TBUS-204 interface enables you to power two devices and charge
up to two devices via the USB ports.
TBUS-204 is easily opened and closed by pressing down gently on the lid due to its tilting
angular construction, pneumatic lift and mechanical latching mechanism. It can be raised
(when in use) or lowered (when not in use)
Typical Applications
The TBUS-204 is ideal for:
•Boardrooms.
•Conference rooms.
•Training rooms.
•Hotel lobbies.
•Cafes and restaurants.

Kramer Electronics Ltd.
TBUS-204 - Defining the TBUS-204 Pop-up Table Connection Bus
3
Defining the TBUS-204 Pop-up
Table Connection Bus
This section defines the TBUS-204.

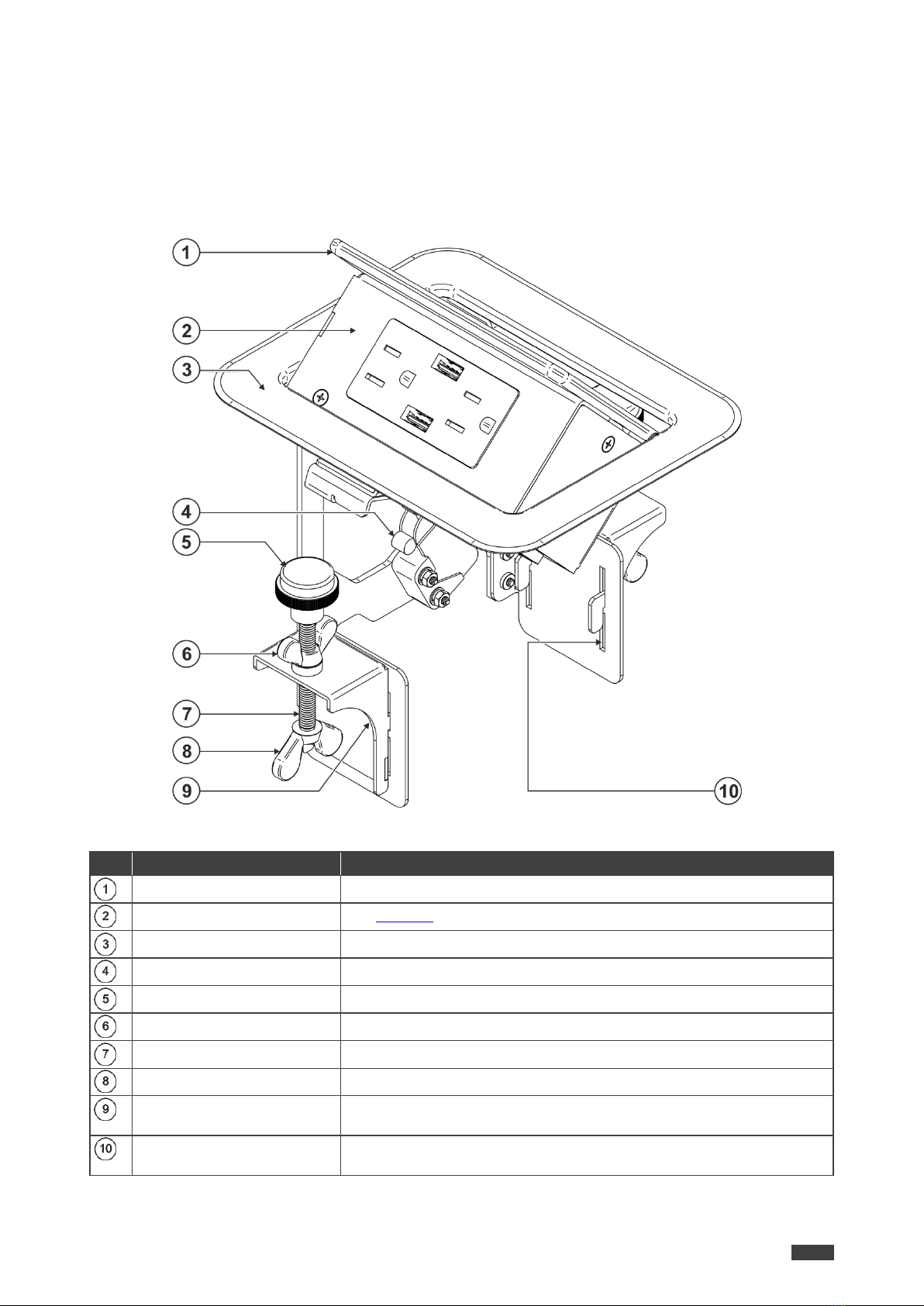

Figure 1: Defining the Parts of the TBUS-204 Pop-up Table Connection Bus
#
Feature
Function
Pop-up Lid
Covers the connecting surface, leaving the table surface neat and tidy.
Connecting Surface
See Figure 2.
Outer Rim
Fits over the table surface.
Mini Latch
Enables closing and opening the lid by applying slight pressure.
Rubber Protectors (x2)
Ensures gentle tightening to the table’s underside.
Locking Butterfly Nuts (x2)
Tighten to lock the mounting screws.
Mounting Screws (x2)
For securing the TBUS-204 to the table.
Mounting Butterfly Nuts (x2)
Tighten to secure the unit to the table’s surface.
Mounting Clamps (x2 units)
Place in the clamp slits after inserting the enclosure into the table –for
securing the unit to the table surface.
Mounting Clamp Slits (two
sets on each side)
Insert the mounting clamps to the slits when installing the TBUS-204.

Kramer Electronics Ltd.
TBUS-204 - Defining the TBUS-204 Pop-up Table Connection Bus
4
Figure 2: TBUS-204 Connecting Surface
#
Feature
Function
5V-2A USB Charging Port
Use to charge a device.
5A/125V Power Connector (x2)
Connect to up to two US power consuming devices
simultaneously.
When a single power socket is connected, consumption
should not exceed 5A.
When both power sockets are connected, the total
consumption should not exceed 6A.
5V-2A USB Charging Port
Use to charge a device.

Kramer Electronics Ltd.
TBUS-204 - Installing the TBUS-204
5
Installing the TBUS-204
TBUS-204 Installation includes the following steps:
•Cutting an Opening in the Table on page 5.
•Inserting the TBUS-204 through the Cut-Out Opening on page 6.
•Connecting the Cables on page 7.
Cutting an Opening in the Table
The metal cut-out template (supplied) defines the surface you have to cut out to install your
TBUS-204.
The thickness of the table should be 76mm (3”) or less.
To cut an opening in a table:
1. Before cutting the opening using the cut-out template, check the latest cut-out
dimensions from the Kramer website at www.kramerav.com/downloads/TBUS-204.
2. Place the included cut-out template (that is included with your TBUS-204) on the surface
of the table exactly where you want to install the TBUS-204.
3. Attach the cut-out template to the table with the included screws.
4. Following the inside edge of the template, cut a hole in the table surface with a sabre or
keyhole saw according to the dimensions shown in Figure 3 (not to scale).

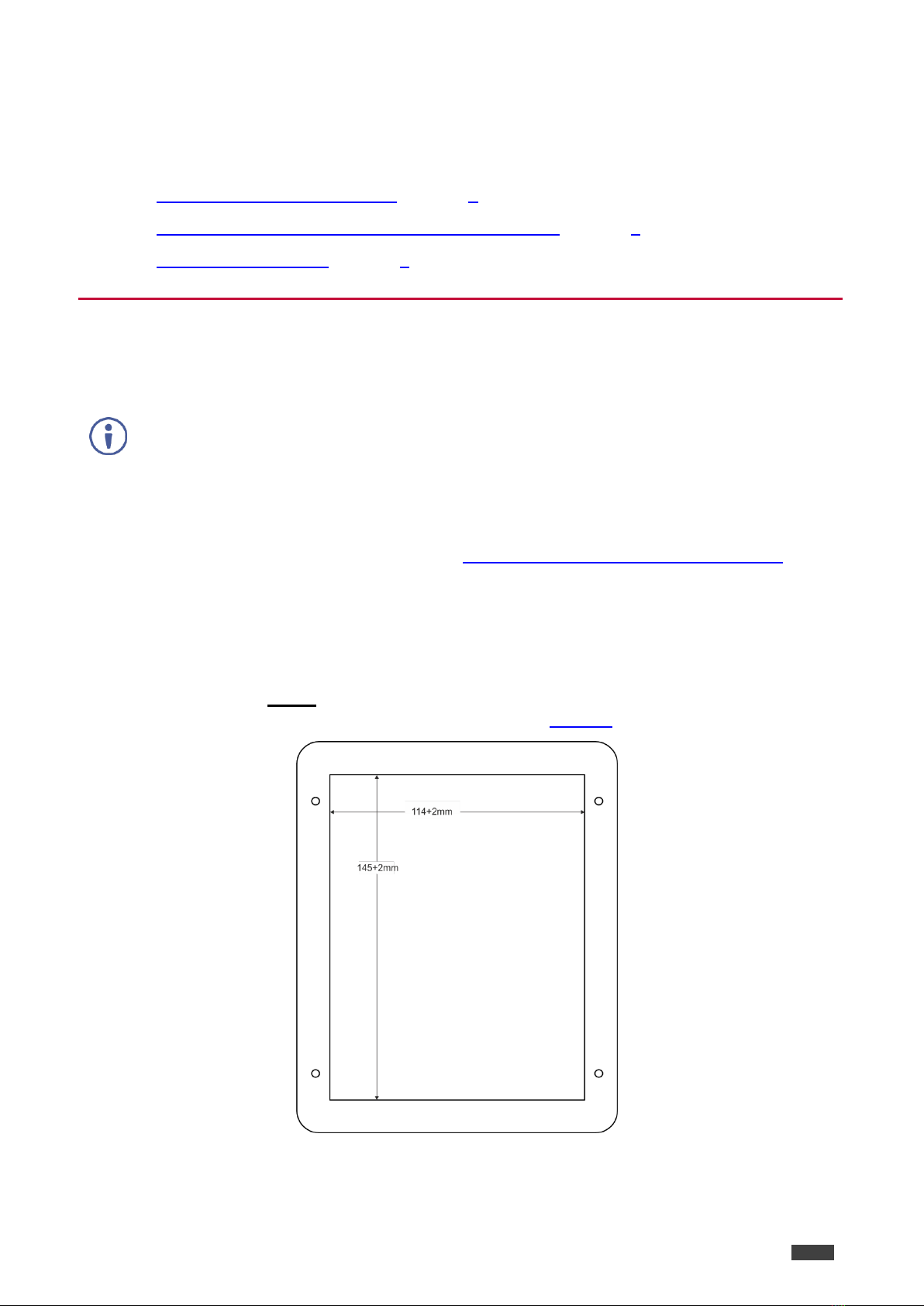

Figure 3: Cut out Dimensions (not to scale)

Kramer Electronics Ltd.
TBUS-204 - Installing the TBUS-204
6
5. Unscrew and remove the template from the surface of the table and clean the table
surface.
Take care not to damage the table.
If needed, you can download a full-scale template from the Kramer website at
www.kramerav.com/downloads/TBUS-204.
Take care not to damage the table. Kramer Electronics is not responsible for any damage
caused to the table.
Inserting the TBUS-204 through the Cut-Out Opening
To insert and secure the TBUS-204, do the following:
1. Carefully insert the unit into the prepared opening.
2. Under the table, insert the mounting clamps into the mounting clamp slits at the
desired height (on both the front and rear sides of the unit).
3. Make sure that the upper outer rim is situated parallel to the edge of the table.
4. Insert the mounting screws through the holes in the mounting clamps. Tighten the
mounting butterfly nuts to secure the unit to the table surface and then lock with the
mounting butterfly screws .
Figure 4: TBUS-204 Table Installation

Kramer Electronics Ltd.
TBUS-204 - Installing the TBUS-204
7
Connecting the Cables
Connect the power cable from underneath the TBUS-204 and then power or charge devices
as required.
Make sure that when:
•A single power socket is connected, consumption should not exceed 5A.
•Both power sockets are connected, the total consumption should not exceed 6A.
Figure 5: Connecting TBUS-204

Kramer Electronics Ltd.
TBUS-204 - Technical Specifications
8
Technical Specifications
Ports
2 USB Ports
5V, 2A on female USB-B connectors
for charging devices
2 US Power Sockets
For powering devices
Power
Consumption
125V AC, 50/60Hz, 6.3A max
Fuse Rating
T 6.3A 250V
When a single power socket is connected, consumption should
not exceed 5A.
When both power sockets are connected, the total consumption
should not exceed 6A.
Environmental
Conditions
Operating Temperature
0° to +40°C (32° to 104°F)
Storage Temperature
-40° to +70°C (-40° to 158°F)
Humidity
10% to 90%, RHL non-condensing
Regulatory
Compliance
Safety
CE, UL
Environmental
RoHs, WEEE
Enclosure
Type
Aluminum
General
Net Dimensions (W, D, H)
16.3cm x 13.2cm x 14.6cm
(6.42" x 5.2" x 5.75")
Shipping Dimensions (W, D, H)
21.5cm x 20.7cm x 19cm
(8.5" x 8.2" x 7.5")
Net Weight
1.1kg (2.4lbs) approx.
Net Weight with Mounting Brackets
1.4kg (3.1lbs) approx.
Shipping Weight
1.7 kg (3.8lbs) approx.
Accessories
Included
Clamp set, metal cut-out template
Specifications are subject to change without notice at www.kramerav.com
