Kramer W-2UC User manual

P/N: 2900-301407 Rev 4 www.kramerAV.com
Installation Instructions
MODEL:
W-2UC Dual Insert Dual USB Charger
WP-2UC Wall Plate Device Dual USB Charger
P/N:
2900-301407
Rev:
4
SAFETY WARNING
Disconnect the unit from the power supply before opening andservicing
For the latest information on our products and a list of Kramer distributors, visit our Web site where
updates to this user manual may be found.
We welcome your questions, comments, and feedback.
www.KramerAV.com
[e-mail]

Kramer Electronics Ltd.
W-2UC, WP-2UC
2
Introduction
Congratulations on purchasing your Kramer dual USB charger with two USB connectors for charging
devices (such as iOS and Android devices) that is available as: W-2UC, a dual insert and as WP-2UC, a
standard, one gang US size insert.

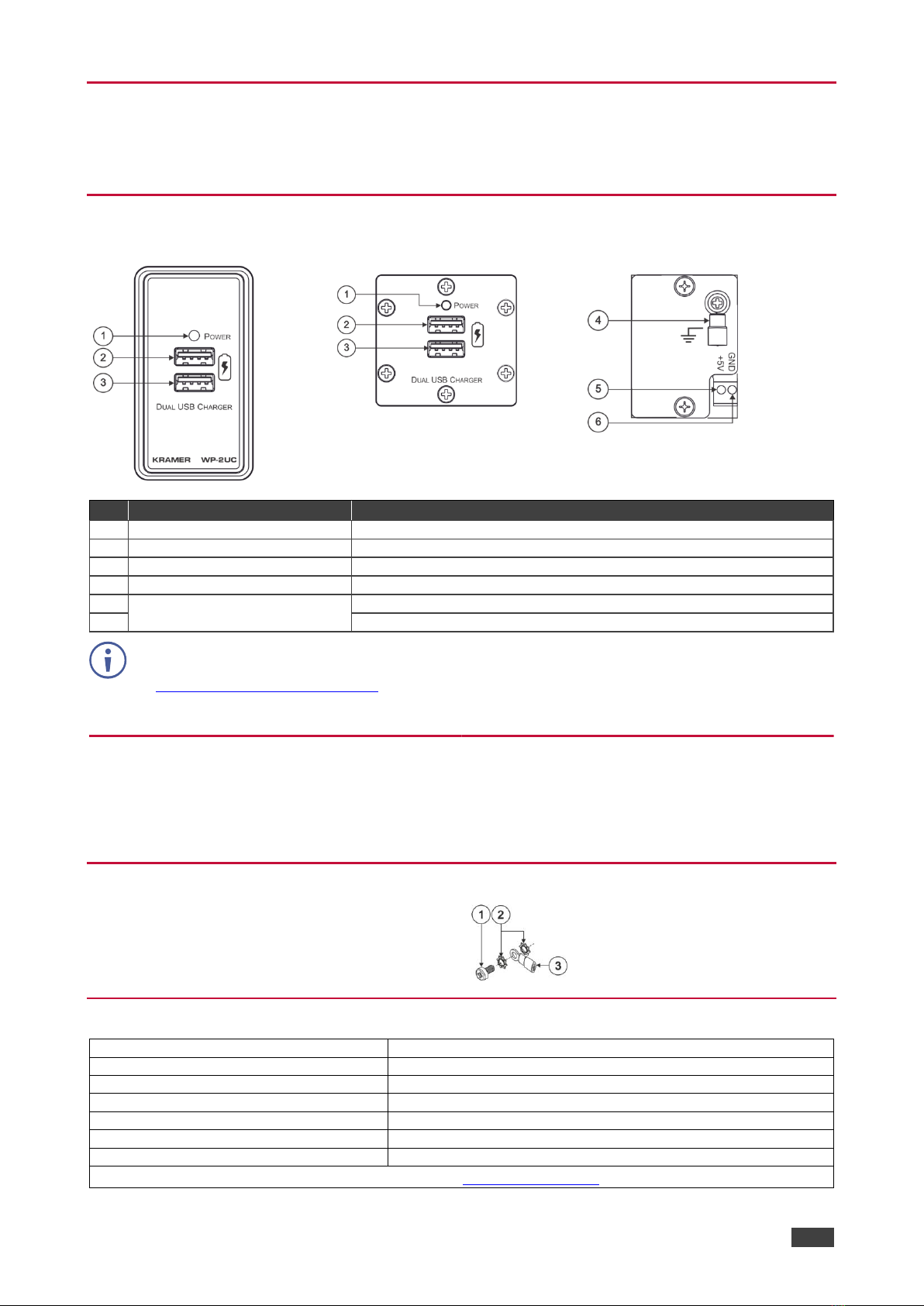

Get to know your W-2UC
W-2UC front panel
WP-2UC front panel
W-2UC and WP-2UC rear panel
#
Feature
Function
1
Power LED
Lights when the unit receives power
2
Top USB Connector
Connect to a device for charging
3
Lower USB Connector
Connect to a device for charging
4
Grounding Screw
Connect to grounding wire
5
Power Supply 2-pin Terminal Block
Connector
Connect +5V to +5V
6
Connect GND to GND
For optimal performance, use the recommended Kramer cables available
at www.kramerav.com/product/W-2UC.
Using third-party cables may cause damage!
Mounting W-2UC
To mount a Kramer insert or connector module:
1. Place the Kramer insert over the opening.
2. Insert the four screws (two on each side) to fix the Kramer
insert in place and tighten them.
Mounting WP-2UC
The WP-2UC standard size, one gang US insert can be fitted into
a standard US market-available design frame.
Grounding Dual Insert Dual USB Charger
The grounding screw is used to earth the chassis of the unit to
the ground of the building to help prevent static electricity from
impacting on the performance of the unit.
Technical Specifications
PORTS:
2 USB connectors
POWER CONSUMPTION:
5V DC, 4A
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:
-40° to +70°C (-40° to 158°F)
HUMIDITY:
10% to 90%, RHL non-condensing
INCLUDED ACCESSORIES:
Power supply
WEIGHT:
0.14kg (0.31lbs) approx.
Specifications are subject to change without notice at www.kramerav.com
