Installation Instructions
MODEL:
W-2UCA Dual Insert USB Type A & C Charger
P/N:
2900- 301562QS
Rev:
2
SAFETY WARNING
Disconnect the unit from the power supply before opening andservicing
For the latest information on our products and a list of Kramer distributors, visit our Web site where
updates to this user manual may be found.
We welcome your questions, comments, and feedback.
www.KramerAV.com
[e-mail]

Kramer Electronics Ltd.
W-2UCA
2
Introduction
Congratulations on purchasing your Kramer dual insert USB A & C charger: W-2UCA.

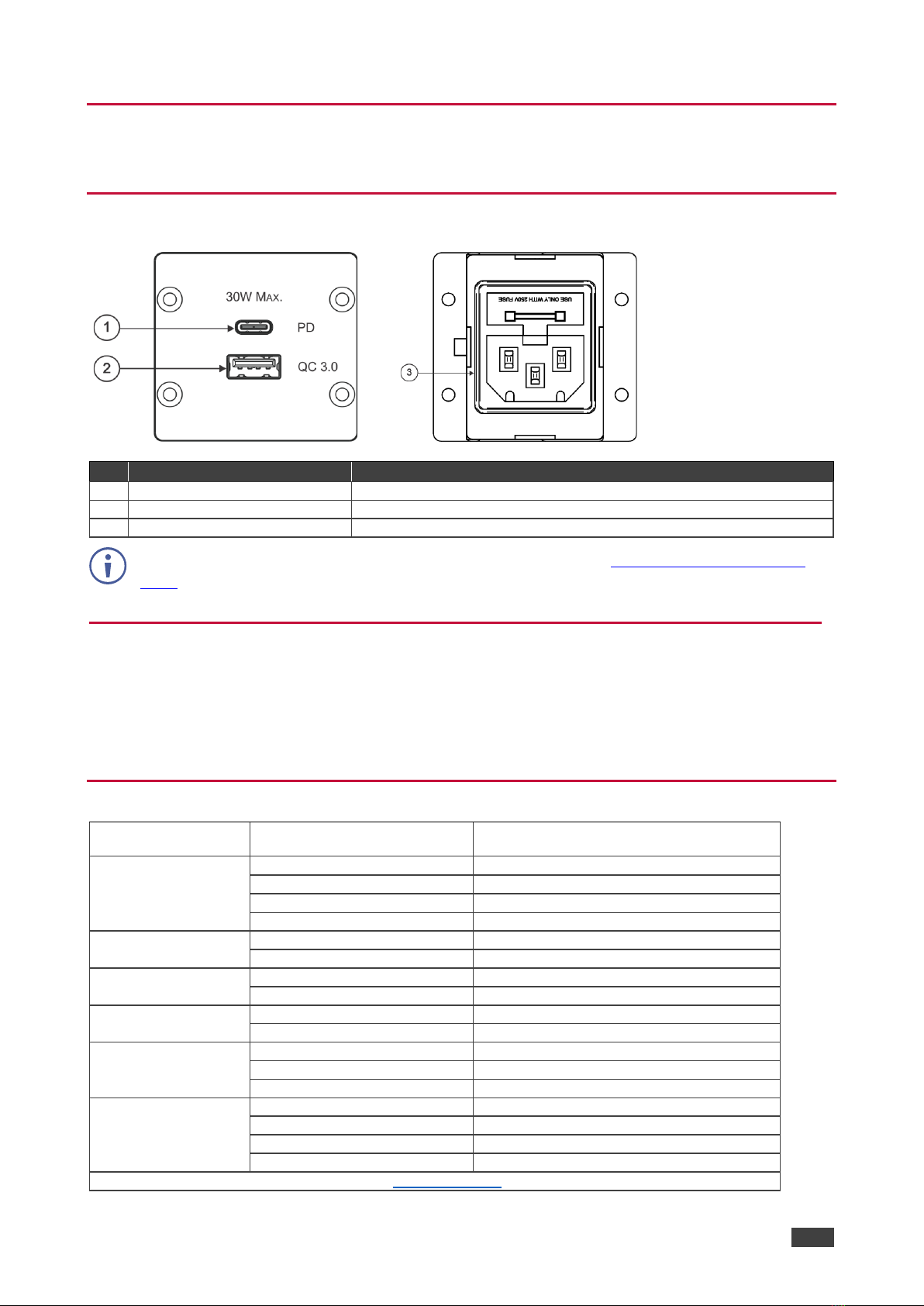

Get to know your W-2UCA
#
Feature
Function
1
Type-C USB Connector
Connect to a device for charging.
2
Type-A USB Connector
Connect to a device for charging.
3
Power Connector
Plug in C14 Power Cord.
For optimal performance, use the recommended Kramer cables available at www.kramerav.com/product/W-
2UCA. Using third-party cables may cause damage!
Mounting W-2UCA
To mount the Kramer W-2UCA dual insert charger:
1. Place the W-2UCA into the dual insert opening of the frame.
2. Fasten the front panel of W-2UCA to the frame using the four screws (supplied with the package).
3. Connect the power input socket on the back of the module to the electricity.
Technical Specifications
Ports
USB Type-A
USB Type-C
5V DC, 4.2 A; female USB Type-A and USB Type-C
connectors for charging devices
Output Current Voltage
Type-A
5V⎓3A, 9V⎓3A, 12V⎓2.5A, 20V⎓1.5A
Type-C
5V⎓3A, 9V⎓3A, 12V⎓2.5A, 15V⎓2A, 20V⎓1.5A
Type-A & Type-C
5V⎓2.4A
Output power
30W max.
Protocol
Type-A
QC 3.0
Type-C
PD 5
Power
Input
100-240V AC, 50/60Hz, 5A
Fuse
T 1.6A 250V
Regulatory Compliance
Safety
CE, UL
Environmental
RoHs, WEEE
Environmental Conditions
Storage Temperature
-40° to +70°C (-40° to 158°F)
Humidity
10% to 90%, RHL non-condensing
Operating Temperature
0° to +40°C (32° to 104°F)
General
Dimensions
4.7cm x 3.4cm x 9.6cm (1.8” x 1.3” x 3.8”) W, D, H
Shipping Dimensions
14.5cm x 9.6cm x 6.2cm (5.7” x 3.8” x 2.4”) W, D, H
Weight
0.14kg (0.31lbs) approx.
Shipping Weight
0.23kg (0.5lbs) approx.
Specifications are subject to change without notice at www.kramerav.com
