USER MANUAL
Model:
VM-30CA
1:3 Video Component / Audio Distributor

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 1
3 Overview 3
4 Your VM-30CA 1:3 Video Component / Audio Distributor 4
5 Connecting the VM-30CA 5
6 Technical Specifications 7
Figures
Figure 1: VM-30CA 1:3 Video Component / Audio Distributor 4
Figure 2: Connecting the VM-30CA 1:3 Video Component / Audio Distributor 6
Tables
Table 1: VM-30CA 1:3 Video Component / Audio Distributor Features 4
Table 2: Technical Specifications of the VM-30CA 7

Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
500-plus different models now appear in 8 Groups
1
, which are clearly defined
by function.
Congratulations on purchasing your Kramer VM-30CA 1:3 Video Component
/ Audio Distributor, which is ideal for the following applications:
 Duplication studios
 Broadcasting, production, or presentation systems requiring high quality
signal distribution
 Retail outlets or sports bars
The package includes the following items:
 VM-30CA 1:3 Video Component / Audio Distributor
 Power adapter (12V DC Input)
 This user manual
2
2 Getting Started
We recommend that you:
 Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
 Review the contents of this user manual
 Use Kramer high performance high resolution cables
3
2.1 Quick Start
This Quick start chart summarizes the basic setup and operation:
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from our Web site: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2

Overview
3
3 Overview
The Kramer VM-30CA 1:3 Video Component / Audio Distributor is a high
performance 1:3 distributor for component video signals (HDTV compatible),
digital audio (S/PDIF) signals, and unbalanced stereo audio signals.
The VM-30CA accepts one:
 Component video
1
signal and distributes the signal to three identical outputs
using RCA connectors
 Digital audio (S/PDIF) input and distributes it to three digital audio
(S/PDIF) outputs using RCA connectors
 Unbalanced stereo audio input and distributes it to three unbalanced stereo
audio outputs using 3.5mm jacks
In addition, the VM-30CA features:
 A video bandwidth of 400MHz that ensures transparent operation at the
highest resolutions
 Front panel trimmers to control the level and EQ. of the Y, P B /C B , and
P R /C R video components
 Audio level control for the unbalanced stereo audio outputs
The VM-30CA is housed in a desktop-sized enclosure, and is 12V DC fed.
To achieve the best performance:
 Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
 Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer VM-30CA
away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit
2
.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 Sometimes called YUV, or Y, B-Y, R-Y, or Y, Pb, Pr, or Y, Cb, Cr
2 For example: model number AD2512C, part number 2535-000251

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VM-30CA 1:3 Video Component / Audio Distributor
4
4 Your VM-30CA 1:3 Video Component / Audio Distributor
Figure 1 and Table 1 define the front and rear panels of the VM-30CA:

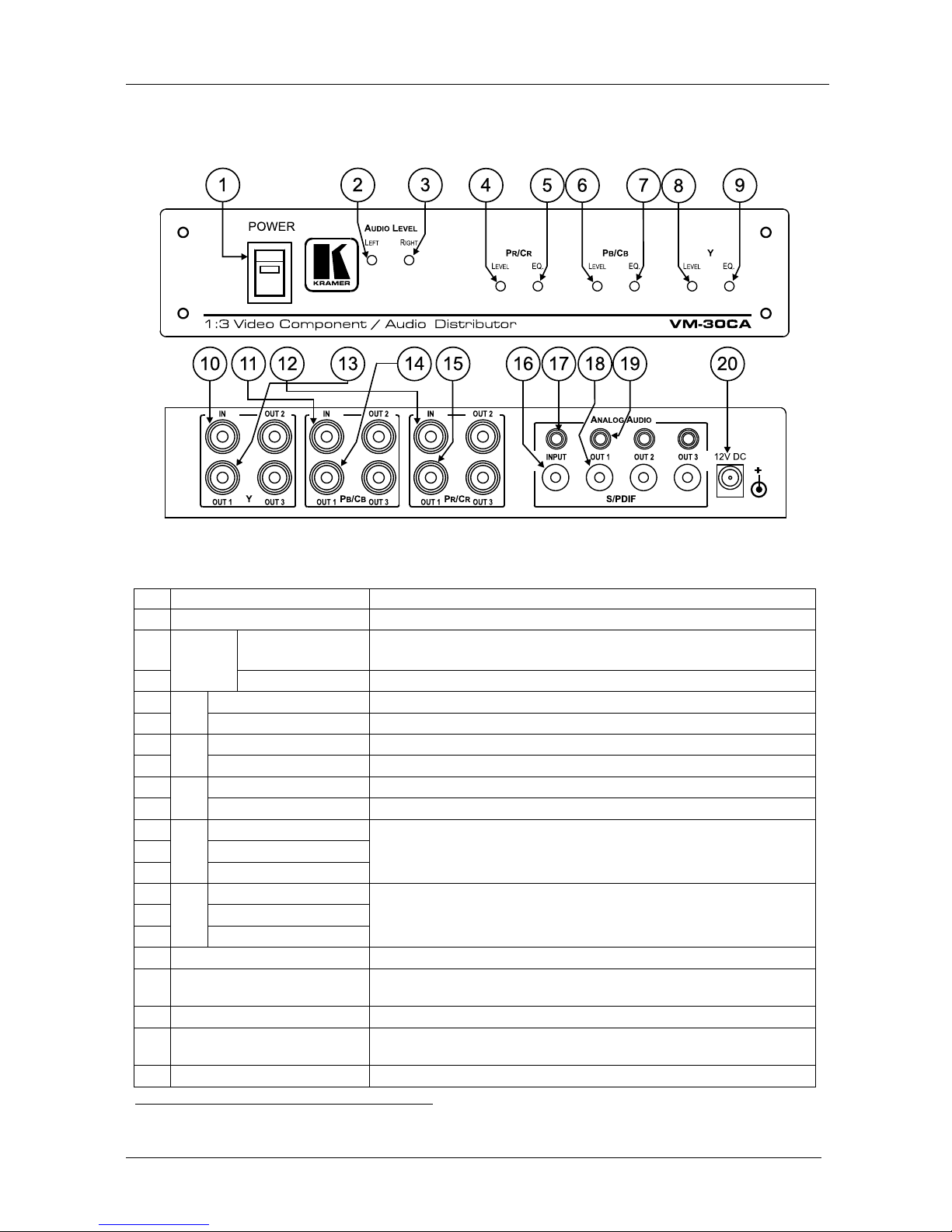

Figure 1: VM-30CA 1:3 Video Component / Audio Distributor
Table 1: VM-30CA 1:3 Video Component / Audio Distributor Features
# Feature Function
1 POWER Switch Illuminated switch supplying power to the unit
2 LEFT Trimmer Adjust
1
the left audio signal output level
3
AUDIO
LEVEL
RIGHT Trimmer Adjust
1
the right audio signal output level
4 LEVEL Trimmer Adjust
1
the P R /C R output signal level
5
P
R
/Cr
EQ. Trimmer Adjust
1
the P R /C R cable compensation equalization level
6 LEVEL Trimmer Adjust
1
the P B /C B output signal level
7
Pb/Cb
EQ. Trimmer Adjust
1
the P B /C B cable compensation equalization level
8 LEVEL Trimmer Adjust
1
the Y output signal level
9
Y
EQ. Trimmer Adjust
1
the Y cable compensation equalization level
10 Y RCA Connector
11 PB/CB RCA Connector
Connect to the component video source
12
IN
P R /C R RCA Connector
13 Y RCA Connectors
14 P B /C B RCA Connectors Connect to the component video acceptors (from OUT 1 to OUT 3)
15
OUT
P R /C R RCA Connectors
16 S/PDIF INPUT RCA Connector
Connects to the digital audio source
17 ANALOG AUDIO INPUT
3.5m Socket
Connect to the unbalanced audio source
18 S/PDIF OUT RCA Connector
Connects to the digital audio acceptor (from 1 to 3)
19 ANALOG AUDIO OUT 3.5m
Socket
Connect to the unbalanced audio acceptor (from 1 to 3)
20 12VDC +12V DC connector for powering the unit
1 Insert a screwdriver into the small hole and carefully rotate it, to trim the appropriate level

Connecting the VM-30CA
5
5 Connecting the VM-30CA
To connect a VM-30CA unit as the example in Figure 2 illustrates, do the
following
1
:
1. Connect a component video source (for example, an HDTV satellite receiver)
to the Y, P B /C B , and P R /C R IN RCA connectors, and to the S/PDIF INPUT
RCA connector.
2. Connect
2
the:
 Y, P B /C B , and P R /C R OUT 1 RCA connectors to the component video
acceptor (for example, a plasma display), and the digital audio S/PDIF
3
OUT 1 RCA connector to an AV-Receiver
 Y, P B /C B , and P R /C R OUT 3 RCA connectors and the digital audio
S/PDIF
3
OUT 3 RCA connector to a home theater system (to which a
projector and speakers are connected)
3. Connect a 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 2).
4. If required, adjust
4
the audio level, the Y, P B /C B , and/or P R /C R output
signal level, and/or the Y, P B /C B , and/or P R /C R cable compensation
equalization level.
1 Switch OFF the power on each device before connecting it to your VM-30CA. After connecting your VM-30CA, switch on
its power and then switch on the power on each device
2 You can connect three component video output connectors to up to three component video acceptors. When less than three
outputs are required, connect only those outputs of the VM-30CA that are required, and leave the other outputs unconnected
3 Alternatively, connect the ANALOG AUDIO 3.5m socket (not shown in Figure 2)
4 Insert a screwdriver into the small hole and carefully rotate it, trimming the level

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VM-30CA
6

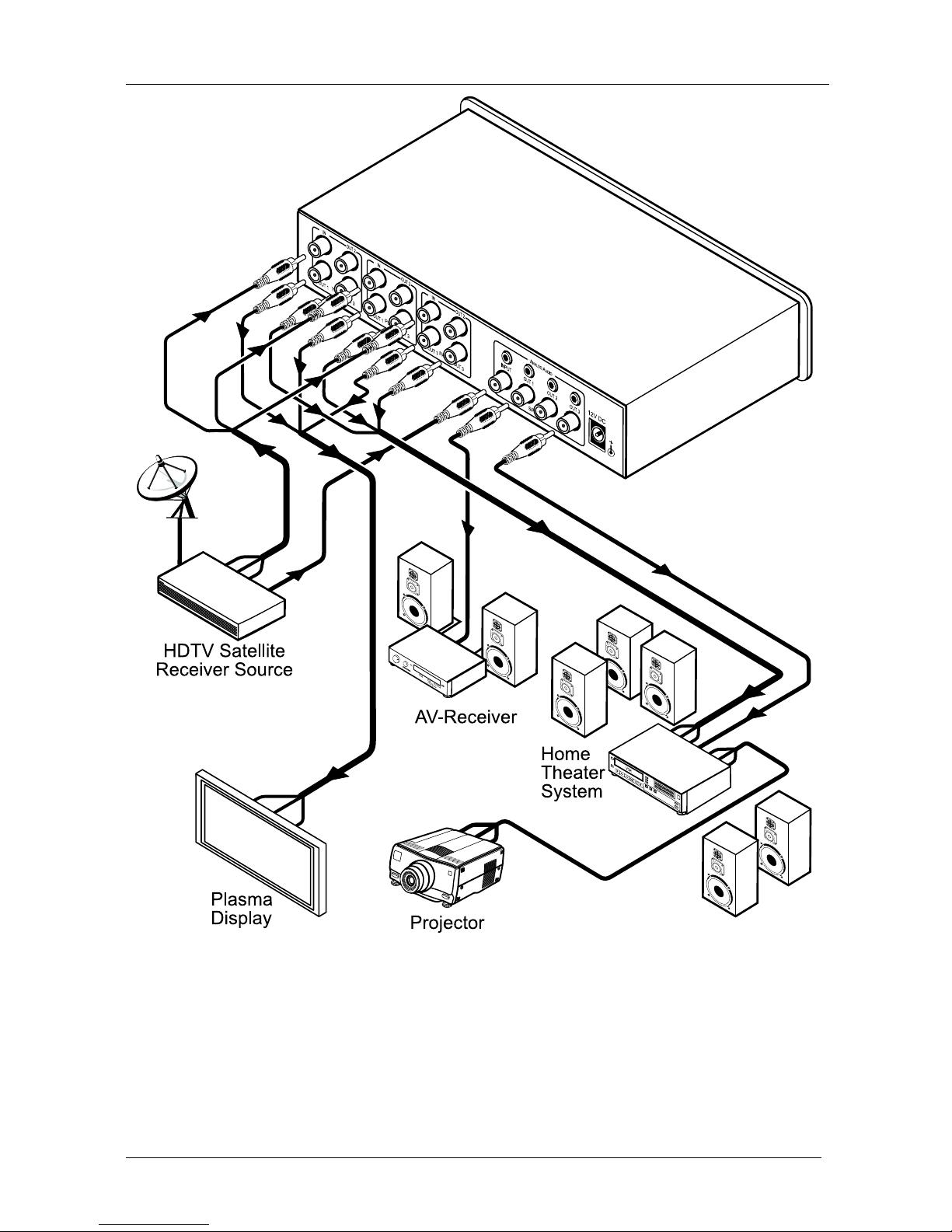

Figure 2: Connecting the VM-30CA 1:3 Video Component / Audio Distributor

Technical Specifications
7
6 Technical Specifications
Table 2 includes the technical specifications.
Table 2: Technical Specifications
1
of the VM-30CA
INPUTS: 1 component video (Y, Pb/Cb, Pr/Cr) 1Vpp, 0.7Vpp, 0.7Vpp / 75on RCA connectors
1 digital audio (S/PDIF) 75on RCA connectors
1 unbalanced stereo audio +4dBm (nominal)/50kon RCA connectors
OUTPUTS: 3 component video (Y, Pb/Cb, Pr/Cr) 1Vpp, 0.7Vpp, 0.7Vpp / 75on RCA connectors
3 digital audio (S/PDIF) 75on RCA connectors
3 unbalanced stereo audio +4dBm (nominal)/150on RCA connectors
MAX. OUTPUT LEVEL: VIDEO: 2.3Vpp AUDIO: 1.8pp (S/PDIF); 25dBm (analog)
BANDWIDTH (-3dB): VIDEO: 400MHz,
Fully Loaded
AUDIO: >100kHz
DIFF. GAIN: 0.03%
DIFF. PHASE: 0.03 Deg
K-FACTOR: <0.05%
S/N RATIO: VIDEO: 74dB AUDIO: 87dB (analog)
CONTROLS: Level: –4.1dB to +6.4dB; Equalization: 0dB to +6.3dB; Audio: –70dB to +6.2dB
COUPLING: VIDEO: DC AUDIO: Input: AC; Output: DC
AUDIO THD + NOISE: 0.065%
AUDIO 2nd HARMONIC:
0.002%
POWER SOURCE: 12V DC 500mA
DIMENSIONS: 21.5cm x 16.3cm x 4.4cm (8.4” x 6.4” x 1.7”) W, D, H
WEIGHT: 3.7 kg (8.2 lbs.) approx.
ACCESSORIES: Power supply
OPTIONS: RK-1 Rack adapter
1 Specifications are subject to change without notice

KRAMER: SIMPLE CREATIVE TECHNOLOGY
8
LIMITED WARRANTY
Kramer Electronics (hereafter Kramer) warrants this product free from defects in material and workmanship under the
following terms.
HOW LONG IS THE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
WHO IS PROTECTED?
Only the first purchase customer may enforce this warranty.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR
We will pay labor and material expenses for covered items. We will not pay for the following:
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
HOW YOU CAN GET WARRANTY SERVICE
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage,
and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and
a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMITATION OF IMPLIED WARRANTIES
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
EXCLUSION OF DAMAGES
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer
shall not be liable for:
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Part 1: Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercial and light industry environment".
CFR-47: FCC Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B – Unintentional radiators”
CAUTION!
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or modifications to
the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.

Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: [email protected]
P/N: 2900–000181 REV 1
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
