USER MANUAL



Models:
VP - 413xl, Video To WUXGA Scaler
VP - 414xl, Video To WUXGA / HD Scaler

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 1
3 Overview 3
4 Your Scaler 4
4.1 Your VP-413xl Video To WUXGA Scaler 4
4.1.1 Sync Enable/Disable Output Function 5
4.2 Your VP-414xl Video To WUXGA / HD Scaler 6
5 Connecting the Scalers 8
5.1 Connecting the VP-413xl 8
5.2 Connecting the VP-414xl 9
5.3 Connecting the Contact Closure Remote Control PINs 10
6 Technical Specifications 11
Figures
Figure 1: VP-413xl Video To WUXGA Scaler 4
Figure 2: Setting the Output Resolution of the VP-413xl 5
Figure 3: VP-414xl Video To WUXGA / HD Scaler 6
Figure 4: Setting the Output Resolution of the VP-414xl 7
Figure 5: Connecting the VP-413xl 8
Figure 6: Connecting the VP-414xl 9
Figure 7: Connecting the Contact Closure Remote Control PINs 10
Tables
Table 1: VP-413xl and VP-414xl Scalers 3
Table 2: VP-413xl Video To WUXGA Scaler Features 4
Table 3: VP-413xl Output Resolution Options 5
Table 4: VP-414xl Video To WUXGA / HD Scaler Features 7
Table 5: VP-414xl Output Resolution Options 7
Table 6: Technical Specifications of the VP-413xl and VP-414xl 11

Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
500-plus different models now appear in eight groups
1
that are clearly defined
by function.
Congratulations on purchasing your Kramer TOOLS VP-413xl Video to
WUXGA Scaler and/or VP-414xl Video to WUXGA / HD Scaler, which are
ideal for the following typical applications:
Multimedia and presentation applications for projecting a composite video
or s-Video source using a data projector, plasma, or TFT flat-screen
Presentation and conference room systems, board rooms and auditoriums
Rental and Staging
The package includes the following items:
VP-413xl Video to WUXGA Scaler, and/or VP-414xl Video to WUXGA /
HD Scaler
Power adapter: 5V DC Input for VP-413xl; 12V DC Input for VP-414xl
This user manual
2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables
3
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2

Overview
3
3 Overview
The Kramer VP-413xl/VP-414xl is a high quality low cost converter for up-
scaling composite video and s-Video that accepts PAL-B/D/G/H/I, NTSC 3.58,
and NTSC 4.43 video formats. This compact, multi-standard unit has a built-in
3D de-interlacer and a 3D comb-filter that ensures superb quality.
The VP-413xl/VP-414xl features:
An external DC source
1
, making it suitable for field operation
Side-panel buttons for selecting the input source and the output resolution
indicated by LEDs
Non-volatile memory that retains the last setting, after switching the power off
A remote input selector (for the VP-414xl)
Table 1 describes the unique characteristics of each scaler:
Table 1: VP-413xl and VP-414xl Scalers
Model Inputs Output Output Connector Output Resolution Output Format
VP-413xl
VGA VGA-WUXGA
2
RGBHV
VP-414xl
CV or Y/C VGA / HD
15-pin HD computer
graphics video
connector
VGA-WUXGA
2
/ HD
3
RGBHV / YPbPr
4
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise-
levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances and position
your Kramer VP-413xl/VP-414xl away from moisture, excessive sunlight
and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit
5
.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 5V DC for the VP-413xl; 12V DC for the VP-414xl
2 Includes: VGA, SVGA, XGA, WXGA, SXGA, UXGA and WUXGA
3 Includes: 480p, 576p, 720p, 1080i (a pseudo 1080i format is used in this case, namely a progressive scan 540p) and 1080p
4 Component color space
5 For example: model number AD2512C, part number 2535-000251

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your Scaler
4
4 Your Scaler
This section describes the VP-413xl (see section 4.1), and the VP-414xl (see
section 4.2).
4.1 Your VP-413xl Video To WUXGA Scaler
The VP-413xl cover is perforated to prevent chip overheating. Figure 1 and
Table 2 define the VP-413xl Video To WUXGA Scaler:

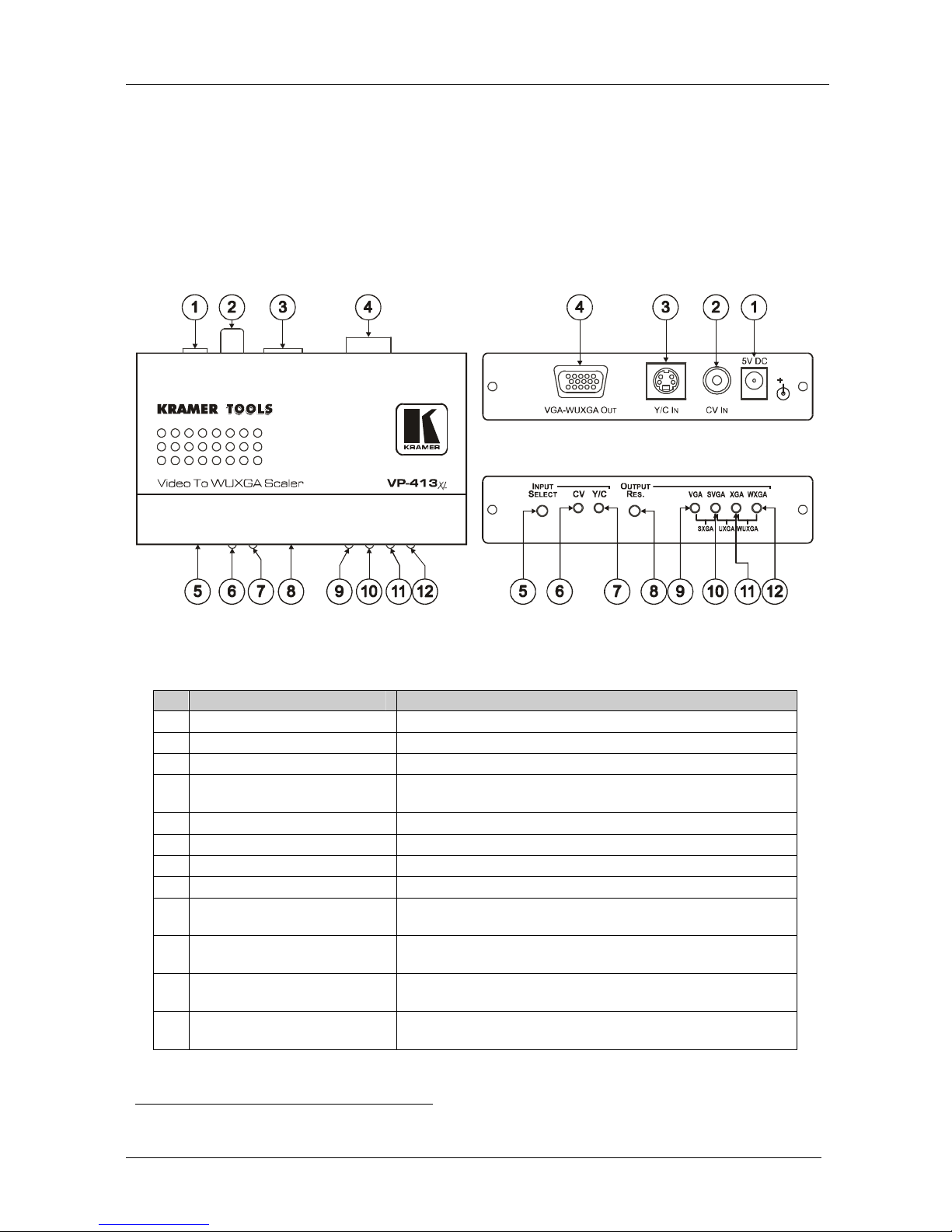

Figure 1: VP-413xl Video To WUXGA Scaler
Table 2: VP-413xl Video To WUXGA Scaler Features
# Feature Function
1 5V DC +5V DC connector for powering the unit
2 CV IN RCA Connector Connects to a composite video source
3 Y/C IN 4p Connector Connects to an s-Video source
4 VGA-WUXGA OUT HD15F
Connector
Connects to the VGA-WUXGA acceptor
5 INPUT SELECT Button Press to select between inputs
6 CV LED Illuminates when the CV input is selected
7 Y/C LED Illuminates when the Y/C input is selected
8 OUTPUT RES. Button Press to select the desired output resolution
9 VGA LED Illuminates when the VGA resolution is selected and also when
the SXGA resolution is selected
1
10 SVGA LED Illuminates when the SVGA resolution is selected and also when
the SXGA or the UXGA resolutions are selected
1
11 XGA LED Illuminates when the XGA resolution is selected and also when
the UXGA or the WUXGA resolutions are selected
1
12 WXGA LED Illuminates when the WXGA resolution is selected and also
when the WUXGA resolution is selected
1
1 See Table 3

Your Scaler
5

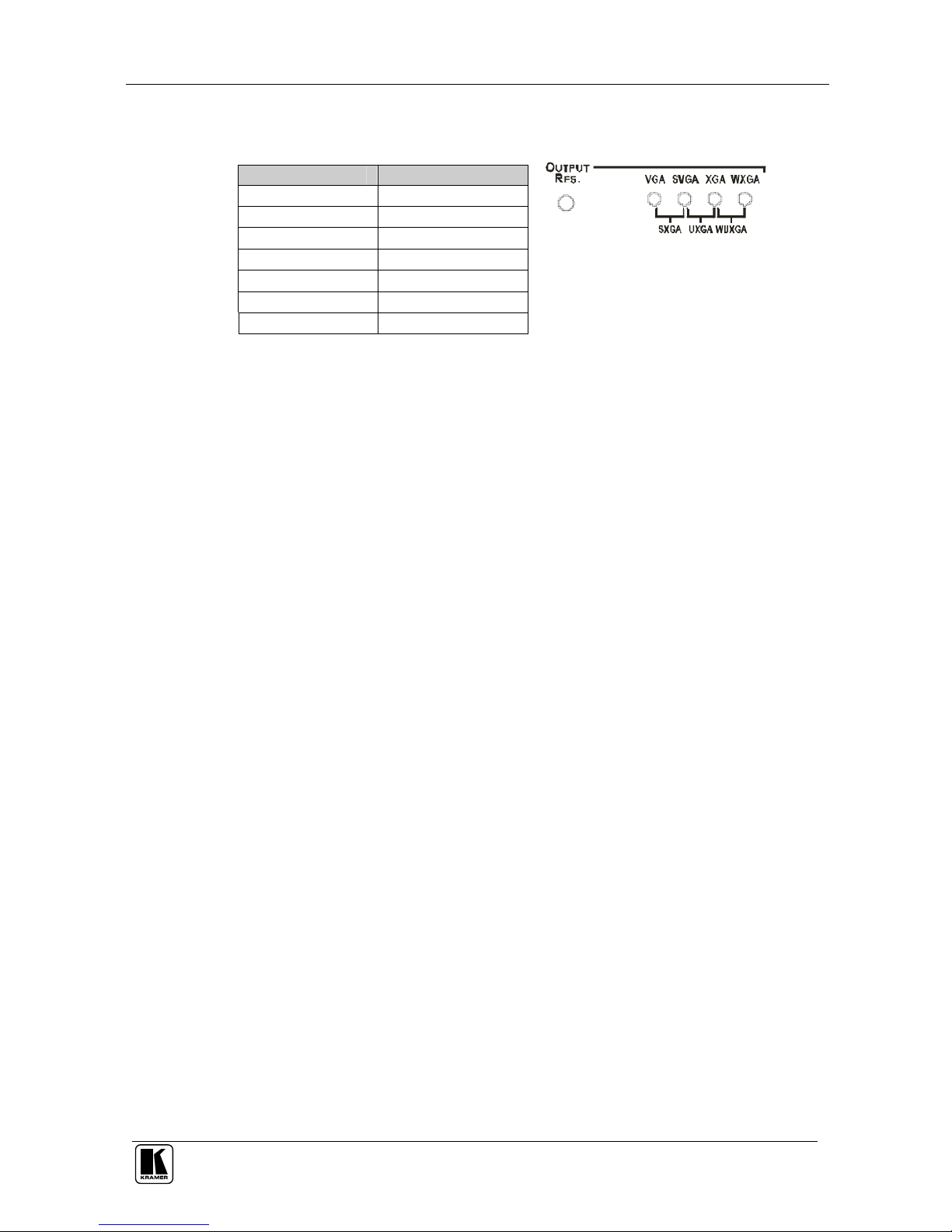

Figure 2 and Table 3 define the output resolution options:
Table 3: VP-413xl Output Resolution Options
Illuminated LEDS Output Resolution
VGA VGA
SVGA SVGA
XGA XGA
WXGA WXGA
VGA and SVGA SXGA
SVGA and XGA UXGA
XGA and WXGA WUXGA
Figure 2: Setting the Output
Resolution of the VP-413xl
4.1.1 Sync Enable/Disable Output Function
You can enable or disable the sync output signals when no source is
connected, to enable the display/projector to enter its sleep mode, and turn off
when no sync is detected.
To toggle between the sync output enable/disable state while no input is
connected, do the following:
1. Press and hold the input selection button and connect the power supply cable.
2.HoldthebuttonuntiloneoftheinputLEDsflashesforashorttime(thistakes
about 12 sec).
To identify the current status of the unit, disconnect and reconnect the power
cable to start up the unit:
If both INPUT LEDs flash for a short time, the sync output signals are
disabled
If both INPUT LEDs remain ON during unit startup, the sync output
signals are enabled

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your Scaler
6
4.2 Your VP-414xl Video To WUXGA / HD Scaler
Figure 3 and Table 4 define the VP-414xl Video to WUXGA / HD Scaler:

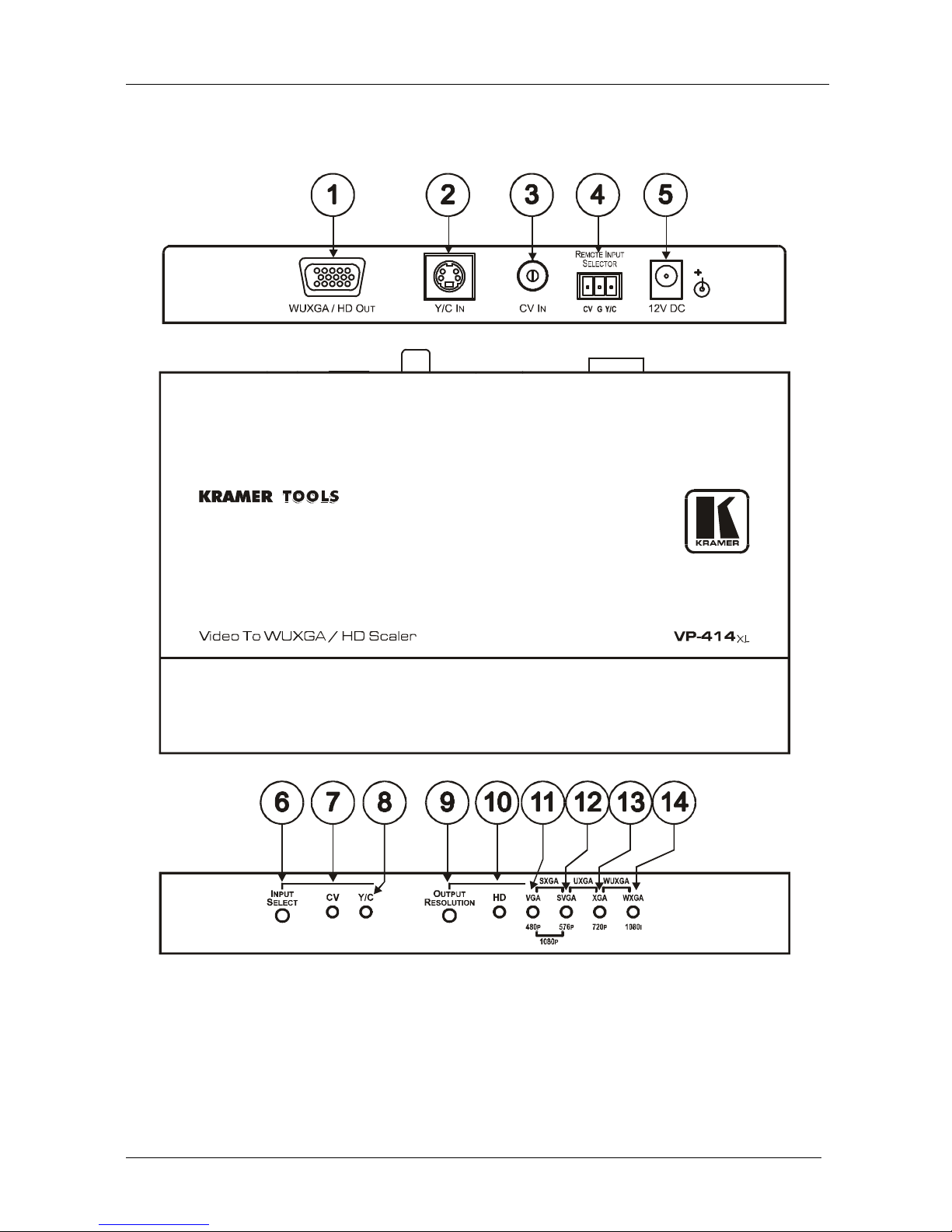

Figure 3: VP-414xl Video To WUXGA / HD Scaler

Your Scaler
7
Table 4: VP-414xl Video To WUXGA / HD Scaler Features
# Feature Function
1 WUXGA / HD OUT HD15F Connector Connects to the WUXGA / HD acceptor
2 Y/C IN 4p Connector Connects to an s-Video source
3 CV IN RCA Connector Connects to a composite video source
4 REMOTE INPUT SELECTOR PINs Connects to a contact closure switch for remote selection
between Y/C and CV (see section 5.3)
5 12V DC +12V DC connector for powering the unit
6 INPUT SELECT Button Press to select between inputs
7 CV LED Illuminates when the CV input is selected
8 Y/C LED Illuminates when the Y/C input is selected
9 OUTPUT RESOLUTION Button Press to select the desired output resolution
10 HD LED Illuminates when the HD
1
output resolutions are selected
11 VGA / 480p LED Illuminates when the VGA or 480p resolution is selected and
also when the SXGA or the 1080p resolutions are selected
12 SVGA / 576p LED Illuminates when the SVGA or 576p resolution is selected and
also when the SXGA or the 1080p resolutions are selected
1
13 XGA / 720p LED Illuminates when the XGA or 720p resolution is selected and
also when the UXGA or the WUXGA resolutions are selected
1
14 WXGA / 1080i LED Illuminates when the WXGA or 1080i resolution is selected
2
and
also when the WUXGA resolution is selected
1

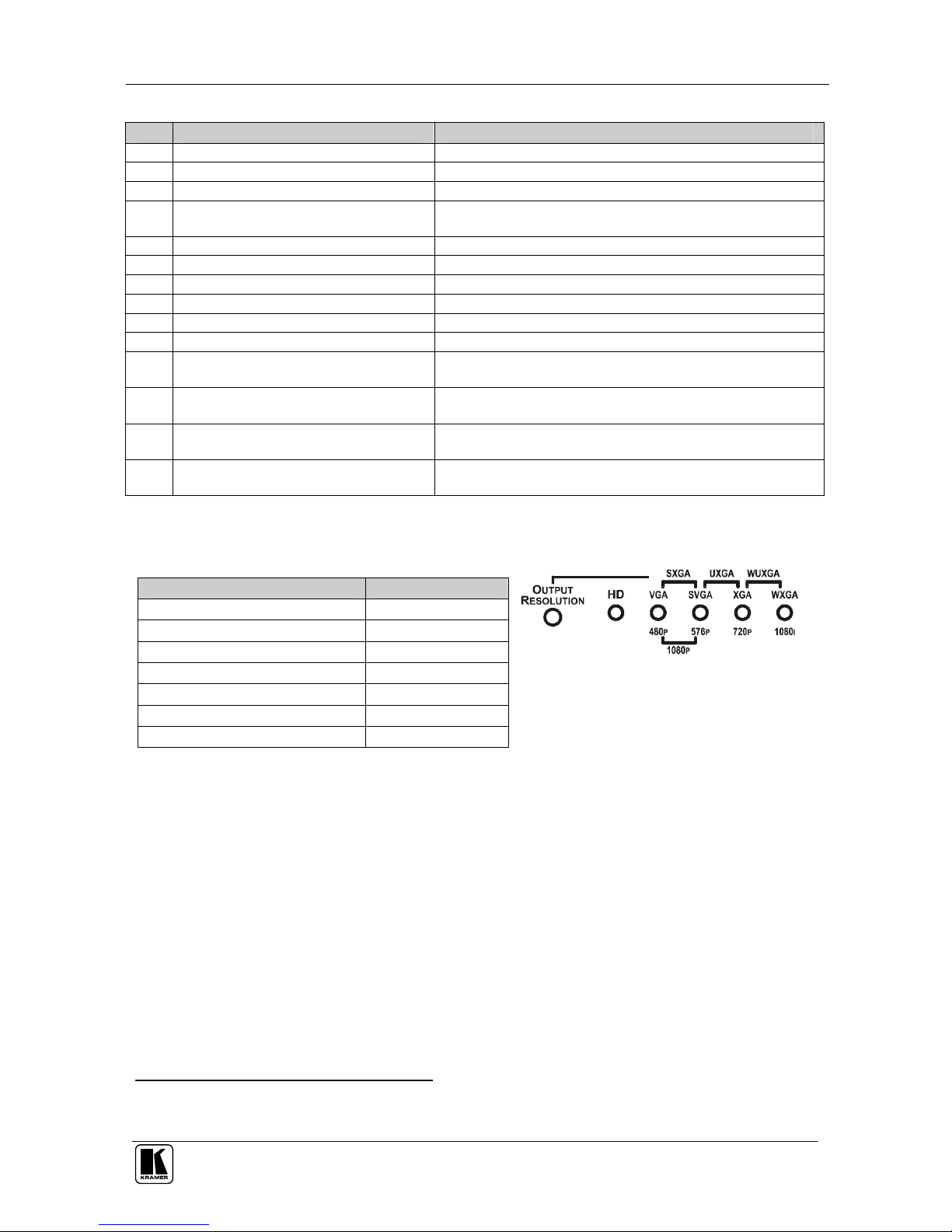

Figure 4 and Table 5 define the output resolution options:
Table 5: VP-414xl Output Resolution Options
Illuminated LEDS Output Resolution
VGA / 480p VGA / 480p
SVGA / 576p SVGA / 576p
XGA / 720p XGA / 720p
WXGA / 1080i WXGA / 1080i
VGA and SVGA / 480p and 576p SXGA / 1080p
SVGA and XGA UXGA
XGA and WXGA WUXGA
Figure 4: Setting the Output
Resolution of the VP-414xl
1 480p, 576p, 720p, 1080i or 1080p
2 A pseudo 1080i format is used in this case, such as a progressive scan 540p

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the Scalers
8
5 Connecting the Scalers
The following sections describe how to connect each unit.
5.1 Connecting the VP-413xl
To connect the VP-413xl, as illustrated in the example in Figure 5, do the
following
1
:
1. Connect a composite video source to the CV IN RCA connector (for example,
a composite video player) and/or an s-Video source (for example, an s-Video
player) to the Y/C 4p input connector.
2. Connect the VGA – WUXGA OUT 15-pin HD computer graphics video
connector to an acceptor (for example, a plasma display).
3. Connect the 5V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 5).
4. Use the:
INPUT SELECT button to select the desired input
OUTPUT RES. button to select the desired resolution

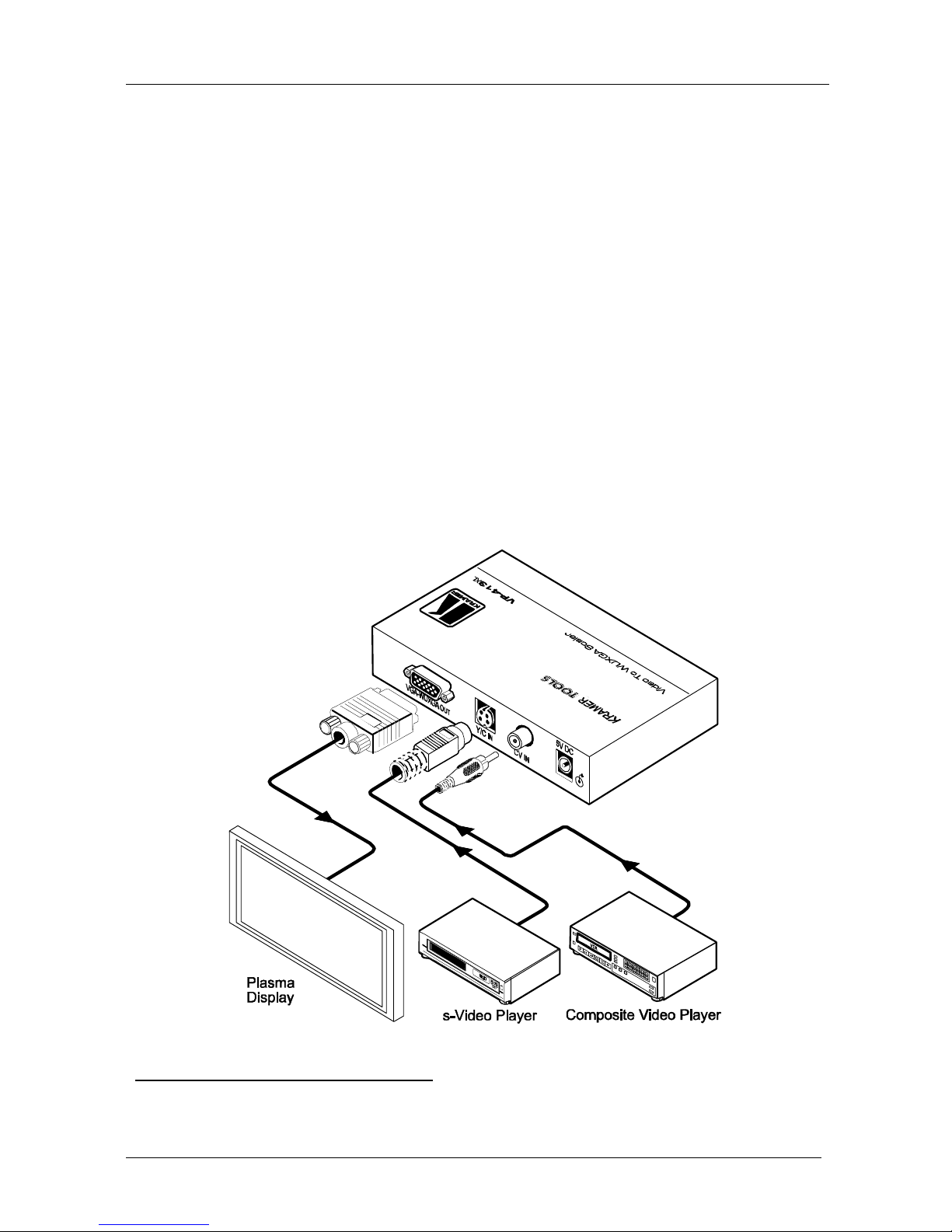

Figure 5: Connecting the VP-413xl
1 Switch OFF the power on each device before connecting it to your VP-413xl. After connecting your VP-413xl, switch on its
power and then switch on the power on each device
