Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups
1
that are clearly
defined by function.
Thank you for purchasing your Kramer TOOLS TP-43 Component –
S/PDIF Transceiver, which is designed to be used with the TP-41
Component – S/PDIF transmitter and the TP-42 Component – S/PDIF
receiver. The TP-43 uses existing UTP cabling that results in an efficient, fast
and uncluttered environment for:
High-quality home cinema at multiple outputs
Studios, airports, offices and hospitals
Security and military applications
Each package includes the following items:
The TP-43 Component – S/PDIF Transceiver
Power supply
This user manual
2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
Review the contents of this user manual
Use Kramer high-performance high-resolution cables
3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
2
3 Overview
The TP-43 Component – S/PDIF Transceiver receives a twisted pair CAT 5
signal, decodes it and simultaneously distributes it to the YUV and S/PDIF
outputs, as well as relaying the input to the next receiver (transceiver
operation). In particular, the TP-43 Component – S/PDIF Transceiver
features:
A YUV
1
output on 3 RCA connectors
A digital audio output (S/PDIF) on an RCA connector
A CAT 5 input and output on RJ-45 connectors
Individual level and EQ. controls for the Y, U, and V signals, as
well as audio level and EQ. controls
The TP-43 Component – S/PDIF Transceiver is designed to be used with
the TP-41 and the TP-42. When using three TP-43 units between the
TP-41 / TP-42 pair, the maximum range of the system via UTP cabling can
be extended to up to 1200ft (400m).
Kramer twisted pair adapters are an excellent way to solve remote
monitoring requirements without using more costly coaxial cable or fiber,
or wireless transmission systems.
To achieve the best performance:
Use only good quality connection cables
2
to avoid interference,
deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables).
Avoid interference from neighboring electrical appliances that
may adversely influence signal quality and position your Kramer
TP-43 away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit
3
.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 Also known as Y, B-Y, R-Y, or Y, Pb, Pr
2 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com
3 For example, part number 2535-000251

Your TP-43 Component – S/PDIF Transceiver
3
3.1 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)
We recommend that you use shielded twisted pair (STP) cable. There are
different levels of STP cable available, and we advise you to use the best
quality STP cable that you can afford. Our STP skew-free cable, Kramer
BC-SXTP, is intended for transmitting VGA signals. Our non-skew-free
cable, Kramer BC-STP, is intended for digital signals.
The compliance to electromagnetic interference was tested using STP
cables, therefore we recommend using those cables.
Although unshielded twisted pair (UTP) cable might be preferred for long
range applications, the UTP cable should be installed far away from electric
cables, motors and so on, which are prone to create electrical interference.
However, since the use of UTP cable might cause inconformity to
electromagnetic standards, Kramer does not commit to meeting the standard
with UTP cable.
4 Your TP-43 Component – S/PDIF Transceiver
For a description of the TP-43 Component – S/PDIF Transceiver:
Topside, see section 4.1
Underside, see section 4.2
4.1 Your TP-43 Component – S/PDIF Transceiver

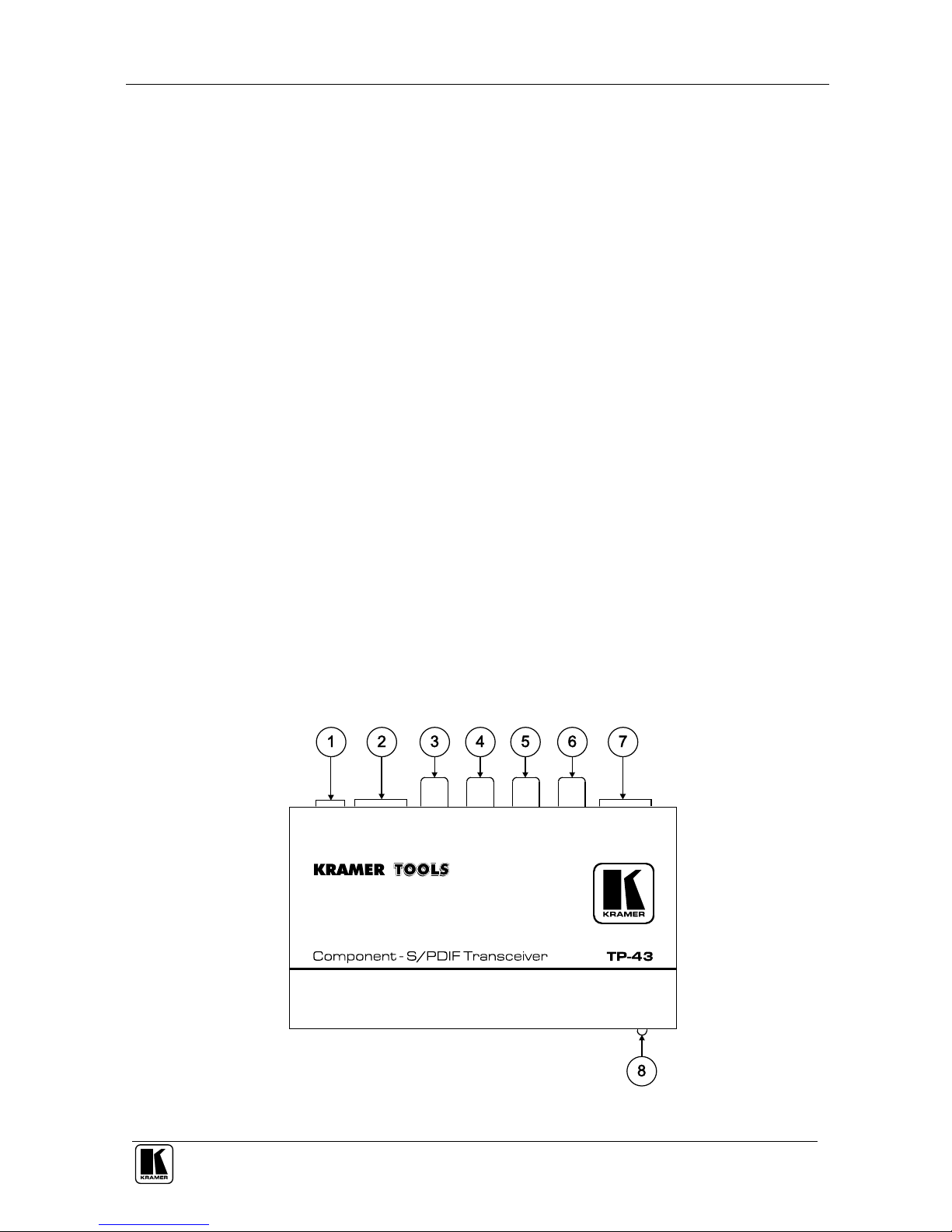

Figure 1, Figure 2, Figure 3, and Table 1 define the TP-43:
Figure 1: TP-43 Component – S/PDIF Transceiver

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your TP-43 Component – S/PDIF Transceiver
4
Figure 2: TP-43 Component – S/PDIF Transceiver
Figure 3: TP-43 Component – S/PDIF Transceiver
Table 1: TP-43 Component – S/PDIF Transceiver Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 LINE OUT RJ-45 Connector Connects to the LINE IN connector on the TP-42
1
3 S/PDIF RCA Connector Connects to the digital audio acceptor
4 VRCA Connector
5 URCA Connector
6
OUTPUTS
YRCA Connector
Connects to the component video acceptor
7 LINE IN RJ-45 Connector Connects to the LINE OUT connector on the TP-41
1
8 ON LED Illuminates when receiving power
1 Using a straight pin to pin UTP or STP cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 3 and Figure 7)

Connecting the TP-43 Component – S/PDIF Transceiver
5
4.2 Your TP-43 Component – S/PDIF Transceiver Underside
Figure 4 and Table 2 define the underside of the TP-43:
Figure 4: TP-43 Component – S/PDIF Transceiver Underside
Table 2: TP-43 Component – S/PDIF Transceiver Underside Features
# Feature Function
1 Y Trimmer Adjusts
1
the Y output signal level
2 U Trimmer Adjusts
1
the U output signal level
3
LEVEL
V Trimmer Adjusts
1
the V output signal level
4 Y Trimmer Adjusts
1
the cable compensation equalization level for output Y
5 U Trimmer Adjusts
1
the cable compensation equalization level for output U
6
COMPONENT
EQ.
V Trimmer Adjusts
1
the cable compensation equalization level for output V
7 LEVEL Adjusts
1
the digital audio signal level
8
LOCAL OUTPUT
S/PDIF
EQ. Adjusts
1
the digital audio output cable compensation equalization level
9 V Trimmer Adjusts
1
the V line output signal level
10
U Trimmer Adjusts
1
the U line output signal level
11
Y Trimmer Adjusts
1
the Y line output signal level
12
LINE
OUTPUT
LEVELS
S/PDIF Trimmer Adjusts
1
the S/PDIF digital audio line output signal level
5 Connecting the TP-43 Component – S/PDIF Transceiver
This section describes how to connect:
The TP-43, see section 4.1
An extended Component – S/PDIF distribution system by
connecting three TP-43 units between the TP-41 and the TP-42,
see section 4.2
1 Insert a screwdriver into the small hole and carefully rotate it, trimming the level

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the TP-43 Component – S/PDIF Transceiver
6
5.1 Connecting a TP-43 Component – S/PDIF Transceiver
To configure a TP-43 Component – S/PDIF Transceiver, as the example in
Figure 5 illustrates, do the following:
1. Connect the:
Y, U, and V RCA (component video) OUTPUT connectors to
a component acceptor (for example, a plasma display)
S/PDIF (digital audio) RCA OUTPUT connector to an AV
Receiver
2. Connect the LINE IN connector of the TP-43 to the LINE OUT connector
of the TP-41, via UTP cabling (maximum range of 300ft (100m)).
3. Connect the LINE OUT connector of the TP-43 to the LINE IN connector
of the TP-42, via UTP cabling (maximum range of 300ft (100m)).
4. Connect a 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 5).
5. If necessary, adjust
1
the appropriate level(s) of the TP-43, the:
Local output: Y, U and V signal levels, Y, U and V
compensation equalization levels, and the digital audio
S/PDIF level and compensation equalization level
Line output: Y, U and V signal levels, and the digital audio
S/PDIF level
1 Insert a screwdriver into the small hole and carefully rotate it, trimming the level

Connecting the TP-43 Component – S/PDIF Transceiver
7
Figure 5: Connecting the TP-43 Component – S/PDIF Transceiver

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the TP-43 Component – S/PDIF Transceiver
8
5.2 Connecting an Extended Component – S/PDIF Distribution
System
To configure a TP-41 / TP-42 / TP-43 extended Component – S/PDIF
distribution system (up to 1200ft (400m)), as the example in Figure 6
illustrates:
1. On the TP-41, connect the:
Y, U, and V RCA INPUT connectors and the S/PDIF (digital
audio) RCA INPUT connector to a component source (for
example, a DVD player)
LINE OUT connector
1
to the LINE IN connector
1
of the first
TP-43
2. On the first TP-43, connect the:
Local Output A: Y, U, and V RCA (component video)
OUTPUT connectors to a component acceptor (for example,
a plasma display), and the S/PDIF (digital audio) RCA
OUTPUT connector to an AV Receiver
LINE OUT connector
1
to the LINE IN connector
1
of the
second TP-43
3. On the second TP-43, connect the:
Local Output B: Y, U, and V RCA (component video)
OUTPUT connectors to a component acceptor (for example,
a plasma display), and the S/PDIF (digital audio) RCA
OUTPUT connector to an AV Receiver
LINE OUT connector
1
to the LINE IN connector
1
of the third
TP-43
4. On the third TP-43, connect the:
Local Output C: Y, U, and V RCA (component video)
OUTPUT connectors to a component acceptor (for example,
a plasma display), and the S/PDIF (digital audio) RCA
OUTPUT connector to an AV Receiver
LINE OUT connector
1
to the LINE IN connector
1
of the
TP-42
1 Via CAT 5 cabling with a maximum range of up to 300ft (100m)

Connecting the TP-43 Component – S/PDIF Transceiver
9
5. On the TP-42, connect the:
Y, U, and V RCA (component video) OUTPUT connectors to
a component acceptor (for example, a plasma display), and
the S/PDIF (digital audio) RCA OUTPUT connector to an
AV Receiver
6. On each unit, connect a 12V DC power adapter to the power socket and
connect the adapter to the mains electricity (not shown in Figure 6).
7. If necessary, adjust
1
the appropriate level(s) on the TP-41
2
, the TP-42
3
and
on each of the three TP-43 units
4
.
1 Insert a screwdriver into the small hole and carefully rotate it, trimming the level
2 That is, the audio level and the Y, U, and V levels
3 That is, the audio level, the audio EQ., the Y, U, and V levels, and the Y, U, and V EQ.
4 That is, the local output: Y, U and V signal levels / compensation equalization levels, and the digital audio S/PDIF level and
compensation equalization level, as well as the line output: Y, U and V signal levels, and the digital audio S/PDIF level

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the TP-43 Component – S/PDIF Transceiver
10
Figure 6: Configuring an Extended Component – S/PDIF Distribution System

Connecting the TP-43 Component – S/PDIF Transceiver
11
5.3 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors
Table 3 and Figure 7 define the CAT 5 PINOUT, using a straight pin-to-pin
cable with RJ-45 connectors:
Table 3: CAT 5 PINOUT
EIA /TIA 568A EIA /TIA 568B
PIN Wire Color PIN Wire Color
1 Green / White 1 Orange / White
2 Green 2 Orange
3 Orange / White 3 Green / White
4 Blue 4 Blue
5 Blue / White 5 Blue / White
6 Orange 6 Green
7 Brown / White 7 Brown / White
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 3 and 6 Pair 2 1 and 2
Pair 3 1 and 2 Pair 3 3 and 6
Pair 4 7 and 8 Pair 4 7 and 8
Figure 7: CAT 5 PINOUT

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
12
6 Technical Specifications
Table 4 defines the technical specifications
1
:
Table 4: Technical Specifications
2
of the TP-43
INPUTS: 1 RJ-45 CAT 5 shielded connector (LINE IN)
Local Output 1 set of component video (Y, U, V) on RCA connectors
1 S/PDIF (digital audio) on an RCA connector
OUTPUTS:
Repeater Line Output 1 RJ-45 CAT 5 shielded connector (LINE OUT)
MAX. OUTPUT LEVEL: 2Vpp (video and audio)
RESOLUTION: Video: Up to 1080i Audio: S/PDIF up to 192kHz
DIFF. GAIN: 0.15%
DIFF. PHASE: 1.05 Deg
3
/ 0.68 Deg
4
K-FACTOR: 0.1%
S/N RATIO: Video: 72dB
CROSSTALK (all hostile):
Audio: –46dB S/PDIF into video@5MHz
CONTROLS: Video Line Out Level: –1.1dB to +1.4dB
Video Level Out: –0.9dB to +0.83dB
S/PDIF Line Out Level: –1.6dB to +0.9dB
S/PDIF Level Out: –0.82dB to +0.8dB
EQ. at TP 43 OUT: 0 to +4.1dB video @ 33MHz
0 to +3dB S/PDIF @ 33MHz (60m)
COUPLING: Video: DC Audio: DC
POWER SOURCE: 12V DC, 139mA
DIMENSIONS: 12cm x 7.15cm x 2.76cm (4.7" x 2.8" x 1.08") W, D, H
WEIGHT: 0.3 kg (0.67 lbs.) approx.
ACCESSORIES: Power supply
1 Specifications for CAT 5 UTP cable 60m (TP-41 to TP-43) and 30m (TP-43 to TP-42), unless otherwise specified
2 Specifications are subject to change without notice
3 Repeater section
4 Local output

13

Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: [email protected]
P/N: 2900-000136 REV 2
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
