USER MANUAL
Model:
TP-576
HDMI CAT5 Line Driver

Contents
i
Contents
1Introduction 1
2Getting Started 1
2.1 Quick Start 2
3Overview 3
3.1 Using Twisted Pair Cable 4
3.2 About HDMI 5
3.3 Defining EDID 6
3.4 About the Power Connect™ Feature 6
3.5 Recommendations for Best Performance 6
4Your TP-576 HDMI / CAT 5 Line Driver 7
5Using the TP-576 HDMI / CAT 5 Line Driver 8
5.1 Connecting the TP-576 HDMI /CAT 5 Line Driver 8
5.2 Using the RS-232 ports to control a device via a PC 11
5.2.1 Connecting to the TP-576 via RS-232 11
5.3 Connecting an IR Emitter/Sensor 12
5.4 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 15
5.5 Acquiring the EDID 16
5.5.1 Disabling/Enabling Deep Color Support 16
6Default EDID 17
7Technical Specifications 18
8Default Communication Parameters 18
9Kramer Protocol 2000 19
Figures
Figure 1: TP-576 HDMI /CAT 5 Line Driver 7

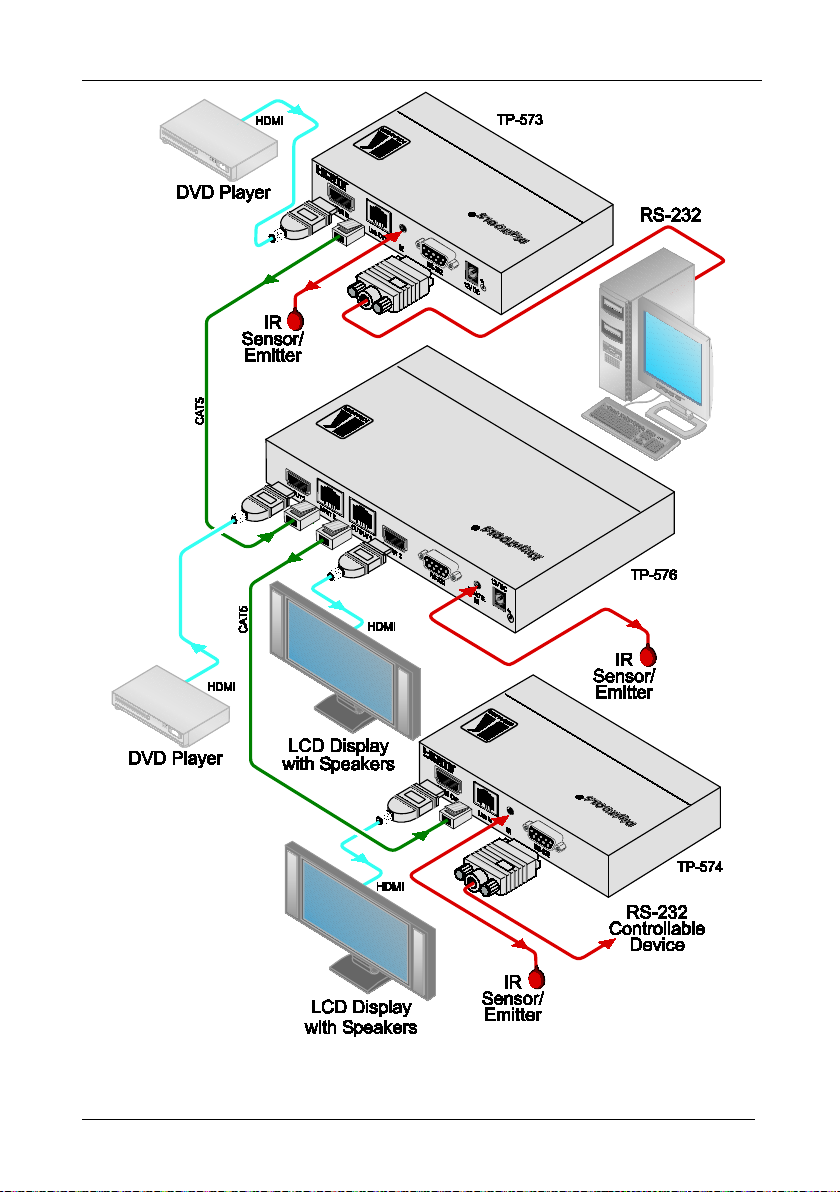

Figure 2: Connecting a TP-576 HDMI / CAT5 Line Driver 10

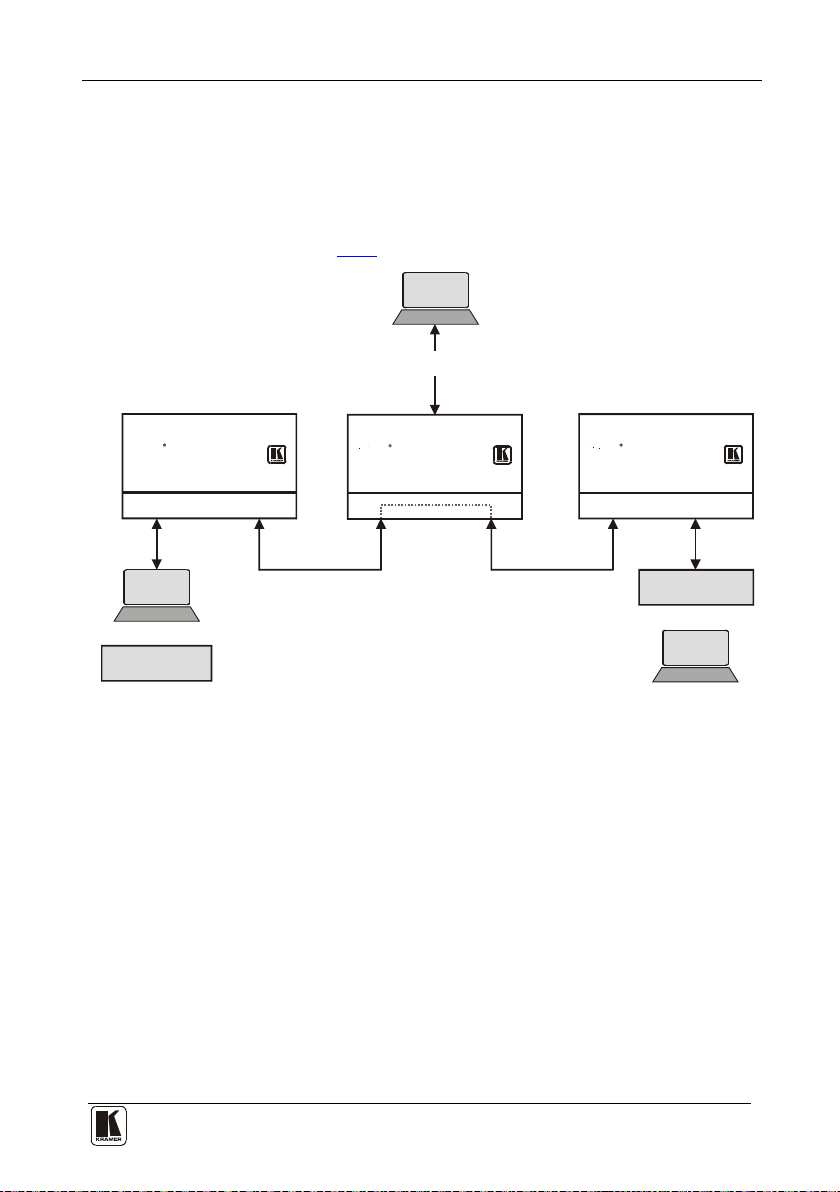

Figure 3: TP-576 RS-232 Signals 11

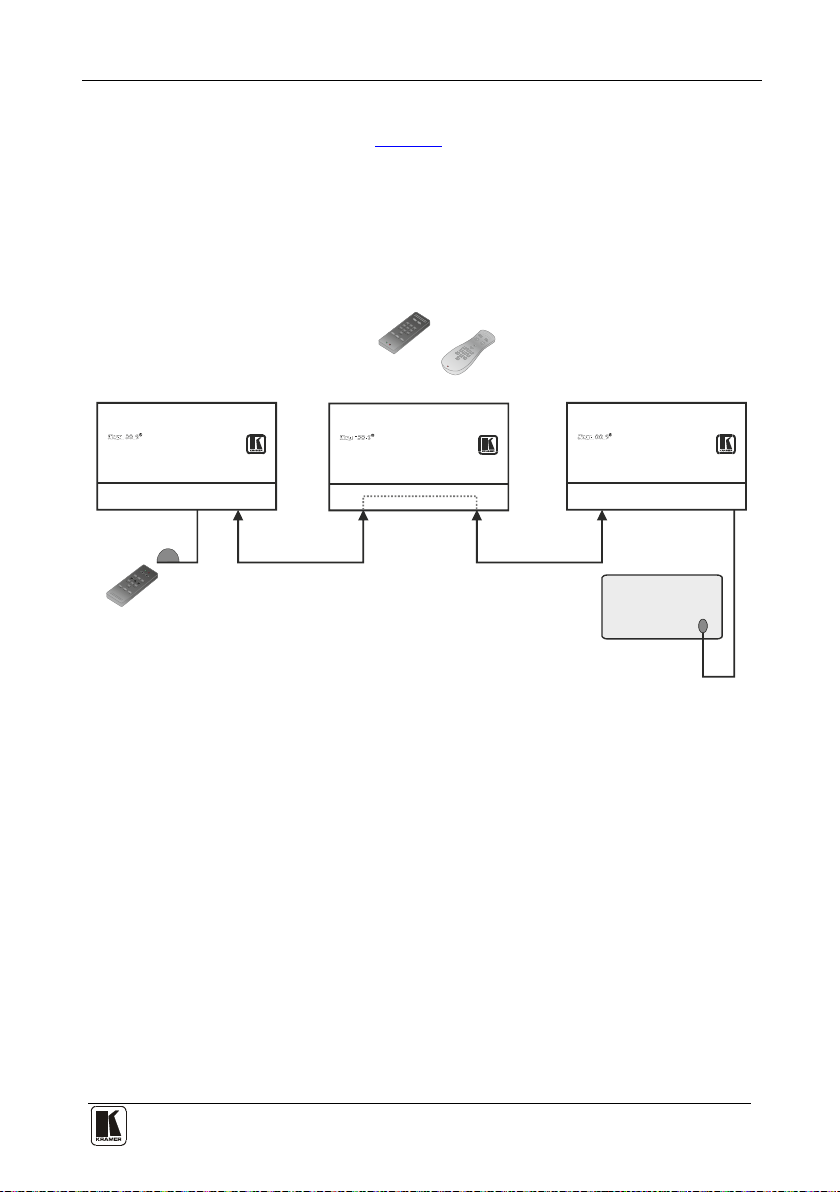

Figure 4: TP-576 IR Control – Example I 12

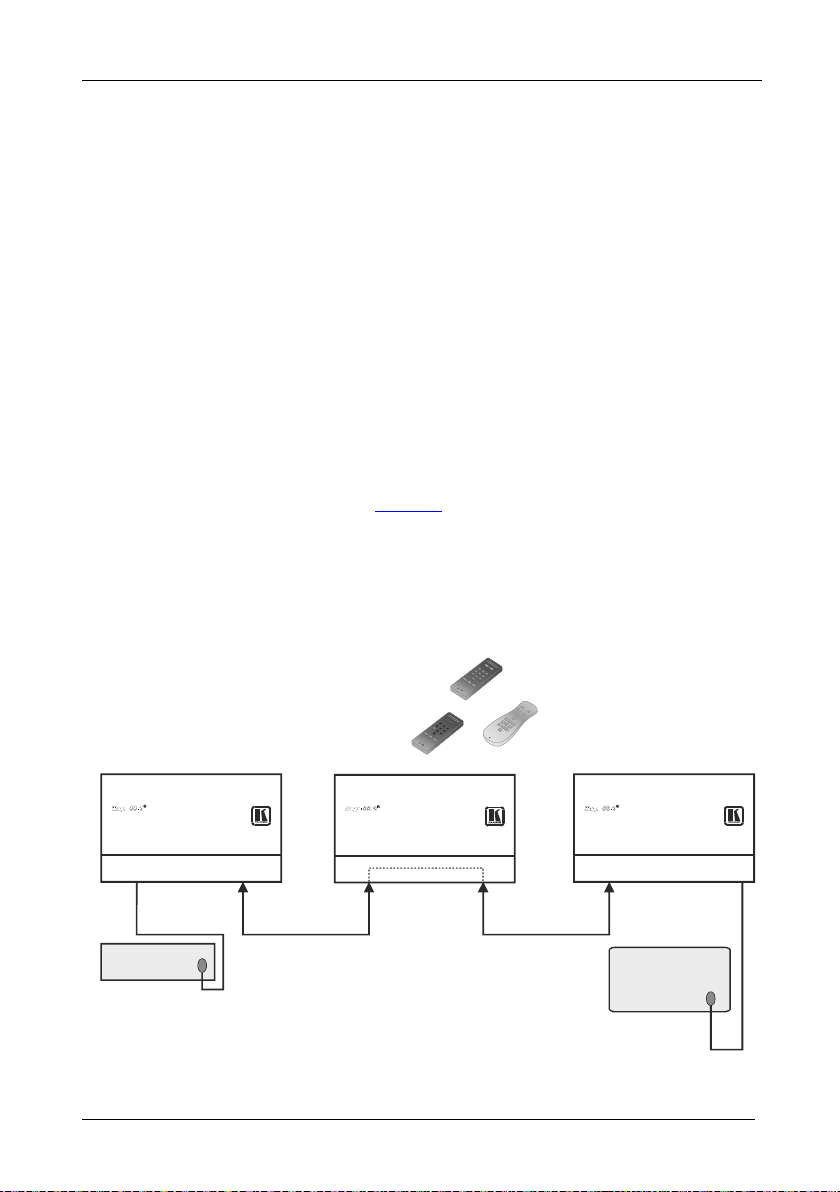

Figure 5: TP-576 IR Control – Example II 13
Figure 6: TP-576 IR Control – Example III 14
Figure 7: CAT 5 PINOUT 15
Tables
Table 1: TP-576 HDMI /CAT 5 Line Driver Features 7
Table 2: CAT 5 PINOUT 15
Table 3: Technical Specifications of the TP-576 18
Table 4: Default Communication Parameters 18
Table 5: Protocol Definitions 19
Table 6: Instruction Codes for Protocol 2000 20

Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups1
Congratulations on purchasing your Kramer MegaTOOLS®TP-576HDMI
/ CAT5 Line Driver which is ideal for:
that are clearly
defined by function.
•Home theater, presentation and multimedia applications
•Rental and staging
The package includes the following:
•TP-576
•Power supply (12V DC)
•This user manual2
•Bracket installation kit
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high-performance high-resolution cables3
Note:
You must use shielded Twisted Pair (STP)
cabling with the TP-576, (refer to section
3.1 for further details).
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from the Internet
3 The complete list of Kramer cables is on our Web site

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.

Overview
3
3 Overview
The TP-576is a twisted pair line driver for HDMI, bidirectional RS-232 and
infrared signals. The TP-576 receives an HDMI signal either from a local
HDMI source or from a transmitter (for example, the Kramer TP-573) via the
LINE IN RJ-45 connector. The TP-576 decodes these input signals to the local
outputs and simultaneously transmits them to a TP receiver (for example, the
TP-574) which converts them back to HDMI, RS-232 and infrared signals.
Using the TP-576, you can pass via the twisted pair cable:
•EDID (Extended Display Information Data) and HDCP signals
between the TP-573 and TP-574
•HPD (Hot Plug Detect) signals from the display device to the source
The TP-576 features:
•Up to 2.25Gbps bandwidth per graphic channel1
•An RS-232 baud rate of up to 38.4kbps
(1.65Gbps for the
twisted pair inputs and outputs)
•HDTV compatibility
•Bidirectional RS-232 and IR interfaces. The IR input/output transmits
and receives IR commands over CAT 5 cable2
•A system range
between the transmitter
and receiver 3
Use only shielded cables with the TP-576in which the cable Ground shielding
must be connected / soldered to the shield of both RJ-45 connectors
of up to 90m (295ft) at 1080i, or up to 30m (98ft) at
1080p on shielded BC-DGKat524 cable; 90m (295ft) at 1080i, or up to
70m (230ft) at 1080p on shielded BC-DGKat623 cable; 100m (330ft) at
1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat7a23 cable.
•HDMI Support – HDMI (V.1.4 with Deep Color4
•3D Pass-Through
, x.v.Color™, HDMI
Uncompressed Audio Channels, Dolby TrueHD, DTS-HD)
•The Power Connect System™ – A single connection to the TP-576
powers the transmitter, receiver and line driver units
1 Suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions
2 Compatible with a Kramer transmitter and via a Kramer external remote receiver: C-A35M/IRR or C-A35M/IRE or
C-A35M/2IRE
3 Note that the transmission range depends on the signal resolution, graphics card and display used The distance using non-
Kramer CAT 5, CAT 6 and CAT 7a cables may not reach these ranges
4 On the HDMI input

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
4
•The ability to read and store, in non-volatile memory, the default
EDID, or the EDID1
•LEDs indicating the selected input and active output LED indicators
block from either or both of the output display
devices, so it can then provide the EDID information to the HDMI
sources even if the display device is not connected
The TP-576 is 12V DC fed and is housed in a MegaTOOLS® enclosure
where two units can be rack mounted side-by-side in a 1U rack space with
the optional RK-T2B rack adapter.
3.1 Using Twisted Pair Cable
Kramer engineers have developed special twisted pair cables to best match
our digital twisted pair products; the Kramer: BC-DGKat524 (CAT 5 24
AWG), the Kramer: BC-DGKat623 (CAT 6 23 AWG cable), and the
Kramer: BC-DGKat7a23 (CAT 7a 23 AWG cable). These specially built
cables significantly outperform regular CAT 5 / CAT 6 / CAT 7a cables.
Note: the TP-573 / TP-574 cannot work with unshielded cables.
1 EDID is Extended Display Identification Data (see section 3 3 for a more detailed definition)

Overview
5
3.2 About HDMI
High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital1
In particular, HDMI
audio/video interface, widely supported in the entertainment and home cinema
industry. It delivers the highest high-definition image and sound quality.
2
•Provides a simple
: 3interface between any audio/video source, such as a
set-top box, DVD player, or A/V receiver and video monitor, such as a
digital flat LCD / plasma television (DTV), over a single lengthy4
•Supports standard, enhanced, high-definition video, and multi-channel
digital audio
cable
5
•Transmits all ATSC HDTV standards and supports 8-channel digital
audio, with bandwidth to spare to accommodate future enhancements
and requirements
on a single cable
•Benefits consumers by providing superior, uncompressed digital video
quality via a single cable6
•Is backward-compatible with DVI (Digital Visual Interface)
, and user-friendly connector
•Supports two-way communication between the video source (such as a
DVD player) and the digital television, enabling new functionality such
as automatic configuration and one-button play
HDMI has the capacity to support:
•Existing high-definition video formats (720p, 1080i, and 1080p/60), as
well as standard definition formats such as NTSC or PAL
1 Ensuring an all-digital rendering of video without the losses associated with analog interfaces and their unnecessary digital-
to-analog conversions
2 HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
licensing LLC
3 With video and multi-channel audio combined into a single cable, the cost, complexity, and confusion of multiple cables
currently used in A/V systems is reduced
4 HDMI technology has been designed to use standard copper cable construction at up to 15m
5 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound HDMI has the capacity to
support Dolby 5 1 audio and high-resolution audio formats
6 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a
simple, cost-effective manner

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
6
3.3 Defining EDID
The Extended Display Identification Data (EDID1
3.4 About the Power Connect™ Feature
) is a data-structure,
provided by a display, to describe its capabilities to a graphics card (that is
connected to the display’s source). The EDID enables the TP-576 to
“know” what kind of monitor is connected to the output. The EDID
includes the manufacturer’s name, the product type, the timing data
supported by the display, the display size, luminance data and (for digital
displays only) the pixel mapping data.
The Power Connect™ feature here means that the TP-576 unit can power
both the transmitter and receiver when they are within 270 feet (90 meters)
from the TP-576. The Power Connect™ feature applies as long as the cable
can carry power. The distance does not exceed 90 meters on standard CAT 5
cable, for longer distances, heavy gauge cable should be used2
3.5 Recommendations for Best Performance
.
To achieve the best performance:
•Connect only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and
elevated noise levels (often associated with low quality cables)
•Avoid interference from neighboring electrical appliances and position
your TP-576 away from moisture, excessive sunlight and dust
1 Defined by a standard published by the Video Electronics Standards Association (VESA)
2 CAT 5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances

Your TP-576 HDMI / CAT 5 Line Driver
7
4 Your TP-576 HDMI / CAT 5 Line Driver
Figure 1and Table 1define the TP-576 HDMI / CAT 5 Line Driver:
Figure 1: TP-576 HDMI /CAT 5 Line Driver
Table 1: TP-576 HDMI /CAT 5 Line Driver Features
#
Feature
Function
1 IR Receiver The yellowLED lights when receiving signals from he infrared remote
control transmitter
2 EDID SETUP Button Press briefly to determine the type of EDID stored in he non-
volatile memory
Press and hold to select the desired EDID setup and then release
to acquire EDID (see section 5.5)
3 INPUT SELECT Button Press to select the input. The relevant IN LED illuminates
4 IN 1 LED Illuminates when input 1 is selected
5 IN 2 LED Illuminates when input 2 is selected
6 OUT 1 LED Illuminates when output 1 is connected and active
Blinks when the monitor does not support HDCP1
7 OUT 2 LED Illuminates when output 2 is connected and active
Blinks when the monitor does not support HDCP1
8 ON LED Illuminates when receiving power
9 INPUT 1 HDMI Connector Connects to the HDMI source
10 INPUT 2 RJ-45 Connector Connects to the CAT 5 IN RJ-45 connector on the TP-573 or
TP-571
11 OUTPUT 1 RJ-45 Connector Connects to the CAT 5 IN RJ-45 connector on the TP-574 or
TP-572+
12 OUTPUT 2 HDMI Connector Connects to the HDMI acceptor
13 RS-232 9-pin D-sub Connector Connects to a PC or other controller
14 REMOTE IR 3.5mm Mini Jack Connects to an infrared receiver/emitter
2
15 12V DC +12V DC connector for powering the unit
1 This LED also illuminates or blinks During EDID setup (see section 5 5)
2 Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or
C-A35M/2IRE

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Using the TP-576 HDMI / CAT 5 Line Driver
8
5 Using the TP-576 HDMI / CAT 5 Line Driver
This section describes how to:
•Connect the TP-576 (see section 5.1)
•Connect RS-232 ports (see section 5.2)
•Connect the IR emitters and sensors (see section 5.3)
•Wire the CAT 5 RJ-45 connectors (see section 5.4)
•Use the EDID SETUP button (see section 5.5).
5.1 Connecting the TP-576 HDMI /CAT 5 Line Driver
To connect the TP-576 together with the TP-573 HDMI/RS-232/IR Line
Transmitter and the TP-574 HDMI/RS-232/IR Line Receiver, as illustrated
in the example in Figure 2, do the following:
On the TP-573 connect:
1. An HDMI source (for example, a DVD player) to the HDMI IN connector.
2. An IR sensor or emitter to the IR 3.5mm mini jack connector (see
section 5.3).
3. A PC to the RS-232 9-pin D-sub connector.
Alternatively, you can connect an RS-232 controllable device to the
RS-232 port of the TP-573 and a PC to the RS-232 port of the TP-5741
4. A CAT 5
.
2 2
or CAT 6 cable to the LINE OUT RJ-45 twisted pair connector.
On the TP-576 connect:
1. An HDMI source (for example, a DVD player) to the HDMI INPUT 1
connector.
2. The CAT 5 or CAT 6 cable2from the TP-573 to the INPUT 2 RJ-45
twisted pair connector.
3. An IR sensor or emitter to the REMOTE IR 3.5mm mini jack connector
(see section 5.3).
4. The 12V DC power supply3Figure 2to the TP-576 (not shown in ).
On the TP-574 connect:
5. The HDMI OUT connector to an HDMI acceptor (for example, an LCD
display with speakers).
6. An IR emitter or sensor to the IR 3.5mm mini jack connector (see
section 5.3).
1 See section 5 2
2 Using the Kramer BC-DGKat524 or BC-DGKat623 cable, respectively
3 To power the TP-576 as well as the TP-573 and TP-574

Using the TP-576 HDMI / CAT 5 Line Driver
9
7. The RS-232 9-pin D-sub connector to an RS-232 acceptor (for example,
an RS-232 controllable device).
Alternatively, you can connect an RS-232 controllable device to the
RS-232 port of the TP-573 and a PC to the RS-232 port of the TP-5741
8. The CAT 5
.
2or CAT 62cable from the TP-576to the LINE IN RJ-45
twisted pair connector.
9. The 12V DC power supply to the TP-576(not shown in Figure 2).
1 See section 5 2

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Using the TP-576 HDMI / CAT 5 Line Driver
10
Figure 2: Connecting a TP-576 HDMI / CAT5 Line Driver

Using the TP-576 HDMI / CAT 5 Line Driver
11
5.2 Using the RS-232 ports to control a device via a PC
The TP-576 passes bidirectional RS-232 signals between the TP-573 and
the TP-574. For example, a PC connected to the RS-232 port on the TP-573
can control an RS-232 controllable device on the TP-574.
You can connect a PC to the RS-232 port on the TP-576 via a straight
connection (see section 5.2.1) to control the TP-576 only.
TP-573 TP-576 TP-574
RS-232 Controllable
Device
RS-232 Controllable
Device
PC
PC
PC
OR
OR
Control the TP-576
(straight connection)
RS-232 signal
via CAT 5
RS-232 Signal
Pass Through
RS-232 signal
via CAT 5
Figure 3: TP-576 RS-232 Signals
5.2.1 Connecting to the TP-576 via RS-232
You can connect to the TP-576 via an RS-232 connection using, for
example, a PC. Note that a null-modem adapter/connection is not required.
To connect to the TP-576 via RS-232, connect the RS-232 9-pin D-sub rear
panel port on the TP-576 unit via a 9-wire straight cable (only pin 2 to pin
2, pin 3 to pin 3, and pin 5 to pin 5 need to be connected) to the RS-232
9-pin D-sub port on your PC.

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Using the TP-576 HDMI / CAT 5 Line Driver
12
5.3 Connecting an IR Emitter/Sensor
The TP-576 consists of an IR receiver and a REMOTE IR 3.5mm mini jack
connector that can connect to either an emitter or receiver.
In a transmitter-receiver configuration that includes, for example, the
TP-573 and TP-574, IR control behavior is determined by the IR items
(emitter or receiver) that are connected to the REMOTE IR or IR (for the
TP-573 and TP-574) 3.5mm mini jack connectors.
To control any device in this configuration, use the appropriate IR remote
control transmitter. For example, the Kramer remote controller will be able
to control Kramer devices. For controlling an LCD display you will need to
use the LCD remote controller unit, and so on.
Many IR control configurations are available; this section includes several
options:
Controlling the System via IR – Example I
In the example illustrated in Figure 4, IR emitters are attached to the DVD
player connected to the TP-573 and the LCD display connected to the
TP-574.
Point the appropriate IR remote control transmitters to the TP-576 IR receiver
window (or IR sensor that is connected to the REMOTE IR 3.5mm mini jack
connector) to control the TP-576, the DVD player and the LCD display.
TP-573 TP-576 TP-574
LCD Display
DVD Player
IR signal
via CAT 5
IR Emitter
IR Emitter
IR Signal
Pass Through
IR signal
via CAT 5
Kramer
Remote Controller
LCD Display
Remote Controller
DVD Player
Remote Controller
Figure 4: TP-576 IR Control – Example I

Using the TP-576 HDMI / CAT 5 Line Driver
13
Controlling the System via IR – Example II
In the example illustrated in Figure 5, an IR sensor is connected to the IR
3.5mm mini jack connector of the TP-573 and an IR emitter is attached to
the LCD display connected to the TP-574.
Point the LCD display remote controller either to the IR sensor of the TP-573
or the IR receiver window of the TP-576 to control the LCD display. Point
the Kramer remote controller to IR receiver window of the TP-576 to control
the TP-576.
TP-573 TP-576 TP-574
LCD Display
IR signal
via CAT 5
IR Emitter
IR Signal
Pass Through
IR signal
via CAT 5
Kramer
Remote Controller
LCD Display
Remote Controller
IR Sensor
LCD Display
Remote Controller
Figure 5: TP-576 IR Control – Example II

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Using the TP-576 HDMI / CAT 5 Line Driver
14
Controlling the System via IR – Example III
In the example illustrated in Figure 6, an IR sensor is connected to the IR
3.5mm mini jack connector of the TP-574and an IR emitter is attached to
the DVD 1 player connected to the TP-573.
Point the DVD 1 player remote controller to the IR sensor of the TP-574 to
control the DVD 1 player, and also the DVD 2 player remote controller to
control the DVD 2 player (that is connected to the TP-576).
In addition, an IR emitter is attached to the DVD 2 player that is connected
to the TP-576. Once an IR emitter is connected to the IR REMOTE 3.5mm
mini jack connector, IR control on the TP-576 becomes local.
Point the Kramer remote controller to the IR receiver window of the TP-576
to control the TP-576.
TP-573 TP-576 TP-574
DVD 2 PlayerDVD 1 Player
IR signal
via CAT 5 IR EmitterIR Emitter
IR Signal
Pass Through
IR signal
via CAT 5
Kramer
Remote Controller
DVD 2 Player
Remote Controller
IR Sensor
DVD 1 Player
Remote Controller
Figure 6: TP-576 IR Control – Example III

Using the TP-576 HDMI / CAT 5 Line Driver
15
5.4 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors
Table 2and Figure 7define the STP CAT 5 PINOUT1
Table 2: CAT 5 PINOUT
, using a straight
pin-to-pin cable with RJ-45 connectors (note, that the cable Ground
shielding must be connected / soldered to the connector shield):
Figure 7: CAT 5 PINOUT
36
7812 5
4
145 78
Shield
632
EIA /TIA 568A EIA /TIA 568B
PIN
Wire Color
PIN
Wire Color
1 Green / White 1 Orange / White
2 Green 2 Orange
3 Orange / White 3 Green / White
4 Blue 4 Blue
5 Blue / White 5 Blue / White
6 Orange 6 Green
7 Brown / White 7 Brown / White
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 3 and 6 Pair 2 1 and 2
Pair 3 1 and 2 Pair 3 3 and 6
Pair 4 7 and 8 Pair 4 7 and 8
1 CAT 6 or similar (heavier gauge) cabling can also be used

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Using the TP-576 HDMI / CAT 5 Line Driver
16
5.5 Acquiring the EDID1
Initially, the TP-576 operates with the factory default EDID
2
You can acquire the EDID from:
. This lets you
connect the power before connecting one of the acceptors or sources.
•One Output3
•Two Connected Outputs, the Auto-mix Mode
(the relevant output illuminates)4
•The Default EDID (both output LEDs blink)
(both output LEDs
illuminate)
To acquire the EDID, do the following:
1. Connect the power.
2. Connect the output or outputs from which you want to acquire the
EDID.
3. Press and hold the EDID SETUP button to select the desired EDID.
The OUT LEDs illuminate in the following cycle: OUT 1, OUT 2, both
blink (Default) and both illuminate (Auto-mix4).
4. Release the button when reaching the desired set up5
5.5.1 Disabling/Enabling Deep Color Support
.
The EDID is now acquired.
You can disable EDID deep color support to prevent signal deterioration
when using long twisted pair cables on INPUT 2.
To disable deep color and acquire EDID:
1. Disconnect the power.
2. Connect the output or outputs from which you want to acquire the
EDID.
3. Connect the power while pressing the EDID SETUP button.
4. Perform steps 3 and 4 in section 5.5.
1 This is usually done only once, when the machine is being set up in an installation Once acquired, the EDID is saved in
non-volatile memory and further acquisition is not necessary
2 The TP-576 reads the EDID, which is stored in the non-volatile memory
3 The local output and the output on the transmitter
4 The EDID acquired is a weighted average of all the connected outputs For example, if several displays with different
resolutions are connected to the outputs, the acquired EDID supports all the resolutions, as well as other parameters included
in the EDID
5 If you set the machine to acquire the EDID from an output that is not connected, the Default EDID will be acquired

Default EDID
17
To enable deep color and acquire EDID:
1. Disconnect the power.
2. Connect the output or outputs from which you want to acquire the
EDID.
3. Connect the power while pressing the INPUT SELECT button.
4. Perform steps 3 and 4 in section 5.5.
6 Default EDID
Monitor [Real-time 0x0031]
Model name............... TP576-r0
Manufacturer............. KRM
Plug and Play ID......... KRM0576
Serial number............ 505-707455010
Manufacture date......... 2009, ISO week 10
Filter driver............ None
-------------------------
EDID revision............ 1 3
Input signal type........ Digital
Color bit depth.......... Undefined
Display type............. RGB color
Screen size.............. 520 x 320 mm (24.0 in)
Power management......... Standby, Suspend, Active off/sleep
Extension blocs.......... 1 (CEA-EXT)
-------------------------
DDC/CI................... Not supported
Color characteristics
Default color space...... Non-sRGB
Display gamma............ 2.20
Red chromaticity......... Rx 0.674 - Ry 0 319
Green chromaticity....... Gx 0.188 - Gy 0.706
Blue chromaticity........ Bx 0.148 - By 0.064
White point (default).... Wx 0 313 - Wy 0.329
Additional descriptors... None
Timing characteristics
Horizontal scan range.... 30-83kHz
Vertical scan range...... 56-76Hz
Video bandwidth.......... 170MHz
CVT standard............. Not supported
GTF standard............. Not supported
Additional descriptors... None
Preferred timing......... Yes
Native/preferred timing.. 1280x720p at 60Hz (16:10)
Modeline............... "1280x720" 74.250 1280 1390 1430 1650 720 725 730 750 +hsync +vsync
Standard timings supported
720 x 400p at 70Hz - IBM VGA
640 x 480p at 60Hz - IBM VGA
640 x 480p at 75Hz - VESA
800 x 600p at 60Hz - VESA
800 x 600p at 75Hz - VESA
1024 x 768p at 60Hz - VESA
1024 x 768p at 75Hz - VESA
1280 x 1024p at 75Hz - VESA
1280 x 1024p at 60Hz - VESA STD
1600 x 1200p at 60Hz - VESA STD
1152 x 864p at 75Hz - VESA STD

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
18
7 Technical Specifications
Table 3includes the technical specifications1
Table 3: Technical Specifications of the TP-576
of the TP-576:
INPUTS: 1 HDMI connector
1 CAT 5 on an RJ-45 connector
OUTPUTS: 1 CAT 5 on an RJ-45 connector
1 HDMI connector
PORTS: 1 bidirectional IR port on a 3.5mm mini jack
1 bidirectional RS-232 port on a 9-pin D-sub connector (for local control)
BANDWIDTH: Supports up to 2.25Gbps bandwidth per graphic channel (1.65Gbps for he
twisted pair inputs and outputs)
COMPLIANCE WITH
HDMI STANDARD: Supports HDMI and HDCP
RS-232 BAUD RATE: Up to 38.4kbps
CONTROLS: EDID SETUP button, input select button
INDICATOR LEDs: IN 1, IN 2, OUT 1, OUT 2, and ON LEDs
POWER SOURCE: 12V DC, 950mA2
DIMENSIONS: 12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95"), W, D, H
WEIGHT: 0.3kg (0.67lbs) approx.
ACCESSORIES: 12V DC 2.1A power supply, bracket installation kit
OPTIONS: RK-3T 19” rack mount, Kramer remote external receiver3
8 Default Communication Parameters
, Kramer BC-DGKat524 (CAT
5 24AWG), BC-DGKat623 (CAT 6 23AWG) and BC-DGKat7a23 (CAT 7a 23 AWG)
cables, HDMI/HDMI male-to-male cables
Table 4lists the default communication parameters for the TP-576.
Table 4: Default Communication Parameters
RS-232
Protocol 2000
Baud Rate: 9600
Data Bits: 8
Stop Bits: 1
Parity: None
Command Format: HEX
Example (Output 1 to Input 1): 0x01, 0x81, 0x81, 0x81
1 Specifications are subject to change without notice
2 Full load, for example, when connected with TP-573 and TP-574
3 C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE
