Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups1that are clearly
defined by function.
Thank you for purchasing the Kramer TOOLS: TP-112HD XGA/HD Line
Transmitter - DA, which is ideal for:
•Presentation and multimedia applications
•Long range graphics distribution for schools, hospitals and stores
The package includes the following:
•TP-112HD XGA/HD Line Transmitter - DA
•Power supply (12V DC)
•This user manual2
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high performance high-resolution cables3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.

Overview
3
3 Overview
This section describes:
•The power connect feature, see section 3.1
•Using shielded twisted pair (STP)/unshielded twisted pair (UTP), see
section 3.2
•A summary of the TP-112HD, see section 3.3
•Recommendations for achieving the best performance, see section 3.4
3.1 About the Power Connect™ Feature
The Power Connect feature applies as long as the cable can carry power.
This feature is available when using STP cable and the distance does not
exceed 50m on standard CAT 5 cable. For longer distances, heavy gauge
cable should be used1.For units which are connected via RJ-45 connectors,
make sure that the shield of the STP cable is connected to the metal casing
of the connectors on both ends of the cable. For units which are connected
via terminal block connectors, the shield of the STP cable must be
connected to a ground terminal on the units at both ends (use the ground
terminal of the power supply connection if necessary).
For a CAT 5 cable exceeding a distance of 50m, separate power supplies
should be connected to the transmitter and to the receiver simultaneously.
3.2 Shielded Twisted Pair (STP)/Unshielded Twisted Pair (UTP)
We recommend that you use Shielded Twisted Pair (STP) cable. There are
different levels of STP cable available, and we advise you to use the best
quality STP cable that you can afford. Our non-skew-free cable, Kramer
BC-STP is intended for analog signals where skewing is not an issue. For
cases where there is skewing, our UTP skew-free cable, Kramer BC-XTP,
may be used. Bear in mind, though, that we advise using STP cables where
possible, since the compliance to electromagnetic interference was tested
using those cables.
Although Unshielded Twisted Pair (UTP) cable might be preferred for long
range applications, the UTP cable should be installed far away from electric
cables, motors and so on, which are prone to create electrical interference.
However, since the use of UTP cable might cause inconformity to
electromagnetic standards, Kramer does not commit to meeting the standard
with UTP cable.
1 CAT 5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your TP-112HD XGA/HD Line Transmitter – DA
4
3.3 About the TP-112HD
Your Kramer TOOLS TP-112HD XGA/HD Line Transmitter - DA:
•Receives a computer graphics1/HD2signal and transmits it over two
CAT 5 cables to appropriate receivers3
•Has a transmission range of more than 300 ft. (more than 100 meters)
•Includes the Power Connect feature
•Is 12V DC fed
3.4 Recommendations for Achieving the Best Performance
To achieve the best performance:
•Use only good quality connection cables4to avoid interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables).
•Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer product
away from moisture, excessive sunlight and dust
4 Your TP-112HD XGA/HD Line Transmitter – DA
Figure 1, Figure 2, Figure 3 and Table 1 define the TP-112HD:
1 The terminology XGA is used throughout this manual, where this implies any RGBHV signal on a 15-pin HD connector
having a resolution from VGA up to UXGA
2 The TP-112HD accepts high definition resolutions: 480p, 576p, 720p, 1080i, and 1080p
3 Note that the CAT 5 connectors exclude audio
4 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

Your TP-112HD XGA/HD Line Transmitter – DA
5
Figure 1: TP-112HD XGA/HD Line Transmitter – DA
Figure 2: TP-112HD (Top Side Panel)
Figure 3: TP-112HD (Lower Side Panel)
Table 1: TP-112HD XGA/HD Line Transmitter - DA Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 LINE OUT 2 RJ-45 Connector Connects to1the LINE IN RJ-45 connector on the (second)
TP-120 XGA Line Receiver2
3 LINE OUT 1 RJ-45 Connector Connects to1the LINE IN RJ-45 connector on the (first) TP-120
XGA Line Receiver2
4 XGA/HD INPUT 15-pin HD
Connector Connect to the XGA source
5 ON LED Illuminates when receiving power
Figure 4 and Table 2 define the TP-112HD underside panel:
1 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 3 and Figure 6)
2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at:
http://www.kramerelectronics.com. Also, see the example illustrated in Figure 5

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Configuring a 1:2 XGA/HD-to-Twisted Pair DA System
6
Figure 4: TP-112HD (Underside Panel)
Table 2: TP-112HD (Underside Panel) Features
# Feature Function
1 VS Switch Slide the switch to the left1to change the VS polarity to NEGATIVE polarity2; slide
the switch to the right (to NORMAL) to retain the polarity
2 HS Switch Slide the switch to the left1to change the HS polarity to NEGATIVE polarity2; slide
the switch to the right (to NORMAL) to retain the polarity
5 Configuring a 1:2 XGA/HD-to-Twisted Pair DA System
You can use the TP-112HD XGA/HD Line Transmitter – DA with two
TP-120 XGA Line Receiver units3to configure a 1:2 XGA/HD-to-Twisted
Pair DA system. This will let you transmit a computer graphics/HD signal to
two displays via long line CAT 5 UTP cabling.
To connect the TP-112HD to two TP-120 units, as the example in Figure 5
illustrates, do the following:
1. On the TP-112HD, connect the XGA/HD source (for example, a
computer graphics/HD source) to the XGA/HD INPUT 15-pin HD
connector, and connect the line output RJ-45 connector4:
OUT 1 connector to the LINE IN RJ-45 connector on the first
TP-120
OUT 2 connector to the LINE IN RJ-45 connector on the second
TP-120
1 By default, both switches are set to the right
2 Downgoing syncs
3 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at:
http://www.kramerelectronics.com
4 Via UTP cabling (with a range of more than 300ft (>100m)). For details of how to wire a CAT 5 LINE IN/LINE OUT
RJ-45 connector, see section 5.1

Configuring a 1:2 XGA/HD-to-Twisted Pair DA System
7
2. On the two TP-120 units, connect the:
XGA OUT 15-pin HD connector of the first TP-120 unit to the
XGA/HD acceptor (for example, display 1)
XGA OUT 15-pin HD connector of the second TP-120 unit to the
XGA/HD acceptor (for example, display 2)
3. On each of the three Kramer TOOLS, connect the 12V DC power adapter
to the power socket and connect the adapter to the mains electricity.
The signal from the XGA source is transmitted via the two CAT 5 cables,
decoded and converted at the each of the XGA OUT 15-pin HD connectors
to the XGA acceptors.
4. On the TP-120 units, if necessary:
Set the H SYNC and V SYNC switches1on the underside
Adjust2the video output signal level and/or cable compensation
equalization level
5. On the TP-112HD, if necessary, set the VS and HS switches3on the
underside
1 By default, both switches are set down (for negative V SYNC and H SYNC polarity)
2 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level
3 By default, both switches are set to the right (to NORMAL) to retain the V SYNC and H SYNC polarity

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Configuring a 1:2 XGA/HD-to-Twisted Pair DA System
8

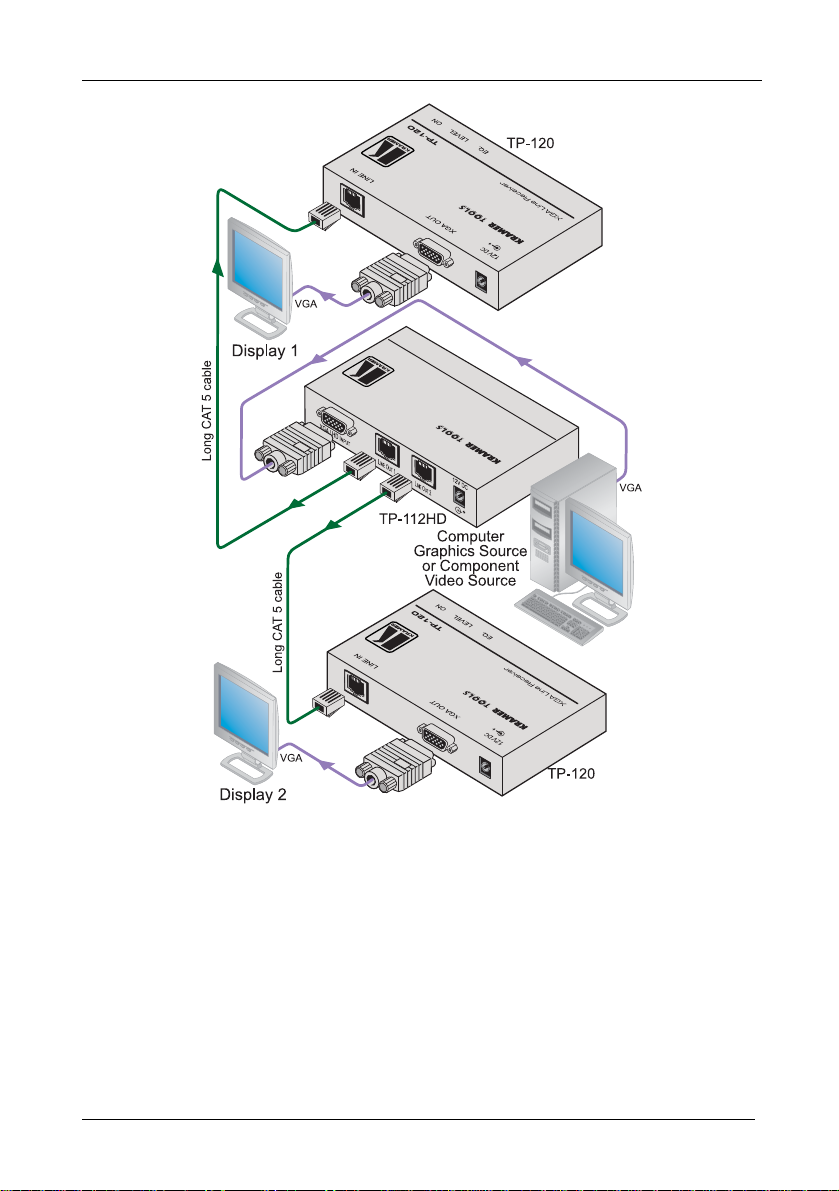

Figure 5: Configuring a 1:2 XGA/HD to Twisted Pair Transmitter/Receiver/DA

Technical Specifications
9

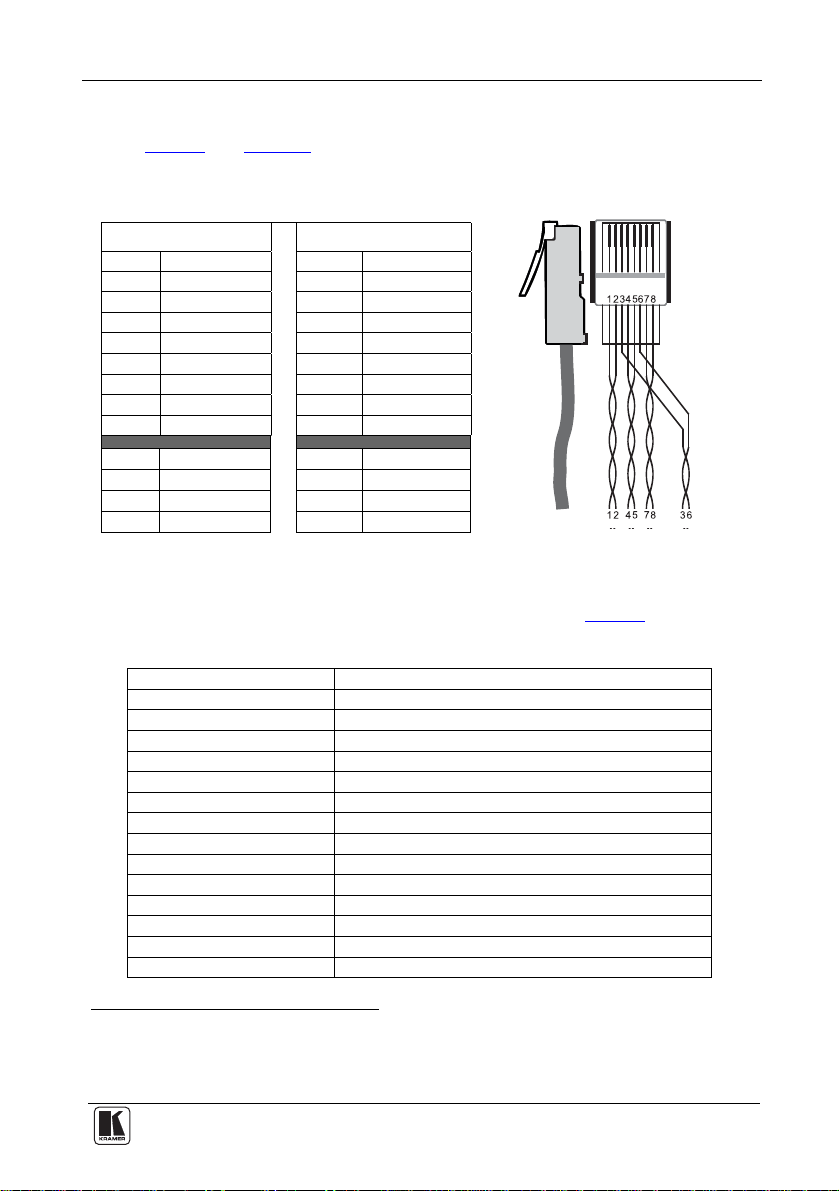

5.1 Wiring the CAT 5 LINE IN/LINE OUT RJ-45 Connectors
Table 3 and Figure 6 define the UTP CAT 5 PINOUT, using a straight pin
to pin cable with RJ-45 connectors:
Table 3: CAT 5 PINOUT Figure 6: CAT 5 PINOUT
EIA /TIA 568A EIA /TIA 568B
PIN Wire Color PIN Wire Color
1 Green / White 1 Orange / White
2 Green 2 Orange
3 Orange / White 3 Green / White
4 Blue 4 Blue
5 Blue / White 5 Blue / White
6 Orange 6 Green
7 Brown / White 7 Brown / White
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 3 and 6 Pair 2 1 and 2
Pair 3 1 and 2 Pair 3 3 and 6
Pair 4 7 and 8 Pair 4 7 and 8
6 Technical Specifications
The TP-112HD technical specifications1are shown in Table 4.
Table 4: Technical Specifications of the TP-112HD (with 100m CAT 5 cable)
INPUT: 1 XGA/HD on a 15-pin HD connector
OUTPUTS: 2 RJ-45 connectors
MAX. OUTPUT LEVEL: 1.7Vpp
HIGHEST RESOLUTION2: WUXGA, 1080p
DIFF. GAIN2: 4%
DIFF. PHASE2: 0.3Deg
K-FACTOR2: 0.1%
S/N RATIO2: 65dB
CONTROLS2: 2 switches for sync inversion
COUPLING2: AC
POWER SOURCE: 12 VDC 522mA3
DIMENSIONS: 12cm x 7.15cm x 2.76cm (4.7" x 2.8" x 1.08") W, D, H
WEIGHT: 0.3kg (0.67lbs) approx.
ACCESSORIES: Power supply
OPTIONS: RK-3T 19" rack adapter
1 Specifications are subject to change without notice
2 For the TP-112HD Transmitter/ TP-120 Receiver SETUP
3 Sufficient for feeding two receivers via CAT 5

KRAMER: SIMPLE CREATIVE TECHNOLOGY
10
LIMITED WARRANTY
WHOISPROTECTED?
WHATISCOVEREDANDWHATISNOTCOVERED
WHATWEWILLPAYFORAND WHATWE WILLNOTPAYFOR
HOW YOU CAN GET WARRANTY SERVICE
LIMITATIONOFIMPLIEDWARRANTIES
EXCLUSIONOFDAMAGES
CAUTION!
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
followingterms.
Kramer
HOWLONGISTHE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
Wewill paylaborandmaterialexpensesforcovereditems.Wewill notpayforthefollowing:
The liability of Kramer for any effective products is limited to the repair or replacement of theproduct at our option. Kramer shall
not beliablefor:
Thiswarrantygivesyouspecificlegalrights,andyoumayalsohaveotherrights,whichvaryfromplacetoplace.
Allproductsreturnedto Kramerfor servicemust have prior approval.Thismay be obtainedfrom yourdealer.
Thisequipmenthasbeentestedtodeterminecompliancewiththerequirementsof:
EN-50081: "Electromagneticcompatibility(EMC);
genericemissionstandard.
Residential, commercial andlightindustry"
EN-50082: "Electromagneticcompatibility(EMC)genericimmunitystandard.
Part 1: Residential, commercial and lightindustry environment".
CFR-47: FCC* Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by thewarranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which theWARRANTYVOID
TAMPERED sticker has been torn,
3. Damage,deteriorationormalfunctionresultingfrom:
i) Accident,misuse, abuse, neglect,fire, water,lightning or other actsofnature
ii) Productmodification,orfailuretofollowinstructionssuppliedwiththeproduct
iii) RepairorattemptedrepairbyanyonenotauthorizedbyKramer
iv) Anyshipmentoftheproduct(claims mustbepresentedtothecarrier)
v) Removalorinstallationoftheproduct
vi) Anyothercause,whichdoesnotrelatetoaproductdefect
vii) Cartons,equipmentenclosures,cablesoraccessoriesusedinconjunctionwiththeproduct
1. Removalorinstallationscharges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility oftheKramerdealerfromwhomtheproductwas purchased.
3. Shipping charges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramerservice center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss
oftime,commercialloss;or:
2. Anyotherdamages, whether incidental, consequential or otherwise.Some countriesmaynotallow limitations onhow longan
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitationsandexclusionsmaynotapplytoyou.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
UsethesuppliedDCpowersupplytofeed powertothemachine.
Pleaseuserecommendedinterconnectioncablestoconnectthemachinetoothercomponents.
IF reattached, removed or otherwise interfered with.
*FCCandCEapprovedusingSTPcable(fortwisted pairproducts)
NOTE:
Part1:

Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: [email protected]
P/N: 2900-000135 REV 3
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
