Kramer TP-45EDID User manual

KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
TP-45EDID
Component/UXGA/Audio
Transmitter
P/N: 2900-300126 Rev 2

TP-45EDID – Contents i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 3
2.3 Recycling Kramer Products 3
3Overview 4
3.1 Shielded Twisted Pair (STP)/Unshielded Twisted Pair (UTP) 5
3.2 About the Power Connect™ Feature 5
3.3 Defining EDID 6
4Defining the TP-45EDID Component/UXGA/Audio Transmitter 7
5Connecting a Component/XGA – Audio Distribution System 9
5.1 Connecting the System in XGA Mode 10
5.2 Connecting the System in Component Video Mode 11
5.3 Connecting the TP-45EDID Remote Control 13
5.4 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 14
6Acquiring the EDID 15
7Technical Specifications 16
Figures
Figure 1: TP-45EDID Component/UXGA/Audio Transmitter 7

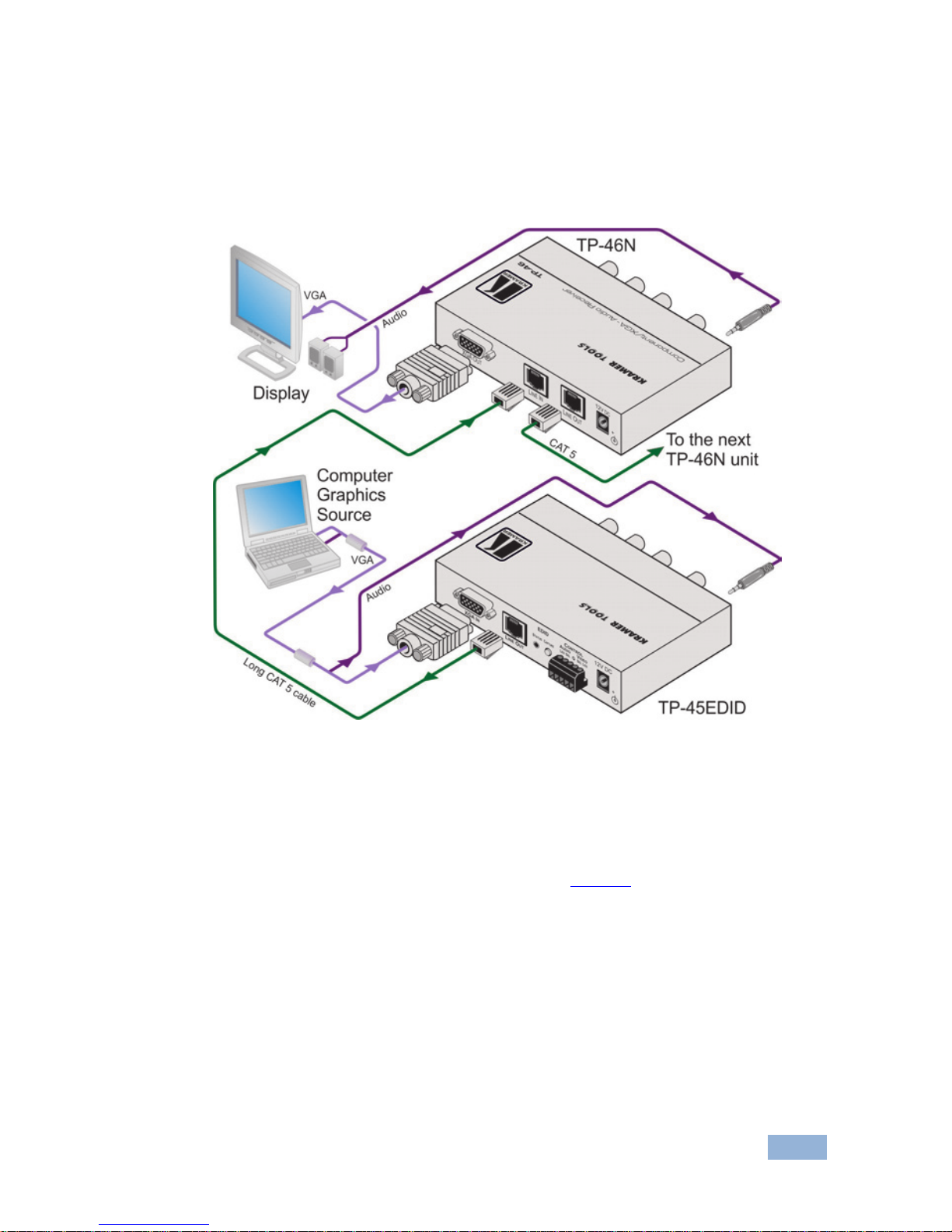

Figure 2: Component/XGA – Audio Distribution System, XGA Mode 11
Figure 3: Component/XGA – Audio Distribution System, Component Video Mode 13
Figure 4: The TP-45EDID Remote Control Connection 14
Figure 5: CAT 5 PINOUT 14

TP-45EDID - Introduction 1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix
Switchers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters;
GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors;
GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and
GROUP 11: Sierra Products.
Congratulations on purchasing your Kramer TP-45EDID Component/UXGA/Audio
Transmitter that uses existing UTP cabling to create an efficient, fast and uncluttered
environment for:
•Presentation and multimedia applications
•Long-range graphics distribution for schools, hospitals, security, and stores
•Security and military applications

2 TP-45EDID - Getting Started
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
•Review the contents of this user manual
Go to http://www.kramerelectronics.com to check for up-to-date
user manuals, application programs, and to check if firmware
upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
•Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
•Do not secure the cables in tight bundles or roll the slack into tight coils
•Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
•Position your Kramer TP-45EDID away from moisture, excessive sunlight
and dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
i
!

TP-45EDID - Getting Started 3
2.2 Safety Instructions
Caution: There are no operator serviceable parts inside the unit
Warning: Use only the Kramer Electronics input power wall
adapter that is provided with the unit
Warning: Disconnect the power and unplug the unit from the wall
before installing
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.
!

4 TP-45EDID - Overview
3 Overview
The TP−45EDID is a high−performance twisted pair transmitter for computer
graphics or component video and unbalanced stereo audio signals. It converts the
input signals to a twisted pair signal and transmits them over CAT 5 cable to a
compatible receiver.
The TP-45EDID has two SELECT buttons that let you choose the video signal
input (XGA or component) as well as the audio input (digital or analog signal).
(The term XGA used throughout this manual implies resolutions exceeding
UXGA.) By selecting the required video input signal, the TP-45EDID with the
TP-46N can constitute either a component video (Y, CB/PB,CR/PR) or an XGA
video – audio transmitter / receiver system:
The TP-45EDID does not convert the video signal format. Thus computer graphics sources
must be routed to computer graphics outputs. Similarly, component video sources must be
routed to component video outputs.
•If XGA is selected, the TP-45EDID receives an XGA and audio signal and
transmits it over the CAT 5 cable to the XGA output on the TP-46N receiver
•If component video is selected, the component video signal is transmitted
over the CAT 5 cable to the COMP outputs on the TP-46N receiver
•The analog audio or S/PDIF (digital audio)—as selected via the audio
SELECT button—is transmitted together with the video signal over the CAT
5 cable to the TP-46N receiver
•The TP-45EDID can execute these control functions also remotely using
simple pushbuttons (see Section 5.3)
The audio signal is distributed simultaneously to the analog or digital audio
outputs.
The TP-45EDID Component/XGA – Audio Transmitter features:
•Transmission range of more than 300ft (more than 100m)
•YUV input (also known as Y, Cb, Cr, or Y, B-Y, R-Y, or Y, Pb, Pr) on 3 RCA
connectors and a computer graphics input on a 15-pin HD (F) connector
•Digital audio input (S/PDIF) on an RCA connector and a stereo analog input
on a 3.5mm mini jack

TP-45EDID - Overview 5
•EDID capture that copies and stores the EDID from a display device
•The Power Connect™ feature where one unit can power the other over the
same CAT 5 cable
•12V DC power
•Toggling push-button selector switches and status LEDs connected by a
remote selector input terminal block
3.1 Shielded Twisted Pair (STP)/Unshielded Twisted Pair
(UTP)
We recommend that you use Shielded Twisted Pair (STP) cable, and stress that
the compliance to electromagnetic interference was tested using STP cable. There
are different levels of STP cable available, and we advise you to use the best
quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP
is intended for analog signals where skewing is not an issue.
In cases where there is skewing, our Unshielded Twisted Pair (UTP) skew-free
cable, Kramer BC-XTP, may be advantageous, and UTP cable might also be
preferable for long range applications. In any event when using UTP cable, it is
advisable to ensure that the cable is installed far away from electric cables, motors
and so on, which are prone to create electrical interference.
3.2 About the Power Connect™ Feature
The Power Connect feature applies as long as the cable can carry power. This
feature is available when using STP cable and the distance does not exceed 50m
(164ft) on standard CAT 5 cable. For longer distances, heavy gauge cable should
be used (TP cable is still suitable for the video/audio transmission, but not for
feeding the power at these distances). For units which are connected via RJ-45
connectors, make sure that the shield of the STP cable is connected to the metal
casing of the connectors on both ends of the cable. For units which are connected
via terminal block connectors, the shield of the STP cable must be connected to a
ground terminal on the units at both ends (use the ground terminal of the power
supply connection if necessary).

6 TP-45EDID - Overview
For a TP cable exceeding a distance of 50m, separate power supplies should be
connected to the transmitter and to the receiver simultaneously.
3.3 Defining EDID
The Extended Display Identification Data (EDID) is a data-structure provided by a
display, to describe its capabilities to a graphics card (that is connected to the
display’s source). The EDID enables the TP-45EDID to “know” what kind of
monitor is connected to the output. The EDID includes the manufacturer’s name,
the product type, the timing data supported by the display, the display size,
luminance data and (for digital displays only) the pixel mapping data.
EDID is defined by a standard published by the Video Electronics Standards
Association (VESA).

TP-45EDID - Defining the TP-45EDID Component/UXGA/Audio Transmitter 7
4 Defining the TP-45EDID
Component/UXGA/Audio Transmitter
This section defines the TP-45EDID.
Figure 1: TP-45EDID Component/UXGA/Audio Transmitter

8 TP-45EDID - Defining the TP-45EDID Component/UXGA/Audio Transmitter
# Feature Function
1 XGA IN 15-pin HD (F) Connector Connect to the XGA source
2 LINE OUT RJ-45 Connector Connect to the LINE IN connector of the receiver
3 EDID Status LED Illuminates during normal operation; flashes
when acquiring the EDID
4 EDID CAPTURE Button Press to acquire the EDID information from the
display
5 CONTROL AUDIO/VIDEO Terminal
Block Connect to remote push-button switches and status LEDs
6 12V DC +12V DC connector for powering the unit
7 ANALOG AUDIO 3.5mm Mini
Connector Connect to the stereo analog audio source
8 S/PDIF RCA Connector Connect to the digital audio source
9 AUDIO
SELECT
Button
ANALOG AUDIO Press to toggle between analog audio and
digital S/PDIF audio
S/PDIF
10 ON LEDS UXGA Lights when computer graphics video is
selected
ANALOG AUDIO Lights when analog audio is selected
11 INPUTS Y RCA Connector Connect to the component video source
12 CB/PBRCA Connector
13 CR/PRRCA Connector
14 VIDEO SELECT Input Button Press to toggle between component video and
computer graphics video
15 ON LED Lights when receiving power

TP-45EDID - Connecting a Component/XGA – Audio Distribution System 9
5 Connecting a Component/XGA – Audio
Distribution System
The Component/XGA – Audio Distribution System can be configured to operate in
one of two video modes:
•In the XGA mode, a computer graphics source is connected to the input and
transmitted to a display connected to the receiver (see Section 5.1)
•In the component video mode, a component video source is connected to
the input and transmitted to a TV set connected to the receiver (see Section
5.2)
The Component/XGA – Audio Distribution System can be configured to operate in
one of two audio modes:
•In the analog mode, an analog audio source is connected to the input and
transmitted to an acceptor connected to the receiver (see Section 5.1)
•In the digital audio mode, an S/PDIF audio source is connected to the input
and transmitted to a digital acceptor connected to the receiver (see Section
5.2)
Thus, there are four possible system configurations: computer graphics/analog
audio, computer graphics/digital audio, component video/analog audio, and
component video/digital audio.
The modes of the system are determined by setting the VIDEO SELECT and
AUDIO SELECT switches on the TP-45EDID. Whatever modes are set at the
transmitter the video and audio signals are sent to the receiver and any additional
cascaded receivers.
There is no signal conversion; a component input cannot be sent to a computer graphics
output, nor can a digital audio input be sent to an analog audio output.

10 TP-45EDID - Connecting a Component/XGA – Audio Distribution System
5.1 Connecting the System in XGA Mode
To configure a TP-45EDID and TP-46N Component/XGA – Audio distribution
system (using up to 300ft (100m) of UTP cabling) in the XGA mode, as illustrated
in the example in Figure 2, do the following:
1. On the TP-45EDID, connect the following:
An XGA source (for example, the graphics card on a laptop) to the
XGA 15-pin HD (F) connector
An analog audio source to the ANALOG AUDIO 3.5mm mini jack (or a
digital audio source to the S/PDIF RCA connector), for example, using
a Kramer C-GMA/GMA cable (VGA 15-pin HD (M) with audio jack to
VGA 15-pin HD (M) with audio jack
2. On the TP-45EDID, use the SELECT buttons as follows:
Momentarily press the video SELECT button. The UXGA LED lights
when the UXGA input is selected
Momentarily press the AUDIO SELECT button to toggle between the
S/PDIF and analog audio inputs
3. On the TP-46N, connect the following:
The XGA OUT 15-pin HD (F) connector to the XGA acceptor (for
example, a display)
The ANALOG AUDIO 3.5mm mini jack to the analog audio acceptor
(for example, powered speakers)
4. Connect the LINE OUTPUT RJ-45 connector on the TP-45EDID to the LINE IN
RJ-45 connector on the TP-46N, via CAT 5 cabling, see Figure 5.
5. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity on both the TP-45EDID and the TP-46N (not
shown).
The signal from the XGA source is transmitted via CAT 5 cable, decoded
and converted at the XGA OUT 15-pin HD (F) connector to the XGA
acceptor.
6. If required, connect the LINE OUT RJ-45 connector on the TP-46N to an
additional TP-46N.

TP-45EDID - Connecting a Component/XGA – Audio Distribution System 11
7. On the TP-46N underside:
Using a screwdriver to carefully rotate the trimmer, adjust the video
output signal level and/or cable compensation equalization level, if
required
Figure 2: Component/XGA – Audio Distribution System, XGA Mode
5.2 Connecting the System in Component Video Mode
To configure a TP-45EDID/TP-46N Component/XGA – Audio distribution system
in the component video mode, as the example in Figure 3illustrates, do the
following:
1. On the TP-45EDID, connect the following:
A component video source (for example, a DVD player) to the Y,
Cb/Pb, Cr/Pr RCA connectors
A digital audio source to the S/PDIF RCA connector using up to 300ft
(100m) of UTP cabling

12 TP-45EDID - Connecting a Component/XGA – Audio Distribution System
2. On the TP-45EDID, use the SELECT buttons as follows:
Momentarily press the VIDEO SELECT button. The UXGA LED turns
off when the component video input is selected
Momentarily press the AUDIO SELECT button to toggle between the
S/PDIF and analog audio inputs
3. On the TP-46N, connect the following:
The Y, CB/PB,CR/PRRCA connectors to a component video acceptor
(for example, a plasma display)
The S/PDIF RCA connector to the digital audio acceptor (for example,
the audio input on the plasma display)
4. Connect the LINE OUTPUT RJ-45 connector on the TP-45EDID to the LINE
IN RJ-45 connector on the TP-46N, via CAT 5 cabling, see Figure 5.
5. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity on both theTP-45EDID and the TP-46N (not
shown in Figure 3).
The signal from the component video source is transmitted via the CAT 5
cable; decoded and converted to component video and outputted on the Y,
CB/PB,CR/PROUTPUTS RCA connectors to the component video acceptor.
6. Connect the LINE OUT RJ-45 connector on the TP-46N to a second TP-46N
unit (optional).
7. If required, connect the LINE OUT RJ-45 connector on the TP-46N to
additional TP-46N units.

TP-45EDID - Connecting a Component/XGA – Audio Distribution System 13
Figure 3: Component/XGA – Audio Distribution System, Component Video Mode
5.3 Connecting the TP-45EDID Remote Control
Connect momentary push-buttons and LEDs (each LED is driven by a 5V source
and a 392Ω series resistor) to a cable and attach the cable to a 5-pin terminal
block for connection to the TP-45EDID control port as shown in Figure 4.
Each press of the selector button toggles the audio or video system mode and
turns on or off the remote and panel status LEDs according to the active mode.

14 TP-45EDID - Connecting a Component/XGA – Audio Distribution System
Figure 4: The TP-45EDID Remote Control Connection
5.4 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors
This section defines the CAT 5 pinout, using a straight pin-to-pin cable with RJ-45
connectors.
Note, that the cable Ground shielding must be connected / soldered to
the connector shield.
EIA /TIA 568B
Figure 5: CAT 5 PINOUT
PIN
Wire Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
Pair 1 4 and 5
Pair 2 1 and 2
Pair 3 3 and 6
Pair 4 7 and 8
i

TP-45EDID - Acquiring the EDID 15
6 Acquiring the EDID
The transmitter can acquire the EDID information from the display connected to
the transmitter or acquire the default EDID.
To acquire the display EDID, do the following:
1. Connect the XGA INPUT 15-pin HD connector to the input XGA connector of
the display, using a short cable.
The EDID is carried over pins 12 and 15 of the VGA connector. It is essential that the
cable used for capturing the EDID passes all 15 pins
2. Connect power to the display.
3. On the transmitter, connect the 12V DC power adapter to the power socket
and connect the adapter to the mains electricity.
4. Press the EDID CAPTURE button.
5. Once the EDID STATUS LED flashes slowly several times, the EDID is
captured.
6. Disconnect the display.
To acquire the default EDID:
Do not connect the display to the transmitter when acquiring the default EDID.
1. On the transmitter, connect the 12V DC power adapter to the power socket
and connect the adapter to the mains electricity.
2. Press the EDID CAPTURE button.
3. Once the EDID STATUS flashes rapidly several times, the default EDID is
captured.
Alternatively, you can press the EDID CAPTURE button after connecting the
transmitter receiver system. When the EDID STATUS LED flashes rapidly several
times, the default EDID information is acquired.

16 TP-45EDID - Technical Specifications
7 Technical Specifications
INPUTS: Video: 1 component 1Vpp/75Ω(Y,Pb,Pr) on 3 RCA
connectors, 1 XGA on a 15-pin HD connector;
Audio: 1 unbalanced stereo audio, 0dBu/50kΩ, on a
3.5mm jack; 1 S/PDIF audio on an RCA connector
OUTPUT: 1 CAT 5 on an RJ-45 connector (video/audio)
MAX. INPUT LEVEL: XGA: 1.7Vpp on 75Ω, DC coupling;
Y,Pb,Pr: 1.05Vpp on 75Ω, AC coupling
RETURN LOSS: -18dB
VIDEO RESOLUTION: Up to UXGA, 1080p
*S/N RATIO: 69dB RMS @5MHz
*K-FACTOR: 0.2%
*ISOLATION (CROSSTALK): -43dB @ 5MHz
*AUDIO BANDWIDTH: 20Hz to 20kHz
*TND+NOISE: 0.33% @1kHz
SAMPLE RATE CONVERSION: 48kHz
RESOLUTION CONVERSION: 24 bits
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F)
HUMIDITY: 10% to 90%, RHL non-condensing
POWER SOURCE: 12V DC, 920mA max. (TP-46N, TP-45EDID pair when
powered from the TP-45EDID via power connect, CAT 5,
60m); TP-45EDID self current:110mA
DIMENSIONS: 12cm x 7.15cm x 2.76cm (4.7" x 2.81" 1.09") W, D, H
WEIGHT: 0.3 kg (0.67 lbs) approx
ACCESSORIES: Power supply
Specifications are subject to change without notice at http://www.kramerelectronics.com
* Starred specifications are measured using a TP-45EDID and TP-46N pair unless otherwise
stated.
