Kraus Bolden KPF-1610 User manual

Kraus Undermount Stainless Steel Sink Installation Instructions
For the Attention of the Customer and the Installer:
1. For best results, Kraus recommends that the solid surface countertop cut-out should only be prepared by
a professional fabricator, and undermount sinks should only be installed by a professional installer.
2. The enclosed paper template represents Kraus recommended countertop cut-out specication and sink
mounting style.
3. Sink installation and countertop cut-out choices are not limited to Kraus specications. Installer and
customer must discuss these options, and reach an agreement on alternate countertop cut-out dimensions
and sink installation methods prior to preparation of the countertop. Kraus will not be held responsible
for alternate choices of sink installation and countertop cut-out.
4. In addition to the Kraus paper template, electronic (.dxf) les for countertop cut-outs are available on the
Kraus website www.kraususa.com
5. Sink mounting requirements will vary according to countertop selection. Hardware for mounting the sink
to the countertop is not included, and should be specied by the countertop fabricator for the specic
countertop selection.
6. Sink may have sharp edges, please use caution when handling.
7. Inspect the sink unit prior to installation to conrm acceptance. Do not install a damaged unit.
8. Kraus USA is not responsible for any damage to sink or countertop incurred during installation.
9. Please follow all local plumbing and building codes.
KRAUS CUSTOMER SERVICE
Toll-free: 1.800.775.0703
Phone: [phone]
Email: [e-mail]
Hours: 9:00am to 8:00pm (EST) Monday thru Friday
INSTALLUS 1 May 2017
Installation Instructions
KD1US17B, KD1US25B, KD1US33B and KD1UD33B

2
www.kraususa.com INSTALLUS 1 May 2017
Please note Kraus recommended sink mounting specications A and B:
KRAUS RECOMMENDED
SPECIFICATION B: 1/8” OVERHANG
OPTIONAL CHOICE AT DISCRETION OF CUSTOMER
KRAUS RECOMMENDED
SPECIFICATION A: 1/4” REVEAL
Flush t installation is NOT recommended by Kraus.
Exposure of silicone joint is not considered aesthetically acceptable.
Precise match of sink and countertop cut-out is extremely dicult.
FLUSH FIT INSTALLATION
Installation Instructions
KD1US17B, KD1US25B, KD1US33B and KD1UD33B

3
www.kraususa.com INSTALLUS 1 May 2017
The following instructions apply only to Kraus-recommended sink mounting specication A and B.
1. Position undermount sink template on countertop, centered within the sink base cabinet unit. Make sure to provide
adequate clearance from the countertop backsplash, with room for mounting faucet and ttings behind the sink.
Avoid any potential interference with cabinet bracing.
2. Countertop cut-out may be prepared by using either the paper template included within the sink carton,
or referencing the .dxf le found on www.kraususa.com
2A. Trace a line around the paper template. Cut along the inside of this line to create opening in countertop.
2B. Select the dxf le for the Kraus model purchased. CNC machine the countertop cut-out based on this dxf le.
3. Locate and drill the sink fastener mounting holes (following the countertop manufacturer’s instructions).
Type of fasteners should be recommended by countertop supplier.
4. Loosely fasten sink mounting clips to countertop.
5. Apply a bead of silicone caulking (not included) evenly along the sink ange.
6. Position and align sink to the countertop. Tighten fasteners until sink mounting clips are snug against the sink ange.
7. Check alignment of sink to cut-out opening, and adjust if necessary. Tighten fasteners evenly. DO NOT overtighten.
8. Wipe up and remove any excess silicone from the countertop cut-out edge.
Installation Instructions
KD1US17B, KD1US25B, KD1US33B and KD1UD33B
Kraus Recommended Optional Accessories
NOTE:Kraus recommends using a high-quality dish grid with your stainless steel sink to protect the bottom of the basin
from wear and tear. To ensure the proper t, we recommend the following matching grids:
DEX™ SERIES
STAINLESS STEEL SINK
MODEL NO. RECOMMENDED
DISH GRID
MODEL NO.
1.
17” Undermount Single Bowl
Stainless Steel Bar Sink
KD1US17B
15” Stainless Steel
Kitchen Sink Grid
BG1517
2.
25” Undermount Single Bowl
Stainless Steel Kitchen Sink
KD1US25B
23” Stainless Steel
Kitchen Sink Grid
BG2317
3.
33” Undermount Single Bowl
Stainless Steel Kitchen Sink
KD1US33B
31” Stainless Steel
Kitchen Sink Grid
BG3117
4.
33” Undermount Double Bowl
Stainless Steel Kitchen Sink
KD1UD33B
15” Stainless Steel
Kitchen Sink Grid
BG1517 (x) 2

4
www.kraususa.com INSTALLDS 1 May 2017
KRAUS CUSTOMER SERVICE
Toll-free: 1.800.775.0703
Phone: [phone]
Email:
[e-mail]
Hours:
9:00am to 8:00pm (EST) Monday thru Friday

INSTALLATION MANUAL
Bolden™Single Handle
Commercial Kitchen Faucet
KPF-1610
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2017 Kraus USA Inc. I REV. June 22, 2017

Thank you for your purchase
We would like to take this opportunity to thank you for choosing Kraus.
We hope that you are completely satised with your purchase, and enjoy it for years
to come. If you have any questions, or require technical assistance, please contact
us at 800.775.0703 and one of our representatives will be happy to help.
For more information about Kraus products, please visit:
www.kraususa.com
In order to activate your warranty and get faster access to customer support, please
register your new Kraus product at:
www.kraususa.com/registration
Sincerely,
Kraus USA Customer Service

Prior to Installation:
• Make sure you have all necessary parts by checking the diagram and parts
list. If any part is missing or damaged, please contact Kraus Customer
Service at 800-775-0703 for a replacement
• Turn o the cold and hot water at the angle stops and turn on the old
faucet to release any built up pressure
• Flush angle stops to release any debris prior to installation
• Pre-drilled hole size requirement: 1-3/8” (min) – 1-1/2” (max)
• Max countertop thickness: 1-3/8
• 1, 2, or 3 hole installation
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]

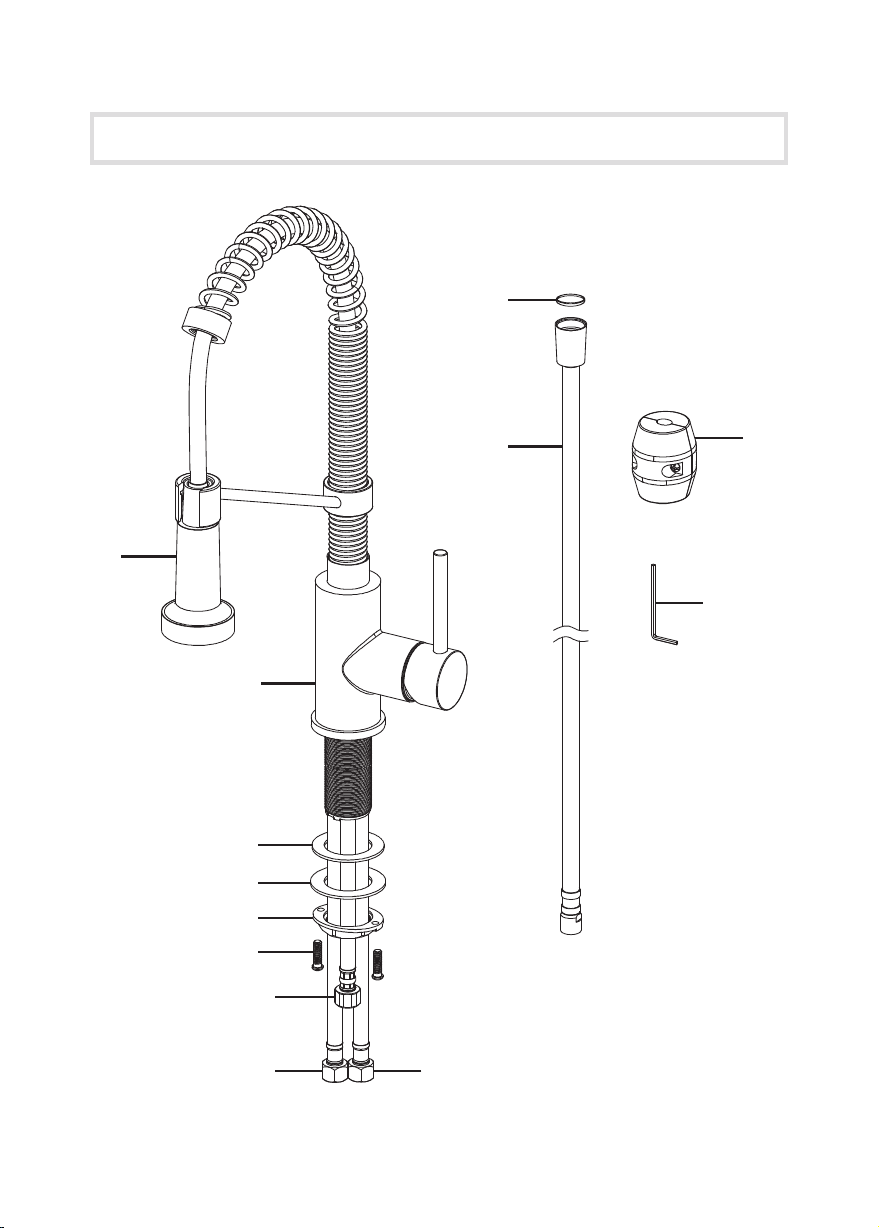

Diagram and Parts List
1
6
7
2
3A
3B
3C
3D
5A 5B
8
9
4

Diagram and Parts List Tools you will need
1
10
279
10 31/32”
Minimum distance 90mm
Less than 90mm
Cold Water
32 3/32”
Ø35~Ø38
1
23
10
9
11
12 13
Hexagon Nut
Hot
Water
Cold
Water
2 3
1
45
7
6
8
45
67
8
Ø1 3/8”~Ø1 1/2”
815
194
7 5/8”
Ø1 3/8~Ø1 1/2”
30˚
10 11
Close
Open Left
Hot Water
Push
25˚ 90˚
12
13
8
7
Ø35~Ø38
Max35
217
8 17/32”
Max1 3/8”
9
11
12 13
2
3
4
5
6
7
8
Adjustable Wrench
Phillips Screwdriver
Safety Goggles
Silicone Sealant
(optional)
1. Spray Head
2. Faucet Body
3. Mounting Hardware
A. Rubber Washer
B. Metal Washer
C. Mounting Nut
D. Mounting Screws
4. Supply Hose
5. Hot & Cold Waterlines
A. Hot
B. Cold
6. Hose
7. Washer
8. Weight
9. Hex Wrench

Faucet Installation Procedure
Installer Tip:
Shut o main water supply before installing new faucet

Step 1: Remove mounting hardware
Remove the mounting
screws (3D), mounting nut
(3C), metal (3B) and rubber
washer (3A) from the
mounting pipe
1. Diagram and Parts List Step1: Remove mounting hardware Step2: Install faucet and mounting hardware
Step4: Attach spray hose and counterweight Step5: Connect angle valve
Step3: Secure mounting hardware
Replacement Parts
Step 7: Flush spray hose

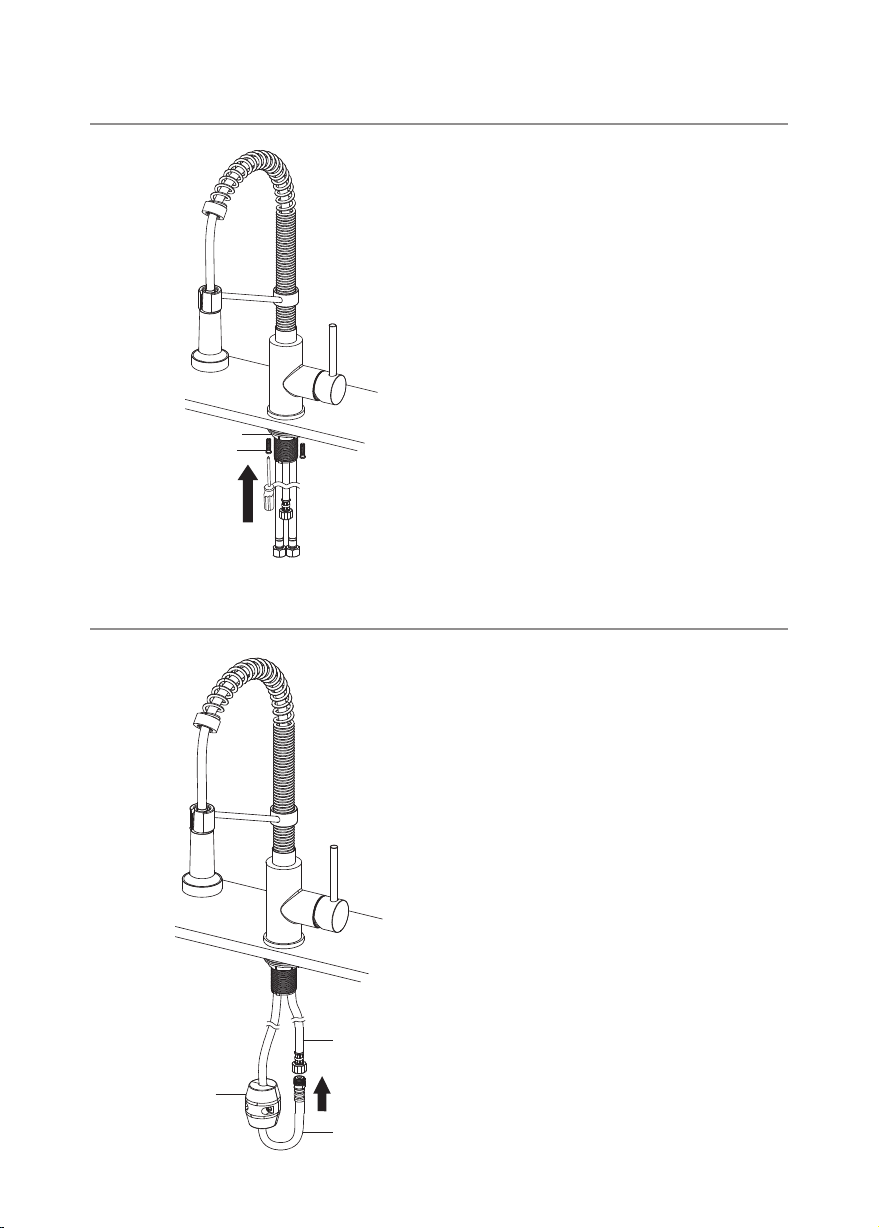

Step 2: Install faucet and mounting hardware
Insert faucet body (2) into
hole in countertop. Install
mounting hardware (3A, B,
C & D) from underneath the
countertop
3A
3B
3C
3D
1. Diagram and Parts List Step1: Remove mounting hardware Step2: Install faucet and mounting hardware
Step4: Attach spray hose and counterweight Step5: Connect angle valve
Step3: Secure mounting hardware
Replacement Parts
Step 7: Flush spray hose
3A
3B
3C
3D

Step 3: Secure mounting hardware
Adjust direction of faucet
body (2) so that handle is on
right side of faucet. Tighten
mounting nut (3C) until snug.
Tighten mounting screws
(3D) with Phillips screwdriver
until snug
Step 4: Attach spray hose and counterweight
Connect spray hose (6)
to supply hose (4). Install
weight (8) on lowest
vertical point on spray
hose (6)
1. Diagram and Parts List Step1: Remove mounting hardware Step2: Install faucet and mounting hardware
Step4: Attach spray hose and counterweight Step5: Connect angle valve
Step3: Secure mounting hardware
Replacement Parts
Step 7: Flush spray hose
3C
3D
1. Diagram and Parts List Step1: Remove mounting hardware Step2: Install faucet and mounting hardware
Step4: Attach spray hose and counterweight Step5: Connect angle valve
Step3: Secure mounting hardware
Replacement Parts
Step 7: Flush spray hose
4
6
8

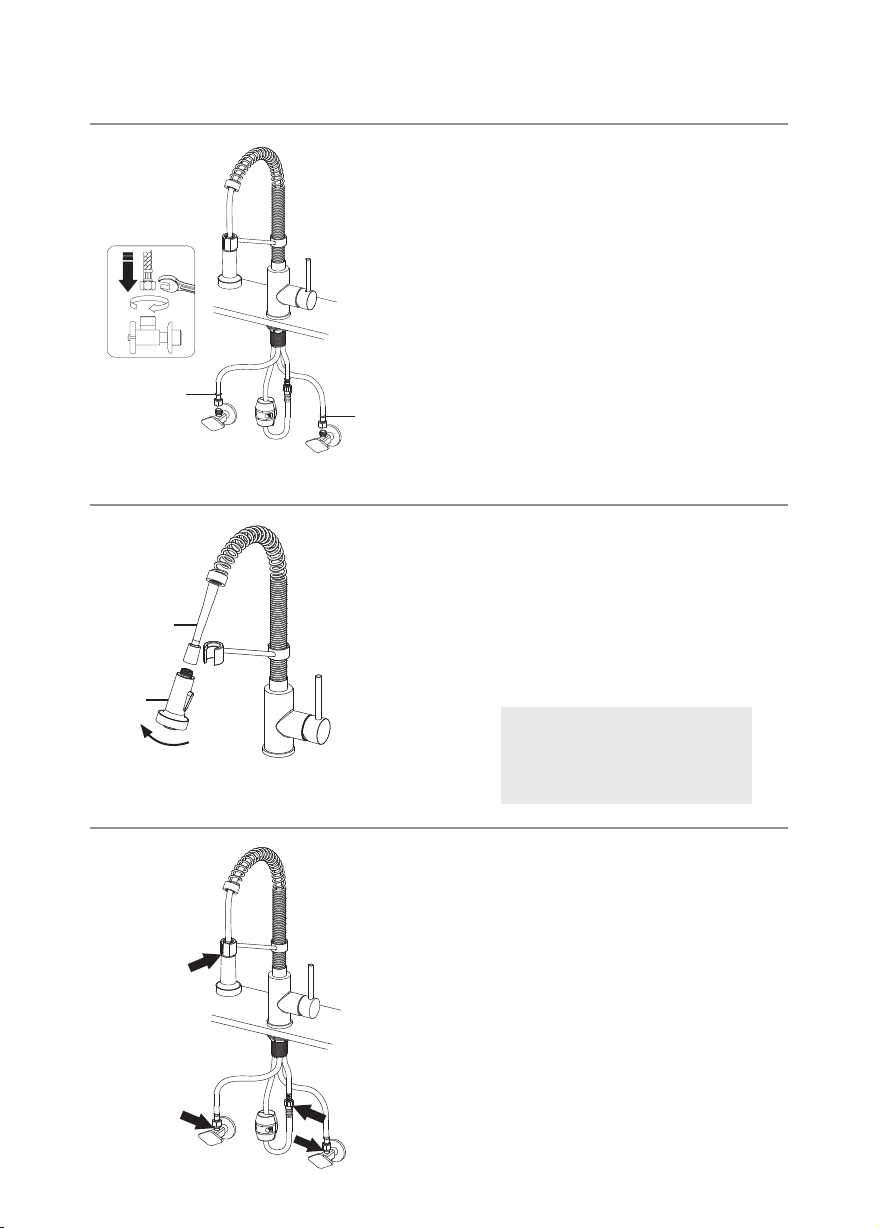

Connect waterlines(5A&B)
to angle stops. Tighten
both ends of waterlines
with a wrench until snug.
Turn on hot and cold angle
stops and check for leaks
Step 6: Flush spray hose
Step 7: Check for leaks
Remove spray head (1) from
spray hose (6). Hold tip of
spray hose (6). Turn faucet on
and let the water run for 60
seconds to ush any debris
Check for leaks at the
connections. Retighten if
necessary
Step 5: Connect waterlines
NOTE: Please make sure
washer (7) is installed
attaching spray head to hose
1. Diagram and Parts List Step1: Remove mounting hardware Step2: Install faucet and mounting hardware
Step4: Attach spray hose and counterweight Step5: Connect angle valve
Step3: Secure mounting hardware
Replacement Parts
Step 7: Flush spray hose
1
6
1. Diagram and Parts List Step1: Remove mounting hardware Step2: Install faucet and mounting hardware
Step4: Attach spray hose and counterweight Step5: Connect angle valve
Step3: Secure mounting hardware
Replacement Parts
Step 7: Flush spray hose
5B
5A

Care & Maintenance
*To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives, or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
*This installation manual is subject to change without further notice.
1
10
279
10 31/32”
Minimum distance 90mm
Less than 90mm
Cold Water
32 3/32”
Ø35~Ø38
1
23
10
9
11
12 13
Hexagon Nut
Hot
Water
Cold
Water
2 3
1
45
7
6
8
45
67
8
Ø1 3/8”~Ø1 1/2”
815
194
7 5/8”
Ø1 3/8~Ø1 1/2”
30˚
10 11
Close
Open Left
Hot Water
Push
25˚ 90˚
12
13
8
7
Ø35~Ø38
Max35
217
8 17/32”
Max1 3/8”
9
11
12 13
2
3
4
5
6
7
8
1. Spray Head
2. Check Valve
3. Hose Guide
4. Sprayer Holder
5. Spring
6. Set Screw
7. Sleeve
8. Cap
9. Set Screw
10. Handle
11. Handle Set Screw
12. Handle Button
13. Cartridge Cover
14. Locking Nut
15. Cartridge
16. Base O-Ring
17. Rubber Washer
18. Metal Washer
19. Mounting Nut
20. Mounting Screws
21. Protective Sleeve
22. Washer
23. Hose
24. Check Valve
25. Weight
26. Hot & Cold Waterlines
27. Filter Washer
28. Supply Hose
29. Hex Wrench

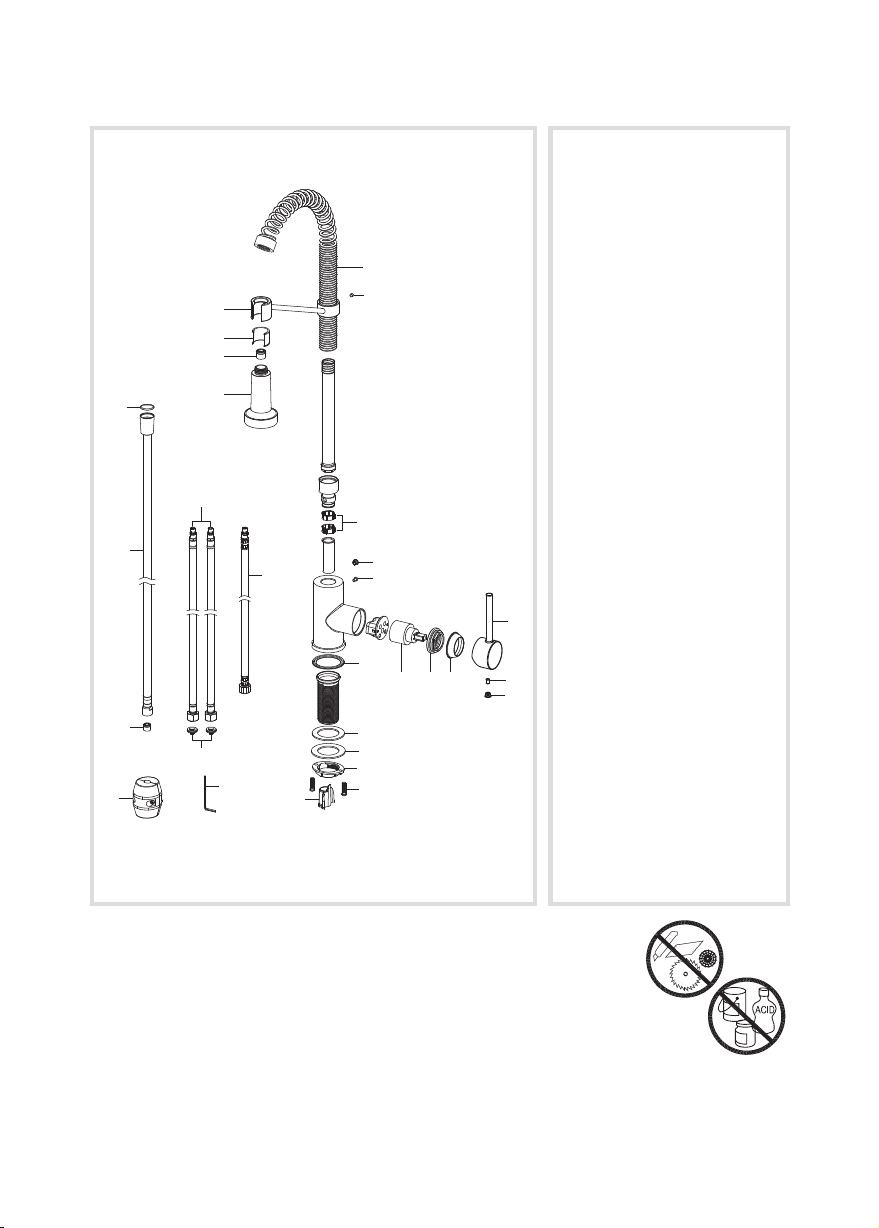

Replacement Parts
Replacement Parts
1
2
3
4
5
6
7
8
9
10
16
17
18
19
20
21
24
23
26
25
22
11
12
28
27
131415
29

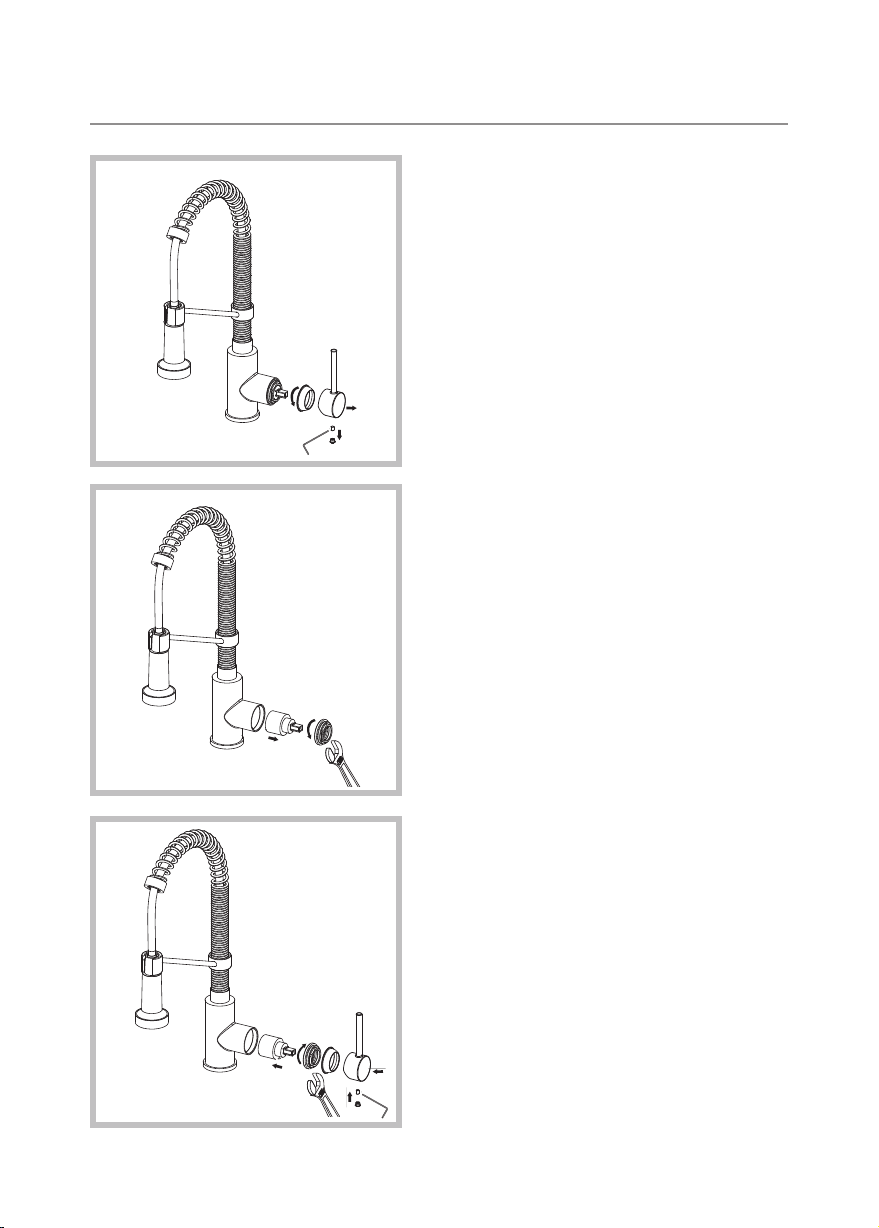

Trouble - Shooting
If you have followed the instructions carefully and your faucet still does not work
properly, take the following corrective steps:
PROBLEM CAUSE ACTION
Leakage under faucet
handle
Locking nut has come
loose or cartridge
needs to be reseated
Remove button located
at top of handle.
Loosen set screw with
hex wrench. Remove
handle and unscrew
cartridge cover by
hand. Tighten locking
nut with an adjustable
wrench
Leaking between spray
head and the hose
Spray head may be
loose or washer is not
seated correctly in the
hose connection
Tighten spray head by
hand until snug. Make
sure washer is seated
correctly
Hose does not retract Weight may be
installed incorrectly
Readjust weight on
hose
Low flow Aerator may be clogged Unscrew aerator with
aerator key. Hold tip of
spray head and turn on
water to flush debris
Water does not shut off
completely
Cartridge may need to
be adjusted or replaced
Remove button located
at top of handle.
Loosen set screw with
hex wrench. Remove
handle and unscrew
cartridge cover by
hand. Unscrew locking
nut with an adjustable
wrench. Remove
ceramic disc cartridge.
Check for cracks, and
if O-ring is seated
correctly. Reseat
cartridge

Step 1: Remove the handle
button from the handle. Loosen
the set screw with a hex wrench.
Remove the handle and unscrew
cartridge cover by hand
Step 2: Unscrew the locking
nut with an adjustable wrench.
Remove ceramic disc cartridge
Step 3: Place the new cartridge
in the handle seat. Secure the
cartridge with the locking nut
and assemble the handle
Maintenance - Cartridge Replacement

FAUCET WARRANTY
Kraus products are manufactured and tested to the highest quality standards by Kraus USA
Inc. (“Kraus”). Kraus extends this warranty to the original purchaser for personal household
use of the “Faucet” in its original location. The warranty is non-transferable.
Kraus warrants the structure and nish of the product to be free from defects in material and
workmanship under normal usage for the lifetime of the product. The warranty commences
from the initial date of purchase by the owner or trade professional, from an authorized Kraus
dealer, through the lifetime of the original owner or end-user.
Kraus warrants the mechanical component (sprayhead assembly) of the product to be
free from defects in material and workmanship under normal usage for a period of one
(1) year. The warranty commences from the initial date of purchase by the owner or trade
professional, from an authorized Kraus dealer, through the one (1) year term of the original
owner or end-user.
Kraus warrants the mechanical component (cartridge) of the product to be free from defects
in material and workmanship under normal usage for a period of ve (5) years. The warranty
commences from the initial date of purchase by the owner or trade professional, from an
authorized Kraus dealer, through the ve (5) year term of the original owner or end-user.
Any product reported to the authorized dealer or to Kraus as being defective within the
warranty
period will be repaired or replaced with a product of equal value at the option of
Kraus. This warranty
extends to the original owner or end-user, and is not transferable to a
subsequent owner.
RESTRICTIONS
This warranty does not cover antediluvian, discontinued, or display products, whether such
items are purchased at discount outlets, unauthorized dealers, and/or sold on clearance.
This warranty does not cover instances of negligence, misuse, abuse, improper installation,
carelessness, accident, hard water or mineral deposits, exposure to corrosive materials,
misapplication, damages caused by improper maintenance, alteration of the product, or
failure to follow care or installation instructions enclosed with your product. Avoid using
abrasive cleaners such as powders, bleach, ammonia, alcohol, or chlorine. Avoid using
abrasive pads, steel wool, or wire brushes, as these will damage and wear down the nish.
This warranty does not apply to Products that have not been installed or operated in
accordance with instructions supplied by Kraus and all applicable rules, regulations,
and legislation pertaining to such installations.
This warranty does not apply unless the Kraus product is installed by a fully insured and
licensed trade professional. Kraus insists that such professionals have experience in the
installation of bathroom and kitchen manufactured goods.
Codes/Standards Applicable:
Meets ASME A112.18.1M/A112.18.1
1.75GPM 6.6L/min maximum
GREEN
Water Eciency
LEAD FREE
IAPMOR&T
TM
NSF/ANSI Standard 61 certied by IAPMO
NSF/ANSI Standard 372 certied by IAPMO

This warranty does not cover labor charges or costs of removal and reinstallation of said
product. This warranty does not allow recovery of incidental or consequential damages,
such as loss of use, delay, property damage, or other consequential damages, and Kraus
accepts no liability for such damages.
This warranty does not cover Marine or Outdoor Installation.
Except as otherwise provided above, Kraus makes no warranties, expressed or implied,
including warranties of merchantability and tness for a particular purpose, or compliance
with any code. Shipping charges will be covered for the rst (1) year of the warranted
replacement part or product (HI, AK, and Puerto Rico shipping charges may apply).
International shipping fees are not included.
COMMERCIAL WARRANTY
Kraus extends the above warranty for a period of one (1) year to purchasers of products for
industrial, commercial, and business use.
All incidental or consequential damages are specically excluded. No additional warranties,
express or implied, are given, including but not limited to any implied warranty of
merchantability or tness for a particular purpose.
Some states do not allow the exclusion or limitation of incidental or consequential damages
or limitations on how long an implied warranty lasts, so the above limitations or exclusions
may not apply to you.
This warranty gives you specic legal rights, and you may also have other rights which vary
from state to state.
If you are a homeowner please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a plumbing contractor or trade professional please contact a Kraus
Pro Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
[email protected]
If you are an Authorized Partner please contact a Partner Support Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[e-mail]

www.kraususa.com
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
In requesting warranty service, please be ready to provide:
1. Proof of purchase.
2. A description of the problem.

Receive Proof of Ownership
Access Customer Care & Installation Help
Get Exclusive Kraus Oers & Promotions
Scan to Register Online
or visit http://www.kraususa.com/registration
Please take a moment to share your experience.
Visit http://www.kraususa.com/review to let us know what you think
about your new Kraus product.
Contact Us to Learn More
1.800.775.0703 / www.kraususa.com / [email protected]
Like & Follow KrausUSA
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
www.kraususa.com
REGISTER YOUR PRODUCT TODAY
We’re always looking for ways to improve.
