Kraus KBF1201CH2PK User manual

Arlo™ Single Lever Basin Faucet
KBF-1201
INSTALLATION GUIDE
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2021 Kraus USA Plumbing LLC I REV. NOV 10, 2021

1
Congratulations on the purchase of your new
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance, or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [e-mail]
Have the model number available, and retain a copy of your receipt
with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE

2

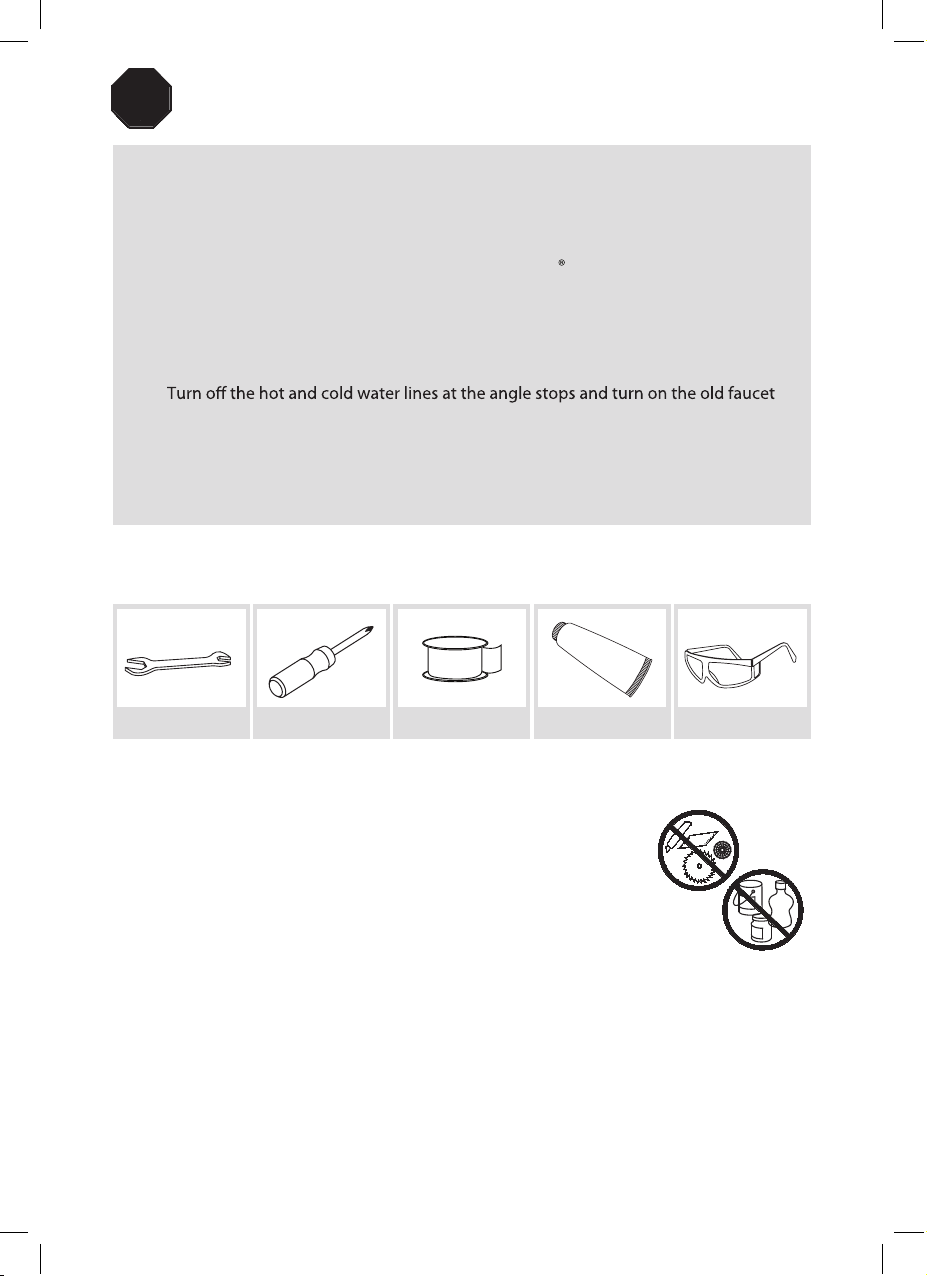

Prior to Installation:
•Make sure you have all necessary parts by checking the diagram and parts list. If
any part is missing or damaged, please contact Kraus Customer Service at 800-775-
0703 for a replacement
•
•
Pre-drilled countertop hole size requirement: 1-3/8”(min)
• Max countertop thickness: 2 5/8”
Tools you will need:
13
Wrench Phillips Screwdriver Safety Goggles
Silicone Sealant
(optional)
Pipe Tape
to release any built-up pressure
STOP
Care & Maintenance
* To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
* This installation manual is subject to change without further notice.
ACID
Read all instructions and safety warnings and ensure you have all tools, parts,
and equipment necessary for a safe installation.
•

G
H
E
F
D
A
B
C
I

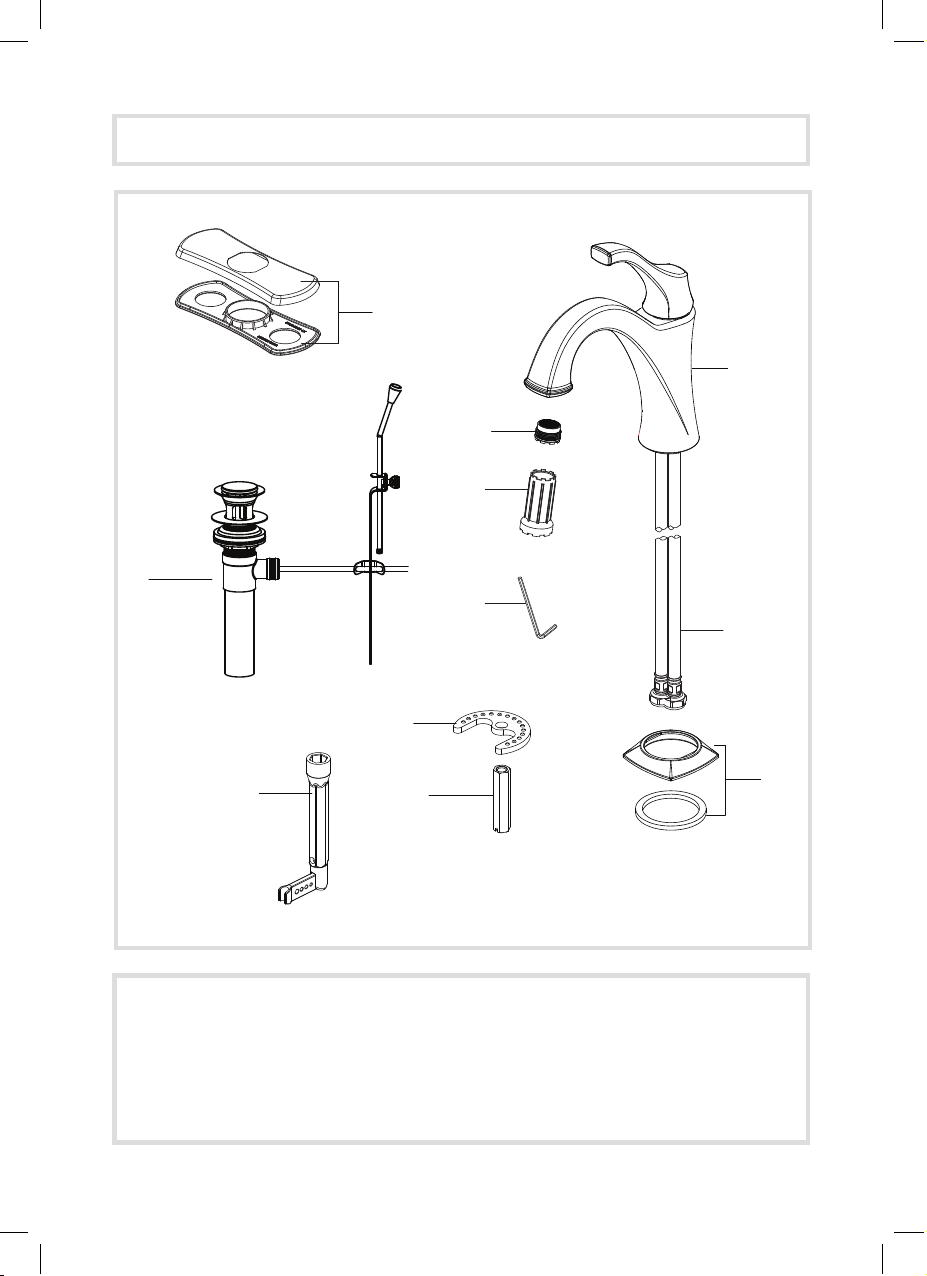

Diagram and Parts List
J
A. Faucet Body
B. Waterlines
C. Flange & Washer
D. Aerator
E. Aerator Key
F. Hex Wrench
G. Metal Washer
H. Nut
I. Deck plate & Base plate
J. Drain
3
K
K. Spanner Key

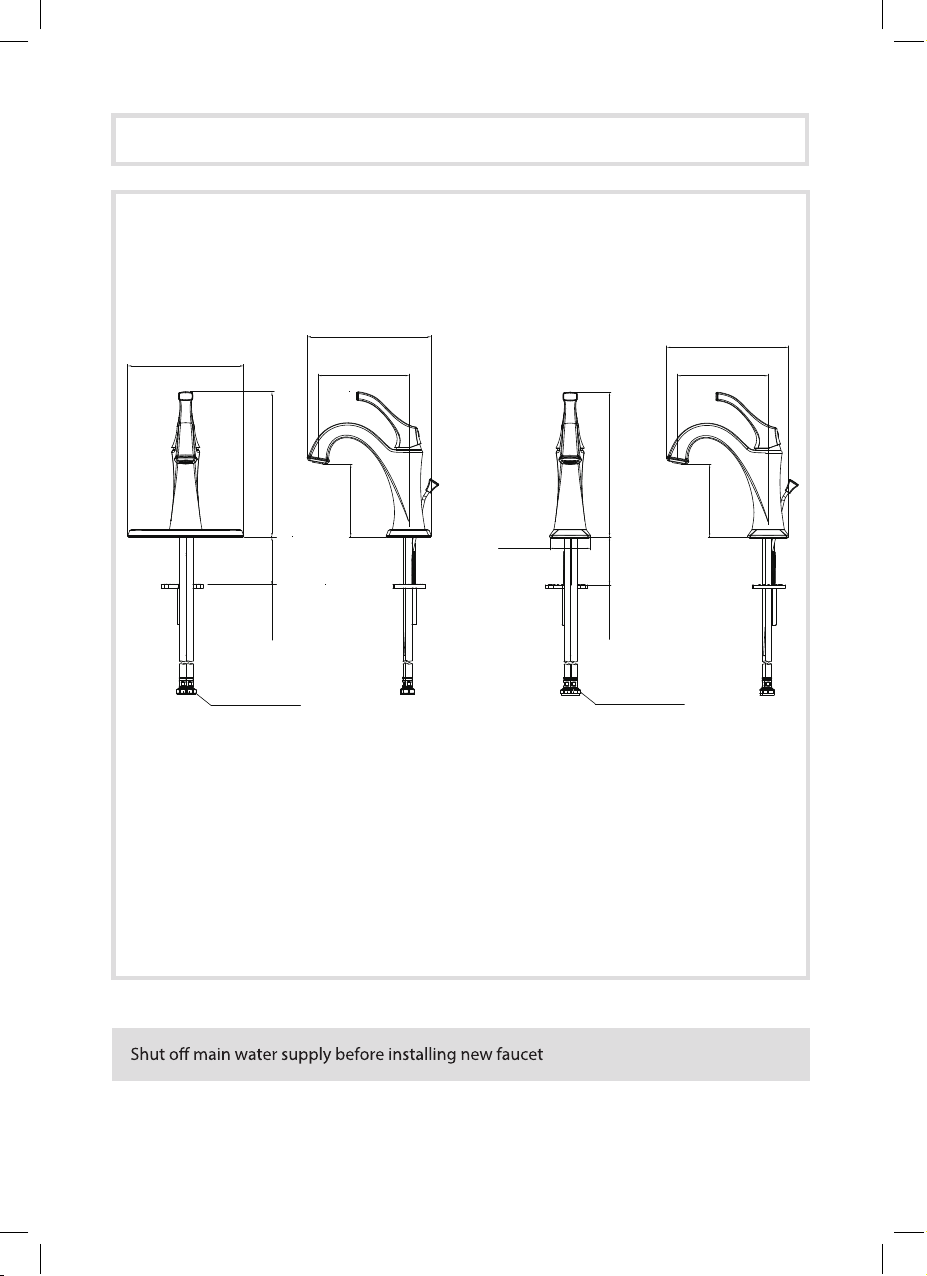

Faucet Dimension
Installer Tip:
3/8" compression
4
6 1/4"
[159mm]
8"
[203mm]
2 5/8"
[66mm]
4"
[101mm]
5"
[126mm]
6 3/4"
[172mm]
7 7/8"
[201mm]
2 5/8"
[67mm]
2 1/4"
[56mm]
4"
[101mm]
5"
[126mm]
6 5/8"
[169mm]
3/8" compression

Step 1: Remove washer and lock nut
old faucet. Clean the mounting surface.
WITH FLANGE: Remove the metal washer (G)
and lock nut (H) from the faucet (A) as
a.
WITH DECK PLATE: Remove the metal
b.
Step 2.1: Install faucet (with deck plate)
.
G
H
A
A
I
B
a.b.
G
H
A
C
5
G
H
K
Align the hole on the deck plate (I) with
the mounting hole on the sink. Place the
faucet (A) through the deck plate & base
plate (I) and mounting hole on the sink
until the faucet (A) sets on top of deck plate (I).
Secure the faucet (A) to the sink by using
the metal washer (G) and nut (H) provided.
Tighten nut (H) by spanner key (K) provided.
Ensure the metal washer (G) and hoses (B)
are no interference.
G
H
K

Step 3: Connect waterlines to main valve
Attach waterlines(B) to angle stops
and tighten until snug. Turn on angles
stops and check for leaks (DO NOT TURN
FAUCET ON)
B

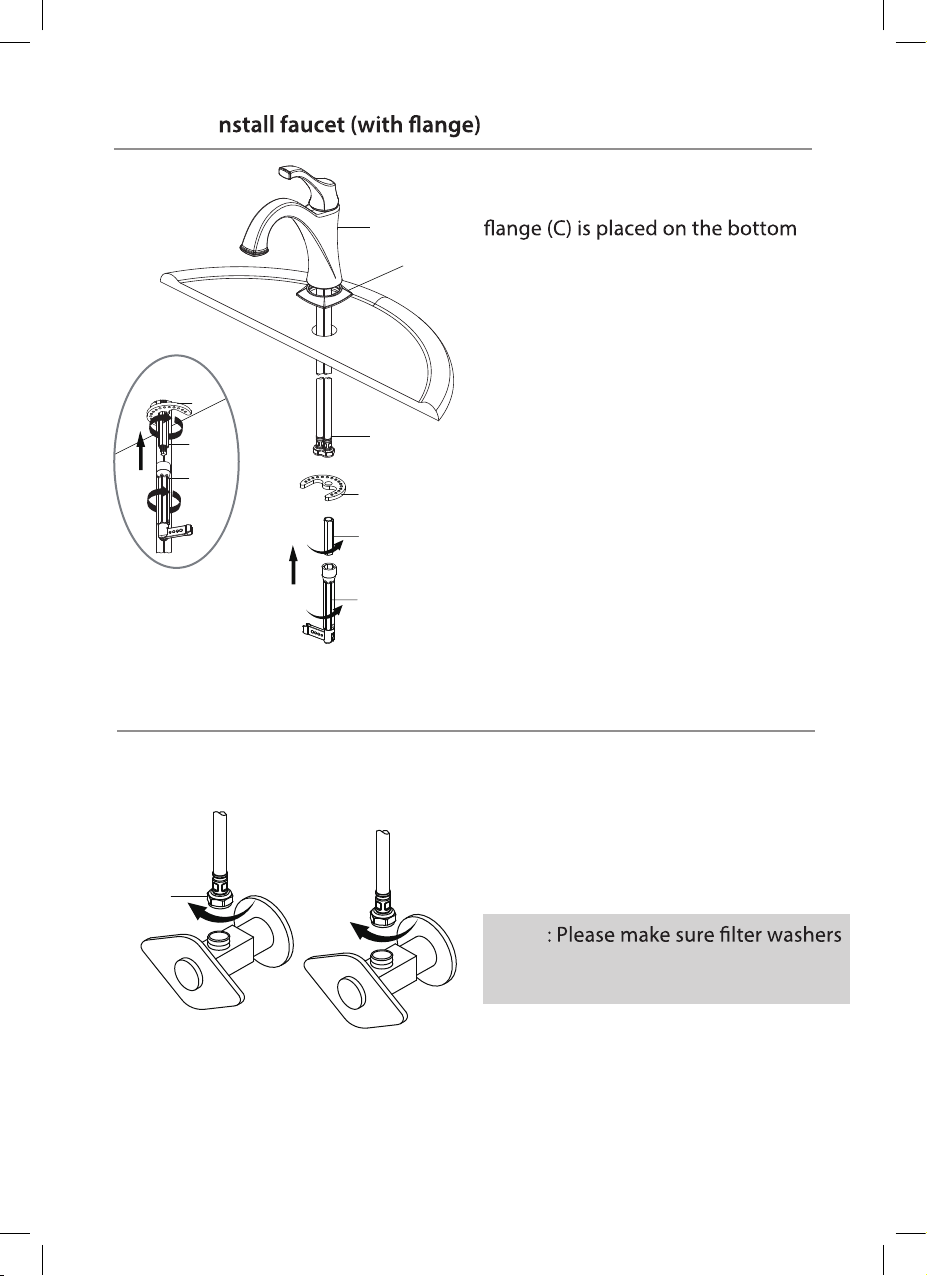

Step 2.2: I
Before installation, ensure that the
of the faucet (A). Place the faucet (A)
through the mounting holes in the
sink until the faucet (A) sets on top
of the sink. Secure the faucet (A) to the
sink using the washer (G) and lock nut (H)
provided. Tighten lock nut (H) with spanner
key (K) provided. Ensure the washer (G)
and hoses (B) are no interference.
A
C
B
6
G
H
K
G
H
K
NOTE
are installed before connecting to
the main valve.

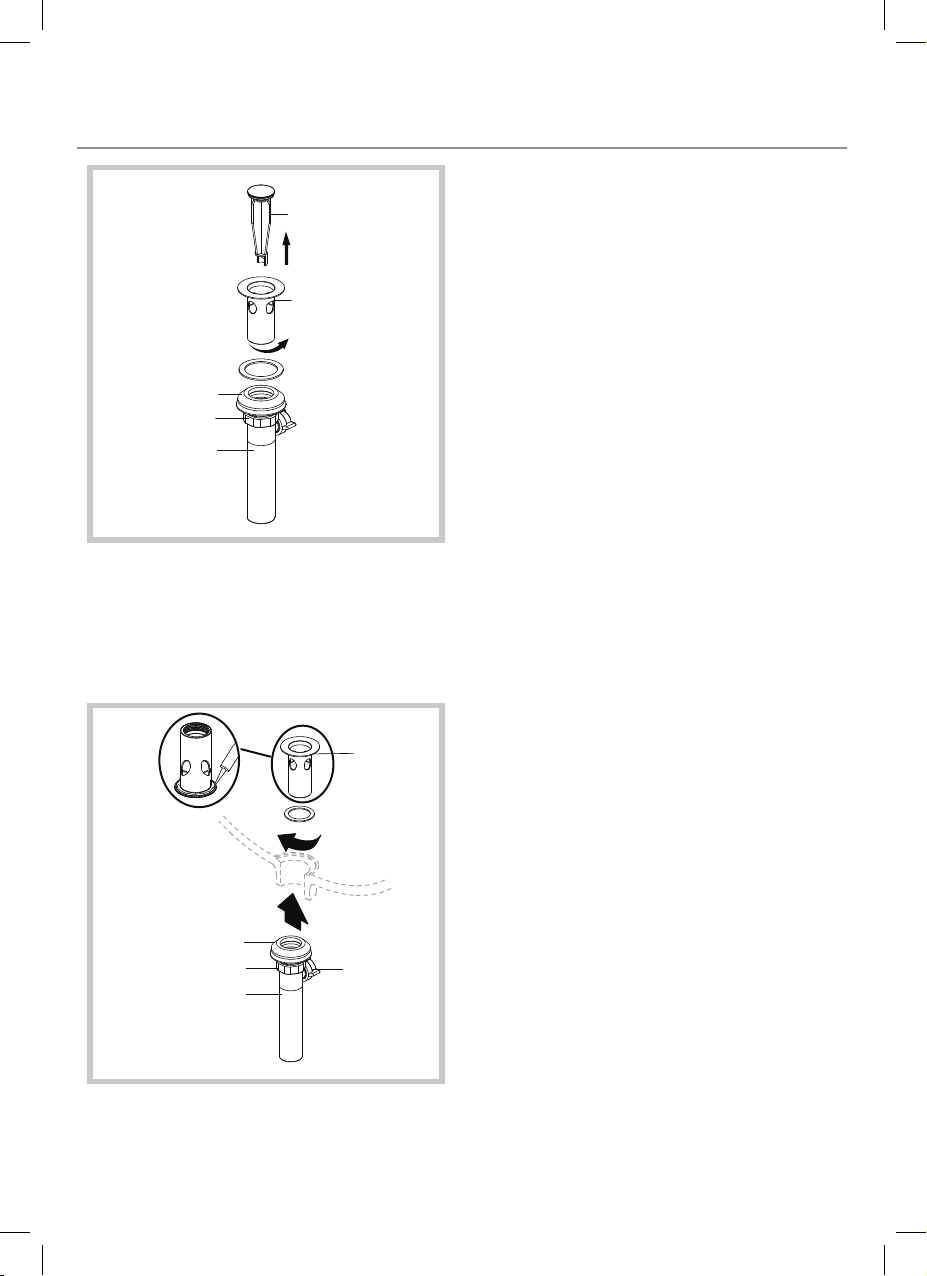

Step 4: Install drain
Remove the waste stopper (1) and drain
ange (2) from the drain body (5). Screw
the nut (4) all the way down, and push
the concave washer (3) down.
Apply silicone sealant (not included)
under the drain ange(1) and place the
drain ange (1)into the drain hole of
the sink. From underneath the sink,
screw the drain body (4) onto the drain
ange (1). Ensure that the opening (a) for
the ball rod on the drain body (4) faces
towards the rear of the sink. Tighten the
concave washer (2) and nut (3) on the
drain body (4). Do not overtighten.
1
2
3
4
5
4
3a
2
1
SILI
7

Insert the lift rod (2) through the faucet
(1) and down into the strap (3).Tighten
the thumb screw (4).
Step 4: Install drain
Insert the waste stopper (1) into the drain
hole in the sink. Remove the strap (6) and
clip (5) from the ball rod (3).
Remove the ball nut (4). Insert the ball
rod (3) into the drain body (2) and through
the hole of the stopper (1). See Insert 1.
For easier removal and cleaning, rotate
the stopper (1) 90 degrees so that the
ball rod (3) does not go through the hole
in the stopper (1).See Insert 2.
Secure the ball nut (4) against the hole in
the drain body (2) and tighten the ball nut
(4) onto the threaded end. Do not
overtighten.
2
B
C
5
6
3
2
4
A
1
2
Insert 2 Insert 1
1
3
4
2
8

Step 4: Install drain
Step 5: Flush faucet
After installing faucet, remove
aerator (D) with included aerator
key (E). Turn water on for 30
seconds to remove any debris.
Reassemble aerator (D).
Attach the ball rod (1) to the strap (3)
using the clip (2).
D
E
1
2
3
Loosen the thumb screw (3) on the
strap (2). Push down on the lift rod
(1) until the stopper is in the open
position. Retighten the thumb
screw (3).
23
1
9
