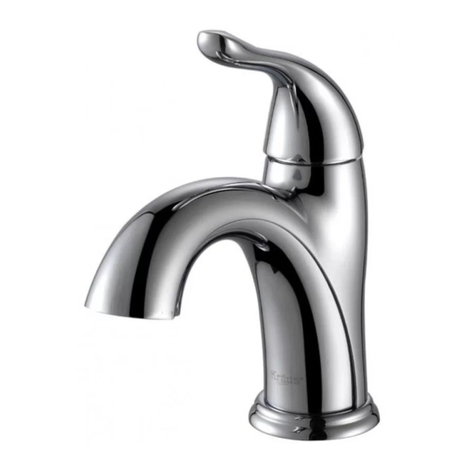

Kraus FVS-1007 User manual

www.kraususa.com I Toll Free: 1.800.775.0703 I © 2021 Kraus USA Plumbing LLC I REV. November 8, 2021
RamusTM Single Lever
Vessel Faucet
FVS-1007
R
INSTALLATION MANUAL

2
Congratulations on the purchase of your new
Kraus plumbing fixture!
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your
receipt with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
STOP
R

Prior to Installation:
·Make sure you have all necessary parts by checking the diagram and
parts list. If any part is missing or damaged, please contact Kraus
Customer Service at 800-775-0703 for a replacement.
·Read all instructions and safety warnings and ensure you have all
tools, parts, and equipment necessary for a safe installation.
·Turn off the hot and cold water supply at the angle stops and turn on
the old faucet to release any built up pressure. Remove existing faucet.
Clean sink or countertop to remove any debris, plumber’s putty, or
silicone.
·Flush angle stops to release any debris prior to installation.
·Pre-drilled hole size requirement: 1 3/8" (min)
·Max countertop thickness: 1 3/8”
3
Care & Maintenance
* To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
* This installation manual is subject to change without further notice.
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
ACID
STOP
R

4
Tools Required
4
Adjustable Wrench Phillips Screwdriver Silicone Sealant
Pipe Tape Hex Wrench
Diagram and Parts List
1. Faucet Body
2. Aerator
3. Faucet Base
A. Base Trim Ring
B. Rubber Washer
4. Mounting Hardware
A. Rubber Washer
B. Metal Washer
C. Mounting Nuts
D. Mounting Screws
5. Hex Wrench
6. Aerator Key
3A
4A
4B
4C
4D
2
6
5
3B
1

55
Installer Tip:
Shut off main water supply before installing new faucet.
Faucet Dimensions
12 1/2"
(316mm)
Ø1 3/4"
(45mm)
Ø2"
(50mm)
1 5/8"
(42.5mm Max)
3/8" Compression
3 3/4"
(96mm)
Ø3/8"
(10mm)
1 3/8"
(35mm)
10 1/8"
(257mm)
Ø7/8"
(22mm)
8 1/4"
(211mm)
6 5/8" (168mm)
20°
5 3/4"
(146mm)

66
Faucet Installation Procedure
Step 2.
Install the faucet through the
1-3/8" predrilled hole in the
countertop. Attach rubber washer
(4A), metal washer (4B), mounting
nut (4C), and mounting screws
(4D) on the threaded mounting
pipe. Tighten the mounting nut
(4C) until snug. Tighten screws
(4D) on the mounting nut (4C)
with a Phillips head screwdriver
until snug.
Step 1.
Remove rubber washer (4A), metal
washer (4B), mounting nut (4C),
and mounting screws (4D). Keep
the base trim ring (3A) and rubber
washer (3B) on the base of the
faucet.
3A
4A
4B
4C
4D
27mm ~ 41.3mm
1 1/16” ~ 1 5/8”

7
Step 3.
Install flex water supply lines on
the angle stops and tighten with
an adjustable wrench. Turn on
both the cold and hot main valves
Apply pipe tape (optional).
Step 4.
After installing the faucet, remove
the aerator (2) with the included
aerator key (6). Turn on the water
to remove any leftover debris,
then reassemble the aerator (2).

8
Replacement Parts
1. Metal Handle
2. Cartridge Cover
3. Locking Nut
4. Cartridge
6. Base Trim Ring
7. Mounting Hardware
8. Hex Wrench 2.5mm
9. Aerator Key
Replacement Parts List Finish/Color Part #
KP44069
KP44070
KP44071
KP44072
KP44073
KP44074
KP44075
KP44076
KP44077
KP44022
CH, SN, ORB, MB, SFS*
5. Aerator
*Denotes faucet component color options:
CH - Chrome
SN - Satin Nickel
ORB - Oil Rubbed Bronze
MB - Matte Black
SFS - Spot Free Stainless Steel
1
2
3
4
5
6
7
8
9
CH, SN, ORB, MB, SFS*
CH, SN, ORB, MB, SFS*
10
10. Filter Washers

9
Trouble-Shooting
If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps:
Leakage under the faucet
handle
Adjusting locking nut has come loose. Remove handle index button. Loosen set
screw with hex wrench. Remove handle
(by hand only). Tighten locking nut with
an adjustable wrench.
Aerator drips or has inconsistent
water flow pattern
Aerator is dirty or not
seated properly.
Unscrew aerator with aerator key and clean
out debris.
Water does not shut off
completely
Cartridge may be defective. Remove handle index button. Loosen set
screw with hex wrench. Remove handle
(by hand only). Unscrew trim cap (by hand
only). Unscrew the locking nut with an
adjustable wrench. Remove ceramic disc
cartridge. Check for cracks.
Leaking between spout and body Loose spout or damaged O-rings on
connector.
Tighten set screw under the spout.
PROBLEM CAUSE ACTION

Faucet - Lifetime Limited Warranty
Kraus USA Plumbing, LLC (“Kraus”) extends this warranty to the original purchaser for personal household use of the
Faucet when purchased from an authorized Kraus dealer and in the location of original installation. This warranty is
non-transferable.
Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal
usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
Kraus warrants the Faucet's sprayhead assembly (including the engine, aerators, structure, restrictors, back flow
preventers, sprayer hoses, braided supply line hoses which encompasses nylon, silicon and stainless steel) of the product
to be free from defects in material and workmanship under normal usage for a period of one (1) year from the date of
purchase.
Kraus warrants the Faucet's cartridge to be free from defects in material and workmanship under normal usage for a
period of five (5) years from the date of purchase.
Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired
or replaced with a product of equal value at the option of Kraus.
Commercial Warranty
Kraus USA Plumbing, LLC (“Kraus”) warrants its Products for a period of one (1) year to commercial purchasers of
Products used in industrial, commercial and business applications.
Care and Cleaning Instructions
Certain cleaning products may cause damage to a Product's finish and use of the following on the Product will void this
warranty:
·Abrasive cleaners such as powders, bleach, ammonia, alcohol or chorine
·Abrasive pads, steel wool or wire brushes
What is Not Covered
This warranty does not cover Products that were discontinued when purchased or display Products, whether such
Products were purchased at discount outlets, unauthorized dealers, and/or sold on clearance. This warranty does not
cover any free gifts included with purchase.
This warranty does not cover damage resulting from neglect, misuse (including use for an unintended application),
abuse, carelessness, accident, hard water or mineral deposits, exposure to corrosive materials, improper maintenance,
alteration of the Product, or failure to follow care, cleaning or installation instructions enclosed with your Product. Kraus
recommends that all Kraus Products be installed by a fully licensed and insured trade professional with experience in the
installation of bathroom and/or kitchen manufactured goods.
Codes/Standards Applicable:
10
R
UPC
CR
IAP
CR
NSF/ANSI 372 LEAD FREE
ASME A112.18.1
1.2GPM 4.5L/min maximum
MOR&T
NSF/ANSI 372
NSF/ANSI 61

11
How to Make a Warranty Claim
If you are a consumer purchaser, please contact a Kraus Customer Service Representative at:
Kraus USA Plumbing, LLC
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at:
Kraus USA Plumbing, LLC
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
[email protected]
If you are an authorized partner, please contact a Partner Support Representative at:
Kraus USA Plumbing, LLC
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[email protected]
In requesting warranty service, please be ready to provide your proof of purchase and a description of the problem.
Shipping charges will be covered for the first (1) year of the warranted replacement part or product (HI, AK, and Puerto
Rico shipping charges may apply). International shipping fees are not included.
Limitation on Duration of Implied Warranties
Please note that some states/provinces (including Quebec) do not allow limitations on how long an implied
warranty lasts, so the below limitations may not apply to you. TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, ANY IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
OF FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO THE STATUTORY PERIOD OR THE DURATION OF THIS
WARRANTY, WHICHEVER IS SHORTER.
Limitation of Special, Incidental or Consequential Damages
Please note that some states/provinces (including Quebec) do not allow the exclusion or limitation of special,
incidental or consequential damages, so the below limitations and exclusions may not apply to you. TO THE
MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA
PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
(INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING
OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
This warranty gives you specific legal rights, and you may also have other rights which vary from state/province to
state/province.
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
