Kraus KGD-410B Operating and maintenance instructions

Granite Kitchen Sinks
KGD-410B / KGD-412B/ KGU-413B / KGD-430B /
KGD-433B / KGU-43B / KGU-413B
KGU-434B
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2017 Kraus USA Inc. I REV. January 11, 2018
INSTALLATION GUIDE

1
Congratulations on the purchase of your new
Kraus plumbing xture!
Please keep teh box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance, or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / customerser[email protected]
Have the model number available, and retain a copy of your receipt
with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE

2
Prior to Installation:
• Make sure that you have all necessary parts by checking the parts list. If any part is
missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a
replacement
• Inspect the sink prior to installation to make sure that it has not been damaged or
during shipping
• Use the cut-out template provided by Kraus
• Observe all plumbing and building codes according to your state requirements
Please note:

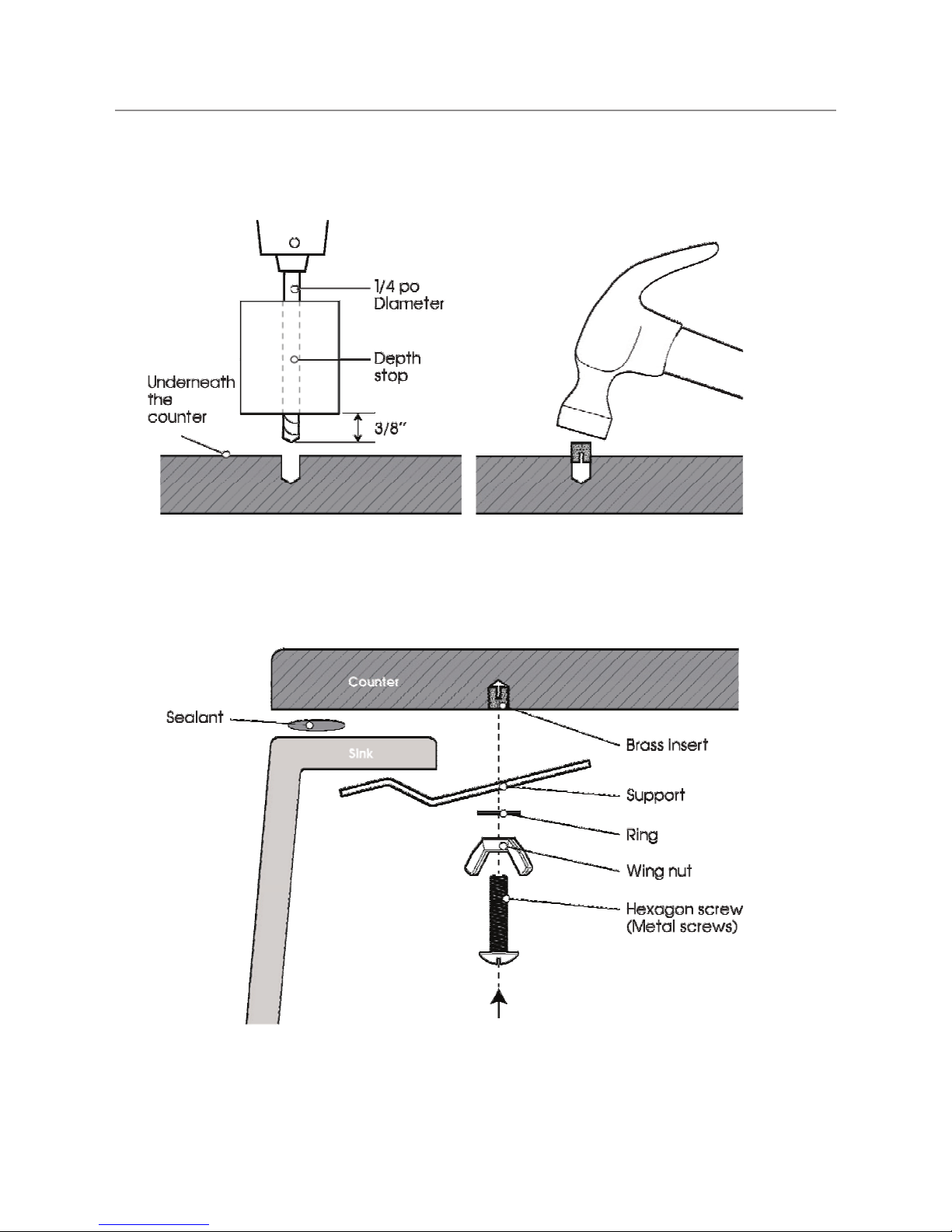

• KGUs can be installed undermount only (Option B)
• KGDs can be installed topmount & undermount (Option A)
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or Customerser[email protected]
The step-by-step guidelines in the installation instructions are a general reference for installing a
Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to
install all Kraus products by hiring a licensed professional.

3

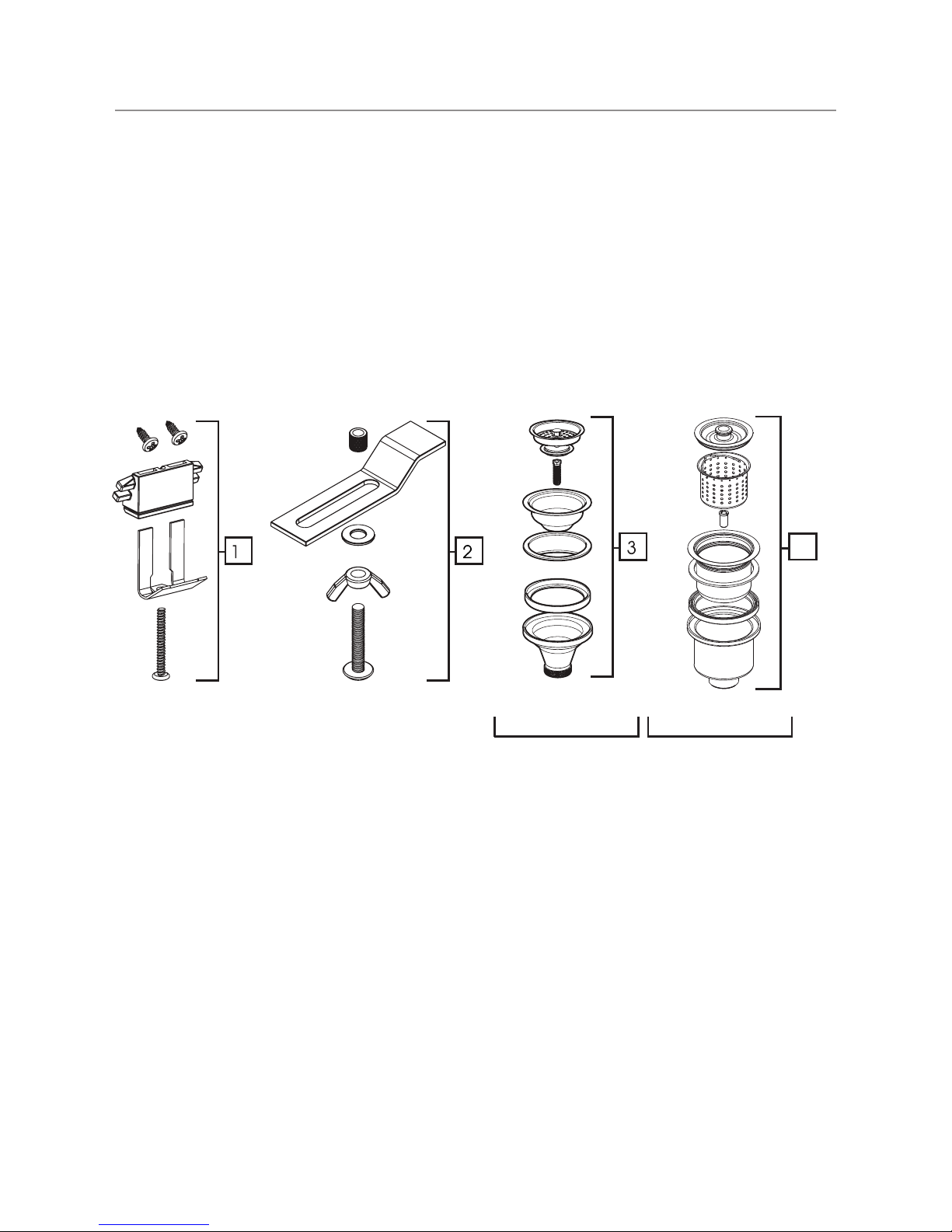

Parts List

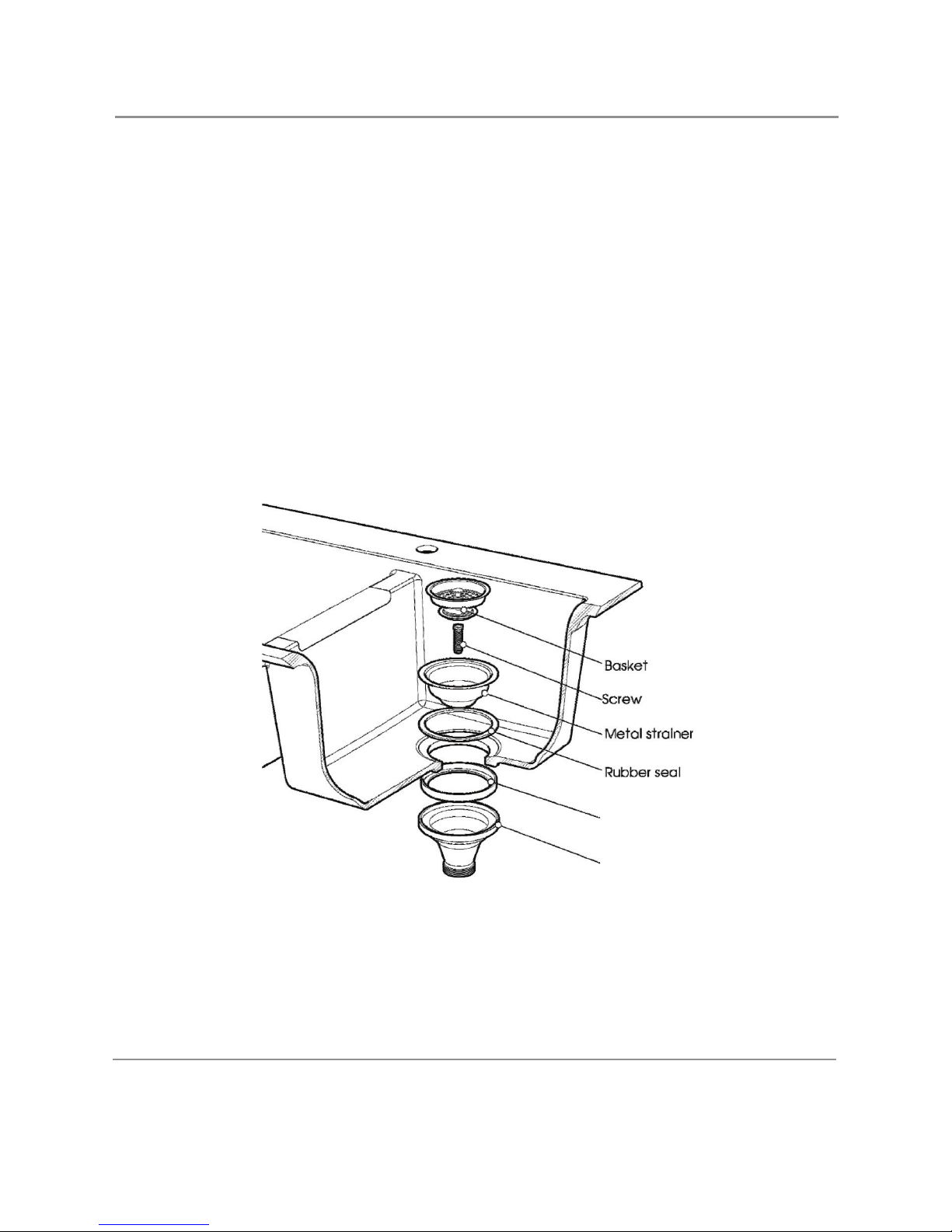

• Cut-Out Template • Mounting Hardware • Drain
NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Undermount
sinks with countertop materials other than wood, marble, or granite

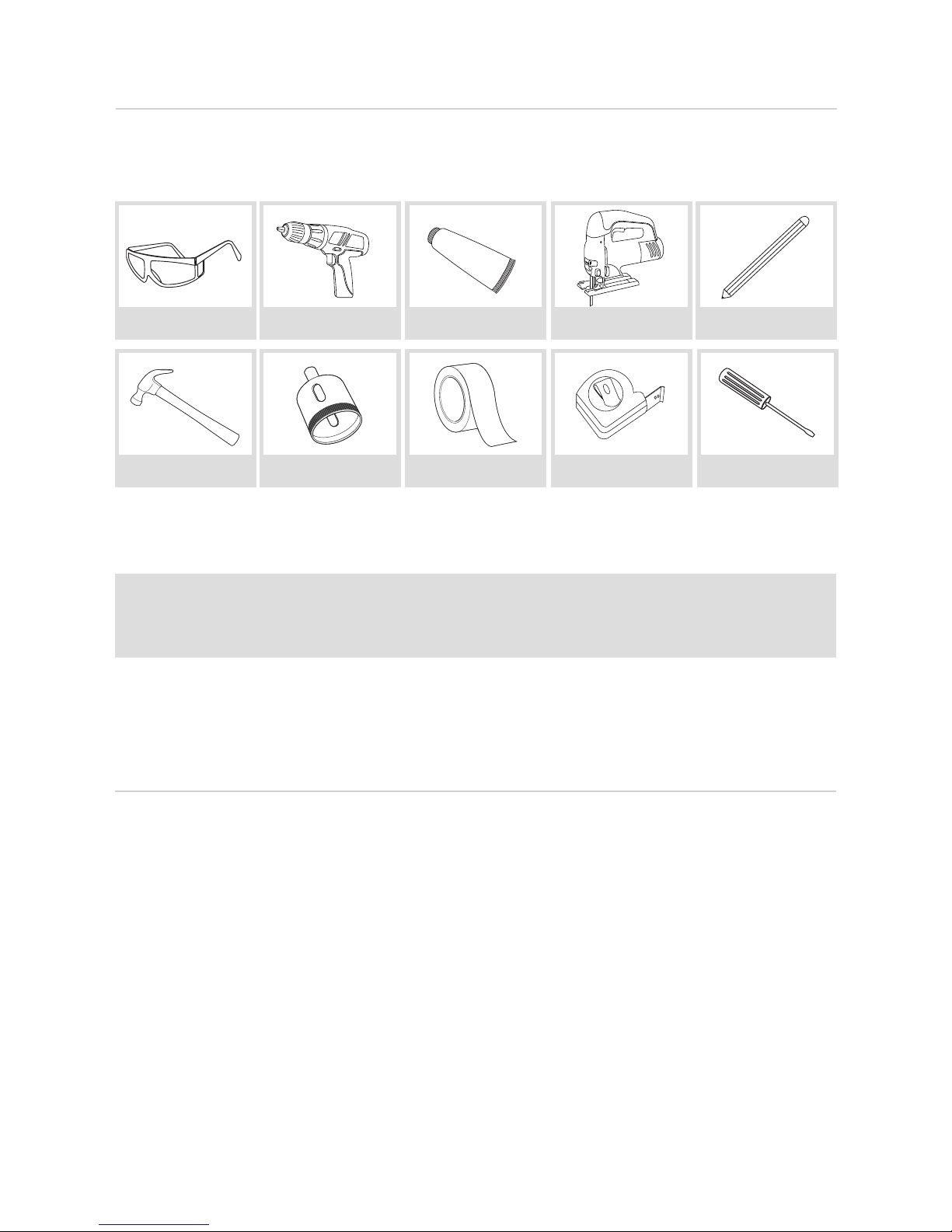

Tools and Required Materials
Pencil
Screwdriver
Safety Goggles
Hole Saw
Hammer
Drill
Masking Tape
Silicone Adhesive Jig Saw
Tape Measure
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrenchSilicone Sealant
A
I
D
J
F
B
G
C
H
E

4

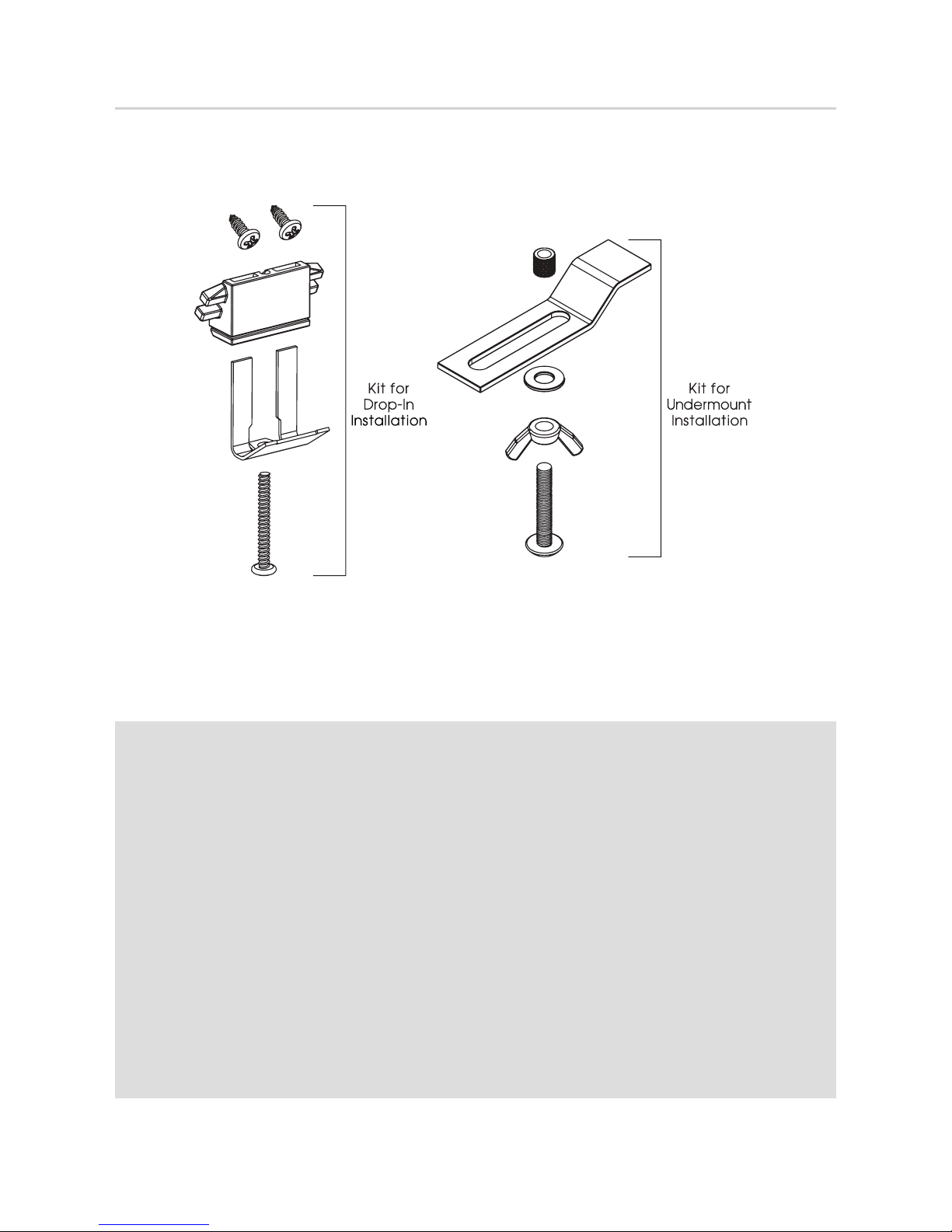

Hardware (included)
Important
• Instructions may vary depending on countertop material. Read all instructions
carefully, and ensure that counters are compatible with sink installation before
proceeding.
• Follow the plumber’s code and builder’s code eective in your area.
• Shut o water valves prior to installation.
• Open sink packaging and verify that the sink is in perfect condition. Put sink back
into packaging to protect it until time of installation.
• To replace an existing sink, make sure that the cut-out hole in the counter is of an
adequate size to t the new sink.

5
mm: 559 x 838 x 241 (362 x 362)
in: 22 x 33 x 9.50 (14.23 x 14.23)
838mm
33”
362mm
14-1/4”
362mm
14-1/4”
559mm
22”
241mm
9-1/2”
415mm
16.-3/8”
mm: 559 x 838 x 241 (362 x 362)
in: 22 x 33 x 9.50 (14.23 x 14.23)
838mm
33”
362mm
14-1/4”
362mm
14-1/4”
559mm
22”
241mm
9-1/2”
415mm
16.-3/8”
mm: 434 x 774 x 220
in: 17.04 x 30.47 x 8.66
774mm
30-1/2”
720mm
28-3/8”
434mm
17”
220mm
8-7/8”
370mm
14-1/2”
mm: 434 x 774 x 220
in: 17.04 x 30.47 x 8.66
774mm
30-1/2”
720mm
28-3/8”
434mm
17”
220mm
8-7/8”
370mm
14-1/2”
mm: 481 x 824 x 241
in: 18.93 x 32.45 x 9.5
32-1/2”
824mm
14-1/4”
362mm
9-1/2”
241mm
14-1/4”
362mm
18-7/8"
481mm
16-3/8”
415mm
mm: 481 x 824 x 241
in: 18.93 x 32.45 x 9.5
32-1/2”
824mm
14-1/4”
362mm
9-1/2”
241mm
14-1/4”
362mm
18-7/8"
481mm
16-3/8”
415mm
mm: 510 x 780 x 220
in: 20.07 x 30.70 x 8.66
720mm
28-3/8”
780mm
30-3/4”
510mm
20-1/8”
370mm
14-1/2”
220mm
8-5/8”
mm: 510 x 780 x 220
in: 20.07 x 30.70 x 8.66
720mm
28-3/8”
780mm
30-3/4”
510mm
20-1/8”
370mm
14-1/2”
220mm
8-5/8”
mm: 460 x 610 x 209
in: 18.11 x 24.01 x 8.22
610mm
24”
544mm
21-3/8”
460mm
18-1/8”
209mm
8-1/4”
394mm
15-1/2”
mm: 460 x 610 x 209
in: 18.11 x 24.01 x 8.22
610mm
24”
544mm
21-3/8”
460mm
18-1/8”
209mm
8-1/4”
394mm
15-1/2”
Dimensions
KGD-410B
24” x 18 1/8” x 8 1/4”
Min Cabinet Size: 27”
Drain Model #: BST-2
KGU-413B
30 1/2” x 17” x 8 7/8”
Min Cabinet Size: 33”
Drain Model #: BST-2 & ST-2
KGU-431B
32 1/2” x 19 7/8” x 9 1/2”
Min Cabinet Size: 36”
Drain Model #: BST-2 & ST-2
KGD-412B
30 3/4”x 20 1/8”x 8 5/8”
Min Cabinet Size: 33”
Drain Model #: BST-2
KGU-434B
32 1/2” x 18 7/8” x 9 1/2”
Min Cabinet Size: 36”
Drain Model #: BST-2
KGD-430B
33” x 22” x 9 1/2”
Min Cabinet Size: 36”
Drain Model #: BST-2 & ST-2
KGD-433B
33” x 22” x 9 1/2”
Min Cabinet Size: 36”
Drain Model #: BST-2 & ST-2
mm: 559 x 838 x 241
in: 22 x 33 x 9.50
838mm
33”
407mm
16”
316mm
12-1/2”
559mm
22”
241mm
9-1/2”
435mm
17-3/4”
mm: 559 x 838 x 241
in: 22 x 33 x 9.50
838mm
33”
407mm
16”
316mm
12-1/2”
559mm
22”
241mm
9-1/2”
435mm
17-3/4”
mm: 505 x 824 x 241
in: 19.87 x 32.45 x 9.50
824mm
32-1/2”
505mm
19-7/8”
241mm
9-1/2”
435mm
17-3/4”
407mm
16”
316mm
12-1/2”
mm: 505 x 824 x 241
in: 19.87 x 32.45 x 9.50
824mm
32-1/2”
505mm
19-7/8”
241mm
9-1/2”
435mm
17-3/4”
407mm
16”
316mm
12-1/2”

6
Option A: DROP-IN INSTALLATION
1. Trace Opening
• Locate the drop-in template in the box
• Cut carefully along the dotted lines. Keep the inside portion of the
template. It contains important information concerning care and
maintenance for your new sink
• Place the template on the counter, in the location where you will be
installing the sink. When placing the template, note the location of
cabinet doors and panels to ensure that they are compatible with sink
installation. Make sure that there is enough space for water supply
installation. Identify the location of the faucet and soap dispenser
• Fix the template to the counter using masking tape
• Trace the inside of the template with a pencil. Remove the template
from the countertop
• OR
• Turn the sink upside down and place it on top of the counter. Note
the location of cabinet doors and panels to ensure that they are
compatible with sink installation. Make sure that there is enough space
for water supply installation. Identify the location of the faucet and soap
dispenser
• Trace the outer edge of the sink with a pencil, then remove the sink
• Measure 7mm from the initial sink measurement and trace another line
on the inside of the drawing. This second line will be the cutting line

7
2. Cut the opening
• Using the drill, make a small starting hole of about ½” on the inside of
the cutting line
• Drill a second time in the same hole with a larger bit to enlarge the hole
so that the jigsaw can be inserted properly
• Put masking tape on the outer side of the cutting line. This will protect
the counter from scratches and shattered fragments caused by the
jigsaw
• Using the jigsaw, trim the inside of the cutting line
• Insert the sink and adjust the opening if necessary

8

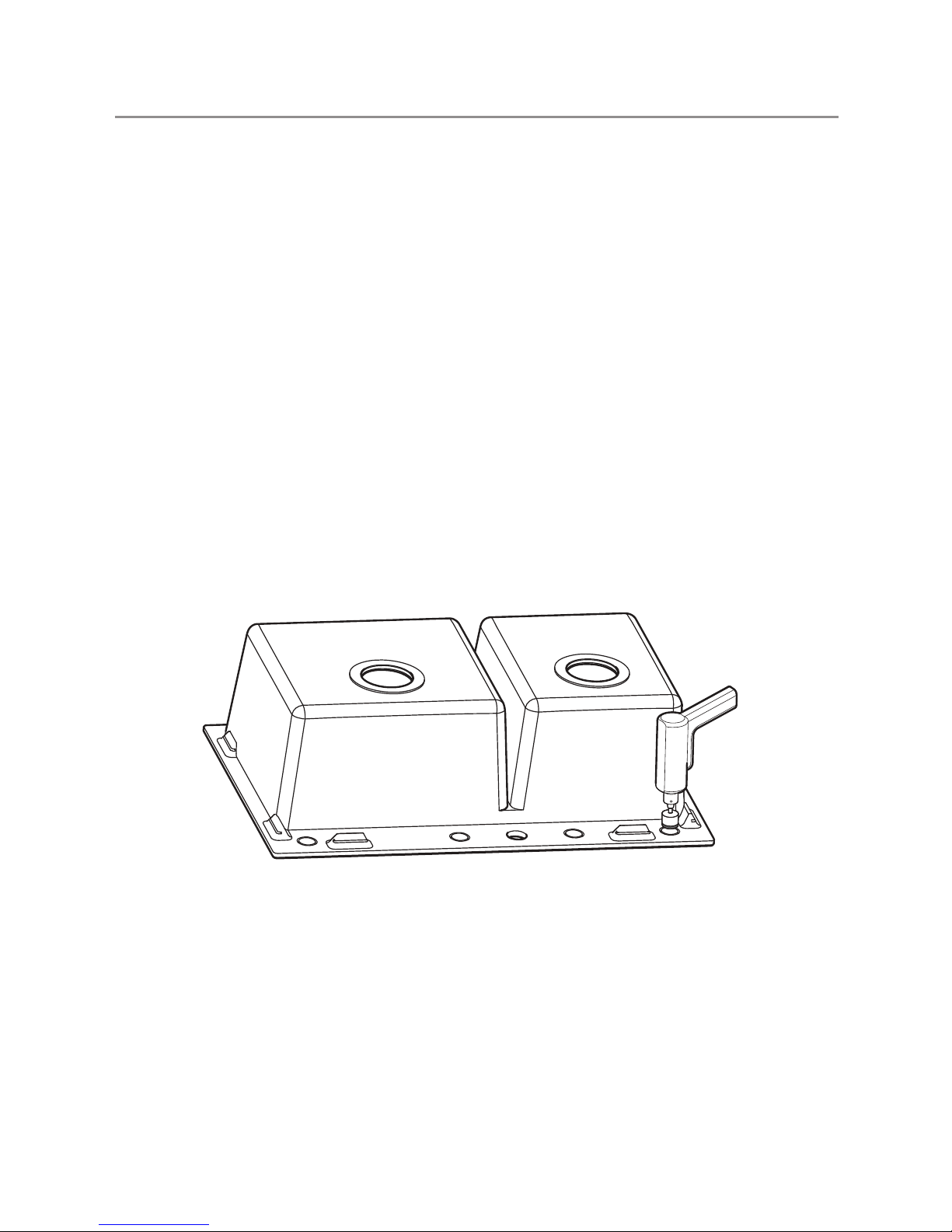

3. Add an additional faucet hole (optional)
• Determine the location of the faucet
• Place the sink upside down on a suitable at surface
• Using the 32mm (1 ¼”) diamond hole saw at high power (1500tr. per
min), break through in the desired location
CAUTION: This procedure will cause the metal to become very hot. Please
handle with care

9
4. Install Sink
• Clean and dry the surface around the opening of the sink
• Verify that the sink ts correctly in the opening. The edge of the sink
must sit on the counter
• Turn the unit upside down to apply sealant. Apply silicone-based sealant
(not included) underneath the edge of the sink
• Ensure that the plastic ap holding the screw underneath the sink is
partially opened, as shown
• Insert the sink into the opening

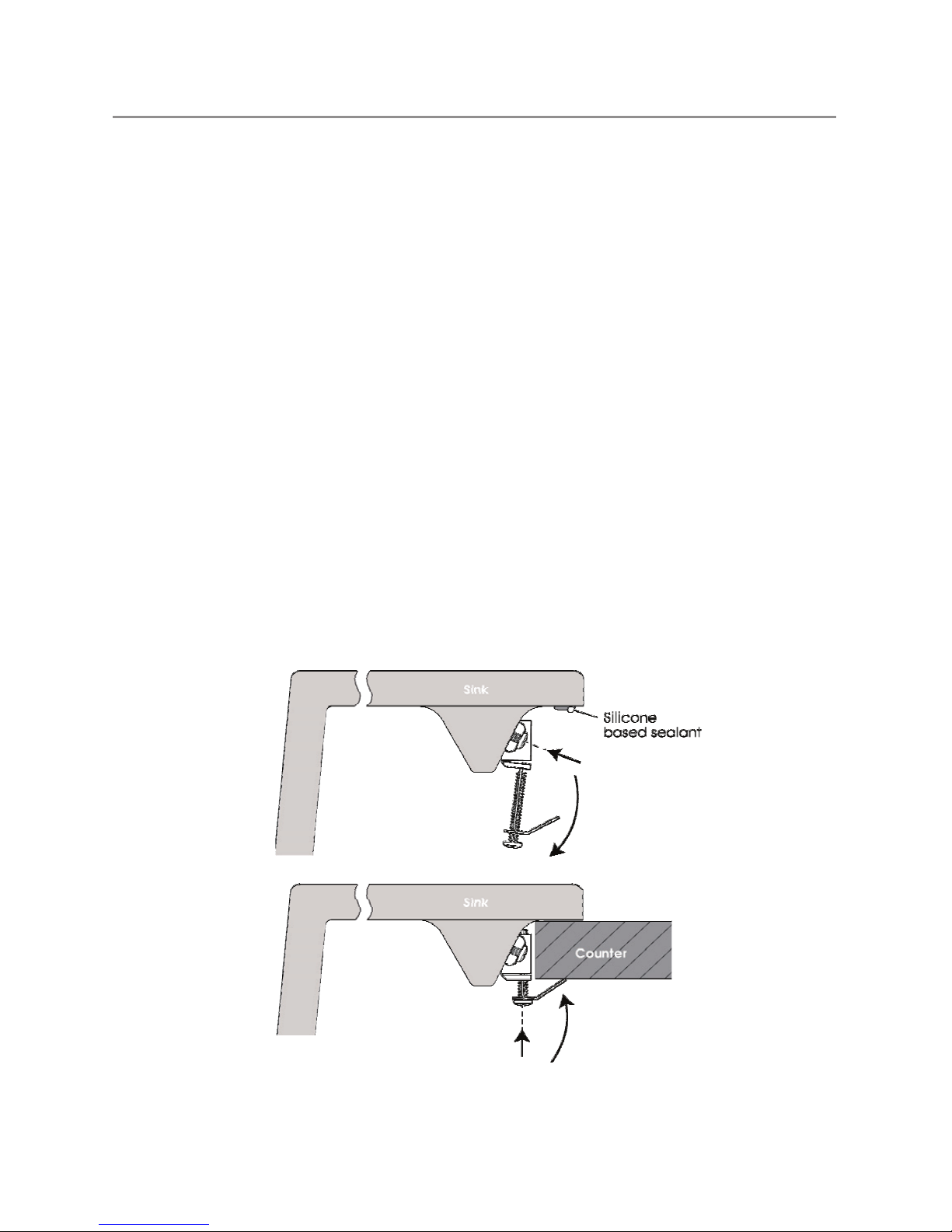

• Fix the sink to the counter by swiveling the mounting brackets, as
shown
• Tighten the screws in the front of the sink, followed by the ones in the
back and on the sides of the sink
• Remove excess silicone-based sealant
