KCA-1200
All-In-One
Kitchen Set
R
INSTALLATION MANUAL

Congratulations on the purchase of your new
Kraus plumbing fixture!
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance or have any problems with your product:
2
Please contact our Customer Service Team
1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your
receipt with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
STOP

3
Prior to Installation:
·Make sure that you have all necessary parts by checking the parts list. If any part is missing
or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement
·Inspect the sink prior to installation to make sure that it has not been damaged or during
shipping
·Use the cut-out template provided by Kraus
·Observe all plumbing and building codes according to your state requirements
·Turn off the cold and hot water at the angle stops and turn on the old faucet to release and
built up pressure
·Flush angle stops to release any debris prior to installation
·Pre-drilled hole size requirement: 1 3/8" (min) - 1 1/2" (max)
·Max countertop thickness: 1 1/2"
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
NOTE: Please reference your batch number when calling, it
can be found on the cold waterline.
The step-by-step guidelines in the installation instructions are a general reference for installing a
Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to
install all Kraus products by hiring a licensed professional.
Batch
number

4
Tools you will need:
4
NOTE: Specialized tools may be necessary to install Kraus Stainless Steel
Undermount sinks with countertop materials other than wood, marble or granite.
Make sure to check off that you have all of the following items
Kitchen Sink - KBU32
Kitchen Faucet - KPF-1610SS
Cut-Out Template
Undermounting Hardware
Bottom Grid - KBG-32 (2)
Drains - ST-1 (2)
Safety Goggles Silicone Adhesive Jig Saw
Phillips Screwdriver Tape Measure Pencil
Drill Scissors
Screwdriver Putty Knife

55
Model #: KBU32
Sink Dimensions: 32” x 19” x 8 1/2”
Min Cabinet Size: 36”
Matching Grid: KBG-32 (2)
Drain Model #: ST-1 (2)
32"
813mm
14 1/2"
368mm
19"
483mm
17"
432mm
8 1/2"
216mm
14 1/2"
368mm
Sink Dimensions:

66

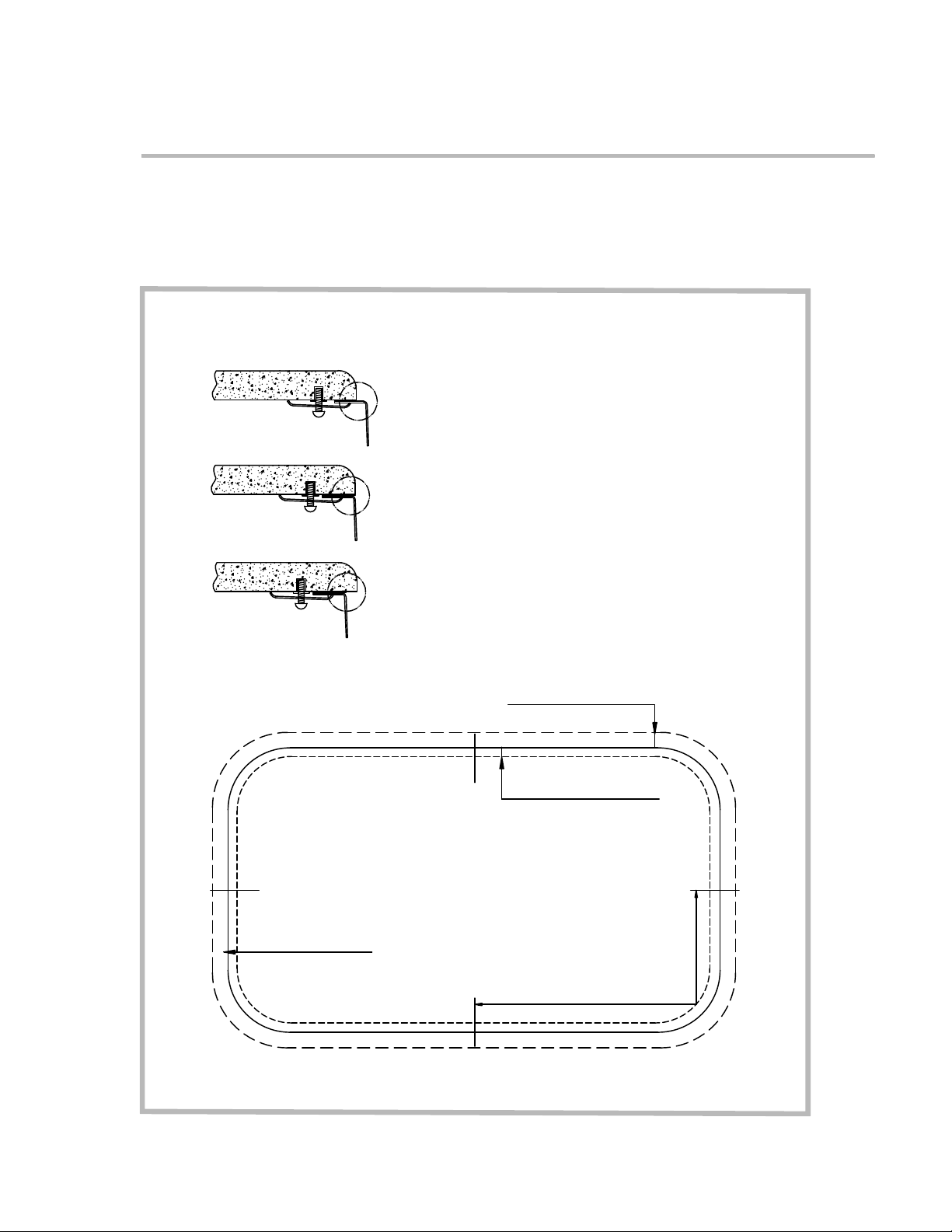

1. Determine Reveal Type
Use scissors to cut along the line of the paper template for your desired
reveal type (Negative, Positive or Flushed Reveal).
3/8“ Positive Reveal
Flushed/Zero Reveal
1/8“ Negative Reveal
KRAUS Recommended Installation Type
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Centerline

7
2. Position Template
·Check the cut-out template against the actual sink to ensure a proper
sized cut-out.
·Place the cut-out template in the desired location on the countertop.
NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink.
3. Trace Template
·Trace template on countertop with a pencil.

8
4. Cut Countertop
·Cut the opening in the countertop by carefully following the traced line.
NOTE: Please use the appropriate saw that best fits your countertop material.

9
5. Set up Mounting Brackets
·Turn countertop over and align sink with countertop. Decide location for
mounting brackets.
·Mounting holes should be 1/2" from edge of sink.
6. Drill Hole in Countertop
·Drill 3/8" diameter x 1/2" deep hole in countertop.
1/2"
(13mm)
3/8 1/2

10
7. Install Anchors
·Insert anchors into drilled holes and lightly tap with a hammer until flush.
8. Secure Sink to Countertop
·Use a bead of silicone (or preferred adhesive) around the rim of the sink.
Check the alignment of the sink to the cutout in the countertop. Place sink
over cutout hole and press firmly.

11
9. Attach Mounting Hardware
·Attach mounting hardware to secure bowl. Remove excess sealant
from inside lip.
·Allow sealant to set for 30 - 60 minutes.
NOTE: Use acetone or rubbing alcohol to remove any excess sealant.

12
10. Install Plumbing Fixtures
·Connect drain to sink. Connect trap to drain. Connect water supply
connections to faucet according to manufacturer's instructions.
·Run water into sink and check for leaks.
·Note: Before installation, please check that the drain kit complies with ASME
A112.18.2/CSA B125.2 and with CUPC certification.
Maintenance
Clean your sink on a regular basis with warm soapy water. Rinse the sink after using cleaning
products. Wipe the sink surface with a soft cloth to remove any liquid residue. Do not cut food
directly on the surface of the sink. Do not leave sharp objects on the surface of the sink for an
extended period of time. Do not use abrasive cleaning products, sanding tools, steel wool, or
bleaching products

13
Faucet Diagram and Parts List
A. Spray Head
B. Faucet Body
C. Mounting Hardware
C1. Rubber & Metal
Washer
C2. Mounting Nut
C3. Mounting Screws
D. Quick Connector
E. Weight
E1. Weight Clip
E2. Weight
F. 2.5mm Hex Wrench
A
B
E1 C1
E2 C2
C3
D
F

14
Installer Tip:
Shut off main water supply before installing new faucet.
4 1/2"
(116mm)
18"
(456mm)
2 1/4"
(56mm)
6 3/8"
(162mm)
8 3/4"
(221mm)
3 1/2"
(88mm)
Ø1 7/8"
(48mm)
Ø2 1/8"
(54mm)
10 3/4"
(274mm)
22 3/4"
(578mm)
17"
(432mm)
90°
25°
9/16" - 24UNF
Faucet Dimensions:

15
Step 1. Remove mounting hardware
Step 2. Installing the faucet assembly
Shut off the water supply. Remove
the old faucet. Clean the mounting
surface. Remove mounting
hardware (C) from faucet body (B).
Optional No Escutcheon
Installation.
Insert faucet body through the hole
in the sink.
C

16
Step 3. Securing the faucet assembly
Install the rubber washer and metal
washer (C1) onto the threaded
mounting shank.
Thread the nut (C2) onto the
mounting shank. Lock the nut (C2)
into position by tightening the
screws (C3). Do not overtighten.
Step 4. Securing the faucet assembly
Push the quick connector (D)
firmly upward and attach it to the
receiving block (1). Pull down
moderately to ensure the
connection has been made.
C1
C2 C3
1
D

17
Step 5. Securing the faucet assembly
Step 6. Making the waterline connections
Install the weight clip (E1) at the
point of the hose marking "weight
here". Insert the weight (E2) onto
the clip (E1) by sliding it down onto
the clip (E1).
Thread the nut (1) on the supply
line onto the outlet of the water
supply valve and tighten with a
wrench. Do not overtighten.
Weight
here
Weight
here
1
E1
E2
E1
E2

18
Step 7. Flushing and checking for leaks
Pull the hose assembly out of the spout
and remove the spray head by unscrewing
it from the hose in a counterclockwise
direction. Be sure to hold the end of the
hose down into the sink and turn the faucet
on to the warm position where it mixes hot
and cold water. Flush the water lines for
one minute. This flushes away any debris
that could cause damage to internal parts.
Check for leaks. Re-tighten any
connections if necessary, but do not
overtighten. Reinstall the spray head by
hand tightening it back onto the spray
hose. After installation is completed, turn
on the hot and cold water supplies. Check
for leaks.

19
Troubleshooting
If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps:
Leakage under faucet handle Bonnet nut has come loose Remove the cover button. Loosen set
screw with hex wrench. Remove
the handle. Unscrew cap. Tighten
bonnet nut with an adjustable wrench.
The water pressure
is low.
The connector underneath
the deck is clogged with debris
The aerator is clogged
Turn off the water supply and disconnect
the connector / aerator. Unscrew the
connector / aerator and clean under
running water. Screw the connector /
aerator back.
Test water flow. If water pressure is still low
then replace the connector / aerator.
Care & Maintenance
To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
This installation manual is subject to change without further notice.
The aerator has an
irregular or reduced
water flow
The aerator is dirty or
mis-fitted
Remove the aerator and check for debris.
Ensure that the rubber washer is properly
installed.
There is a low flow of
water.
The screen filter in the hose
connectors is dirty.
Turn off the water supply at water valve and
unscrew the hose connectors from water
supply lines. Clean the screen in the water
lines with hot water, removing any debris or
calcium build up.
ACID
PROBLEM CAUSE ACTION

20
Kitchen Sink Warranty
Kraus products are manufactured and tested to the highest quality standards by Kraus USA Inc. (“Kraus”).
Kraus extends this warranty to the original purchaser for personal household use of the “Kitchen Sink” in its original location.
The warranty is non-transferable.
Kraus warrants the structure and finish of the product to be free from defects in material and workmanship under normal usage for
the lifetime of the product. The warranty commences from the initial date of purchase by the owner or trade professional, from an
authorized Kraus dealer, through the lifetime of the original owner or end-user.
Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced
with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable
to a subsequent owner.
Restrictions
This warranty does not cover antediluvian, discontinued, or display products, whether such items are purchased at discount outlets,
unauthorized dealers, and/or sold on clearance.
This warranty does not cover instances of negligence, misuse, abuse, improper installation, carelessness, accident, hard water or
mineral deposits, exposure to corrosive materials, misapplication, damages caused by improper maintenance, alteration of the
product, or failure to follow care or installation instructions enclosed with your product. Avoid using abrasive cleaners such as
powders, bleach, ammonia, alcohol, or chlorine. Avoid using abrasive pads, steel wool, or wire brushes, as these will damage and
wear down the finish.
This warranty does not apply to Products that have not been installed or operated in accordance with instructions supplied by Kraus
and all applicable rules, regulations, and legislation pertaining to such installations.
Kraus USA recommends that all Kraus products are installed by fully licensed and insured trade professionals with experience in the
installation of bathroom and/or kitchen manufactured goods.
This warranty does not cover labor charges or costs of removal and reinstallation of said product. This warranty does not allow
recovery of incidental or consequential damages, such as loss of use, delay, property damage, or other consequential damages, and
Kraus accepts no liability for such damages.
This warranty does not cover Marine or Outdoor Installation.
This warranty does not cover any free gifts included with purchase.
Except as otherwise provided above, Kraus makes no warranties, expressed or implied, including warranties of merchantability
and fitness for a particular purpose, or compliance with any code.
Shipping charges will be covered for the first (1) year of the warranted replacement part or product (HI, AK, and Puerto Rico shipping
charges may apply). International shipping fees are not included.
Commercial Warranty
Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use.
All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given, including
but not limited to any implied warranty of merchantability or fitness for a particular purpose.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied
warranty lasts, so the above limitations or exclusions may not apply to you.
UPC
CR
Codes/Standards Applicable:
