KROHNE BATCHFLUX 3200 C Wiring diagram

Electromagnetic flowmeter for volumetric Ad Blue filling
stations
Equipment category II 2G, EPL Gb
Type of protection encapsulation "m"
BATCHFLUX 3200 C
BATCHFLUX 3200 CBATCHFLUX 3200 C
BATCHFLUX 3200 C
Supplementary Instructions
Supplementary InstructionsSupplementary Instructions
Supplementary Instructions
© KROHNE 08/2016 - 4005430201 - MA_Ex_AD_BATCHFLUX 3200 C- R01- en [APPR MA 821166 ]

CONTENTS
2
www.krohne.com 08/2016 - 4005430201 - MA_Ex_AD_BATCHFLUX 3200 C-
BATCHFLUX 3200 C
1 Safety instructions 3
1.1 General notes ................................................................................................................... 3
1.2 EU conformity ................................................................................................................... 3
1.3 Approval according to the IECEx scheme ........................................................................ 3
1.4 Safety instructions............................................................................................................ 4
1.5 Specific conditions of use.................................................................................................4
2 Device description 5
2.1 Device description ............................................................................................................ 5
2.2 Marking............................................................................................................................. 5
2.3 Device category ................................................................................................................ 6
2.4 Protection methods .......................................................................................................... 6
2.5 Temperatures .................................................................................................................. 6
2.6 Electrical data................................................................................................................... 7
3 Installation 8
3.1 Installation........................................................................................................................ 8
4 Electrical connections 9
4.1 General notes ................................................................................................................... 9
4.2 Power supply .................................................................................................................... 9
4.3 Inputs/outputs .................................................................................................................. 9
4.4 Grounding and equipotential bonding.............................................................................. 9
5 Operation 10
5.1 Start-up........................................................................................................................... 10
5.2 Operation ........................................................................................................................ 10
6 Service 11
6.1 Maintenance ................................................................................................................... 11
6.2 Dismantling .................................................................................................................... 11

SAFETY INSTRUCTIONS 1
3
BATCHFLUX 3200 C
www.krohne.com08/2016 - 4005430201 - MA_Ex_AD_BATCHFLUX 3200 C-
1.1 General notes
These additional instructions apply to explosion-protected versions of electromagnetic
flowmeters in type of protection encapsulation "mb", equipment category II 2 G, EPL Gb. It
completes the installation and operating instructions for the non-explosion protected versions.
The information given in this instruction contains only the data relevant to explosion protection.
The technical details given in the manual for the non-explosion protected versions apply
unchanged unless excluded or superseded by these instructions.
1.2 EU conformity
The manufacturer declares with the EU declaration of conformity, in which the applied standards
are also specified, on his own responsibility conformity with the essential health and safety
requirements of directive 2014/34/EU for equipment used in hazardous areas.
The EU declaration of conformity for the equipment category II 2 G is based on the following EU
type examination certificate:
The applied standards are EN 60079-0:2012 + A11 and EN 60079-18:2015.
The "X" after the certificate number refers to specific conditions for safe use, which are listed in
section "Specific conditions of use".
The EU type examination certificate can be downloaded from the manufacturer's website.
1.3 Approval according to the IECEx scheme
Conformity of the electromagnetic flowmeter for use in hazardous areas with gas was tested in
accordance with the IECEx Certification Scheme for Explosive Atmospheres acc. to IEC 60079-0:
2011 and IEC 60079-18: 2014. The number of the IECEx certificate is:
The "X" after the certificate number refers to specific conditions for safe use, which are listed in
section "Specific conditions of use".
The IECEx certificate can be downloaded from the manufacturer's website.
KIWA 16ATEX0017 X
KIWA 16ATEX0017 XKIWA 16ATEX0017 X
KIWA 16ATEX0017 X
IECEx KIWA 16.0007X
IECEx KIWA 16.0007XIECEx KIWA 16.0007X
IECEx KIWA 16.0007X

1SAFETY INSTRUCTIONS
4
BATCHFLUX 3200 C
www.krohne.com 08/2016 - 4005430201 - MA_Ex_AD_BATCHFLUX 3200 C-
1.4 Safety instructions
If these instructions are not followed, there is a risk of explosion.
Assembly, installation, start-up and maintenance may only be performed by personnel trained in
explosion protection!
1.5 Specific conditions of use
The following are special conditions for the safe use as listed in the certificate.
•The flowmeter is tested corresponding to the low risk of mechanical danger. The flowmeter
shall be istalled in such a way that there is no risk from mechanical impact effects.
•The flowmeter shall be istalled in such a way that it is protected against light.
•The optional connector at the connection side of the cable shall be connected outside the
hazardous area.
CAUTION!
The operator or his agent is responsible for observing any additional standards, directives or
laws if required due to operating conditions or place of installation.
WARNING!
The inside of the tube is considered a non-hazardous area. The operator or his agent is
responsible for ensuring that no explosive atmosphere is present inside the tube when power on
the equipment.

DEVICE DESCRIPTION 2
5
BATCHFLUX 3200 C
www.krohne.com08/2016 - 4005430201 - MA_Ex_AD_BATCHFLUX 3200 C-
2.1 Device description
The electromagnetic flowmeter BATCHFLUX 3200 C is designed exclusively for measuring the
volumetric flowrate of electrically conductive non-flammable liquids. The typical installation is
within the cabinet of an Ad Blue filling station. The equipment consists of a measuring tube with
the process connections, an inner plastic housing where the complete electronic is placed and
an outer stainless steel cover housing for protection purpose. The inner plastic housing with the
electronics and the magnetic coils included is completely encapsulated. The electrical
connections are made via a permanently connected cable.
The installation is within a Zone 1 classified hazardous area, considering a non-hazardous area
within the measuring tube. The equipment is powered with 24 VDC, a RS485 interface is provided
for communication with a control unit.
2.2 Marking
The marking of the entire device is clearly visible on the stainless steel housing.

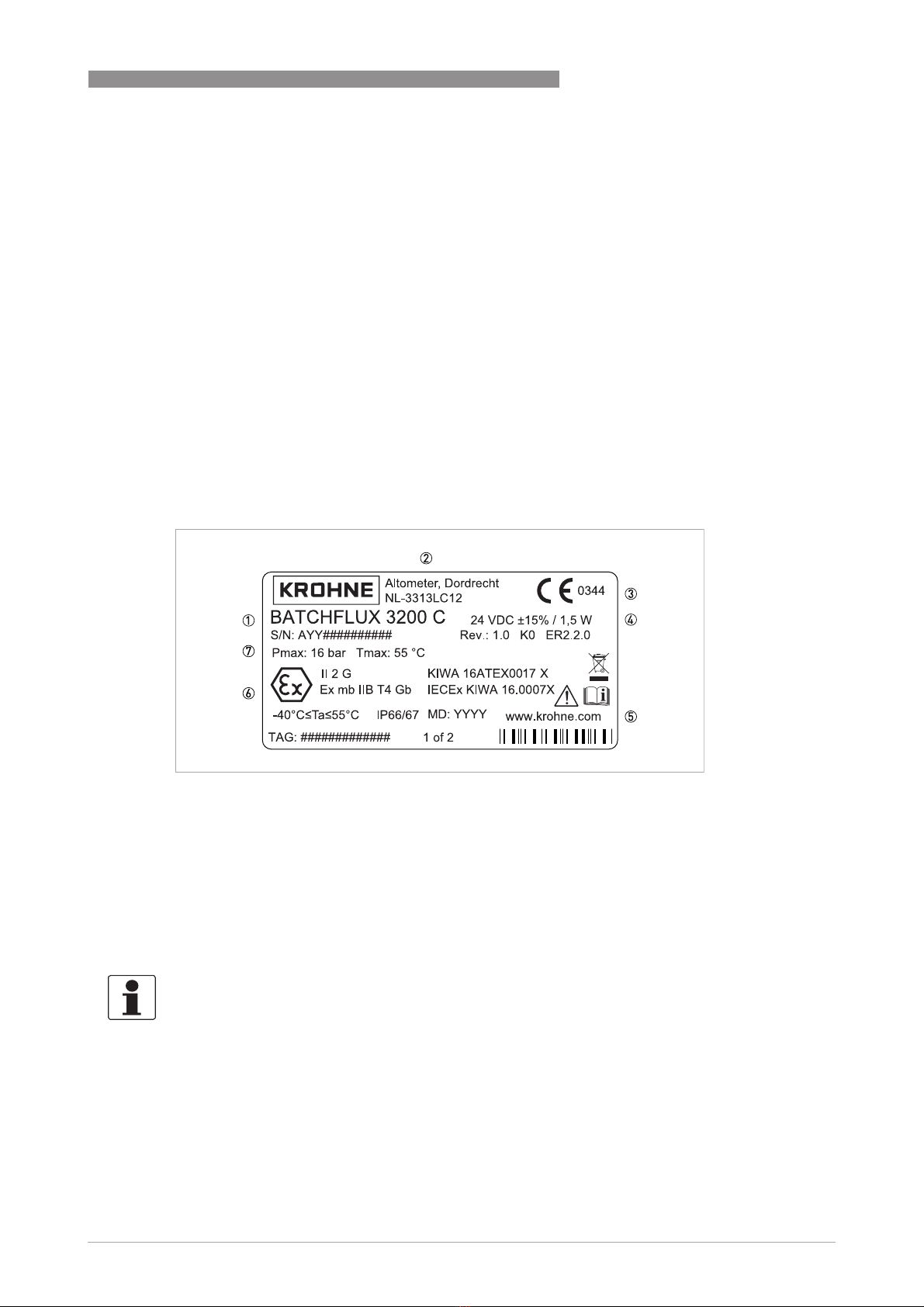

Figure 2-1: Example of a nameplate
1 Product designation and serial number
2 Manufacturer name and address
3 CE mark and identification number of the notified body
4 Electrical connection data
5 Manufacturer's website and note to observe the documentation
6 Ex data according to the ATEX and IECEx certificate
7 PED data
INFORMATION!
An optional second label is used only for custody transfer data.

2DEVICE DESCRIPTION
6
BATCHFLUX 3200 C
www.krohne.com 08/2016 - 4005430201 - MA_Ex_AD_BATCHFLUX 3200 C-
2.3 Device category
The electromagnetic flowmeter is designed in category II 2 G (EPL Gb) for use in zone 1 or zone 2.
The inside of the measuring tube is neither permitted for zone 1 nor for zone 2.
2.4 Protection methods
The electromagnetic flowmeter is designed in type of protection encapsulation "m" in
accordance with IEC 60079-0 and IEC 60079-18.
The marking is as follows:
II 2 G Ex mb IIB T4 Gb
II 2 G Ex mb IIB T4 GbII 2 G Ex mb IIB T4 Gb
II 2 G Ex mb IIB T4 Gb
2.5 Temperatures
The permissible temperature range of the flowmeter is:
INFORMATION!
Definition of zone 1 acc. to EN 1127-1, Appendix B:
An area in which an explosive atmosphere, as a result of the mixture of flammable substances in
the form of gas, steam or mist with air, under normal operation may occasionally occur.
The marking contains the following information:
The marking contains the following information:The marking contains the following information:
The marking contains the following information:
II
IIII
II Group II equipment
2
22
2Equipment category 2
G
GG
GGas explosion protection
Ex mb
Ex mbEx mb
Ex mb Explosion protection by encapsulation, level of protection "mb"
IIB
IIBIIB
IIB Gas group, suitable for gas groups IIB and IIA
T4
T4T4
T4 Temperature class, suitable for temperature classes T4 ... T1
Gb
GbGb
Gb Equipment Protection Level Gb, suitable for zone 1 and zone 2
Temperature
class
Permissible ambient temperature in
[°C]
Permissible product temperature in
[°C]
T4...T1 -40...+55°C-40...+55°C
Temperature
class
Permissible ambient temperature in
[°F]
Permissible product temperature in
[°F]
T4...T1 -40...+131°F-40...+131°F

DEVICE DESCRIPTION 2
7
BATCHFLUX 3200 C
www.krohne.com08/2016 - 4005430201 - MA_Ex_AD_BATCHFLUX 3200 C-
2.6 Electrical data
The 24 VDC power supply circuit, the RS485 interface and the earth potential (housing) are
galvanically conneted within the electromagnetic flowmeter.
For both circuits the 24 VDC power supply and the RS485 interface a safety separation from
hazardous voltage is required (SELV / PELV).
The equipment may only be connected by means of the permanently connected cable.
Circuit / electrical connection Nominal voltage Nominal current
Power supply / red (+) black (-) 24 VDC ±15% 100 mA
RS485 interface / white (A), brown (B) 5 V Standard RS485
communication

3INSTALLATION
8
BATCHFLUX 3200 C
www.krohne.com 08/2016 - 4005430201 - MA_Ex_AD_BATCHFLUX 3200 C-
3.1 Installation
Installation and setup must be carried out according to the applicable installation standards (e.g.
IEC 60079-14) by qualified personnel trained in explosion protection. The information given in the
Installation and Operation Instructions and the Supplementary Installation and Operation
Instructions must always be observed.
Electromagnetic flowmeters must be installed in such a way that
•There is no danger from mechanical impact effects.
•There are no external forces affecting the equipment.
•The equipment is accessible for any visual inspections that are necessary, and can be viewed
from all sides.
•The data plate is clearly visible.
•The equipment is protected against UV-light.
CAUTION!
The manufacturer is not liable for any damage resulting from improper use or use other than the
intended purpose. This applies in particular to hazards due to insufficient corrosion resistance
and suitability of the materials in contact with the product.
DANGER!
The optional connector at the connection side of the cable shall be connected outside the
hazardous area.

ELECTRICAL CONNECTIONS 4
9
BATCHFLUX 3200 C
www.krohne.com08/2016 - 4005430201 - MA_Ex_AD_BATCHFLUX 3200 C-
4.1 General notes
The circuits are not galvanically isolated from ground (housing).
The connecting cable is in conformity with the applicable installation standard EN 60079-14. The
temperature rating of the cable is equal to or better than -40 ... +90 °C.
•The connecting cable must be fixed and laid so it is sufficiently protected against damage.
•The shield must be carefully insulated against each core and against ground (test voltage t
500 V
eff
) at the connection side.
4.2 Power supply
The electromagnetic flowmeter does require a power supply unit complying with standards for a
safety separation from hazardous voltage (SELV / PELV) (e. g. IEC 60950-1).
The power supply may only be connected by means of the permanently connected cable.
4.3 Inputs/outputs
The RS485 interface assignment is described in the Standard Installation and Operation
Instructions.
The RS485 circuit may only be connected by means of the permanently connected cable to a
standard RS485 interface complying with the requirements for a safety sparation from
hazardous voltage (SELV).
4.4 Grounding and equipotential bonding
The electromagnetic flowmeter shall be connected to the equipotential bonding of the hazardous
area by using the external ground connection facility. The position of the external ground
connection facility is next to the cable entry.
For connecting the bonding conductor to the housing a ring cable lug suitable for a M5 screw
shall be used. Connection to the equipotential bonding of the hazardous area provides a safe
grounding of the equipment.
INFORMATION!
The power supply circuit is connected to ground inside the equipment. To avoid circulating
current the power supply circuit shall not be connected to ground at the connection side.
INFORMATION!
The RS485 circuit is connected to ground inside the equipment. To avoid circulating current the
RS485 circuit shall not be connected to ground at the connection side.
DANGER!
A missing connection to the equipotential bonding system may cause the danger of electrostatic
charging of the metallic parts and the risk of an ignition of a present explosive atmosphere.

5OPERATION
10
BATCHFLUX 3200 C
www.krohne.com 08/2016 - 4005430201 - MA_Ex_AD_BATCHFLUX 3200 C-
5.1 Start-up
Start-up is only permitted when the electromagnetic flowmeter:
•is correctly installed in the system and connected.
•has been checked for the proper state with regard to its installation and connection
requirements.
•is free of explosive atmosphere inside the measuring tube
The user of the system must check before start-up in compliance with the national regulations
for checks before start-up.
5.2 Operation
Electromagnetic flowmeters must be operated in such a way that they remain within the
maximum and minimum permissible temperatures and pressures and the rated electrical
values.
Electromagnetic flowmeters may only be operated if the equipment parts necessary for safety
are effective in the long run, and are not rendered inoperable during operation.
WARNING!
Ignition risks caused by impact must be avoided.

SERVICE 6
11
BATCHFLUX 3200 C
www.krohne.com08/2016 - 4005430201 - MA_Ex_AD_BATCHFLUX 3200 C-
6.1 Maintenance
Maintenance work of a safety-relevant nature within the meaning of explosion protection may
only be carried out by the manufacturer, his authorised representative or under the supervision
of authorised inspectors.
To maintain proper condition, regular inspections are required for systems in hazardous areas.
The following checks are recommended:
•Checking the housing, the cable entries and the process connections for corrosion and/or
damage.
•Checking the measuring unit and the process connections for leakage.
•Including the flowmeter in the regular pressure test of the process line.
6.2 Dismantling
In order to prevent injury or material damage when replacing the sensor, always observe the
following points:
•Before dismantling, ensure that all the cables leading to the flowmeter are de-energised
themselves and to the ground potential of the explosive area.
•All the relevant process pipes or containers must be depressurised before dismounting the
flowmeter.
•If the process pipes or the container contain products that are harmful to the environment or
to health, implement the appropriate safety measures before dismantling the flowmeter.
•Replace all the seals when reinstalling the device in the process pipe or container.
CAUTION!
Maintenance measures of a safety-relevant nature within the meaning of explosion protection
may only be carried out by the manufacturer, his authorised representative or under the
supervision of authorised inspectors.
WARNING!
Dismantling must be carried out by qualified personnel trained in explosion protection.

KROHNE –Process instrumentation and measurement solutions
• Flow
• Level
• Temperature
• Pressure
• Process Analysis
• Services
Head Office KROHNE Messtechnik GmbH
Ludwig-Krohne-Str. 5
47058 Duisburg (Germany)
Tel.: [phone]
Fax: [phone]
[email protected]
© KROHNE 08/2016 - 4005430201 - MA_Ex_AD_BATCHFLUX 3200 C- R01- en [APPR MA 821166 ] - Subject to change without notice.
The current list of all KROHNE contacts and addresses can be found at:
www.krohne.com
