Kuppersberg DDA 990 Installation and maintenance instructions

TECHNICAL PASSPORT
ПАСПОРТ ТЕХНИЧЕСКОГО ИЗДЕЛИЯ
EXTRACTOR HOOD
КУХОННАЯ ВЫТЯЖКА
DDA 990/660, LORA 90/60,
KAMINOX 90/60 X 4HPB,
OPERA 90/60, ONDA 90/60

2
TECHNICAL PASSPORT ENGLISH
Extractor hood
SECTION 1
SAFETY PRECAUTIONS.................................................................................................. 3
SECTION 2
SPECIFICATIONS................................................................................................................ 5
SECTION 3
CONTROL................................................................................................................................ 5
SECTION 4
MOUNTING AND DIMENSIONS ................................................................................. 6
SECTION 5
CLEANING AND MAINTENANCE ............................................................................... 10
SECTION 6
TROUBLESHOOTING........................................................................................................ 11
SECTION 7
HELPFUL INFORMATION .............................................................................................. 12
CONTENTS

3
ENGLISH TECHNICAL PASSPORT
Extractor hood
DEAR CUSTOMER,
Thank you for purchasing
our equipment! We are sure that
appliances of the KUPPERSBERG
brand, which are modern, functional
and made of high quality materials
and components, will be a reliable
assistant in your kitchen.
Please read this manual carefully
before starting any installation work.
It will help you avoid premature
failure, as well as extend the life
of your appliance to the maximum
possible.
Please note that the installation
of this appliance must be carried
out by a quali ed technician and in
accordance with these instructions.
The manufacturer is not liable for any
consequences of failure to observe
this condition.
Caution!
The manufacturer is not responsible
for any possible errors or misprints
in this manual. The manufacturer
reserves the right to make any changes,
without prior notice, to design, outside
appearance and scope of supply of
appliance, which will be considered as
necessary and useful according to the
SECTION 1.
SAFETY PRECAUTIONS
1. Assembling and electrical
connection of the appliance must be
carried out by skilled technicians of
authorized service center.
2. The appliance is designed to
operate on 220-240 V AC. Make sure
that the technical parameters of your
home power supply system correspond
to the data for the power supply. If
parameter values are above or below
the speci ed range, the use of the
appliance is prohibited.
3. Do not connect the kitchen air
cleaner to the ventilation channels
that are used to remove smoke and
fumes from the equipment operating
on any other energy sources except
electric one.
4. The appliance is to be connected
only to an earthed power supply
system.
5. Do not cook  ammable foods
below the kitchen air cleaner.
6. Use aluminum  lter that comes
with the appliance. The use of other
materials is prohibited!
manufacturer’s point of view. Possible
modi cations will not affect the basic
properties, including those that relate
to safe operation of the appliance.

4
TECHNICAL PASSPORT ENGLISH
Extractor hood
7. Do not connect the appliance
to the power supply system, until
the assembly and installation of the
appliance is completed.
8. Do not use the appliance without
the aluminum lter in place.
9. Do not touch the lamps.
10. Do not remove the aluminum
lter while the appliance is in
operation.
11. Do not disconnect the appliance
from the power supply system directly.
If necessary, turn the appliance off
using the control panel and, only after
that, unplug it from the power supply
system. When switching on: rst
connect the appliance to the power
supply system, then switch it on using
the control panel, but not vice versa!
12. The appliance requires regular
cleaning and maintenance work.
13. When installing the appliance,
observe the required distance between
it and the cooking surface of your
stove:
- for an electric stove: at least 65
cm
- for a gas or gas-electric stove: at
least 70 cm
14. Do not allow children to play
with packaging materials, it can be
dangerous!
15. The appliance is allowed to be
turned on only once the pots and/or
pans are placed on the stove.
16. For best air cleaning in your
kitchen, do not turn off the appliance
immediately after the cooking process
is completed: let the appliance run for
a further 15 minutes. For this purpose
you can also use the timer function
(the button «Auto Switch Off Timer»
on the control panel).
17. Ensure adequate ventilation in
the kitchen, if a gas stove is operated
simultaneously with the appliance.
18. In case of any malfunctions,
contact your nearest authorized service
center.
19. If the kitchen hood is supposed
to operate in air discharge mode, then
during installation it is important to
provide a duct of the corresponding
diameter. To prevent loss of
performance caused by aerodynamic
resistance of the duct, the air duct
must not be too long, or curved. Never
restrict the duct size, or make sharp
bends. In addition, it is preferable to
use smooth PVC duct (round or at),
rather than the exible corrugated one
because bends of a corrugated duct
increase the noise level of the hood.
20. The manufacturer does not bear
any responsibility for any possible
damage, in case of non-compliance
with above precautions.

5
ENGLISH TECHNICAL PASSPORT
Extractor hood

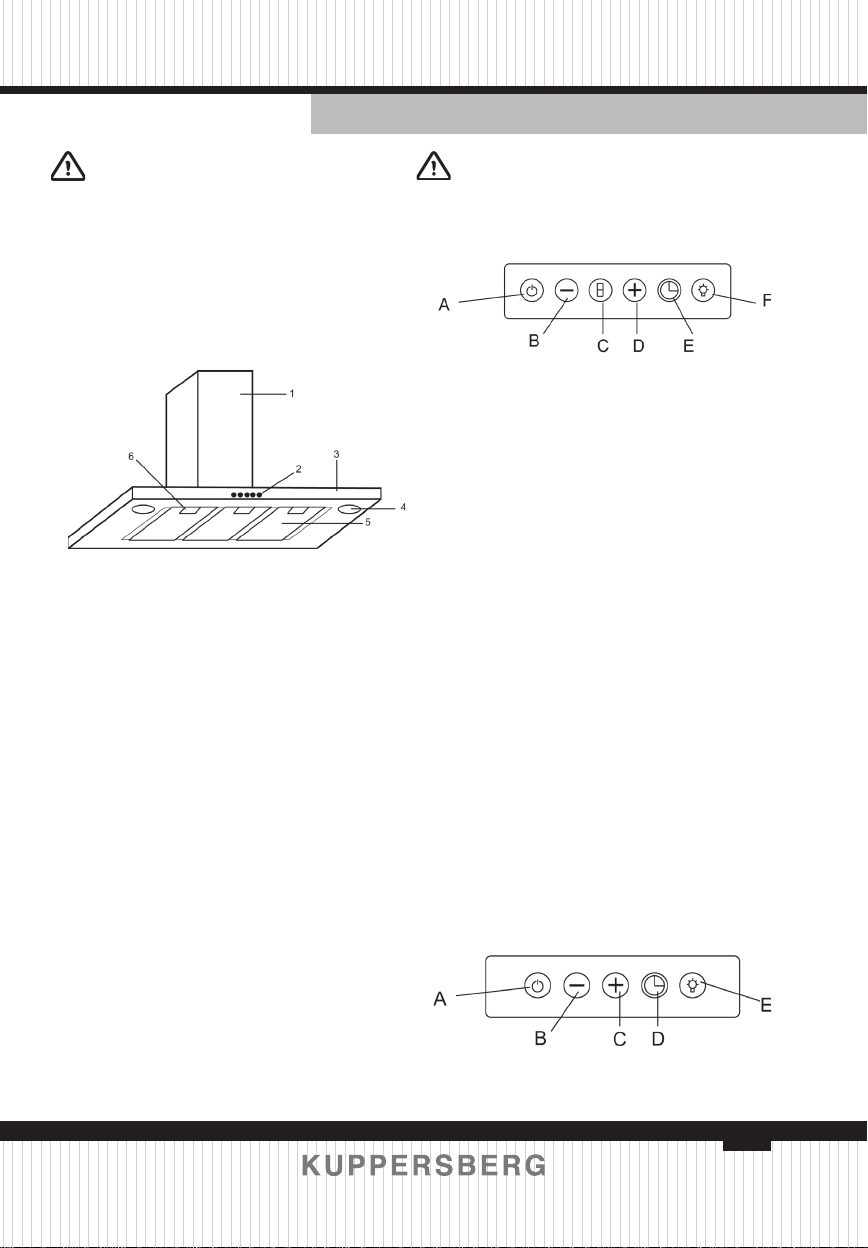

1- Decorative two-piece cover
2- Control panel
3- Air cleaner housing
4- Lamp
5- Aluminum  lter
6- Aluminum  lter latch
Wall hood
Width.................................... 500-600-900 mm
Control type ....................... Touch
Electronic
(buttons)
Mechanical
(buttons)
Suction power................... 800 m3
Lamps................................... Halogen 2х20 W
(or 2х40 W)
Diameter of the air
discharge pipe .................. 120-150 mm
Voltage................................. 220-240 V / 50 Hz
Modes of operation......... Air discharge /
Recirculation
Noise level ......................... 32- / 42-58 dB
SECTION 2.
SPECIFICATIONS
DDA 990/660,
Lora 90/60,
Kaminox 90/60 X 4HPB,
Opera 90/60,
Onda 90/60
SECTION 3.
CONTROL TYPE
Touch control
А – On/Off switch
В – Power decrease
С – Display
D – Power increase
E – Auto Switch Off Timer
F – Lighting
А – Hood motor On/Off
В – Motor rotation speed decrease
(suction power reducing)
С – Display shows motor rotation
speed
D – Motor rotation speed increase
(suction power increasing)
E – When you press on the Timer,
the motor will automatically be shut
down after 15 minutes. To activate the
function, press and hold the Timer for
3 seconds (rotation speed level starts
to  ash on the display). To cancel, press
once on the Timer.
F – Lighting On/Off
Electronic control (buttons)
А – On/Off switch
В – «-» (minus) button

6
TECHNICAL PASSPORT ENGLISH
Extractor hood
С – «+» (plus) button
D – Timer button
E – Lighting button
А – Hood motor On/Off
В – Motor rotation speed decrease
(suction power reducing)
С – Motor rotation speed increase
(suction power increasing)
D – When you press on the Timer,
the motor will automatically be shut
down after 15 minutes. To activate the
function, press and hold the Timer for
3 seconds (rotation speed level starts
to  ash on the display). To cancel, press
once on the Timer.
E – Lighting On/Off

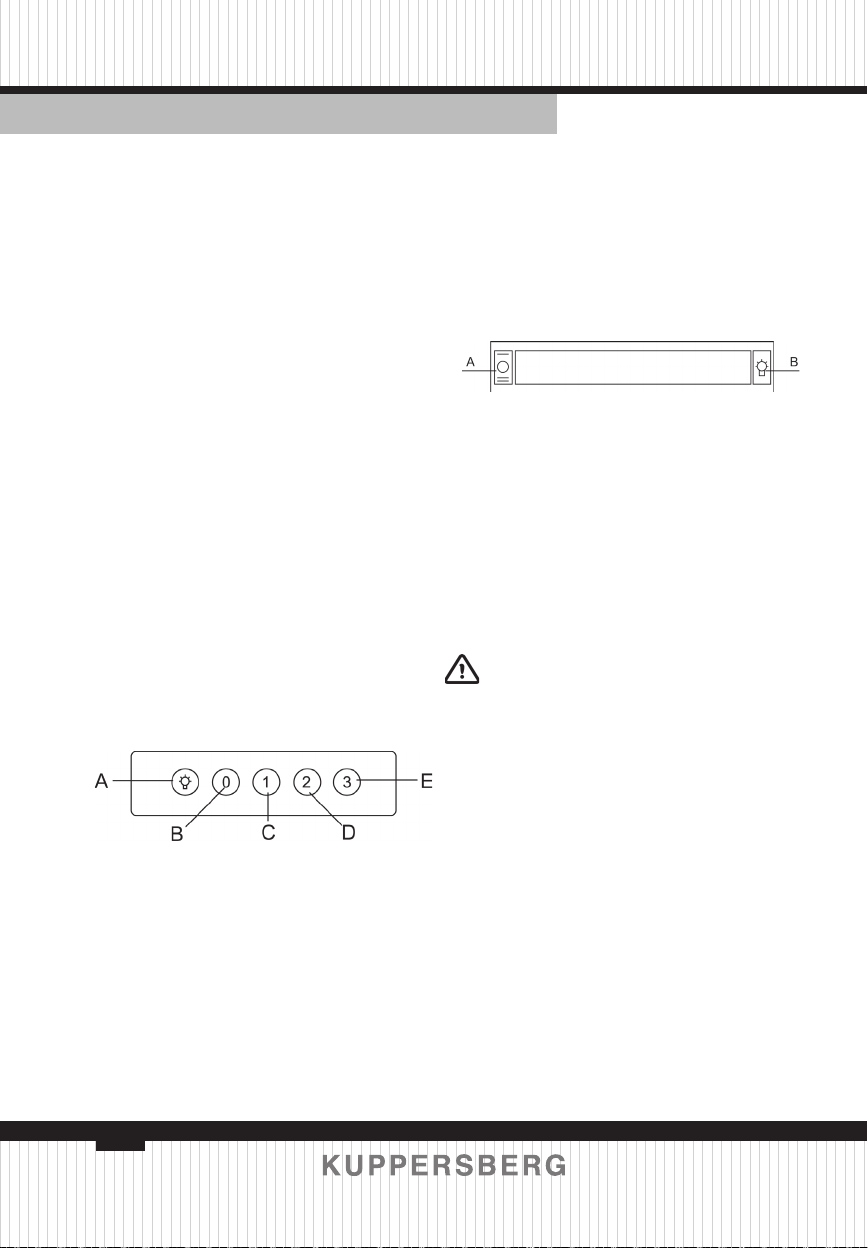

Mechanical control (buttons)
А – «Lighting» button
В – «0» button
С – «1» button
D – «2» button
E – «3» button
«Lighting» button – Lighting On/Off
«0» button - hood motor On/Off
«1» button - motor rotation speed 1
(initial level)
«2» button - motor rotation speed 2
«3» button - motor rotation speed 3
Mechanical control (switches)
А – «Lighting» switch
В – «Speed» switch
«Lighting» switch – Lighting On/Off
«Speed» switch – Hood motor On/
Off
Switching of speeds 1 and 2 (suction
power increasing / reducing)
Switching of speed from 1 to 2
occurs through the hood off.
SECTION 4.
Mounting and dimensions
Please unpack and inspect the
appliance! Before starting installation,
make sure that the hood has no obvious
transport damages. If such defects are
detected, do not install or connect the
appliance to the mains.
1.To install the air cleaner above the
stove, draw a vertical line on the wall
from the center of the stove vertically
to the ceiling. To comply with safety
regulations, the distance between the
cooking surface and the air cleaner
should be 700 mm. Accordingly, make
a mark with a pencil on the vertical
line at a height of 700+426=1126 mm
from the surface of the stove. Draw a
horizontal line through this point on

7
ENGLISH TECHNICAL PASSPORT
Extractor hood
the wall. Measure 100 mm on this line
to the right and left from the point
of intersection of the vertical and
horizontal lines and make marks with
a pencil. Using a 6-mm drill bit, drill
holes in these marks. Insert dowels in
the holes just drilled and x the hooks.
2. Installation of decorative cover
Draw a horizontal line on a wall, at
a distance of 75 mm from the ceiling.
Measure 50 mm on this line to the right
and left from the point of intersection
with the vertical line and make marks
with a pencil. On these marks, drill the
holes, insert the 8-mm dowels in them
and tighten 2.5-mm screws which must
protrude 2 mm from the wall.

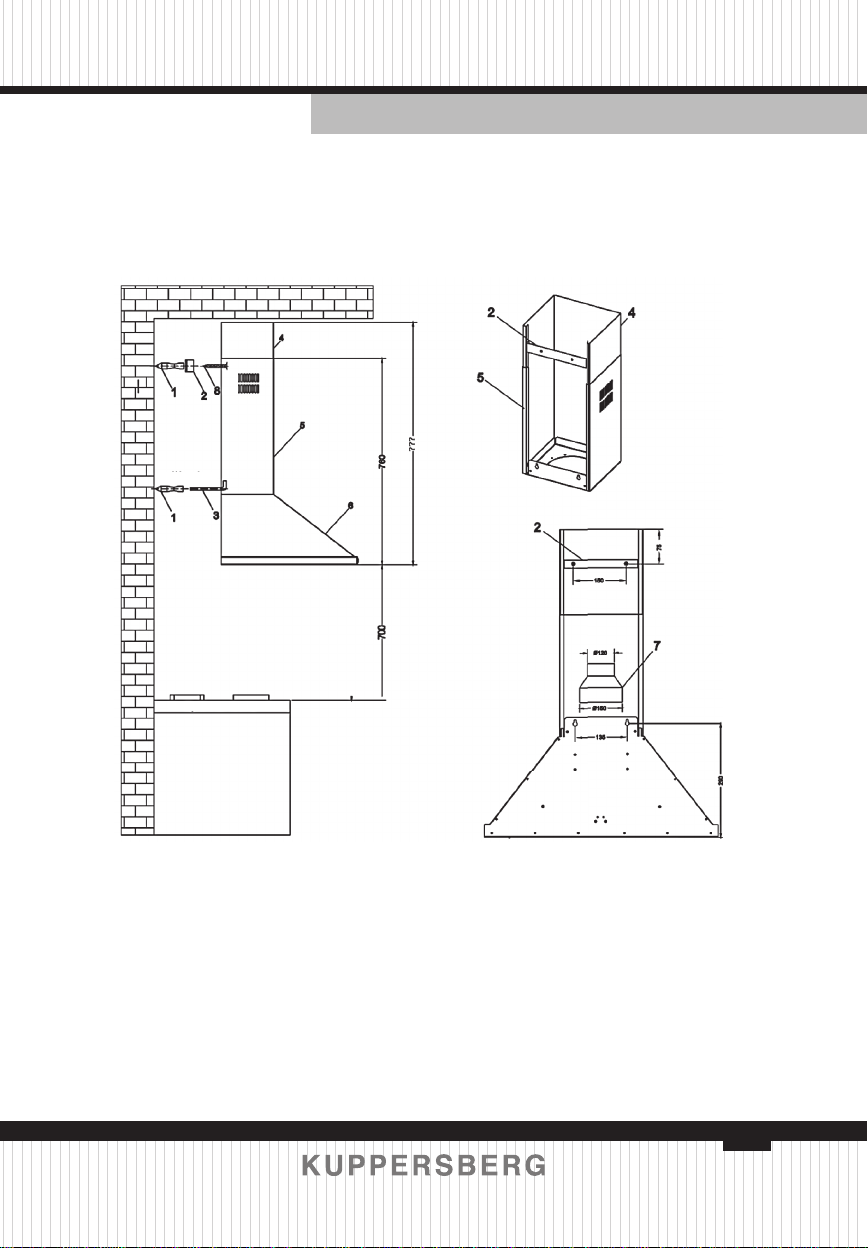

Step 1: Installation of hooks
Step 2: Installation of mounting
bracket
Step 3: Installation of housing
Step 4: Installation of external part
of decorative cover
Step 5: Installation of internal part
of decorative cover
1- Ø8 dowel
2- Mounting bracket
3- Hook
4- Internal part of decorative cover
5- External part of decorative cover
6- Air cleaner housing
7- Bushing adapter
8- Ø 2.5 screw
DDA 990 / 660
KAMINOX 90 / 60

8
TECHNICAL PASSPORT ENGLISH
Extractor hood

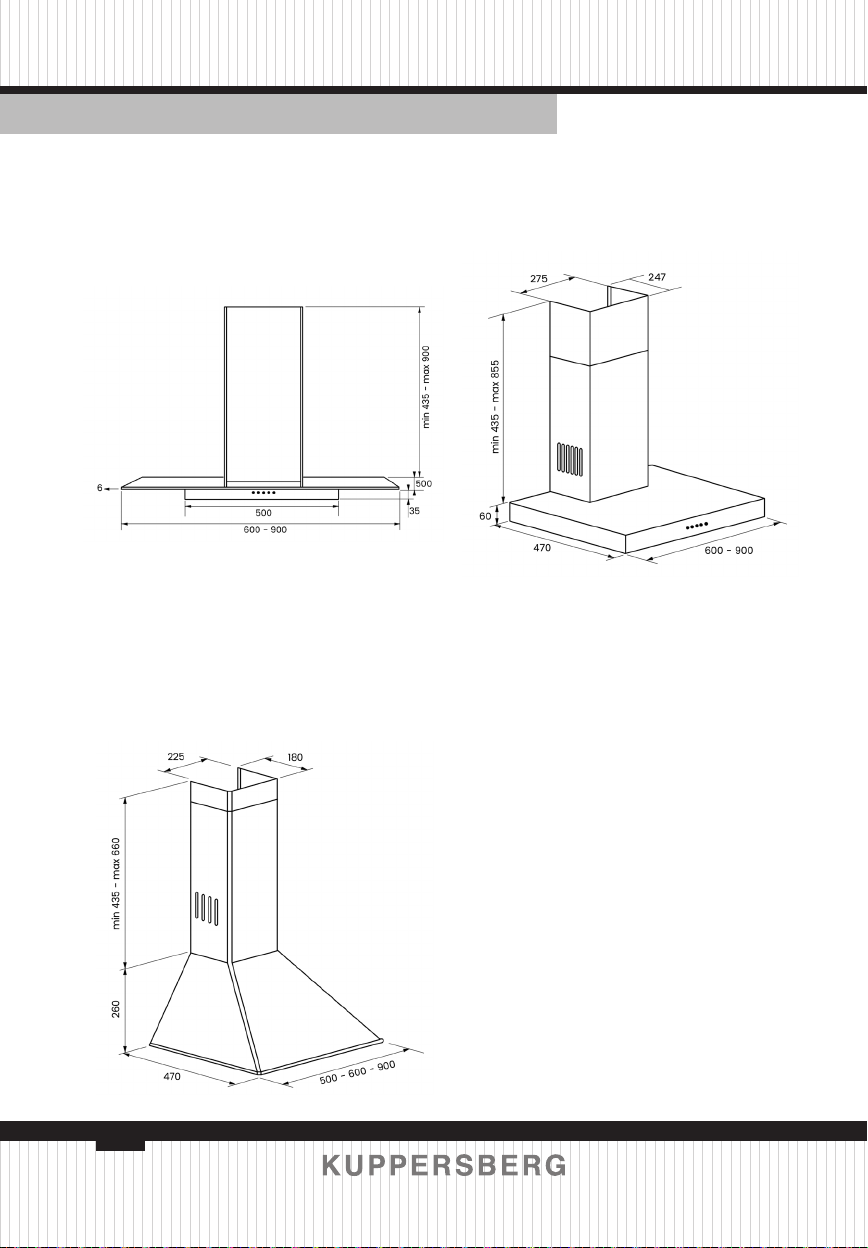

LORA 90 / 60 OPERA 90 / 60
ONDA 60 / 50 / 90

9
ENGLISH TECHNICAL PASSPORT
Extractor hood
Step 2
Step 1
Kitchen stove

10
TECHNICAL PASSPORT ENGLISH
Extractor hood
SECTION 5.
Cleaning and maintenance
Caution! Before you start cleaning
the appliance, disconnect it from the
power supply.

Aluminum  lter is designed to trap
grease particles out of the  ow of air
running through it. For this reason,
the  lter needs regular cleaning. The
cleaning interval depends on the
frequency of use of the air cleaner.
Generally, it is recommended to clean it
once a month.
To do this, remove the  lters, wash
them in water with a neutral liquid
detergent, dry them, then set them back
in the air cleaner. Over time,  lters may
change color due to a regular washing.
This is a natural process, which does not
indicate a defect, so  lter replacement
is not required.
The aluminum  lters can be washed
in the dishwasher.
How to remove aluminum

1. Press on the latch of the  lter lock.
2. Pulling down a bit, remove the
 lter.
In order to put the  lters in place
after cleaning, follow the above
instructions in reverse order.

recirculated air mode)
Carbon  lter is designed to trap
odors and fumes while cooking.It is used
in cases where there is no possibility
to connect the air cleaner to a special
ventilation duct for discharging air
outward. When operating the appliance
with a carbon  lter, contaminated air is
sucked into the appliance and passes
through a carbon  lter, and then clean
air is supplied to the kitchen.
The carbon  lter should be replaced
at regular intervals. The interval of  lter
replacement depends on the frequency
of use of the air cleaner, style of cooking
and frequency of the aluminum  lter
cleaning. Generally, it is recommended
to replace the carbon  lter once every
4 months.

1. Remove aluminum  lters.
2. Turn the carbon  lter to the left
and pull it.
3. Replace the old carbon  lter with
the new one.
4. Put the  lter back into place.
If necessary, clean the outside of the
air cleaner with a soft, damp cloth. Do
not use any abrasive cleaning agents.
For painted stainless steel surfaces: to
avoid scratching it is recommended to
wipe them with a soft, damp cloth in the
painting direction. Do not remove the
lamp cover during the surface cleaning
process.
Caution!
Do not use the steam generators for
cleaning.
Caution!
Not following the above rules for
cleaning the appliance and replacing

