KVH Industries TracVision S2 User manual

Satellite Television
KVHTracVision
®
S2
owner’s
manual
•Installation Instructions
•User’s Guide
•Technical Manual
A Guide to TracVision S2

RJ11 Jack
(Data Cable to IRD - Optional)
Maintenance Port
(DB9 Connector)
Input Power
(+12 VDC) Ground
Switchplate Mounting
Hole (1 of 2)
Data/Power Connector
1
54-0196 Addendum to Rev. A
TracVision S2 Owner’s
Manual Addendum
(ECO #6119)
The following information applies to Revision A of the
TracVision S2 Owner’s Manual (KVH Part Number 54-0196).
Aprotective cover has been added to the switchplate to guard against
damaging electrostatic discharges (ESD), which may occur during
installation.
2.3 Connecting System Components
Figure 2-11 and the template on the following page have been
changed to show the new switchplate cutout dimensions, which have
been widened to accommodate the protective cover.
Figure 2-13 shows the switchplate connectors as they appear within
the new cover.
2.5"
2"
Figure 2-11
Switchplate Cutout Dimensions
Figure 2-13
Switchplate Connectors

2
54-0196 Addendum to Rev. A
Appendix C
Switchplate Template
2.5"
2"

1
A Guide to TracVision S2 – ADDENDUM
54-0196 Addendum to Rev. A
TracVision S2 Owner’s
Manual Addendum
(ECO #6040)
The following information applies to Revision A of the
TracVision S2 Owner’s Manual (KVH Part Number 54-0196).
2Installation
Kitpack Contents
Two plugs have been added to the kitpack for sealing the predrilled holes
in the antenna baseplate.
Part Qty. KVH Part No.
Switchplate assembly 1 02-1236-01
Tie-wraps 5 22-0013
RJ11 handset cable 1 32-0724-25
Clam shell ventilator 1 19-0230
#6 x 3⁄4" thread-forming screws 5 14-0298-12
1⁄4"-20 x 5⁄8" hex screws 4 14-0250-10
1⁄4" flat washers 4 14-0251
3⁄8" hole plugs 2 19-0282-06
2.2 Mounting the Antenna Unit
Astep has been added to the antenna mounting
procedure. The hole plugs need to be installed before
mounting the antenna unit to the vehicle.
6. Set aside the antenna unit and clean the roof’s
surface to remove any debris.

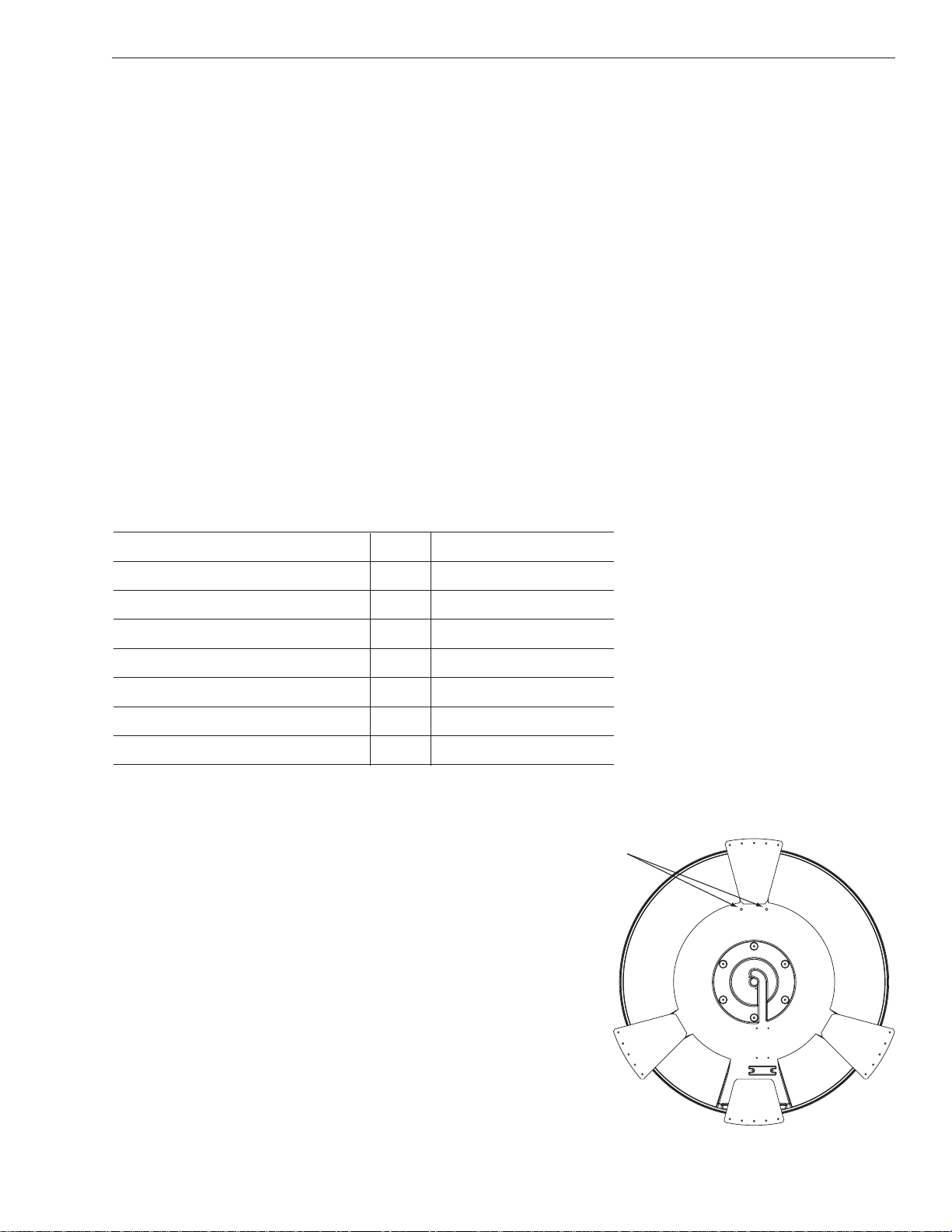

6b. Seal the two baseplate holes shown in Figure 2-4
with the plugs provided in the kitpack.
Table 2-2
Kitpack Contents
Baseplate Holes
Figure 2-4
Antenna Baseplate (Bottom View)

Congratulations!
You have selected one of the most advanced land-mobile satellite
tracking systems available today. KVH®Industries’ TracVision®S2
is designed for use with DIRECTV®, DISH Network™, and
ExpressVu.This manual provides detailed instructions on the
proper installation, use, and maintenance of your TracVision S2
system.
Throughout this manual, important information is marked for
your attention by these icons:
Direct questions, comments, or suggestions to:
KVH Industries, Inc.
50 Enterprise Center
Middletown, RI 02842 USA
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Internet: www.kvh.com
A helpful tip that either directs you to
a related area within the manual or
offers suggestions on getting the
highest quality out of your system.
An alert to important information
regarding procedures, product
specifications, or product use.
An electrical safety warning to help
identify electrical issues that can be a
hazard to either this KVH product or
a user.
Information about installation,
maintenance, troubleshooting, or
other mechanical issues.
TracVision S2 Serial Number
This serial number will be required
for all troubleshooting or service
calls made regarding this product.
KVH Part # 54-0196 Rev. A
© 2002, KVH Industries, Inc.
Click here to go to our state-of-the-art Customer 
Support web page...the fastest and easiest way 
to get all of your questions answered!

TracVision®and KVH®are registered trademarks of
KVH Industries, Inc.
DIRECTV®is an official trademark of DIRECTV,
a unit of GM Hughes Electronics Corporation.
DISH Network™is an official trademark of
EchoStar Communications Corporation.
ExpressVu is a property of Bell ExpressVu, a wholly owned
subsidiary of Bell Satellite Services.

Table of Contents
1Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
1.1 Digital SatelliteTelevision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
1.2 TracVision S2 System Overview . . . . . . . . . . . . . . . . . . . . . . . . .1-1
1.2.1 TracVision S2 Components....................................................1-2
1.2.2 Integrated Receiver/Decoder (IRD)........................................1-2
1.3 Materials Provided with TracVision S2 . . . . . . . . . . . . . . . . . . . .1-2
1.3.1 Additional Materials Required for TracVision S2 Use.............1-3
2Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
2.1 Choosing the Best Location . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
2.2 Mounting the Antenna Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
2.3 Connecting System Components . . . . . . . . . . . . . . . . . . . . . . . .2-8
2.3.1 Connecting the Antenna to the Switchplate...........................2-9
2.3.2 Connecting the Antenna to the IRD .......................................2-9
2.3.3 Sealing the Cable Access Hole............................................2-11
2.3.4 Connecting the Switchplate to the IRD ................................2-11
2.3.5 Connecting the Switchplate to Vehicle Power ......................2-12
2.3.6 Connecting the IRD Ground Wire.........................................2-12
2.3.7 Installing the Switchplate......................................................2-12
2.4 Activating the IRD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-13
2.5 Checking Out the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-13
2.5.1 Checking Out the System Using
an IRD Data Connection ......................................................2-13
2.5.2 Checking Out the System Without
an IRD Data Connection ......................................................2-15
2.6 ConfiguringTracVision S2 for Remote
Satellite Dish Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-16
3Using Your TracVision S2 . . . . . . . . . . . . . . . . . . . . . . .3-1
3.1 Turning On the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
3.2 Tracking the Correct Satellite . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3
i
54-0196 Rev. A

3.2.1 Using the IRD for Satellite Selection......................................3-3
3.2.2 Using the Switchplate for Satellite Selection..........................3-3
3.2.2.1 The Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3
3.3 Turning Off the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
3.4 WatchingTelevision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
4Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
4.1 Causes and Remedies for Common Operational Issues . . . . . .4-1
4.1.1 Blown Fuse or Improper Wiring..............................................4-2
4.1.2 Dew or Rain Pooling on Dome...............................................4-2
4.1.3 Satellite Signal Blocked..........................................................4-2
4.1.4 Satellite Coverage Issue.........................................................4-3
4.1.5 Incorrect or Loose RF Connectors.........................................4-3
4.1.6 Type of Multiswitch Used........................................................4-3
4.1.7 Stationary Use Only ...............................................................4-3
4.2 IRDTroubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
4.2.1 IRD Wiring ..............................................................................4-3
4.2.2 AC Power Fluctuating.............................................................4-4
4.2.3 No IRD Data Connection........................................................4-4
4.2.4 EchoStar IRD Activation Check..............................................4-4
4.2.5 Failed IRD Status Check........................................................4-5
4.2.6 IRD Faulty...............................................................................4-5
4.3 Antenna LNB Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6
4.4 Computer Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6
4.5 Maintenance Port Parser Commands . . . . . . . . . . . . . . . . . . . . .4-7
5Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
5.1 Warranty/Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
5.2 Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
5.3 Replaceable Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
5.4 Field Replaceable Unit Procedures . . . . . . . . . . . . . . . . . . . . . .5-3
5.4.1 PCB Removal and Replacement............................................5-4
ii

5.4.2 Antenna LNB Replacement....................................................5-6
5.5 Preparation for Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-8
Appendix A System Specifications . . . . . . . . . . . . . . . . . .A-1
Appendix B Comprehensive TracVision S2 System
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . .B-1
Appendix C Switchplate Template . . . . . . . . . . . . . . . . . .C-1
Appendix D EchoStar IRD Activation Procedure . . . . . . . . . .D-1
Appendix E Startup Data Sequences . . . . . . . . . . . . . . . . .E-1
E.1 System Connected to IRD Data . . . . . . . . . . . . . . . . . . . . . . . . .E-1
E.2 System Not Connected to IRD Data . . . . . . . . . . . . . . . . . . . . . .E-3
Appendix F Maintenance Port Parser Commands . . . . . . . . .F-1
F.1 System Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F-1
F.2 Manual Positioning Commands . . . . . . . . . . . . . . . . . . . . . . . . .F-2
F.3 Operational Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F-3
F.4Target and Signal Commands . . . . . . . . . . . . . . . . . . . . . . . . . .F-4
List of Figures

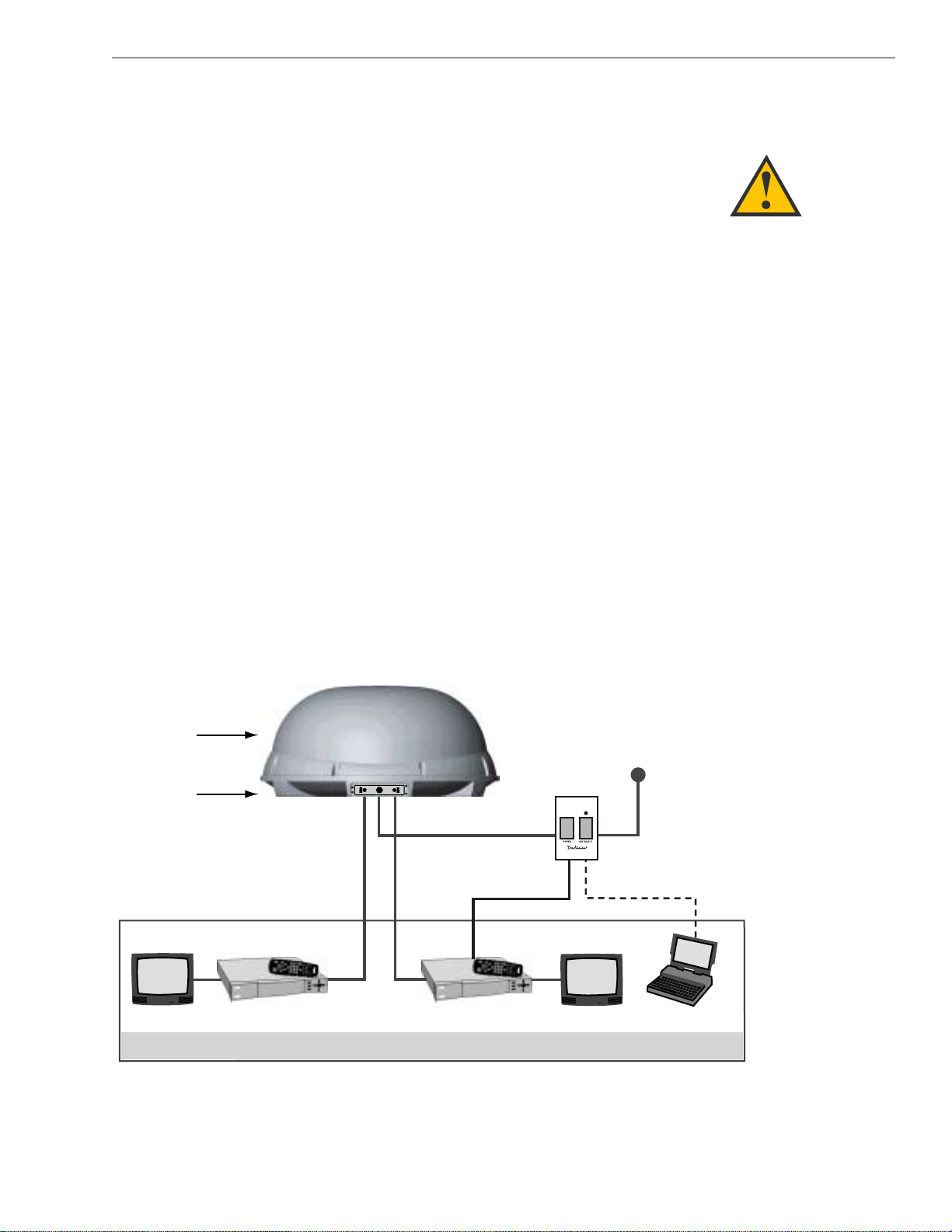

Figure 1-1 TracVision S2 System Configuration . . . . . . . . . . . . . . . . .1-1

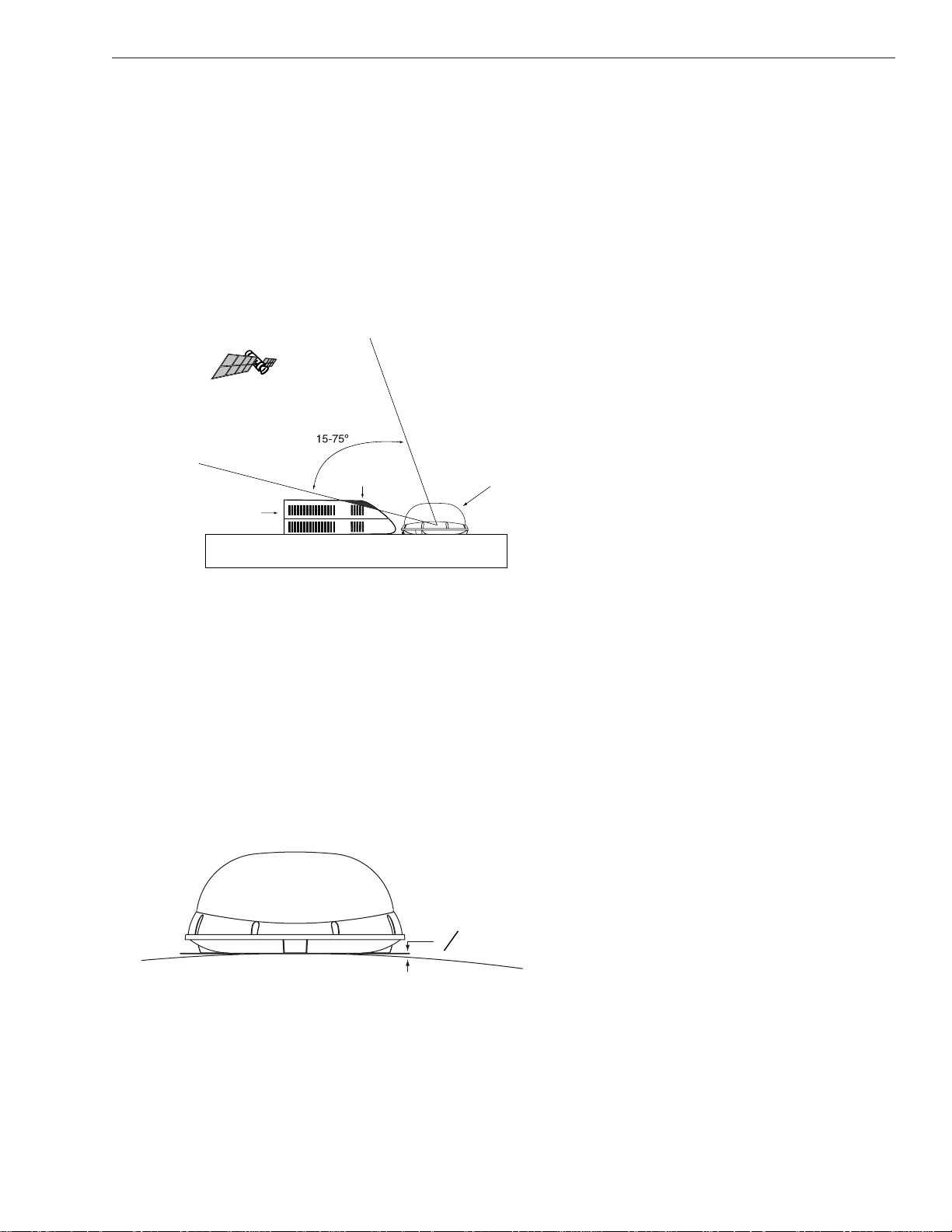

Figure 2-1 Antenna Blockage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Figure 2-2 Maximum Mounting Surface Slope . . . . . . . . . . . . . . . . . .2-3

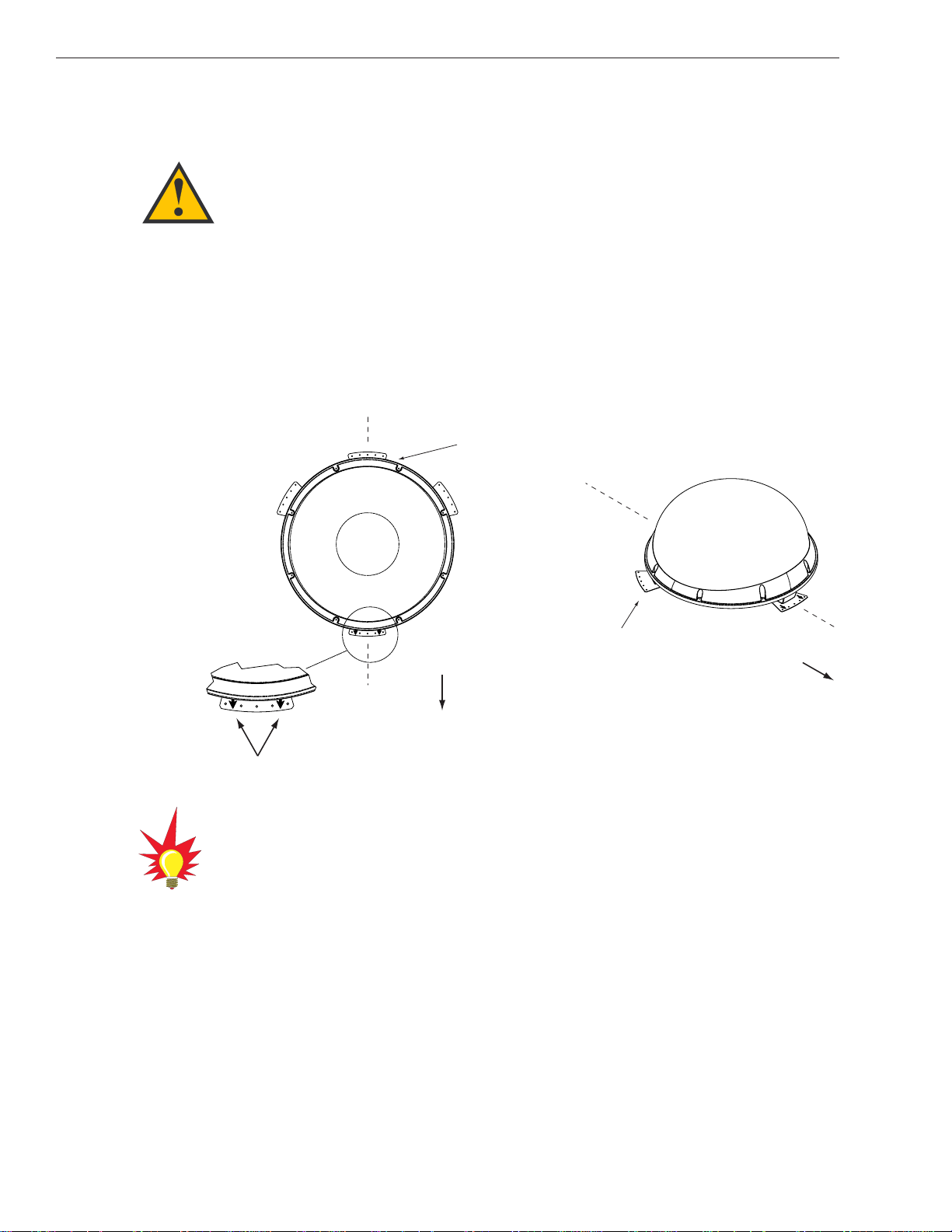

Figure 2-3 Proper Orientation of the Antenna Unit . . . . . . . . . . . . . . .2-4
Figure 2-4 Baseplate Connectors Facing Rear of Vehicle -
Factory-drilled Drain Hole Locations . . . . . . . . . . . . . . . . .2-5
Figure 2-5 Baseplate Conectors Facing Front of Vehicle -
Recommended Drain Hole Locations . . . . . . . . . . . . . . . .2-5
Figure 2-6 Forward Shipping Restraint (Arranged for Shipping) . . . . .2-6
Figure 2-7 TracVision S2 Shipping Restraints
(Top View, Installed for Shipping) . . . . . . . . . . . . . . . . . . .2-6
Figure 2-8 Forward Shipping Restraint Storage . . . . . . . . . . . . . . . . .2-6
Figure 2-9 Rotating Plate Shipping Restraint Storage . . . . . . . . . . . .2-7
iii
54-0196 Rev. A

Figure 2-10 TracVision S2 Shipping Restraints (Storage Position) . . . .2-7
Figure 2-11 Switchplate Cutout Dimensions . . . . . . . . . . . . . . . . . . . .2-8
Figure 2-12 Antenna Baseplate Connectors . . . . . . . . . . . . . . . . . . . .2-8
Figure 2-13 Switchplate Connectors . . . . . . . . . . . . . . . . . . . . . . . . . .2-9
Figure 2-14 Installing Three or Four IRDs
Using an Active Multiswitch . . . . . . . . . . . . . . . . . . . . . .2-10
Figure 2-15 Installing the Clamshell Ventilator . . . . . . . . . . . . . . . . . .2-11
Figure 2-16 Switchplate Maintenance Port . . . . . . . . . . . . . . . . . . . . .2-15
Figure 2-17 PC Data Cable DB9 Connector . . . . . . . . . . . . . . . . . . . .2-15
Figure 2-18 Remote Dish Wiring Configuration . . . . . . . . . . . . . . . . .2-16
Figure 3-1 Be Aware of Objects that Might
Block the Satellite Signals . . . . . . . . . . . . . . . . . . . . . . . .3-1
Figure 3-2 Switchplate Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Figure 4-1 Switchplate Maintenance Port . . . . . . . . . . . . . . . . . . . . .4-6
Figure 4-2 PC Data Cable DB9 Connector . . . . . . . . . . . . . . . . . . . .4-6
Figure 5-1 Antenna, PCB, and Rotating Plate . . . . . . . . . . . . . . . . . .5-3
Figure 5-2 Close-up of Connecting Rod and E-ring . . . . . . . . . . . . . .5-3
Figure 5-3 Antenna Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
Figure 5-4 Removing the PCB Cover . . . . . . . . . . . . . . . . . . . . . . . . .5-5
Figure 5-5 PCB Connector Locations – Rear View . . . . . . . . . . . . . . .5-5
Figure 5-6 Attaching the Shipping Restraints
to the Antenna Baseplate . . . . . . . . . . . . . . . . . . . . . . . . .5-8
Figure 5-7 Securing the Forward Shipping Restraint . . . . . . . . . . . . .5-8
List of Tables
Table 1-1 TracVision S2 Packing List . . . . . . . . . . . . . . . . . . . . . .1-2
Table 2-1 Installation Process . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Table 2-2 Kitpack Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Table 2-3 TracVision S2 Operational Messages . . . . . . . . . . . . .2-14
Table 2-4 DIRECTV On-screen Messages . . . . . . . . . . . . . . . . .2-14
Table 3-1 Status Indicator Conditions . . . . . . . . . . . . . . . . . . . . . .3-3
Table 4-1 Troubleshooting Matrix . . . . . . . . . . . . . . . . . . . . . . . . .4-1
iv

Table 5-1 Field Replaceable Units . . . . . . . . . . . . . . . . . . . . . . . .5-2
Table A-1 TracVision S2 System Specifications . . . . . . . . . . . . . . .A-1
Table F-1 System Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . .F-1
Table F-2 Manual Positioning Commands . . . . . . . . . . . . . . . . . . .F-2
Table F-3 Operational Commands . . . . . . . . . . . . . . . . . . . . . . . .F-3
Table F-4 Target and Signal Commands . . . . . . . . . . . . . . . . . . . .F-4
v
54-0196 Rev. A

1Introduction
1.1 Digital Satellite Television
DIRECTV®, DISH Network™, and ExpressVu systems transmit
digital audio and video data from land-based transmitters to a
satellite “parked” above the equator. Each satellite relays the
signals in spot beams covering the continental United States and
contiguous waters. TracVision S2 automatically identifies, locks
onto, and receives signals from the appropriate satellite when
your vehicle is stationary.
1.2 TracVision S2 System Overview
Acomplete satellite TV system includes the TracVision S2
connected to an integrated receiver decoder (IRD) and a
television set. A desktop or laptop computer is used to conduct
diagnostics. The complete system is illustrated in Figure 1-1.
System specifications and a wiring diagram are provided in
Appendices Aand B, respectively.
1-1
Introduction
54-0196 Rev. A
11-16 Volts DC
2.5-3.5 Amps
Satellite Receiver 1
RF2
Options Purchased Separately
TV 1
Data/Power
Vehicle
Power
Switchplate
PC Maintenance
Satellite Receiver 2TV 2 Laptop PC
TracVision Antenna
RF1
Data (optional)
Baseplate
Radome
Figure 1-1
TracVision S2 System
Configuration
TracVision S2 is a self-acquiring
satellite TV antenna for use when
your vehicle is stationary.The
system is not designed to track the
TV satellite when the vehicle is
moving.

1.2.1 TracVision S2 Components
The antenna unit includes the antenna positioning mechanism,
signal front end, power supply and control elements. These
elements include antenna drive controls and mechanisms, the
cable wrap subassembly, power conditioning and regulating
circuits, and the RF detector. The antenna is a parabolic dish
mounting a dual-output low noise block (LNB) converter with
built-in preamplifier. A molded ABS radome encloses the
baseplate and is secured in place with standard fasteners.
Connectors on the back of the baseplate join the power, signal,
and control cabling from units inside the vehicle.
1.2.2 Integrated Receiver Decoder (IRD)
The IRD (purchased separately) receives satellite signals from the
antenna unit for signal decoding, processing, and channel
selection, and sends the signals to the TV set for viewing. In
addition, messages can be sent from the IRD to the antenna unit
and messages can be received from the antenna unit for display
on the television screen. The IRD also provides the interface for
the user to activate authorization for reception. Please refer to the
User’s Manual provided with your selected IRD for complete
operating instructions.
1.3 Materials Provided with
TracVision S2
Table 1-1 lists the units, cables, and materials packed in the
TracVision S2 package by name and KVH part number.
Component KVH Part No.
Antenna Unit 01-0225-17
RF Cable (28 ft) 32-0417-28
Data/Power Cable (28 ft) 32-0730-28
IRD Ground Wire (50 ft) 32-0583-50
Kitpack* 72-0125
Installation and Operation Manual 54-0196
* A complete listing of kitpack contents is provided in Table 2-2.
1-2
A Guide to TracVision S2
On-screen messages are not
available with a DISH Network IRD.
Table 1-1
TracVision S2 Packing List
Cables for the TracVision S2 are
stored beneath the antenna unit
during shipping.
Before you can start watching
satellite TV using your TracVision
antenna, you will need to activate
your IRD. Refer to Section 2.4,
“Activating the IRD,” for more
details.

1.3.1 Additional Materials Required for
TracVision S2 Use
To make full use of your new TracVision S2 and receive satellite
TV, you will need to provide/purchase the following:
•Television
•Appropriate IRD for your selected satellite
TV service
1-3
Introduction
54-0196 Rev. A
You can purchase and activate an
IRD directly from KVH! Call KVH at
1-888-584-4163 for details.

2-1
Installation
54-0196 Rev. A
2Installation
TracVision S2 is designed for simple installation and setup. Just
follow these easy steps:
Step Refer to Section...
1. Choose the antenna location 2.1
2. Mount the antenna unit 2.2
3. Connect the system components 2.3
4. Activate the IRD 2.4
5. Check out the system 2.5
Tools and Materials Required
•Electric drill
•3⁄16"-drill bit and 3⁄4" hole saw and auger bit
•#2 Phillips and #0 flat tip screwdrivers
•RG-6 or RG-11 (75 ohms) RF cable (if installing
two RF cables - refer to Section 2.3.2 for details)
•Silicone sealant or RTV
•7⁄16"-open end wrench
•Adhesive suitable for specific roof construction
and materials (e.g., Liquid Nails)
•Rivet gun and 3⁄16"-rivets (or other fastener suitable
for specific roof construction)
•(Recommended) PC with terminal emulation
software such as PROCOMM or Windows
Terminal or Hyperterminal and a DB9 (male-to-
female) PC data cable
Plan the entire installation before
proceeding! Take into account
component placement, cable
running distances between units,
and accessibility to the equipment
after installation.
While some DIRECTV IRDs
offer on-screen messages, it is
recommended that a PC be
available for all installations of
DIRECTV, EchoStar, and
ExpressVu.
Table 2-1
Installation Process

2-2
A Guide to TracVision S2
Kitpack Contents
Table 2-2 lists the materials provided in the TracVision S2 kitpack.
Part Qty. KVH Part No.
Switchplate Assembly 1 02-1236-01
Tie-wraps 5 22-0013
RJ11 Handset Cable 1 32-0724-25
Clam Shell Ventilator 1 19-0230
#6 x 3⁄4" Thread-forming Screws 5 14-0298-12
1⁄4"-20 x 5⁄8" hex screws 4 14-0250-10
1⁄4" flat washers 4 14-0251
Table 2-2
Kitpack Contents

2-3
Installation
54-0196 Rev. A
2.1 Choosing the Best Location
•Since the TracVision antenna requires a clear view
of the southern sky to receive satellite signals, the
ideal antenna site has an unobstructed view of the
horizon/satellite all around.
•Keep the antenna clear of any obstructions on the
roof (e.g., air conditioners). The antenna requires a
15º to 75º look angle to receive satellite signals.
•Consider the location of the antenna relative to the
location of any equipment or necessary wiring
within the vehicle.
•Be sure to mount the antenna on a horizontal
surface with a minimum roof (or other mounting
surface) radius of 250". In other words, when
placed flat on the mounting surface, the mounting
plates should be less than 7⁄16" above the mounting
surface (see Figure 2-2). Any larger gap will warp
the baseplate and seriously damage the antenna.
Blocked! TracVision Antenna
Air Conditioner
Vehicle Roof
Figure 2-1
Antenna Blockage
" Maximum Gap
716
Figure 2-2
Maximum Mounting Surface Slope

2-4
A Guide to TracVision S2
2.2 Mounting the Antenna Unit
1. Make sure that you have chosen a suitable
mounting location based upon the guidelines in
Section 2.1, “Choosing the Best Location.”
2. Remove the antenna unit from its shipping carton.
3. Position the antenna unit in the desired location
on the centerline of the vehicle with the antenna’s
mounting plate arrows facing the front or rear of
the vehicle. The proper orientation is illustrated in
Figure 2-3.
4. While the antenna is in place, mark a location on
the roof for the 3⁄4" cable access hole to permit
convenient cable access to the antenna’s baseplate
connectors.
5. Using the 4 mounting plates and each set of 5
holes as templates, drill 20 3⁄16"holes through the
roof of the vehicle.
6. Set aside the antenna unit and clean the roof’s
surface to remove any debris.
7. Apply construction adhesive to the bottom of the
antenna’s four mounting plates. If using a liquid
construction adhesive, apply beads to the
mounting plates in a zig-zag pattern.
Always lift the antenna unit by the
gray baseplate, never by the
radome!
The mounting plate arrows may
face either forward or backward
along the centerline of the vehicle
for more convenient installation.
Vehicle
Centerline
Vehicle
Centerline
Front/Rear
of Vehicle
Front/Rear
of Vehicle
TopView SideView
Mounting Plate
(1 of 4)
Baseplate
Connectors
Mounting Plate
Arrows
Figure 2-3
Proper Orientation of
the Antenna Unit

2-5
Installation
54-0196 Rev. A
8. Reposition the antenna, lining up the mounting
plate holes with the holes in the roof. Attach the
mounting plates to the roof using 3⁄16"-diameter
rivets (or appropriate fasteners). Seal all rivet
heads and edges with silicone.
9. Remove and save the 8 pan head screws and flat
washers that secure the radome to the baseplate.
Carefully lift the radome straight up until clear of
the antenna assembly and set aside.
10. When the antenna unit is installed with the
baseplate connectors facing the rear of the vehicle,
the drain holes are located as shown in Figure 2-4.

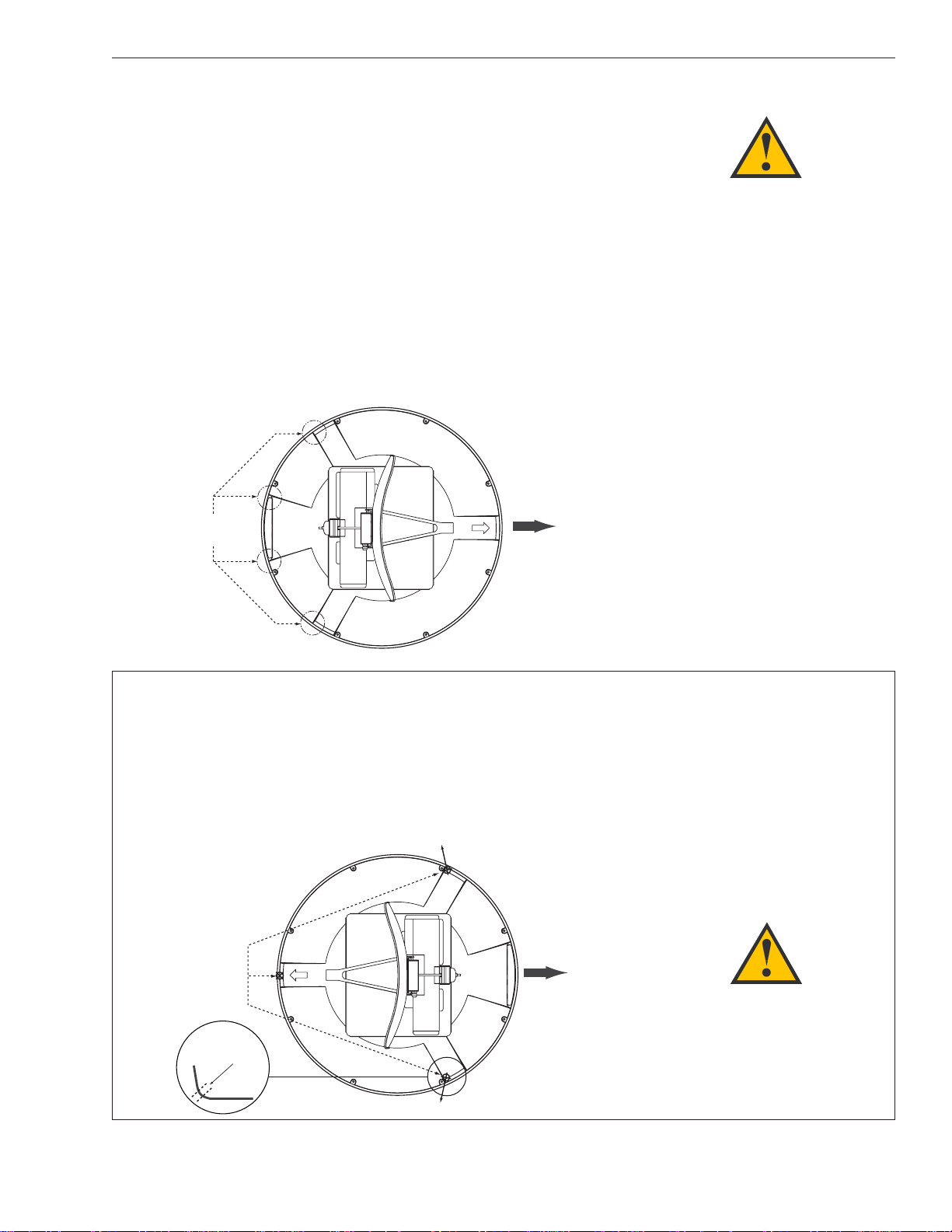

Recommended
3/16" Drain Hole
Positions
Drain Hole Angle
(relative to baseplate)
Front of
Vehicle
Angle of Hole, relative to front
Angle of Hole, relative to front
Figure 2-5
Baseplate Connectors Facing
Front of Vehicle – Recommended
Drain Hole Locations
10a.(Alternate Drain Hole Locations) If the antenna unit
is installed with the baseplate connectors facing
the front of the vehicle, drill out 3⁄16"-drain holes in
the rear-facing side of the baseplate as illustrated
in Figure 2-5. The existing factory-drilled drain
holes shown in Figure 2-4 must then be plugged
with silicone rubber sealant.
Figure 2-4
Baseplate Connectors Facing Rear
of Vehicle – Factory-drilled
Drain Hole Locations
Factory-drilled
Drain Hole Positions
Front of
Vehicle
If the roof’s mounting surface is not
perfectly flat as KVH recommends,
make sure the baseplate does not
warp when you attach the
antenna’s mounting plates. Refer to
Section 2.1, “Choosing the Best
Location,” for further details.
You MUST drill out the drain holes
as indicated to ensure that any
moisture that enters the baseplate
is able to drain. Ensure that
factory-drilled holes are
completely sealed.

2-6
A Guide to TracVision S2
11. Cut the tie-wraps holding the antenna unit to the
forward shipping restraint (see Figure 2-6).
12. Remove the nuts and washers securing the
shipping restraints to the baseplate. The positions
of all three shipping restraints are pictured in
Figure 2-7.
13. For convenient storage, rotate the shipping
restraints 180ºand secure them to their original
mounting bolts using the nuts and washers
removed in Step 12 (see Figures 2-8 through 2-10).
All nuts and washers removed in Step 12 must
be reinstalled. These nuts and washers secure the
baseplate to the mounting plates.
Rotating Plate
Shipping Restraint
Rotating Plate
Shipping Restraint
Forward Shipping
Restraint for
LNB Bracket
Figure 2-7
TracVision S2 Shipping Restraints
(Top View, Installed for Shipping)
Do not discard the shipping
restraints.They should be stowed
for future use in case the antenna
unit needs to be removed and
shipped to another location. Four
1⁄4˝ x 5⁄8˝ hex head screws have been
provided in the kitpack for shipping
as the bolts used to hold the
shipping restraints during initial
shipping are integral parts of the
mounting plates.
Forward Shipping Restraint
Installation Bolts and Washers
LNB
Figure 2-8
Forward Shipping
Restraint Storage
2 tie-wraps used
to secure LNB arm
Shipping Restraint
Shipping Restraint
Nuts and Washers
Figure 2-6
Forward Shipping Restraint
(Arranged for Shipping)
