Kwikset Aura User manual

1 / 4
A
03809*
(2x)
A
A
B
B
B
AB
If drilling a new door, use the supplied template and the complete
door drilling instructions available at kwikset.com/doorprep
13/8" –2"
35 – 51 mm
A B
C
D
Is the door edge chiseled?
Is the D-shaped hole centered in the door hole?
Which latch are you installing?Hold the latch in front of the door hole, with the latch
face lush against the door edge.
1"
25 mm
YES
YES
NO
NO
Use latch “A”. If the
latch bolt is not already
extended, extend the
latch bolt as shown.
No adjustment is required.
Proceed to next step.
D-shaped hole D-shaped hole
Rotate latch face as
shown to extend latch.
UP is
on top.
UP is
on top.
wood
block
Use latch “B” (not
included). If the latch
bolt is not already
extended, extend the
latch bolt as shown.
Latch “A” Latch “B”
EInstall the strike on the door frame.
Make sure the hole in the door frame is drilled a
minimum of 1" (25 mm) deep.
or
chiseled not
chiseled
or
1
2
Prepare the door and check dimensions
Install the latch and strike
or
23/8" or 23/4"
60 or 70 mm
backset
Measure to conirm that the backset is
either 23/8" or 23/4" (60 or 70 mm).
Measure to conirm that the hole
in the door edge is 1" (25 mm).
Measure to conirm that the door is between
13/8" and 2" (35 mm and 51 mm) thick.
Remove your existing deadbolt
from your door.
C D E F
B
Latch A
“B” is not included.
If needed, please contact
Kwikset to order a drive-in
latch for your lock.
Keys
Exterior Assembly
Adapter
Ring
Batteries
Mounting
Plate
Parts List
For Latch / Strike
Interior Assembly
SmartKey
Tool
Measure to conirm that the hole in the door is either
21/8" (54 mm) or 11/2" (38 mm).
or
21/8"
54 mm
11/2"
38 mm
Note: Additional door
preparation may be
required for doors with
11/2" (38 mm) holes.
Consult the deadbolt
drilling instructions at
kwikset.com/doorprep
AMake sure your door is compatible. If you have a standard deadbolt mounted
separately from the handle below it, your door is compatible.
Mortise
Lock
Not CompatibleNot Compatible
Rim
Lock
Compatible Not Compatible
Integrated
Interior
door frame
46780
(4x)
Longer screws
install closest to
the door jamb.
actual size
Strike 03809
46780
48654
49191 64109 68611
Latch B
For Lock
03809 46780
or
or
*Use longer
screws if
holes are
worn out.
actual size
For
Latch / Strike
Bag
(2x) (2x)
(2x) (2x)
67375002
Rev 02
Installation and User Guide
Kwikset
1-800-327-5625
www.kwikset.com
ENGLISH
Required tools
Ruler
Hammer Wood block Chisel
Phillips head screwdriver
Additional Tools (depending on application)

2 / 4
48654
21/8"
54 mm
11/2"
38 mm
actual size
For
Lock
Bag (2x)
49191
What is the diameter of the hole in the door?
Locate the screws for step 3D and keep them within reach.
Install the exterior keypad and mounting plate.
A
B
D
Diameter is 21/8"
(54 mm)
Diameter is 11/2"
(38 mm)
or
Adapter Ring is required
for installation. Install on
Exterior Assembly.
Adapter Ring is not
needed for installation
and may be discarded.
The cable goes
underneath the latch.
Support the exterior
assembly during mounting
plate installation.
Route the cable
through the center
hole, then push it into
the bottom hole.
Insert the key and
test the latch. If the
latch does not
extend or
retract
smoothly, adjust
the screws.
Remove the key
when inished,
and make sure
the latch bolt is
fully extended.
Keep parallel to the
edge of the door.
Tighten screws
evenly. DO NOT over
tighten screws.
a
c
b
d
49191
(2x)
Ensure the turnpiece shaft is pointing up, and remove the interior cover and
battery pack from the interior assembly.
Install the interior assembly onto the mounting plate.
A B
a
c
b
d
If the turnpiece shaft is pointing
down, place the cover back onto
the interior assembly and rotate the
turnpiece until you hear it click. You
may need to apply some force.
Once the turnpiece shaft is correctly
oriented, remove the cover again.
Make sure turn
piece shaft is
rotated as shown.
Do not install
batteries
until step 5.
Ensure tight cable
connection.
Lay the excess cable
lat inside the bottom of
the interior housing.
align
a
c
b
d
bottom
hole
If turnpiece shaft is not oriented
correctly, put the cover back on and
rotate the turnpiece as shown in step C.
Remove the interior
cover from the
interior assembly.
Incorrect:
Ensure you are using
the correct screws.
Using incorrect
screws will damage
the product.
actual size
For
Lock
Bag
(2x)
Remove the mounting plate from the interior assembly.
C
G
48654
(2x)
48654
(2x)
3Install the exterior keypad
4Install the interior assembly

3 / 4
Green: Door handing was
successful. Proceed to next step.
Red: Door handing was
unsuccessful. Make sure the lock
interior and batteries are correctly
installed. Perform step 5B again.
If the door handing process is
still unsuccessful after a second
attempt, see the Manual Door
Handing section on page 4.
If the bolt does not move,
make sure the batteries
are correctly installed, and
perform step 5B again.
Install 4 AA batteries in the battery pack. With the door open, install the battery
pack to initiate auto-handing.
The latch will retract and extend to learn the orientation of the door.
The Status LED will indicate success or failure.
A B C
D
Note: The latch
bolt will only
retract half way.
Ensure correct polarity.
For best results, use
new, non-rechargeable
Alkaline batteries only.
With the door open, insert the key to
extend the latch. Ensure that the latch
extends smoothly.
Turn the key 180° to retract the latch.
Ensure that the latch
retracts smoothly.
Close the door. Insert and rotate
the key to lock the door. Ensure
that the door locks smoothly.
Turn the key 180° to retract the latch.
Ensure that the door
unlocks smoothly.
AB C D
If your door does not lock and unlock smoothly, make sure you replaced your previous latch and strike with those supplied in the box.
If you still experience locking errors, call Kwikset Support to order a Warped Door Service Kit.
Kwikset Support: 18003275625
6410968611
actual size
For
Lock
Bag
actual size
Download the app and create an account
The Kwikset app is needed to use this lock. If
this lock was professionally installed (or installed
by someone other than the homeowner), make
sure this step is performed by the homeowner.
Download the
Kwikset app by scanning
the QR code or visiting
www.kwikset.com/app
on your smartphone.
Create your account and follow the setup
instructions in the Kwikset app.
AB
8
6Test the lock and check door alignment
5Install the batteries and perform the door handing process
This step will teach your lock the orientation of your door and is crucial to lock operation.
7
64109 (3x)
When the window
is locked, you will
need to remove
the entire interior
cover and screws to
access the battery
pack and buttons.
For additional
security, you
may choose to
lock the window
by installing the
security screw.
The window on
the interior cover
is unlocked by
default for easier
access to the
battery pack
and buttons.
Important Information about the interior cover
Cover Installation Battery Pack Access
Install cover.
Note: You may
need to rotate
the turn piece
to align with the
turn piece shaft. turn piece
turn piece
shaft
Install
screws.
abIf the window is
unlocked, slide
up the window
to access the
battery pack.
window
Install the interior cover
68611
If the window
is locked,
remove the
interior cover
and screws
to access the
battery pack.
Ensure you are using
the correct screws.
Using incorrect
screws will
damage the product.
Ensure you are using
the correct screws.
Using incorrect
screws will
damage the product.
(1x) (3x)
(1x)

4 / 4 © 2019 Spectrum Brands, Inc.
1. Read all instructions in their entirety.
2. Familiarize yourself with all warning
and caution statements.
3. Remind all family members of safety precautions.
4. Protect your user codes.
5. Dispose of used batteries according to local laws and
regulations.
WARNING: This Manufacturer advises that no lock
can provide complete security by itself. This lock may
be defeated by forcible or technical means, or evaded
by entry elsewhere on the property. No lock can
substitute for caution, awareness of your environment,
and common sense. Builder’s hardware is available in
multiple performance grades to suit the application.
In order to enhance security and reduce risk, you
should consult a qualiied locksmith or other security
professional.
Important Safeguards
Re-key the lock to work with your existing key. See the supplied
SmartKey Re-key instructions for more information.
Note: If Auto-Lock is enabled, remove the battery pack before
re-keying your lock.
SmartKey Re-Keying
Successful: Unsuccessful:
red
LED
Successful:
green
LED
Unsuccessful:
red
LED
Battery
pack
green
LED

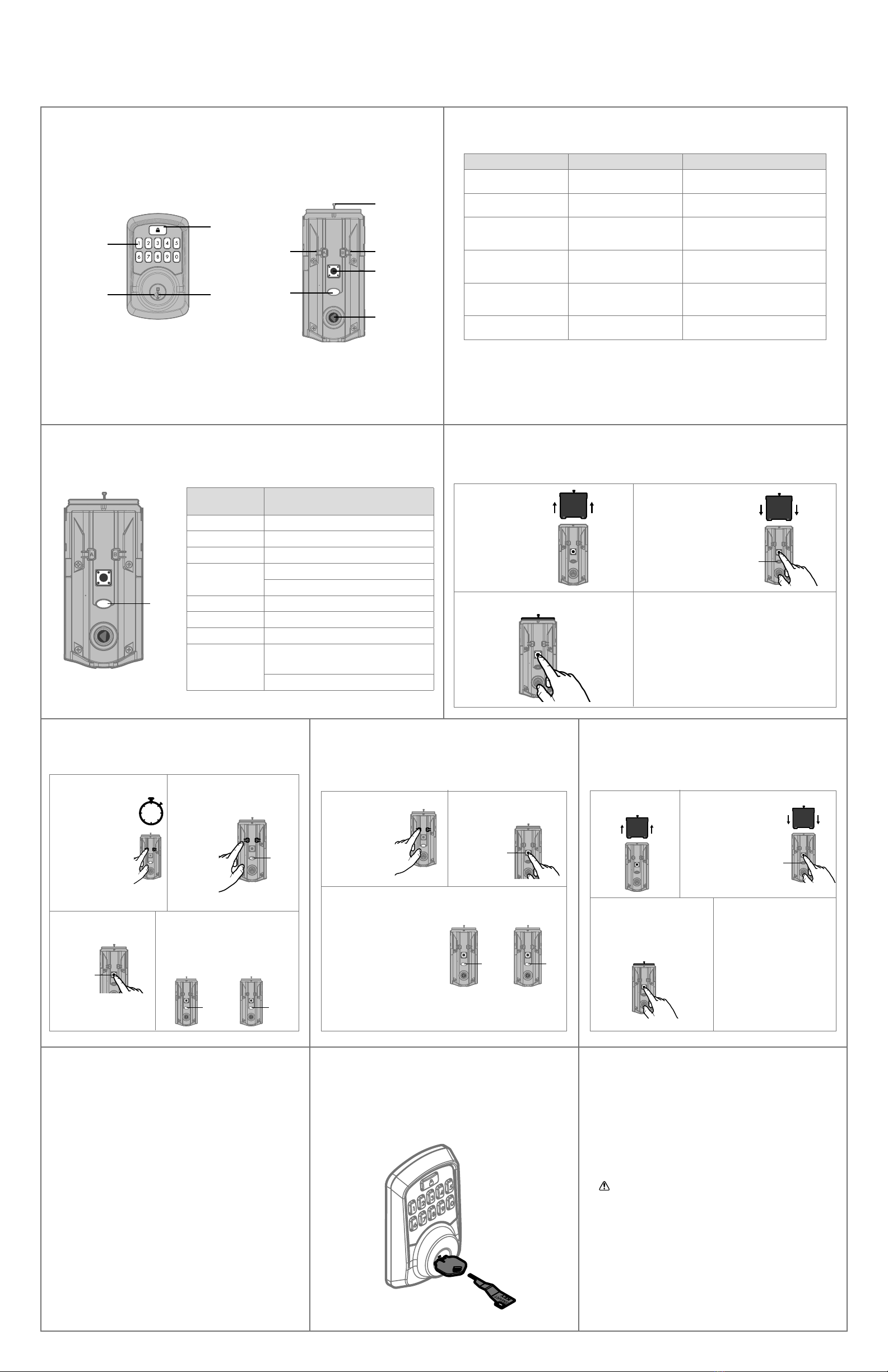

SmartCode at a Glance
Network Reset
Reference Guide
Exterior
Program
Button
Status
LED
Turn
piece
shaft
These features can be adjusted in some smart home apps.
Interior (cover removed)
Status LED colors
Troubleshooting
Status
LED
System Alerts
System Reset
System Reset will delete all access codes and lock settings including
lock handing. The lock will run the handing process at the end of the
System Reset.
1 Press “A” 10
times. You will
hear 1 short
beep and see a
blinking amber
LED to indicate
it is in system
reset mode.
2 Press and release
the Program
button to conirm
system reset.
Keypad
Lock
button
Keyway
SmartKey
tool hole
Button “A” Button “B”
3 If successful, you will hear 1
long beep and see a green
LED, and the reset process
will begin. During the reset
process, the LED will blink
green/red a few times and
will beep when complete.
If unsuccessful, you will
hear 5 rapid beeps and
see a blinking red LED. If
unsuccessful, repeat from
step 1.
A complete Aura Bluetooth Keypad
Programming and Troubleshooting Guide is available at
www.kwikset.com/aura/support
Color Lock Status
Green (solid) Action successful
Green (blinking) Unlocked
Red (solid) Door handing process unsuccessful
Red (blinking) Action unsuccessful or incomplete
Low battery
Blue (solid) Bluetooth Pairing successful
Blue (blinking) Bluetooth Pairing Mode
Amber (solid) Entering Network Reset mode
Amber (blinking)
Network or System Reset mode.
Action required.
Locked
Network Reset will delete all Bluetooth pairings, user associations,
and remove the lock from the account.
Status
LED
1 Press and HOLD
“A” for 10 seconds.
You will hear 1 short
beep and see an
amber LED.
Note: After 3
seconds, you will
hear 1 short beep
and see a blue
LED. You should
continue to hold “A”
to enter network
reset mode.
2 Release “A.”
You will see a
blinking amber
LED to indicate
it is in network
reset mode.
3 Press and release the
Program button to
conirm network reset.
4 If successful, you will hear 1 long
beep and see a green LED. If
unsuccessful, you will hear 5 rapid
beeps and see a blinking red LED. If
unsuccessful, repeat from step 1.
10s
Program
button
Program
button
The Program button must be
pressed within 10 seconds of
releasing "A" or the function
will time out.
Factory Reset
Factory Reset will delete all Bluetooth pairings, user associations,
remove the lock from the account and reset all lock settings
including handing.
Status
LED
1 Remove
battery pack.
2 Press and HOLD
the Program button
while reinserting
the battery pack.
Keep holding
the button for
30 seconds until
the lock beeps
and the status
LED lashes red.
3 Press the Program button
once more. The LED will
lash green and red, and
the auto-handing process
will begin.
4 The latch will retract and
extend to learn the orientation
of the door. The LED will
lash green if auto-handing
is successful or red if auto-
handing is unsuccessful.
Manual Door Handing
If needed, the door handing process can be initiated manually. This is useful if the lock is being
moved to a dierent door.
Status
LED
1 Remove battery pack. 2 Press and HOLD
the Program button
while reinserting
the battery pack.
Release the
Program button
after 3 seconds.
The status LED will
lash red and green.
3 Press the Program button once more. 4 The latch bolt will extend and retract to
learn the orientation of the door. The LED
will lash green if handing is successful
or red if handing is unsuccessful.
Alert Reason Solution
Keypad lashes red once with
one beep*. One incorrect code entered. Re-enter code.
Keypad lashes red three
times with three beeps*. No user code programmed. Program at least one user code.
Keypad lashes red 15 times
with 15 beeps* Three incorrect codes entered. Re-enter code after 60 second keypad
lockout.
Keypad lashes red with fast
beeping sound for three to
four seconds.
Low battery. Replace batteries.
Keypad lashes red with
continuous beeping sound
for two seconds.
Door jammed while attempting
to lock.
Manually re-lock door. If needed,
reposition strike.
Lock beeps continuously. Interior assembly is
disconnected from exterior.
Remove battery pack, reconnect the interior
to the exterior, then reinstall battery pack.
*Beeping sounds will only be heard if Lock Sounds have not been disabled in the app.
Tip: To light up the keypad
while the door is locked,
press the Lock button before
entering your user code.
The keypad will not light up
if the door is unlocked.
