La Sommeliere CVDE46-2 User manual

1
INSTRUCTION FOR USE
Built-in wine cellar
Model Number: CVDE46-2 – CVDE21

2
Before use, please read and follow the safety rules and operating instructions in this manual.
Firstly, we would like to thank you for purchasing an LA SOMMMELIERE product and hope that this
appliance fully lives up to your expectations.
This appliance enables you to bring your bottles to service temperature (depending on the bottles)
thanks to its wide adjustment range.
1. GENERAL SAFETY INSTRUCTIONS
For your own safety and for the proper utilisation of the appliance, read this manual carefully,
including the warnings and recommendations, before installing the appliance and using it for
the first time. In order to avoid damage to the appliance and/or personal injury, persons using the
appliance should be fully familiar with its operation and safety functions. Keep these recommendations
close to the appliance, for future reference, and ensure that the document is transferred with the
appliance, if it is sold or in the case of moving. This will ensure optimum operation of theappliance.
To avoid any risk of injury, keep this manual. The manufacturer declines any liability whatsoever in the
case of operating/handling errors concerning the appliance.
Safety of children and other vulnerable persons
▪ This appliance may be used by children aged 8 years and above, and
by persons who are physically, sensorially or mentally handicapped, or
who have not learned to use the appliance, providing they are
supervised by a person familiar with the appliance and who is aware of
the risks involved. Children should not be allowed to play with the
appliance. User cleaning and servicing operations should not be carried
out by children, unless they are more than 8 years old and are
supervised.
▪ Keep all packaging out of the reach of children, as there is a risk of
suffocation.
▪ If you decide to scrap the appliance, disconnect it from the wall socket,
cut the connection cable (as close to the appliance as possible) and
remove the door, in order to prevent children playing with it, with the
resulting risk of electric shock or being trapped inside.
▪ If an appliance with a magnetic door seal is being replaced by another
appliance with a latch on the door or on the seal, ensure that the latch
is disabled before selling or scrapping the old appliance. This will
prevent the appliance from being transformed into a trap for children.
▪ Keep the appliance and its power cable out of reach of children less
than 8 years old.

3
General safety
CAUTION — This appliance is designed for home use.
CAUTION — Never store inflammable substances, such as aerosols, inside the appliance, as they
could leak or release fluids.
CAUTION — A damaged power cable should be immediately replaced by the manufacturer or by a
qualified retailer, in order to avoid any risk of electric shock.
CAUTION — Keep the ventilation openings well open and ensure that air can circulate, especially if the
appliance is recessed into a wall.
CAUTION — Do not damage the refrigerating circuit.
CAUTION — Do not use electrical appliances inside the compartment, unless they are tolerated by the
manufacturer.
CAUTION — The refrigerating and insulating systems contain inflammable gases. When the appliance
is scrapped, it should be deposited at an accredited collection centre. Do not expose the appliance to
fire.
Refrigerating fluid
The refrigerating circuit in the appliance uses refrigerating isobutane (R600a), which is a highly
inflammable natural gas and is therefore dangerous for the environment. When transporting or installing
the appliance, ensure that no element of the refrigerating circuit is damaged. The refrigerating fluid
(R600a) is inflammable.
Caution: Fire risk
If the refrigerating circuit is damaged:
▪ Avoid open flames or any source ofcombustion.
▪ Ensure that the room in which the appliance is installed is wellventilated.
It is dangerous to change the specification of the appliance in any way whatsoever.
Damage to the power cable may cause a short circuit and/or electric shock.
Electrical safety
▪ We decline any liability in respect of incidents caused by poor electricalinstallation.
▪ Do not extend the power cable. Do not use an extension cable, or adapter, or multi-waysocket.
▪ Check that the wall socket is not damaged. A wall socket in poor condition may causethe
appliance to overheat andexplode.
▪ Check that the wall socket used for the appliance is properlyaccessible.
▪ Never pull on the main power cable.
▪ Ensure that the appliance is always electricallyearthed.
▪ If the wall socket is loose, do not connect the cable, as there is a risk of electric shock orfire.
▪ Do not use the appliance if the interior lighting cover is notinstalled.
▪ Disconnect the appliance before replacing the lightingbulb.
▪ The appliance operates on a single phase 220~240 V / 50 Hz power supply. The appliance must
be connected to an earthed wall socket, in accordance with applicablerecommendations.
▪ Do not attempt to replace a damaged power cable, contact your after-salesservice.

4
▪ The power socket must be easily accessible but out of reach of children. In case of doubt,contact
your installation technician
Daily utilisation
▪ Do not store inflammable substances or fluids inside the appliance. This would create a riskof
explosion.
▪ Do not operate other electrical equipment inside the appliance (mixers, whirling rotor for ice cream,
etc.).
▪ When disconnecting the appliance, grip the plug firmly and do not pull on thecable.
▪ Do not expose the appliance to directsunlight.
▪ Keep the appliance away from candles, luminaires and open flames, in order to avoid firerisk.
▪ This appliance is only designed to store wines anddrinks.
▪ The appliance is heavy. Be careful when movingit.
▪ If your appliance is equipped with castors, remember that these are only designed tofacilitate
minor movements. Do not move the appliance over longdistances.
▪ Do not lean or climb on the appliance or itselements.
▪ In order to avoid falling objects and to prevent damage to the appliance, do not overloadthe
compartments of the appliance.
Caution! Cleaning and servicing
▪ Before carrying out servicing, switch off the power supply and disconnect theappliance.
▪ When cleaning the appliance, do not use metal objects, steam systems, volatile fluids,organic
solvents or abrasive substances.
▪ Do not use sharp or pointed objects to remove ice. Use a plasticscraper.
Important information concerning installation!
▪ To ensure proper electrical connection, follow the recommendations given in the presentmanual.
▪ Unpack the appliance and visually check that it is not damaged. Do not connect a damaged
appliance. Inform your retailer or point of sale of any damage. In such a case, keep thepackaging.
▪ It is recommended that the appliance be allowed to settle for at least 4 hours before connecting the
electrical power supply, so that the compressor fluid feed iscorrect.
▪ Proper air circulation is necessary to avoid overheating. To ensure sufficient ventilation, observe
the installation recommendationsprovided.
▪ In order to avoid fire risk, wherever possible, ensure that the appliance is not incontact with walls
or with any hot element (compressor, condenser). Observe the installationrecommendations.
▪ The appliance should not be placed close to radiators or cooking hot plates or gasrings.
▪ Check that electrical sockets remain accessible when the appliance isinstalled.

5
POWER SAVING
▪ To limit the electricity consumption of yourappliance:
▪ Install it in an appropriate place (see “Installing yourappliance”).
▪ Leave the doors open as little time as possible.
▪ To ensure that the appliance operates properly, clean the condenser regularly (see “Routine
servicing of yourappliance”).
▪ Regularly inspect the door seals and ensure that they are still closing properly. If this is notthe
case, contact your after-sales service.
Trouble shooting
▪ Any electrical work should be carried out by a qualified and skilledtechnician.
▪ The appliance should be repaired by an accredited repair centre, using only manufacturer’s
original spare parts.
The appliance is designed for home use only. The manufacturer declines any liability whatsoever in the case of other
utilisation.

6
R600a
Safety instructions
This appliance meets the requirements of all applicable European directives and their amendments.
Caution: The refrigerating units use
isobutane (R600a), and should not be
placed close to ignition sources (for
example, electrical contacts that are
exposed or open contacts that could be
closed by the refrigerating fluid in the
event
of a leak). The refrigerating fluid type is
specified on the power cabinet
identification plate.
Caution: Do not store explosive
substances, such as aerosol cans
containing an inflammable propellant, in
the appliance.
Caution: Do not obstruct the ventilation
grills on the appliance.
Caution: Do not damage the refrigerating
circuit in the appliance.
Caution: Do not use electrical equipment in
the compartments of the appliance, unless
they are of the type recommended by the
manufacturer.

7
2. INSTALLATION INSTRUCTIONS
When installing your cellar, leave a space of 0.5 cm on the side and above the unit for air circulation
and a space of 3 cm between the rear of the product and the wall.

8

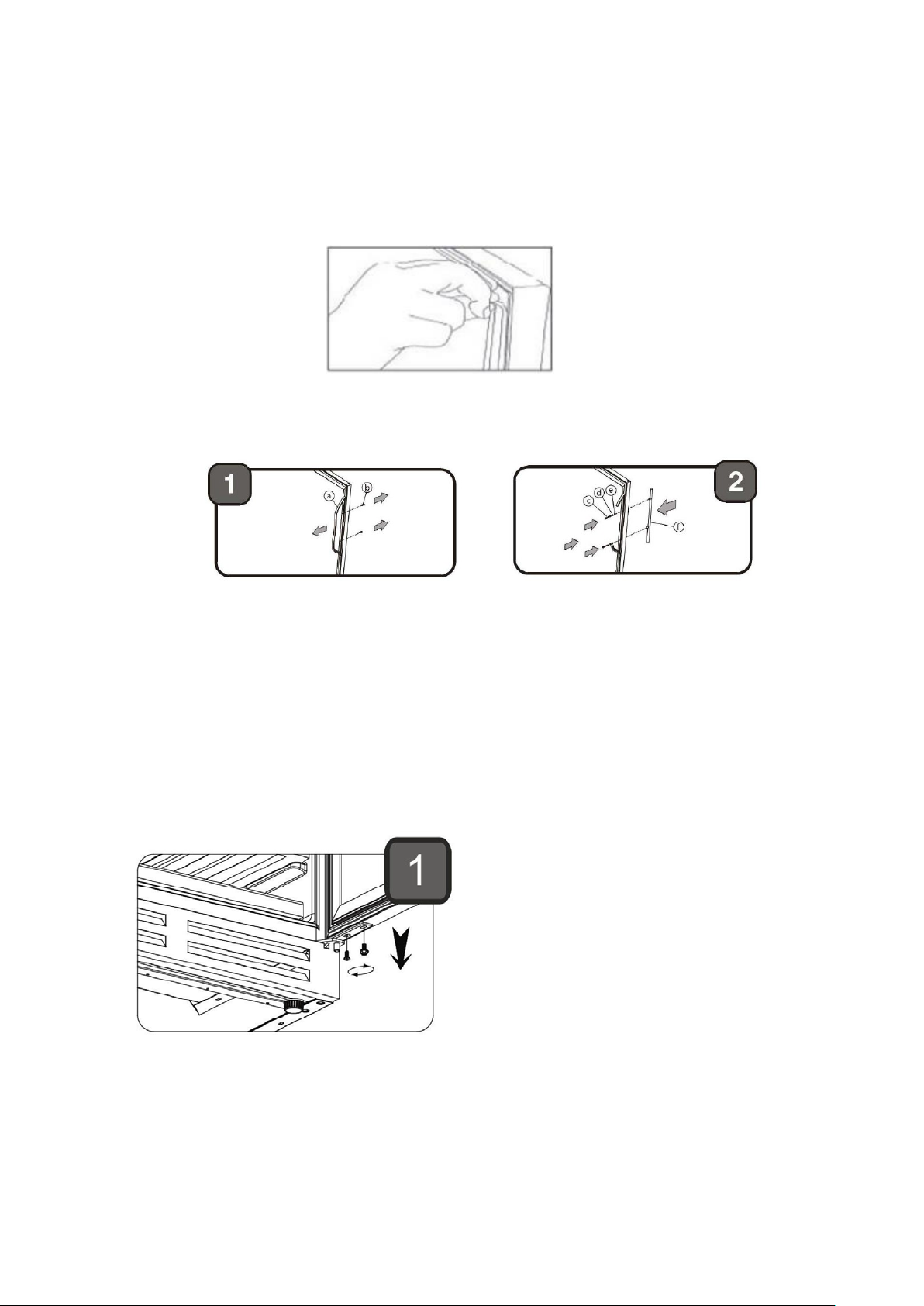

➢ Handle installation instruction
▪ Open the door and carefully pull out the door gasket only at the area where the handle is to
be installed.
▪ You will be able to see two screws inside thedoor.
▪ Align the handle with the screws and tighten using a head screwdriver until the handle is
flush against the door frame.
CAUTION: Do not over-tighten the screws as this may cause damage to the handle or to the
stainless-steel door. Carefully press the door gasket into its original position.
➢ Reversing the Door Swing of Your Appliance
This appliance has the capability of the door opening from either the left or right side. The unit is
delivered to you with the door opening from the left side. Should you desire to reverse the opening
direction, please follow these instructions.
.
Note: All parts removed must be saved to do the reinstatement of door.
1. Open the glass door and remove the two screws under the right bottom corner of the glass door
that are used to hold the lower hinge to the glass door. Be careful to hold the glass door with hands
from dropping after

9
2. Pull down to remove the glass door and place it on a padded surface to prevent scratchingit.
3. Remove the two screws under the left lower corner of it. Then install and tighten them at the
opposite designated holes.
4. Remove the right upper hinge. Install the left upper hinge from the plastic bag that includes the
instruction manual.
5. Remove the lower hinge supporter with the adjusting washer from right side. Install the lower
hinge supporter in left side. Make sure to put the adjusting washers at the designatedposition.

10
6. Locate the glass door to the designated position making sure that the door shaft enters the door
hole at the left upper corner of the glass door. Install the two screws that are used to connect the left
lower hinge with the glass door and tighten them before the door is leveled. Then remove the handle
from the left side and install it on the right side of thedoor.
3. OPERATING YOUR WINE COOLER
These Wine Cooler should be placed in where the ambient temperature is between 5-35℃. If the
ambient temperature is above or below this range, the performance of the unit may be affected. For
example, placing your unit in extreme cold or hot conditions may cause interior temperatures to
fluctuate. The range may not be reached.
➢ The controls of your Wine Cooler
Indicator light illuminates to signify the cooling mode is currently in operation.
To control this appliance, turn ON/OFF (press and hold this buttons for approximately
2 seconds).
To control the inner light, turn on/off.
Used to set temperature in upper zone.
Used to set temperature in lower zone

11
➢ Setting the Temperature Control
The Wine Cooler has two temperature zones.
✓ Upper zone – temperature range 5°C to 10°C
✓ Lower zone – temperature range 10°C to18°C
You can set the required temperature either zone by pushing the Set Upper or Set Lower button.
When you push the two buttons for the first time, the LED readout will show the previously set
temperature set for that zones.
The temperature preset at the factory are: Upper zone: 6°C, Lower zone: 12°C
To set the temperature in the Upper zone press Set Upper button once. The present temperature
will flash. The temperature will decrease by every time the button is pressed until minimum
temperature is reached, at which point it will then revert back to its maximum setting and start again.
To set the temperature in the Lower zone press the Set Lower button and follow the instructions
above.
To view the temperature set in either zone at any time, press the corresponding “Set Upper” or “Set
Lower” button, the “Set” temperature will temporarily flash in the LED display for 5 seconds.
➢ The controls of your Wine Cooler for CVDE21 – simple zone
Indicator light illuminates to signify the cooling mode is currently in operation.
To control this appliance, turn ON/OFF (press and hold this buttons for approximately
2 seconds).
To control the inner light, turn on/off.
Used to set temperature.
➢ Setting the Temperature Control for CVDE21 – SIMPLE ZONE
You can adjust temperatures from 5 to 18°.
This is the same use instructions as CVDE46-2
NOTE:
▪ If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, the Wine Cooler will notstart.
▪ When you use the Wine Cooler for the first time or restart the Wine Cooler after having been shut
off for a long time, there could be a few degrees’ variance between the temperature you select
and the one indicated on the LED readout. This is normal and it is due to the length of the
activation time. Once the Wine Cooler is running for a few hours everything will be back to
normal.

12
➢ Interior Light
You can turn the interior light ON or OFF by pushing the button marked with the “bulb” symbol .
▪ In order to save energy consumption, the light will be automatically off after 10 minutes when
turned on.
▪ But if you want to keep the light on permanently, please keep pressing "LIGHT" button for 5 seconds
until the display shows "LP”.
▪ If you want to reset (automatically off after 10 minutes), please keep pressing "LIGHT" button for 5
seconds again until display shows "LF".
➢ Water tray
In order to prevent drying up of the wine corks due to low humidity the cabinet is supplied with a
water tray which shoud be placed at the top shelf. If end user feels the inside cabinet’s humidity is
not enough, please put water into this white-water tray.
4. CARE AND MAINTENANCE
➢ How to remove the Shelves
▪ To prevent damaging the door seal, ensure that the door is fully opened before pulling the
shelves out.
▪ For easy access to the wine bottles, the shelves can be pulled partwayout.
▪ Before removing a shelf please remove all items first. Pull the shelf forward until the notches
in the sides of the shelf align with the pegs in the sides of the cabinet. Lift the shelf up over
the pegs and remove it.

13
➢ Cleaning Your Wine Cooler
• Turn off the power, unplug the appliance, and remove all items including shelves andrack.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should
be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry
with a clean soft cloth.
➢Power Failure
• Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to
be off for a longer period of time, you need to take the proper steps to protect yourcontents.
➢Vacation Time
Short vacations: Leave the Wine Cooler operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all items and turn off
the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the
door open slightly: blocking it open ifnecessary.
➢Moving Your Wine Cooler
• Remove all items.
• Securely tape down all loose items (shelves) inside yourappliance.
• Turn the adjustable leg up to the base to avoiddamage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also, protect
outside of appliance with a blanket, or similaritem.
➢Energy Saving Tips
• The Wine Cooler should be located in the coolest area of the room, away from heat
producing appliances, and out of the directsunlight.

14
5. TROUBLESHOOTING GUIDE
You can solve many common Wine Cooler problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling the servicer.
PROBLEM
POSSIBLE CAUSE
Wine Cooler does not operate.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Wine Cooler is not cold enough.
Check the temperature control setting.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off frequently.
The room temperature is hotter than normal.
A large amount of contents has been added to
the Wine Cooler.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The bulb has burned out.
The light button is “OFF”.
Vibrations. Check to assure that the Wine Cooler is level.
The Wine Cooler seems to make too much noise.
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
Wine Cooler.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The Wine Cooler is not level.
The door will not close properly.
The Wine Cooler is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.

15
6. ENVIRONMENT
This appliance is marked according to the European directive 2012/19/CE on Waste
Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling of this
product.
The symbol on the product, or on the documents accompanying the product, the Crossed-Out
Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment,
or, if you are buying an equivalent product, to the retailer of the new product.
The user is responsible for taking the appliance to the appropriate collection center at the end of its
useful life. Selective and appropriate collection for the recycling of no longer used appliances and
their disposal and destruction in an environmentally friendly manner, helps to prevent potential
negative effects on the environment and health, and encourages the recycling of materials used to
make the product.
For more detailed information about treatment, recovery and recycling of this product, please contact
your local authority, your household waste disposal service or the retailer where you purchased the
product.
7. WARNING
As we continuously improve our products for the benefit of our customers, we reserve the right to
modify technical characteristics without notice.
Warranties for LA SOMMELIERE brand products are offered exclusively by selected retailers. No
part of these instructions may be considered as a supplementaryguarantee.
FRIO ENTREPRISE cannot be held liable for errors or technical or editorial omissions in this
document.
Non-binding document.

16
EUROPEAN DATA SHEET
according to the regulations (UE) N°1060/2010
-
SERVICE WINE CABINET
BRAND LA SOMMELIERE
COMMERCIAL REFERENCE CVDE46-2 CVDE21
POWER SUPPLY 220-240 V / 50 Hz
PRODUCT DIMENSIONS (W x D x H) 595 x 572 x 828 mm 290 x 570 x 820 mm
NET WEIGHT 50 kg 28 kg
APPLIANCE CATEGORY
2
ENERGY EFFICIENCY CLASS
B A
ENERGY CONSUMPTION
calculated on the basis of results
obtained over 24 hours in standardized
test conditions. Actual energy
consumption depends on conditions of
use and the location of the appliance
Energy consumption 198
kWh per year
Energy consumption 140
kWh per year
NET VOLUME 134 L 56 L
ADJUSTABLE TEMPERATURES 5 – 10°C / 10 – 18°C 5 - 18°C
NO FROST Automatic defrost
CLIMATE CLASS
Climate class: N
This appliance is designed to be used at an ambient
temperature of between 16°C (lowest) and 32°C
(highest).
ACOUSTIC EMISSIONS IN AIR IN
dB(A) RE 1 pW
45 dB(A) 43 Db(A)
INSTALLATION TYPE Free-standing and built-under installation
This appliance is intended exclusively for the storage of wine.
Wine Corner Ltd – Unit 4 Brunel Close,Harworth,Doncaster,DN11 8QA – [e-mail] –
www.winecorner.co.uk
