Laird Sentrius RG1 Series User manual

A
Quick Start Guide
Sentrius RG1xx
Version 2.1

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
2
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
REVISION HISTORY
Version
Date
Notes
Approver
1.0
20 July 2017
Initial Release
Jonathan Kaye
1.1
28 July 2017
Minor fixes
Dave Drogowski
1.2
3 Aug 2017
Clarified web interface URL in
section 4: Log into the
Gateway. Identified separate
mDNS address.
Shewan Yitayew
2.0
29 Nov 2017
Update info for compatibility
with GA2 (93.7.2.x) firmware.
Ryan Erickson
2.1
19 April 2018
Minor typo correction
Shewan Yitayew

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
3
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
CONTENTS
1Overview............................................................................................................................................................ 4
2About the Gateway............................................................................................................................................ 4
2.1 Product Overview ...................................................................................................................................... 4
3Connect the Hardware ...................................................................................................................................... 5
3.1 Connect the Gateway ................................................................................................................................ 5
3.1.1 Antenna Configuration ...................................................................................................................... 6
3.1.2 WiFi Quick Config............................................................................................................................... 6
4Log into the Gateway ........................................................................................................................................ 7
5Connecting the Gateway to the Internet .......................................................................................................... 8
5.1 Setting Up Ethernet ................................................................................................................................... 8
5.2 Setting Up Wi-Fi......................................................................................................................................... 8
6LoRa Packet Forwarding Set Up ...................................................................................................................... 10
7Configuration with The Things Network ......................................................................................................... 11
7.1 Set up your account with The Things Network ....................................................................................... 11
7.2 Create an Application with TTN............................................................................................................... 16
7.3 Register your RG1xx Gateway with TTN.................................................................................................. 17
8Sending Data to the Cloud –Setup.................................................................................................................. 20
9View DVK-RM1xx Data in the Cloud ................................................................................................................ 26

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
4
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
1OVERVIEW
This quick start guide describes how to configure the Sentrius gateway to forward LoRaWAN data to a cloud
platform. The steps listed in this guide use the RG191 (US version) gateway and an RM191 (US version) module.
The steps for using an RG186 and RM186 are similar.
Note: This guide uses the The Things Network (TTN) to show how to register your Gateway and visualize
the incoming data on a Network server. If you are working with Stream IOT-X or LORIOT.io server, a
similar guide will be available through their page to help you configure your gateway.
For more detailed information on how to use all the features of the Sentrius gateway, please see the Sentrius
RG1xx User Manual, available from documentation tab at: www.lairdtech.com/products/rg1xx-lora-gateway.
2ABOUT THE GATEWAY
2.1 Product Overview
The Sentrius™ RG1xx LoRa-Enabled Gateway from Laird is the ultimate in
secure, scalable, robust LoRa solutions for end-to-end control of your private
LoRaWAN network. Leveraging Laird’s field-proven and reliable 50 Series
“Wireless Bridge” certified module, it also offers enterprise dual-band Wi-Fi,
BT v4.0 (BLE and Classic) and wired Ethernet for complete design freedom.
Based on the Semtech SX1301/SX1257 chipset designs, it offers a LoRa range
up to 10 miles and pre-loaded LoRa Packet Forwarder software, perfect for
highly scalable, flexible IoT networks. The Sentrius RG1xx Gateway works
with Laird’s Sentrius RM1xx Series LoRa+BLE certified modules for simple
out-of-the-box integration and is compatible with 3rd party Cloud and LoRa
partners, as well as any LoRaWAN certified client devices.

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
5
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]

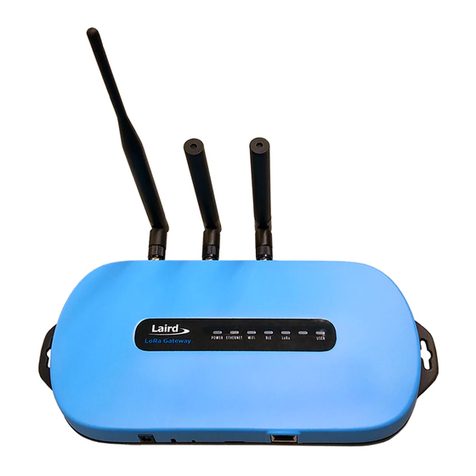

Figure 1: Top of the Sentrius™ RG1xx gateway
1. LoRa and Wi-Fi antennas
2. LEDs
3. Fixing holes
4. User button
Figure 2: Back panel of the Sentrius™ RG1xx gateway
1. DC power input
2. User button
3. Reset button
4. SD card slot
5. Ethernet connector
3CONNECT THE HARDWARE
3.1 Connect the Gateway
To use the gateway, you must power up the gateway and access the web interface via the Ethernet port. To do
this, complete the following steps:
1. Follow the label on the box and connect the three antennas. Refer to Antenna Configuration for additional
information.
2. Connect the power supply (see #2 in Figure 3).
3. Connect the gateway to your router (#3 in Figure 3) using the Ethernet cable (#1 in Figure 3).
Figure 3: Connecting the gateway
1
2
3

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
6
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
3.1.1 Antenna Configuration
To configure the antenna properly, complete the following steps:
1. Attach the two shorter antennas to the 2.4/5.5 GHz (Wi-Fi) ports.
2. Attach the third and longer antenna to the 868 MHz/900 MHz (LoRa) port.
3.1.2 WiFi Quick Config
The gateway includes a mode to allow you to configure without ethernet access, in the case that you wish to
join a wireless network.
Apply power to the gateway and allow to start, then perform the following:
1. Depress and hold the user button (see #2 in Figure 2) for 7 seconds.
2. From a wirelessly enabled device perform a scan.
3. Connect to the access point rg1xx29378B, where “29378B” are the last 6 digits of the Ethernet MAC
address found on the label on the bottom of the gateway (Figure 4).
The network is secured with WPA2 with a password that is the same as the SSID. It is recommended
that the default password is changed for security reasons. The password can be changed on the Wi-Fi ->
Advanced web page.
Upon logout or client disassociation, WiFi Quick Config will shut down and normal operation will resume.

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
7
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
4LOG INTO THE GATEWAY
To log into the gateway web interface, follow these steps:
1. Determine the last three bytes of your gateway’s Ethernet MAC address. This can be found on the label on
the bottom of the gateway; the last three bytes are highlighted (Figure 4).
Figure 4: Bottom label –last three bytes of the Ethernet MAC address highlighted
2. Enter the URL into the web browser to access the web interface. For example, for the gateway used in this
guide, the URL is https://rg1xx29378B.local., where “29378B” are the last 6 digits of the Ethernet MAC
address. In Wi-Fi quick config mode, the gateway can also be accessed via the IP address at
https://192.168.1.1
3. Accept the self-signed security certificate in the browser.
4. Click Advanced (Figure 5).
Figure 5: Web interface –first screen
5. Click Proceed (Figure 6).

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
8
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
Figure 6: Web interface –second screen
6. Log on using the following default credentials (Figure 7):
Username: sentrius
Password: RG1xx
Figure 7: Gateway interface login screen
5CONNECTING THE GATEWAY TO THE INTERNET
5.1 Setting Up Ethernet
By default, the Ethernet port is set up for DHCP addressing. Connect the Ethernet cable to a network with
internet access. If more advanced Ethernet configuration is needed, please see the Sentrius RG1xx User Manual
in the documentation tab of the RG1xx product page at lairdtech.com:
www.lairdtech.com/products/rg1xx-lora-gateway .
5.2 Setting Up Wi-Fi
By default, the Wi-Fi in the gateway is not configured to connect to a Wi-Fi network. You must access the web
interface on the gateway via the Ethernet interface to setup the Wi-Fi connection.
To set up the Wi-Fi, follow these steps:
1. Once logged into the web interface, navigate to the Wi-Fi page (Figure 8).

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
9
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
Figure 8: Wi-Fi page
2. To connect to a Wi-Fi network, click Scan to scan for nearby Wi-Fi networks (Figure 9). Scanning continues
until you click Stop or select one of the scan results in the list.
Figure 9: Wi-Fi scan results
3. Click on the applicable scan result.
4. Enter the information for the Wi-Fi network (Figure 10).
Figure 10: Wi-Fi profile dialog
5. Click Connect.

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
10
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
6LORA PACKET FORWARDING SET UP
To set up LoRa packet forwarding on the gateway, follow these steps:
1. Click the LoRa tab in the main menu (Figure 11).
2. In the dropdown labeled Select Preset, select the preset for The Things Network Legacy (TTN).
3. Click Apply.
Figure 11: LoRa page –TTN preset
Note: In addition to the TTN, Laird currently supports presets for other LoRa network servers.
Figure 12: LoRa presets
Note: If operating with a network server that is not available as a preset, you may also manually
configure the forwarder in the Forwarder page, available in the left menu. More information on
this is available in the RG1xx User Guide, available in the documentation tab of the RG1xx product
page at lairdtech.com: www.lairdtech.com/products/rg1xx-lora-gateway

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
11
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
The network server must be compatible with the packet forwarder being used on the gateway. The packet
forwarder can be custom configured on the forwarder, radios, and advanced pages.
If the LoRa network operated on a different channel plan it is also necessary to program this into the gateway on
the radios page.
7CONFIGURATION WITH THE THINGS NETWORK
7.1 Set up your account with The Things Network
To set up your account with The Things Network, follow these steps:
1. Go to https://www.thethingsnetwork.org/.
2. Create an account or log in to your existing account (Figure 13).
Figure 13: TTN login page
3. Click Console.

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
12
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
4. Register your gateway:
a. From the console screen, click Gateways (Figure 14).
Figure 14: TTN console screen
b. Click register gateway (Figure 15).
Figure 15: Click register gateway.
c. Obtain the gateway ID from the Sentrius RG1xx web interface (Figure 16) or from the bottom label
(Figure 17) on the Gateway.

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
13
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
Figure 16: Gateway ID
Figure 17: Gateway ID on bottom label
d. Fill in the information to register the gateway as shown in Figure 20.
If the gateway is set to use “The Things Network Legacy” preset, be sure to check I’m using the legacy
packet forwarder. Otherwise, the gateway can use the “The Things Network” preset and the
checkbox should be left unchecked.

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
14
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
Figure 18: TTN Legacy Preset
Figure 19: TTN Preset

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
15
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
Figure 20: Gateway registration
e. Click Register Gateway.
Note: If using an RG186 gateway, be sure to select an EU router.

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
16
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
Once the gateway is registered, and if the gateway is communicating to The Things network, the
status should display as connected (Figure 21).
Figure 21: Registered gateway
7.2 Create an Application with TTN
To create an application that can receive data from your LoRa-enabled gateway, complete the following
steps:
1. At The Things Network’s website, click Applications in the top right of the menu.
2. Click Add Application
3. Complete the field as shown in Figure 22. Note that application ID should be in lower case and used to
uniquely identify your application on the network.
4. Once you’ve created your application, click Add application to save it.

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
17
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
Figure 22: Add application screen
Note: If using an RG186 gateway, be sure to select an EU Handler registration.
7.3 Register your end-device with TTN
To register your end-device as the device that will send data to TTN, follow these steps:
1. From the applications screen, select the application that you added in the previous section.
2. Click register device (Figure 23).

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
18
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
Figure 23: Application screen
3. Choose and enter a Device ID and an eight-byte Device EUI (Figure 24).

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
19
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
Figure 24: Enter a Device EUI
4. Click Register.
5. Make note of the Device EUI, Application EUI, and the App Key. These keys are needed later to set up
the DVK- RM1xx (Figure 25).
Figure 25: Device EUI, application EUI, and app keys

Sentrius RG1xx
Quick Start Guide
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/ramp
20
© Copyright 2017 Laird. All Rights Reserved
Americas: [phone]
Europe: [phone]
Hong Kong: [phone]
8SENDING DATA TO THE CLOUD –SETUP
To set up the DVK-RM1xx to send data to the cloud, follow these steps:
1. Connect the DVK-RM1xx to a PC via the USB connector on the board (Figure 26).
Figure 26: Connect the DVK-RM1xx to the PC
2. Download UwTerminalX (version 1.06) from the following site:
https://github.com/LairdCP/UwTerminalX/releases/tag/v1.06
3. Download RM1xx-defs.h and lora.app.us.sb (or lora.app.eu.sb) from https://github.com/LairdCP/RM1xx-
Applications. Place them in the same directory on your PC.
4. Use UwTerminalX to configure the RM1xx by doing the following:
a. Open UwTerminalX.
b. Click Accept (Figure 27).
Figure 27: UwTerminalX
