PRESSURE WASHER OPERATOR’S MANUAL
INTRODUCTION & IMPORTANT SAFETY INFORMATION
Thank you for purchasing this Pressure Washer.
We reserve the right to make changes at any time
without incurring any obligation.
Owner/User Responsibility:
The owner and/or user must have an understanding of
the manufacturer’s operating instructions and warnings
before using this pressure washer.Warning information
should be emphasized and understood. If the operator
is not fluent in English, the manufacturer’s instructions
and warnings shall be read to and discussed with
the operator in the operator’s native language by the
purchaser/owner, making sure that the operator com-
prehends its contents.
Owner and/or user must study and maintain for future
reference the manufacturers’ instructions.
The operator must know how to stop the machine
quickly and understand the operation of all controls.
Never permit anyone to operate the engine without
proper instructions.
This manual should be considered a permanent
part of the machine and should remain with it if
machine is resold.
When ordering parts, please specify model and
serial number. Use only identical replacement
parts.
This machine is to be used only by trained op-
erators.
IMPORTANT SAFETY
INFORMATION
READ OPERATOR’S
MANUAL THOROUGHLY
PRIOR TO USE.
WARNING: To reduce the risk of
injury, read operating instruc-
tions carefully before using.
1. Read the owner's manual
thoroughly. Failure to follow
instructions could cause mal-
function of the machine and
result in death, serious bodily
injury and/or property damage.
2. Know how to stop the machine and bleed pressure
quickly. Be thoroughly familiar with the controls.
3. Stay alert — watch what you are doing.
4. All installations must comply with local codes.
Contact your electrician, plumber, utility company
or the selling distributor for specific details.
WARNING
RISK OF
ASPHYXIATION. USE THIS
PRODUCT ONLY IN A WELL
VENTILATED AREA.
WARNING: Risk of asphyxiation.
Use this product only in a well
ventilated area.
5. Avoid installing machines in
small areas or near exhaust
fans. Exhaust contains poi-
sonous carbon monoxide
gas; exposure may cause loss
of consciousness and may
lead to death. It also contains
chemicals known, in certain quantities, to cause
cancer, birth defects or other reproductive harm.
WARNING
RISK OF FIRE.
DO NOT ADD FUEL
WHEN OPERATING
MACHINE.
WARNING: Risk of fire. Do not
add fuel when the product is
operating.
WARNING: Risk of explosion —
do not spray flammable liquids.
6. Do not place machine near
flammable objects as the en-
gine is hot.
WARNING:This product contains
chemicals known to the state of California to cause
cancer and birth defects or other reproductive harm.
Operation of this equipment may create sparks that
can start fires around dry vegetation. A spark arres-
tor may be required. The operator should contact:
Local fire agencies for laws or regulations relating
to fire prevention requirements.
7. Allow engine to cool for 1-2 minutes before refu-
eling. If any fuel is spilled, make sure the area is
dry before testing the spark plug or starting the
engine. (Fire and/or explosion may occur if this is
not done.)
Gasoline engines on mobile or portable equipment
shall be refueled:
a. outdoors;
b. with the engine on the equipment stopped;
c. with no source of ignition within 10 feet of
the dispensing point; and
d. with an allowance made for expansion of the
fuel should the equipment be exposed to a
higher ambient temperature.
In an overfilling situation, additional precautions are
necessary to ensure that the situation is handled
in a safe manner.
WARNING: Risk of injury. Disconnect battery
ground terminal before servicing.
8. Transport/repair with fuel tank EMPTY or with fuel
shut-off valve OFF.

8.913-995.0 • Landa PC • Rev. 03/11
OPERATOR’S MANUAL PRESSURE WASHER
4
IMPORTANT SAFETY INFORMATION
WARNING
KEEP WATER
SPRAY AWAY FROM
ELECTRICAL WIRING.
WARNING: Keep wand, hose, and
water spray away from electric
wiring or fatal electric shock may
result.
9. Do not spray water on
or near electrical components.
RISK OF EXPLOSION:
DO NOT SPRAY
FLAMMABLE LIQUIDS.
WARNING
WARNING: Flammable liquids
can create fumes which can ig-
nite, causing property damage
or severe injury.
WARNING: Risk of explosion —
Do not spray flammable liquids.
10. Keep operating area clear of
all persons.
WARNING
EAR PROTECTION
MUST BE WORN
WARNING: This machine ex-
ceeds 85 db appropriate ear
protection must be worn.
WARNING
USE PROTECTIVE
EYE WEAR
AND CLOTHING
WHEN OPERATING
THIS EQUIPMENT.
WARNING: High pressure spray
can cause paint chips or other
particles to become airborne
and fly at high speeds. To avoid
personal injury, eye, hand and
foot safety devices must be
worn.
11. Eye, hand, and foot pro-
tection must be worn when
using this equipment.
TRIGGER GUN KICKS
BACK - HOLD WITH
BOTH HANDS
WARNING
WARNING: Grip cleaning wand
securely with both hands before
starting. Failure to do this could
result in injury from a whipping
wand.
12. To reduce the risk of injury,
close supervision is necessary
when a machine is used near
children. Do not allow children
to operate the pressure washer.
This machine must be attended during operation.
RISK OF INJECTION
OR SEVERE INJURY
TO PERSONS. KEEP
CLEAR OF NOZZLE.
WARNING
WARNING: High pressure devel-
oped by these machines will
cause personal injury or equip-
ment damage. Keep clear of
nozzle. Use caution when oper-
ating. Do not direct discharge
stream at people, or severe in-
jury or death will result.
13. Never make adjustments on
machine while in operation.
14. Be certain all quick coupler fittings are secured
before using pressure washer.
WARNING
PROTECT FROM
FREEZING
WARNING: Protect machine from
freezing.
15. To keep machine in best
operating conditions, it is
important you protect machine
from freezing.Failure to protect
machine from freezing could
cause malfunction of the
machine and result in death,
serious bodily injury, and/or property damage. Fol-
low storage instructions specified in this manual.
16. The best insurance against an accident is precau-
tion and knowledge of the machine.
WARNING
RISK OF INJURY
FROM FALLS WHEN
USING LADDER.
WARNING: Be extremely careful
when using a ladder, scaffolding
or any other relatively unstable
location. The cleaning area
should have adequate slopes
and drainage to reduce the pos-
sibility of a fall due to slippery
surfaces.
17. Do not overreach or stand on unstable support.
Keep good footing and balance at all times.
18. Do not operate this machine when fatigued or under
the influence of alcohol, prescription medications,
or drugs.
19. Inlet water must be clean fresh water and no hotter
then 90°F.
20. Manufacturer will not be liable for any changes
made to our standard machines or any components
not purchased from us.
21. Do not allow acids, caustic or abrasive fluids to pass
through the pump.
22. Never run pump dry or leave spray gun closed
longer than 1-2 minutes.
Follow the maintenance instructions speci-
fied in the manual.

8.913-995.0 • Landa PC • Rev. 03/11
5
PRESSURE WASHER OPERATOR’S MANUAL
Pump — Develops high pressure.
Starter Grip— Used for starting the engine manu-
ally.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Detergent Injector — Allows you to siphon and mix
detergents.
Wand — Must be connected to the spray gun.
High Pressure Hose — Connect one end to water
pump discharge nipple and the other end to spray
gun.
Pump Protector — Cycles fresh cool water through
pump when recirculating water reaches 140°F.
Note:If trigger on spray gun is released for more
than 1-2 minutes, water will leak from valve.Warm
water will discharge from pump protector onto
floor. This system prevents internal pump dam-
age.

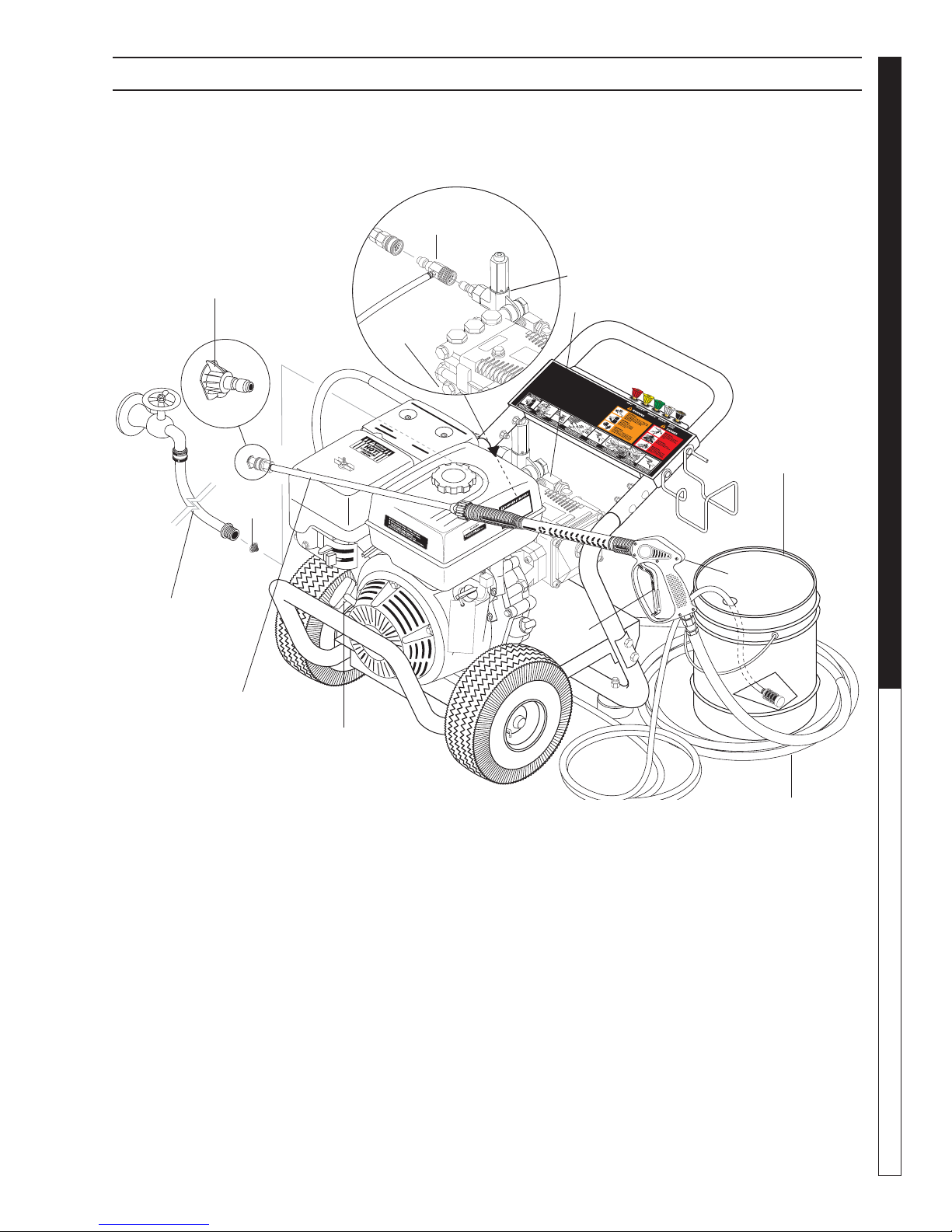

COMPONENT IDENTIFICATION
Starter Grip
Trigger
Spray Gun
High Pressure
Hose
Pump
Straight
Through Wand
Pressure
Nozzle
Garden Hose
(not included)
Inlet
Screen
Pump
Protector
Unloader
Detergent
Bucket
(not included)
Detergent
Injector

8.913-995.0 • Landa PC • Rev. 03/11
OPERATOR’S MANUAL PRESSURE WASHER
6

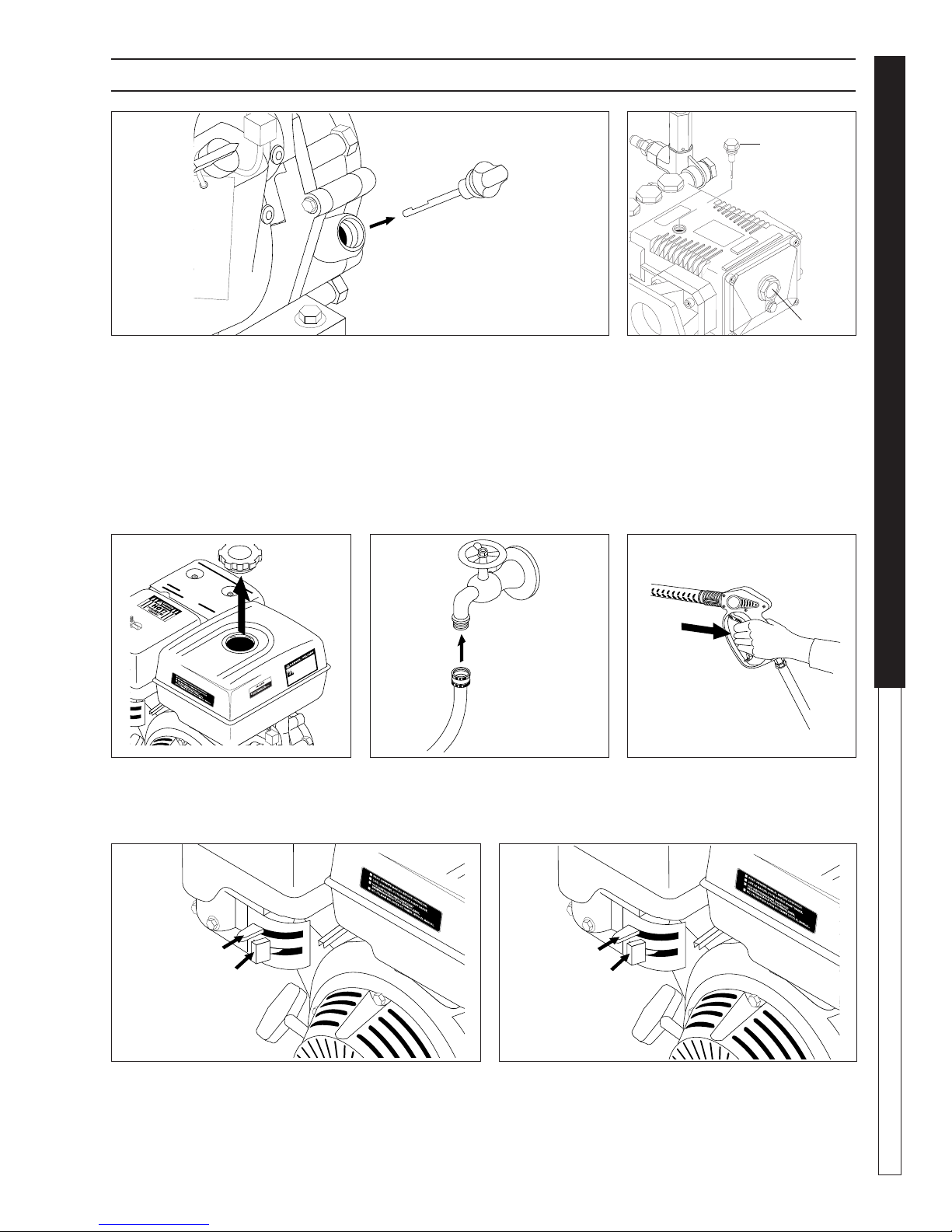

STEP 1: Attach the handle to the
frame of the pressure washer. Note:
It may be necessary to move the
handle supports from side to side
in order to align the handle so it will
slide over the frame supports.
STEP 2: Insert the carriage bolt
through the holes from the outside
of the unit and attach a nut from
the inside of the machine. Tighten
nuts.
STEP 3: Attach the spray gun/hose
storage handle and bracket to
handle. Tighten nuts.
STEP 4: Attach the high pressure
hose to the spray gun using teflon
tape on hose threads.
STEP 7: Release the coupler collar
and push the nozzle until the collar
clicks. Pull the nozzle to make sure
it is seated properly.
STEP 8: Connect the high pres-
sure hose to the discharge nipple.
Push coupler collar forward until
secure.
STEP 5: Attach nozzle extension
to spray gun/wand. Tighten both
by hand.
STEP 6: Pull spring-loaded collar
of the wand coupler back to insert
your choice of pressure nozzle.
STEP 9: Connect garden hose to
the cold water source.
ASSEMBLY INSTRUCTIONS
STEP 10: Check inlets filters, remove debris,
then connect the garden hose to pump water
inlet. CAUTION: Do not run the pump without
water or pump damage will result.
Alignment
Holes
Handle
Frame
Assy.
Carriage
Bolt
Nut
Studs
Nut
Hose/Gun
Storage
Bracket
Safety
Latch
Spray
Gun
High
Pressure Hose
Nozzle Extension
Spray
Gun/Wand
Wand
Coupler
Pressure
Nozzle
Pressure
Nozzle
Wand
Coupler
Coupler
Collar Discharge
Nipple
High
Pressure
Hose
Cold
Water
Source
Garden
Hose
Pump
Water Inlet
Garden
Hose
Coupler
Collar
Bolts

8.913-995.0 • Landa PC • Rev. 03/11
7
PRESSURE WASHER
OPERATOR’S MANUAL
STEP 1: Check engine oil level. Oil level should be level with the bottom
of the oil filler neck. Be sure the machine is level when checking the oil
level. (Refer to the engine's operating manual included with machine.)
We recommend that the oil be changed after the first 5 hours of use, then
once every 50 hours. Note: Improper oil levels will cause low oil sensor
to shut off engine. IMPORTANT! Do not run engine with high or low
oil levels as this will cause engine damage.
STEP 2: Remove shipping cap
and install oil dipstick. Check
pump oil level by using dipstick or
observe oil level in oil window (if
equipped). Use 40 wt. non deter-
gent oil. The Legacy Axial Pump
does not require maintenance. At-
temping to check oil on this pump
may damage it and will void your
pump warranty.
STEP 4: Connect garden hose
to the cold water source and turn
water on completely. Never use
hot water.
STEP 6: Rotate the fuel shut-off valve to the "On"
position. Slide the fuel valve lever to the "ON" position.
When the engine is not in use, leave the fuel valve in
the "OFF" position.
STEP 5: Trigger the spray gun to
eliminate trapped air then wait for
a steady flow of water to emerge
from the spray nozzle.
OPERATING INSTRUCTIONS
STEP 3: Fill gas tank with unleaded
gasoline. Do not use leaded gaso-
line.
STEP 7: Move the choke lever to the "Choke" posi-
tion (on a warm engine, leave the choke lever in the
run position). Move the choke lever to the "Closed"
position. To restart a warm engine, leave the choke
lever in the "Open" position.
Oil Dipstick
Dipstick
Oil Window
Gas
Tank
Cold
Water
Source
Garden
Hose
Choke
Lever
Fuel
Valve
Choke
Fuel
Valve

8.913-995.0 • Landa PC • Rev. 03/11
OPERATOR’S MANUAL PRESSURE WASHER
8

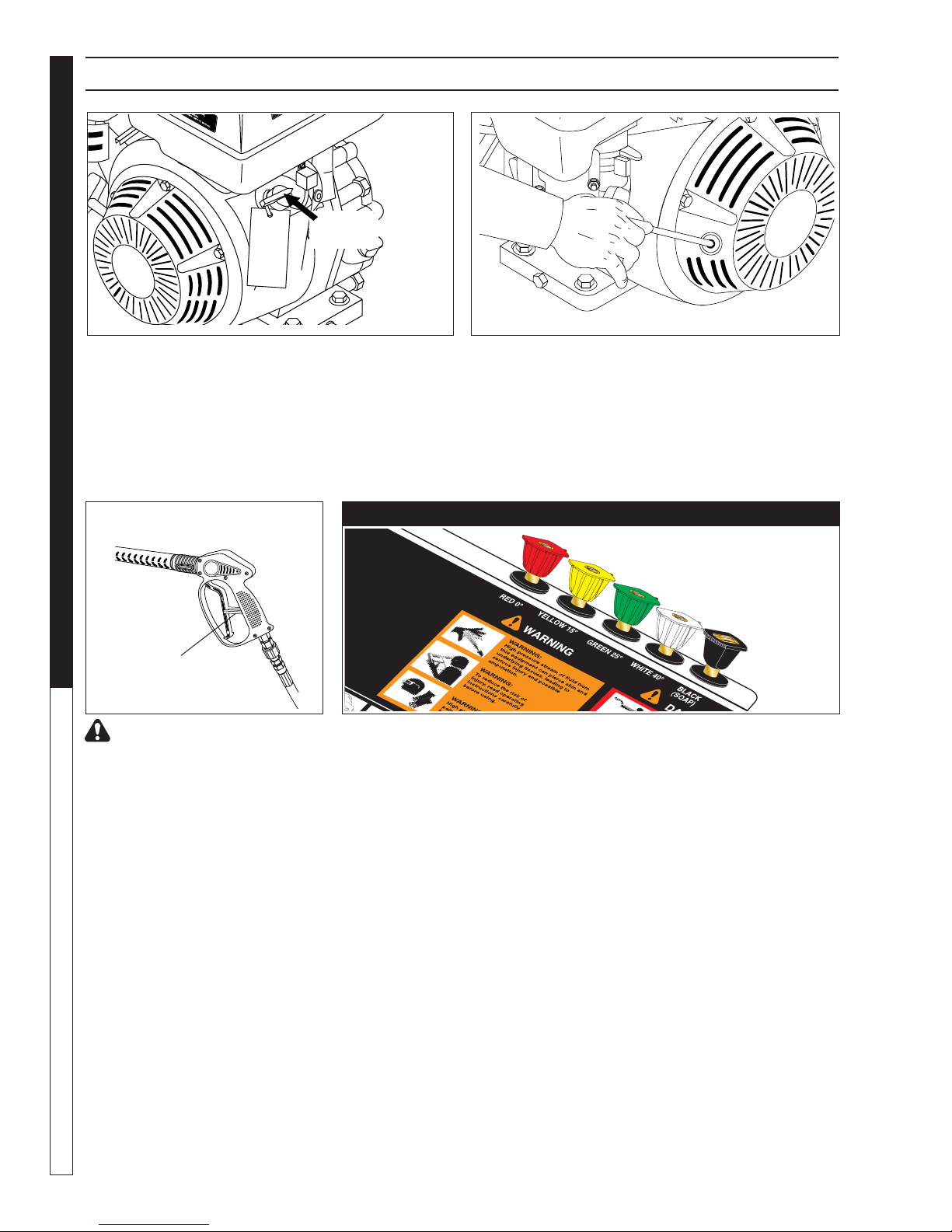

STEP 8: Turn the engine switch to "On" position.
On Briggs engines, move the throttle lever to "Fast"
position, shown on the engine as a rabbit.
STEP 9: Pull the starter grip. If the engine fails to start
after 2 pulls, squeeze the trigger gun to release pres-
sure and repeat step. Return starter gently. After the
engine warms up enough to run smoothly, move choke
to run position and throttle to fast position.
CAUTION: Small engines may kick back. Do not
hold pull starter grip tightly in hand.
OPERATING INSTRUCTIONS (CON'T)
WARNING! Never replace
nozzles without engaging the
safety latch on the spray gun
trigger.
The five color-coded quick connect nozzles provide a wide array of
spray widths from 0° to 40° and are easily accessible when placed in the
convenient rubber nozzle holder, which is provided on the front of the
machine.
NOTE: For a more gentle rinse, select the white 40° or green 25° nozzle.
To scour the surface, select the yellow 15° or red 0° nozzle. To apply de-
tergent select the black nozzle.
NOZZLES
Safety
Latch
On-Off
Switch

8.913-995.0 • Landa PC • Rev. 03/11
9
PRESSURE WASHER OPERATOR’S MANUAL
WARNING: Some detergents
may be harmful if inhaled or
ingested, causing severe nau-
sea, fainting or poisoning. The
harmful elements may cause
property damage or severe
injury.
STEP 1: Connect detergent injector to discharge nipple
on machine. Connect high pressure hose to injector
with quick coupler. (Check to make sure locking coupler
sleeves are in proper position before applying water
pressure).
STEP 2: Use detergent designed
specifically for pressure washers.
Household detergents could dam-
age the pump. Prepare detergent
solution as required by manufac-
turer. Fill a container with pressure
washer detergent. Place filter end of
detergent suction tube into detergent
container.
STEP 3: With safety latch on spray
gun engaged, secure black detergent
nozzle into quick coupler. NOTE:
Detergent cannot be applied using
red, yellow, green or white nozzles.
STEP 4: With the engine running,
pull trigger to operate machine. Liquid detergent is
drawn into the machine and mixed with water. Apply
detergent to work area. Do not allow detergent to dry
on surface.
IMPORTANT: You must flush the detergent injec-
tion system after each use by placing the suction
tubeinto a bucket of clean water, then run the pres-
sure washer in low pressure for 1-2 minutes.
THERMAL PUMP PROTECTION
If you run the engine on your pressure washer for 1-2
minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach high tempera-
tures. When the water reaches this temperature, the
pump protector engages and cools the pump by dis-
charging the warm water onto the ground.This thermal
device prevents internal damage to the pump.
CLEANING TIPS
Pre-rinse cleaning surface with fresh water. Place de-
tergent suction tube directly into cleaning solution and
apply to surface at low pressure (for best results, limit
your work area to sections approximately 6 feet square
and always apply detergent from bottom to top). Allow
detergent to remain on surface 1-3 minutes. Do not al-
low detergent to dry on surface. If surface appears to
be drying, simply wet down surface with fresh water.
If needed, use brush to remove stubborn dirt. Rinse
at high pressure from top to bottom in an even sweep-
ing motion keeping the spray nozzle approximately
1 foot from cleaning surface. Use overlapping strokes
as you clean and rinse any surface. For best surface
cleaning action spray at a slight angle.
Recommendations:
• Before cleaning any surface, an inconspicuous
area should be cleaned to test spray pattern and
distance for maximum cleaning results.
• If painted surfaces are peeling or chipping, use
extreme caution as pressure washer may remove
the loose paint from the surface.
• Keep the spray nozzle a safe distance from the
surface you plan to clean. High pressure wash a
small area, then check the surface for damage. If
no damage is found, continue to pressure wash-
ing.
CAUTION - Never use:
• Bleach, chlorine products and other corrosive
chemicals
• Liquids containing solvents (i.e., paint thinner,
gasoline, oils)
• Tri-sodium phosphate products
• Ammonia products
• Acid-based products
These chemicals will harm the machine and will dam-
age the surface being cleaned.
RINSING
It will take a few seconds for the detergent to clear.
Apply safety latch to spray gun. Remove black soap
nozzle from the quick coupler. Select and install the
desired high pressure nozzle. NOTE: You can also stop
detergent from flowing by simply removing detergent
siphon tube from bottle.
WARNING
DETERGENT AND GENERAL CLEANING TECHNIQUES
Soap Nozzle
Detergent
Injector
Discharge
Nipple
Strainer
Quick
Coupler
High
Pressure
Hose

8.913-995.0 • Landa PC • Rev. 03/11
OPERATOR’S MANUAL PRESSURE WASHER
10

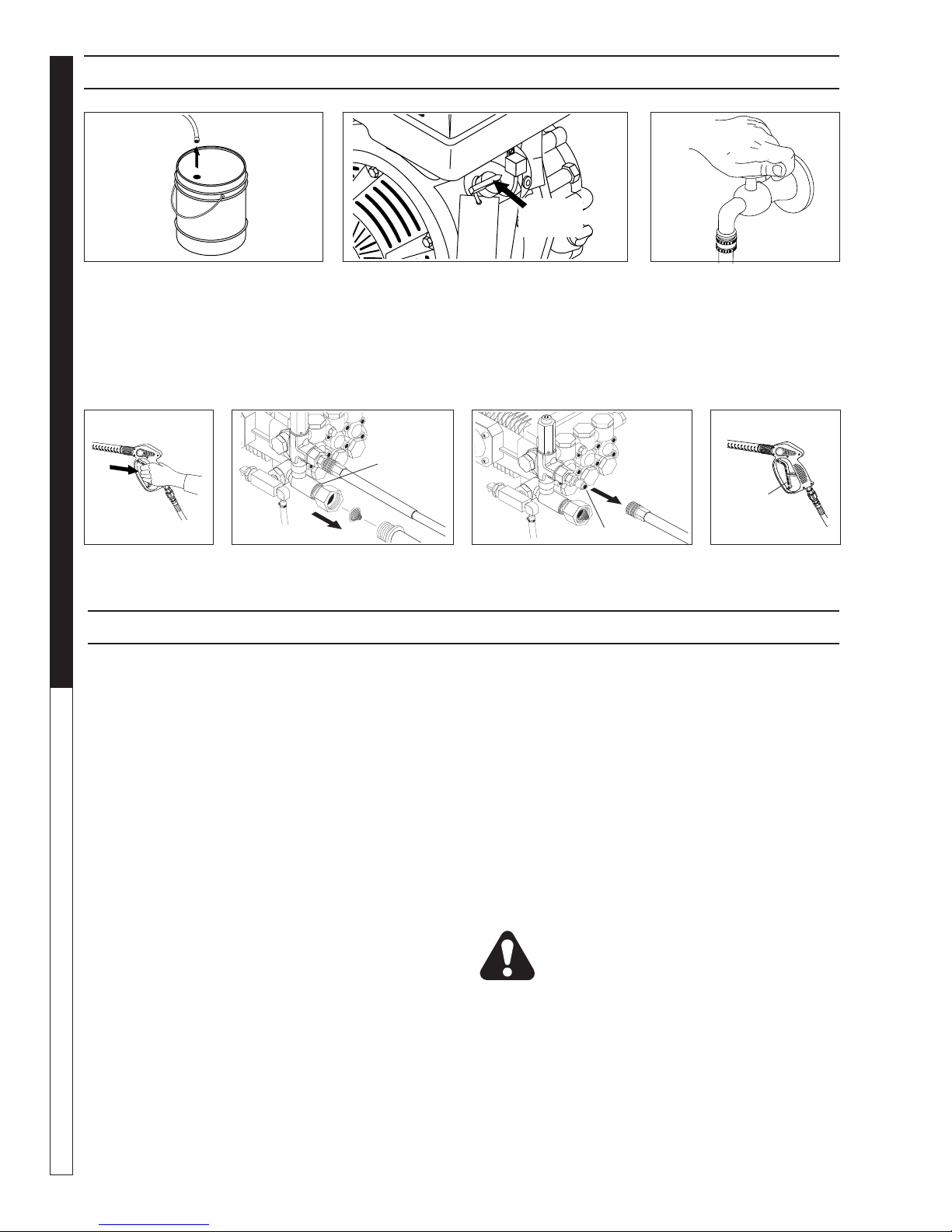

SHUTTING DOWN AND CLEAN-UP
STEP 1: Remove detergent suc-
tion tube from container and insert
into one gallon of fresh water. Slide
nozzle forward for low pressure or
to connect black detergent nozzle.
Pull trigger on spray gun and siphon
water for one minute.
STEP 2: Turn off the engine. STEP 3: Turn off water
supply.
STEP 5: Disconnect the garden
hose from the water inlet on the
machine.
STEP 6: Disconnect the high
pressure hose from discharge
nipple.
STEP 7: Engage
the spray gun safe-
ty lock.
STEP 4: Press trig-
ger to release water
pressure.
CAUTION: Always store your pressure washer in a
location where the temperature will not fall below
32°F (0°C).The pump in this machine is susceptible
to permanent damage if frozen. FREEZE DAMAGE
IS NOT COVERED BY WARRANTY.
1. Stop the pressure washer, squeeze spray gun trig-
ger to release pressure.
2. Detach water supply hose and high pressure hose.
3. Turn on the machine for a few seconds, until re-
maining water exits. Turn engine off immediately.
4. Drain the gas and oil from the engine.
5. Do not allow high pressure hose to become kinked.
6. Store the machine and accessories in a room which
does not reach freezing temperatures.
CAUTION: Failure to follow the above directions will
result in damage to your pressure washer.
When the pressure washer is not being operated or is
being stored for more than one month, follow these
instructions:
1. Replenish engine oil to upper level.
2. Drain gasoline from fuel tank, fuel line, fuel valve
and carburetor.
3. Pour about one teaspoon of engine oil through
the spark plug hole, pull the starter grip several
times and replace the plug. Then pull the starter
grip slowly until you feel increased pressure which
indicates the piston is on its compression stroke and
leave it in that position. This closes both the intake
and exhaust valves to prevent rusting of cylinder.
4. Cover pressure washer and store in a clean, dry
place that is well ventilated away from open flame
or sparks. NOTE: The use of a fuel additive, such as
STA-BIL®, or an equivalent, will minimize the formula-
tion of fuel deposits during shortage. Such additives
may be added to the gasoline in the fuel tank of the
engine, or to gasoline in a storage container.
After Extended Storage
CAUTION: Prior to restarting, thaw out any
possible ice from pressure washer hoses,
spray gun or wand.
Engine Maintenance
During the winter months, rare atmospheric conditions
may develop which will cause an icing condition in the
carburetor. If this develops, the engine may run rough,
lose power and may stall.This temporary condition can
be overcome by deflecting some of the hot air from the
engine over the carburetor area. NOTE: Refer to the
engine manufacturer's manual for service and mainte-
nance of the engine.
STORAGE
On-Off
Switch
Pump
Water Inlet
Discharge Nipple
Safety
Latch

8.913-995.0 • Landa PC • Rev. 03/11
11
PRESSURE WASHER Troubleshooting Guide
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
LOW OPERATING
PRESSURE
Insufficient water supply. Closed
faucet. Inlet hose kinked
Use larger garden hose; clean inlet water
screen. Open faucet.
Clogged inlet hose strainer Check plumbing system for leaks. Retape
leaks with teflon tape.
Faulty or mis-adjusted unloader
valve
Adjust unloader for proper pressure. Install
repair kit when needed. Call local distributor.
Worn packing in pump Call Dealer Customer Support.
Machine has been stored in freez-
ing temperatures
Thaw out machine completely, including
hose, spray gun and wand.
Slow engine RPM Call local distributor.
FLUCTUATING
PRESSURE
Worn or dirty pump valves Call local distributor.
Nozzle is obstructed Blow out or remove debris with fine needle.
Pump sucking air, inlet hose
leaking
Check that all hoses and fittings are airtight.
Turn off machine and trigger spray gun until
a steady flow of water emerges through the
nozzle.
Insufficient water supply Turn water on full force. Check garden hose
for kinks, leaks or blockage.
PRESSURE LOW
AFTER PERIOD OF
NORMAL USE
Nozzle worn Replace nozzle.
Unloader valve worn Replace unloader valve (All models except
3-23326).
ENGINE WILL NOT
START OR STOPS
WHILE OPERATING
Low oil shutdown Fill engine with oil.
Out of gas Fill fuel tank.
Water in gasoline Drain gas tank; fill with clean fuel.
ENGINE IS
OVERLOADED
Nozzle partially blocked Clean nozzle.
Excessive pressure from high
engine RPM
Adjust engine throttle to lower RPM.
WATER OR OIL
LEAKING FROM
BOTTOM OF PUMP
A small amount of leaking is
normal
If excessive leaking occurs, Call local
distributor.
PRESENCE OF
WATER IN PUMP OIL
(All models except
23326).
Water sprayed at machine Change oil. Direct spray away from machine.
High humidity in air Check and change oil twice as often.
Piston packing worn. Oil seal worn. Call local distributor.

8.913-995.0 • Landa PC • Rev. 03/11
PRESSURE WASHER Troubleshooting Guide
12
PROBLEM POSSIBLE CAUSE SOLUTION
ENGINE OPERATES
FOR 15 MINUTES
THEN STOPS
Not enough gas or engine oil Fill tank with gas. Check oil level.
Vapor lock developed by heat of day Keep gas tank full to avoid vapor locking.
Obstruction in fuel filter Clean or replace fuel filter.
ENGINE LACKS
POWER
Dirty air filter Replace air filter.
ENGINE FALTERS Choke is opened too soon Move choke to halfway position until engine
runs smoothly.
WATER DRIPPING
FROM UNDER PUMP
(All models except
3-23326).
Piston packing worn Call local distributor.
O-Ring plunger retainer worn Call local distributor.
Cracked piston Call local distributor.
OIL DRIPPING (All
models except
3-23326).
Oil seal worn or damaged Call local distributor.
WATER LEAKING
FROM PUMP
PROTECTOR
Spray gun closed with machine
running 5 minutes or longer
Open spray gun or turn off machine.
Excess water supply pressure Place a pressure regulator at end of 50'
garden hose.
NO DETERGENT Detergent suction tube not properly
connected to machine
Check connection.
Detergent is too thick Dilute detergent. For best results, use
manufacturers detergent.
Detergent filter valve is at lowest
setting
Set detergent filter valve to a higher setting.
Filter on detergent suction tube is
clogged
Run warm water through filter to remove
debris.
Damaged or clogged detergent suc-
tion tube
Remove obstruction or replace detergent
suction tube.
A high pressure nozzle is attached. Replace with black detergent nozzle.
Discharge nozzle is obstructed Blow out or remove debris with fine needle.
GARDEN HOSE
CONNECTION
LEAKS
Loose fittings Tighten fittings.
Missing/worn rubber washer Insert new washer.
SPRAY WAND
LEAKS
Spray wand not properly attached Slide the spray wand into the gun. Turn the
wand collar clockwise onto the spray gun
threads until tight.
Broken o-ring Call local distributor and order an o-ring.
PUMP IS NOISY Pump is sucking air Check that hoses and fittings are air tight.
Turn off machine and purge pump by
squeezing trigger gun until a steady flow of
water emerges through nozzle.
TROUBLESHOOTING

8.913-995.0 • Landa PC • Rev. 03/11
13
PRESSURE WASHER Troubleshooting Guide
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
MAINTENANCE SCHEDULE
Engine Oil
Inspect Daily
Change First month or 20 hours.
Every 100 hours or every 6 months after first month
Filter Every 50 hours
Air Cleaner/Filter Inspect Every 50 hours
Clean Monthly
Engine Fuel Filter 500 hours or 6 months
Spark Plug Maintenance 300 hours or annually
Clean Fuel Tank(s) Annually
Replace Fuel Lines Annually
Pump Oil (All models
except 23326)
Inspect Oil level daily
Change After first 50 hours, then every 500 hours or annually
Replace High Pressure Nozzle Every 6 months
Replace Quick Connects/O-Rings Annually/As needed
Clean Water Screen/Filter Weekly
Replace HP Hose Annually (if there are any signs of wear
PREVENTATIVE MAINTENANCE
This pressure washer was produced with the best available materials and quality craftsmanship. However, you
as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventa-
tive maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer
for maintenance. Regular preventative maintenance will add many hours to the life of your pressure washer.
Perform maintenance more often under severe conditions. Check pump oil and engine oil level before first use
of your new pressure washer.
OIL CHANGE RECORD
Check pump oil (all models except 3-23326) and engine oil level before first use of your new pressure
washer.

8.913-995.0 • Landa PC • Rev. 03/11
OPERATOR’S MANUAL PRESSURE WASHER
14
OILALERT
WHENOIL LEVEL LOW,
ENGINESTOPS IMMEDIATELY.
READOWNER'S MANUAL BEFORE OPERATION.
LIRELE MANUEL D'UTILISATEUR AVANTUSAGE.
VORINBETRIEBNAHME UNBEDINGT
BEDIENUNGSANLEITUNGDURSCHLESEN.
NOUTILIZAR SIN ANTES NO HABER LEIDO EL MANUAL.
CHAUD!
“Thisproduct contains chemicals known to the State of
Californiato cause cancer and birth defects or other
reproductiveharm. Operation of This Equipment May
CreateSparks That Can Start Fires Around Dry Vegetation.
ASpark Arrestor May be Required. TheOperator Should
ContactLocal Fire Agencies for Laws or Regulations
Relatingto Fire Prevention Requirements.
”
WARNING
8.917-015.0
39
EXPLODED VIEW
46
36
37 38
25
28
15
35
27
28
30
32
33
34
35
6
5
2
3
9
12
17
14
7
20
19
18
23
1
22
47
9
12
10
46
45
44
11 25
24
26
53
43
42
41 53
52
21
40
24
13
E-Z Start Valve for
3-30124, 3-35324
Models Only
29
29
31
29
51
49
20
48
48
44
63
5
4
2
Models 3-24324,
3-27324
54
4
24 41 13
56

8.913-995.0 • Landa PC • Rev. 03/11
15
PRESSURE WASHER OPERATOR’S MANUAL
EXPLODED VIEW PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 Engine, See Specifications Page
2 Pump, See Specifications Page
3 Unloader, See Specifications Page
4 9.804-025.0 Pump Protector, 1/4" 145°
(3-24324, 3-27324, 4-35324,) 1
8.707-256.0 Pump Protector, 1/2" PTP
(3-30124) 1
5 9.802-146.0 Swivel, 1/2" MP x 3/4" GHF
( 3-30124 3-24324,
4-35324, 3-27324) 1
6 9.802-171.0 Nipple, 3/8" x 3/8" MPT Male
( 4-35324, 3-27324,
3-24324, 3-30124, ) 1
7 9.802-254.0 Hose, 1/4" Push-on (E-Z-Start,
3-30124, 3-35324) 14 in
9 8.706-955.0 Hose, Barb, 1/4" Barb x 1/8" MP,
90° (E-Z Start)
(3-30124, 3-35324) 1
8.706-958.0 Hose Barb, 1/4' Barb x 1/4" Pipe
(3-30124, 3-35324) 1
10 9.802-190.0 Valve, E-Z Start 3/8" MPT x 1/8"
FPT
( 3-30124, 3-35324 ) 1
11 9.803-125.0 Base, CW Direct, Black 1
12 6.390-126.0 Clamp, Hose, (E-Z Start,
3-30124, 3-35324) 2
13 9.802-722.0 Bolt, 3/8" x 1-1/4" NC, HH
(3-30124, 3-35324) 4
8.733-007.0 Bolt, 5/16"-24 x 3/4"
(3-27324, 3-24324) 4
14 9.802-225.0 Injector, Detergent, Assembly
(All Models) 1
9.802-216.0 Injector, Chemical, Non-Adjust 1
8.707-057.0 Strainer, Plastic, 1/4" Hose Barb1
9.802-251.0 Tube, 1/4" x 1/2" Clear Vinyl 6 ft.
6.390-126.0 Hose Clamp 2
15 8.900-317.0 Label, Instructions 1
17 Hose, High Pressure, See Specifications Page
18 9.802-223.0 Spray Gun, SK2, 3/8" Inlet,
Lance W/M22CPLR 1
19 9.802-220.0 Wand, 18" M22 x 1/4" QC 1
ITEM PART NO. DESCRIPTION QTY
20 Nozzle Size, See Page 17 For Proper Size
8.904-153.0 NOZZLE KIT3.0 (24324,27324) 1
8.712-331.0 Nozzle, 3.0 0° Red 1
8.712-333.0 Nozzle, 3.0 15° Yellow 1
8.712-334.0 Nozzle, 3.0 25° Green 1
8.712-335.0 Nozzle, 3.0 40° White 1
8.904-154.0 NOZZLE KIT 3.5 (30124) 1
8.712-337.0 Nozzle, 3.5 0° Red 1
8.712-338.0 Nozzle, 3.5 25° Green 1
8.712-339.0 Nozzle, 3.5 40° White 1
8.904-156.0 NOZZLE KIT 4.0 (35324) 1
8.712-345.0 Nozzle, 4.0 0° Red 1
8.712-346.0 Nozzle, 4.0 15° Yellow 1
8.712-347.0 Nozzle, 4.0 25° Green 1
8.712-348.0 Nozzle, 4.0 40° White 1
8.712-398.0 Nozzle, Compl, QCEM-6540,
Brass (All Models) 1
21 9.803-097.0 Axle, 5/8" x 20.125" Long 1
22 9.800-006.0 Label, HOT 1
23 9.802-713.0 Bolt, 5/16" x 1-1/2", NC HH
(3-24324, 3-27324 ) 4
9.802-727.0 Bolt, 3/8" x 1-3/4" Tap
(3-30124, 3-35324) 4
24 9.802-807.0 Washer, 3/8" SAE, Flat 6
25 9.197-003.0 Nut, 3/8" ESNA, NC 6
26 9.802-728.0 Bolt, 3/8" x 2" NC, HH 4
27 9.803-114.0 Retainer Bracket, Handle Black 2
28 9.802-773.0 Nut, 1/4" ESNA, NC 6
29 9.802-802.0 Washer, 1/4" Flat 6
30 9.802-064.0 Grommet, Rubber, Nozzle
Holder, 5
31 9.802-778.0 Nut, 5/16" Whiz Loc Flange 2
32 9.803-122.0 Handle, Grab, Chrome 1
33 9.803-126.0 Plate, Warning, Black 1
34 9.803-098.0 Hanger, Hose/Wand 1
35 9.802-706.0 Bolt, 1/4"-20 x 1-3/4", Carriage,
Zinc 6
36 9.803-119.0 Handle, Lower Grab, Chrome 1
37 9.802-066.0 Pad, Soft Rubber 2
38 9.802-817.0 Washer, 3/8" x 1" Steel 2
39 9.802-730.0 Bolt, 3/8" x 2-1/2" HH, Grd. 5 2
40 9.802-712.0 Bolt, Carriage, 5/16" x 1-3/4" 4
41 8.718-980.0 Washer, 5/16" Flat 4
42 9.802-776.0 Nut, 5/16" ESNA, NC 4
43 9.803-123.0 Handle, Bumper, Chrome 1
44 9.802-103.0 Bushing, 5/8" Snap 2
45 9.802-270.0 Wheel & Tire Assy, 4" Steel Rim
w/Tube 2

8.913-995.0 • Landa PC • Rev. 03/11
OPERATOR’S MANUAL PRESSURE WASHER
16
EXPLODED VIEW PARTS LIST CONT.
ITEM PART NO. DESCRIPTION QTY
46 9.802-782.0 Collar, 5/8" Bore Shaft 2
47 9.800-080.0 Label, Cool Engine Before
Filling 1
48 9.802-810.0 Washer, 5/8" Flat 2
49 9.802-958.0 Key, .185 Sqr x 1.75"
(3-24324, 3-27324) 1
9.802-959.0 Key, .247 Sqr x 2.125"
(3-30124, 3-35324) 1
51 9.800-049.0 Label, Manufacturer's Cleaning
Solution 1
52 9.802-776.0 Nut, 5/16" ESNA, NC
(3-24324, 3-27324) 4
9.197-003.0 Nut, 3/8" ESNA, NC
(3-30124, 3-35324) 4
53 8.718-980.0 Washer, 5/16" Flat
(3-24324, 3-27324) 8
9.802-807.0 Washer, 3/8" Flat
(3-30124, 3-35324) 12
54 8.706-854.0 Tee, 1/4" Branch, Male 1
56 8.917.015.0 Label, Regulation 4442.6 1
▲Not Shown

8.913-995.0 • Landa PC • Rev. 03/11
17
PRESSURE WASHER Specifications
SPECIFICATIONS
Machine Pressure Nozzle Pump Pump Unloader Engine Engine
Model GPM (PSI) Size Hose p/n Part # Model Part # Description Part #
PC3-24324 2.3 2400 3.0 8.739-380.0 8.715-233.0 LG2530G 9.175-018.0 GX160 (163cc) 9.802-316.0
PC3-27324 2.5 2700 3.0 8.739-380.0 8.715-233.0 LG2530G 9.175-018.0 GX200 (196cc) 9.802-317.0
PC3-30124 3.0 3000 3.5 8.739-380.0 8.715-235.0 LG3035G1 9.175-018.0 EX27 (265cc) 8.713-483.0
PC4-35324 3.8 3500 4.0 8.739-213.0 8.904-906.0 LS4040G-1 9.175-018.0 GX390 (390cc) 8.750-580.0

8.913-995.0 • Landa PC • Rev. 03/11
OPERATOR’S MANUAL PRESSURE WASHER
18
LG1.1 PUMP EXPLODED VIEW AND PARTS LIST

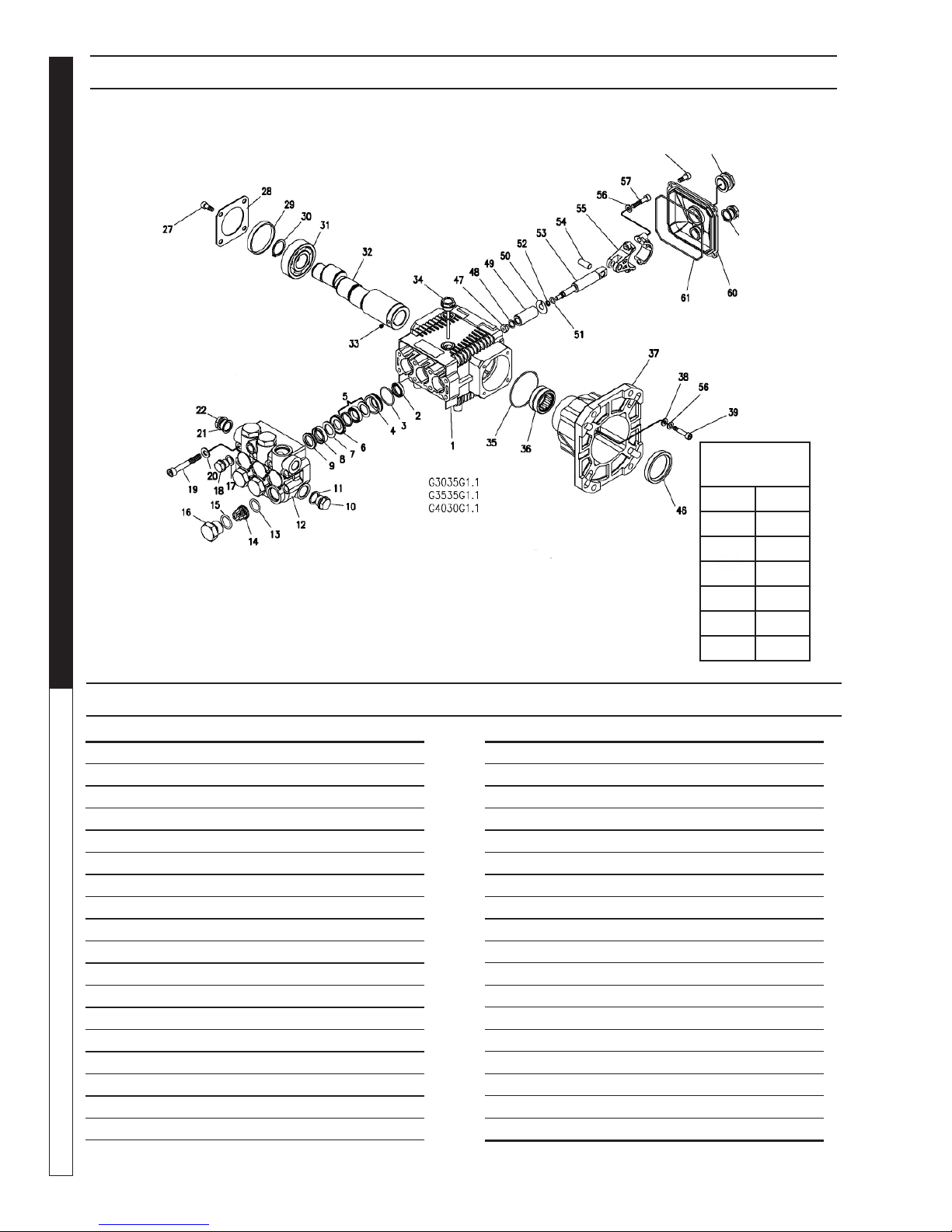

LG1.1 PUMP w/1" HOLLOW SHAFT EXPLODED VIEW
ITEM PART NO. DESCRIPTION QTY
1 9.803-938.0 Crankcase 1
2* See Kit Below Plunger Oil Seal 3
3* See Kit Below O-Ring Ø1.78 x 31.47 3
4*
See Kit Below Pressure Ring, 15mm 3
5* See Kit Below U Seal Assy, 15mm 3
6* See Kit Below Intermediate Ring 15mm 3
7* See Kit Below Backup Ring, 15mm 3
8* See Kit Below U-Seal Assy, 15mm 3
9*
See Kit Below Support Ring 15mm 3
10 9.802-926.0 Brass Plug, 1/2" 1
11 9.803-199.0 Copper Washer 1/2" 1
12 9.803-946.0 Manifold Housing 1
13* 9.803-947.0 O-Ring Ø1.78 x 15.54 6
14*
See Kit Below Valve Assembly 6
15* 9.803-948.0 O-Ring Ø2.62 x 18.77 6
16 9.803-949.0 Valve Plug 6
17 9.803-950.0 Washer, Copper 1
18 9.803-951.0 Brass Plug G1/4 1
ITEM PART NO. DESCRIPTION QTY
19 9.803-952.0 Manifold Stud Bolt 8
20 9.802-884.0 Washer 8
21 9.803-198.0 Copper Washer 3/8" 1
22 9.802-925.0 Brass Plug 3/8" 2
27 9.802-939.0 Hexagonal Screw 9
28 9.803-953.0 Bearing Cover 1
29 9.803-954.0 Seal Bearing 1
30 9.802-914.0 Snap Ring 1
31 9.803-955.0 Ball Bearing 1
32 8.730-825.0 Crankshaft (3035G1) 1
8.730-826.0 Crankshaft (3535G1) 1
8.730-827.0 Crankshaft (4030G1) 1
33 9.802-945.0 Set Screw 1
34 9.803-957.0 Oil Dip Stick 1
35 9.804-581.0 O-Ring 3.53 x 55.56 1
36 9.803-161.0 Needle Roller Bearing 1
37 9.803-183.0 Engine Flange 1
38 9.803-210.0 Spring Washer 4
8.904-897.0 LG3035G1.1
8.904-899.0 LG3535G1.1
8.725-368.0 LG4030G1.1
TORQUE
SPECS
Item # Ft.-lbs
16 65
19 18
27 7.6
39 8
47 7
57 13

8.913-995.0 • Landa PC • Rev. 03/11
19
PRESSURE WASHER OPERATOR’S MANUAL
ITEM PART NO. DESCRIPTION QTY
39 8.933-020.0 Flange Screw 4
46 9.803-142.0 Crankshaft Seal 1
47*
See Kit Below Plunger Nut 3
48* See Kit Below Copper Washer 3
49* See Kit Below Plunger, 15mm 3
50* See Kit Below Copper Spacer 3
51* See Kit Below O-Ring Ø1.78x5.28 3
52*
See Kit Below Teflon Ring 3
53 9.803-964.0 Plunger Rod 3
54 9.803-965.0 Connecting Rod Pin 3
55 9.803-966.0 Connecting Rod 3
56 9.803-218.0 Spring Washer 10
57 8.933-020.0 Connecting Rod Screw 6
58 9.803-202.0 Sight Glass, G3/4 1
59 9.803-197.0 Gasket, G3/4 1
60 9.803-968.0 Crankcase Cover 1
61 9.803-969.0 O-Ring 2.62 x 107.62 1
* Part available in kit (See below)
LG1.1 PUMP EXPLODED VIEW AND PARTS LIST (CONT)
REPAIR KIT
NUMBER 8.725-354.0 8.725-355.0 9.803-934.0 9.803-936.0 9.803-937.0
KIT DE-
SCRIPTION
Plunger Seal
15mm
Complete
Seal Packing 15mm Plunger 15mm Complete Valve Plunger Oil Seals
ITEM NUM-
BERS
INCLUDED
3, 5, 7, 8, 9 3, 4, 5,
6, 7, 8, 9
47, 48, 49, 50,
51, 52 13, 14, 15 2

8.913-995.0 • Landa PC • Rev. 03/11
OPERATOR’S MANUAL PRESSURE WASHER
20
LG.1 PUMP w/3/4" HOLLOW SHAFT EXPLODED VIEW
LG.1 PUMP EXPLODED VIEW PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 9.803-938.0 Crankcase 1
2*
See Kit Below Plunger Oil Seal 3
3*
See Kit Below O-Ring Ø1.78 x 28.30 3
4*
See Kit Below Pressure Ring, 15mm 3
5*
See Kit Below U-Seal, 15mm 3
6*
See Kit Below Intermediate Ring 15mm 3
7*
See Kit Below Backup Ring 15mm 3
8*
See Kit Below U-Seal, 15mm 3
9*
See Kit Below Support Ring, 15mm 3
10 9.802-926.0 Brass Plug, 1/2" 1
11 9.803-199.0 Copper Washer 1/2" 1
12 9.803-946.0 Manifold Housing 1
13*
9.803-947.0 O-Ring Ø1.78 x 15.54 6
14*
See Kit Below Valve Assembly 6
15*
9.803-948.0 O-Ring Ø2.62 x 18.77 6
16 9.803-949.0 Valve Plug 6
17 9.803-950.0 Washer, Copper 1
18 9.803-951.0 Brass Plug G1/4 1
ITEM PART NO. DESCRIPTION QTY
19 9.803-952.0 Manifold Stud Bolt 8
20 9.802-884.0 Washer 8
21 9.803-198.0 Copper Washer 3/8" 1
22 9.802-925.0 Brass Plug 3/8" 2
27 9.802-939.0 Hexagonal Screw 9
28 9.803-953.0 Bearing Cover 1
29 9.803-954.0 Seal Bearing 1
30 9.802-914.0 Snap Ring 1
31 9.803-955.0 Ball Bearing 1
32 8.717-069.0 Crankshaft (2530G) 1
8.717-070.0 Crankshaft (3030G) 1
33 9.803-957.0 Oil Dip Stick 1
34 9.804-581.0 O-Ring 3.53 x 55.56 1
35 9.804-582.0 Needle Roller Bearing 1
36 8.717-212.0 Engine Flange 1
37 9.803-210.0 Spring Washer 4
38 9.804-584.0 Flange Screw 4
8.904-893.0 LG2530G.1
8.904-895.0 LG3030G.1
TORQUE
SPECS
Item # Ft.-lbs
16 65
19 18
27 7.6
38 8
40 7
50 13
