MODEL 1550 SERIES
IN-ROW RIPPER
OPERATOR’S MANUAL
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
[phone]
F-298-1199 11/99

WARRANTY
MANUFACTURER’S GUARANTEE POLICY
LANDOLL CORPORATION WARRANTY
LANDOLL warrants each new and unused LANDOLL machine, when
properly assembled, adjusted, and operated, to be free of defects in
material and workmanship, in normal use and when properly serviced,
for a period of twelve (12) months after date of delivery by the Dealer to
the original retail purchaser. LANDOLL shall repair or replace, at its op-
tion, freight on board (f.o.b.) at its factory or designated DEALER loca-
tion, any part or parts of such new and unused machine which shall
have been reported in writing to LANDOLL within thirty (30) days from
date of failure thereof and which LANDOLL inspection shall disclose to
have been defective. Defective parts must be returned to the LANDOLL
factory, freight prepaid. LANDOLL will not be liable for labor, transpor-
tation, or any other charges resulting from replacement of a defective
part. This warranty is void if any part not supplied by LANDOLL is used
in assembly or repair, or if the machine has been altered, abused, or
neglected. LANDOLL repair parts are warranted for ninety (90) days
from date of replacement or for the unexpired warranty period of the
applicable LANDOLL machine, whichever period is longer. LANDOLL
makes no warranty, whatsoever, as to purchased component parts and
other trade accessories, except to the extent that such items are war-
ranted by the manufacturer thereof. THIS WARRANTY IS EXCLUSIVE
AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED,
IMPLIED, OR STATUTORY (INCLUDING WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR PURPOSE), AND LANDOLL SHALL NOT BE
LIABLE FOR SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND
ON ACCOUNT OF ANY LANDOLL PRODUCT.
NO EMPLOYEE OR REPRESENTATIVE IS AUTHORIZED TO CHANGE
THIS WARRANTY, VERBALLY OR IN WRITING, OR GRANT ANY OTHER
WARRANTY.
LANDOLL CORPORATION, WHOSE POLICY IS ONE OF CONTINUOUS
IMPROVEMENT, RESERVES THE RIGHT TO MAKE CHANGES WITHOUT
OBLIGATION TO MODIFY PREVIOUSLY PRODUCED EQUIPMENT.

MODEL 1550 SERIES
IN-ROW RIPPER
OPERATOR’S MANUAL
PURCHASED FROM: DATE / /
ADDRESS:
PHONE NO.: SERIAL NO.:
i

ii

TABLE OF CONTENTS
SECTION DESCRIPTION PAGE NO.
1 INTRODUCTION
2 STANDARD SPECIFICATIONS
3 ASSEMBLY PROCEDURES
3-1 ASSEMBLY PREPARATION ............................3-3
3-2 JACKSTAND INSTALLATION ...........................3-3
3-3 SMV BRACKET INSTALLATION .........................3-3
3-4 TIRE AND WHEEL ASSEMBLY ..........................3-3
3-5 PARABOLIC SHANK ASSEMBLY ........................3-5
3-6 STRAIGHT SHANK ASSEMBLY..........................3-7
3-7 COULTER ASSEMBLY ................................3-8
3-8 ELECTRICAL INSTALLATION ...........................3-9
3-9 HYDRAULIC INSTALLATION (D AND E MODELS ONLY)......3-11
3-10 BEDDING ATTACHMENT ASSEMBLY (OPTIONAL) ..........3-13
4 OPERATION AND MAINTENANCE
4-1 TRACTOR PREPARATION .............................4-2
4-2 IN-ROW RIPPER OPERATION ...........................4-3
4-3 ATTACHING TO THREE-POINT HITCH ....................4-3
4-4 FIELD OPERATION — THREE-POINT HITCH TYPE ...........4-3
4-5 WHEEL BEARING MAINTENANCE .......................4-4
4-6 COULTER SPRING ADJUSTMENT .......................4-4
4-7 LUBRICATION.......................................4-4
4-8 HYDRAULIC MAINTENANCE............................4-5
4-9 STORAGE..........................................4-5
5 TROUBLESHOOTING GUIDE
iii

SAFETY PRECAUTIONS
THIS IS THE SAFETY ALERT SYMBOL. IT IS USED TO ALERT YOU
TO POTENTIAL INJURY HAZARDS. OBEY ALL SAFETY MESSAGES
THAT FOLLOW THIS SYMBOL TO AVOID POSSIBLE INJURY OR
DEATH.
DANGER DANGER INDICATES AN IMMINENTLY HAZARDOUS SITUA-
TION WHICH, IF NOT AVOIDED, WILL RESULT IN DEATH OR
SERIOUS INJURY.
WARNING WARNING INDICATES A POTENTIALLY HAZARDOUS SITUA-
TION WHICH, IF NOT AVOIDED, COULD RESULT IN DEATH OR
SERIOUS INJURY.
CAUTION CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUA-
TION WHICH, IF NOT AVOIDED, MAY RESULT IN MINOR OR
MODERATE INJURY.
CAUTION CAUTION USED WITHOUT THE SAFETY ALERT SYMBOL INDI-
CATES A POTENTIALLY HAZARDOUS SITUATION WHICH, IF
NOT AVOIDED, MAY RESULT IN PROPERTY DAMAGE.
iv

1INTRODUCTION
The Landoll 1550 Series In-Row Ripper is a quality product designed to give years of trouble free per-
formance. By following each section of this manual, your system will perform as designed for you and your
operation.
SECTION 1 gives basic instructions on the use of this manual.
SECTION 2 gives product specifications. These specifications supply lengths and measures for your
equipment. A Standard Bolt Torque Table is provided to give guidelines for bolt torques
to be used when servicing this product.
SECTION 3 contains assembly instructions for your 1550 Series In-Row Ripper. When these proce-
dures are correctly followed, your equipment should provide you years of trouble-free
operation and service.
SECTION 4 instructs how to operate your equipment before using it, and describes adjustments
needed. It also gives practical advice for the care and maintenance of your Landoll
equipment. Drawings in this section locate adjustment points on the equipment.
NOTE: IF THE EQUIPMENT IS IMPROPERLY MAINTAINED, THE WARRANTY IS
VOID. IF YOU HAVE ANY QUESTIONS CONTACT:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
or phone:
[phone] or
[phone]
or FAX:
[phone]
SECTION 5 is a troubleshooting guide to aid in diagnosing and solving problems with the equip-
ment.
PARTS LIST is a separate manual showing the various assemblies, subassemblies, and systems.
Refer to that manual when ordering Landoll replacement parts. Order parts from your
Landoll dealer or call the Landoll Parts Distribution Center at:
[phone] or
[phone] or
FAX: [phone]
WARRANTY The Warranty Registration form is included with the product documents. Fill it out and
mail it within 15 days of purchase. The Warranty is printed inside the front cover.
NOTE: IMPROPER ASSEMBLY, MODIFICATION, OR MAINTENANCE OF YOUR
LANDOLL EQUIPMENT CAN VOID YOUR WARRANTY.
COMMENTS Address comments or questions regarding this publication to:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
ATTENTION: PUBLISHING -DEPT. 55
1-1

2STANDARD SPECIFICATIONS
SPECIFICATIONS
Model
Number No. Shanks Row Spacing Shank Swath Frame Model Extension/ Wing Transport Width
1553A30 3 30 90" A None
1553A36 3 36 108" A None 8’-3"
1553A38 3 38 114" A None 8’-3"
1553A40 3 40 120" A None 8’-3"
1554A30 4 30 120" A None 8’-3"
1554A36 4 36 144" A None 11’-3"
1554A38 4 38 152" A 17" Bolt On 11’-3"
1554A40 4 40 160" A 17" Bolt On 11’-3"
1555A30 5 30 150" A 17" Bolt On 11’-3"
1554B40 4 40 160" B None 11’-2"
1555B30 5 30 150" B None 11’-2"
1555B36 5 36 180" B 17" Bolt On 14’-2"
1555B38 5 38 190" B 17" Bolt On 14’-2"
1555B40 5 40 200" B 17" Bolt On 14’-2"
1556B30 6 30 180" B 17" Bolt On 14’-2"
1556B36 6 36 216" B 28" Bolt On 15’-10"
1557B30 7 30 210" B 28" Bolt On 15’-10"
1556C30 6 30 180" C None 14’-2"
1556C36 6 36 216" C 17" Bolt On 17’-2"
1556C38 6 38 228" C 17" Bolt On 17’-2"
1556C40 6 40 240" C 28" Bolt On 18’-10"
1557C30 7 30 210" C 17" Bolt On 17’-2"
1557C36 7 36 252" C 28" Bolt On 18’-10"
1558C30 8 30 240" C 28" Bolt On 18’-10"
1556D36 6 36 216" D 33" Hinged 16’-1"
1556D38 6 38 228" D 33" Hinged 15’-9"
1556D40 6 40 240" D 46" Hinged 15’-5"
1557D30 7 30 210" D 33" Hinged 16’-1"
1557D36 7 36 252" D 46" Hinged 17’-5"
1557D38 7 38 266" D 60" Hinged 17’-1"
1557D40 7 40 280" D 60" Hinged 16’-10"
1558D30 8 30 240" D 46" Hinged 17’-2"
1558E36 8 36 288" E 46" Hinged 20’-3"
1558E38 8 38 304" E 60" Hinged 19’-10"
1558E40 8 40 320" E 60" Hinged 19’-5"
1559E30 9 30 270" E 46" Hinged 20’-3"
155____
SHANK SPACING: 30, 36, 38, and 40
FRAME SIZE: A - 8’ RIGID
B - 11’ RIGID
C - 13’ RIGID
D - FOLD
E - FOLD
NUMBER OF SHANKS
MODEL
2-1

2-2
LANDOLL CORPORATION

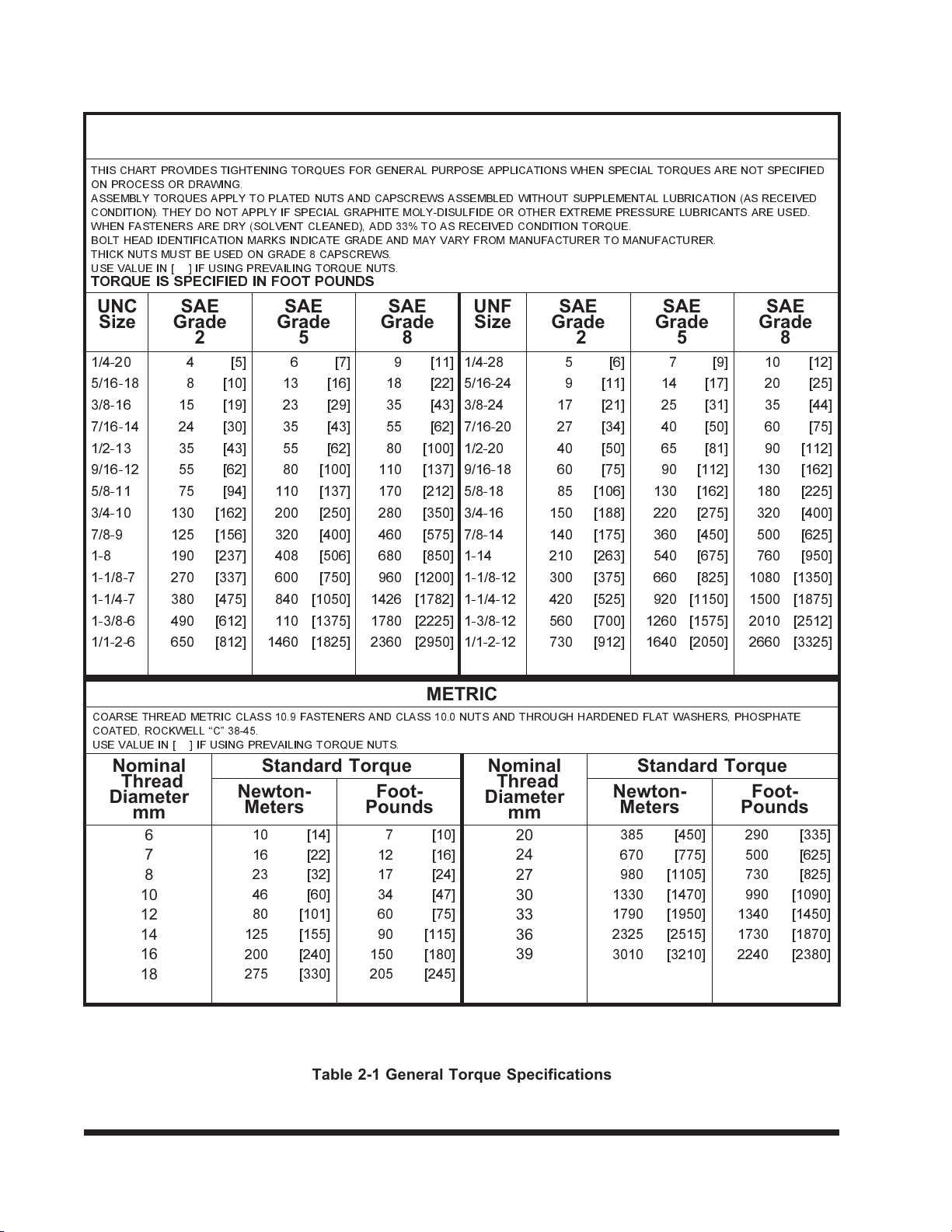

GENERAL TORQUE SPECIFICATIONS (REV. 4/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR GENERAL PURPOSE APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED
ON PROCESS OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED NUTS AND CAPSCREWS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS RECEIVED
CONDITION). THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
WHEN FASTENERS ARE DRY (SOLVENT CLEANED), ADD 33% TO AS RECEIVED CONDITION TORQUE.
BOLT HEAD IDENTIFICATION MARKS INDICATE GRADE AND MAY VARY FROM MANUFACTURER TO MANUFACTURER.
THICK NUTS MUST BE USED ON GRADE 8 CAPSCREWS.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
TORQUE IS SPECIFIED IN FOOT POUNDS
UNC
Size SAE Grade
2
SAE
Grade
5
SAE
Grade
8
UNF
Size SAE Grade
2
SAE
Grade
5
SAE
Grade
8
1/4-20 4 [5] 6 [7] 9 [11] 1/4-28 5 [6] 7 [9] 10 [12]
5/16-18 8 [10] 13 [16] 18 [22] 5/16-24 9 [11] 14 [17] 20 [25]
3/8-16 15 [19] 23 [29] 35 [43] 3/8-24 17 [21] 25 [31] 35 [44]
7/16-14 24 [30] 35 [43] 55 [62] 7/16-20 27 [34] 40 [50] 60 [75]
1/2-13 35 [43] 55 [62] 80 [100] 1/2-20 40 [50] 65 [81] 90 [112]
9/16-12 55 [62] 80 [100] 110 [137] 9/16-18 60 [75] 90 [112] 130 [162]
5/8-11 75 [94] 110 [137] 170 [212] 5/8-18 85 [106] 130 [162] 180 [225]
3/4-10 130 [162] 200 [250] 280 [350] 3/4-16 150 [188] 220 [275] 320 [400]
7/8-9 125 [156] 320 [400] 460 [575] 7/8-14 140 [175] 360 [450] 500 [625]
1-8 190 [237] 408 [506] 680 [850] 1-14 210 [263] 540 [675] 760 [950]
1-1/8-7 270 [337] 600 [750] 960 [1200] 1-1/8-12 300 [375] 660 [825] 1080 [1350]
1-1/4-7 380 [475] 840 [1050] 1426 [1782] 1-1/4-12 420 [525] 920 [1150] 1500 [1875]
1-3/8-6 490 [612] 110 [1375] 1780 [2225] 1-3/8-12 560 [700] 1260 [1575] 2010 [2512]
1/1-2-6 650 [812] 1460 [1825] 2360 [2950] 1/1-2-12 730 [912] 1640 [2050] 2660 [3325]
METRIC
COARSE THREAD METRIC CLASS 10.9 FASTENERS AND CLASS 10.0 NUTS AND THROUGH HARDENED FLAT WASHERS, PHOSPHATE
COATED, ROCKWELL C 38-45.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
Nominal
Thread
Diameter
mm
Standard Torque Nominal
Thread
Diameter
mm
Standard Torque
Newton-
Meters Foot- Pounds Newton- Meters Foot- Pounds
6
10 [14] 7 [10]
20
385 [450] 290 [335]
7
16 [22] 12 [16]
24
670 [775] 500 [625]
8
23 [32] 17 [24]
27
980 [1105] 730 [825]
10
46 [60] 34 [47]
30
1330 [1470] 990 [1090]
12
80 [101] 60 [75]
33
1790 [1950] 1340 [1450]
14
125 [155] 90 [115]
36
2325 [2515] 1730 [1870]
16
200 [240] 150 [180]
39
3010 [3210] 2240 [2380]
18
275 [330] 205 [245]
Table 2-1 General Torque Specifications

2-3
LANDOLL CORPORATION

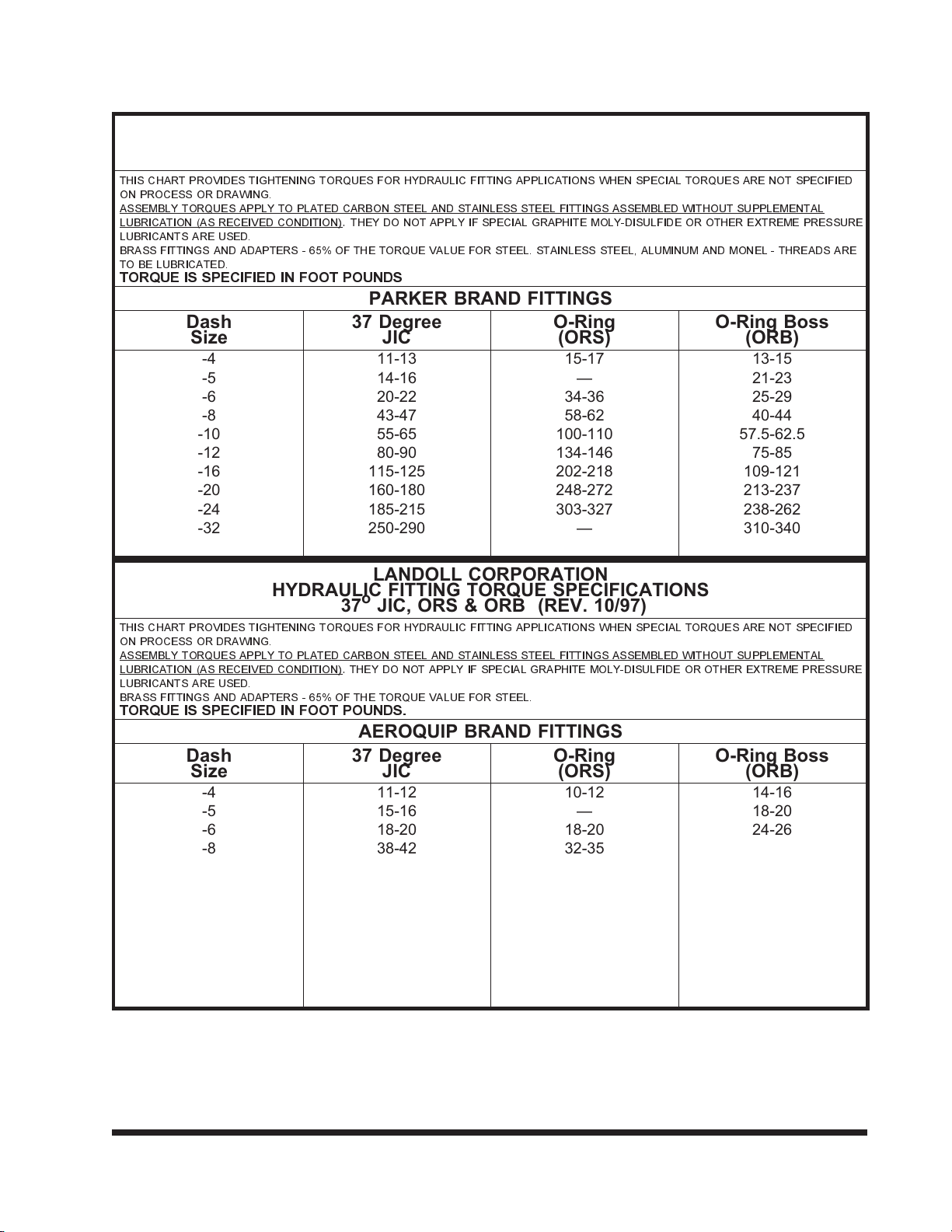

HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS, & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED
ON PROCESS OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHOUT SUPPLEMENTAL
LUBRICATION (AS RECEIVED CONDITION) . THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE
LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL. STAINLESS STEEL, ALUMINUM AND MONEL - THREADS ARE
TO BE LUBRICATED.
TORQUE IS SPECIFIED IN FOOT POUNDS
PARKER BRAND FITTINGS
Dash
Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-13 15-17 13-15
-5 14-16 — 21-23
-6 20-22 34-36 25-29
-8 43-47 58-62 40-44
-10 55-65 100-110 57.5-62.5
-12 80-90 134-146 75-85
-16 115-125 202-218 109-121
-20 160-180 248-272 213-237
-24 185-215 303-327 238-262
-32 250-290 — 310-340
LANDOLL CORPORATION
HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED
ON PROCESS OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHOUT SUPPLEMENTAL
LUBRICATION (AS RECEIVED CONDITION) . THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE
LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL.
TORQUE IS SPECIFIED IN FOOT POUNDS.
AEROQUIP BRAND FITTINGS
Dash
Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-12 10-12 14-16
-5 15-16 — 18-20
-6 18-20 18-20 24-26
-8 38-42 32-35 50-60
-10 57-62 46-50 72-80
-12 79-87 65-70 125-135
-14 — — 160-180
-16 108-113 92-100 200-220
-20 127-133 125-140 210-280
-24 158-167 150-165 270-360
-32 245-258 — —
Table 2-2 Hydraulic Fitting Torque Specifications

3ASSEMBLY PROCEDURES
It is very important that your new 1550 Series
In-Row Ripper be properly assembled, adjusted,
and lubricated before use. Illustrations are provided
in this section to show proper assembly proce-
dures. Remove paint from grease fittings and re-
place any that are damaged or missing. Be sure to
return bolts, clips, etc. to their original locations.
To insure assemblies are aligned, insert all
bolts and leave the nuts loose until completion
of final assembly. Use lockwashers or flat wash-
ers where called for. Spread all cotter pins.
After completion of final assembly, tighten all
nuts evenly to prevent misalignment, distortion, or
binding. Tighten all bolts and nuts to the recom-
mended torques shown in Tables 2-1 and 2-2.
Tighten all U-bolt legs evenly.
IMPORTANT
CHECK ALL BOLT LENGTHS, NUT SIZES, ETC.,
FROM THE PARTS BOOK BEFORE ASSEMBLY.
DIFFERENT MODELS OF THE 1550 SERIES IN-
ROW RIPPER USE DIFFERENT SIZE BOLTS.
DANGER
COULTER BLADES ARE EXTREMELY
SHARP. USE EXTREME CARE WHEN
WORKING ON OR NEAR COULTER
BLADES. DO NOT ALLOW COULTERS
TO ROLL OVER OR FALL ON ANY
PART OF BODY. DO NOT ALLOW
WRENCHES TO SLIP WHEN WORKING
NEAR COULTER BLADES. NEVER
PUSH WRENCHES TOWARDS COUL-
TER BLADES. DO NOT CLIMB OVER
MACHINE ABOVE COULTER BLADES.
FAILURE TO STAY CLEAR OF COUL-
TER BLADE EDGES MAY RESULT IN
SERIOUS PERSONAL INJURY OR
DEATH.
DANGER
TO PREVENT ACCIDENTAL LOWER-
ING:
1. ALL HYDRAULICALLY ELEVATED
EQUIPMENT MUST BE LOCKED OUT
USING THE CYLINDER LOCKOUTS:
2. LOWER EQUIPMENT TO THE
GROUND WHILE SERVICING OR
WHEN IT IS IDLE.
FAILURE TO TAKE MEASURES TO
PREVENT ACCIDENTAL LOWERING
MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH.
CAUTION
BE SURE TO BLEED THE HYDRAULIC
SYSTEM OF ALL AIR IN LINES AFTER
INSTALLATION. FAILURE TO BLEED
THE SYSTEM OF ALL AIR MAY CAUSE
THE MACHINE TO OPERATE IMPROP-
ERLY.
3-1

3-2

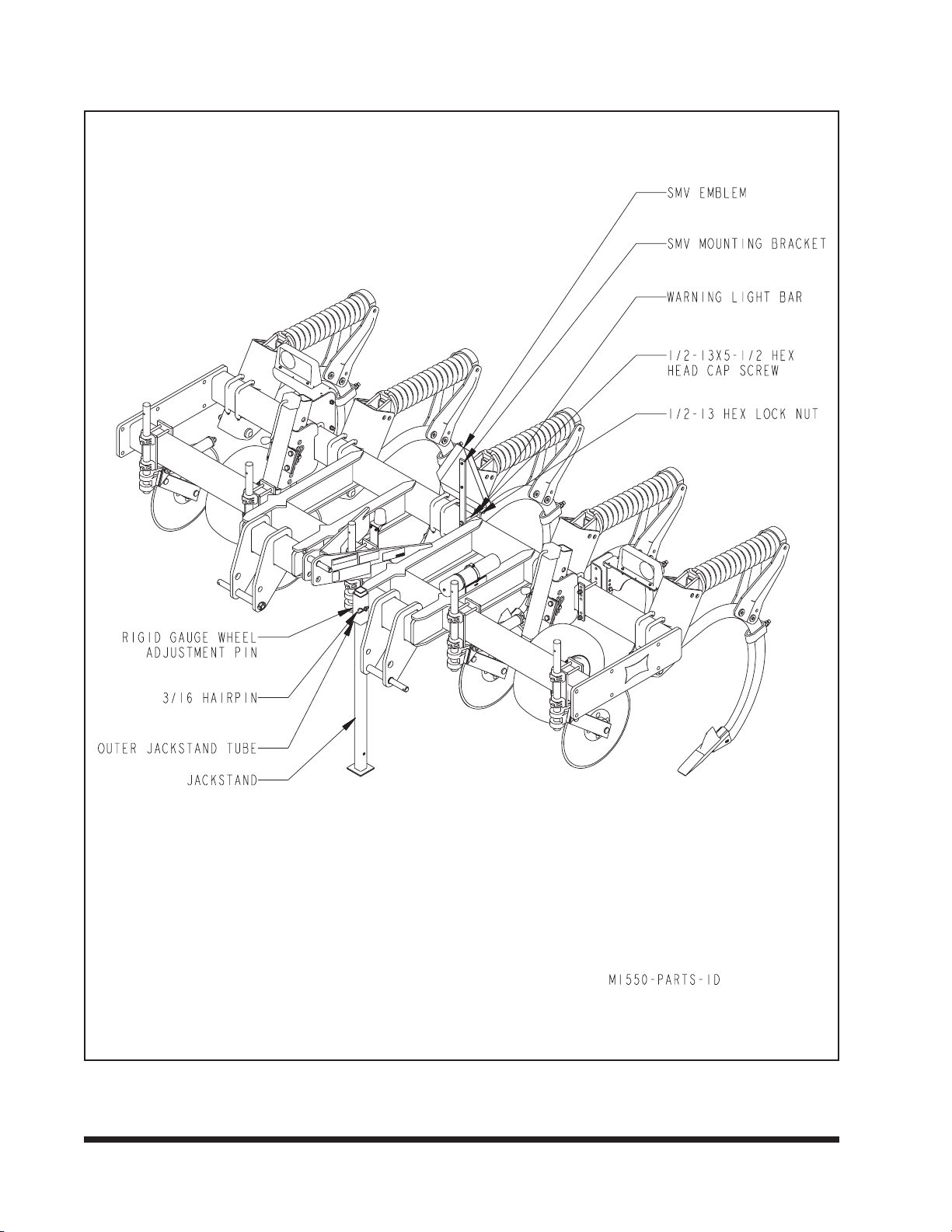

Figure 3-1 1550 Series Parts Identification

3-1 ASSEMBLY PREPARATION
3-1.1 Hook up the In-Row Ripper to a tractor us-
ing the three-point hitch. Raise the unit about
36” and place stands under the main frame
to prevent accidental lowering.
WARNING
DO NOT ATTEMPT TO LIFT HEAVY
PARTS (SUCH AS THE FRAME),
MANUALLY. USE A HOIST OR A FORK-
LIFT TO MOVE THESE PARTS INTO
POSITION.
3-2 JACKSTAND INSTALLATION
3-2.1 Remove jackstand(s) from frame.
3-2.2 Remove rigid gauge adjustment pin and
3/16 hair pin from outer jackstand tube.
3-2.3 Insert jackstand through bottom of outer
jackstand tube and pin at desired level with
rigid gauge adjustment pin and 3/16 hair pin
(See Figure 3-1).
3-3 SMV BRACKET INSTALLATION
3-3.1 Install the SMV mounting bracket and light
bar close to the center of machine on rear
frame member using 1/2-13 X 5-1/2 hex
head cap screws and hex lock nuts (See
Figure 3-1).
3-3.2 Attach plastic SMV emblem to mounting
bracket using 1/4-20 X 1 hex head cap
screw and hex lock nuts.
3-4 TIRE AND WHEEL ASSEMBLY
3-4.1 All hubs and spindles come already as-
sembled from the factory. Mount the tire and
wheel assembly onto the hubs.
3-3

3-4
Figure 3-2 Parabolic Shank Assembly

3-5 PARABOLIC SHANK ASSEMBLY
3-5.1 The spring clamp weldments are already
located on the frame at the proper spacing.
3-5.2 Attach shank assembly to lower hole of
spring clamp using 3/4-10 x 8-1/2 hex head
cap screw and hex lock nut. Tighten the nut
on the hex head cap screw to 200 ft.-lbs.
Grease hollow bolt (See Figure 3-2).
3-5.3 Assemble spring anchor plates to shank
assembly using 5/8-11 x 4 hex head cap
screws and hex lock nuts. The bottom edge
of stop bracket should be just above the
wear guard clamp. Leave screws loose until
springs have been installed.
IMPORTANT
PLATE WITH TAPPED HOLE FOR SPRING
PIVOT BOLT SHOULD BE ON LEFT SIDE OF
SHANK. IF REVERSED, SHANK WILL BE AT IM-
PROPER ANGLE!
IMPORTANT
SPRING PIVOT BOLT LOCATED IN SPRING AN-
CHOR PLATES SHOULD BE INSTALLED IN OP-
POSITE DIRECTION TO SPRING PIVOT BOLT
IN SPRING CLAMP WELDMENT.
3-5.4 Install coil spring assembly between the
spring clamp weldment and the rear spring
anchor plates. Secure with spring pivot bolts
and 7/8-9 hex lock nuts.
IMPORTANT
DO NOT OVERTIGHTEN BOLTS AS THE
SPRINGS MUST BE FREE TO PIVOT.
3-5.5 Tighten 5/8-11 x 4 hex head cap screws in
spring anchor plates to correct torque.
3-5.6 Adjustment holes are provided at the top of
the spring clamp weldment to compensate
for varying ground conditions.
3-5

3-6
Figure 3-3 Straight Shank Assembly

3-6 STRAIGHT SHANK ASSEMBLY
3-6.1 The spring clamp weldments are already
located on the frame at the proper spacing.
3-6.2 Attach shank bracket weldment to the
spring clamp weldment using plastic bear-
ings, 3/4-10 x 8-1/2 hex head cap screw, and
3/4-10 hex lock nut.
3-6.3 Install coil spring assembly between top
hole of bracket weldment and top hole of
spring clamp weldment. Secure with spring
pivot bolt and 7/8-9 hex jam nut.
IMPORTANT
DO NOT OVERTIGHTEN BOLTS AS THE
SPRINGS MUST BE FREE TO PIVOT.
3-6.4 Install clamp weldment to bottom holes of
bracket weldment using 1-8 x 6-1/2 hex head
cap screws and hex lock nuts.
3-6.5 Assemble shank to clamp weldment using
1-8 x 4 hex head cap screws and hex lock
nuts.
3-6.6 If installing wear guards (used on straight
heavy duty), install wearguard into clamp
weldment and secure in place with 5/16-18 x
3-1/4 hex head cap screw and hex lock nut
(See Figure 3-3). Install the spikes on the
shanks using the roll pin provided.
3-7

3-7 COULTER ASSEMBLY
3-7.1 Assemble coulter shank to coulter assem-
bly using coulter stop weldment and 5/8-11 x
1-1/2 square head set screw. Install 3/8 x 2
spring slotted pins in coulter shank.
3-7.2 Install the shank and coulter assembly to
the frame with the coulter clamps and plates
using 1/2-13 x 6 hex head cap screws and
hex lock washers (See Figure 3-4).
3-7.3 Use square head cup point set screws
through hole in clamp to hold coulter shank
in place.
3-7.4 Attach the coulter blade to the coulter as-
sembly using 1/2-13 x 1-1/2 round head
square neck screws, hex lock washers, and
hex nuts.
3-8
Figure 3-4 Coulter Assembly
