Landoll Wing Tilloll 876 Series User manual

F-143-0211 02/2011
LANDOLL CORPORATION
1900 North Street
Marysville, Kansas 66508
[phone]
800-428-5655 ~ WWW.LANDOLL.COM
Model 876 Series
Wing Tilloll
Operator’s Manual

F-143-0211 Edition i
Table of Contents
1 Introduction
Understanding Safety Statements ................................................ 1-2
2 Standard Specifications
3 Assembly Instructions

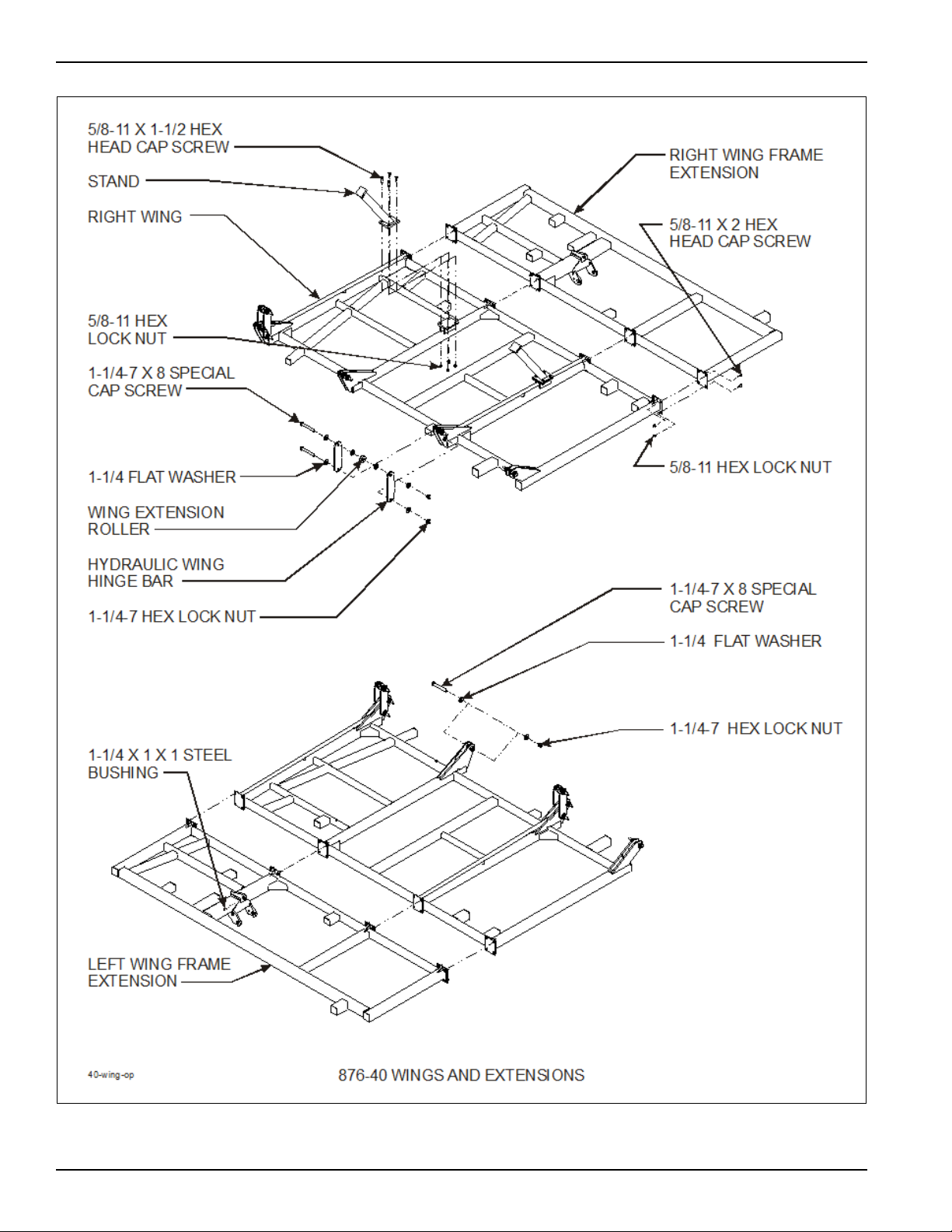

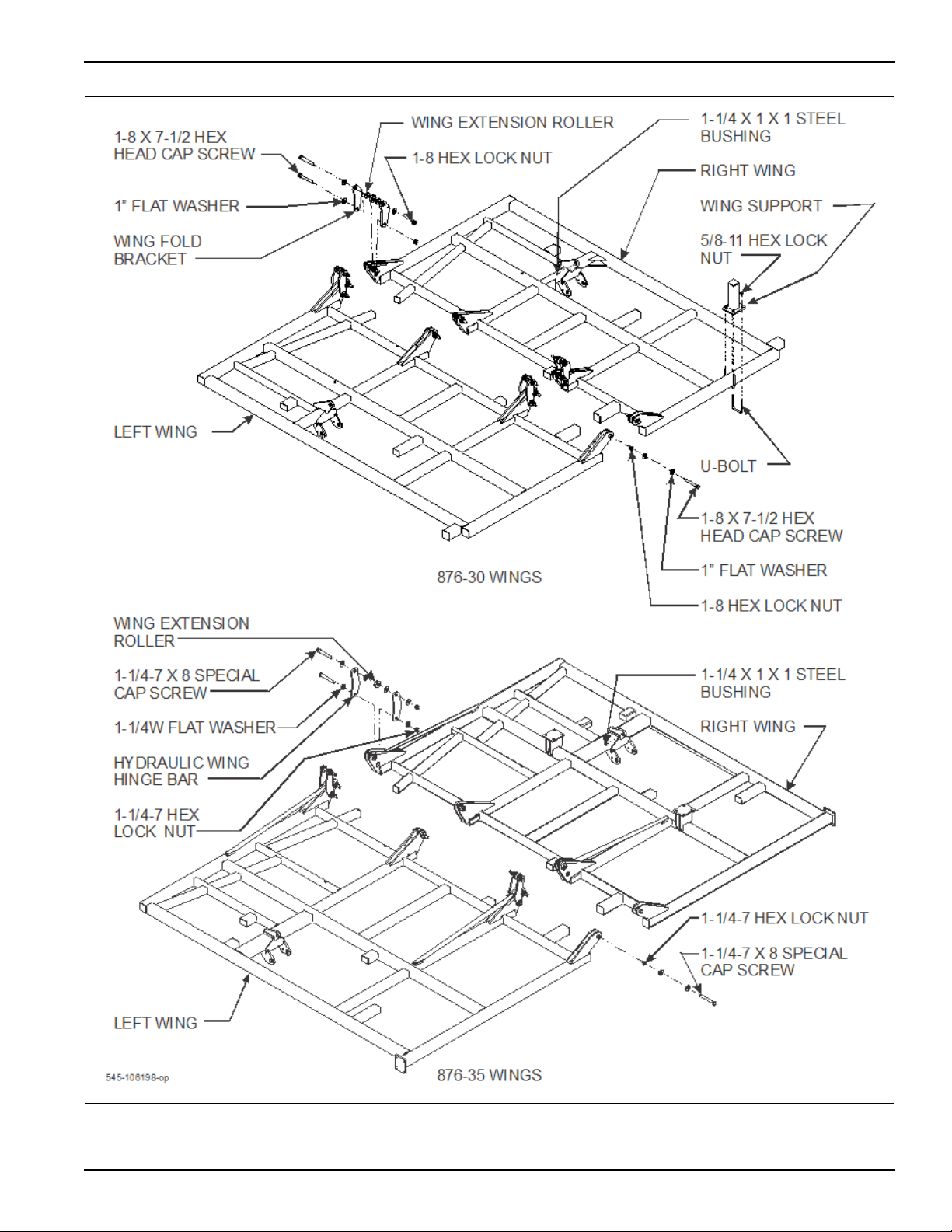

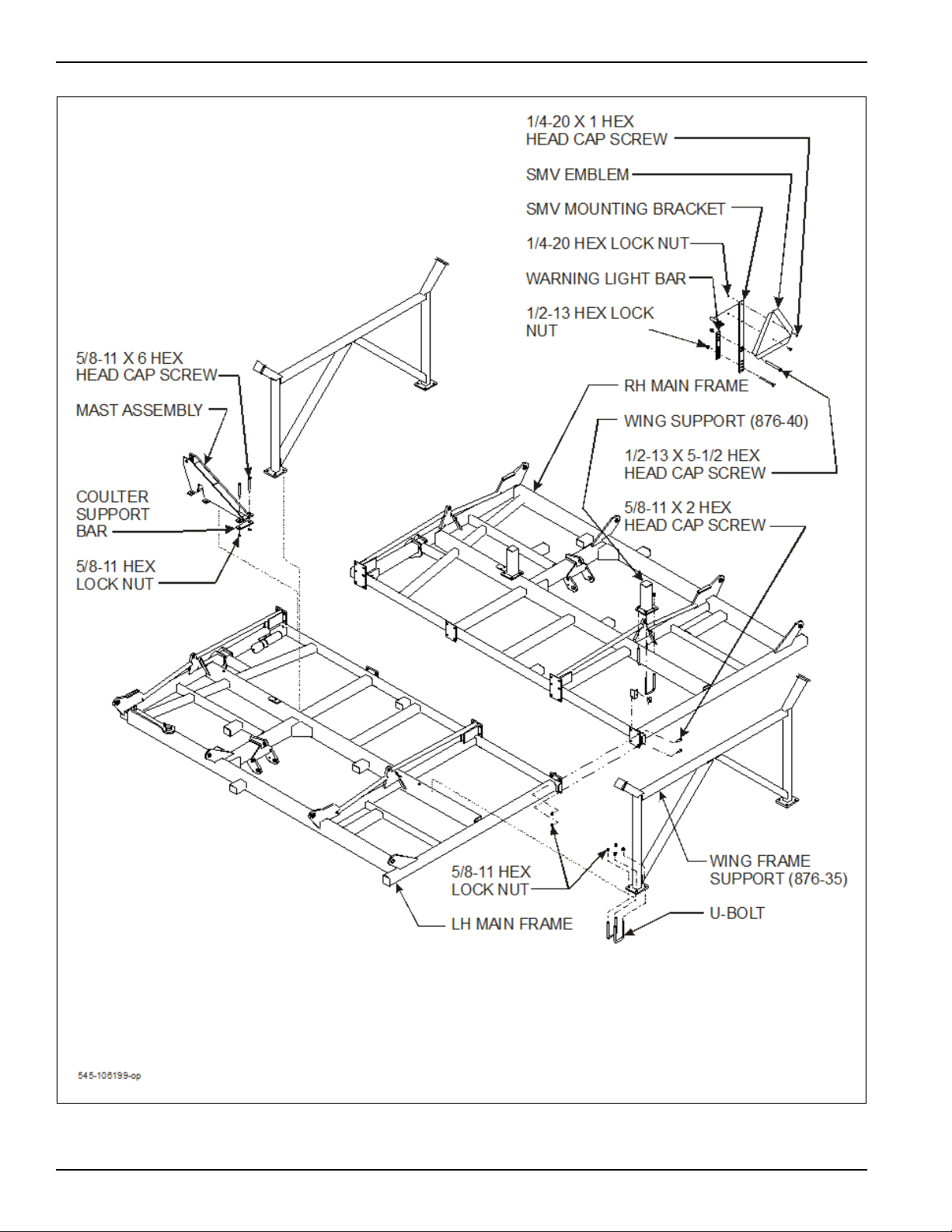

Frame and Wing Assembly ...................................................... 3-5
Shank, Clamp, and Sweep Assembly .............................................. 3-7
Gauge Wheel Installation ....................................................... 3-7
Hydraulic Lift Installation (876-30, 876-35, 876-40-C) ................................. 3-9
Hydraulic Lift Installation (876-40-H) ............................................. 3-11
Hydraulic Fold Installation - All Fold Models ...................................... 3-13
Disc Gang and Spray Shield Installation .......................................... 3-15
Reel Assembly Installation ..................................................... 3-18
Harrow Assembly Installation ................................................... 3-21
Pull Hitch Installation - All Other Models .......................................... 3-23
Warning Lights Installation ..................................................... 3-25
Lubrication .................................................................. 3-27
Decal Placement .............................................................. 3-27
4 Operation and Maintenance
Tractor Preparation ............................................................ 4-2
Tilloll Preparation .............................................................. 4-2
Attaching to the Tractor ........................................................ 4-3
Transport .................................................................... 4-3
Field Operation ................................................................ 4-4
Disc Gang Scraper Adjustment .................................................. 4-6
Spray Shield Adjustment ........................................................ 4-6
Spray Boom Location .......................................................... 4-6
Reel Adjustment ............................................................... 4-6
Harrow Adjustment ............................................................ 4-7
Wheel Bearing Maintenance ..................................................... 4-9

ii F-143-0211 Edition
Hydraulic Maintenance .........................................................4-9
Lubrication ...................................................................4-9
Storage ......................................................................4-9
5 Troubleshooting Guide

1-1
Chapter 1
Introduction
The Landoll Model 876 Wing Tilloll is a quality product designed to give years of trouble free performance. By
following each section of this manual, your system will perform as designed for you and your operation
CHAPTER 1 gives basic instructions on the use of this manual.
CHAPTER 2 gives product specifications. These specifications supply lengths and measures for your
equipment. A Standard Bolt Torque Table is provided to give guidelines for bolt torques to
be used when servicing this product.
CHAPTER 3 contains assembly instructions for your Model 876 Wing Tilloll. When these procedures
are correctly followed, your equipment should provide you years of trouble-free operation
and service.
CHAPTER 4 instructs how to operate your equipment before using it, and describes adjustments
needed. It also gives practical advice for the care and maintenance of your Landoll
equipment. Drawings in this section locate adjustment points on the equipment.
NOTE: IF THE EQUIPMENT IS IMPROPERLY ASSEMBLED OR MAINTAINED, THE
WARRANTY IS VOID. IF YOU HAVE ANY QUESTIONS CONTACT:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
or phone:
[phone] or
[phone]
[phone]
CHAPTER 5 is a troubleshooting guide to aid in diagnosing and solving problems with the equipment.
PARTS LIST is a separate manual showing the various assemblies, subassemblies, and systems.
Refer to that manual when ordering Landoll replacement parts. Order parts from your
Landoll dealer.
WARRANTY The Warranty Registration form is included with the product documents. Fill it out and
mail it within 15 days of purchase.
NOTE: IMPROPER ASSEMBLY, MODIFICATION, OR MAINTENANCE OF YOUR
LANDOLL MACHINE CAN VOID YOUR WARRANTY.
COMMENTS Address comments or questions regarding this publication to:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
ATTENTION: PUBLICATIONS -DEPT. 55

1-2 F-143-0211 Edition
INTRODUCTION
Understanding Safety
Statements
You will find various types of safety information on the
following pages and on the machine signs (decals)
attached to the vehicle. This section explains their
meaning.
The Safety Alert Symbol means ATTENTION! YOUR
SAFETY IS INVOLVED!
DANGER
WARNING
CAUTION
NOTE
Means that failure to follow these instructions could
cause damage to the equipment or cause it to operate
improperly.
NOTE
Make sure you read and understand the information
contained in this manual and on the machine signs
(decals) before you attempt to operate or maintain this
vehicle.
The safety statements contained in this manual relate to
the operation of the Model 876 Wing Tilloll.
Danger means a life-threatening situation exists.
Death can occur if safety measures or
instructions on this label are not properly
followed.
Warning means serious injury or death can occur
if safety measures or instructions on this label
are not properly followed.
Caution means serious equipment or other
property damage can occur if instructions on this
label are not properly followed.

2-1
Chapter 2
Standard Specifications
876 SERIES WING TILLOLL
MODEL
NO.
WIDTH
OF CUT
TRANSPORT
WIDTH
TRANSPORT
HEIGHT
NO. OF
SHANKS
NO. OF 20”
DISC BLADES
ESTIMATED
WEIGHT (LBS.)
876-30 30’-0” 16’-6” * 8’-6” 40 46 15,800
876-35 34’-6” 20’-4” 13’-0” 46 54 16,700
876-40 40’-0” 17’-9” 13’-9” 52 60 18,800
* 180º Fold

2-2 F-143-0211 Edition
STANDARD SPECIFICATIONS
Table 2-1: General Torque Specifications
LANDOLL CORPORATION
GENERAL TORQUE SPECIFICATIONS (REV. 4/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR GENERAL PURPOSE APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED ON PROCESS
OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED NUTS AND CAPSCREWS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS RECEIVED CONDITION). THEY
DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
WHEN FASTENERS ARE DRY (SOLVENT CLEANED), ADD 33% TO AS RECEIVED CONDITION TORQUE.
BOLT HEAD IDENTIFICATION MARKS INDICATE GRADE AND MAY VARY FROM MANUFACTURER TO MANUFACTURER.
THICK NUTS MUST BE USED ON GRADE 8 CAPSCREWS.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
TORQUE IS SPECIFIED IN FOOT POUNDS
UNC
Size
SAE Grade
2
SAE Grade
5
SAE Grade
8
UNF
Size
SAE Grade
2
SAE Grade
5
SAE Grade
8
1/4-20 4 [5] 6 [7] 9 [11] 1/4-28 5 [6] 7 [9] 10 [12]
5/16-18 8 [10] 13 [16] 18 [22] 5/16-24 9 [11] 14 [17] 20 [25]
3/8-16 15 [19] 23 [29] 35 [43] 3/8-24 17 [21] 25 [31] 35 [44]
7/16-14 24 [30] 35 [43] 55 [62] 7/16-20 27 [34] 40 [50] 60 [75]
1/2-13 35 [43] 55 [62] 80 [100] 1/2-20 40 [50] 65 [81] 90 [112]
9/16-12 55 [62] 80 [100] 110 [137] 9/16-18 60 [75] 90 [112] 130 [162]
5/8-11 75 [94] 110 [137] 170 [212] 5/8-18 85 [106] 130 [162] 180 [225]
3/4-10 130 [162] 200 [250] 280 [350] 3/4-16 150 [188] 220 [275] 320 [400]
7/8-9 125 [156] 320 [400] 460 [575] 7/8-14 140 [175] 360 [450] 500 [625]
1-8 190 [237] 408 [506] 680 [850] 1-14 210 [263] 540 [675] 760 [950]
1-1/8-7 270 [337] 600 [750] 960 [1200] 1-1/8-12 300 [375] 660 [825] 1080 [1350]
1-1/4-7 380 [475] 840 [1050] 1426 [1782] 1-1/4-12 420 [525] 920 [1150] 1500 [1875]
1-3/8-6 490 [612] 110 [1375] 1780 [2225] 1-3/8-12 560 [700] 1260 [1575] 2010 [2512]
1-1/2-6 650 [812] 1460 [1825] 2360 [2950] 1-1/2-12 730 [912] 1640 [2050] 2660 [3325]
1-3/4-5 736 [920] 1651 [2063] 2678 [3347] 1-3/4-12 920 [1150] 2063 [2579] 3347 [4183]
METRIC
COARSE THREAD METRIC CLASS 10.9 FASTENERS AND CLASS 10.0 NUTS AND THROUGH HARDENED FLAT WASHERS, PHOSPHATE COATED, ROCKWELL
“C” 38-45.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
Nominal
Thread
Diameter
mm
Standard Torque Nominal
Thread
Diameter
mm
Standard Torque
Newton-
Meters
Foot-
Pounds
Newton-
Meters
Foot-
Pounds
6 10 [14] 7 [10] 20 385 [450] 290 [335]
7 16 [22] 12 [16] 24 670 [775] 500 [625]
8 23 [32] 17 [24] 27 980 [1105] 730 [825]
10 46 [60] 34 [47] 30 1330 [1470] 990 [1090]
12 80 [101] 60 [75] 33 1790 [1950] 1340 [1450]
14 125 [155] 90 [115] 36 2325 [2515] 1730 [1870]
16 200 [240] 150 [180] 39 3010 [3210] 2240 [2380]
18 275 [330] 205 [245]

STANDARD SPECIFICATIONS
2-3
Table 2-2: Hydraulic Fitting Torque Specifications
LANDOLL CORPORATION
HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS, & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED ON PROCESS
OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS
RECEIVED CONDITION).THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL. STAINLESS STEEL, ALUMINUM AND MONEL - THREADS ARE TO BE
LUBRICATED.
TORQUE IS SPECIFIED IN FOOT POUNDS
PARKER BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-13 15-17 13-15
-5 14-16 — 21-23
-6 20-22 34-36 25-29
-8 43-47 58-62 40-44
-10 55-65 100-110 57.5-62.5
-12 80-90 134-146 75-85
-16 115-125 202-218 109-121
-20 160-180 248-272 213-237
-24 185-215 303-327 238-262
-32 250-290 — 310-340
GATES BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 10-11 10-12 14-16
-5 13-15 — —
-6 17-19 18-20 24-26
-8 34-38 32-40 37-44
-10 50-56 46-56 50-60
-12 70-78 65-80 75-83
-14 — 65-80 —
-16 94-104 92-105 111-125
-20 124-138 125-140 133-152
-24 156-173 150-180 156-184
-32 219-243 — —
AEROQUIP BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-12 10-12 14-16
-5 15-16 — 18-20
-6 18-20 18-20 24-26
-8 38-42 32-35 50-60
-10 57-62 46-50 72-80
-12 79-87 65-70 125-135
-14 — — 160-180
-16 108-113 92-100 200-220
-20 127-133 125-140 210-280
-24 158-167 150-165 270-360
-32 245-258 — —

2-4 F-143-0211 Edition
STANDARD SPECIFICATIONS

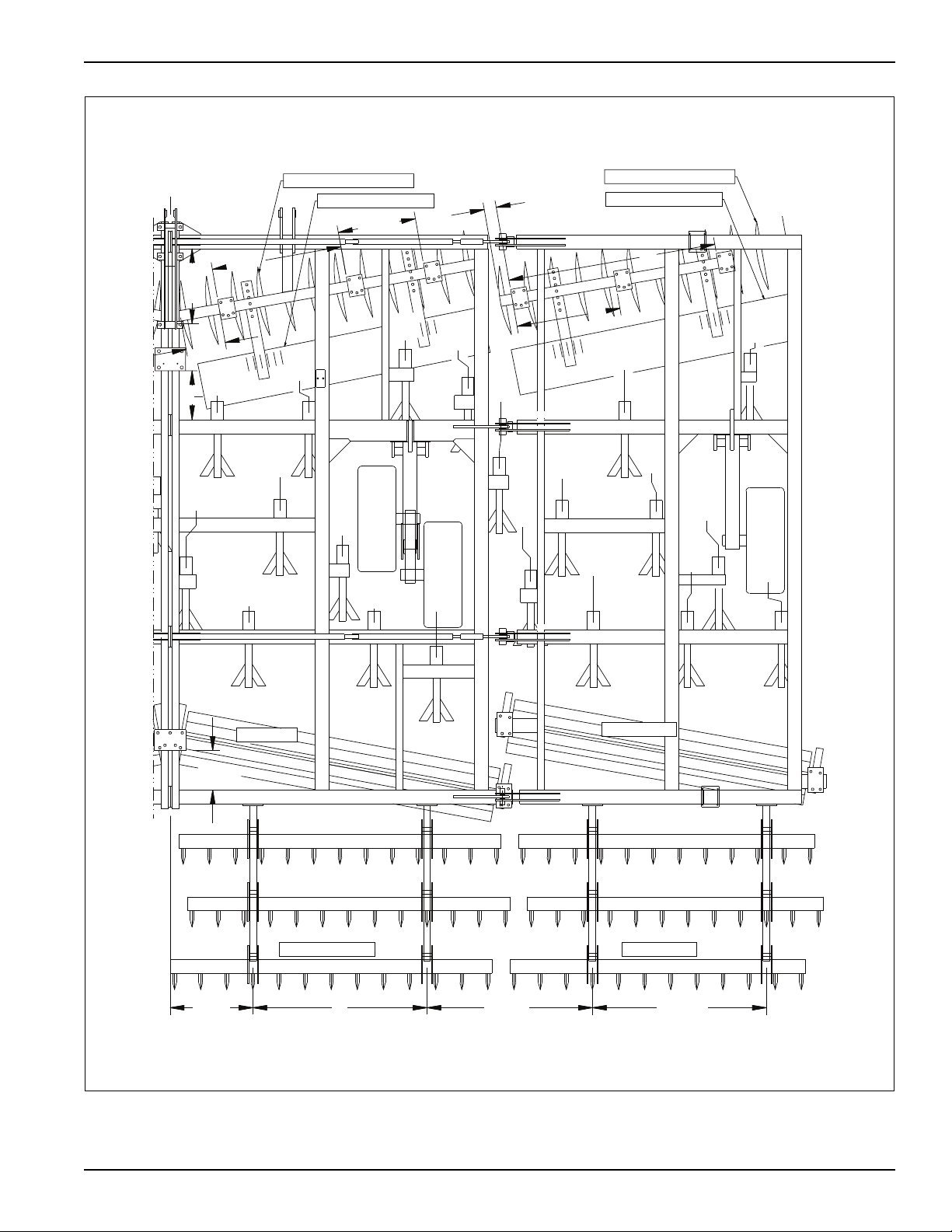

Figure 2-1: 876-30 Shank Placement Assembly (1 of 2)
58-1/2
31-1/2
4-1/2
22-1/2
m876-30sp-p1
11 - BLADE DISC ASSY. 12 - BLADE DISC ASSY.
83" SPRAY SHIELD
76" SPRAY SHIELD
0
3-1/2
60
30
22-1/2
37-1/2
11-1/2
13-1/2
67-1/2
85-1/2
94-1/2
130-1/2
166-1/2
175-1/2
175-1/2
148-1/2
139-1/2
112-1/2
121-1/2
130-1/2
76-1/2
39-3/4
86-1/2" REEL 91" REEL
92-1/2 HARROW
85" HARROW
42-1/2 50 50 23-3/4

STANDARD SPECIFICATIONS
2-5
Figure 2-2: 876-30 Shank Placement Assembly (2 of 2)
m876-30sp-p2
12 - BLADE DISC ASSY. 11 - BLADE DISC ASSY.
76" SPRAY SHIELD
83" SPRAY SHIELD 3-1/2
30
60
22-1/2
37-1/2
11-1/2
13-1/2
31-1/2
49-1/2
76-1/2
103-1/2
112-1/2
139-1/2
175-1/2
157-1/2
148-1/2
121-1/2
166-1/2
58-1/2
22-1/2
23-3/4
11-1/4
50 47-1/2 42-1/2
94-1/2
4-1/2
39-3/4
21-1/2
67-1/2
85-1/2
0
14 7
8
91" REEL 86.5" REEL
85" HARROW92-1/2" HARROW

2-6 F-143-0211 Edition
STANDARD SPECIFICATIONS

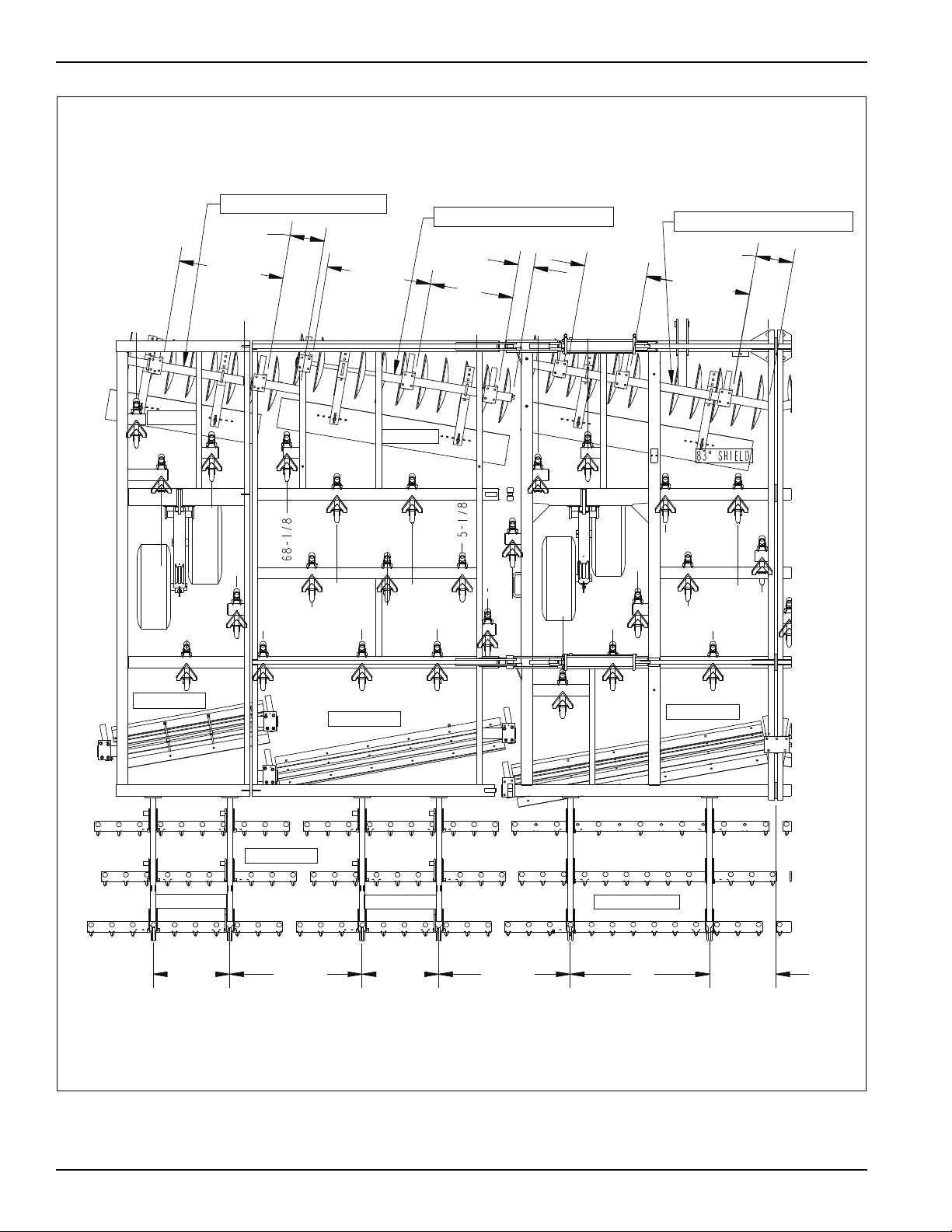

Figure 2-3: 876-35 Shank Placement Assembly (1 of 2)
m876-35sp-p1
8-BLADE DISC ASSY. 7-BLADE DISC ASSY. 12-BLADE DISC ASSY.
83" SPRAY SHIELD
48" SPRAY SHIELD55" SPRAY SHIELD
97-1/8
6-1/4
37-1/2
3-1/2 22-1/2
37-1/2
52-1/8
85-1/2
0
0
52-1/8
27-1/2
39-3/4
31-1/2
4-1/2
31-1/2
49-1/2
22-1/2
58-1/2
76-1/2
16-1/8
43-1/8
91" REEL
92-1/2" HARROW115" HARROW
72-1/2 47-1/2 50 23-3/4
61-1/8
70-1/8
88-1/8
1-7/8
11-1/2
97-1/8

STANDARD SPECIFICATIONS
2-7
Figure 2-4: 876-35 Shank Placement Assembly (2 of 2)
m876-35sp-p2
12 - BLADE DISC ASSY. 7 - BLADE DISC ASSY. 8 - BLADE DISC ASSY.
55" SPRAY SHIELD
48" SPRAY SHIELD
83" SPRAY SHIELD
0
0
3-1/2
22-1/2
37-1/2
21 1
2
13 1
2
31 1
2
49 1
2
76 1
2
58 1
2
22
26
1 2
11 1
4
41
2
37 1
2
25 1
8
52 1
8
61
4
371
2
79 1
8
97 1
8
67 1
2
71
8
39 3
4
14 7
8
11 1
2
34 1
8
43 1
8
61 1
8
70 1
8
88 1
8
16 1
8
17
8
91" REEL 114" REEL
114" HARROW92-1/2" HARROW
23-3/4 50 47-1/2 72-1/2

2-8 F-143-0211 Edition
STANDARD SPECIFICATIONS
Figure 2-5: 876-40 Shank Placement Assembly (1 of 2)
70" HARROW
876-40 shankp1
70" HARROW 92-1/2" HARROW
7 BLADE DISC ASSY. 10 BLADE DISC ASSY. 11 BLADE DISC ASSY.
13-3/8
37-1/2
22-1/2
5-5/8
37.694
11-3/4
29-3/4
20-3/4
76-5/8
59-1/8
50-1/8
41-1/8
32-1/8
4
91-7/8
73-7/8
55-7/8
46-7/8
37
10-7/8
19-7/8
28-7/8
91" REEL
82" REEL
55" REEL
2-1/4
55" SHEILD
83" SHEILD
12-7/18
30
0
0
0
64-7/8
82-3/4
27-1/2 27-1/247-1/2 47-1/4 50 23-3/4

STANDARD SPECIFICATIONS
2-9
Figure 2-6: 876-40 Shank Placement Assembly (2 of 2)
876-40 shankp2
14-7/8 83" SHIELD
37-1/2
37-1/2
0
64-7/8
82-3/4
0
91-7/8
2-1/4
37
31-7/8
47-1/2 27-1/2 27-1/2
47-1/2
5023-3/4
10-7/8
19-7/8
55-7/8
4-1/16
5-1/16
23-1/16
23-1/16
50-1/16
59-1/16
68-1/16
2-1/16
76-1/16
41-1/16
20-1/16
29-1/16
28-7/8
46-7/8
0
11-11/16
38-11/16
22-1/2
37-1/2 29-1/16 37-1/2
10-9/32
4-5/8
7 BLADE DISC ASSY.
10 BLADE DISC ASSY.
11 BLADE DISC ASSY.
83" SHIELD 55" SHIELD
55" REEL
82" REEL
91" REEL
92-1/2" HARROW 70" HARROW 70" HARROW
14-1/16
73-7/8

2-10 F-143-0211 Edition
STANDARD SPECIFICATIONS

3-1
Chapter 3
Assembly Instructions
It is very important that your new 876 Series Wing Tilloll
be properly assembled, adjusted and lubricated before
use. Illustrations to assist with the assembly process are
provided in “Standard Specifications” on page 2-1.
They show proper shank, disc gang and mounting
bracket spacings. Illustrations in this section show proper
assembly procedures. Remove paint from grease fittings.
Replace any grease fittings that are damaged or missing.
Be sure to return screws, clips, etc., to their original
locations.
To insure alignment of assemblies, leave the nuts loose
until completion of final assembly. Use lock washers or
flat washers as specified. Spread all cotter pins.
After completion of final assembly, tighten all nuts
evenly to prevent misalignment, distortion or binding.
Tighten all screws and nuts to the recommended torques
shown in Table 2-1.
DANGER
DANGER
WARNING
CAUTION
To prevent accidental lowering:
1. All hydraulically elevated equipment must be
locked out using the cylinder lockouts:
2. Lower equipment to the ground while servicing
or when it is idle.
Failure to take measures to prevent accidental
lowering may result in serious personal injury or
death.
Disc blades are extremely sharp. Exercise
extreme care when working on or near disc
blades. Do not allow discs to roll over or fall onto
any bodily part. Do not allow wrenches to slip
when working near disc blades. Never push
wrenches toward disc blades. Do not climb over
machine above disc blades. Failure to stay clear
of disc blade edges can cause serious personal
injury or death.
Do not attempt to lift heavy parts (such as the
frame, disc gangs, rock shaft, and pull hitch)
manually. Use a hoist or a fork lift to move these
parts into position.
Be sure to bleed the hydraulic system of all air in
lines after installation. Failure to bleed the system
of all air can result in permanent equipment
damage.

3-2 F-143-0211 Edition
ASSEMBLY INSTRUCTIONS
Figure 3-1: Frame Assembly

ASSEMBLY INSTRUCTIONS
3-3
Figure 3-2: Wing Assembly (876-30 & 876-35 Models)

3-4 F-143-0211 Edition
ASSEMBLY INSTRUCTIONS
Figure 3-3: Wing and Extension Assembly (876-40 Model)
