MODEL 875 SERIES
TILLOLL
OPERATOR’S MANUAL
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
[phone]
F-60-1099 10/99

WARRANTY
MANUFACTURER’S GUARANTEE POLICY
LANDOLL CORPORATION WARRANTY
LANDOLL warrants each new and unused LANDOLL machine, when
properly assembled, adjusted, and operated, to be free of defects in
material and workmanship, in normal use and when properly serviced,
for a period of twelve (12) months after date of delivery by the Dealer to
the original retail purchaser. LANDOLL shall repair or replace, at its op-
tion, freight on board (f.o.b.) at its factory or designated DEALER loca-
tion, any part or parts of such new and unused machine which shall
have been reported in writing to LANDOLL within thirty (30) days from
date of failure thereof and which LANDOLL inspection shall disclose to
have been defective. Defective parts must be returned to the LANDOLL
factory, freight prepaid. LANDOLL will not be liable for labor, transpor-
tation, or any other charges resulting from replacement of a defective
part. This warranty is void if any part not supplied by LANDOLL is used
in assembly or repair, or if the machine has been altered, abused, or
neglected. LANDOLL repair parts are warranted for ninety (90) days
from date of replacement or for the unexpired warranty period of the
applicable LANDOLL machine, whichever period is longer. LANDOLL
makes no warranty, whatsoever, as to purchased component parts and
other trade accessories, except to the extent that such items are war-
ranted by the manufacturer thereof. THIS WARRANTY IS EXCLUSIVE
AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED,
IMPLIED, OR STATUTORY (INCLUDING WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR PURPOSE), AND LANDOLL SHALL NOT BE
LIABLE FOR SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND
ON ACCOUNT OF ANY LANDOLL PRODUCT.
NO EMPLOYEE OR REPRESENTATIVE IS AUTHORIZED TO CHANGE
THIS WARRANTY, VERBALLY OR IN WRITING, OR GRANT ANY OTHER
WARRANTY.
LANDOLL CORPORATION, WHOSE POLICY IS ONE OF CONTINUOUS
IMPROVEMENT, RESERVES THE RIGHT TO MAKE CHANGES WITHOUT
OBLIGATION TO MODIFY PREVIOUSLY PRODUCED EQUIPMENT.

MODEL 875 SERIES
TILLOLL
OPERATOR’S MANUAL
PURCHASED FROM: DATE / /
ADDRESS:
PHONE NO.: SERIAL NO.:
i

ii

TABLE OF CONTENTS
SECTION DESCRIPTION PAGE NO.
1 INTRODUCTION 1-1
2 STANDARD SPECIFICATIONS 2-1
3 ASSEMBLY INSTRUCTIONS 3-1
3-1 FRAME ASSEMBLY - RIGID MODELS .....................3-2
3-2 FRAME ASSEMBLY - 15’ FOLD MODEL ...................3-3
3-3 FRAME ASSEMBLY - WING MODELS .....................3-7
3-4 SHANK, CLAMP, AND SWEEP ASSEMBLY.................3-7
3-5 GAUGE WHEEL INSTALLATION .........................3-9
3-6 HYDRAULIC LIFT INSTALLATION - RIGID AND 15’ FOLD......3-9
3-7 HYDRAULIC LIFT INSTALLATION - FOLD MODELS .........3-11
3-8 HYDRAULIC FOLD INSTALLATION - ALL FOLD MODELS ....3-13
3-9 DISC GANG AND SPRAY SHIELD INSTALLATION ..........3-17
3-10 REEL ASSEMBLY INSTALLATION ......................3-19
3-11 HARROW ASSEMBLY INSTALLATION ...................3-21
3-12 PULL HITCH INSTALLATION - 15’F MODEL ...............3-23
3-13 PULL HITCH INSTALLATION - ALL OTHER MODELS ........3-23
3-14 WARNING LIGHTS INSTALLATION ......................3-25
3-15 LUBRICATION ......................................3-28
3-16 DECAL PLACEMENT.................................3-28
4 OPERATION AND MAINTENANCE 4-1
4-1 TRACTOR PREPARATION .............................4-2
4-2 TILLOLL PREPARATION ...............................4-2
4-3 ATTACHING TO THE TRACTOR .........................4-3
4-4 TRANSPORT ........................................4-4
4-5 FIELD OPERATION ...................................4-4
4-6 DISC GANG SCRAPER ADJUSTMENT ....................4-5
4-7 SPRAY SHIELD ADJUSTMENT ..........................4-6
4-8 SPRAY BOOM LOCATION..............................4-6
4-9 REEL ADJUSTMENT ..................................4-6
4-10 HARROW ADJUSTMENT...............................4-7
4-11 WHEEL BEARING MAINTENANCE .......................4-9
4-12 HYDRAULIC MAINTENANCE............................4-9
4-13 LUBRICATION.......................................4-9
4-14 STORAGE ........................................4-10
5 TROUBLESHOOTING GUIDE 5-1
iii

SAFETY PRECAUTIONS
THIS IS THE SAFETY ALERT SYMBOL. IT IS USED TO ALERT YOU
TO POTENTIAL INJURY HAZARDS. OBEY ALL SAFETY MESSAGES
THAT FOLLOW THIS SYMBOL TO AVOID POSSIBLE INJURY OR
DEATH.
DANGER DANGER INDICATES AN IMMINENTLY HAZARDOUS SITUA-
TION WHICH, IF NOT AVOIDED, WILL RESULT IN DEATH OR
SERIOUS INJURY.
WARNING WARNING INDICATES A POTENTIALLY HAZARDOUS SITUA-
TION WHICH, IF NOT AVOIDED, COULD RESULT IN DEATH OR
SERIOUS INJURY.
CAUTION CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUA-
TION WHICH, IF NOT AVOIDED, MAY RESULT IN MINOR OR
MODERATE INJURY.
CAUTION CAUTION USED WITHOUT THE SAFETY ALERT SYMBOL INDI-
CATES A POTENTIALLY HAZARDOUS SITUATION WHICH, IF
NOT AVOIDED, MAY RESULT IN PROPERTY DAMAGE.
iv

1INTRODUCTION
The Landoll 875 Series Tilloll is a quality product designed to give years of trouble free performance. By
following each section of this manual, your system will perform as designed for you and your operation.
SECTION 1 gives basic instructions on the use of this manual.
SECTION 2 gives product specifications. These specifications supply lengths and measures for your
equipment. A Standard Bolt Torque Table is provided to give guidelines for bolt torques
to be used when servicing this product.
SECTION 3 contains assembly instructions for your 875 Series Tilloll. When these procedures are
correctly followed, your equipment should provide you years of trouble-free operation
and service.
SECTION 4 instructs how to operate your equipment before using it, and describes adjustments
needed. It also gives practical advice for the care and maintenance of your Landoll
equipment. Drawings in this section locate adjustment points on the equipment.
NOTE: IF THE EQUIPMENT IS IMPROPERLY ASSEMBLED OR MAINTAINED, THE
WARRANTY IS VOID. IF YOU HAVE ANY QUESTIONS CONTACT:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
or phone:
[phone] or
[phone]
or FAX:
[phone]
SECTION 5 is a troubleshooting guide to aid in diagnosing and solving problems with the equip-
ment.
PARTS LIST is a separate manual showing the various assemblies, subassemblies, and systems.
Refer to that manual when ordering Landoll replacement parts. Order parts from your
Landoll dealer.
WARRANTY The Warranty Registration form is included with the product documents. Fill it out and
mail it within 15 days of purchase. The Warranty is printed inside the front cover.
NOTE: IMPROPER ASSEMBLY, MODIFICATION, OR MAINTENANCE OF YOUR
LANDOLL EQUIPMENT CAN VOID YOUR WARRANTY.
COMMENTS Address comments or questions regarding this publication to:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
ATTENTION: PUBLICATIONS -DEPT. 55
1-1

2STANDARD SPECIFICATIONS
SIZE WIDTH
OF CUT TRANSPORT WIDTH NO. OF SHANKS NO. OF 20" DISC
BLADES
APPROX.
WEIGHT
LBS.
875-10 10’-6" 12’-0" 14 14 5,059
875-13 13’-6" 15’-0" 18 20 5,753
875-15 15’-0" 16’-6" 20 22 6,090
875-15F 15’-0" 9’-4" 20 22 6,940
875-18 18’-0" 10’-6" 24 26 9,700
875-21 21’-0" 13’-0" 28 32 9,800
875-25 25’-6" 16’-6" 34 38 10,917
2-1

2-2
LANDOLL CORPORATION

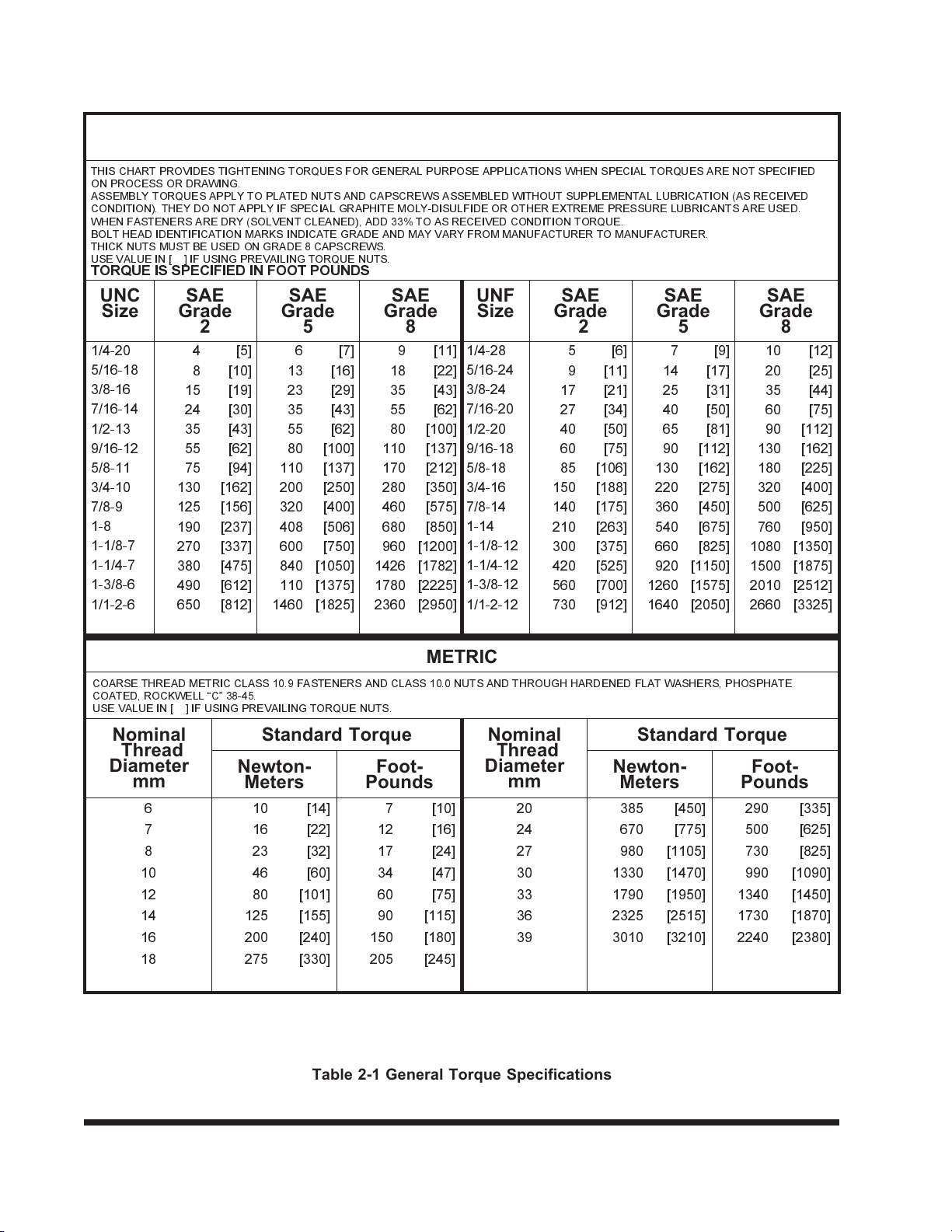

GENERAL TORQUE SPECIFICATIONS (REV. 4/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR GENERAL PURPOSE APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED
ON PROCESS OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED NUTS AND CAPSCREWS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS RECEIVED
CONDITION). THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
WHEN FASTENERS ARE DRY (SOLVENT CLEANED), ADD 33% TO AS RECEIVED CONDITION TORQUE.
BOLT HEAD IDENTIFICATION MARKS INDICATE GRADE AND MAY VARY FROM MANUFACTURER TO MANUFACTURER.
THICK NUTS MUST BE USED ON GRADE 8 CAPSCREWS.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
TORQUE IS SPECIFIED IN FOOT POUNDS
UNC
Size SAE Grade
2
SAE
Grade
5
SAE
Grade
8
UNF
Size SAE Grade
2
SAE
Grade
5
SAE
Grade
8
1/4-20 4 [5] 6 [7] 9 [11] 1/4-28 5 [6] 7 [9] 10 [12]
5/16-18 8 [10] 13 [16] 18 [22] 5/16-24 9 [11] 14 [17] 20 [25]
3/8-16 15 [19] 23 [29] 35 [43] 3/8-24 17 [21] 25 [31] 35 [44]
7/16-14 24 [30] 35 [43] 55 [62] 7/16-20 27 [34] 40 [50] 60 [75]
1/2-13 35 [43] 55 [62] 80 [100] 1/2-20 40 [50] 65 [81] 90 [112]
9/16-12 55 [62] 80 [100] 110 [137] 9/16-18 60 [75] 90 [112] 130 [162]
5/8-11 75 [94] 110 [137] 170 [212] 5/8-18 85 [106] 130 [162] 180 [225]
3/4-10 130 [162] 200 [250] 280 [350] 3/4-16 150 [188] 220 [275] 320 [400]
7/8-9 125 [156] 320 [400] 460 [575] 7/8-14 140 [175] 360 [450] 500 [625]
1-8 190 [237] 408 [506] 680 [850] 1-14 210 [263] 540 [675] 760 [950]
1-1/8-7 270 [337] 600 [750] 960 [1200] 1-1/8-12 300 [375] 660 [825] 1080 [1350]
1-1/4-7 380 [475] 840 [1050] 1426 [1782] 1-1/4-12 420 [525] 920 [1150] 1500 [1875]
1-3/8-6 490 [612] 110 [1375] 1780 [2225] 1-3/8-12 560 [700] 1260 [1575] 2010 [2512]
1/1-2-6 650 [812] 1460 [1825] 2360 [2950] 1/1-2-12 730 [912] 1640 [2050] 2660 [3325]
METRIC
COARSE THREAD METRIC CLASS 10.9 FASTENERS AND CLASS 10.0 NUTS AND THROUGH HARDENED FLAT WASHERS, PHOSPHATE
COATED, ROCKWELL C 38-45.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
Nominal
Thread
Diameter
mm
Standard Torque Nominal
Thread
Diameter
mm
Standard Torque
Newton-
Meters Foot- Pounds Newton- Meters Foot- Pounds
6 10 [14] 7 [10] 20 385 [450] 290 [335]
7 16 [22] 12 [16] 24 670 [775] 500 [625]
8 23 [32] 17 [24] 27 980 [1105] 730 [825]
10 46 [60] 34 [47] 30 1330 [1470] 990 [1090]
12 80 [101] 60 [75] 33 1790 [1950] 1340 [1450]
14 125 [155] 90 [115] 36 2325 [2515] 1730 [1870]
16 200 [240] 150 [180] 39 3010 [3210] 2240 [2380]
18 275 [330] 205 [245]
Table 2-1 General Torque Specifications

2-3
LANDOLL CORPORATION

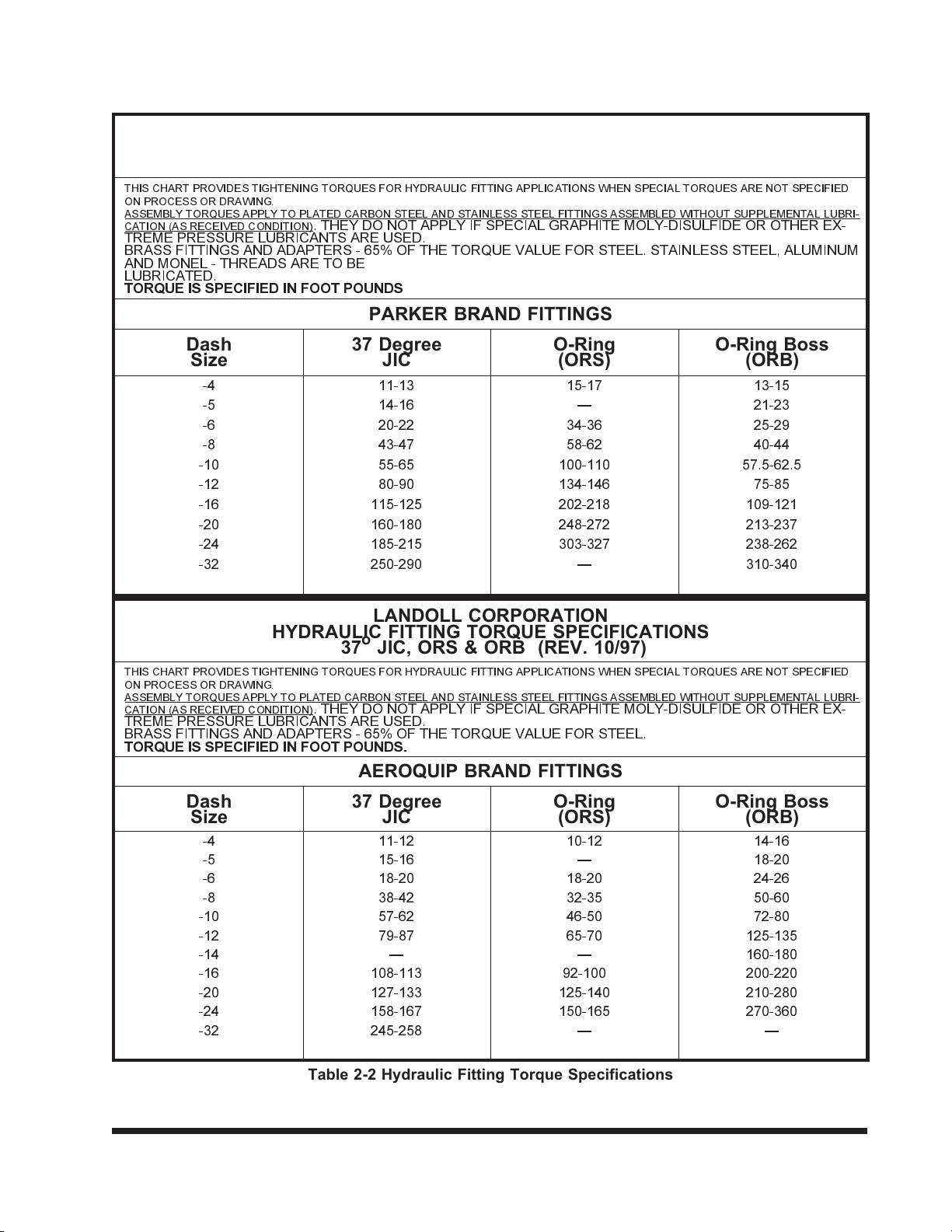

HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS, & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED
ON PROCESS OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRI-
CATION (AS RECEIVED CONDITION) . THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EX-
TREME PRESSURE LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL. STAINLESS STEEL, ALUMINUM
AND MONEL - THREADS ARE TO BE
LUBRICATED.
TORQUE IS SPECIFIED IN FOOT POUNDS
PARKER BRAND FITTINGS
Dash
Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-13 15-17 13-15
-5 14-16  21-23
-6 20-22 34-36 25-29
-8 43-47 58-62 40-44
-10 55-65 100-110 57.5-62.5
-12 80-90 134-146 75-85
-16 115-125 202-218 109-121
-20 160-180 248-272 213-237
-24 185-215 303-327 238-262
-32 250-290  310-340
LANDOLL CORPORATION
HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED
ON PROCESS OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRI-
CATION (AS RECEIVED CONDITION) . THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EX-
TREME PRESSURE LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL.
TORQUE IS SPECIFIED IN FOOT POUNDS.
AEROQUIP BRAND FITTINGS
Dash
Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-12 10-12 14-16
-5 15-16  18-20
-6 18-20 18-20 24-26
-8 38-42 32-35 50-60
-10 57-62 46-50 72-80
-12 79-87 65-70 125-135
-14   160-180
-16 108-113 92-100 200-220
-20 127-133 125-140 210-280
-24 158-167 150-165 270-360
-32 245-258  
Table 2-2 Hydraulic Fitting Torque Specifications

2-4

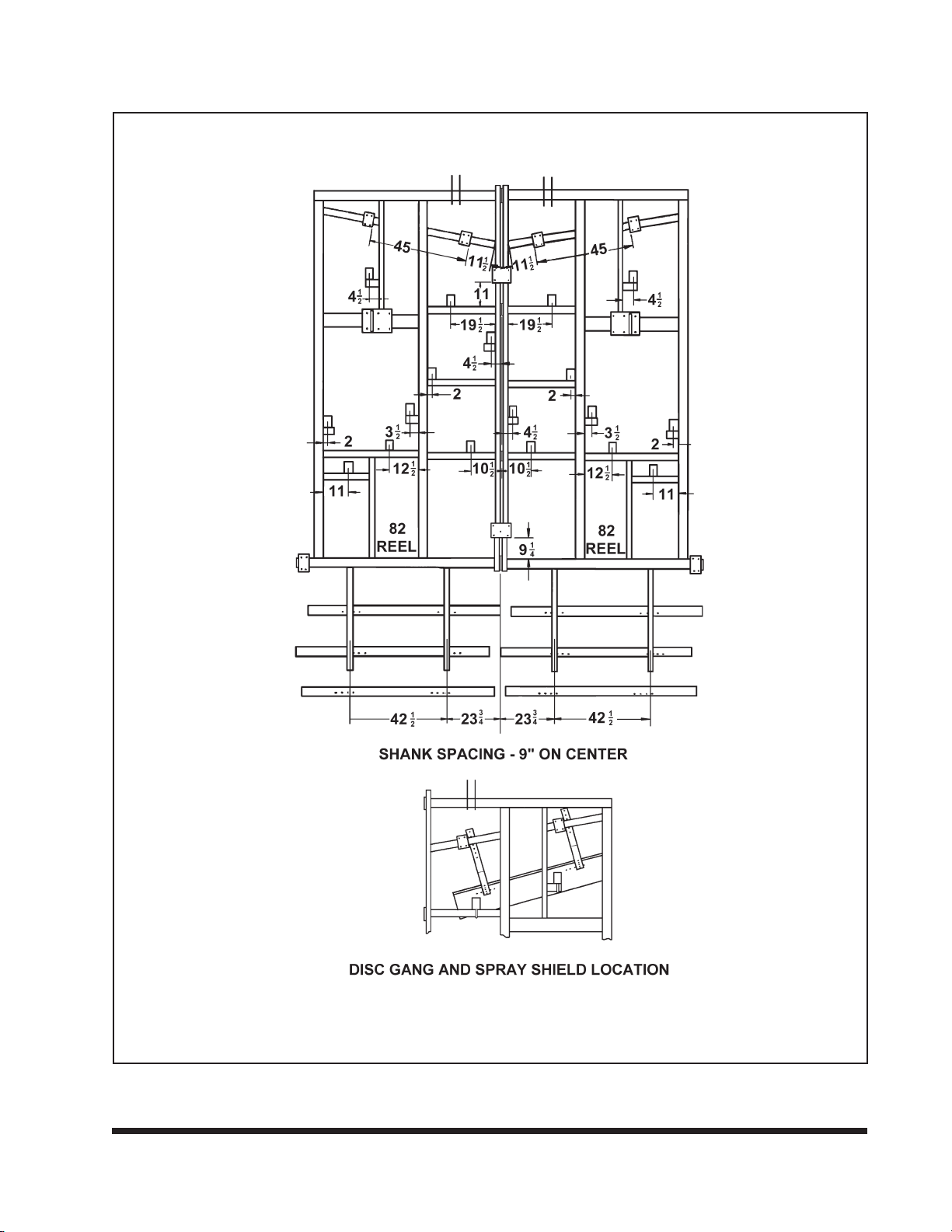

Figure 2-1 875-10 Shank Placement Assembly

2-5
Figure 2-2 875-13 Shank Placement Assembly

2-6
Figure 2-3 875-15 Shank Placement Assembly

2-7
Figure 2-4 875-15F Shank Placement Assembly

2-8
Figure 2-5 875-18 Shank Placement Assembly

2-9

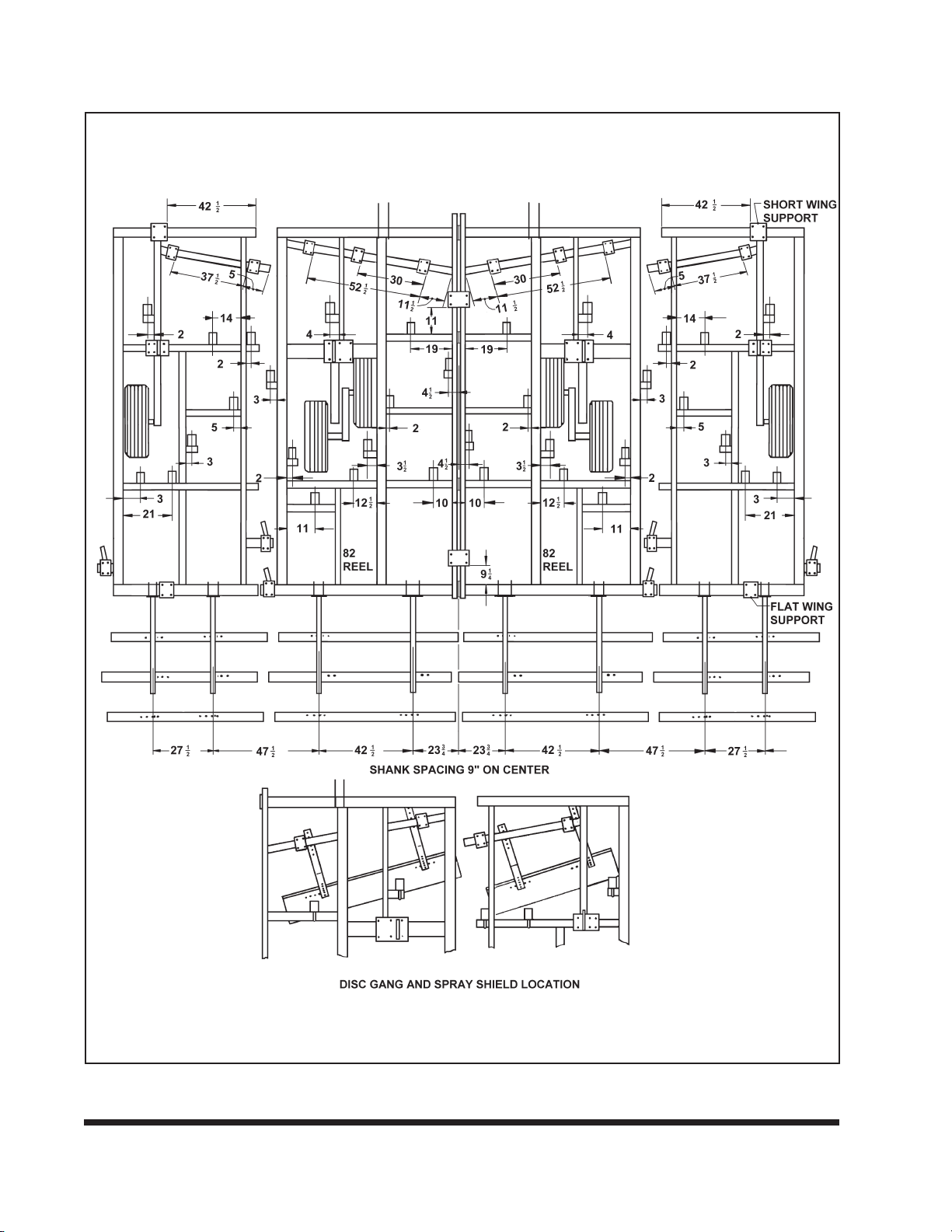

Figure 2-6 875-21 Shank Placement Assembly

2-10
Figure 2-7 875-25 Shank Placement Assembly

NOTES:
2-11
