Model 2210 Series
Weatherproofer I
Operator’s Manual

F-227-1011 Edition i
Table of Contents
1 Introduction
Understanding Safety Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2 Standard Specifications
3 Assembly Procedures
2215 Frame Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
2217 Frame Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
2215 Rockshaft Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
2217 Rockshaft Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Gauge Wheel Hydraulic Plumbing Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Pull Hitch Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Standard Rigid Riser Disc Gang Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Flex Disc Gang Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Parabolic Shank Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
Straight Shank Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19
4 Operation and Maintenance
Tractor Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Model 2210 Series Weatherproofer Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Attaching to the Tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Field Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Wheel Bearing Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Hydraulic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
5 Troubleshooting Guide

ii F-227-1011 Edition

1-1
Chapter 1
Introduction
The Landoll Model 2210 Series Weatherproofer I is a quality product designed to give years of trouble free
performance. By following each section of this manual, your system will perform as designed for you and your
operation
CHAPTER 1 gives basic instructions on the use of this manual.
CHAPTER 2 gives product specifications. These specifications supply lengths and measures for your
equipment. A Standard Bolt Torque Table is provided to give guidelines for bolt torques to
be used when servicing this product.
CHAPTER 3 contains assembly instructions for your Model 2210 Series Weatherproofer I . When
these procedures are correctly followed, your equipment should provide you years of
trouble-free operation and service.
CHAPTER 4 instructs how to operate your equipment before using it, and describes adjustments
needed. It also gives practical advice for the care and maintenance of your Landoll
equipment. Drawings in this section locate adjustment points on the equipment.
NOTE: IF THE EQUIPMENT IS IMPROPERLY ASSEMBLED OR MAINTAINED, THE
WARRANTY IS VOID. IF YOU HAVE ANY QUESTIONS CONTACT:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
or phone:
[phone] or
[phone]
or FAX:
[phone]
CHAPTER 5 is a troubleshooting guide to aid in diagnosing and solving problems with the equipment.
PARTS LIST is a separate manual showing the various assemblies, subassemblies, and systems.
Refer to that manual when ordering Landoll replacement parts. Order parts from your
Landoll dealer.
WARRANTY The Warranty Registration form is included with the product documents. Fill it out and
mail it within 15 days of purchase.
NOTE: IMPROPER ASSEMBLY, MODIFICATION, OR MAINTENANCE OF YOUR
LANDOLL MACHINE CAN VOID YOUR WARRANTY.
COMMENTS Address comments or questions regarding this publication to:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
ATTENTION: PUBLICATIONS -DEPT. 55

1-2 F-227-1011 Edition
INTRODUCTION
Understanding Safety
Statements
You will find various types of safety information on the
following pages and on the machine signs (decals)
attached to the vehicle. This section explains their
meaning.
The Safety Alert Symbol means ATTENTION! YOUR
SAFETY IS INVOLVED!

DANGER

WARNING

CAUTION
NOTE
Means that failure to follow these instructions could
cause damage to the equipment or cause it to operate
improperly.
NOTE
Make sure you read and understand the information
contained in this manual and on the machine signs
(decals) before you attempt to operate or maintain this
vehicle.
The safety statements contained in this manual relate to
the operation of the Model 2210 Series Weatherproofer I.
.
Danger means a life-threatening situation exists.
Death can occur if safety measures or
instructions on this label are not properly
followed.
Warning means serious injury or death can occur
if safety measures or instructions on this label
are not properly followed.
Caution means serious equipment or other
property damage can occur if instructions on this
label are not properly followed.

2-1
Chapter 2
Standard Specifications
2210 SERIES WEATHERPROOFER I W/ PARABOLIC SHANKS (1-1/8” X 3” x 37”)
MODEL NO.
WORKING
WIDTH NO. OF SHANKS
SHANK
SPACING NO. OF BLADES
ESTIMATED
WEIGHT (LBS.)
2215-3-30 9’-0” 3 30” 16 5,399
2215-4-24 9’-0” 4 24” 16 5,638
2215-4-30 11’-4” 4 30” 20 5,842
2215-5-24 11’-4” 5 24” 20 6,081
2215-5-30 13’-8” 5 30” 24 6,685
2215-5-30D 13’-8” 5 30” 24 6,705
2215-6-30 16’-0” 6 30” 28 7,228
2217-5-30 14’-2” 5 30” 24 8,551
2217-6-30 16’-0” 6 30” 28 8,994
2217-7-24 16’-0” 7 24” 28 8,979
2217-7-30 18’-4” 7 30” 32 9,287
2217-9-24 18’-4” 9 24” 32 9,715
2217-8-30 20’-9” 8 30” 36 10,080
2210 SERIES WEATHERPROOFER I W/ STRAIGHT LEG SHANKS (1-1/4” X 3” x 37”)
MODEL NO.
WORKING
WIDTH NO. OF SHANKS
SHANK
SPACING NO. OF BLADES
ESTIMATED
WEIGHT (LBS.)
2215-3-30 9’-0” 3 30” 16 5,700
2215-4-24 9’-0” 4 24” 16 6,038
2215-4-30 11’-4” 4 30” 20 6,242
2215-5-24 11’-4” 5 24” 20 6,581
2215-5-30 13’-8” 5 30” 24 7,185
2215-5-30D 13’-8” 5 30” 24 7,205
2215-6-30 16’-0” 6 30” 28 7,828
2217-5-30 14’-2” 5 30” 24 9,051
2217-6-30 16’-0” 6 30” 28 9,594
2217-7-24 16’-0” 7 24” 28 9,679
2217-7-30 18’-4” 7 30” 32 9,987
2217-9-24 18’-4” 9 24” 32 10,615
2217-8-30 20’-9” 8 30” 36 10,880

2-2 F-227-1111 Edition
STANDARD SPECIFICATIONS
Table 2-1: General Torque Specifications
LANDOLL CORPORATION
GENERAL TORQUE SPECIFICATIONS (REV. 4/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR GENERAL PURPOSE APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED ON PROCESS
OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED NUTS AND CAPSCREWS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS RECEIVED CONDITION). THEY
DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
WHEN FASTENERS ARE DRY (SOLVENT CLEANED), ADD 33% TO AS RECEIVED CONDITION TORQUE.
BOLT HEAD IDENTIFICATION MARKS INDICATE GRADE AND MAY VARY FROM MANUFACTURER TO MANUFACTURER.
THICK NUTS MUST BE USED ON GRADE 8 CAPSCREWS.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
TORQUE IS SPECIFIED IN FOOT POUNDS
UNC
Size
SAE Grade
2
SAE Grade
5
SAE Grade
8
UNF
Size
SAE Grade
2
SAE Grade
5
SAE Grade
8
1/4-20 4 [5] 6 [7] 9 [11] 1/4-28 5 [6] 7 [9] 10 [12]
5/16-18 8 [10] 13 [16] 18 [22] 5/16-24 9 [11] 14 [17] 20 [25]
3/8-16 15 [19] 23 [29] 35 [43] 3/8-24 17 [21] 25 [31] 35 [44]
7/16-14 24 [30] 35 [43] 55 [62] 7/16-20 27 [34] 40 [50] 60 [75]
1/2-13 35 [43] 55 [62] 80 [100] 1/2-20 40 [50] 65 [81] 90 [112]
9/16-12 55 [62] 80 [100] 110 [137] 9/16-18 60 [75] 90 [112] 130 [162]
5/8-11 75 [94] 110 [137] 170 [212] 5/8-18 85 [106] 130 [162] 180 [225]
3/4-10 130 [162] 200 [250] 280 [350] 3/4-16 150 [188] 220 [275] 320 [400]
7/8-9 125 [156] 320 [400] 460 [575] 7/8-14 140 [175] 360 [450] 500 [625]
1-8 190 [237] 408 [506] 680 [850] 1-14 210 [263] 540 [675] 760 [950]
1-1/8-7 270 [337] 600 [750] 960 [1200] 1-1/8-12 300 [375] 660 [825] 1080 [1350]
1-1/4-7 380 [475] 840 [1050] 1426 [1782] 1-1/4-12 420 [525] 920 [1150] 1500 [1875]
1-3/8-6 490 [612] 110 [1375] 1780 [2225] 1-3/8-12 560 [700] 1260 [1575] 2010 [2512]
1-1/2-6 650 [812] 1460 [1825] 2360 [2950] 1-1/2-12 730 [912] 1640 [2050] 2660 [3325]
1-3/4-5 736 [920] 1651 [2063] 2678 [3347] 1-3/4-12 920 [1150] 2063 [2579] 3347 [4183]
METRIC
COARSE THREAD METRIC CLASS 10.9 FASTENERS AND CLASS 10.0 NUTS AND THROUGH HARDENED FLAT WASHERS, PHOSPHATE COATED, ROCKWELL
“C” 38-45.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
Nominal
Thread
Diameter
mm
Standard Torque Nominal
Thread
Diameter
mm
Standard Torque
Newton-
Meters
Foot-
Pounds
Newton-
Meters
Foot-
Pounds
6 10 [14] 7 [10] 20 385 [450] 290 [335]
7 16 [22] 12 [16] 24 670 [775] 500 [625]
8 23 [32] 17 [24] 27 980 [1105] 730 [825]
10 46 [60] 34 [47] 30 1330 [1470] 990 [1090]
12 80 [101] 60 [75] 33 1790 [1950] 1340 [1450]
14 125 [155] 90 [115] 36 2325 [2515] 1730 [1870]
16 200 [240] 150 [180] 39 3010 [3210] 2240 [2380]
18 275 [330] 205 [245]

STANDARD SPECIFICATIONS
2-3
Table 2-2: Hydraulic Fitting Torque Specifications
LANDOLL CORPORATION
HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS, & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED ON PROCESS
OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS
RECEIVED CONDITION).THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL. STAINLESS STEEL, ALUMINUM AND MONEL - THREADS ARE TO BE
LUBRICATED.
TORQUE IS SPECIFIED IN FOOT POUNDS
PARKER BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-13 15-17 13-15
-5 14-16 — 21-23
-6 20-22 34-36 25-29
-8 43-47 58-62 40-44
-10 55-65 100-110 57.5-62.5
-12 80-90 134-146 75-85
-16 115-125 202-218 109-121
-20 160-180 248-272 213-237
-24 185-215 303-327 238-262
-32 250-290 — 310-340
GATES BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 10-11 10-12 14-16
-5 13-15 — —
-6 17-19 18-20 24-26
-8 34-38 32-40 37-44
-10 50-56 46-56 50-60
-12 70-78 65-80 75-83
-14 — 65-80 —
-16 94-104 92-105 111-125
-20 124-138 125-140 133-152
-24 156-173 150-180 156-184
-32 219-243 — —
AEROQUIP BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-12 10-12 14-16
-5 15-16 — 18-20
-6 18-20 18-20 24-26
-8 38-42 32-35 50-60
-10 57-62 46-50 72-80
-12 79-87 65-70 125-135
-14 — — 160-180
-16 108-113 92-100 200-220
-20 127-133 125-140 210-280
-24 158-167 150-165 270-360
-32 245-258 — —

2-4 F-227-1111 Edition
STANDARD SPECIFICATIONS

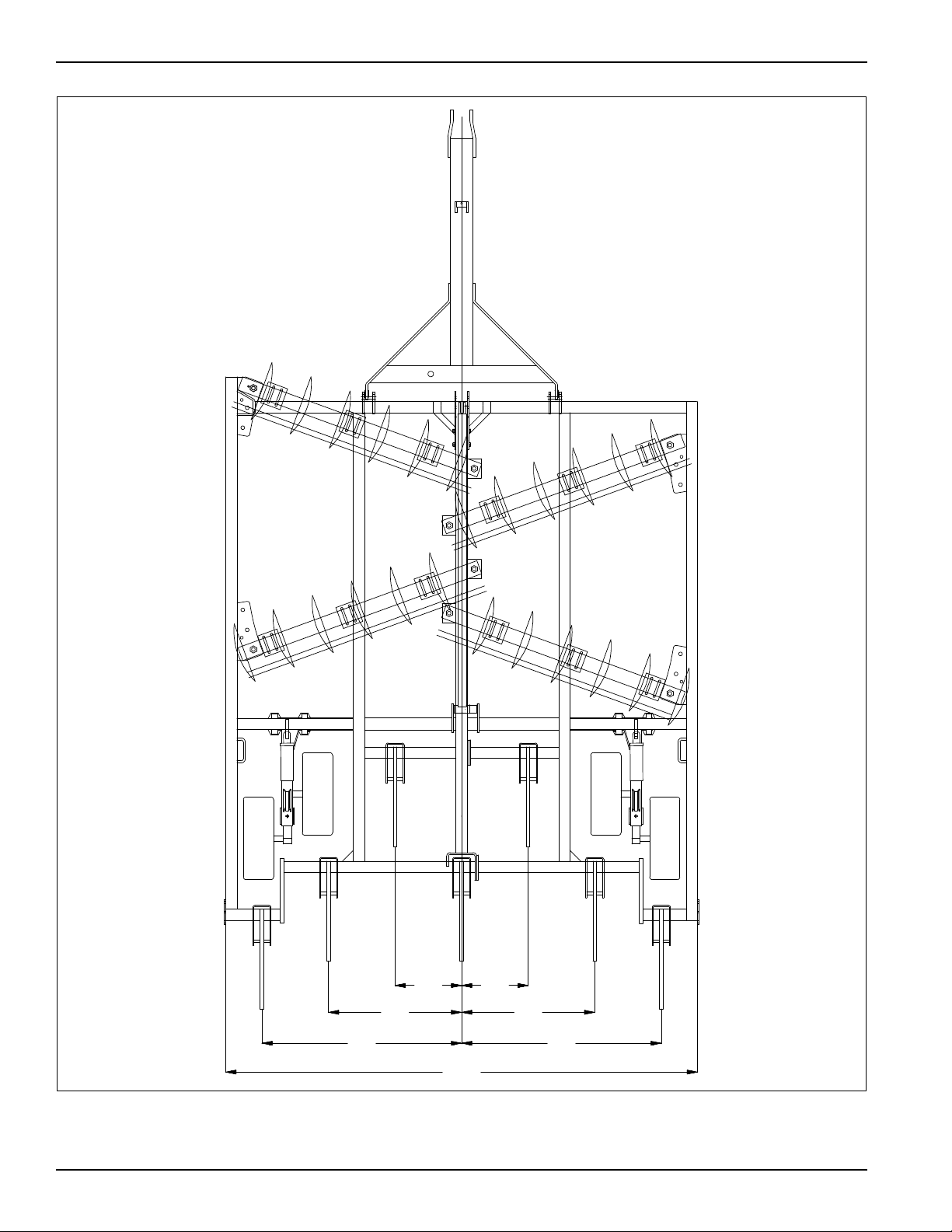

Figure 2-1: 2215-3-30 Shank Disc Spacing
NOTE: DISC GANG ANGLE
SHOWN IS 20”.
30 30
109 1/4
2m410-010919

STANDARD SPECIFICATIONS
2-5

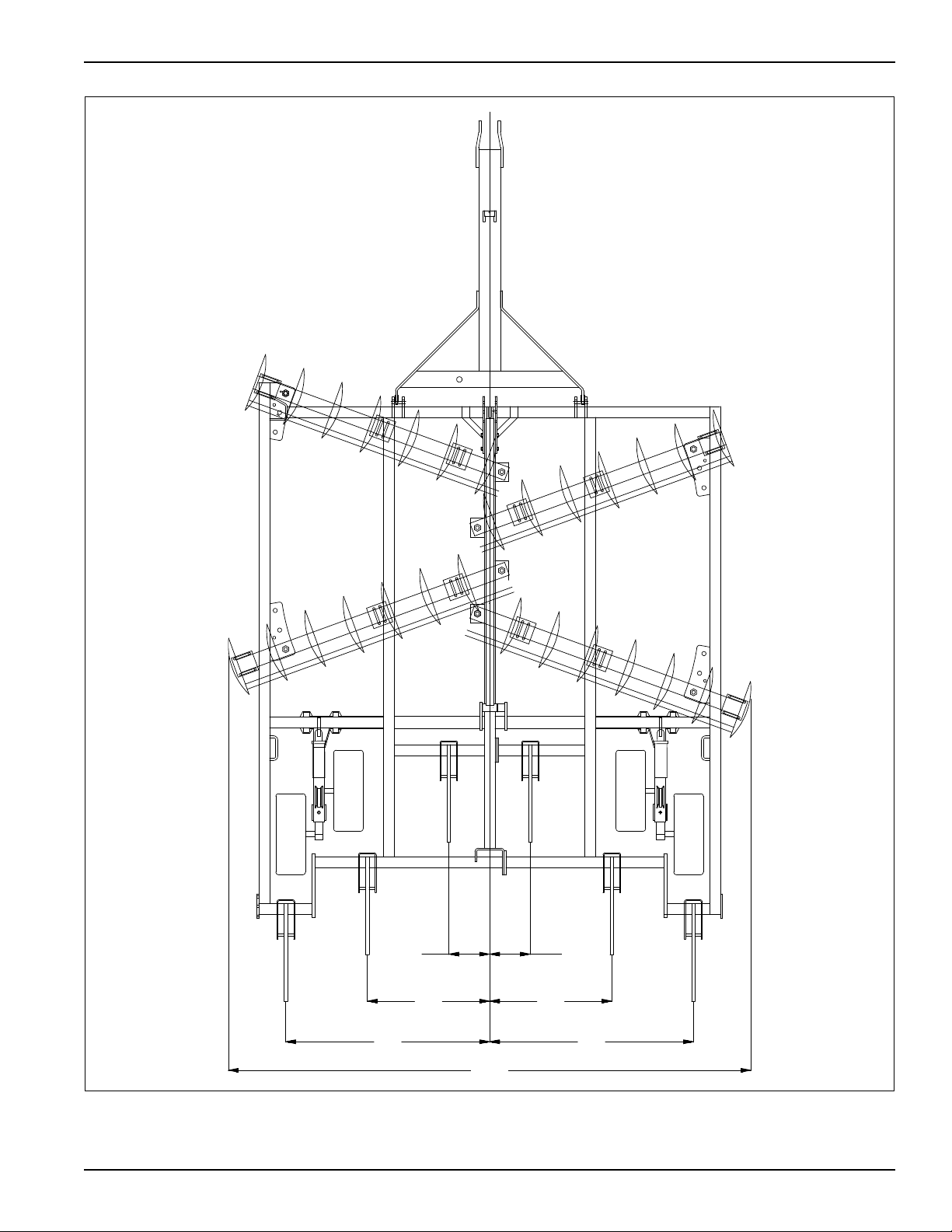

Figure 2-2: 2215-4-24 Shank Disc Spacing
NOTE: DISC GANG ANGLE
SHOWN IS 20”.
12 12
36 36
109 1/4
2m410-010920

2-6 F-227-1111 Edition
STANDARD SPECIFICATIONS

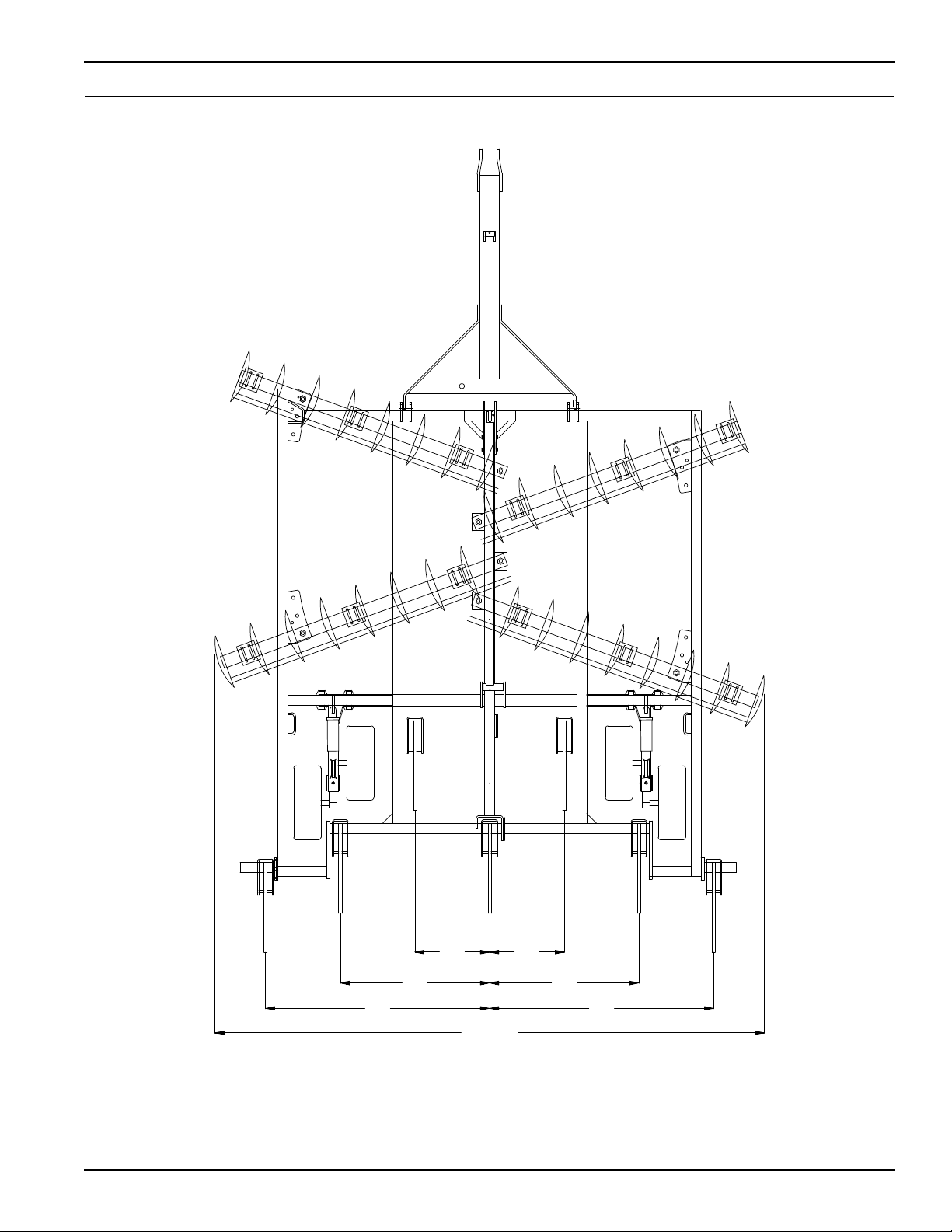

Figure 2-3: 2215-4-30 Shank Disc Spacing
NOTE: DISC GANG ANGLE
SHOWN IS 20”.
15 15
45 45
136
2m410-010921

STANDARD SPECIFICATIONS
2-7
Figure 2-4: 2215-5-24 Shank Disc Spacing
NOTE: DISC GANG ANGLE
SHOWN IS 20”.
48
24
136
24
48
2m410-010922

2-8 F-227-1111 Edition
STANDARD SPECIFICATIONS
Figure 2-5: 2215-5-30 Shank Disc Spacing
NOTE: DISC GANG ANGLE
SHOWN IS 20”.
30
30
60
60
164 1/4
2m410-010923

STANDARD SPECIFICATIONS
2-9
Figure 2-6: 2215-6-30 Shank Disc Spacing
NOTE: DISC GANG ANGLE
SHOWN IS 20”.
2m410-010924
15
15
45
45
75
75
192

2-10 F-227-1111 Edition
STANDARD SPECIFICATIONS
Figure 2-7: 2217-5-30 Shank Disc Spacing
NOTE: DISC GANG ANGLE
SHOWN IS 20”.
30
30
60
60
170
2m410-010925

STANDARD SPECIFICATIONS
2-11
Figure 2-8: 2217-6-30 Shank Disc Spacing
NOTE: DISC GANG ANGLE
SHOWN IS 20”.
2m410-010296
15
15
45
45
75
75
192

2-12 F-227-1111 Edition
STANDARD SPECIFICATIONS
Figure 2-9: 2217-7-24 Shank Disc Spacing
NOTE: DISC GANG ANGLE
SHOWN IS 20”.
2m410-010927
24
24
48
48
72
72
170

STANDARD SPECIFICATIONS
2-13
Figure 2-10: 2217-7-30 Shank Disc Spacing
NOTE: DISC GANG ANGLE
SHOWN IS 20”.
2m410-010928
30
30
60
60
90
90
220 5/8

2-14 F-227-1111 Edition
STANDARD SPECIFICATIONS
Figure 2-11: 2217-8-30 Shank Disc Spacing
NOTE: DISC GANG ANGLE
SHOWN IS 20”.
2m410-010930
15
15
45
45
75
75
105 105
249
