Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
2
INTRODUCTION
Congratulations and thank you for purchasing
the Lanier Mariner 120. We are sure you will be
happy with the quality of this kit and just as
eager to fly it as we were the prototypes. We
have spent many hours perfecting the Mariner
120 so that you can be assured its performance
will be what you have come to expect from a
Lanier kit.
Clear off the workbench and gather up your
tools and get ready for a cosmic experience.
You are about to begin fun with a seaplane.
See last page for tools required.
……….Please keep on reading
WING ASSEMBLY
Start with one wing panel. So many of the
ARF’s you have assembled have you glue the
wing panels together as the first step in
assembly. We do it different. When all the parts
are assembled on both wing panels, then join
them. You will find this method much easier.
1. Begin with one wing panel. Remove the
aileron and hinges from wing and aileron. Fold
each hinge in half and stick a pin in the fold.
Trial fit each hinge in the slot to check for
depth. Some slots need to be cleaned out, use
a #11 Exacto blade to clean them out.
2. Push each hinge in the slot in the trailing
edge. Now align the aileron with the hinges and
push in to the pins. Remove all the pins and
close the gap. Align end of aileron with wing
tip.
3. Fold the aileron down and apply 3 drops of
thin CA to each hinge placement. Turn the wing
over and repeat the process. Do not use any
type of accelerator to speed up the curing
process; this will make the hinge brittle.

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
3
4. Locate the servo mounting plate and remove
the covering over the slot with a micro tip
soldering iron. Not only does this remove the
covering easily but it seals the edge. Do both
servo mounting plates.
5. Position the servo on the mounting
plate with the output arm centered in the slot.
Apply a small square of double sticky sided tape
(not supplied) to the servo case to hold it in
position. Cut 4 pieces of 3/8” sq. hardwood, 2
for each servo. Square up the ends. Epoxy one
mount under each servo mounting rail, at each
end. Be careful not to glue the servo in place.
When cured install the servo mounting screw.
(not supplied) Now do the other servo mount.
Make sure you have a LH and a RH mount.
6. Using the micro tip soldering iron again,
remove the covering over the hole adjacent to
the hole in the end root rib on the bottom side
of the wing. Do both wing panels.
7. You will need two 12” servo lead extension
for this next step. (not supplied), one for each
wing. The extensions must be compatible with
your radio system. Plug the extension into the
servo and secure the connection with tape to
make sure it doesn’t come apart.
8. Push a long thin wire thru the wing from the
hole in the end root rib. Tie or tape on the servo
connector and pull it through the wing panel.
Now push it up through the hole in the bottom
of the wing. Tape the end of the lead to the

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
4
wing to prevent it from falling back into the exit
hole. Now do the same to the other wing panel.
9. Place the servo board in the wing opening.
Drill four 1/16” holes in each corner 1/8” in from
each side. Use the #2 x 3/8” screws provided.
Note: hardware may vary in looks from that
shown.
10. Using a straightedge, place a mark on the
aileron to locate the control horn. The holes in
the horn must be in line with the hinge line.
11. Place the control horn on the mark and CA
it in place using thin CA. Block sanding the base
will help it adhere better. When cured, match
drill the holes with a 3/32” drill. This will give
better screw alignment to the nut plate on the
far side. Now fasten in place with the hardware
supplied.
11. Temporarily plug the servo into the receiver.
Turn on the radio and allow the servo to center.
With the servo centered, make sure the servo is
installed as shown in the photo.
12. Locate a 4-40 x 5-1/2” wire pushrod
threaded on both ends. Install the metal clevis,

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
5
with lock nuts, on both ends of the pushrod.
Install the clevis on the control horn and the
servo arm.

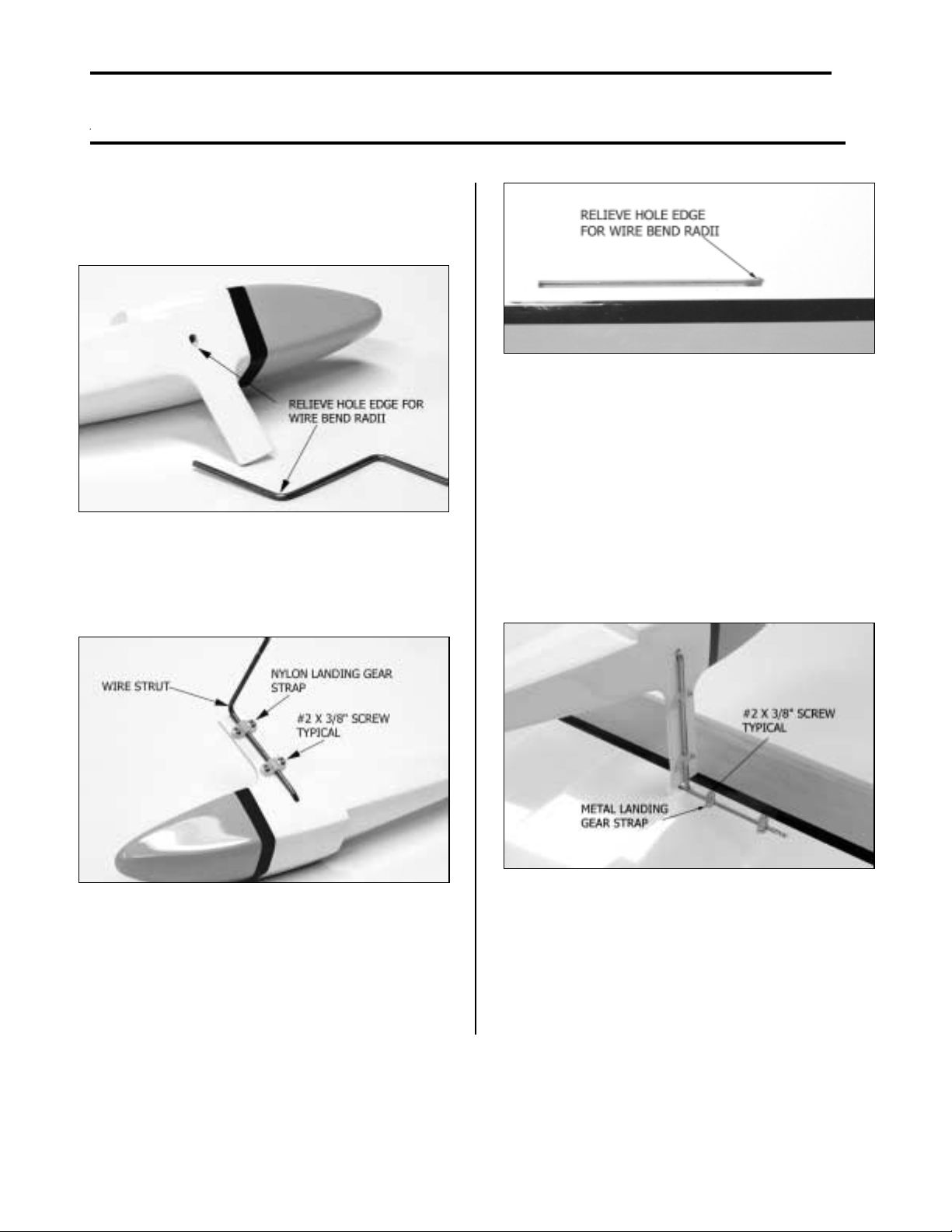

13. Before pushing the wire through the hole in
the float, relieve the edge of the hole with a
burring tool, or #11 Exacto blade, so that wire
will lay flat against float strut.
14. Install the wire strut in the float and fasten
in place with the hardware shown in the photo.
The long leg of the wire strut will protrude
through the float slightly.
15. In order for the wire strut to fit snuggly in
the slot relieve the edge of the hole with a
burring tool or # 11 Exacto blade.
16. Install the float assembly in the slot
provided and fasten in place with the hardware
shown in the photo.
17. Secure the float assembly in place with the
hardware shown. Be sure to place the metal
straps at an angle for secure mounting of screw.
18. Now mount the float assembly on the other
wing panel as stated in the above steps.

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
6
19. Mix 2 oz. of 30-minute epoxy in a mixing
cup. Apply a liberal amount of epoxy into the
wing joiner box in the wing. Apply epoxy to the
root rib. Finally, apply epoxy to both sides, the
top and the bottom, of the wing joiner. Insert
the joiner into the wing. Slide the wing panel
onto the joiner. Wipe any excess epoxy from the
wing joint and clean any glue residue with
rubbing alcohol. Hold the wing together with
masking tape. The masking tape will retain the
epoxy in the joint. Set the assembly aside until
the epoxy has cured.
20. Locate the wing bolt plate and prepare it as
described in the photo below.
21. Lay it on the wing. Trace around it and
remove the covering inside the line. Remove ink

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
7
line with paper towel and alcohol. Glue in place
with 5 min. epoxy.
TAIL ASSEMBLY

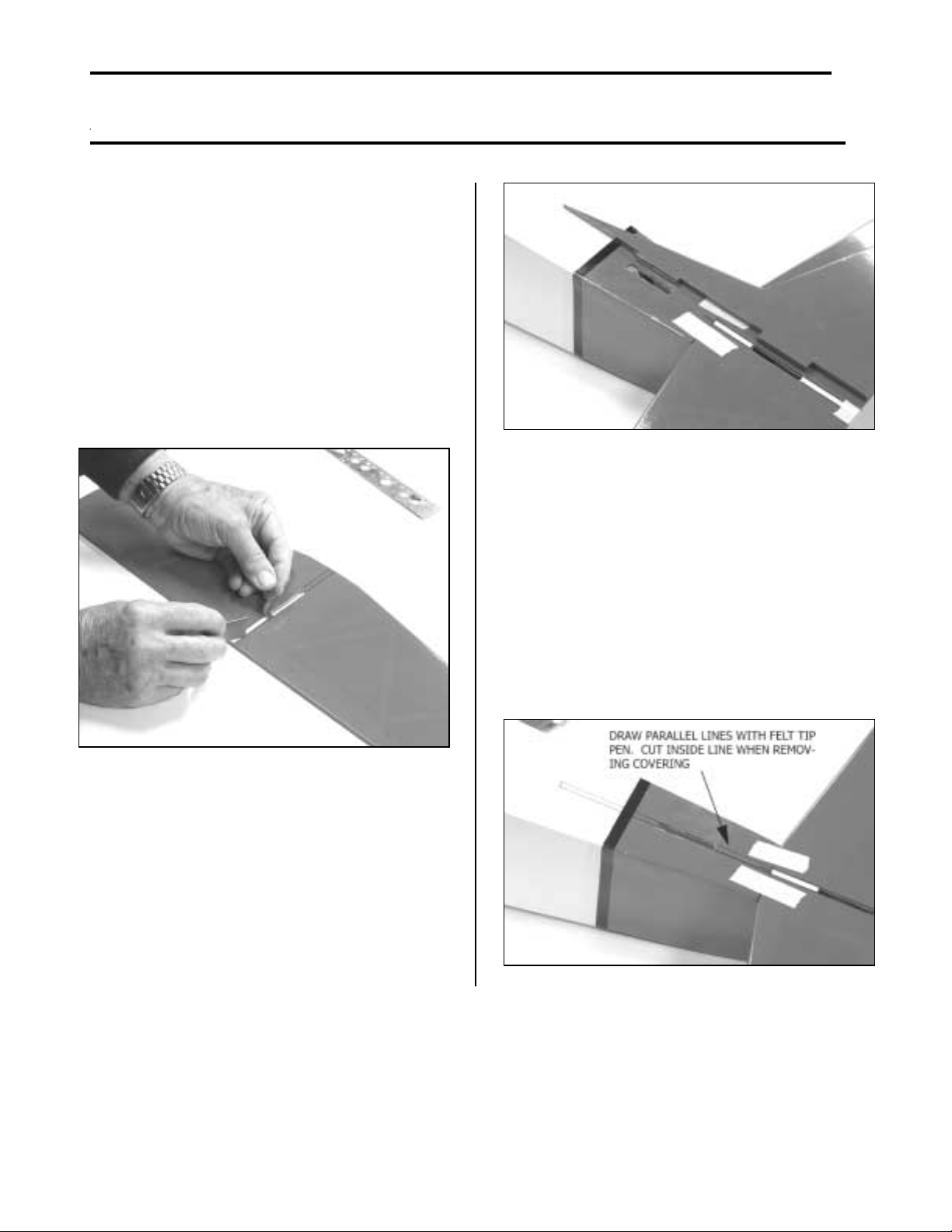

First it will be necessary to remove covering
over the wood gluing surfaces. This can be
done as stated before, that is, with a micro tip
soldering iron or by carefully cutting it with a
sharp razor. Be sure to cut inside the lines so
that the bare space will not show when the
parts are assembled
1. Draw two parallel lines with a felt tip pen
using the slot as a guide.
2. Place the stab on the fuselage and center it.
Hold it in place with masking tape. Hold the
vertical fin in position and mark the end of the
dorsal fin on the fuselage.
3. Extend the parallel lines from the stab to the
mark on the fuselage. Now remove the
covering in between the lines. Careful, do not
remove beyond the end of the dorsal fin mark.

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
8
4. Turn the fuselage over and mark the outline
on the bottom of the stab with felt tip pen
5. Remove the covering between the lines.

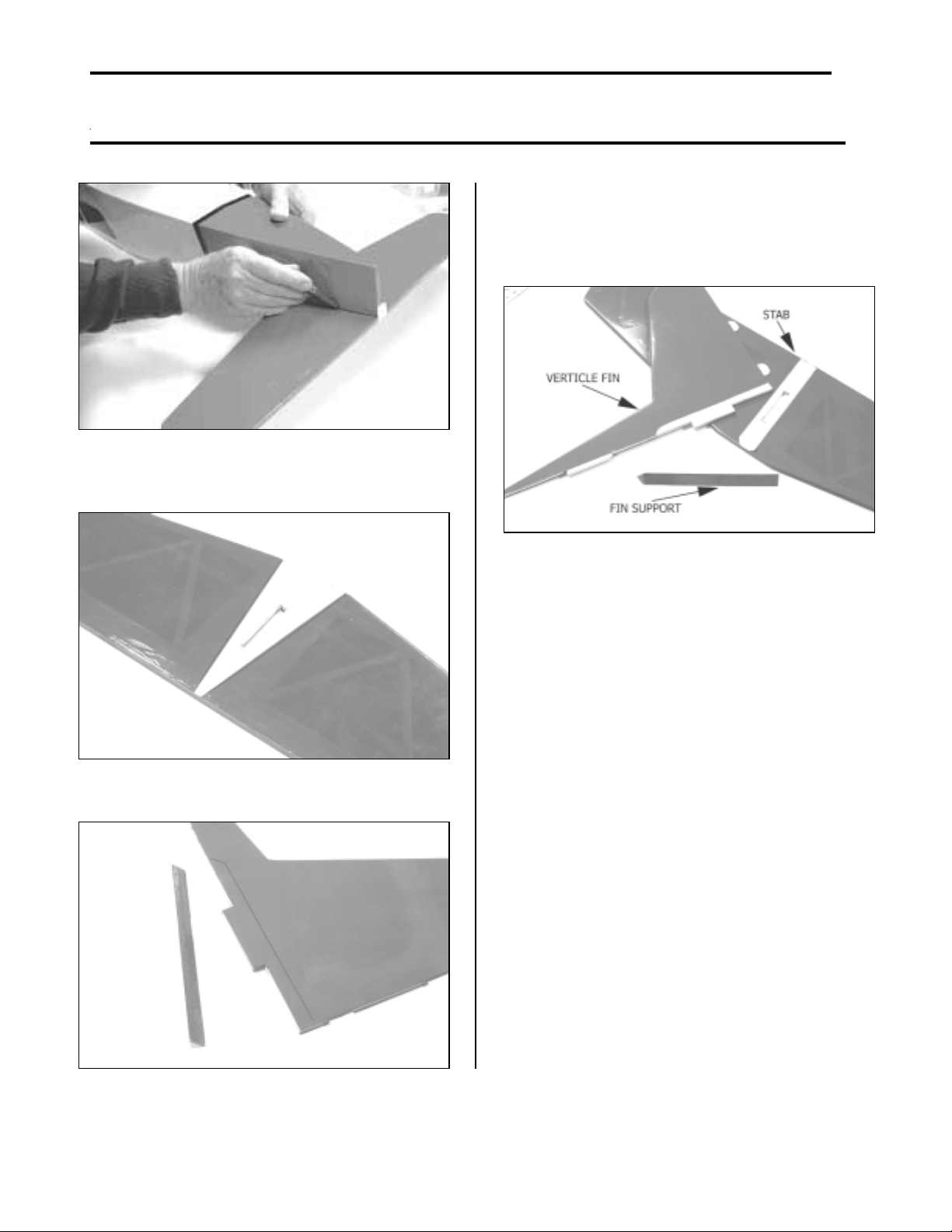

6. Lay the fin support in position and draw a
line around the top edge. Turn the fin over and
do the same thing.
7. Remove the covering inside the lines you
have drawn. The fin support also rests against
the stab. Remove the covering there for wood
to wood glue joint. The tail components are
ready to mount on the fuselage.
8. Glue on the stab first using 5 min epoxy.
Tape a long straightedge on the wing saddle.
After gluing site from back of fuselage to make
sure stab is parallel with the wing.
9. Glue on the fin using 5 min. epoxy. Make
sure it is perpendicular with the stab. Use a
square and tape the fin in place. Now glue on
the fin supports on either side of the fin. Wipe
off the excess epoxy with alcohol and a paper
towel and allow to cure. Note: Do not glue on
bottom dorsal fin yet.

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
9
10. Hinge the rudder and elevator according to
the method described in Wing Assembly, steps
1, 2, and 3.

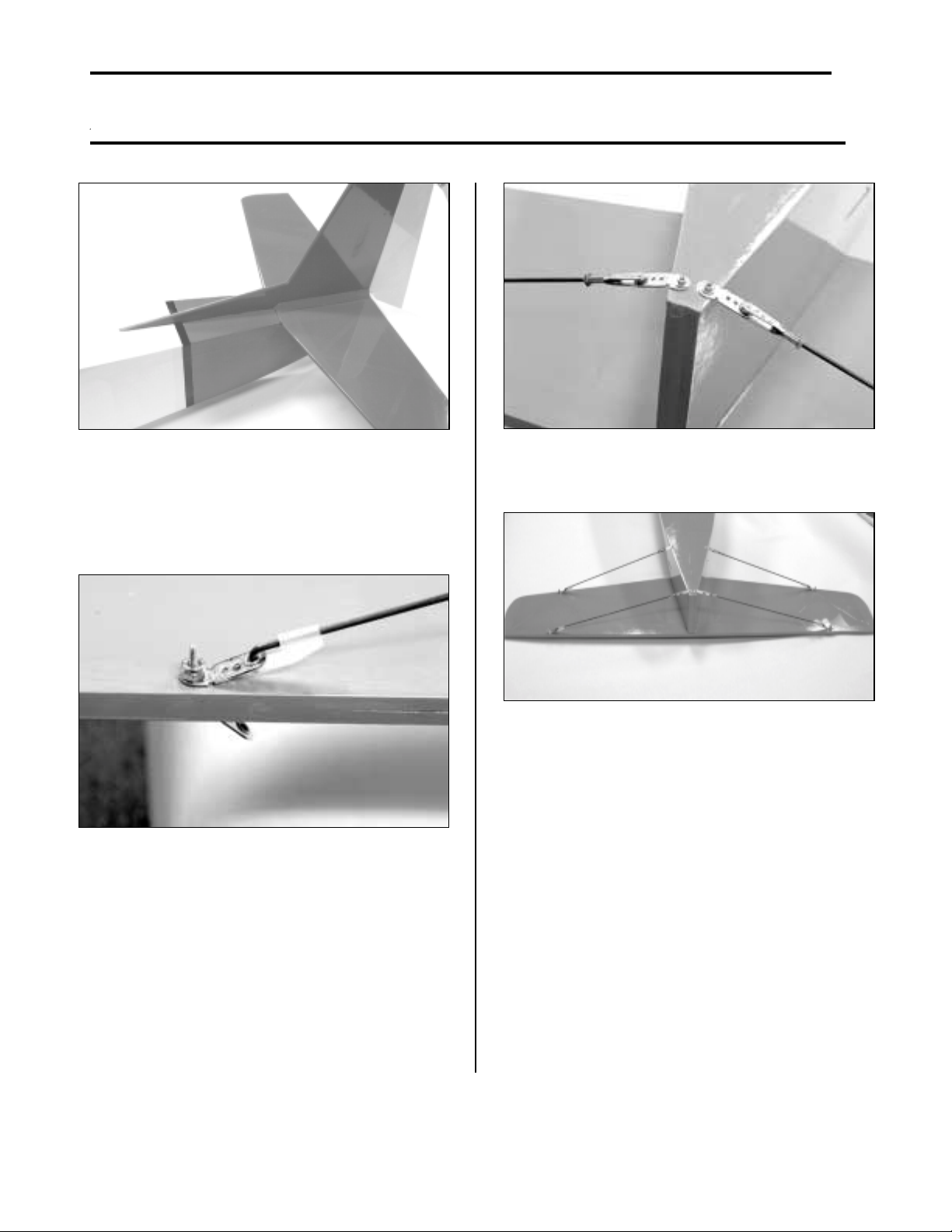

TAIL STRUT INSTALLATION
11. Locate the tail strut hardware. There are
hard points in the stabilizer and vertical fin.
Remove the covering over these holes with the
soldering iron or a sharp knife. Mount the
hardware, shown in the photo, in each of the 6
holes. Bend the tabs at a slight angle to
facilitate connecting the strut.
12. Fasten the straps for the lower struts to the
fuselage with the screws provided.
13. Locate the long rods, threaded on one end,
and install a #2 hex nut and a clevis on the end
of each. Turn the clevis on the threads until
they, the threads, are through the clevis body.
Mount the clevis in the strap and carefully
measure and mark the distance to the other
retaining hole. Make a 90 degree bend and cut
off the excess leaving a ¼” leg. Install the
keeper supplied. Final adjustment can be made
by removing the clevis from the strap and
rotating it in either direction. When satisfied be
sure to tighten the hex nut against the clevis.
Now install the struts on the top side

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
10
HINGING THE ELEVATOR AND RUDDER
14. Before hinging the elevator and rudder to
the stab and vertical fin, locate the control horns
and CA them in place with thin CA. Match drill
the holes and complete mounting with hardware
supplied.

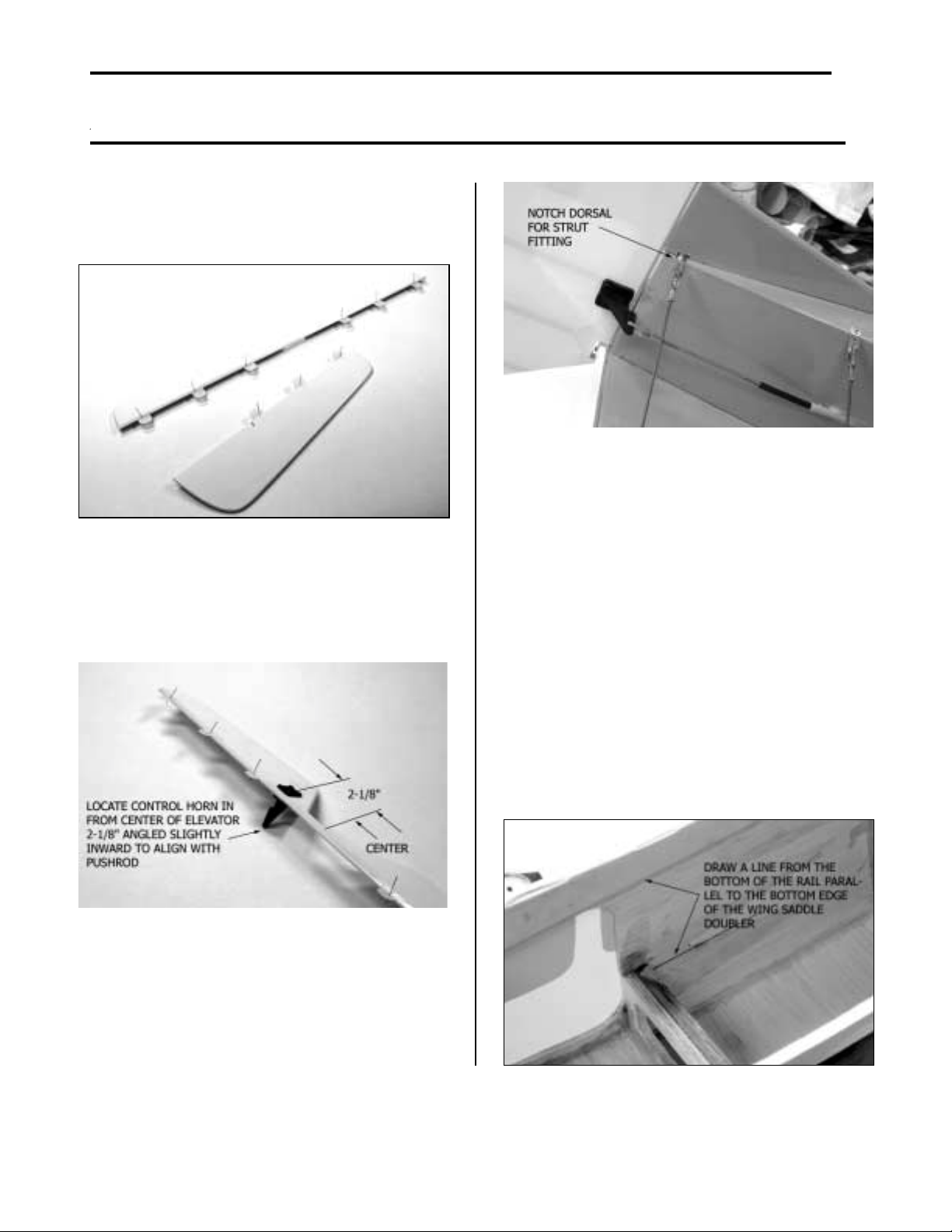

15. Locate the control horn as shown in photo.
Locate rudder control horn 4-1/4” from bottom
edge of rudder. Make sure rudder and
elevator control horns are on opposite
sides.
15. Locate the sub-dorsal fin. Draw a center
line on the bottom of the hull, remove the
covering the width and length of the fin. Install
the hinge in the rudder and epoxy the fin in
place. The rudder and hinge will keep it
vertical. Tape the forward end to maintain
alignment. Note: it may be necessary to slot the
sub-dorsal fin for the hinge placement.
16. Install rudder and elevator and CA, with
thin CA, as described when installing ailerons.
INSTALLING SERVOS AND PUSHRODS
1. Locate the 3/8” sq. x 24” pieces of wood.
Cut 2 pieces 2-1/2” long. Now cut 2 more
pieces 6-3/4” long.

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
11
2. Using 5 min. epoxy, glue one long rail
against the forward edge of the bulkhead as
shown. Glue the two short pieces under the rail,
against the sides, and parallel with the bottom
edge of the wing saddle doubler. Glue the
forward rail in place. Use a servo to get the
proper spacing required.

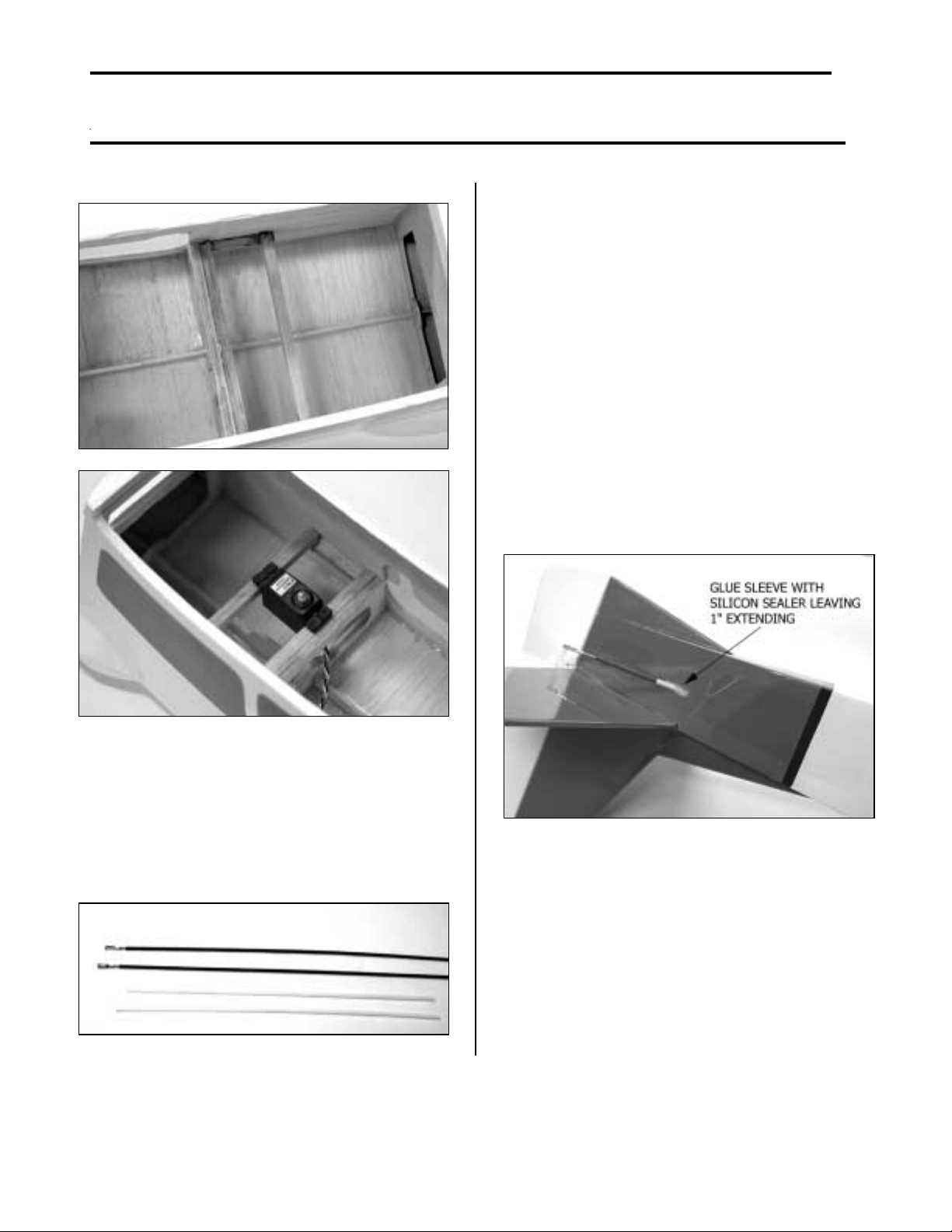

3. Locate the pushrod material. Cut 2 pieces
from the outer sleeving 22-1/2” long. Cut the
long carbon fiber pushrod into 2 – 24-1/4”
pieces. Screw the short threaded rods into one
end of the pushrod 3/8”. Install the hex nut and
screw on a clevis. Do two pushrods.
4. Prepare the other end of the pushrods that
will hook up to the servo arms. Locate two 4” x
4-40 rods threaded on both ends. Screw them
in 3/8” on both pushrods.
5. Uncover the pushrod exit holes in the aft end
of the fuselage. Enlarge them so the pushrod
sleeving will fit using a motor burring tool or
Exacto blade. Push the sleeving in leaving
approx. 1” extending. Using Silicone Sealer,
glue them in place both sides.
6. Mount both pushrods in the sleeves and hook
up to control horns on rudder and elevator.
Place a hex nut and clevis on each.

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
12
7. Install the pushrod support on the sleeves
temporarily for alignment with the servos. Do
not glue in place yet.
8. Plug the servos into the receiver and
electrically center them. Mechanically adjust the
linkage so the rudder and elevator are at neutral
with the servo centered. Some final adjustment
will be required later on.
ENGINE MOUNTING
Engine mount and hardware.
1. Locate the engine pod with mast. Find the
center of the firewall by drawing lines from each
corner. Now strike a horizontal and vertical line.
The engine mount will be centered on the
firewall.

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
13
2. The engine mount is adjustable to fit many
sizes of engines. Adjust the mount to fit your
engine and tape it together.
3. Trial fit the engine in the mount adjusting for
width of crankcase.
4. Once the fit has been determined, tape the
mount to hold it in place.
5. Center the engine on the firewall, mark the
holes for the mount, drill, and install the blind
nuts. Now install the engine mount with the
hardware supplied. Do not install engine yet.
COWL INSTALLATION

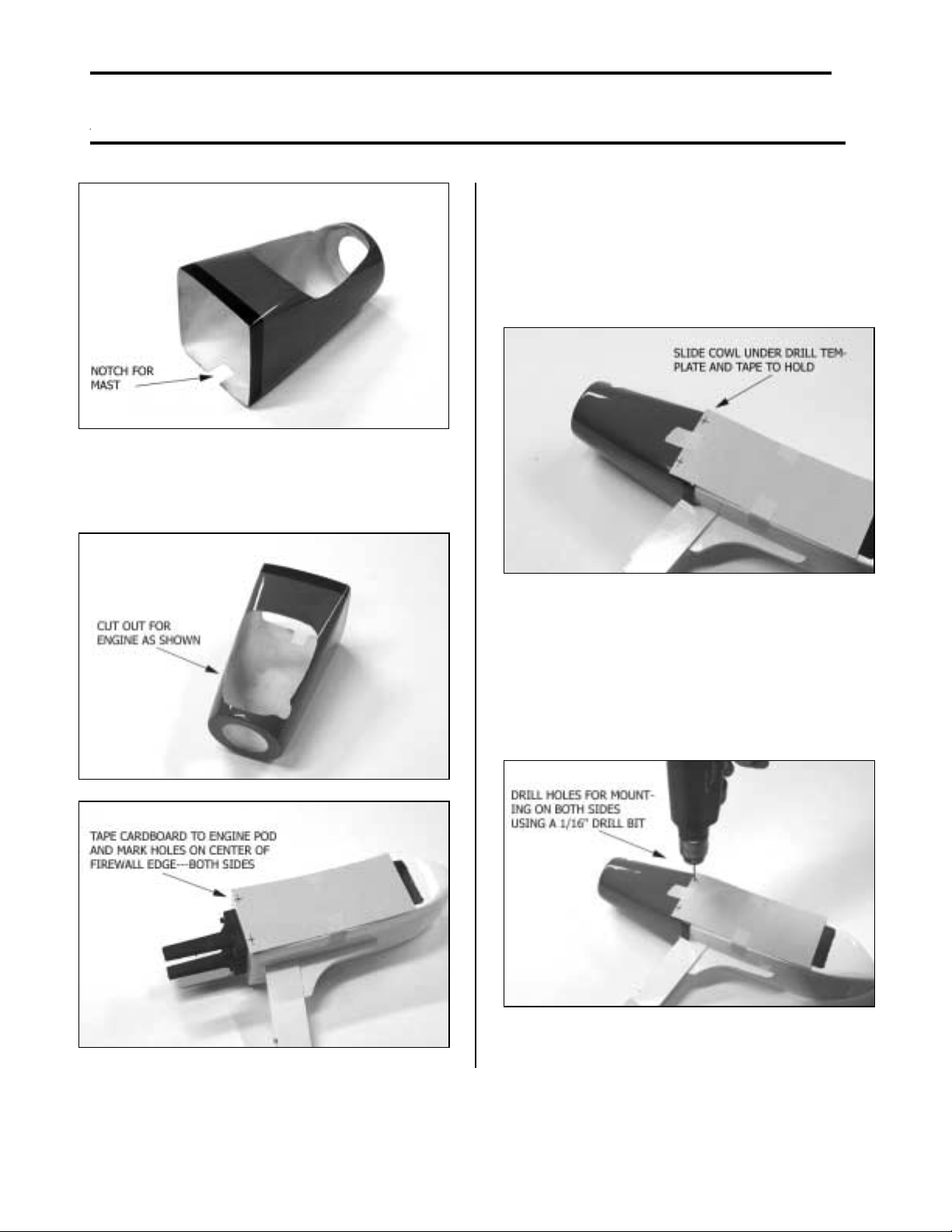

1. Unpack the cowl and cutout the opening for
the engine as shown in the photo. Make it large
enough so you can access the engine mounting
bolts. Use a Dremel drum sander to remove the
fiberglass for the engine access hole.

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
14
2. Notch out for mast to allow for cowl
adjustment fore and aft if necessary.
3. Using a piece of cardboard, the height of the
pod, mark two hole, 1/8” in from the front edge
and 5/8” from top and 5/8” from bottom. Tape it
to the pod with the front edge flush with the
firewall. You will also need one for the other
side.
4. Slide the cowl on to the pod under the
templates. Temporarily set the engine in the
mount. Mount the spinner back plate on the
engine crankshaft with prop to hold it in place.
Adjust the cowl so that you have 3/32”
clearance between it and the back plate. Now
tape the cowl to the pod.

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
15
5. Drill four 1/16” dia. holes, two on each side.
Use a hand drill however a drill press will ensure
straighter holes. Do both sides.
6. Install four #2 x 3/8” sheet metal screws to
retain the cowl in place.
7. Place a piece of masking tape on each
engine bearer. Temporarily hold engine in
mount maintaining proper clearance with
spinner back plate and cowl. Mark front edge of
engine mount on tape.
8. Remove cowl and engine mount from the
pod.
9. Clamp engine to one beam making sure the
front edge of the engine mount is on the line
you just marked on the tape. Now mark the
two holes in the mount. Place in drill press and
drill the two holes with a 3/32” drill bit. Now
mark and drill the other beam mount as stated
above. Enlarge holes to fit mounting bolt.
10. Re-install the engine mount on the pod
making sure the width is correct for the engine,
tighten up the mounting bolts.

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
16
16. Drill three ¼” holes, as shown in the photo.
FUEL TANK ASSEMBLY
1. Locate the fuel tank and assemble the parts
on the stopper. Bend the vent line carefully to
avoid kinking. File all sharp corners on tubing
end so fuel line will not be cut. Make sure inside
of tank is clean before installing stopper on tank.
2. Wrap fuel tank with bubble wrap (not
supplied) to cushion it. Hold it in place with cello
tape. Do not use foam, it will absorb water.
3. Cut two lengths of medium fuel line 7” long.
Install them on the vent and supply tubes
coming from the tank. Slide the tank in place as
shown. Feed the lines through the two holes in
the firewall.
19, Install the throttle servo on the mounts in
the pod. It may be necessary to shim the servo
up so the pushrod will align better with the
throttle arm. Remove the servo output wheel
and assemble an EZ Connector on it. Cut a
small hole in the bottom of the pod, next to the
mast, to exit the throttle servo connector. Tape
the connector lead to the mast.

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
17
20. Locate the 6” wire and mount a nylon
clevis on one end. Push the plain end through
the hole in the firewall and attach to the EZ
Connector on the servo arm. Fasten the clevis
on the throttle arm. Adjust servo for proper
direction and open/close position.
21. Remove the engine from the mount.
Install the cowl and align the spinner back plate
with the cowl leaving 1/16” to 3/32” clearance
between them. Center the fuel tank cover over
the cut out and tape in place. Drill 1/16” holes
through cover and pod and install six #2 x 3/8”
screws. Slide the throttle servo cover under the
cowl and install two #2 x 3/8” screws to retain
it. Now reinstall the engine, hook up the
throttle linkage and fuel line. The engine pod is
now complete.
INSTALLING THE ENGINE POD
1. Locate the mast support. Notch off the
forward lower edge of the mast to miss possible
glue gob at the bulkhead/keel joint.

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
18

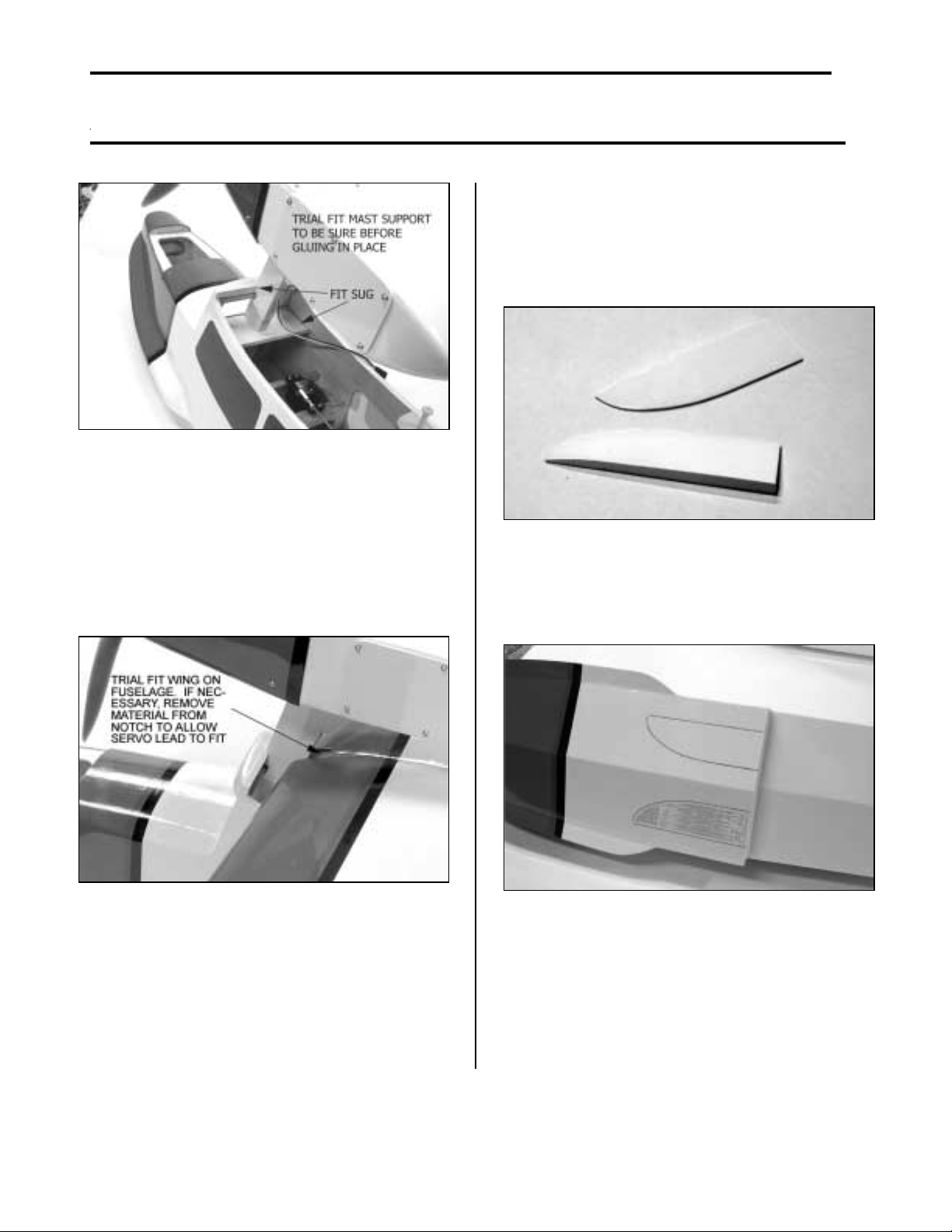

2. Trial fit the engine pod assembly to be sure
of the fit. The mast should be against the
bulkhead top and bottom. The slot in the
bottom should be firmly placed in the keel and
against the bulkhead. When satisfied, apply 30
min. epoxy to all joints and allow to cure over
night. Apply more epoxy if necessary to edges
of mast support, at sides, and around the mast.
3. Trial fit the wing on the fuselage. The
leading edge should fit snug against the front
former. It may be necessary to increase the
notch depth in the wing to accommodate the
servo lead. Do this with a Motor Tool with a
burring bit. If any, very little will have to be
removed to allow it to fit.
INSTALLING THE HULL LIFTERS
1. Locate the hull lifters and note that you have
a LH and a RH.
2. Place them on the hull with the back edge
flush with the step. Center them on each side.
While holding in place draw a line around each
of them. The curved end to the inside.
3. Using a sharp Exacto knife, cut inside the line
remove the covering as shown. Use a paper
towel and alcohol to remove the ink lines.
4. Mix up some 30 min. epoxy and glue each
lifter in place. Make sure you have a good fillet
of epoxy all around the edges to seal them. The

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
19
lifters are necessary to help break the vacuum
sometimes occurring at the step.
5. Please do not omit the lifters from the
hull!

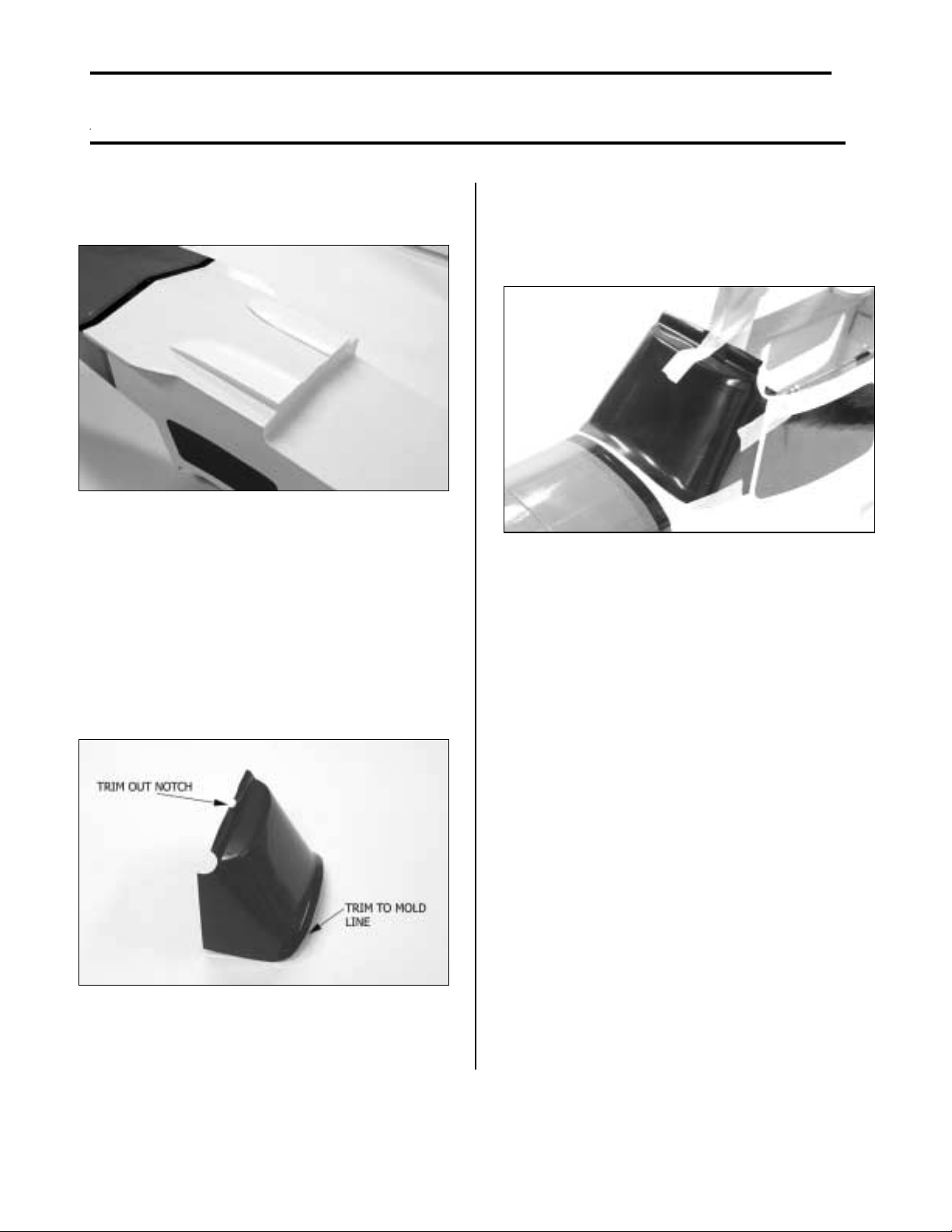

INSTALLING THE WINDSHIELD
1. Trim the windshield on the mold lines. They
are quite faint but if you look closely, you will
see them. Once trimmed sand the edges
smooth. Be sure to cut out the notch for the
mast, located in the center.
2. Trial fit the windshield on the fuselage. It
may necessary to do some extra trimming on
the sides to match the side windows. Once
satisfied, tape the windshield in place.
3. When positioned and taped, use thin CA glue
(carefully) several places to tack it in place.
Now apply a bead of Pacer Formula 560 Canopy
Glue all around the edges and let cure over
night. It may be necessary to do this again for
a good seal to keep the water out.
INSTALLING THE RADIO
1. We recommend putting the radio receiver is
a plastic bag and then wrapping it with bubble
wrap. If you use foam to wrap it, it will soak up
the water and will more likely let it migrate into
the receiver. Mount the receiver just ahead of
the servos and route the antenna out the side,
close to the wing saddle, and up to the vertical
fin. Thus keeping it out of the water
Mount the receiver switch inside, up close to the
wing saddle, using the DuBro Kwik-Switch and
Charging Jack No. 207. Coat the pushrod and
connector door on the outside of the switch with
Vaseline to keep the water out.

Assembly Instructions
LANIER R/C MARINER .120
LANIER R/C, INC.- P O Box 458 - Oakwood, GA 30566 - Ph 770-532-6401
!Copyright 2002 Lanier R/C, Inc.
20
2. Standard servos may be used. They are
somewhat water resistant but not water
proof. Futaba does have a servo that is more
water resistant and is called Water
Resistant however, expect to pay more money.
Of course, if they are submerged, forget it. If
the receiver gets wet and fails to operate, dry it
out before trying to operate it again.
GETTING YOUR MODEL READY TO FLY
NOTE: This section is VERY important and
must NOT be ornitted! A model that is not
properly balanced will be unstable and possibly
crash. You want a first successful flight!
1. Accurately mark the balance point on the
bottom of the wing, on both sides, next to the
fuselage. The balance point is 3-7/8” (28% of
the wing chord) back from the leading edge of
the wing. This is the balance point at which your
model should be balanced for your first flights.
Later, you may experiment by shifting the
balance up to 1/4" forward or back to change
the flying characteristics. If you move the
balance point forward it may improve the
smoothness and tracking, but your Mariner
may require more speed for takeoff and become
more difficult to slow and flare when landing on
the water. If you move the balance aft it will
make it more agile with a lighter feel and allow
you to perform more aerobatic maneuvers.
Please start at the location recommended.
2. All components should be in the model and it
should be ready to fly when balancing, the fuel
tank should be empty.
3. With the wing installed on the fuselage and
the fuel tank empty, lift the model at the
balance point mark on the bottom of the wing.
The model should hang with the nose down at a
10 degree angle. You will find the Mariner
inherently tail heavy and will have to add weight
in the forward hatch compartment. As much as
8 - 10 ounces, assuming the receiver battery is
4 – 5 ounces. The amount of weight required
will depend on the engine size, and how heavily
or lightly the tail was built. You will have to
experiment.
FINAL HOOKUPS AND ADJUSTMENT
1. Remove the servo arms from the servos,
turn on the transmitter and center all the trims.
Now reinstall all the servo arms and secure
them safely.
2. Double- check all servos and make sure
the servo arms are secure and that all clevis are
secured with a retainer.
3. Make sure the control surfaces move in the
proper direction and the throttle is not reversed.
4 –CHANNEL RADIO SETUP
Aileron 3/8” up 3/8” down
Elevator 3/4" up 3/4" down
Measured at widest part
Rudder 1-1/2” left 1-1/2” right
Measured at widest part
4. Adjust the pushrod hookups and set up the
radio to provide the above control travels.
Please use the CG location and control surface
travels listed in this manual for your initial test
flights.
GETTING READY TO FLY
