Lanier LD016 User manual

your document management partner
Everything the small office needs in a compact, affordable MFP
DIGITAL IMAGING SYSTEMS
A RICOH COMPANY
LD016/LD016f LD016spf
Copy, print, fax and color scan with an
easy-to-use system that fits on a desktop

The all-in-one system with the compact design
The Lanier LD016 Series bundles big-system
capabilities into a small-footprint that can be
the single answer to your document needs:
B&W copying, printing and faxing, full-color
scanning and advanced digital distribution.
Compact flexibility
Today you need the ability to communicate your ideas
and manage your documents almost instantly in many
different ways. The Lanier LD016 Series expands your
capabilities, allowing you to handle virtually any
document management task quickly and easily.
• Copy, scan and fax large documents such as booklets, brochures
and over-sized pages with the legal-size platen.
• Scan your original documents just once, then go back to work while
the Lanier LD016 Series produces all the copies you need.
Compact productivity
Getting more done in less time at a lower cost is one
of the basic promises of the Lanier LD016 Series.
• 16 pages-per-minute output gives you the speed you need to finish
your projects on time without waiting.
• Lanier’s Refined Print Command Stream (RPCS) print driver allows
you to create fast, one-click print functionality for even the most
complex print jobs.
• PDF Direct Print helps eliminate network congestion by quickly printing
PDFs without opening the application.
Impressive cost savings
The Lanier LD016 Series is not only a valuable addition
to your office or workgroup, but also a good investment
that can help you minimize document costs.
• Eliminate the need to purchase and maintain up to four separate office
devices and their supplies.
• Significantly reduce your paper usage, postage and hardcopy storage
costs by being able to print both sides of your documents automatically.
• Reduce hard copy collation costs by automatically sorting copies.
• Produce copies, prints and faxes at a low copier cost/page.

The Lanier LD016 Series allows you to configure
the solution that’s right for your workgroup.
Compact scanning power
Color scanning gives you the power to immediately
scan and send brochures, business cards, photos or
other important documents, maximizing the impact
of your communications.

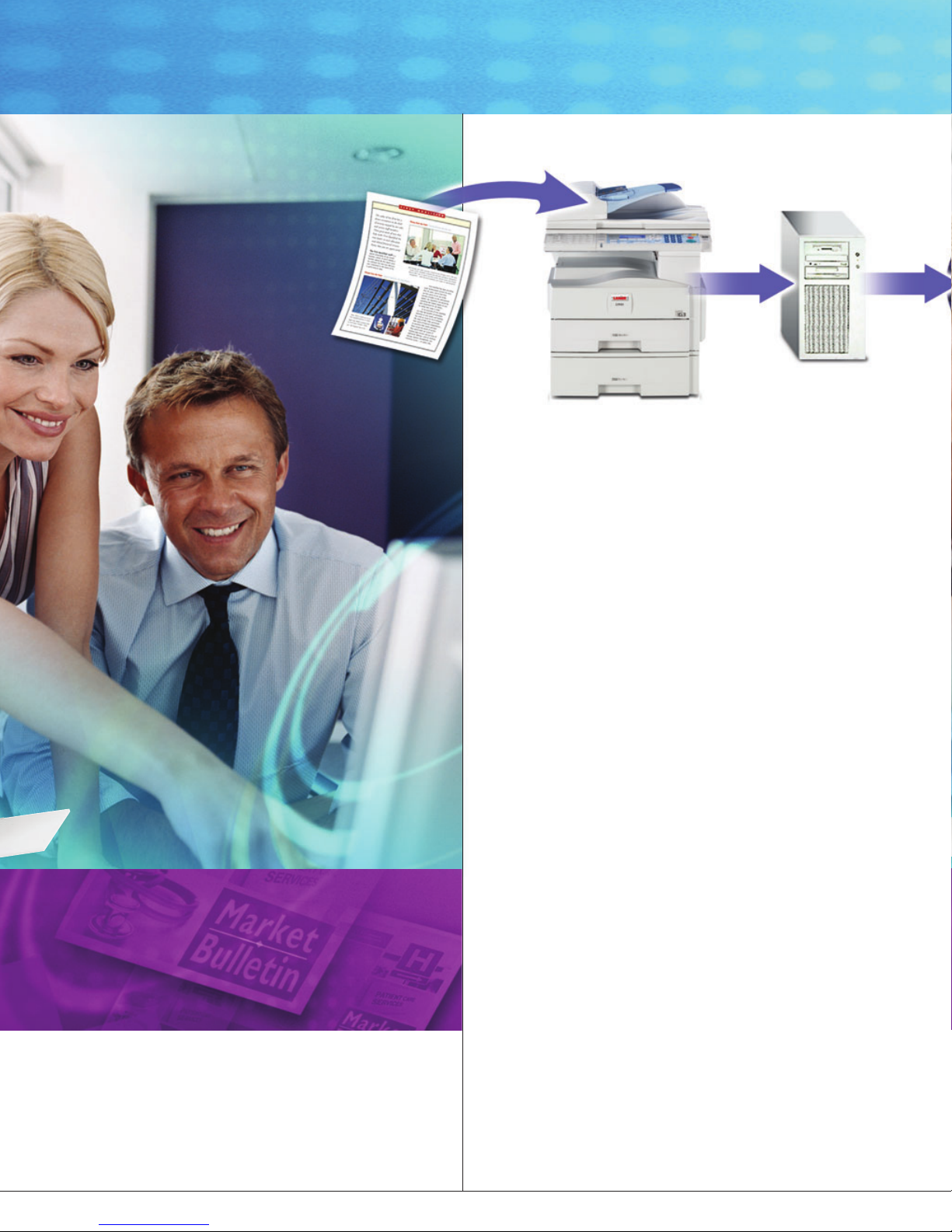

• Distribute scanned documents—in full color—directly to e-mail
addresses through embedded Scan-to-Email, or to network folders
via Scan-to-Folder, meeting tight deadlines faster and eliminating
overnight delivery charges.
• LDAP support allows you to save time and prevent misdials by
calling up fax numbers and e-mail addresses directly from your
corporate address book.
• Protect your critical scanned documents with security features such
as encrypted PDF transmission. Additional security, including User
Authentication, ensures overall document protection by verifying
the user’s identity before allowing system access.
Compact faxing power
In most offices today, documents exist in both hardcopy
and digital form. That’s why you need the faxing power
of the Lanier LD016 Series, which can handle incoming
and outgoing documents of all types.
• Cut phone costs with Super G3 Faxing—you can send documents in
as little as two seconds per page.
• Fax bound originals without having to create single-sided documents
first, thanks to the platen-based design that allows you to scan and
fax directly from the original.

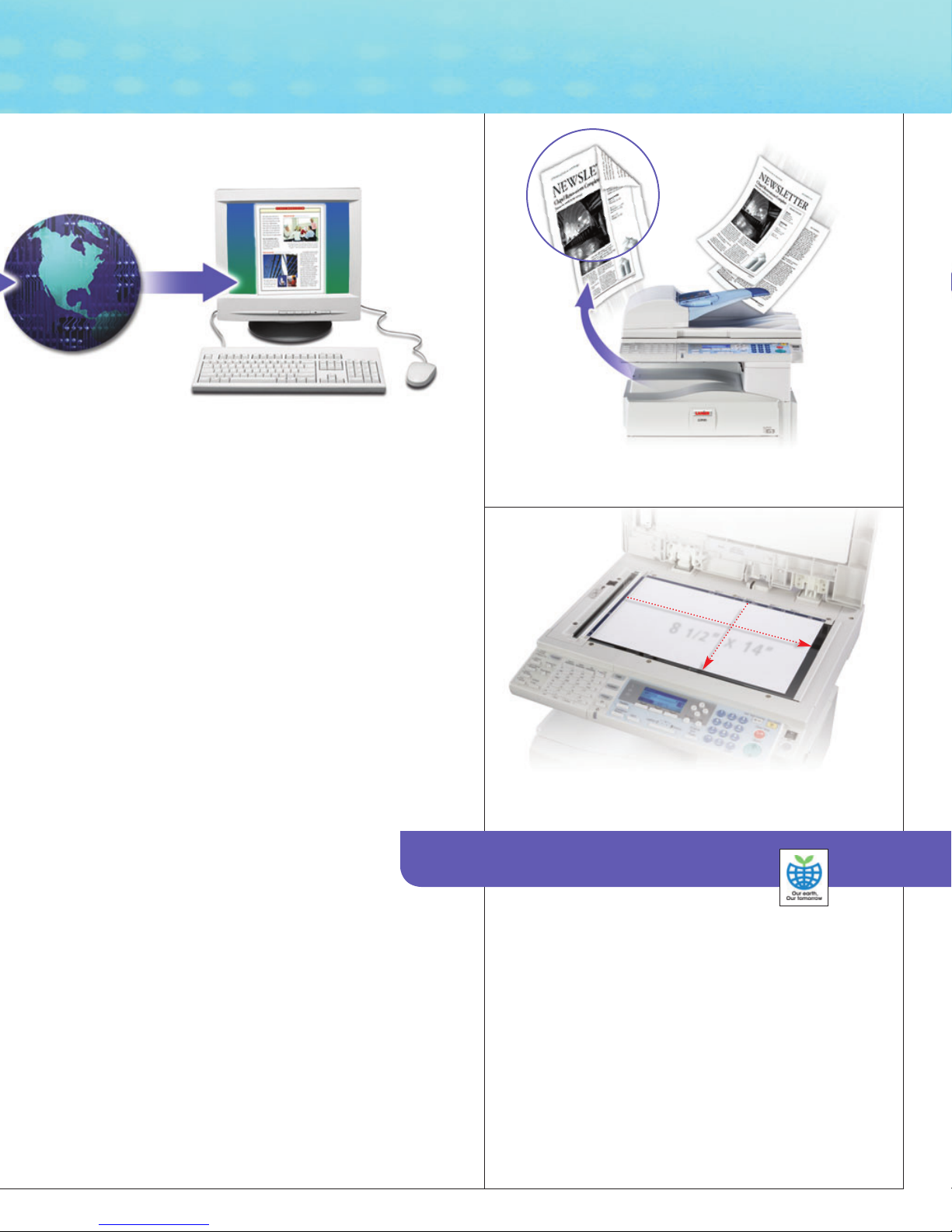

Quickly scan your existing color brochures, photos and other documents
up to 8 1/2” x 14” and send them instantly with Scan-to-Email or Scan-
to-Folder.

LD016/LD016f/LD016spf
Legal-size platen expands your capabilities to copy, scan
or fax large documents up to 8 1/2” x 14”.
Automatic duplexing can literally cut your paper costs in half by
allowing you to copy or print on both sides of a sheet of paper.
8
1/2
”
X
14”
• Protect your inbound/outbound faxes during power outages for
up to 12 hours.
• Maximize your communications with advanced fax features such
as LAN Fax, Internet Fax and IP Fax, which utilize the power of
the Internet and your networks while lowering your costs.
• Improve document security and convenience by routing inbound
faxes directly to designated e-mail addresses or network folders.
Compact connectivity
Whether your office or workgroup is comprised of
stand-alone or networked PCs, the Lanier LD016 Series
includes all you need to connect.
• Connect directly to a stand-alone PC or to your network with either
standard 10Base-T/100Base-TX Ethernet or USB 2.0 interfaces.
• Connect quickly to non-networked PCs using the optional IEEE 1284
parallel interface.
• Optimize placement flexibility and eliminate unsightly cables
with either IEEE 802.11b Wireless LAN or Bluetooth™
connectivity options.
• Simplify printing with PCL5e/6 and optional Adobe®
PostScript®3™.
Compact device management
The Lanier LD016 Series allows you to manage almost
every aspect of your document workflow right from
your desktop.
• Conveniently access or change a single system’s settings or view
print job status from your desktop using Web Image Monitor.
• Manage all of your Lanier networked resources with Web
SmartDeviceMonitor.
• Send meter data automatically with the Lanier @Remote,
Intelligent Management System.
Your Environmental Partner
Lanier continues its long-standing
commitment to developing office solutions
with environmentally friendly and superior
energy- and supply-saving features, without
compromising productivity, including:
• Quick Start-Up (QSU) Technology
• Power-saving Sleep Mode
• Duplex and Combine Copy Modes
• Toner Recycling
• Low Noise Levels
• Minimal Ozone Emissions
• Restriction of Hazardous Substances Compliant (RoHS)

LD016/LD016f/LD016spf
Expanded capabilities for easy document management.
Save time with the standard
50-sheet Automatic Reversing
Document Feeder
.
Legal-size Platen accommodates
documents up to 8 1/2” x 14”.
Versatile 100-sheet capacity
Bypass Tray
accepts a wide
range of paper sizes and types,
including envelopes.
Keep supplies handy in the
optional,
spacious storage cabinet .
Optional
500-sheet capacity
Paper Bank
accommodates up to
8 1/2” x 14” paper and boosts paper
supply to 850 sheets, minimizing
paper replenishment time.
Easy-to-use
Control Panel provides
quick access to all system capabilities.
250-sheet standard Paper Bank
provides an ample supply of paper.
Lanier LD016f
• Copying
• Super G3 Faxing
Lanier LD016spf
• Copying
• Printing
• Scanning
• Super G3 Faxing
• Internet Faxing
• LAN Faxing
• IP Faxing
Lanier LD016
• Copying
• Printing (optional)
• Scanning (optional)
Functionality Overview

DIGITAL IMAGING SYSTEMS
LD016/LD016f/LD016spf
A RICOH COMPANY
L2323
SPECIFICATIONS
ENGINE/COPIER SPECIFICATIONS
Configuration Console
Scanning Element Flatbed with CCD Array Image
Sensor
Printing Process Laser Beam Scanning/Marking &
Electrophotographic Printing
Toner Dry, Dual Component
System Memory 16 MB/384 MB (LD016)
(std./max.) 128 MB/128 MB (LD016f)
384 MB/384 MB (LD016spf)
Document Feeder Standard 50-sheet ARDF
Copy Resolution 600 x 600 dpi
Grayscale 256 levels
Exposure Adjustment Manual & Automatic
Quantity Indicator Up to 99
Original Type Sheet
Maximum Original Size Up to 8.5" x 14"
Copy Size Up to 8.5" x 14"
Copy Type Plain Paper, Envelopes,
Transparencies (through
Bypass Tray)
Warm-Up Time Less than 10 seconds (LD016)
Less than 30 seconds (LD016f/
LD016spf)
First Copy Speed 7.5 seconds or less
Continuous Copying 16 cpm – Simplex
Speed 9 cpm – Simplex to Duplex
Recovery Time Less than 10 seconds
(from Auto Off)
Power Source 120 V/60 Hz
Dimensions (WxDxH) 19.09" x 17.72" x 19.33"
Weight 59.53 lbs. (LD016)
63.93 lbs. (LD016f/LD016spf)
Standard Paper Capacity 250 sheets x 1 Tray and
100-sheet Multi Bypass Tray
Optional Paper Capacity 500 sheets x 1 Tray
Paper Size 5.5" x 8.5" to 8.5" x 11"
(Standard Tray)
5.5" x 8.5" to 8.5" x 14"
(Bypass Tray)
8.5" x 11" to 8.5" x 14"
(Duplex Unit)
Paper Weight 16 to 24 lb. Bond (Standard Tray)
16 to 42 lb. Bond (Bypass Tray)
20 to 24 lb. Bond (Duplex Unit)
Reduction Ratios 65%, 78%, 93%
Enlargement Ratios 129%, 155%
Zoom 50% to 200% in 1% increments
Standard Features Auto Start, Combine Copy,
Duplex Copying, Electronic Sort,
Photo Mode, Series Copy
(2 sided > 1 sided)
SCANNER SPECIFICATIONS
Scanning Speed Embedded Scan-to-Email:
22 ipm @ 200 dpi B/W
9 ipm @ 200 dpi Color
Scanning Resolution 600 dpi
Grayscale 256 levels
Scan Area 8.5"/216 mm (Main)
14.02"/356 mm (Sub)
Scan Mode Black & White: Text, Text/Line Art,
Text/Photo, Photo, Grayscale
Color: Full-color, Text/Photo,
Glossy Photo
Standard Interfaces 10Base-T/100Base-TX
Optional Interfaces IEEE 802.11b
Protocol TCP/IP (Network)
SMTP, POP3 (Sending E-mail)
SMB, FTP, NCP (Scan-to-Folder)
Memory Capacity 384 MB Shared
File Formats Single Page TIFF, PDF, JPEG
Multi Page TIFF, PDF
Standard Features Duplex Scanning,
Embedded Scan-to-Email/Folder
PRINTER SPECIFICATIONS
Print Speed 16 ppm
CPU RM5231A 400 MHz
Standard Interfaces 10Base-T/100Base-TX, USB 2.0
Optional Interfaces IEEE 1284, IEEE 802.11b, Bluetooth™
Memory Capacity 384 MB Shared
Network Protocol TCP/IP (Ipv4, Ipv6), IPX/SPX,
AppleTalk
Network Operating Windows®9x/2000/NT4.0/Me/XP/
Systems Server 2003
Utilities SmartDeviceMonitor™
Web SmartDeviceMonitor™
Web Image Monitor™
DeskTopBinder™V5 Lite
Page Description RPCS™, PCL5e/6 (Standard),
Languages Adobe®Postscript®3™(Optional)
Print Resolution 600 x 600 dpi, 300 x 300 dpi
Fonts for PCL 5e/6 35 Intelli fonts, 10 TrueType Fonts,
13 International Fonts
Fonts for PS3 136 Roman Fonts
Standard Features Duplex Printing,
Encryption/Encoding* Layout (N-Up)
User Authentication*, User ID
Watermarks
*RPCS and PCL only.
FAX SPECIFICATIONS
Circuit PSTN, PBX
Compatibility ITU-T G3
Resolution 200 x 100/200/400 dpi
Compression Method MH, MR, MMR, JBIG
Scanning Speed 2.0 seconds (SEF)
Modem Speed 33.6Kbps with Auto Fallback
Transmission Speed 2 seconds (JBIG)
Memory 4 MB (320 pages)
Memory Backup 12 hours
Quick Dials 16 (out of 150 speed dials)
Speed Dials 150
Group Dials 10 (max. 100 numbers per group)
ID Code Programming 4 digits
User Function Key 3 keys
Standard Features Dual Access, 12 Hour Backup, Serial
Broadcasting
OPTIONS
PS480 (500 sheets x 1) Paper Bank
Paper Size 8.5" x 11" SEF, 8.5" x 14" SEF
Paper Weight 16 to 24 lb. Bond
Paper Capacity 1 x 500 sheets
Printer Scanner Unit Type 161
Bundled Software includes: DeskTopBinder™V5 Lite
Adobe®PostScript®3™Unit Type 161
IEEE 1284 Interface Board Type A
IEEE 802.11b Interface Unit Type H
Data Transmission Speeds 1/2/5.5/11 Mbps
Protocol TCP/IP
Connection Types Ad Hoc Mode
Infrastructure Mode
Distance Between Devices 151 to 1,300 feet
(140 to 400 meters)
Bluetooth™Interface Unit Type 3245
Data Transmission Speeds 1 Mbps
Supported OS Windows®XP, 2000, 98, SE, Me
Distance Between Devices 33 feet (10 meters)
Handset Type 1018
www.lanier.com
Lanier Worldwide, Inc. 2300 Parklake Drive NE, Atlanta, GA 30345
©2007 Lanier Worldwide, Inc. All rights reserved. Windows®and Windows®95/98/Me/NT4.0/2000/XP are registered trademarks of Microsoft Corporation. Macintosh®, Mac®OS and AppleTalk®are registered trademarks of Apple
Computer, Inc. Adobe®and PostScript®are registered trademarks of Adobe Systems, Inc. PCL®is a registered trademark of Hewlett-Packard Company. RPCS™ is a trademark of Ricoh Company, Ltd. All other trademarks are the
property of their respective owners. Print speed may be affected by network, application or PC performance. Specifications and external appearances are subject to change without notice. Products are shown with optional features.
Lanier, a world of difference
The Lanier philosophy is embodied in Customer Vision®: a commitment we make every day. It means
seeing the business through your eyes, responding to your needs, and exceeding your expectations.
