Lanta Fireball Par64 Quad User guide

Owner Handbook
Fireball Par64 Quad™
Four Colour LED Par Can

© Lanta Lighting™ 2006-2011. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Quad™
For your Safety
• Follow all instructions to maintain Manufacturer Warranty and for your own safety.
• There are no user replacement parts inside the product. Do not open the product for
any reason. This will invalidate your Manufacturer Warranty and may impair the safety
features of the product.
• Do not expose this product to moisture, rain or other fluids.
• Do not use this product near water or other fluids.
• Do not use if the product if you suspect it has been damaged in any way, including
being dropped, is malfunctioning, or has been exposed to liquids or moisture. The unit
must be repaired by an authorised service centre only. Manufacturer Warranty is void
if unit is opened or adapted in any way. Operator safety may be compromised if this
product is not operated and maintained in accordance with the details contained in
this Owner Handbook.
• This appliance must be earthed. Do not remove the earth connection in the plug or
any other location- it is essential for user safety.
• Be aware that products are mains powered and may be capable of producing high
voltages from its outputs and has mains voltages inside the cabinet.
Product Installation, Use & Maintenance
• Keep this Owner Handbook safe for future reference.
• Clean the product with a clean and dry, non-abrasive cloth. Do not use solvents or
liquids to clean the product.
• To prevent overheating, do not obstruct any ventilation opening, fan cover or vent. Do
not install near any sources of heat such as radiators, heaters, other heat producing
items such as amplifiers, power units etc.
• Power connection to the product is via a UK 240 Volt AC three-pin mains plug. Do not
remove or adapt this plug. If necessary, only replace the plug top fuse with one of the
same type, size and value.
• The mains lead must not be crushed or damaged. If any damage occurs, disconnect
from the mains immediately. Replace the damaged cable, or if the mains lead is
captive, return the product to an authorised repair centre for cable replacement. Do
not attempt to repair the cable - it must be discarded and destroyed.
• To maintain the Manufacturer Warranty, only attach authorised accessories and external
devices. This includes cables, connectors and other electrical and/or mechanical
devices.
• Unplug the product from the mains during lightning storms or periods of mains
fluctuations. If the product is going to be unused for long periods, unplug from the
mains.

© Lanta Lighting™ 2006-2011. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Quad™
Product Quality & Compliance
Products from Lanta Lighting meet all required safety standards in force at the time of
manufacture and are fully compliant with them.
Unpacking & Inspection
• Inspect the packaging before opening. If the packaging appears to have sustained
significant damage, please take extra care before using the product. If you are in any
doubt, consult a suitably qualified professional.
• If you suspect the product has been damaged, do not use it. Return it to your original
supplier without delay.
• Keep all packaging in a safe place for storage or transport in future.
Manufacturer Warranty
• This Manufacturer Warranty is valid in the UK only.
• Lanta Lighting warrants that this product is free from workmanship defects and material
failure during normal use and operation for a period of 12 months from first use or from
original date of sale (whichever is the earliest) providing all of the terms indicated in the
warranty section have been fully complied with.
• Expressly excluded is our liability for any directly connected or indirectly connected item
or items or any consequential loss associated with the failure of the product howsoever
caused.
• If the product has been opened, modified, tampered with, incorrectly connected,
used inappropriately or in conflict with the instructions herein, or the product model
or serial number has been damaged, removed, tampered with, obliterated or made
partly unreadable by any person or persons, the Manufacturer Warranty is irrevocably
null and void.
• No extension, adaption, alteration or modification to the terms of this Manufacturer
Warranty will be permitted, unless expressly authorised in writing (excluding email and
fax) by a Director of Lanta Lighting. Warranty is transferrable during the Warranty period.
For Further Information about Lanta Lighting
Our website can be found at www.lantalighting.com and is available for the benefit
of customers worldwide. Please consult for information, advice and support on this and
other high quality products from Lanta.

© Lanta Lighting™ 2006-2011. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Quad™
About Lanta Lighting™
Based in the UK, Lanta are committed to providing high quality products at cost-effective
prices to the professional lighting market. Since the first product was launched in 2006,
Lanta has established a reputation for reliability, common sense design and customer
support that has become the envy of others.
The Lanta Lighting range includes:-
Professional Lighting
Focussing on the use of LED technology, Lanta offer distinctive lighting effects for install
and mobile applications. From washes to floods, spots to projectors, LED technology now
outperforms traditional lights while at the same time requiring significantly lower power
and generating far less unwanted heat.
Performance Lasers
Recent advances have reduced the costs of Lasers, made them more portable and
brought improved performance and reliability. With step and animation lasers in multi
and single colour formats for mobile DJs and static installs, Lanta promise Lasers that
won’t burn a hole in your pocket.
Atmospheric Effects
When you need special atmospherics effects, Lanta have everything from bubble
machines to fake snow hazers and foggers. There’s also a range of fluids and
consumables specially designed to get the best from the range.
Control Gear
Lightweight and portable, Lanta Control Gear is robust enough to survive life on the road
and smart enough to control DMX kit whatever the venue.
Visit us at www.lantalighting.com for more details.

© Lanta Lighting™ 2006-2011. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Quad™
Getting to know your Lanta Product
Adding a fourth dimension to the tri-colour concept, Lanta’s Fireball Par64 Quad™ mixes
pure white colours into the traditional red, green and blue mix. Delicate and subtle pastels
and intense whites can now be added into the full colour spectrum for flexibility in any
venue. And with eighteen individual 8w LEDs, long service life, low energy consumption
and minimal maintenance are givens. The twin yoke bracket allows the unit to be floor
mounted for front of stage work or rigged on high blending with other cans. As you’d
expect, control is from on board presets, ambient sound and 4, 5 or 8 channel DMX
control.
LEDs 18 x 8w Quad-colour
DMX Control 4, 5 or 8 Channel
Control Connections 3 Pin Female XLR socket, 3 Pin Male XLR socket
Power Requirement 240 Volt AC 50/60Hz
Power Consumption 150 Watts
Dimensions W x D x H 310mm x 230mm x 230mm
Weight 2.1Kg

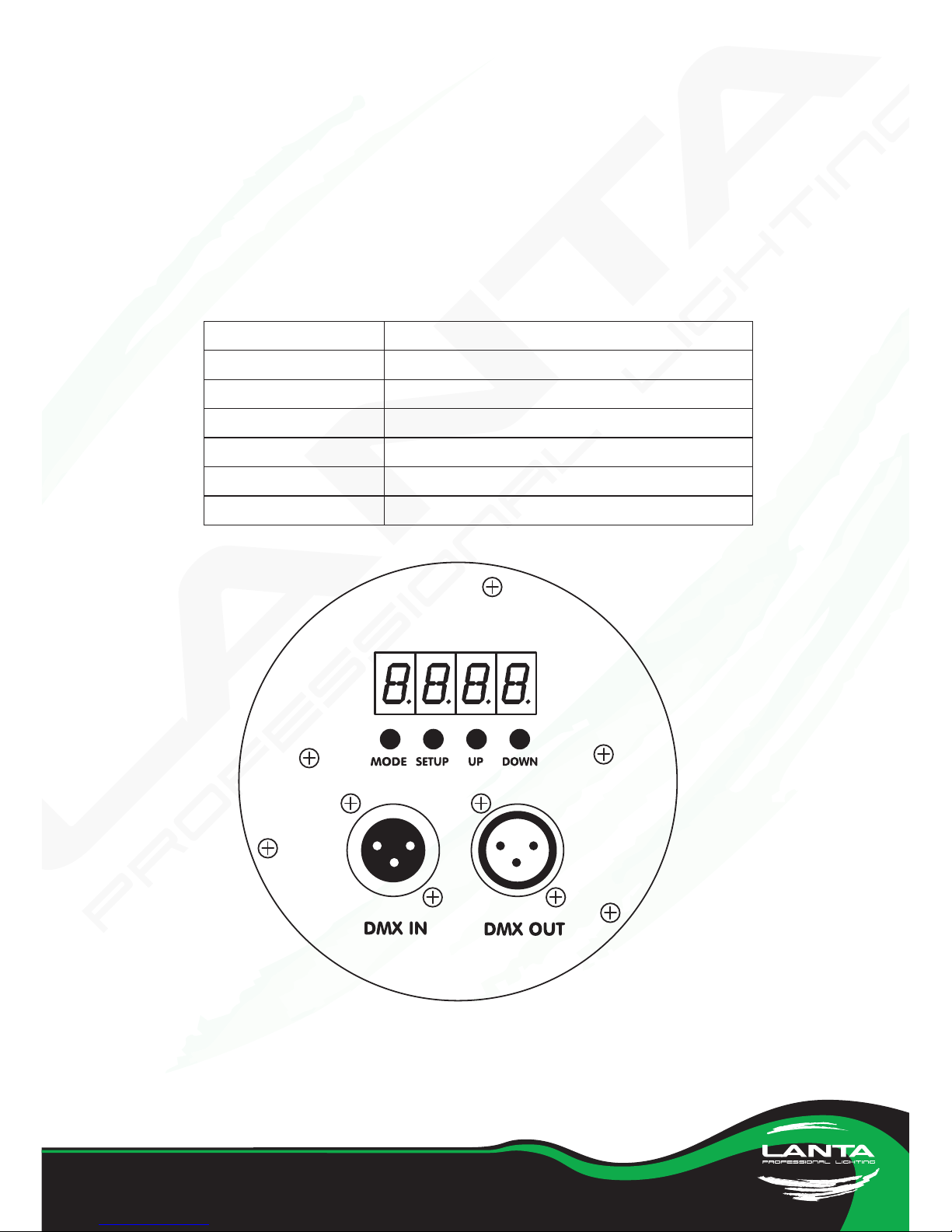

Rear Panel

© Lanta Lighting™ 2006-2011. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Quad™
Operating Modes
Five distinct operating modes are supported by the unit. To select, use the “MODE” button to enter
the menu. The “SETUP” button steps through specific settings for each operating mode and the “UP”
and “DOWN” buttons chooses from the values available.
1- In-built Program Mode
An in-built Effects is run. LED Display will show values from “Pr.01” to “Pr.11”. Effects are;
LED Display Shows Effect
Pr.01 Static Colours
Pr.02 RGBWCMY Fade Through Black
Pr.03 RGBW Fade Through Black
Pr.04 RGBWCMY Jump
Pr.05 RGBW Jump
Pr.06 RGBWCMY Fade 1
Pr.07 RGBWCMY Fade 2
Pr.08 Red Fade
Pr.09 Green Fade
Pr.10 Blue Fade
Pr.11 White Fade
Static Colours (Pr.01 Only)
With LED Display at “Pr.01”, press “SETUP”. “UP” & “DOWN” buttons choose these options;
LED Display Shows Colour Mix
1--r Red
2-r9 Yellow
3--9 Green
4-9g Light Blue
5--6 Dark Blue
6-r6 Purple
7r96 White
8--u Cool White
9-FL Hot White
10ru Pink
119u Light Green
12bu Light Blue
13Yu Light Yellow
14Uu Light Purple
OOOF Off

© Lanta Lighting™ 2006-2011. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Quad™
Colour Intensity (Pr.01 Only)
In this sub-mode the individual intensity of Red, Green, Blue & White channels can be set
for some Programs. With the LED Display reading “Pr.01”, press “SETUP” twice until “rxxx”,
“9xxx”, “bxxx” or “uxxx” is shown. The “UP” and “DOWN” buttons step between available
values of “0” and “255”. Not all intensities can be set for every option. Valid combinations
are;
LED Display
Initially Shows Red Values Green Values Blue Values White Values
1--r 0 to 255 Not Applicable Not Applicable Not Applicable
2-r9 0 to 255 0 to 255 Not Applicable Not Applicable
3--9 Not Applicable 0 to 255 Not Applicable Not Applicable
4-9g Not Applicable 0 to 255 0 to 255 Not Applicable
5--6 Not Applicable Not Applicable 0 to 255 Not Applicable
6-r6 0 to 255 Not Applicable 0 to 255 Not Applicable
7r96 0 to 255 0 to 255 0 to 255 Not Applicable
8--u Not Applicable Not Applicable Not Applicable 0 to 255
9-FL 0 to 255 0 to 255 0 to 255 0 to 255
All other Effects (Pr.02 to Pr.10)
Speed and Flash settings can be individually tailored for some sub-modes. Ensure that
the LED Display reads between “Pr.02” and “Pr.11”.
Speed Setting
Pressing “SETUP” changes the LED display to “SPFL” (for speed). Speed can be set with the
“UP” and “DOWN” buttons between “SP01” (slowest) and “SP99” (fastest).
Flash Frequency
A second press of the “SETUP” button changes the LED display to “FS00” (for flash
frequency). Speed can be set with the “UP” and “DOWN” buttons between “FS01” (approx
0.5Hz) and “FS99” (approx 40Hz).

© Lanta Lighting™ 2006-2011. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Quad™
2- Auto Run Mode
All Static Colours are run one after another in a continuous colour mix loop. To select Auto
Run Mode, use the “MODE” button to choose “AUTO”. Colours are;
3- Slave Mode
The unit will run in synch with another unit that has been set as the Master unit. To select,
use the “MODE” button and choose “SLAu”.
4- Sound Activated Mode
The unit responds to sounds picked up by the built in microphone to create a light show.
To select, use the “MODE” button and choose “SU00”.
Sound Sensitivity
Sensitivity can be set between “SU.00” (least sensitive)and “SU.31” (most sensitive) by using
the “UP” and “DOWN” buttons.

© Lanta Lighting™ 2006-2011. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Quad™
5- DMX Mode
The unit supports 3 distinct DMX control modes from a standard desk.
Setting DMX Addresses
Use the “MODE” button to display “d.001”. “UP” and “DOWN” buttons allows individual
DMX addresses to be set from “d.001” to “d.512”.
Setting ID Addresses (8 Channel DMX mode only)
Use the “MODE” button to display “id.01”. “UP” and “DOWN” buttons allows individual ID
addresses to be set from “id.01” to “id.66”.
Choosing between DMX Modes
Modes are 4 Channel (“4-ch”), 5 Channel (“5-ch”) and 8 Channel (“8-ch”). The LED display
shows the chosen control mode when the “SETUP” button is pressed. Use “UP” and “DOWN”
buttons to choose the appropriate DMX control mode.
LED Display shows DMX Control Mode
4-ch 4 Channel
5-ch 5 Channel
8-ch 8 Channel

© Lanta Lighting™ 2006-2011. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Quad™
DMX Control Channel Settings
The unit supports 4, 5 and 8 Channel DMX control. Settings are as below:-
4 Channel DMX
Channel 1 Channel 2 Channel 3 Channel 4
Red Green Blue White
0 Least Least Least Least
1-100
101-200
201-255 Most Most Most Most
5 Channel DMX
Channel 1 Channel 2 Channel 3 Channel 4 Channel 5
Dimming Red Green Blue White
0 Least Least Least Least Least
1-100
101-200
201-255 Most Most Most Most Most
8 Channel DMX, Channels 1 to 4
Ch1 *Ch2A *Ch2B *Ch2C *Ch2D Ch3 Ch4
Dimming Red Static
Colour
Program
Speed
Sound
Sensitivity
Green Blue
0 Least Least Slowest Least Least Least
1-100
101-200
201-255 Most Most Fastest Most Most Most
* Use Channel 2A (Red) when DMX value of Channel 7 (Control Mode) is 0.
Use Channel 2B (Static Colour) when DMX value of Channel 7 (Control Mode) is 1-22
Use Channel 2C (Program Speed) when DMX value of Channel 7 (Control Mode) is 23-252
Use Channel 2D (Sound Sensitivity) when DMX value of Channel 7 (Control Mode) is 253-255

© Lanta Lighting™ 2006-2011. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Quad™
8 Channel DMX, Channels 5 to 8
Channel 5 Channel 6 *Channel 7 Channel 8
White Strobe Control Mode ID Address
0 Least Red All (ID1 to ID66)
1-9 Static Colour All (ID1 to ID66)
10-19 Static Colour ID1 only
20-22 Static Colour ID2 only
23-29 Pr02 ID2 only
30-39 Pr02 ID3 only
40-45 Pr02 ID4 only
46-49 Pr03 ID4 only
50-59 Pr03 ID5 only
60-68 Pr03 ID6 only
69 Pr04 ID6 only
70-79 Pr04 ID7 only
80-89 Pr04 ID8 only
90-91 Pr04 ID9 only
92-99 Pr05 ID9 only
100-109 Pr05 ID10 only
110-114 Pr05 ID11 only
115-119 Pr06 ID11 only
120-129 Pr06 ID12 only
130-137 Pr06 ID12 only
138-139 Pr07 ID13 only
140-149 Pr07 ID14 only
150-159 Pr07 ID15 only
160 Pr07 ID16 only
161-169 Pr08 ID16 only
170-179 Pr08 ID17 only
180-183 Pr08 ID18 only
184-189 Pr09 ID18 only
190-199 Pr09 ID19 only
200-206 Pr09 ID20 only
207-209 Pr10 ID20 only
210 Pr10 ID21 only
211 Pr10 ID22 only
212-229 Pr10 One ID per DMX setting
230-252 Pr11
253-255 Most 40Hz Sound Activated

www.lantalighting.com
