Fireball Par64 Tri™
Tri-colour LED Par Can

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Tri™
About Lanta Lighting™
Based in the UK, Lanta are committed to providing high quality products at cost-effective
prices to the professional lighting market. Since the first product was launched in 2006,
Lanta has established a reputation for reliability, common sense design and customer
support that has become the envy of others.
The Lanta Lighting range includes:-
Professional Lighting
Focussing on the use of LED technology, Lanta offer distinctive lighting effects for install
and mobile applications. From washes to floods, spots to projectors, LED technology now
outperforms traditional lights while at the same time requiring significantly lower power
and generating far less unwanted heat.
Performance Lasers
Recent advances have reduced the costs of Lasers, made them more portable and
brought improved performance and reliability. With step and animation lasers in multi
and single colour formats for mobile DJs and static installs, Lanta promise Lasers that
won’t burn a hole in your pocket.
Atmospheric Effects
When you need special atmospherics effects, Lanta have everything from bubble
machines to fake flame, hazers and foggers. There’s also a range of fluids and
consumables specially designed to get the best from the range.
Control Gear
Lightweight and portable, Lanta Control Gear is robust enough to survive life on the road
and smart enough to control DMX kit whatever the venue.
Visit us at www.lantalighting.com for more details.

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Tri™
Getting to know your Lanta Product
The Lanta Fireball Par 64 Tri™ Par Can is a lighting fixture featuring tri-colour Red, Green
and Blue LEDs. It has a built in flash & strobe facility and can be sound activated if
required. Features can be DMX controlled from standard desks.
LEDs 18 3w Tri-colour
DMX Control 3 or 5 Channel
Control Connections 3 Pin Female XLR socket, 3 Pin Male XLR socket
Power Requirement 240 Volt AC 50/60Hz
Power Consumption 65 Watts
Dimensions W x D x H 310mm x 230mm x 230mm
Weight 2.1Kg

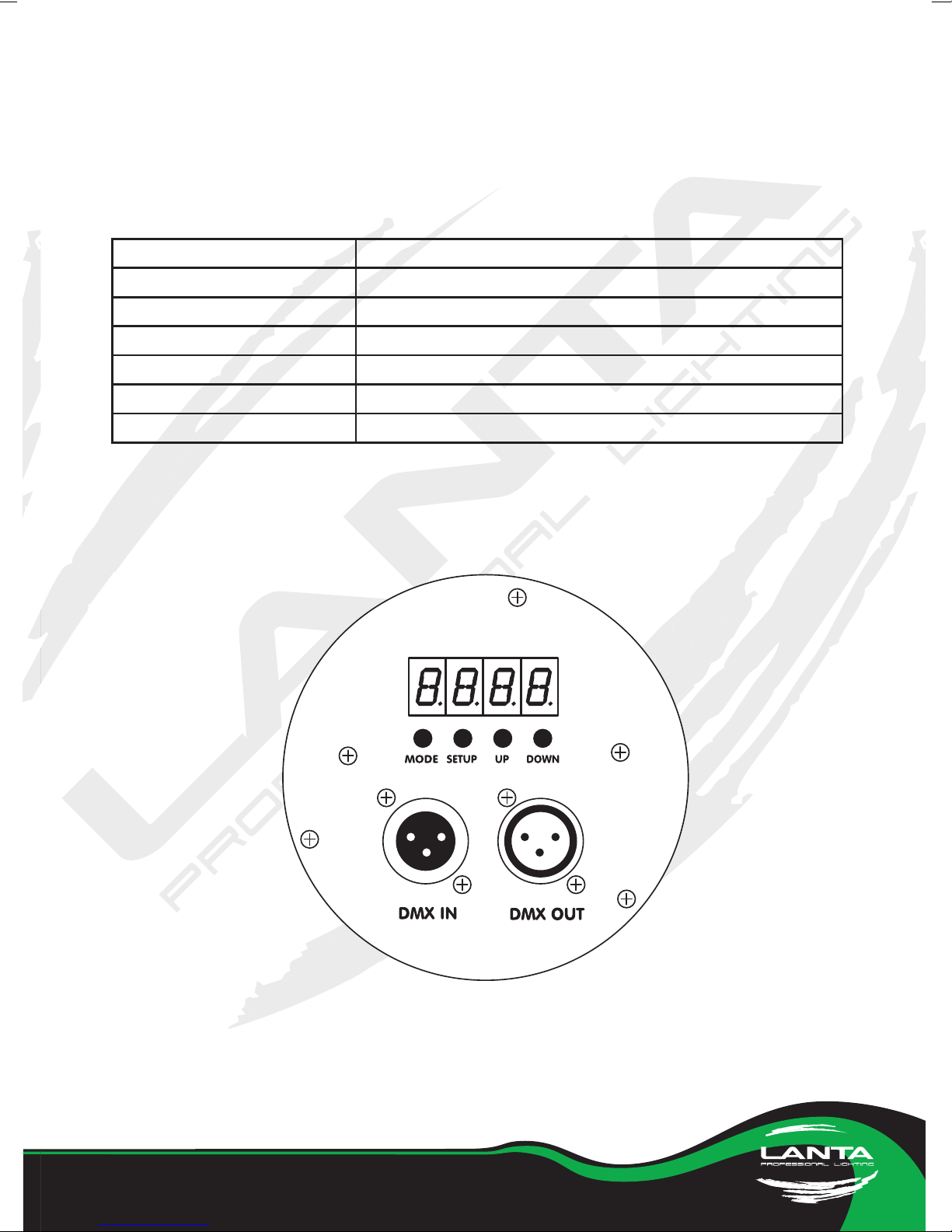

Rear Panel
Rear Panel

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Tri™
Operating Modes
Five distinct operating modes are supported by the unit. To select, use the “MODE” button
to enter the menu. The “SETUP” button steps through specific settings for each operating
mode and the “UP” and “DOWN” buttons chooses from the values available.
1- In-built Program Mode
One of the 7 in-built Effects is run. In this mode the LED Display will show values from “Pr.01”
to “Pr.07”. Effects are;
LED Display Shows Effect
Pr.01 Static Colours
Pr.02 Fading Colours
Pr.03 Jumping Colours
Pr.04 Dreaming Colours
Pr.05 Fading Red
Pr.06 Fading Green
Pr.07 Fading Blue
Static Colours (Pr.01 Only)
In this sub-mode a static colour mix can be chosen. With the LED Display reading “Pr.01”,
press “SETUP” again. The “UP” and “DOWN” buttons step between options. These are;
LED Display Shows Colour Mix
1--h Red
2-hG Yellow
3--G Green
4-G6 Light Blue
5--6 Dark Blue
6-h6 Purple
7hG6 White
8OOF Off

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Tri™
Colour Intensity (Pr.01 Only)
In this sub-mode the individual intensity of Red, Green & Blue channels can be set. With
the LED Display reading “Pr.01”, press “SETUP” twice until “rxxx” “Gxxx” or “bxxx” is shown.
The “UP” and “DOWN” buttons step between available values of “0” and “255”. Not all
intensities can be set for every option. Valid combinations are;
LED Display Initially Shows Red Values Green Values Blue Values
1--h 0 to 255 Not Applicable Not Applicable
2-hG 0 to 255 0 to 255 Not Applicable
3--G Not Applicable 0 to 255 Not Applicable
4-G6 Not Applicable 0 to 255 0 to 255
5--6 Not Applicable Not Applicable 0 to 255
6-h6 0 to 255 Not Applicable 0 to 255
7hG6 0 to 255 0 to 255 0 to 255
8OOF Not Applicable Not Applicable Not Applicable
All other Effects (Pr.02 to Pr.07)
Speed and Flash settings can be individually tailored for some sub-modes. Ensure that
the LED Display reads between “Pr.01” and “Pr.07”.
Speed Setting
Pressing “SETUP” changes the LED display to “SPFL” (for speed). Speed can be set with the
“UP” and “DOWN” buttons between “SP01” (slowest) and “SP99” (fastest).
Flash Frequency
A second press of the “SETUP” button changes the LED display to “FS00” (for flash
frequency). Speed can be set with the “UP” and “DOWN” buttons between “FS01” (approx
0.5Hz) and “FS99” (approx 40Hz).

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Tri™
2- Auto Run Mode
All 7 in-built Static Colours are run one after another in a continuous loop. To select Auto
Run Mode, use the “MODE” button to choose “AUTO”. Colours are;
Colour Mix
Red
Yellow
Green
Light Blue
Dark Blue
Purple
White
Speed Setting
Pressing “SETUP” a second time changes the LED display to “SPFL” (for speed). Speed can
be set with the “UP” and “DOWN” buttons between “SP01” (slowest) and “SP99” (fastest).
Flash Frequency
A final press of the “SETUP” button changes the LED display to “FS00” (for flash frequency).
Speed can be set with the “UP” and “DOWN” buttons between “FS01” (approx 0.5Hz) and
“FS99” (approx 40Hz).
Fade Frequency
A final press of the “SETUP” button changes the LED display to “Fd00” (for fade). Fade
speed can be set with the “UP” and “DOWN” buttons between “Fd01” (slowest) and “Fd99”
(fastest).

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Tri™
3- Slave Mode
The unit will run in synch with another unit that has been set as the Master unit. To select,
use the “MODE” button and choose “SLAu”.
4- Sound Activated Mode
The unit responds to sounds picked up by the built in microphone to create a light show.
To select, use the “MODE” button and choose “SU00”.
Sound Sensitivity
Sensitivity can be set between “SU.00” (least sensitive)and “SU.31” (most sensitive) by using
the “UP” and “DOWN” buttons.

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Tri™
5- DMX Mode
The unit supports 2 distinct DMX control modes from a standard desk.
Setting DMX Addresses
Use the “MODE” button to display “d.001”. “UP” and “DOWN” buttons allows individual
DMX addresses to be set from “d.001” to “d.512”.
Choosing between DMX Modes
Modes are 3 Channel (“d.-P2”) and 5 Channel (“d.-P1”). The LED display shows the chosen
control mode when the “SETUP” button is pressed. Use “UP” and “DOWN” buttons to choose
the appropriate DMX control mode.
LED Display shows DMX Control Mode
d.-P2 3 Channel
d.-P1 5 Channel

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Tri™
DMX Control Channel Settings
The unit supports both 3 and 5 Channel DMX control. Settings are as below:-
3 Channel DMX
Channel 1 * Channel 2A * Channel 2B Channel 3
Program Selection Speed Sound Sensitivity Flash Frequency
0 Fading Colours Slowest Least Sensitive Static
1-39 Fading Colours 0.5Hz
40-79 Jumping Colours
80-118 Dreaming Colours
119-158 Fading Red
159-198 Fading Green
199-238 Fading Blue
239-255 Sound Activated Fastest Most Sensitive 40Hz
* Use Channel 2A (Speed) when Channel 1 DMX setting is from 0-238. Use Channel 2B
(Sound Sensitivity) when DMX setting for Channel 1 is from 239-255
5 Channel DMX
Channel 1 Channel 2 Channel 3 Channel 4 Channel 5
Red Green Blue Master
Dimming
Flash
Frequency
0 Off Off Off Dimmest Static
1-5 Off
6-100 Slowest
101-200
201-254
255 Full On Full On Full On Brightest Fastest

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Tri™
For your Safety
• Follow all instructions to maintain Manufacturer Warranty and for your own safety.
• There are no user replacement parts inside the product. Do not open the product for
any reason. This will invalidate your Manufacturer Warranty and may impair the safety
features of the product.
• Do not expose this product to moisture, rain or other fluids.
• Do not use this product near water or other fluids.
• Do not use if the product if you suspect it has been damaged in any way, including
being dropped, is malfunctioning, or has been exposed to liquids or moisture. The unit
must be repaired by an authorised service centre only. Manufacturer Warranty is void
if unit is opened or adapted in any way. Operator safety may be compromised if this
product is not operated and maintained in accordance with the details contained in
this Owner Handbook.
• This appliance must be earthed. Do not remove the earth connection in the plug or
any other location- it is essential for user safety.
• Be aware that products are mains powered and may be capable of producing high
voltages from its outputs and has mains voltages inside the cabinet.
Product Installation, Use & Maintenance
• Keep this Owner Handbook safe for future reference.
• Clean the product with a clean and dry, non-abrasive cloth. Do not use solvents or
liquids to clean the product.
• To prevent overheating, do not obstruct any ventilation opening, fan cover or vent. Do
not install near any sources of heat such as radiators, heaters, other heat producing
items such as amplifiers, power units etc.
• Power connection to the product is via a UK 240 Volt AC three-pin mains plug. Do not
remove or adapt this plug. If necessary, only replace the plug top fuse with one of the
same type, size and value.
• The mains lead must not be crushed or damaged. If any damage occurs, disconnect
from the mains immediately. Replace the damaged cable, or if the mains lead is
captive, return the product to an authorised repair centre for cable replacement. Do
not attempt to repair the cable - it must be discarded and destroyed.
• To maintain the Manufacturer Warranty, only attach authorised accessories and external
devices. This includes cables, connectors and other electrical and/or mechanical
devices.
• Unplug the product from the mains during lightning storms or periods of mains
fluctuations. If the product is going to be unused for long periods, unplug from the
mains.
Product Quality & Compliance
Products from Lanta Lighting meet all required safety standards in force at the time of
manufacture and are fully compliant with them.

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64 Tri™
Unpacking & Inspection
• Inspect the packaging before opening. If the packaging appears to have sustained
significant damage, please take extra care before using the product. If you are in any
doubt, consult a suitably qualified professional.
• If you suspect the product has been damaged, do not use it. Return it to your original
supplier without delay.
• Keep all packaging in a safe place for storage or transport in future.
Manufacturer Warranty
• This Manufacturer Warranty is valid in the UK only.
• Lanta Lighting warrants that this product is free from workmanship defects and material
failure during normal use and operation for a period of 12 months from first use or from
original date of sale (whichever is the earliest) providing all of the terms indicated in the
warranty section have been fully complied with.
• Expressly excluded is our liability for any directly connected or indirectly connected item
or items or any consequential loss associated with the failure of the product howsoever
caused.
• If the product has been opened, modified, tampered with, incorrectly connected,
used inappropriately or in conflict with the instructions herein, or the product model
or serial number has been damaged, removed, tampered with, obliterated or made
partly unreadable by any person or persons, the Manufacturer Warranty is irrevocably
null and void.
• No extension, adaption, alteration or modification to the terms of this Manufacturer
Warranty will be permitted, unless expressly authorised in writing (excluding email and
fax) by a Director of Lanta Lighting. Warranty is transferrable during the Warranty period.
For Further Information about Lanta Lighting
Our website can be found at www.lantalighting.com and is available for the benefit of
customers worldwide. Please consult for information, advice and support on this and
other high quality products from Lanta.

www.lantalighting.com
