Lanta J72724 User guide

Owner Handbook
Fireball Par64™
LED Par Can

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64™
For your Safety
• Follow all instructions to maintain Manufacturer Warranty and for your own safety.
• There are no user replacement parts inside the product. Do not open the product for
any reason. This will invalidate your Manufacturer Warranty and may impair the safety
features of the product.
• Do not expose this product to moisture, rain or other fluids.
• Do not use this product near water or other fluids.
• Do not use if the product if you suspect it has been damaged in any way, including
being dropped, is malfunctioning, or has been exposed to liquids or moisture. The unit
must be repaired by an authorised service centre only. Manufacturer Warranty is void
if unit is opened or adapted in any way. Operator safety may be compromised if this
product is not operated and maintained in accordance with the details contained in
this Owner Handbook.
• This appliance must be earthed. Do not remove the earth connection in the plug or
any other location- it is essential for user safety.
• Be aware that products are mains powered and may be capable of producing high
voltages from its outputs and has mains voltages inside the cabinet.
Product Installation, Use & Maintenance
• Keep this Owner Handbook safe for future reference.
• Clean the product with a clean and dry, non-abrasive cloth. Do not use solvents or
liquids to clean the product.
• To prevent overheating, do not obstruct any ventilation opening, fan cover or vent. Do
not install near any sources of heat such as radiators, heaters, other heat producing
items such as amplifiers, power units etc.
• Power connection to the product is via a UK 240 Volt AC three-pin mains plug. Do not
remove or adapt this plug. If necessary, only replace the plug top fuse with one of the
same type, size and value.
• The mains lead must not be crushed or damaged. If any damage occurs, disconnect
from the mains immediately. Replace the damaged cable, or if the mains lead is
captive, return the product to an authorised repair centre for cable replacement. Do
not attempt to repair the cable - it must be discarded and destroyed.
• To maintain the Manufacturer Warranty, only attach authorised accessories and external
devices. This includes cables, connectors and other electrical and/or mechanical
devices.
• Unplug the product from the mains during lightning storms or periods of mains
fluctuations. If the product is going to be unused for long periods, unplug from the
mains.

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64™
Product Quality & Compliance
Products from Lanta Lighting meet all required safety standards in force at the time of
manufacture and are fully compliant with them.
Unpacking & Inspection
• Inspect the packaging before opening. If the packaging appears to have sustained
significant damage, please take extra care before using the product. If you are in any
doubt, consult a suitably qualified professional.
• If you suspect the product has been damaged, do not use it. Return it to your original
supplier without delay.
• Keep all packaging in a safe place for storage or transport in future.
Manufacturer Warranty
• This Manufacturer Warranty is valid in the UK only.
• Lanta Lighting warrants that this product is free from workmanship defects and material
failure during normal use and operation for a period of 12 months from first use or from
original date of sale (whichever is the earliest) providing all of the terms indicated in the
warranty section have been fully complied with.
• Expressly excluded is our liability for any directly connected or indirectly connected item
or items or any consequential loss associated with the failure of the product howsoever
caused.
• If the product has been opened, modified, tampered with, incorrectly connected,
used inappropriately or in conflict with the instructions herein, or the product model
or serial number has been damaged, removed, tampered with, obliterated or made
partly unreadable by any person or persons, the Manufacturer Warranty is irrevocably
null and void.
• No extension, adaption, alteration or modification to the terms of this Manufacturer
Warranty will be permitted, unless expressly authorised in writing (excluding email and
fax) by a Director of Lanta Lighting. Warranty is transferrable during the Warranty period.
For Further Information about Lanta Lighting
Our website can be found at www.lantalighting.com and is available for the benefit
of customers worldwide. Please consult for information, advice and support on this and
other high quality products from Lanta.

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64™
About Lanta Lighting™
Based in the UK, Lanta are committed to providing high quality products at cost-effective
prices to the professional lighting market. Since the first product was launched in 2006,
Lanta has established a reputation for reliability, common sense design and customer
support that has become the envy of others.
The Lanta Lighting range includes:-
Professional Lighting
Focussing on the use of LED technology, Lanta offer distinctive lighting effects for install
and mobile applications. From washes to floods, spots to projectors, LED technology now
outperforms traditional lights while at the same time requiring significantly lower power
and generating far less unwanted heat.
Performance Lasers
Recent advances have reduced the costs of Lasers, made them more portable and
brought improved performance and reliability. With step and animation lasers in multi
and single colour formats for mobile DJs and static installs, Lanta promise Lasers that
won’t burn a hole in your pocket.
Atmospheric Effects
When you need special atmospherics effects, Lanta have everything from bubble
machines to fake snow, hazers and foggers. There’s also a range of fluids and
consumables specially designed to get the best from the range.
Control Gear
Lightweight and portable, Lanta Control Gear is robust enough to survive life on the road
and smart enough to control DMX kit whatever the venue.
Visit us at www.lantalighting.com for more details.

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64™
Getting to know your Lanta Product
The Lanta Fireball Par 64™ Par Can is a robust and reliable lighting fixture featuring separate
Red, Green and Blue LEDs. It has a built in flash facility and can be sound activated if
required. Features can be DMX controlled from standard desks.
LEDs 177 total (60 Red, 60 Green, 57 Blue)
DMX Control 5 Channel
Control Connections 3 Pin Female XLR socket, 3 Pin Male XLR socket
Power Requirement 240 Volt AC 50/60Hz
Power Consumption 30 Watts
Dimensions W x D x H 310mm x 210mm x 230mm
Weight 2.1Kg
Fuse
1A/250V

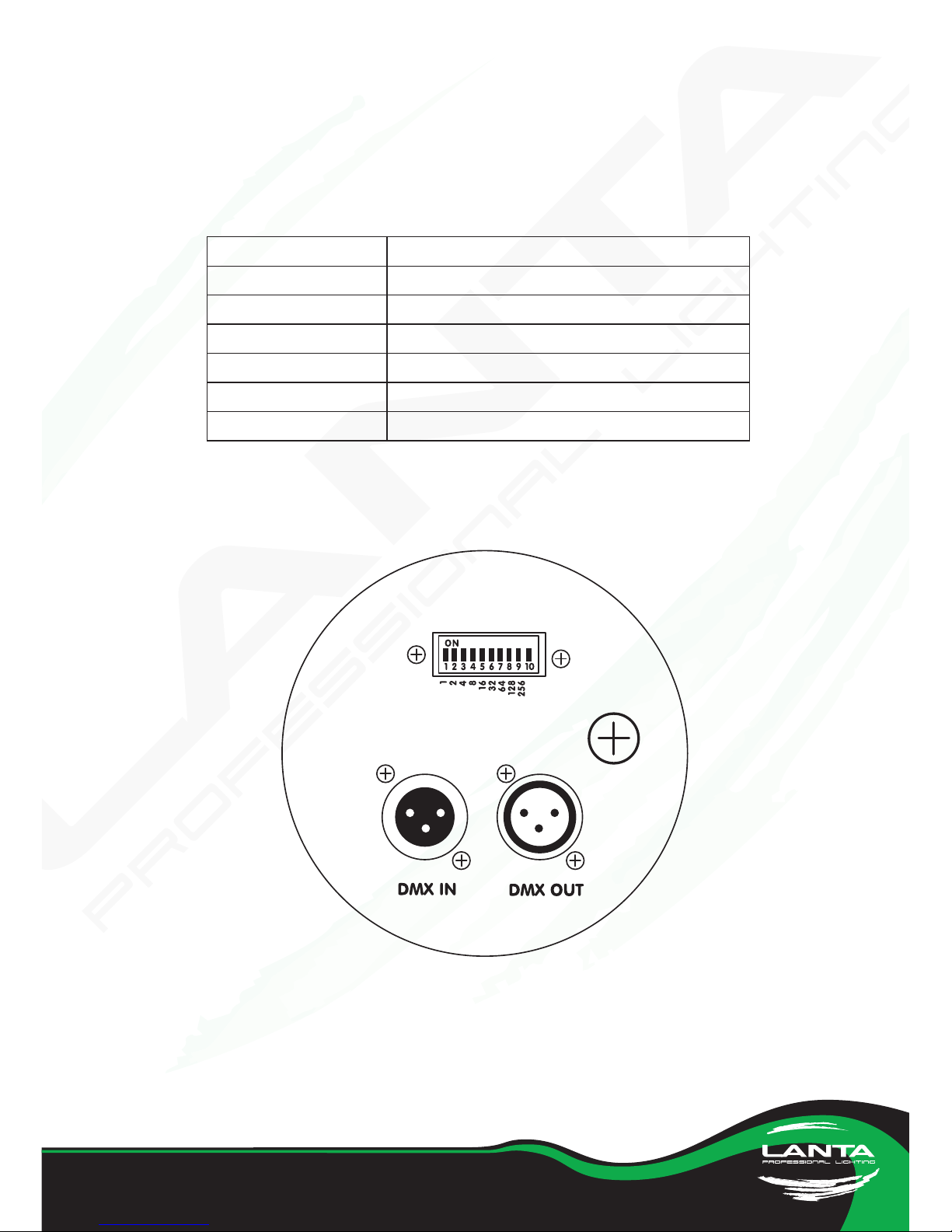

Rear Panel

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64™
Operating Modes
Six distinct operating modes are supported by the unit. To select, use Dip Switches located
on the rear of the unit.

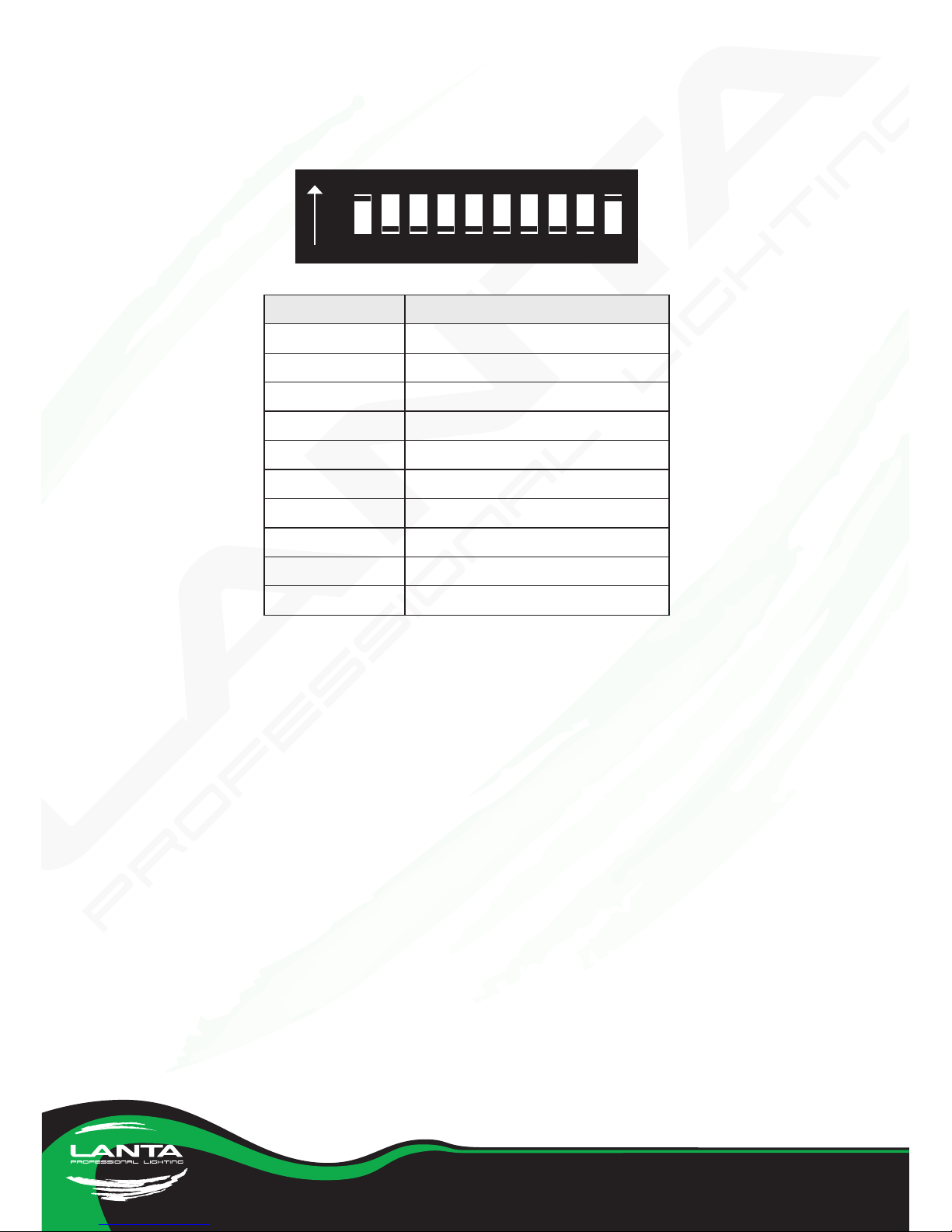

1- Auto Run Mode
A series of seven Colour Effects are projected in continuous sequence. To choose this
mode, rear panel Dip Switch settings are;
1 2 3 4 5 86 7 9 10
ON
Dip Switch Position Effect
1 Off Not applicable
2 Off Not applicable
3 Off Not applicable
4Off Not applicable
5Off Not applicable
6Off Not applicable
7 Any Run Speed
8 Any Run Speed
9 Off Not applicable
10 Off Not applicable
The unit cycles to next Colour Effect in sequence. The colour effects are;
Seq No Colour Effect
1 Red only
2Green only
3Blue only
4 Red & Blue
5 Red & Green
6 Green & Blue
7Red, Green & Blue

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64™
2- Static/Flash Colour Mode
A single or mixed colour is projected with an option to flash the colour at various speeds.
To choose this mode, rear panel Dip Switch settings are;
1 2 3 4 5 86 7 9 10
ON
Dip Switch Position Effect
1 Any Red
2 Any Green
3 Any Blue
4Any Slow Flash (1½ second delay)
5Any Medium Flash (1 second delay)
6Any Fast Flash (½ second delay)
7 Off Not applicable
8 Off Not applicable
9 Off Not applicable
10 Off Not applicable

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64™
3- Sound Control Mode
A single Colour Effect is projected. To choose this mode, rear panel Dip Switch settings
are;
1 2 3 4 5 86 7 9 10
ON
Dip Switch Position
1 Any
2 Any
3 Any
4Any
5Any
6Any
7 Any
8 Any
9 On
10 Off
The unit cycles to next Colour Effect in sequence when a new sound input received.
The colour effects are;
Seq No Colour Effect
1 Red only
2Green only
3Blue only
4 Red & Blue
5 Red & Green
6 Green & Blue
7Red, Green & Blue

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64™
4- Blackout Mode
To choose this mode, rear panel Dip Switch settings are;
1 2 3 4 5 86 7 9 10
ON
Dip Switch Position
1 Off
2 Off
3 Off
4Off
5Off
6Off
7 Off
8 Off
9 Off
10 On

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64™
5- Slave Mode
To choose this mode, rear panel Dip Switch settings are;
1 2 3 4 5 86 7 9 10ON
Dip Switch Position
1 On
2 Off
3 Off
4Off
5Off
6Off
7 Off
8 Off
9 Off
10 On

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Fireball Par64™
6- DMX Control Mode
The unit supports 5 Channel DMX control. To choose this mode, rear panel Dip Switch
settings are;
1 2 3 4 5 86 7 9 10ON
Channel 1 Channel 2 Channel 3 Channel 4 Channel 5
Master
Dimming
Red Green Blue Flash
Frequency
0-11 Dimmest Least Least Least Static
12-24 0.5Hz
25-39
40-54
55-69
70-84
85-99
100-114
115-129
130-144
145-159
160-174
175-189
190-214
215-219
220-234
235-249
250-255 Brightest Most Most Most 40Hz
